Overview

EN IEC 60332-3-25:2018 specifies a standardized fire test for the vertical flame spread of vertically-mounted bunched wires or cables - Category D. It is part of the IEC 60332 series on tests of electric and optical fibre cables under fire conditions and is published by CLC as a group safety publication. This second edition (2018) replaces the 2000 edition and 2008 amendment and adds Category D for very low non-metallic volumes.

Key topics and requirements

• Scope: Applies to small electrical and optical fibre cables with overall diameter ≤ 12 mm and conductor cross-section ≤ 35 mm².
• Test configuration: Cables are mounted in touching formation on the front of the standard test ladder to achieve a nominal total volume of 0.5 l/m of non-metallic material in the test sample.
• Flame application: A defined ignition source is applied for 20 minutes to assess vertical flame spread.
• Measurement: Flame spread is evaluated by the extent of damage to the sample (i.e., how far flame or degradation propagates).
• Purpose: Intended primarily for type approval testing where very low volumes of combustible cable materials must be evaluated.
• Supporting guidance: Annex A provides guidance on cable selection for type approval; Annex B gives recommended performance requirements.
• Reproducibility: The updated edition improves mounting details to enhance test repeatability and reproducibility.

Applications and who uses it

EN IEC 60332-3-25:2018 is used by:

• Cable manufacturers for product development and type approval.
• Independent test laboratories conducting fire-performance testing.
• Certification bodies and compliance engineers assessing cables for safety approvals.
• Specifiers and procurement teams writing fire-safety requirements for electrical and optical cabling.
• Fire safety and system engineers evaluating cable performance in installations where low combustible volume and vertical flame spread are critical.

Typical application areas include building services, industrial installations, transportation and wherever vertical bundles of small-diameter cables might be exposed to fire.

Related standards

• EN/IEC 60332-3-10 (apparatus for vertical flame spread tests)
• Parts EN/IEC 60332-3-21 to -3-24 (other category test methods)
• IEC 60811-606 (tests for non-metallic cable materials)
• ISO 13943 (fire safety vocabulary - bibliographic reference)

EN IEC 60332-3-25:2018 provides a focused, reproducible method to demonstrate a cable’s ability to limit vertical flame spread in low-volume cable bundles - essential for type approval, safety assessments and regulatory compliance.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2018
1DGRPHãþD
SIST EN 60332-3-25:2010
3UHVNXVLQDHOHNWULþQLKNDEOLKLQNDEOLKL]RSWLþQLKYODNHQYSRåDUQLKUD]PHUDK
GHO3UHVNXVQDYSLþQHJDãLUMHQMDRJQMDSRQDYSLþQRSULWUMHQLKVQRSLKåLFDOL
NDEORY.DWHJRULMD',(&
Tests on electric and optical fibre cables under fire conditions - Part 3-25: Test for
vertical flame spread of vertically-mounted bunched wires or cables - Category D (IEC
60332-3-25:2018)
Prüfungen an Kabeln, isolierten Leitungen und Glasfaserkabeln im Brandfall - Teil 3-25:
Prüfung der Flammenausbreitung von vertikal angeordneten Bündeln von Kabeln und
isolierten Leitungen - Prüfart D (IEC 60332-3-25:2018)
Essais des câbles électriques et des câbles à fibres optiques soumis au feu - Partie 3-
25: Essai de propagation verticale de la flamme des fils ou câbles montés en nappes en
position verticale - Catégorie D (IEC 60332-3-25:2018)
Ta slovenski standard je istoveten z: EN IEC 60332-3-25:2018
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60332-3-25

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2018
ICS 13.220.40; 29.020; 29.060.20 Supersedes EN 60332-3-25:2009
English Version
Tests on electric and optical fibre cables under fire conditions -
Part 3-25: Test for vertical flame spread of vertically-mounted
bunched wires or cables - Category D
(IEC 60332-3-25:2018)
Essais des câbles électriques et des câbles à fibres Prüfungen an Kabeln, isolierten Leitungen und
optiques soumis au feu - Partie 3-25: Essai de propagation Glasfaserkabeln im Brandfall - Teil 3-25: Prüfung der
verticale de la flamme des fils ou câbles montés en nappes Flammenausbreitung von vertikal angeordneten Bündeln
en position verticale - Catégorie D von Kabeln und isolierten Leitungen - Prüfart D
(IEC 60332-3-25:2018) (IEC 60332-3-25:2018)
This European Standard was approved by CENELEC on 2018-08-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60332-3-25:2018 E

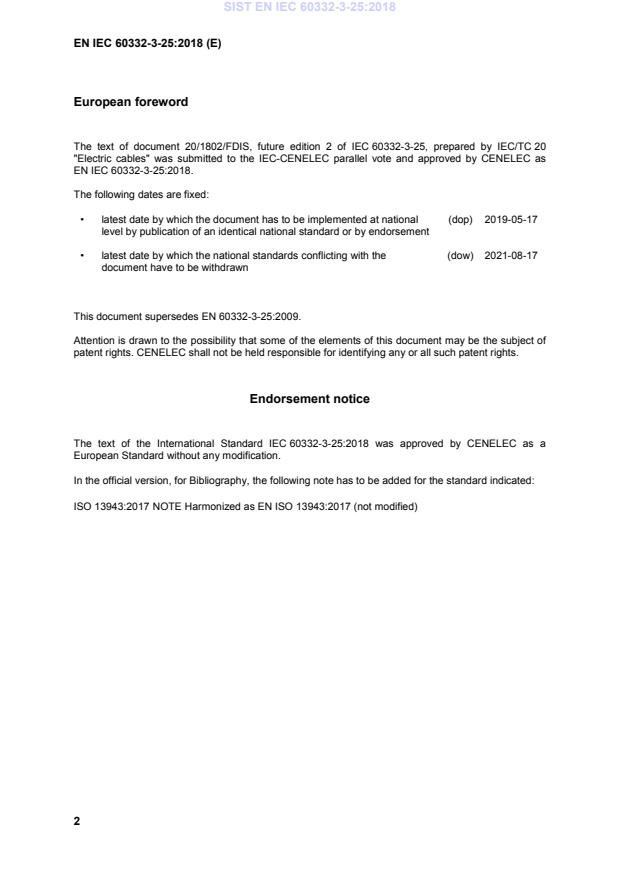

European foreword
