Multimedia home server systems - Conceptual model for digital rights management

IEC/TS 62224:2013(E) explains the conceptual model of the protocol specification to exchange license information between DRM modules. This Technical Specification also outlines which models should be defined as standard models as well as the standard meanings (mainly from the viewpoint of information security in the environment, including home server systems). This second edition cancels and replaces the first edition published in 2007 and constitutes a technical revision. It includes the following technical changes:
- the Diffie-Hellman method concerning Secure license transaction protocol (SLTP) model has been added,
- the Protected Content Format (PCF) model which is dependent on each service has been deleted,
- a description related to IEC 62227 has been added,
- the classification of certification authority has been added.

General Information

Status
Published
Publication Date
09-Jul-2013
Current Stage
PPUB - Publication issued
Completion Date
10-Jul-2013
Ref Project

Buy Standard

Technical specification
IEC TS 62224:2013 - Multimedia home server systems - Conceptual model for digital rights management
English language
29 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC/TS 62224
Edition 2.0 2013-07
TECHNICAL
SPECIFICATION
colour
inside
Multimedia home server systems – Conceptual model for digital rights
management
IEC/TS 62224:2013(E)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2013 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester.

If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
Useful links:

IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org

The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and

by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and

committee,…). definitions in English and French, with equivalent terms in

It also gives information on projects, replaced and additional languages. Also known as the International

withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc

Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication

details all new publications released. Available on-line and or need further assistance, please contact the

also once a month by email. Customer Service Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC/TS 62224
Edition 2.0 2013-07
TECHNICAL
SPECIFICATION
colour
inside
Multimedia home server systems – Conceptual model for digital rights
management
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
ICS 33.160.60; 35.100.01 ISBN 978-2-8322-0927-1

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – TS 62224 © IEC:2013(E)

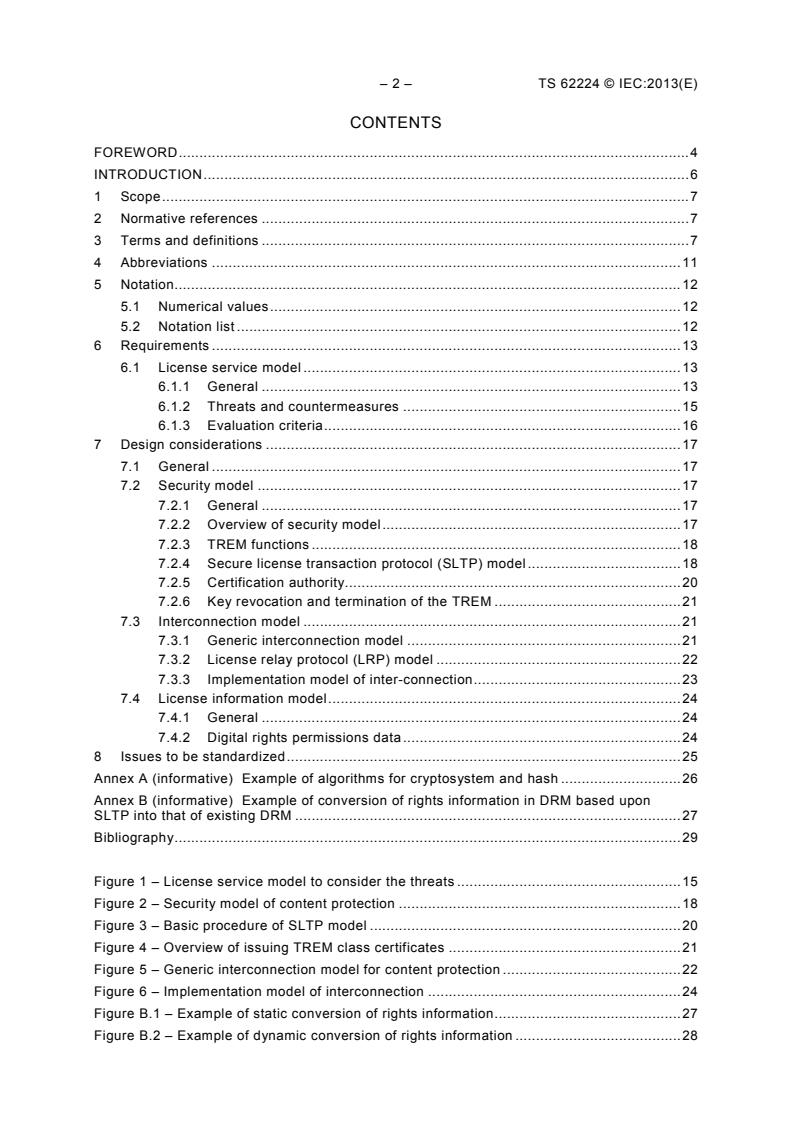

CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope ............................................................................................................................... 7

2 Normative references ....................................................................................................... 7

3 Terms and definitions ....................................................................................................... 7

4 Abbreviations ................................................................................................................. 11

5 Notation.......................................................................................................................... 12

5.1 Numerical values ................................................................................................... 12

5.2 Notation list ........................................................................................................... 12

6 Requirements ................................................................................................................. 13

6.1 License service model ........................................................................................... 13

6.1.1 General ..................................................................................................... 13

6.1.2 Threats and countermeasures ................................................................... 15

6.1.3 Evaluation criteria ...................................................................................... 16

7 Design considerations .................................................................................................... 17

7.1 General ................................................................................................................. 17

7.2 Security model ...................................................................................................... 17

7.2.1 General ..................................................................................................... 17

7.2.2 Overview of security model ........................................................................ 17

7.2.3 TREM functions ......................................................................................... 18

7.2.4 Secure license transaction protocol (SLTP) model ..................................... 18

7.2.5 Certification authority................................................................................. 20

7.2.6 Key revocation and termination of the TREM ............................................. 21

7.3 Interconnection model ........................................................................................... 21

7.3.1 Generic interconnection model .................................................................. 21

7.3.2 License relay protocol (LRP) model ........................................................... 22

7.3.3 Implementation model of inter-connection .................................................. 23

7.4 License information model ..................................................................................... 24

7.4.1 General ..................................................................................................... 24

7.4.2 Digital rights permissions data ................................................................... 24

8 Issues to be standardized ............................................................................................... 25

Annex A (informative) Example of algorithms for cryptosystem and hash ............................. 26

Annex B (informative) Example of conversion of rights information in DRM based upon

SLTP into that of existing DRM ............................................................................................. 27

Bibliography .......................................................................................................................... 29

Figure 1 – License service model to consider the threats ...................................................... 15

Figure 2 – Security model of content protection .................................................................... 18

Figure 3 – Basic procedure of SLTP model ........................................................................... 20

Figure 4 – Overview of issuing TREM class certificates ........................................................ 21

Figure 5 – Generic interconnection model for content protection ........................................... 22

Figure 6 – Implementation model of interconnection ............................................................. 24

Figure B.1 – Example of static conversion of rights information ............................................. 27

Figure B.2 – Example of dynamic conversion of rights information ........................................ 28

---------------------- Page: 4 ----------------------
TS 62224 © IEC:2013(E) – 3 –

Table 1 – Expression of numerical values ............................................................................. 12

Table 2 – Notations used in this model ................................................................................. 12

Table 3 – Threats and countermeasures in the license service model ................................... 16

---------------------- Page: 5 ----------------------
– 4 – TS 62224 © IEC:2013(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MULTIMEDIA HOME SERVER SYSTEMS –
CONCEPTUAL MODEL FOR DIGITAL RIGHTS MANAGEMENT
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in

addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses

arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In exceptional

circumstances, a technical committee may propose the publication of a technical specification

when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical specifications are subject to review within three years of publication to decide whether

they can be transformed into International Standards.

IEC 62224, which is a technical specification, has been prepared by technical area 8:

Multimedia home server systems of IEC technical committee 100: Audio, video and multimedia

systems and equipment.

This second edition cancels and replaces the first edition published in 2007 and constitutes a

technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
---------------------- Page: 6 ----------------------
TS 62224 © IEC:2013(E) – 5 –

a) the Diffie-Hellman method concerning Secure license transaction protocol (SLTP) model has

been added,

b) the Protected Content Format (PCF) model which is dependent on each service has been

deleted,
c) a description related to IEC 62227 has been added,
d) the classification of certification authority has been added.
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
100/2005/DTS 100/2060/RVC

Full information on the voting for the approval of this technical specification can be found in the

report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until the

stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to

the specific publication. At this date, the publication will be
• transformed into an International Standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – TS 62224 © IEC:2013(E)
INTRODUCTION

Due to the recent trends in the rapid popularization of mobile phones and the Internet as well as

the realization of high-speed data transmission and large-volume data recording media, a high

quality content distribution and ubiquitous information services are making progress and a new

type of information distribution and network sharing service has gradually emerged into the

market. It is capable of utilizing terabyte class home servers in private homes, also.

Under these circumstances, in distribution of content over shared networks, it is crucial to

establish digital rights management (DRM) technologies to protect the content from illegal

copying and usage. These matters have emerged as important social issues.

The targets of management by DRM technology are these digital licenses, such as copyrights.

Essentially, these licenses should not only be protected but also promote re-creativity and

should be broadly used as the property shared by the human race. Thus, the licenses with these

characteristics should be managed and protected by a DRM system that follows open

interoperable specifications shared throughout the world.

An open interoperable specification that follows this technical specification is able to construct

highly expandable PKI based DRM targeting usage between systems, considering the

expansion of recent content distribution services and clients (console type AV equipment, PC,

mobile phone terminal, automotive telematics terminal, and so on). This technical specification

gives protocol specifications for the exchange of license information between the DRM module,

the description of specifications for license information and encrypted contents format.

During the development of this model, much consideration was given to the usage of contents in

consumer electronics equipment connected with home servers. In addition, particular attention

was given to distribution, storage exchange and usage of content between distribution servers

and the client destination system, allowing for conditions approved by the rights holder, but

nevertheless without loss of convenience for the users. The standardization and its

popularization based on this model will enable inter-connection between DRM modules allowing

strong contents protection in various content network sharing systems or content distribution

services over the Internet and mobile phone networks.
---------------------- Page: 8 ----------------------
TS 62224 © IEC:2013(E) – 7 –
MULTIMEDIA HOME SERVER SYSTEMS –
CONCEPTUAL MODEL FOR DIGITAL RIGHTS MANAGEMENT
1 Scope

This Technical Specification explains the conceptual model of the protocol specification to

exchange license information between DRM modules. This Technical Specification also outlines

which models should be defined as standard models as well as the standard meanings (mainly

from the viewpoint of information security in the environment, including home server systems).

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.
IEC 62227:2008, Multimedia home server systems – Digital rights permission code
Amendment 1:2012

ISO/IEC 7498-1:1994, Information technology – Open Systems Interconnection – Basic

Reference Model: The Basic Model
ISO/IEC 9594-8:2008, Information technology – Open Systems Interconnection – The
Directory:Public-key and attribute certification framework

ISO/IEC 15408-1:2009, Information technology – Security techniques – Evaluation criteria for

IT security – Part 1: Introduction and general model
ITU-T Recommendation X.509:1997, Information technology – Open systems intercon-
nection – The Directory: Public-key and attribute certificate frameworks

RFC 3280 R. Housley (RSA Laboratories), W. Ford (VeriSign), W. Polk (NIST), D. Solo (Citicorp),

Request for Comments: 3280 – Internet X.509 Public Key Infrastructure Certificate and

Certificate Revocation List (CRL) Profile, Category: Standards Track (April 2002),

http://rfc.slim.summitmedia.co.uk/rfc2380.html
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO/IEC 9594-8:2008, as

well as the following apply.
3.1
access condition
information that describes the content usage conditions

Note 1 to entry: The access condition represents the conditional rules that restrict user ability to manipulate the

content information and is a part of authorization information in the license for the content.

3.2
certificate policy

named set of rules that indicates the applicability of a certificate to a particular community and/or

class of application with common security requirements
---------------------- Page: 9 ----------------------
– 8 – TS 62224 © IEC:2013(E)

EXAMPLE A particular certificate policy might indicate applicability of a type of certificate to the authentication of

electronic data interchange transactions for the trading of goods within a given price range.

[SOURCE: ISO/IEC 9594-8:2008, 3.4.10, modified, i.e. aligned to new requirements for terms

and definitions.]
3.3
certification authority

authority trusted by one or more users to create and assign public-key certificates

Note 1 to entry: Optionally the certification authority may create the users' keys.

[SOURCE: ISO/IEC 9594-8:2008, 3.4.17, modified, i.e. aligned to new requirements for terms

and definitions.]
3.4
certificate revocation list
certification authority revocation list
CARL

revocation list containing a list of public-key certificates issued to certification authorities that

are no longer considered valid by the certificate issuer
[SOURCE: ISO/IEC 9594-8:2008, 3.4.18]
3.5
content identifier

identifier which is a unique value assigned to each content that is a unit of information provided

by the content holder
3.6
content key
content encryption key unique to each content
Note 1 to entry: A content key is a key under the symmetric key cryptosystem.
3.7
data concatenation
concatenation of two bit-streams into a single bit-stream

Note 1 to entry: The first bit of the second original stream is next to the last bit of the first original stream.

3.8
decoder TREM
TREM in which encrypted content can be decrypted and played
3.9
destination TREM
TREM receiving a license
3.10
digital rights management

technology or functions to protect rights relating with digital content, for example, copyright, or

system, or module that provide these functions

Note 1 to entry: Inside this system or module it manages content access conditions and behaves under these

conditions.
---------------------- Page: 10 ----------------------
TS 62224 © IEC:2013(E) – 9 –
3.11
encrypted content

encrypted content data with its related meta data, such as broadcasting content, download

content, streaming content, and so on
3.12
entry TREM

TREM that has the function of generating a new license according to indication from outside and

behaves as a source TREM

Note 1 to entry: An entry TREM is inside the license distribution server, and so on.

3.13
hash function

mathematical function which maps values from a large (possibly very large) domain into a

smaller range

Note 1 to entry: A "good" hash function is such that the results of applying the function to a (large) set of values in the

domain will be evenly distributed (and apparently at random) over the range.

[SOURCE: ISO/IEC 9594-8:2008, 3.4.35, modified, i.e. aligned to new requirements for terms

and definitions]
3.14
license

information including one or more content keys and authorization information like access

conditions, etc.

Note 1 to entry: If it is outside a TREM, it shall be a protected license, which is protected with session key generated

in accordance with SLTP.
3.15
license identifier
identifier which is a unique value assigned to each license
3.16
license move
moving of a license from one TREM to another

Note 1 to entry: Once the license is moved, the license is deleted from the source TREM. A license move with the

encrypted content copy equals a content move.
3.17
license relay module
LRM

system or module that relays a protected license between TREMs through an SLTP session

Note 1 to entry: LRM is an endpoint of an LRP connection and has the function of controlling internal bus and network

in order to relay the protected license via the LRP connection.
3.18
license relay protocol
LRP
protocol between LRMs

Note 1 to entry: Over this protocol, secure license transaction protocol (SLTP) is realized for the Internet environment.

For the SLTP, the LRP provides functions of transaction management, restart of disconnected SLTP session, protocol

negotiation, and transfer of information relating with user authentication or accounting management.

---------------------- Page: 11 ----------------------
– 10 – TS 62224 © IEC:2013(E)
3.19
license server

server system that has a TREM and the LRM which mediates the transmission of a license

issued by the TREM
3.20
license transaction
unit of processing to distribute, move or copy a license

Note 1 to entry: For each transaction, the different resources are assigned and managed.

3.21
license transfer
moving or copying a license from the TREM to the other TREM
3.22
mediator TREM
TREM that mediates license transfer as a main role
Note 1 to entry: It has both roles as destination and source TREMs.
3.23
protected license
license information protected to transfer between TREMs

Note 1 to entry: A protected license includes encrypted content keys and protected authorization information.

3.24
public key cryptosystem
cryptosystem in which encryption key and decryption key are different

Note 1 to entry: When concealing the data, the key used for encryption is publicly distributed. RSA and elliptic curve

cryptosystem are well known as public key cryptosystems.
3.25
secure license transaction protocol
SLTP
protocol to transfer license information securely between TREMs

Note 1 to entry: This protocol consists of formats of the information exchanged between TREMs and a state transition

specification of the TREM, which shall be implemented.
3.26
session private key

temporary private key which is used to share a session symmetric key between TREMs at each

SLTP session
3.27
session public key

temporary public key which is used to share session symmetric key between TREMs at each

SLTP session
3.28
session symmetric key
temporary symmetric key shared between TREMs at each SLTP session
3.29
SLTP session

secure session generated between TREMs according to the SLTP in order to transfer license

Note 1 to entry: Each SLTP session has a session symmetric key shared by both sides of the TREMs.

---------------------- Page: 12 ----------------------
TS 62224 © IEC:2013(E) – 11 –
3.30
source TREM
role of a TREM as a TREM issuing a license
3.31
symmetric key cryptosystem
cryptosystem in which the same key is used to encrypt and decrypt the data

Note 1 to entry: Advanced Encryption Standard (AES) standardized by NIST in the U.S.A. is a well-known symmetric

key cryptosystem.
3.32
tamper resistant module
TRM

module to protect from analysis or modification of information and its processing

Note 1 to entry: See [FIPS 140-2].
3.33
tamper resistant rights enforcement module
TREM
system or module which has functions of digital rights management

Note 1 to entry: TREM is structured as a tamper resistant module. TREM has functions to enforce rights, manage

license and process the license transfer according to SLTP.
3.34
transaction identifier
identifier that is assigned to each license transaction
3.35
transaction log

log data representing the status of a license transfer transaction and the license issued in that

transaction
Note 1 to entry: It is securely stored in the TREM.
3.36
TREM private key
TREM individual private key
key kept privately by each TREM individually
3.37
TREM public key
TREM individual public key
public key corresponding to a TREM (individual) private key
4 Abbreviations
AES Advanced Encryption Standard
CA Certification Authority
CCI Copy Control Information
CRL Certificate Revocation List
DES Data Encryption Standard
DRM Digital Rights Management
EC-DH Elliptic Curve key agreement scheme, Diffie-Hellman
EC-DSA Elliptic Curve verification primitive, DSA version
---------------------- Page: 13 ----------------------
– 12 – TS 62224 © IEC:2013(E)
ID IDentifier
LRM License Relay Module
LRP License Relay Protocol
PCF Protected Content Format
SLTP Secure License Transaction Protocol
T-DES Triple DES
TID Transaction IDentifier
TREM Tamper-resistant Rights Enforcement Module
TRM Tamper Resistant Module
5 Notation
5.1 Numerical values

In this Technical Specification, the following expressions of numerical values are used as shown

in Table 1.
Table 1 – Expression of numerical values
Binary (BIN) Decimal (DEC) Hexadecimal (HEX)
Letters used for value '0' ∼ '1' '0' ∼ '9' '0' ∼ '9', 'A' ∼ 'F'
Appended letter Nothing (or 'b') nothing 'h'
11001000
Example 200 C8h
(or 11001000b)
5.2 Notation list
This Technical Specification uses the following notations as shown in Table 2.
Table 2 – Notations used in this model
Name Expression Description
Encryption E (K, D) The result of encryption of information ‘D’ with a key ‘K’
Hash H (D) The result of hash of information ‘D’
Concatenation A || B The result of data concatenation of ‘A’ and ‘B’
Content key Kc A content encryption key associated with each content
Root private key KR A private key securely maintained by root CA
Root public key KPR The public key corresponding to KR

Private key of CA KCi A private key securely maintained by CA ”i” which is the issuer

of the certificate of lower tier CA or the certificate of TREM
public key
(This does not include root private key.)
Public key of CA KPCi The public key corresponding to KCi
(This does not include root public key.)

TREM private key for KTdk A key that the TREM “k” keeps individually and secretly.

detecting SLTP
This key is used to generate digital signature for detecting
message tampering
SLTP message tampering.
TREM public key for KPTdk The public key corresponding to KTdk.
detecting SLTP
This key is used to verify the digital signature that is
message tampering
generated by using KTdk.
---------------------- Page: 14 ----------------------
TS 62224 © IEC:2013(E) – 13 –
Name Expression Description

TREM private key for KTsk A key that the TREM “k” keeps individually and secretly.

sharing session
This key is used to share a session symmetric key with other
symmetric key with other
TREM.
TREM
TREM public key for KPTsk The public key corresponding to KTsk.
sharing session
This key is used to share a session symmetric key
...
