IEC 61472-2:2021

Live working - Minimum approach distances - Part 2: Method of determination of the electrical component distance for AC systems from 1,0 kV to 72,5 kV

IEC 61472-2:2021 specifies a method for determining the electrical component of the minimum approach distances for live working, for AC systems 1 kV up to and including 72,5 kV. This document addresses system overvoltages and the working air distances between equipment and/or workers at different potentials.
The withstand voltage and minimum approach distances determined by the method described in this document can be used only if the following working conditions prevail:
workers are trained for, and skilled in, working live lines or close to live conductors or equipment;
the operating conditions are adjusted so that the statistical overvoltage does not exceed the value selected for the determination of the required withstand voltage;
transient overvoltages are the determining overvoltages;
tool insulation has no continuous film of moisture present on the surface;
no lightning is observed within 10 km of the work site;
allowance is made for the effect of the conducting components of tools.

Travaux sous tension - Distances minimales d’approche - Partie 2: Méthode de détermination de la distance du composant électrique pour les réseaux en courant alternatif de tension comprise entre 1,0 kV et 72,5 kV

IEC 61472-2:2021 spécifie une méthode pour déterminer la composante électrique des distances minimales d’approche pour le travail en direct, pour les systèmes AC 1 kV jusqu’à 72,5 kV et y compris. Ce document traite des survoltages du système et des distances aériennes de travail entre l’équipement et/ou les travailleurs à différents potentiels.
La tension de résisté et les distances minimales d’approche déterminées par la méthode décrite dans ce document ne peuvent être utilisées que si les conditions de travail suivantes prévalent:
les travailleurs sont formés et qualifiés dans les lignes de travail en direct ou à proximité de conducteurs ou d’équipement vivants;
les conditions d’exploitation sont ajustées de sorte que la surtension statistique ne dépasse pas la valeur sélectionnée pour déterminer la tension de résisté requise;
les survoltages transitoires sont les survoltages déterminants;
l’isolation de l’outil n’a pas de film continu de l’humidité présente à la surface;
aucune foudre n’est observée à moins de 10 km du chantier;
l’effet des composants conducteurs des outils.

General Information

• Status: Published
• Publication Date: 08-Mar-2021
• ICS: 13.260 - Protection against electric shock. Live working
• ICS: 29.240.99 - Other equipment related to power transmission and distribution networks
• ICS: 29.260.99 - Other electrical equipment for working in special conditions
• Technical Committee: TC 78 - Live working
• Drafting Committee: PT 61472-2 - TC 78/PT 61472-2
• Current Stage: PPUB - Publication issued
• Start Date: 20-Jan-2021
• Completion Date: 09-Mar-2021

Overview

IEC 61472-2:2021 is an international standard published by the International Electrotechnical Commission (IEC) that provides a standardized method for determining the electrical component of minimum approach distances (MAD) during live working on alternating current (AC) systems with voltages ranging from 1.0 kV up to and including 72.5 kV. This standard specifically addresses the calculation of electrical distances in the context of system overvoltages and defines essential safety clearances between live equipment and workers or tools at different electrical potentials.

The document plays a critical role in live working safety, occupational health, and electrical system operation by ensuring that workers maintain safe distances to prevent electrical flashovers or accidental contact-helping reduce risk and improve operational reliability in electrical installations and maintenance tasks.

---

Key Topics

• Minimum Approach Distance (MAD): The sum of the electrical component distance and ergonomic distance that must be maintained to prevent electrical hazards during live working.

• Electrical Distance (D_U): The calculated air gap required to avoid sparkover under the worst expected electrical stress conditions including transient overvoltages.

• Ergonomic Distance (D_E): Additional clearance to account for inadvertent movement or errors in estimating distances during work, based on worker training, skill, and working conditions.

• Transient and Statistical Overvoltages: The standard takes into account transient overvoltages (switching surges, lightning) and statistical overvoltages with a defined exceedance probability to ensure safe electrical clearance.

• Working Conditions: Clear prerequisites for applying the method, such as:

  • Worker training and competence for live line work.
  • Operating conditions that limit statistical overvoltages.
  • Tool insulation free of continuous moisture films.
  • Absence of lightning activity within 10 kilometers of the worksite.
  • Consideration of conducting parts of tools.

• Determination Methodology: A formula-based approach combining electrical and ergonomic distances to define the MAD necessary for safety.

---

Applications

• Live Working Safety: Provides essential guidelines and formulae to define safe working distances during maintenance, inspections, or repair activities on energized AC electrical systems between 1 kV and 72.5 kV.

• Electrical Utilities & Industry: Assists power utilities, industrial plants, and contractors in establishing live working procedures to minimize electrical risks, avoid accidents, and comply with safety legislation.

• Design of Work Procedures and Training: Helps in developing ergonomic work procedures and training programs, emphasizing the importance of skill, environmental conditions, and equipment state in maintaining safe approach distances.

• Tool and Equipment Usage: Informs the design and selection of insulated tools and protective equipment ensuring they meet specified criteria related to moisture and conductive elements during live operations.

---

Related Standards

• IEC 61472-1: Addresses general definitions and principles for minimum approach distances in live working, complementing the methods defined in Part 2 for electrical component distances.

• IEC 60050 Series: Provides definitions and electrotechnical terminology relevant to the concepts used in IEC 61472-2.

• IEEE 516-2009: Provides related data on rod-to-rod gap distances for electrical discharge which aligns with IEC’s guidance on electrical distances and overvoltage phenomena.

• IEC 60038: Defines nominal system voltages referenced in the determination of safe approach distances.

• Live Working Safety Standards: Various national and regional standards incorporate methods from IEC 61472-2 or harmonize with its approach for operational consistency and enhanced safety.

---

Keywords: IEC 61472-2, minimum approach distance, live working, electrical safety, AC systems, overvoltages, transient overvoltage, electrical clearance, ergonomic distance, electrical worker safety, insulated tools, power system maintenance, safety standards.

Standards Content (Sample)

IEC 61472-2 ®
Edition 1.0 2021-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Live working – Minimum approach distances –
Part 2: Method of determination of the electrical component distance for AC
systems from 1,0 kV to 72,5 kV

Travaux sous tension – Distances minimales d’approche –
Partie 2: Méthode de détermination de la distance du composant électrique pour
les réseaux en courant alternatif de tension comprise entre 1,0 kV et 72,5 kV

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61472-2 ®
Edition 1.0 2021-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Live working – Minimum approach distances –

Part 2: Method of determination of the electrical component distance for AC

systems from 1,0 kV to 72,5 kV

Travaux sous tension – Distances minimales d’approche –

Partie 2: Méthode de détermination de la distance du composant électrique pour

les réseaux en courant alternatif de tension comprise entre 1,0 kV et 72,5 kV

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.260; 29.240.99; 29.260.99 ISBN 978-2-8322-9220-4

– 2 – IEC 61472-2:2021 © IEC 2021

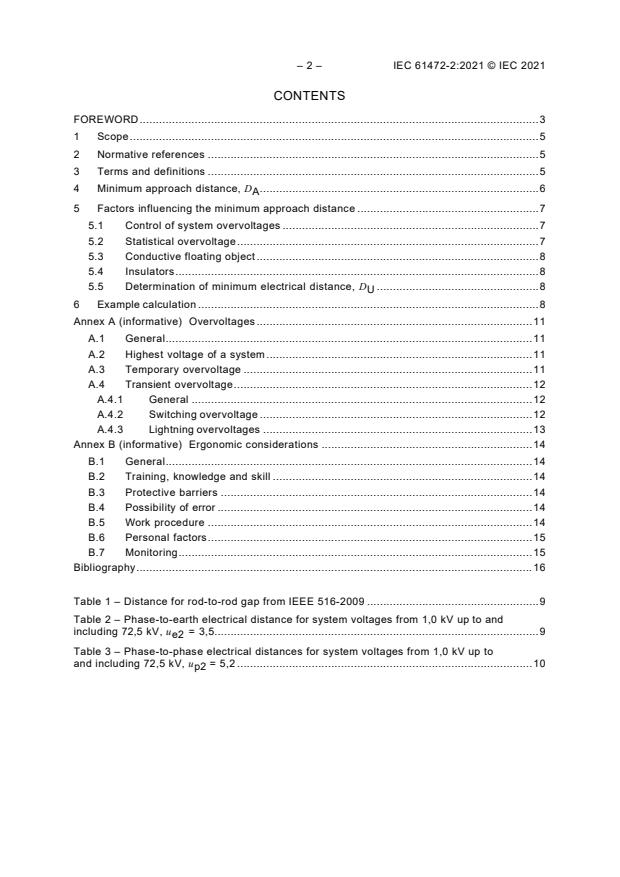

CONTENTS

FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Minimum approach distance, D . 6
A
5 Factors influencing the minimum approach distance . 7
5.1 Control of system overvoltages . 7
5.2 Statistical overvoltage . 7
5.3 Conductive floating object . 8
5.4 Insulators . 8
5.5 Determination of minimum electrical distance, D . 8
U
6 Example calculation . 8
Annex A (informative) Overvoltages . 11
A.1 General . 11
A.2 Highest voltage of a system . 11
A.3 Temporary overvoltage . 11
A.4 Transient overvoltage . 12
A.4.1 General . 12
A.4.2 Switching overvoltage . 12
A.4.3 Lightning overvoltages . 13
Annex B (informative) Ergonomic considerations . 14
B.1 General . 14
B.2 Training, knowledge and skill . 14
B.3 Protective barriers . 14
B.4 Possibility of error . 14
B.5 Work procedure . 14
B.6 Personal factors . 15
B.7 Monitoring . 15
Bibliography . 16

Table 1 – Distance for rod-to-rod gap from IEEE 516-2009 . 9
Table 2 – Phase-to-earth electrical distance for system voltages from 1,0 kV up to and
including 72,5 kV, u = 3,5. 9

e2
Table 3 – Phase-to-phase electrical distances for system voltages from 1,0 kV up to
and including 72,5 kV, u = 5,2 . 10
p2
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LIVE WORKING –
MINIMUM APPROACH DISTANCES –
Part 2: Method of determination of the electrical component
distance for AC systems from 1,0 kV to 72,5 kV

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61472-2 has been prepared by IEC technical committee technical
committee 78: Live working.
The text of this International Standard is based on the following documents:
FDIS Report on voting
78/1319/FDIS 78/1326/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61472 series, published under the general title Live working –
Miminum approach distances, can be found on the IEC website.

– 4 – IEC 61472-2:2021 © IEC 2021
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
LIVE WORKING –
MINIMUM APPROACH DISTANCES –
Part 2: Method of determination of the electrical component
distance for AC systems from 1,0 kV to 72,5 kV

1 Scope
This part of IEC 61472 specifies a method for determining the electrical component of the
minimum approach distances for live working, for AC systems 1 kV up to and including 72,5 kV.
This document addresses system overvoltages and the working air distances between
equipment and/or workers at different potentials.
The withstand voltage and minimum approach distances determined by the method described
in this document can be used only if the following working conditions prevail:
– workers are trained for, and skilled in, working live lines or close to live conductors or
equipment;
– the operating conditions are adjusted so that the statistical overvoltage does not exceed the
value selected for the determination of the required withstand voltage;
– transient overvoltages are the determining overvoltages;
– tool insulation has no continuous film of moisture present on the surface;
– no lightning is observed within 10 km of the work site;
– allowance is made for the effect of the conducting components of tools.
NOTE In some countries, special procedures have been developed to permit live working with surface moisture on
tools at distribution voltages (below 50 kV).
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
highest voltage of a system
U
s
highest value of operating voltage (phase-to-phase voltage) which occurs under normal
operating conditions at any time and any point in the system
Note 1 to entry: Transient overvoltages and permanent induction from adjacent lines are not taken into account in
the calculation formula
– 6 – IEC 61472-2:2021 © IEC 2021
[SOURCE: IEC 60050-601:1985, 601-01-23, modified – the symbol U and the words "(phase-
s
to-phase voltage)" have been added, and Note 1 has been revised.]
3.2
transient overvoltage
short duration overvoltage of a few milliseconds or less, oscillatory or non-oscillatory, usually
highly damped
[SOURCE: IEC 60050-614:2016, 614-03-14]
3.3
nominal system voltage
suitable approximate value of voltage used to designate or identify a system
[SOURCE: IEC 60038:2009, 3.1]
3.4
per unit statistical overvoltage phase-to-earth
u
e2
phase-to-earth per unit overvoltage that has a 2 % probability of being exceeded
3.5
per unit statistical overvoltage phase-to-phase
u
p2
per unit overvoltage that has a 2 % probability of being exceeded
3.6
statistical overvoltage
U
overvoltage that has a 2 % probability of being exceeded
3.7
minimum approach distance
D
A
minimum electrical and ergonomic distance in air to be maintained between any part of the body
of a worker, or any conductive tool being directly handled, and any live conductors or equipment
at different potentials
3.8
electrical distance
D
U
electrical component of the minimum air distance between two electrodes which represent live
and/or earthed conductors or equipment, required to prevent sparkover under the most severe
electrical stress that will arise under the chosen conditions
3.9
ergonomic distance
D
E
distance in air added to the electrical distance, to take into account inadvertent movement and
errors in judgement of distances while performing work
[SOURCE: IEC 60050-651:2014, 651-21-13, modified – the symbol D has been added.]
E
4 Minimum approach distance, D
A
The minimum approach distance, D is determined by:
,
A
DD= + D
(1)
AU E
where
D is the required minimum electrical distance, and

U
D is the required ergonomic distance which is dependent on work procedures, level of
E
training, skill of the workers, type of construction, and such contingencies as inadvertent
movement and errors in appraising distances (see Annex B for details).
5 Factors influencing the minimum approach distance
5.1 Control of system overvoltages
The maximum amplitude of overvoltages in the work area can be reduced by the usual practice
of making the circuit-breaker reclosing devices inoperative, or by using protective gaps or surge
arresters.
5.2 Statistical overvoltage
The electrical stress at the work area shall be known. The electrical stress is described as the
statistical overvoltage that can be present at the work area. In a three-phase AC power system
the statistical overvoltage U between phase and earth is:
e2
U = 2/ 3 Uu
( )
e2 s e2
(2)
where
U is the highest voltage of the system, and
s
u is the statistical overvoltage phase-to-earth expressed in per unit.
e2
Similarly:
U = 2/ 3 Uu
( )
p2 s p2
(3)
where
u is the statistical overvoltage phase-to-phase expressed in per unit.
p2
If the per unit phase-to-phase data are not available, an approximate value can be derived from
u by the following formula:
e2
uu1,35+ 0,45 (4)
p2 e2
The transient overvoltages to be considered are those caused by system faults and switching
operations, whether they occur on the lines being worked, or on adjacent lines or associated
equipment.
The values of statistical overvoltages shall be those measured or determined by a transient
network analyzer (TNA) or by digital computer studies. If such studies do not provide the
statistical overvoltages (2 % values) but only the "truncated values", without the statistical
distribution, the transformation of the truncated values into 2 % values can be made.
=
– 8 – IEC 61472-2:2021 © IEC 2021
Application and typical values of statistical overvoltages are shown in Annex A, for use when
no other values are available.
5.3 Conductive floating object
The conductive floating object(s) is(are) accounted for by the distance F which is the sum of all
dimensions, in the direction of the gap axis of the conductive floating object(s) in the air gap.
This distance is considered in the determination of the minimum approach distance, D :
A
D= DD++ F
A U E
(5)
5.4 Insulators
The influence of metallic caps and pins of suspension insulators is negligible and shall be
ignored.
5.5 Determination of minimum electrical distance, D
U
The minimum electrical distance is determined from the impulse rod-to-rod withstand voltage of
IEEE 516-2009, Table 1, and presented in Table 2 and Table 3. For systems using other per
unit overvoltage factors the minimum electrical distance may be derived from Table 1 using
linear interpolation.
6 Example calculation
Determine the minimum phase-to-earth electrical distance, D , for a 20 kV system. The highest
U
system voltage for this example is chosen to be 1,05 times the nominal system voltage (see
Clause A.3):
U = 21 kV
s
Applying the per unit statistical overvoltage factor, u = 3,5 to the highest system peak phase-
e2
to-earth voltage using Formula (2), the statistical overvoltage becomes
U = 60 kV
e2
Interpolating from the data of Table 1:
66,3 kV − 58,6 kV = 7,7 kV
and correspondingly
6 cm − 5 cm = 1 cm or 10 mm.
Therefore the distance for 60 kV is found by:
10 mm / 7,7 kV = 1,3 mm/kV
66,3 kV – 60 kV = 6,3 kV
6,3 kV × 1,3 mm/kV = 8 mm
60 mm – 8 mm = 52 mm or 5,2 cm.

Table 1 – Distance for rod-to-rod gap from IEEE 516-2009
Impulse (TOV) 60 Hz rod-to-rod Gap spacing from
rod-to-rod withstand sparkover IEEE Std 4:1995
(kV peak) (kV peak) (cm)
27,6 25 2
39,8 36 3
50,8 46 4
58,6 53 5
66,3 60 6
77,4 70 8
87,3 79 10
95 86 12
105 95 14
115 104 16
123,8 112 18
132,6 120 20
158 143 25
184,5 167 30
212,2 192 35
240,9 218 40
268,5 243 45
298,4 270 50
355,8 322 60
Table 2 – Phase-to-earth electrical distance for system voltages
a)
from 1,0 kV up to and including 72,5 kV, u = 3,5

e2
b)
Highest system voltage Statistical overvoltage
Electrical distance
U U D
s e2 U
kV (RMS) kV (peak) mm
c)
> 1,0 2,9
12,5 36 27
17,5 50 40
24,0 69 64
26,4 75 76
36,0 103 136
40,5 116 162
52,0 149 232
72,5 207 341
a)
Refer to A.4.2.
b)
IEEE 516-2009, Table 2, impulse (TOV) rod-rod withstand (kV peak).
c)
This distance is beyond the range of data from IEEE 516-2009, Table 2, and is
considered acceptable for application.

– 10 – IEC 61472-2:2021 © IEC 2021
Table 3 – Phase-to-phase electrical distances for system voltages
a)
from 1,0 kV up to and including 72,5 kV, u = 5,2
p2
b)
Highest system voltage Statistical overvoltage
Electrical distance
U U D
s p2 U
kV (RMS) kV (peak) mm
c)
> 1,0 4,2
12,5 53 43
17,5 74 74
24,0 101 133
26,4 112 153
36,0 152 238
40,5 171 275
52,0 220 363
72,5 306 514
a)
u = 1,35 u + 0,45. Refer to A.4.2.
p2 e2
b)
IEEE 516-2009, Table 2, impulse (TOV) rod-rod withstand (kV peak).
c)
This distance is beyond the range of data from IEEE 516-2009, Table 2, and is
considered acceptable for application.

Other distances may be used according to particular system requirements.

Annex A
(informative)
Overvoltages
A.1 General
In establishing the minimum approach distance five distinct types of electrical stresses are
considered. Each type of stress has its own influence; all may not be present at any one time.
They are as follows:
1) nominal system voltage (see 3.3);
2) highest voltage of a system U (see 3.1);
s
3) temporary overvoltage (IEC 60050-614:2016, 614-03-13);
4) transient overvoltage (see 3.2):
• switching;
• lightning;
5) induced voltage:
• power frequency electrical (capacitive);
• power frequency magnetic (inductive);
• transient.
A discussion follows of the essential points associated with each electrical stress as related to
the minimum approach distance.
Nominal system voltages are presented in IEC 60038. These voltages are associated with
standard ranges. Actual system voltages may not follow these guidelines.
A.2 Highest voltage of a system
In reality, the calculation of the overvoltage is based on the highest voltage of a system, U
s,
which is specific to the operating system and may or may not be known. Unless its actual value
is known, U may be derived from the nominal voltage of the system by using the corresponding
s
value of the highest voltage for equipment, U , given in IEC 60038, i.e. the highest RMS value
m
of the phase-to-phase voltage for which the equipment is designed.
A.3 Temporary overvoltage
A temporary overvoltage can be generated by system faults, resonance, sudden load rejection
and some other operating conditions. Its most common and significant use in establishing the
minimum approach distance is for earth fault-generated overvoltage, which arises on the
unfaulted phases and can reach 1,7 per unit at the fault point on some systems.

– 12 – IEC 61472-2:2021 © IEC 2021
A.4 Transient overvoltage
A.4.1 General
A transient overvoltage has a shape which can be regarded for the minimum approach distance
as that associated with a number of factors, including:
– energization;
– fault initiation;
– fault clearing;
– de-energizing and reclosing of a portion of the transmission system or its equipment
(e.g. transformers or capacitor banks).
In systems with high earth fault factors (e.g. in resonant earthed or unearthed neutral systems),
transient overvoltages due to earth faults are considered.
Transient overvoltages that can appear at the work site vary considerably in shape and
magnitude, but they are generally highly damped and of short duration.
A.4.2 Switching overvoltage
The maximum switching overvoltages that can reach the work site are usually due to switching
of the line or equipment on which work is being performed. When feasible, the reclosing devices
are made inoperative during live working, so that the line is not re-energized should it trip while
work is in progress. This serves two purposes. Firstly, should there be an accidental flashover
in the work area, it allows time for workers to safeguard the work area before re-energization
of the installation. Secondly, it limits the source of maximum overvoltages to de-energizing
transients, except in the exceptionally rare instance of a circuit-breaker restriking.
The magnitude of the switching overvoltage depends on the performance of the circuit-breaker
and the electrical characteristics of the line. Therefore, it varies from one system to another.
With circuit-breakers using closing, reclosing and opening resistors, or when metal oxide surge
arresters are installed and operating properly, the magnitude is highly reduced.
The value of switching overvoltages for each voltage level of a power system can be determined
by a transient network analyzer (TNA) or a digital computer study. Such a study should provide
a value for the 2 % statistical overvoltage U from which the minimum approach distance can
then be determined. Where statistical overvoltage for the system is unknown, a value of 3,5 per
unit is suggested. If the overall maximum per unit overvoltage is known, this value is taken to
be the truncated value, that is, the value beyond which no overvoltages occur and which is
taken (IEC 60071-2) to be three deviations above the mean.
The following empirical relationships given in IEC 60071-2 can then be used to estimate the
2 % statistical overvoltage U from the truncated values (using the "phase-peak" method in
each case).
For phase-to-earth overvoltages:
For the 2 % statistical overvoltage u in per unit:
e2
standard deviation σ = 0,25 (u − 1)
e e2
truncated value u = 1,25 u − 0,25
et e2
hence:
u = (u + 0,25) / 1,25
e2 et
For phase-to-phase overvoltages:
For the 2 % statistical overvoltage phase-to-phase u :
p2
standard deviation σ = 0,25 (u − 1,73)
p p2
truncated value u = 1,25 u − 0,43
pt p2
hence:
u = (u + 0,43) / 1,25
p2 pt
If the per unit phase-to-phase data are not available, an approximate value can be derived from
u by the following formula:
e2
u = 1,35 u + 0,45
p2 e2
A.4.3 Lightning overvoltages
Work on or near live or dead lines or equipment should not be done when lightning is perceived
in the immediate vicinity (e.g. 5 km to 10 km). A remote storm, not noticeable to the workers,
can cause an overvoltage on the live installations. Such an overvoltage is attenuated as it
travels toward the work area. It can also double at the remote open end of a line. For safe
working, the overvoltage shall be less than the value of the withstand strength at the work area.
This is the case when the work area is more than 10 km away from the source of the lightning
strike, even with an open-ended line. Since lightning can usually be visually or audibly detected
at this distance, live work should not be conducted if lightning can be seen or thunder heard.
NOTE If lightning causes a fault anywhere on a system, there will be a fault-generated overvoltage, an opening
overvoltage and, if reclosing is not inoperative, a more severe closing overvoltage will also result. These events
stress all the insulation at the work area.

– 14 – IEC 61472-2:2021 © IEC 2021
Annex B
(informative)
Ergonomic considerations
B.1 General
Two approaches, or a blend of both, can be used to establish an ergonomic safety margin:
– specify only an absolute smallest minimum approach distance and let the skilled worker
decide the extra distance required for the particular job to be done;
– specify a complete minimum approach distance allowing a sufficient safety margin to
account for all possible contingencies.
A number of factors should be considered before specifying the minimum approach distance,
or commencing work close to a live conductor. As it is impractical and inappropriate to
recommend an ergonomic distance here, the following points are provided as guidelines for
consideration by individual organizations.
B.2 Training, knowledge and skill
Basic to live working is knowledge of the hazards and means of personal protection, by
minimum approach distances and other methods. Workers are thoroughly trained in live work
and in the job at hand before live work at the smallest approach distance is begun. During work,
attention is given to the work and observing the minimum approach distance. Adequate training
and practice in the work procedure will reduce the possibility of attention being diverted from
observing the minimum approach distance by unexpected situations.
B.3 Protective barriers
Barriers, such as flexible or rigid covers may be placed between the worker and the energized
equipment to provide the required insulation level, or merely serve as a mechanical barrier.
B.4 Possibility of error
The possibility of errors being committed during the work depends on the work procedure being
used, personal factors, effects of the environment and the extent to which the workers' actions
are monitored by others.
B.5 Work procedure
Different work positions and methods will require different allowances for unintentional
movement, for example, working beneath a live conductor is less hazardous than working
alongside it. The stability of the worker's position can also vary from task to task, for example,
working above the ground, compared with working on the ground. A complex or strenuous job
is also more likely to divert the worker’s attention away from observing the minimum approach
distance.
Because of these factors, consideration could be given to using a different minimum approach
distance for different work situations or procedures.
Strict adherence to safe work procedures is emphasized when work is undertaken at the
smallest minimum approach distance.

B.6 Personal factors
A worker's physical, mental and emotional states are also possible causes for unintentional
movement. These factors are, in turn, influenced by the duration and strenuousness of the job,
for instance. Live working requires constant attention, both to the procedures and the minimum
approach distance, attention which can be readily distracted by personal factors. A worker who
is in any way impaired should not be permitted to work at the smallest minimum approach
distance.
A worker's ability to judge the minimum approach distance correctly is also important. For this
reason it can be beneficial to increase the ergonomic distance with the voltage. However, too
large a distance at high voltages will make small components on the live conductors difficult to
see, and tools heavier to handle.
Workers should not wear clothing with loose parts that could fall, blow or swing close to the live
conductors.
B.7 Monitoring
To warn workers of dangerous situations arising during the work, it can be very beneficial to
require continuous monitoring by an observer, located at some distance from the work. Failing
that, the workers should be encouraged to describe aloud to one another each step in the work
procedure before taking it. The procedure to be followed should also be detailed and discussed
between the foreman and workers before commencing work.
