Maritime navigation and radiocommunication equipment and systems - Part 1: Route plan exchange format (RTZ) - General requirements, methods of testing and required test results

IEC PAS 61174-1:2021 specifies requirements, methods of testing and required test results for route plan exchange format (RTZ).
This PAS has been developed to improve interoperability between equipment implementing route plan exchange format by addressing issues uncovered in the original RTZ specification (Annex S of IEC 61174:2015), and in recognition of the fact that some manufacturers have identified a pressing business need to implement an improved and expanded version of the RTZ format.
It is intended to complement the original RTZ specification. This PAS provides a revised version 1.2 of the RTZ schema but retains the original version 1.0 of the schema unchanged. The intention is that compliance with this PAS can be achieved without compromising compliance with IEC 61174:2015.

General Information

Status
Published
Publication Date
02-Mar-2021
Current Stage
PPUB - Publication issued
Completion Date
03-Mar-2021
Ref Project

Buy Standard

Technical specification
IEC PAS 61174-1:2021 - Maritime navigation and radiocommunication equipment and systems - Part 1: Route plan exchange format (RTZ) - General requirements, methods of testing and required test results
English language
52 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC PAS 61174-1
Edition 1.0 2021-03
PUBLICLY AVAILABLE
SPECIFICATION
PRE-STANDARD
colour
inside
Maritime navigation and radiocommunication equipment and systems –
Part 1: Route plan exchange format (RTZ) – General requirements, methods of
testing and required test results
IEC PAS 61174-1:2021-03(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC PAS 61174-1
Edition 1.0 2021-03
PUBLICLY AVAILABLE
SPECIFICATION
PRE-STANDARD
colour
inside
Maritime navigation and radiocommunication equipment and systems –
Part 1: Route plan exchange format (RTZ) – General requirements, methods of
testing and required test results
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 47.020.70; 47.060 ISBN 978-2-8322-9482-6

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC PAS 61174-1:2021 © IEC 2021

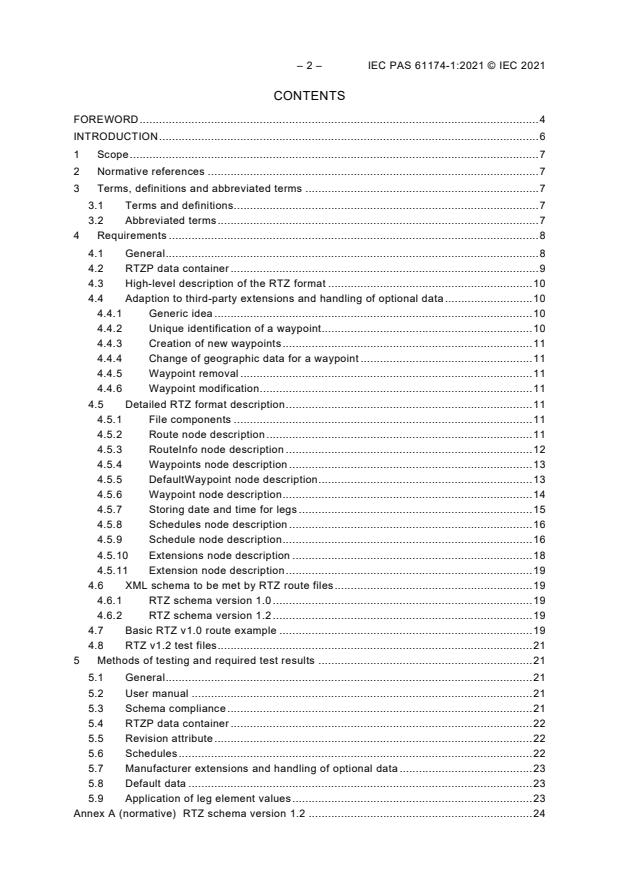

CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms, definitions and abbreviated terms ........................................................................ 7

3.1 Terms and definitions .............................................................................................. 7

3.2 Abbreviated terms ................................................................................................... 7

4 Requirements .................................................................................................................. 8

4.1 General ................................................................................................................... 8

4.2 RTZP data container ............................................................................................... 9

4.3 High-level description of the RTZ format ............................................................... 10

4.4 Adaption to third-party extensions and handling of optional data ........................... 10

4.4.1 Generic idea .................................................................................................. 10

4.4.2 Unique identification of a waypoint................................................................. 10

4.4.3 Creation of new waypoints ............................................................................. 11

4.4.4 Change of geographic data for a waypoint ..................................................... 11

4.4.5 Waypoint removal .......................................................................................... 11

4.4.6 Waypoint modification .................................................................................... 11

4.5 Detailed RTZ format description ............................................................................ 11

4.5.1 File components ............................................................................................ 11

4.5.2 Route node description .................................................................................. 11

4.5.3 RouteInfo node description ............................................................................ 12

4.5.4 Waypoints node description ........................................................................... 13

4.5.5 DefaultWaypoint node description .................................................................. 13

4.5.6 Waypoint node description ............................................................................. 14

4.5.7 Storing date and time for legs ........................................................................ 15

4.5.8 Schedules node description ........................................................................... 16

4.5.9 Schedule node description ............................................................................. 16

4.5.10 Extensions node description .......................................................................... 18

4.5.11 Extension node description ............................................................................ 19

4.6 XML schema to be met by RTZ route files ............................................................. 19

4.6.1 RTZ schema version 1.0 ................................................................................ 19

4.6.2 RTZ schema version 1.2 ................................................................................ 19

4.7 Basic RTZ v1.0 route example .............................................................................. 19

4.8 RTZ v1.2 test files ................................................................................................. 21

5 Methods of testing and required test results .................................................................. 21

5.1 General ................................................................................................................. 21

5.2 User manual ......................................................................................................... 21

5.3 Schema compliance .............................................................................................. 21

5.4 RTZP data container ............................................................................................. 22

5.5 Revision attribute .................................................................................................. 22

5.6 Schedules ............................................................................................................. 22

5.7 Manufacturer extensions and handling of optional data ......................................... 23

5.8 Default data .......................................................................................................... 23

5.9 Application of leg element values .......................................................................... 23

Annex A (normative) RTZ schema version 1.2 ..................................................................... 24

---------------------- Page: 4 ----------------------
IEC PAS 61174-1:2021 © IEC 2021 – 3 –

Annex B (normative) RTZ v1.2 test files ............................................................................... 48

B.1 RTZ v1.2 with minimum mandatory elements ........................................................ 48

B.2 RTZ v1.2 with leg elements ................................................................................... 48

B.3 RTZ v1.2 with all optional elements and attributes ................................................ 48

B.4 RTZ v1.2 not fully conforming to schema (errors) .................................................. 48

B.5 RTZ v1.2 in RTZP data container .......................................................................... 49

B.6 RTZ v1.2 with extensions from 3rd party manufacturer .......................................... 49

B.7 RTZ v1.2 using revision attribute........................................................................... 49

B.8 RTZ 1.2 with default waypoint ............................................................................... 49

Annex C (informative) UML model of the route plan exchange format (RTZ v.1.2) ................ 50

Annex D (informative) Comparison of schema versions ........................................................ 51

Bibliography .......................................................................................................................... 52

Figure 1 – Description of route plan – Distance between WP 2 and WP 3 ............................... 8

Figure 2 – Description of route plan – Leg parameters belonging to WP 3 ............................... 9

Table D.1 – Schema changes ............................................................................................... 51

---------------------- Page: 5 ----------------------
– 4 – IEC PAS 61174-1:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MARITIME NAVIGATION AND RADIOCOMMUNICATION
EQUIPMENT AND SYSTEMS –
Part 1: Route plan exchange format (RTZ) –
General requirements, methods of testing and required test results
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

A PAS is an intermediate specification made available to the public and needing a lower level

of consensus than an International Standard to be approved by vote (simple majority).

IEC PAS 61174-1 has been processed by IEC technical committee 80: Maritime navigation and

radiocommunication equipment and systems.
The text of this PAS is based on the This PAS was approved for publication
following document: by the P-members of the committee
concerned as indicated in the following
document
Draft PAS Report on voting
80/978/DPAS 80/986/RVDPAS

Following publication of this PAS, which is a pre-standard publication, the technical committee

or subcommittee concerned may transform it into an International Standard.
---------------------- Page: 6 ----------------------
IEC PAS 61174-1:2021 © IEC 2021 – 5 –

This PAS shall remain valid for an initial maximum period of 2 years starting from the publication

date. The validity may be extended for a single period up to a maximum of 2 years, at the end

of which it shall be published as another type of normative document, or shall be withdrawn.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it

contains colours which are considered to be useful for the correct understanding of its

contents. Users should therefore print this document using a colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC PAS 61174-1:2021 © IEC 2021
INTRODUCTION
A route plan exchange format RTZ was published as Annex S of IEC 61174:2015.

This route plan exchange format is intended be used for many purposes. For example it can be

used on board for route plan exchange between main and backup ECDIS, ECDIS and radar,

ECDIS and optimization systems, etc.. Another example use is between ship and shore where

it can be used to inform the shore about the plan of the vessel, the shore can recommend a

route, the shore can optimize a route, etc.

This route plan exchange format is based on standardizing a single route plan. The application

level of the sender and receiver is assumed to be able to handle multiple route plans for use

cases which require availability of multiple routes, for example alternative route plans for the

same voyage or route plans for different purposes.

Since publication of IEC 61174:2015, typographical errors have been identified in the original

route plan exchange format. Issues relating to ambiguity in the underlying requirements have

also been identified. Testing has uncovered further issues, including (among others) route

import failures, highlighting a lack of robustness in the RTZ testing clauses specified in

IEC 61174:2015.

During the implementation of route exchange as part of a collaborative industry project, the Sea

Traffic Management (STM) Validation Project , an iteration of the RTZ XML schema, version

1.1, was developed in order to correct the errors that had been identified in version 1.0 and to

expand the schema to accommodate the project’s needs.

Further development has led to RTZ schema version 1.2 which incorporates schema version

1.1 and contains a further change by permitting extensions in the Leg element.

This PAS includes the following significant technical changes with respect to IEC 61174:2015:

• modifications to the body text of IEC 61174:2015 Annex S intended to correct typographical

errors, properly align the text with the original RTZ schema, and to add clarification and

remove ambiguity from the requirements;

• modifications to the testing clauses in IEC 61174:2015 6.9.2 to expand the existing tests for

route plan exchange by introducing testing clauses covering the full range of requirements

specified in IEC 61174:2015 Annex S;

• an updated RTZ schema to revised version 1.2 in order to expand the original schema and

to correct errors and weaknesses in the original schema.

Details of the substantive changes between version 1.0 and version 1.2 of the schema are given

in Annex D.
___________
https://www.seatrafficmanagement.info/projects/stm-validation/
---------------------- Page: 8 ----------------------
IEC PAS 61174-1:2021 © IEC 2021 – 7 –
MARITIME NAVIGATION AND RADIOCOMMUNICATION
EQUIPMENT AND SYSTEMS –
Part 1: Route plan exchange format (RTZ) –
General requirements, methods of testing and required test results
1 Scope

This PAS specifies requirements, methods of testing and required test results for route plan

exchange format (RTZ).

This PAS has been developed to improve interoperability between equipment implementing

route plan exchange format by addressing issues uncovered in the original RTZ specification

(Annex S of IEC 61174:2015), and in recognition of the fact that some manufacturers have

identified a pressing business need to implement an improved and expanded version of the

RTZ format.

This PAS is intended to complement the original RTZ specification. This PAS provides a revised

version 1.2 of the RTZ schema but retains the original version 1.0 of the schema unchanged.

The intention is that compliance with this PAS can be achieved without compromising

compliance with IEC 61174:2015.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 61174:2015, Maritime navigation and radiocommunication equipment and systems –

Electronic chart display and information system (ECDIS) – Operational and performance

requirements, methods of testing and required test results
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
No terms and definitions are listed in this PAS.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 Abbreviated terms
ECDIS Electronic chart display and information system
EUT Equipment under test
---------------------- Page: 9 ----------------------
– 8 – IEC PAS 61174-1:2021 © IEC 2021
4 Requirements
4.1 General

A route plan consists of waypoints. Each waypoint, except the first, contains information related

to the leg from the previous waypoint. Descriptions of route plans are shown in Figure 1 and

Figure 2. The route exchange format is a file containing an XML encoded version of the route

plan. The XML route exchange file shall use the extension .rtz. A description of the RTZ format

is given in 4.5. Examples of RTZ format routes are given in 4.7 and 4.8.

XML schema is provided for validation of the structure and content of the RTZ format route files.

Two versions of the RTZ schema are defined: version 1.0 (provided in Annex S of

IEC 61174:2015) and 1.2 (provided in Annex A of this PAS). By default, equipment shall export

routes using version 1.2 of the schema. Equipment shall allow the version 1.0 schema to be

selected for export. Equipment shall support the import of both version 1.0 and version 1.2

schemas. Validation shall be mandatory for files using the version 1.2 schema and optional for

files using the 1.0 schema. If an imported file fails to validate it shall not be used and an

indication of the reason for validation failure shall be provided. The user manual shall specify

the versions and optional attributes that are supported.

One of the differences between the version 1.0 and 1.2 schema is the renaming of the

SheduleElement type to ScheduleElement. In textual references, other than xml examples, this

PAS uses ScheduleElement to refer to both items.

NOTE 1 The requirements in this PAS can be applied not only to ECDIS, but also to software applications importing

routes from ECDIS or exporting routes to ECDIS. In order to achieve interoperability, manufacturers of non-ECDIS

software applications are strongly encouraged to apply the associated tests in this PAS.

NOTE 2 This route exchange format has some limitations for applicability due to the simple geometric mode used.

Application for latitudes above 70º may cause significantly different paths over the earth surface between two

systems. Application to long legs such as an ocean crossing is subject to differences in the exact path over the earth

surface.

NOTE 3 It is recommended that the receiver of the route exchange always performs a check against the chart

database and a geometry check before use for navigation purposes.

NOTE 4 Information in addition to the route exchange format will be necessary between third parties to assure the

level of accuracy and repeatability required for Track Control System purposes.

NOTE 5 RTZ version 1.1 was used by the European Union’s Sea Traffic Management project, but lacked the

optional Extensions in the Leg element.

The distance between waypoints is from WOL to WOL with zero “advance and transfer” or “forwarding distance”.

Figure 1 – Description of route plan – Distance between WP 2 and WP 3
---------------------- Page: 10 ----------------------
IEC PAS 61174-1:2021 © IEC 2021 – 9 –
Figure 2 – Description of route plan – Leg parameters belonging to WP 3
4.2 RTZP data container

RTZP data containers are standard ZIP archive files used to compress the size of the route

exchange files.

The RTZP data container file .rtzp stores a single XML file .rtz, which conforms to the XML

schema described in 4.6.
A single RTZP file shall be limited in compressed size to 10 MB.

Use of the RTZP data container is optional. When used without the RTZP data container the

filename extension of the route exchange shall be .rtz and when used with the RTZP data

container the extension shall be .rtzp. Within the RTZP data container the filename extension

of the route exchange shall be .rtz. The user manual shall specify whether the RTZP data

container is supported.

The filename of the RTZP data container shall be the same as the content of the attribute

routeName described in 4.5.3.

In addition to the .rtz file a number of free-format files may be placed in the RTZP data

container. The semantic data link between the XML nodes and files may be documented using

a HTTP like scheme "rtz://", where "" identifies a file name inside the RTZP data

container.
---------------------- Page: 11 ----------------------
– 10 – IEC PAS 61174-1:2021 © IEC 2021
For example:

name="AuxRouteInfo-9674F26E-EAFB-4319-AE24-08D5BA69D895">

value="http://services.acme.com/auto_route/?id=3e891884e620970e5303fd2399427986"/>





4.3 High-level description of the RTZ format
The logical design of a route consists of three independent units:
• a block with general information about the route;

• a block with route geography (geometry) information which consists of blocks describing

individual legs. Legs are listed in the order they appear on the route;

• a block that contains a set of route schedules. Each block can be extended by manufacturers

to fit their needs.
Each block can be extended by manufacturers to fit their needs.
4.4 Adaption to third-party extensions and handling of optional data
4.4.1 Generic idea

Extended information in most cases refers to the geography (geometry) of a route.

It shall be possible to import and export RTZ files with extensions from different manufacturers.

4.4.2 Unique identification of a waypoint
Each waypoint in a route has a unique composite ’id’.

RTZ extensions shall use this composite identifier to link their data to the geography. This

allows an application that does understand the extension to identify when third-party software

has modified the related element (see 4.4.4).
The identifier consists of two parts:

• id, which allows the finding of a waypoint in the list; This ‘id’ is not intended to be a sequence

number (i.e. does not need to relate to the position of the waypoint in the route);

• revision, which allows the determination of modifications of a waypoint since the entry of

the data into a file extension.
id is an integer,
revision is a monotonically increasing integer.
---------------------- Page: 12 ----------------------
IEC PAS 61174-1:2021 © IEC 2021 – 11 –
4.4.3 Creation of new waypoints
After creation of the waypoint the revision attribute shall have the value of 0.
4.4.4 Change of geographic data for a waypoint

When the data of a Waypoint or associated Leg changes, including the addition of a

manufacturer extension, the software shall increase the revision number revision. This allows

third-party software that works with the extension to find out that the data to which it is

associated may no longer be valid.
4.4.5 Waypoint removal

When deleting a waypoint from a route, all the waypoint data including Leg and any Schedule

data associated with the removed Waypoint shall be deleted and the ids of other waypoints

within the route shall remain unchanged.

NOTE Deletion of the waypoint may result in schedules for other waypoints becoming invalid or being updated.

4.4.6 Waypoint modification

The data that software is not able to recognize (e.g. extensions and optional elements and

optional attributes) shall be written back into the modified file without modification.

The data that software is able to recognize (e.g. extensions and optional elements and optional

attributes known by the manufacturer) shall be handled as declared by the manufacturer. When

importing a route, manufacturer extension data that is recognized shall be checked (e.g. by

using the composite ‘id’ described in 4.4.2) and, where the application determines that

modifications by an external 3rd party application may have invalidated the data, appropriate

action shall be taken. The manufacturer shall declare the appropriate action to be taken which

will depend on the nature of the extension, and may range from removal of the extension to

maintaining it unchanged.

NOTE Modification of the waypoint can result in schedules becoming invalid or being updated.

4.5 Detailed RTZ format description
4.5.1 File components
The RTZ file consists of:

• the mandatory XML processing instruction, which allows the specification of the encoding

of string data;
• a root node, which includes the URIs of the namespaces used;
NOTE An example of a namespace is available in 4.6.
• the version attribute in the format "Major.Minor".
The file encoding shall be UTF-8.
A single RTZ file shall be limited in uncompressed size to 1 MB.

There shall be an indication to the user if file size constraint will be exceeded through

modification to route plan.
4.5.2 Route node description
This is the only "root" element of the RTZ file.

It has one mandatory attribute "version" that contains the version of the RTZ schema.

---------------------- Page: 13 ----------------------
– 12 – IEC PAS 61174-1:2021 © IEC 2021

Version is specified as a combination of two numbers separated with a dot. The first number

corresponds to the major version. It is changed following significant modificat
...
