Audio, video, and related equipment - Determination of power consumption - Part 1: General

IEC 62087-1:2015 specifies the general requirements for the determination of power consumption of audio, video, and related equipment. Requirements for specific types of equipment are specified in additional parts of this series of standards and may supersede the requirements specified in this standard. Moreover, this part of IEC 62087 defines the different modes of operation which are relevant for determining power consumption. This first edition of IEC 62087-1 together with IEC 62087-2 to IEC 62087-6 cancels and replaces IEC 62087:2011 in its entirety. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to Clauses 1 to 5 of IEC 62087:2011.
- It includes new information about operation modes.
- Equipment that includes removable main batteries are now considered.
- Light measuring equipment is now specified.

Appareils audio, vidéo et matériel connexe - Détermination de la consommation de puissance - Partie 1: Généralités

L'IEC 62087-1:2015 définit les exigences générales pour la détermination de la consommation de puissance des appareils audio et vidéo et du matériel connexe. Les exigences relatives à des types particuliers de matériel sont définies dans des parties supplémentaires de la présente série de normes et peuvent remplacer les exigences spécifiées dans la présente norme. La présente partie de l'IEC 62087 définit en outre les différents modes de fonctionnement appropriés à la détermination de la consommation de puissance. La présente norme n'est applicable qu'à un matériel pouvant être alimenté par une source d'alimentation externe. Le matériel incluant une batterie principale non amovible n'est pas couvert par la présente norme. Le matériel peut inclure un nombre quelconque de batteries auxiliaires. Un exemple de mode opératoire de vérification est fourni pour évaluer la conformité d'un modèle particulier de matériel à la valeur déclarée. Les conditions de mesure de la présente norme sont celles de l'usage normal du matériel et peuvent différer de conditions particulières, telles que celles spécifiées dans les normes de sécurité.
La première édition de l'IEC 62087-1, conjointement avec les IEC 62087-2 à IEC 62087-6, annule et remplace l'IEC 62087:2011 dans son intégralité. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport aux Articles 1 à 5 de l'IEC 62087:2011.
- Elle contient de nouvelles informations relatives aux modes de fonctionnement.
- Elle prend désormais en compte le matériel intégrant des batteries principales amovibles.
- Le matériel de mesure de la lumière est désormais spécifié.

General Information

Status
Published
Publication Date
04-Jun-2015
Current Stage
PPUB - Publication issued
Start Date
05-Jun-2015
Completion Date
05-Jun-2015
Ref Project

Buy Standard

Standard
IEC 62087-1:2015 - Audio, video, and related equipment - Determination of power consumption - Part 1: General
English and French language
29 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62087-1
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Audio, video, and related equipment – Determination of power consumption –
Part 1: General
Appareils audio, vidéo et matériel connexe – Détermination de la consommation
de puissance –
Partie 1: Généralités
IEC 62087-1:2015-06(en-fr)
---------------------- Page: 1 ----------------------

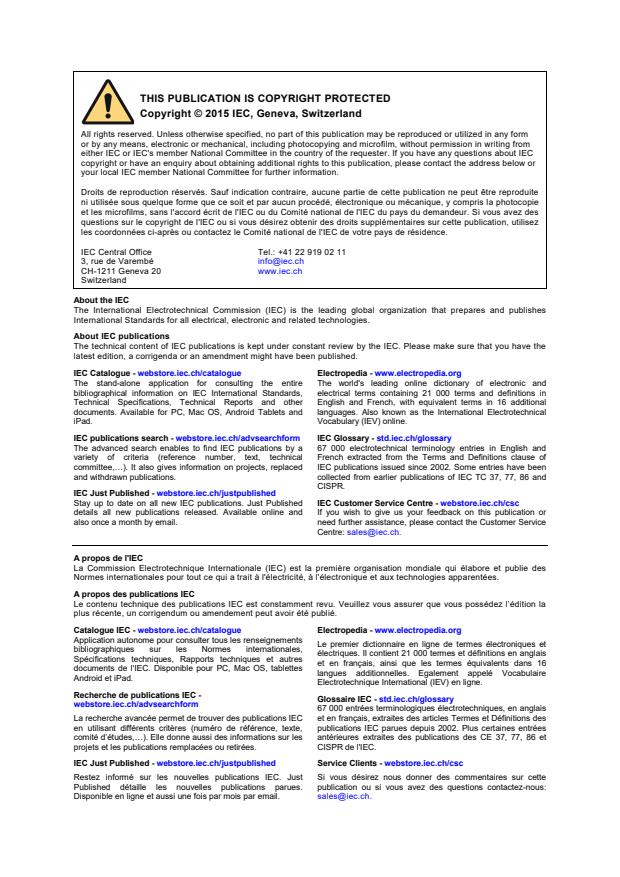

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2015 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62087-1
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Audio, video, and related equipment – Determination of power consumption –
Part 1: General
Appareils audio, vidéo et matériel connexe – Détermination de la consommation
de puissance –
Partie 1: Généralités
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160.10 ISBN 978-2-8322-5365-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

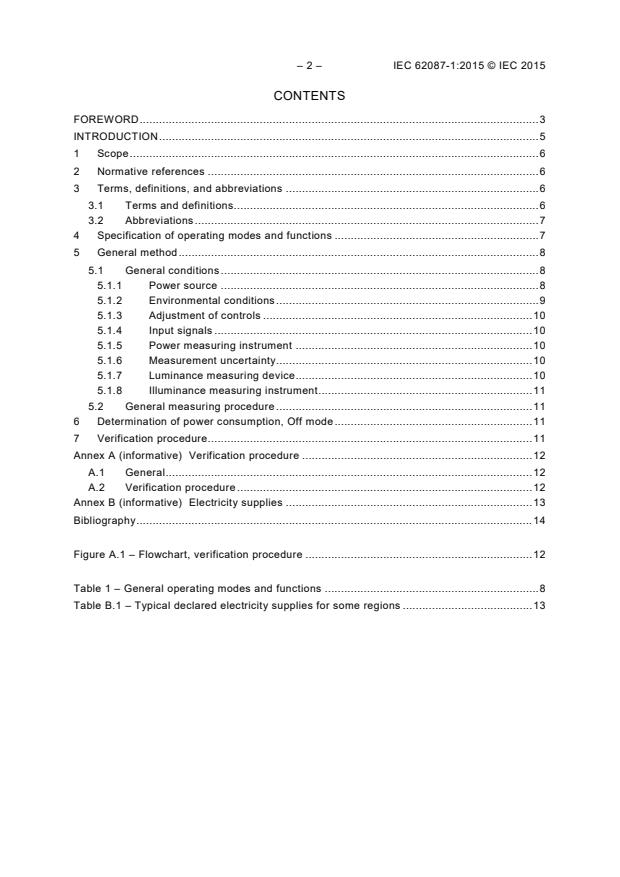

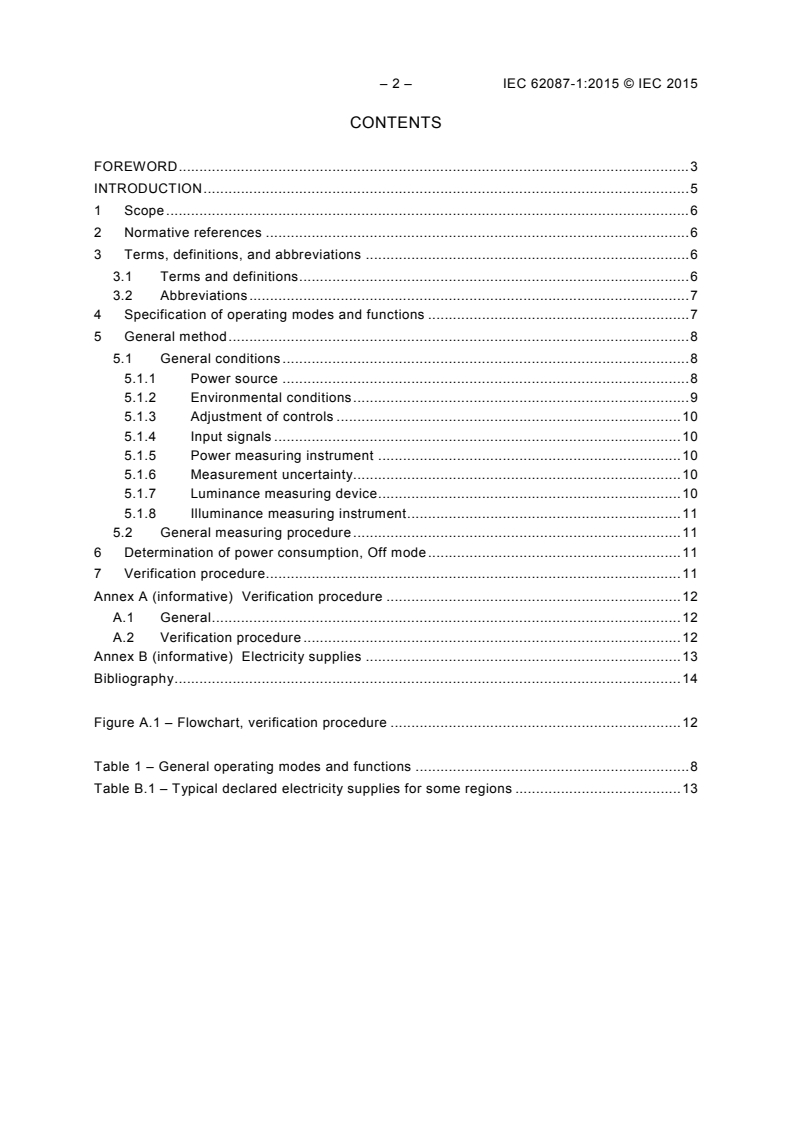

– 2 – IEC 62087-1:2015 © IEC 2015
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions, and abbreviations .............................................................................. 6

3.1 Terms and definitions .............................................................................................. 6

3.2 Abbreviations .......................................................................................................... 7

4 Specification of operating modes and functions ............................................................... 7

5 General method ............................................................................................................... 8

5.1 General conditions .................................................................................................. 8

5.1.1 Power source .................................................................................................. 8

5.1.2 Environmental conditions ................................................................................. 9

5.1.3 Adjustment of controls ................................................................................... 10

5.1.4 Input signals .................................................................................................. 10

5.1.5 Power measuring instrument ......................................................................... 10

5.1.6 Measurement uncertainty............................................................................... 10

5.1.7 Luminance measuring device ......................................................................... 10

5.1.8 Illuminance measuring instrument .................................................................. 11

5.2 General measuring procedure ............................................................................... 11

6 Determination of power consumption, Off mode ............................................................. 11

7 Verification procedure .................................................................................................... 11

Annex A (informative) Verification procedure ....................................................................... 12

A.1 General ................................................................................................................. 12

A.2 Verification procedure ........................................................................................... 12

Annex B (informative) Electricity supplies ............................................................................ 13

Bibliography .......................................................................................................................... 14

Figure A.1 – Flowchart, verification procedure ...................................................................... 12

Table 1 – General operating modes and functions .................................................................. 8

Table B.1 – Typical declared electricity supplies for some regions ........................................ 13

---------------------- Page: 4 ----------------------
IEC 62087-1:2015 © IEC 2015 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUDIO, VIDEO, AND RELATED EQUIPMENT –
DETERMINATION OF POWER CONSUMPTION –
Part 1: General
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62087-1 has been prepared by technical area 12: AV energy

efficiency and smart grid applications, of IEC technical committee 100: Audio, video and

multimedia systems and equipment.

This first edition of IEC 62087-1 together with IEC 62087-2 to IEC 62087-6 cancels and

replaces IEC 62087:2011 in its entirety. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to Clauses 1 to 5

of IEC 62087:2011.
– It includes new information about operation modes.
– Equipment that includes removable main batteries are now considered.
– Light measuring equipment is now specified.
---------------------- Page: 5 ----------------------
– 4 – IEC 62087-1:2015 © IEC 2015

This bilingual version (2018-02) corresponds to the monolingual English version, published in

2015-06.
The text of this standard is based on the following documents:
FDIS Report on voting
100/2466/FDIS 100/2496/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.
The French version of this standard has not been voted upon.

A list of all parts in the IEC 62087 series, published under the general title Audio, video, and

related equipment – Determination of power consumption, can be found on the IEC website.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC 62087-1:2015 © IEC 2015 – 5 –
INTRODUCTION

The IEC 62087 series specifies the general conditions and procedure for determining the

power consumption of audio, video and related equipment. The specific conditions and

procedures for specific types of equipment are specified in IEC 62087-3 to IEC 62087-6.

IEC 62087-2 specifies signals and media that may be required to determine the power

consumption of some types of equipment.

IEC 62087:2008 added methods for determining the On (average) mode power consumption

of televisions, based on three video signal sets. These include static, dynamic
broadcast-content, and Internet-content signals.

IEC 62087:2011 revised methods for determining the power consumption of set top boxes.

The IEC 62087 series separates IEC 62087 into parts, including this general part which

specifies the common conditions and procedures and adds new information about operating

modes.

IEC 62087 has been subdivided and currently consists of the following planned or published

parts:
– Part 1: General
– Part 2: Signals and media
– Part 3: Television sets
– Part 4: Video recording equipment
– Part 5: Set top boxes
– Part 6: Audio equipment
___________

IEC 62087:2008, Methods of measurement for the power consumption of audio, video and related equipment

IEC 62087:2011, Methods of measurement for the power consumption of audio, video and related equipment

---------------------- Page: 7 ----------------------
– 6 – IEC 62087-1:2015 © IEC 2015
AUDIO, VIDEO, AND RELATED EQUIPMENT –
DETERMINATION OF POWER CONSUMPTION –
Part 1: General
1 Scope

This part of IEC 62087 specifies the general requirements for the determination of power

consumption of audio, video, and related equipment. Requirements for specific types of

equipment are specified in additional parts of this series of standards and may supersede the

requirements specified in this standard.

Moreover, this part of IEC 62087 defines the different modes of operation which are relevant

for determining power consumption.

This standard is only applicable for equipment which can be powered by an external power

source. Equipment that includes a non-removable main battery is not covered by this

standard. Equipment may include any number of auxiliary batteries.

In order to assess compliance of a specific model of equipment with the declared value, an

example verification procedure is provided.

The measuring conditions in this standard represent the normal use of the equipment and

may differ from specific conditions, for example as specified in safety standards.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62301:2011, Household electrical appliances – Measurement of standby power

IEC 62542:2013, Environmental standardization for electrical and electronic products and

systems – Glossary of terms
3 Terms, definitions, and abbreviations
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 62542:2013,

Clause 5, as well as the following apply.
3.1.1
automatic brightness control

feature that senses ambient light conditions and changes display luminance accordingly,

possibly reducing power consumption
---------------------- Page: 8 ----------------------
IEC 62087-1:2015 © IEC 2015 – 7 –
3.1.2
auxiliary battery

power storage device that is not capable of powering equipment such that the equipment can

provide its primary functions

Note 1 to entry: Memory retention and remote control batteries are examples of auxiliary batteries.

3.1.3
illuminance

photometric measure of the total luminous flux incident on a surface, per unit area

Note 1 to entry: Illuminance is expressed in lux (lx).
3.1.4
luminance

photometric measure of the luminous intensity per unit area of light traveling in a given

direction

Note 1 to entry: Luminance is expressed in units of candelas per square meter (cd/m ).

3.1.5
main battery

power storage device capable of powering equipment such that the equipment can provide its

primary functions
3.1.6
model of equipment
specific design of a product
3.1.7
type of equipment
class of equipment providing the same main functions
EXAMPLES TV, STB, video recorder.
3.1.8
unit of equipment
single instance of a model of equipment
3.1.9
unit under test
UUT
specific unit of equipment subjected to a test
3.2 Abbreviations
ABC Automatic Brightness Control
LMD Luminance Measuring Device
UUT Unit Under Test
4 Specification of operating modes and functions

Table 1 specifies the general operating modes and functions for equipment covered by this

standard. More specific information about modes and functions may exist in the
equipment-specific parts of this series of standards.

For all modes, main batteries shall be removed for the duration of the measurement

procedure as directed in 5.1.1.1.
---------------------- Page: 9 ----------------------
– 8 – IEC 62087-1:2015 © IEC 2015
Table 1 – General operating modes and functions
Power Mode Sub-mode Function(s) Functional description

0 W Disconnected Disconnected – Disconnected from external The equipment is disconnected

power sources and main or galvanically isolated from all
batteries external power sources and main
batteries.
Off Off – Off The equipment is connected to
≥0 W
an external power source and
provides no functions that
depend on an external power
source. The equipment cannot be
switched into any other mode
with the remote control unit, or
an external or internal signal.
Note that some power may be
consumed if an EMC filter or
other components exist on the
source side of the power switch.
>0 W Partial On Standby- – Wake on The equipment is connected to
passive an external power source and
• remote control
does not provide its primary
• internal signal
functions. The equipment can be
switched into another mode with
the remote control unit or an
internal signal, but not with an
external signal.
Standby- – Wake on The equipment is connected to
active, low an external power source and
• remote control
does not provide its primary
• internal signal
functions. The equipment can be
• external signal
switched into another mode with
the remote control unit, an
internal signal, or an external
signal.
Standby- – Wake on The equipment is connected to
active, high an external power source and
• remote control
does not provide its primary
• internal signal
functions. The equipment can be
• external signal switched into another mode with
the remote control unit, an
– Data communications
internal signal, or an external
signal. Additionally, the
equipment is
exchanging/receiving data
with/from an external source but
not as part of a primary function.
On Operation – Operation The equipment is connected to
an external power source and
provides its primary functions.

NOTE The operating modes introduced in Table 1 describe the general framework of operating modes applied

in this standard. They may be further differentiated for specific types of equipment in the other parts of

IEC 62087. The equipment-specific parts of this series of standards do not necessarily describe determination of

power consumption for all modes, sub-modes, and functions shown in Table 1.
5 General method
5.1 General conditions
5.1.1 Power source
5.1.1.1 Main battery connection

If the UUT includes a removable main battery, it shall be disconnected and galvanically

isolated for the duration of the measurement procedure, unless directed otherwise by another

part of this series of standards.
---------------------- Page: 10 ----------------------
IEC 62087-1:2015 © IEC 2015 – 9 –
5.1.1.2 External power supplies

Equipment supplied by the manufacturer with an external power supply shall be connected to

that external power supply during the measuring procedures.
5.1.1.3 Mains power

For equipment powered by the mains, the equipment shall be powered using the declared

voltage and frequency of the region.
The voltage and frequency of the power source shall be reported.
NOTE Annex B provides additional information regarding electricity supplies.
5.1.1.4 Power from other than the mains

For equipment powered by a means other than the mains, the equipment shall be powered at

the voltage and frequency as specified by the manufacturer.
The voltage and frequency of the power source shall be reported.
5.1.1.5 Power source, On mode
In On mode, the following requirements apply:

The fluctuation of the voltage supplied shall not exceed ±2 %. The frequency fluctuation and

the harmonic components of the supplied power shall not exceed ±2 % and 5 % respectively.

5.1.1.6 Power source, Partial On and Off modes
In the Partial On and Off modes, the following requirements apply:

The test voltage shall be the declared voltage ±1 % and the test frequency shall be the rated

frequency ±1 %. Where a number of models of equipment are being tested and compared for

use in the same country, the declared voltage ±1 % and declared frequency ±1 % may be

used for all tests. Where the test voltage and frequency are not defined by an external

standard, the test voltage and the test frequency shall be the declared voltage and the

declared frequency of the country for which the power consumption is being determined ±1 %.

The total harmonic content of the source voltage when supplying the UUT in the specified

mode shall not exceed 2 % (up to and including the 13th harmonic); harmonic content is

defined as the root-mean-square (r.m.s.) summation of the individual components using the

fundamental as 100 %.

The ratio of peak value to r.m.s. value of the test voltage (i.e. crest factor) shall be between

1,34 and 1,49.
NOTE 1 Annex B provides additional information regarding electricity supplies.
NOTE 2 A stabilized power supply may be required to meet these requirements.
5.1.2 Environmental conditions

The ambient temperature of the test room shall be 23 °C ± 5 °C, unless otherwise specified in

this series of standards. The ambient temperature shall be reported.
---------------------- Page: 11 ----------------------
– 10 – IEC 62087-1:2015 © IEC 2015
5.1.3 Adjustment of controls

The controls not specifically mentioned in this part or other parts of IEC 62087 shall be in the

position adjusted by the manufacturer for shipment to the end user. These controls shall

remain in this state for the duration of the test unless otherwise directed.
5.1.4 Input signals

For equipment for which the input signals are not explicitly described in this standard, the

signals as specified by the manufacturer shall be applied during the test. The input signals

used shall be reported.
5.1.5 Power measuring instrument

The measurement shall be carried out directly by means of a wattmeter, a wattmeter with

averaging function, or a watthour meter by dividing the reading by the measuring time. If the

power consumption is expected to vary over time, such as in the case of a television set

displaying a dynamic signal, a watthour meter or a wattmeter with an averaging function shall

be used to carry out the measurement.

The sampling rate of the watthour meter or wattmeter with averaging function shall be high

enough to achieve an accurate measurement. The manufacturer’s specification shall be used

to determine the appropriateness of the meter and suitable sampling rates to perform a

measurement with the required accuracy.

The power measuring instrument used shall measure the real power consumed regardless of

the power factor of the UUT.

In the case of Partial On mode power measurement, it should be ascertained that the

wattmeter or the watthour meter is suitable to measure the power consumption of power

supplies working in a burst mode with a low duty cycle and the low power consumption levels

in the Partial On mode.

For digital power meters, a sampling rate of at least 10 kHz is recommended. (“Sampling rate”

in many specifications refers to how often the display is updated, and not the actual sampling

frequency of the input waveform.) Most digital power meters are believed to meet this

requirement. If it is not listed in the manufacturer’s specifications, contact the manufacturer.

5.1.6 Measurement uncertainty

Measurements of power of 0,5 W or greater shall be made with an uncertainty of less than or

equal to 2 % at the 95 % confidence level. Measurements of power of less than 0,5 W shall be

made with an uncertainty of less than or equal to 0,01 W at the 95 % confidence level. The

power measuring instrument shall have a resolution of:
– 0,01 W or better for power measurements of 10 W or less;
– 0,1 W or better for power measurements of greater than 10 W up to 100 W;
– 1 W or better for power measurements of greater than 100 W.

For equipment connected to more than one phase, the power measuring instrument shall be

equipped to measure the total power of all phases connected.

NOTE For more information about the determination of uncertainty of measurement, refer to IEC 62301:2011,

Annex D.
5.1.7 Luminance measuring device

When directed to measure display luminance a luminance measuring device (LMD), which

may be of either the contact or non-contact type, shall be used. The LMD shall have an

---------------------- Page: 12 ----------------------
IEC 62087-1:2015 © IEC 2015 – 11 –

acceptance (or measuring) angle in the range of 1° to 3°, inclusive. For contact LMDs, the

measuring area shall have a diameter of 25 mm or more.

The LMD shall have an accuracy of ±2 % ± 2 digits of the digitally displayed value or better.

5.1.8 Illuminance measuring instrument
When dir
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
