IEC 61291-2:2016
(Main)Optical amplifiers - Part 2: Single channel applications - Performance specification template
Optical amplifiers - Part 2: Single channel applications - Performance specification template
IEC 61291-2:2016 provides a performance specification template which applies to optical amplifiers (OAs) to be used in single channel applications. Multichannel applications are covered in IEC 61291-4. The object of this performance specification template is to provide a frame for the preparation of performance standards and/or product specifications on the performance of OA devices to be used in single channel applications. In the performance standards or product specifications, other specifications such as ratings, operating conditions, tests and pass/fail criteria could be included in addition to the requirements based on this performance specification template. Product specification writers may add specification parameters and/or groups of specification parameters for particular applications. However, product specification writers should not remove specification parameters specified in this standard. This fourth edition cancels and replaces the third edition published in 2012. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- the title of this standard has been changed from digital applications to single channel applications;
- the scope has been changed and, as a result, the titles of tables have been changed;
- Terms and definitions have been revised;
- three tables regarding the minimum list of relevant parameters of power amplifiers, pre-amplifiers and line amplifiers based on semiconductor optical amplifier (SOA) components have been added;
- transient parameters have been added in the minimum list of relevant parameters of pre-amplifiers and line amplifiers based on optical fibre amplifier (OFA) module. Keywords: optical amplifiers (OAs) used in single channel applications
Amplificateurs optiques - Partie 2: Applications à un seul canal - Modèle de spécifications de performances
IEC 61291-2:2016 fournit un modèle de spécifications de performances qui s’applique aux amplificateurs optiques (AO) destinés à être utilisés dans le cadre d’applications à un seul canal. Les applications multicanaux sont couvertes dans l’IEC 61291‑4. L’objet de ce modèle de spécifications de performances est de fournir une trame pour l’établissement de normes de performances et/ou de spécifications de produit relatives aux performances des dispositifs AO destinés à être utilisés dans le cadre d’applications à un seul canal. D’autres spécifications telles que les valeurs assignées, les conditions de fonctionnement, les essais et les critères de succès/défaillance peuvent être incluses dans les normes de performances ou les spécifications de produit, en plus des exigences basées sur ce modèle de spécifications de performances. Les rédacteurs de spécifications de produit peuvent ajouter des paramètres et/ou des groupes de paramètres à ces spécifications pour des applications particulières. Cependant, il convient que les rédacteurs de spécifications de produit ne suppriment pas les paramètres aux spécifications précisées dans la présente norme. Cette quatrième édition annule et remplace la troisième édition parue en 2012. Cette édition constitue une révision technique. La présente édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
- le titre de la présente norme "applications numériques" est remplacé par "applications à un seul canal";
- le domaine d’application a été modifié et, par conséquent, les titres des tableaux ont été changés;
- les termes et définitions ont été révisés;
- trois tableaux donnant la liste minimale de paramètres applicables aux amplificateurs de puissance, préamplificateurs et amplificateurs de ligne basés sur des composants SOA (amplificateur optique à semiconducteur) ont été ajoutés;
- les paramètres transitoires ont été ajoutés à la liste minimale de paramètres applicables aux préamplificateurs et amplificateurs de ligne basés sur un module OFA (amplificateur à fibres optiques).
General Information
Relations
Buy Standard
Standards Content (Sample)

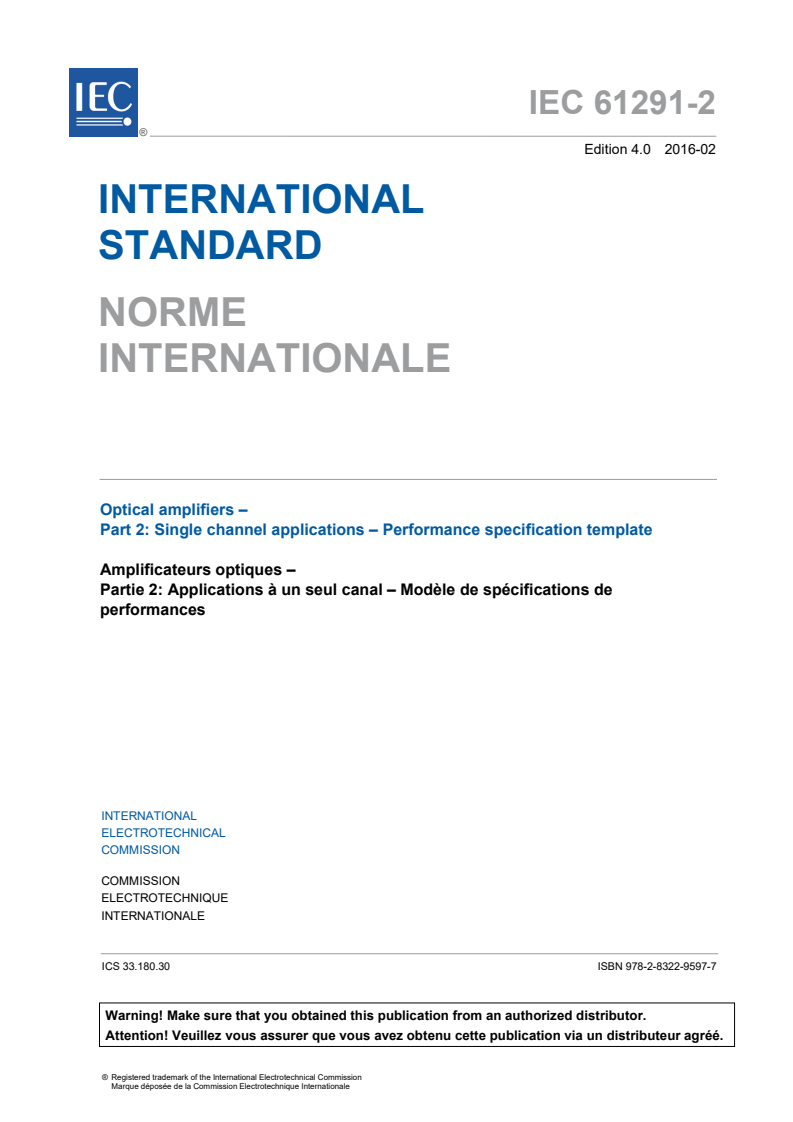

IEC 61291-2 ®
Edition 4.0 2016-02
INTERNATIONAL
STANDARD
Optical amplifiers –
Part 2: Single channel applications – Performance specification template

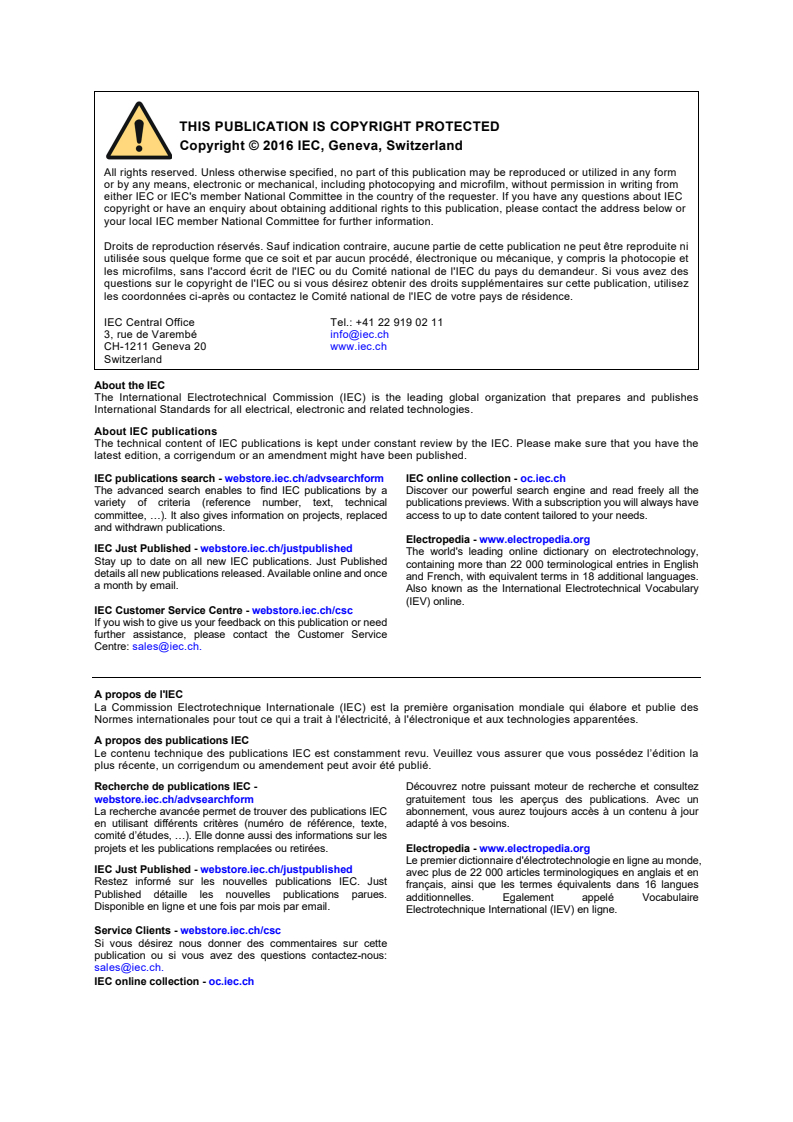

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 61291-2 ®
Edition 4.0 2016-02
INTERNATIONAL
STANDARD
Optical amplifiers –
Part 2: Single channel applications – Performance specification template
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.180.30 ISBN 978-2-8322-3185-2
– 2 – IEC 61291-2:2016 © IEC 2016

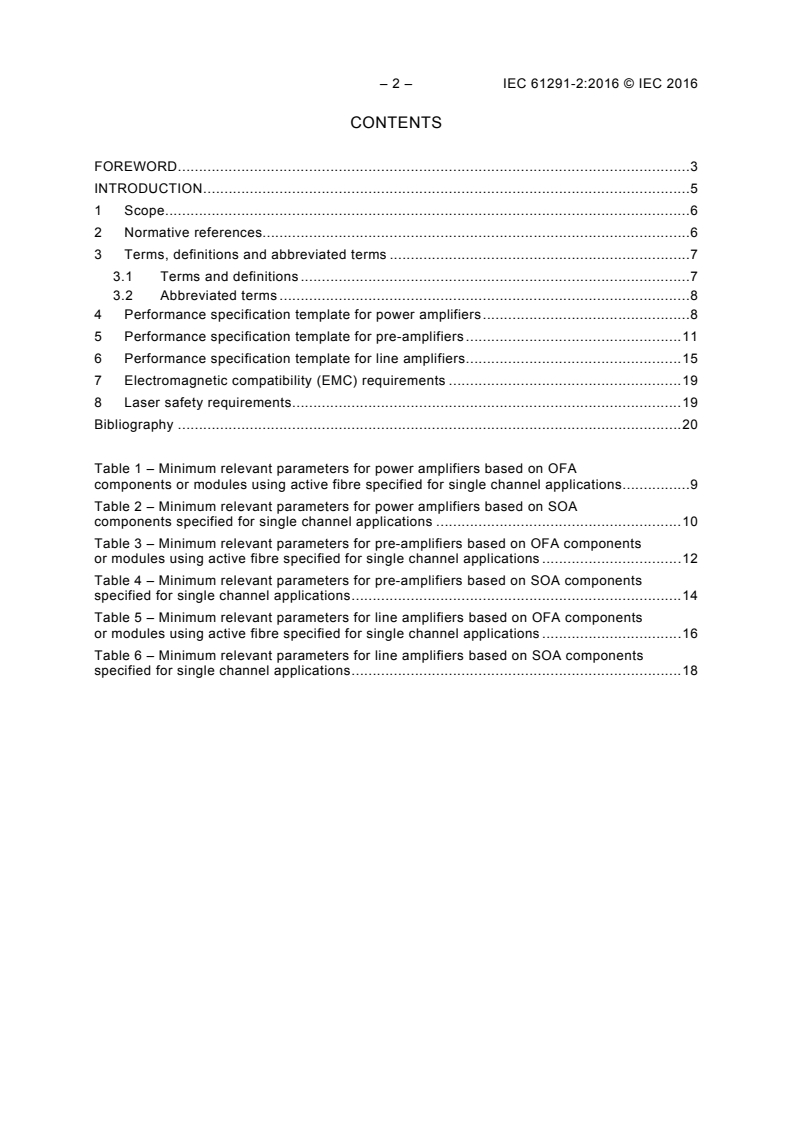

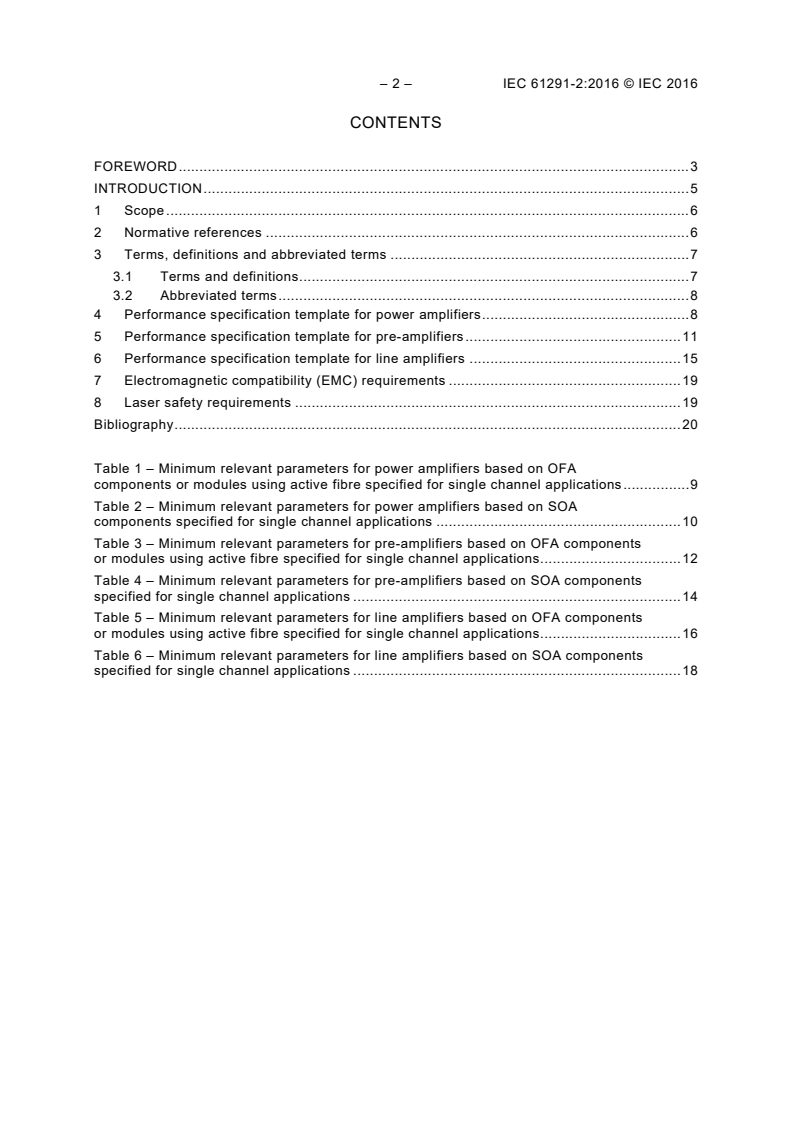

CONTENTS
