IEC 60728-2:2018

Cable networks for television signals, sound signals and interactive services - Part 2: Electromagnetic compatibility for equipment

IEC 60728-2:2018(E) applies to the radiation characteristics and immunity to electromagnetic disturbance of EM active equipment (active and passive equipment) for the reception, processing and distribution of television, sound and interactive multimedia signals as dealt with in IEC 60728-3, IEC 60728-4, IEC 60728-5 and IEC 60728-6.
This document covers the following frequency ranges:
- disturbance voltage injected into the mains: 150 kHz to 30 MHz;
- radiation from active equipment: 5 MHz to 25 GHz;
- immunity of active equipment: 150 kHz to 25 GHz;
- screening effectiveness of passive equipment: 5 MHz to 3,5 GHz.
This document specifies requirements for maximum allowed radiation, minimum immunity and minimum screening effectiveness and describes test methods for conformance testing.
This third edition cancels and replaces the second edition published in 2010. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) Frequency extensions:
a.1) The upper frequency limit of conventional cable network equipment was extended from 862 MHz to 1 000 MHz due to market demands.
a.2) The first intermediate frequency range (1st IF range) for satellite signal transmission was extended to cover now frequencies from 950 MHz up to 3 500 MHz.
a.3) The methods of measurement and the EMC requirements in the overlapping frequency range from 950 MHz to 1 000 MHz were allocated in relation to the upper frequency limit, 1 000 MHz, and the lower frequency limit, 950 MHz, of the relevant equipment under test.
b) New EMC environment in the 800 MHz band:
b.1) The European Commission has requested CENELEC and ETSI to draft immunity requirements for equipment, to protect against disturbance from the new wireless service in the 790 MHz to 862 MHz band.
b.2) A CENELEC/ETSI Joint Working Group “Digital Dividend” was formed to describe the new EMC environment and to advise on appropriate test methods and limits.
b.3) IEC 60728-2 is the document specifying immunity requirements for active and passive cable network equipment.
b.4) The method of measurement and the requirements for in-band immunity were extended taking into account this new EMC environment due to the allocation of broadband wireless services in the frequency band 694 MHz to 862 MHz. As a consequence, the limits of in-band immunity were specified for analogue and additionally for digital signals in this frequency range.
b.5) Consequently it is recommended, that, where cable networks and wireless networks coexist, only the transmission of digitally modulated signals should be used in the frequency range 694 MHz to 862 MHz.
b.6) For passive equipment, Class A and Class B specifications were kept in the standard but a note was added recommending that only Class A equipment should be used in the planning and implementation of new networks.
c) The methods of measurement for all kinds of indoor antennas were combined in the new 4.9.
d) A Bibliography has been added at the end of the document referencing, for example, CEPT Report 30 on “The identification of common and minimal (least restrictive) technical conditions for 790-862 MHz for the digital dividend in the European Union”.

General Information

• Status: Published
• Publication Date: 09-Jan-2018
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 29.060.20 - Cables
• ICS: 33.160.99 - Other audio, video and audiovisual equipment
• Technical Committee: TA 5 - Cable networks for television signals, sound signals and interactive services
• Drafting Committee: WG 2 - TC 100/WG 2
• Current Stage: PPUB - Publication issued
• Start Date: 12-Jan-2018
• Completion Date: 10-Jan-2018

Relations

• Revises: IEC 60728-2:2010 - Cable networks for television signals, sound signals and interactive services - Part 2: Electromagnetic compatibility for equipment
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 60728-2
®

Edition 3.0 2018-01
INTERNATIONAL
STANDARD



Cable networks for television signals, sound signals and interactive services –
Part 2: Electromagnetic compatibility for equipment
IEC 60728-2:2018-01(en)

---------------------- Page: 1 ----------------------

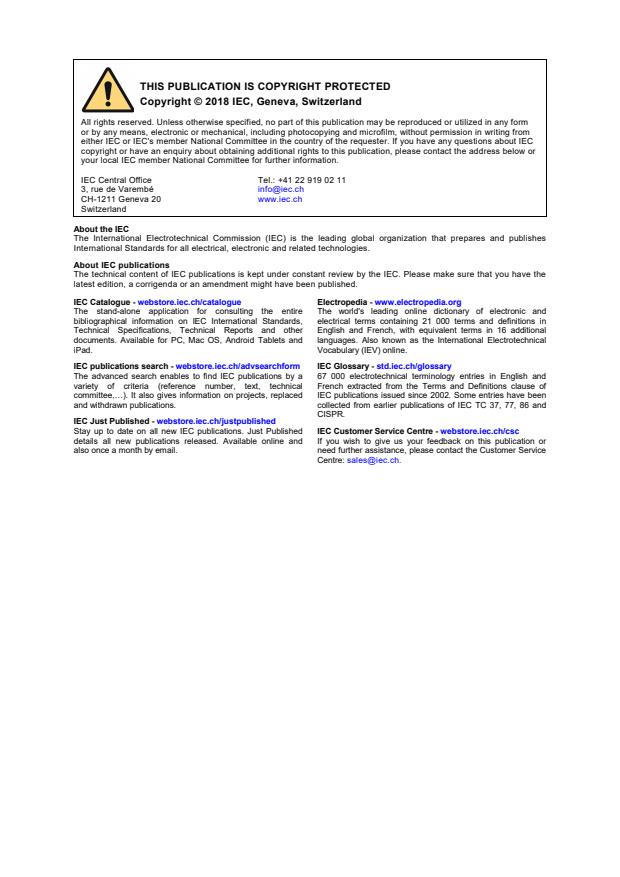

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].

---------------------- Page: 2 ----------------------
IEC 60728-2

®


Edition 3.0 2018-01




INTERNATIONAL



STANDARD



















Cable networks for television signals, sound signals and interactive services –

Part 2: Electromagnetic compatibility for equipment


























INTERNATIONAL

ELECTROTECHNICAL


COMMISSION





ICS 33.160.99 ISBN 978-2-8322-5148-5



  Warning! Make sure that you obtained this publication from an authorized distributor.


® Registered trademark of the International Electrotechnical Commission

---------------------- Page: 3 ----------------------
– 2 – IEC 60728-2:2018 © IEC 2018

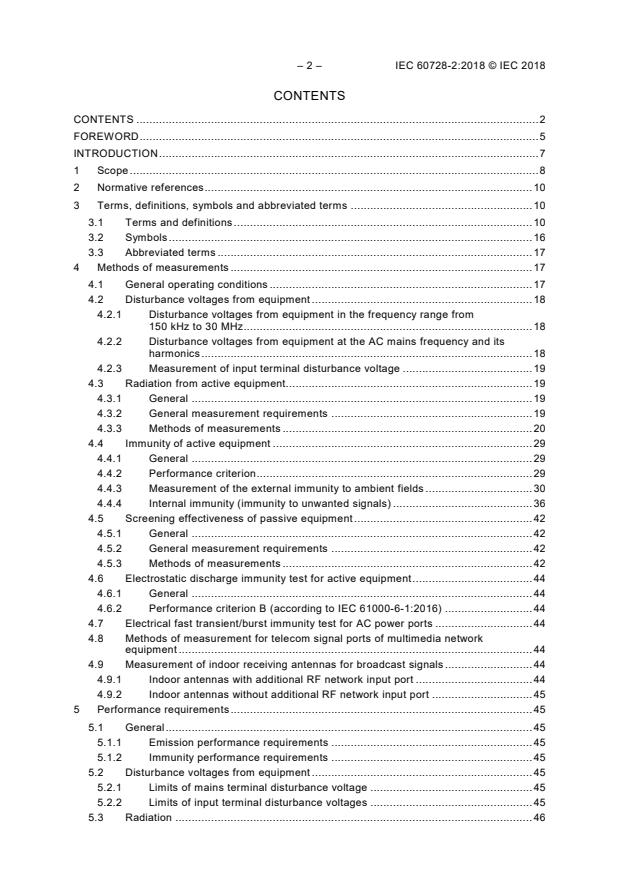

CONTENTS
CONTENTS . 2
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 10
3 Terms, definitions, symbols and abbreviated terms . 10
3.1 Terms and definitions . 10
3.2 Symbols . 16
3.3 Abbreviated terms . 17
4 Methods of measurements .
...
