Meteorology — Air temperature measurements — Test methods for comparing the performance of thermometer shields/screens and defining important characteristics

ISO 17714:2007 defines characteristics of a thermometer shield/screen. It also defines test methods to inter-compare the behaviour of different screen designs. Although screens are usually used for both air temperature and humidity measurements, ISO 17714:2007 is applicable only to temperature measurements. Both naturally and artificially ventilated screens are considered.

Météorologie — Mesurage de la température de l'air — Méthodes d'essai pour comparer les performances d'abris/d'écrans pour thermomètres et définir les caractéristiques importantes

General Information

Status
Published
Publication Date
24-Jun-2007
Technical Committee
Current Stage
9093 - International Standard confirmed
Completion Date
07-Jun-2021
Ref Project

Buy Standard

Standard
ISO 17714:2007 - Meteorology -- Air temperature measurements -- Test methods for comparing the performance of thermometer shields/screens and defining important characteristics
English language
19 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 17714
First edition
2007-07-01
Meteorology — Air temperature
measurements — Test methods for
comparing the performance of
thermometer shields/screens and
defining important characteristics
Météorologie — Mesurage de la température de l'air — Méthodes
d'essai pour comparer les performances d'abris/d'écrans pour
thermomètres et définir les caractéristiques importantes
Reference number
ISO 17714:2007(E)
ISO 2007
---------------------- Page: 1 ----------------------
ISO 17714:2007(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

COPYRIGHT PROTECTED DOCUMENT
© ISO 2007

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 17714:2007(E)
Contents Page

Foreword............................................................................................................................................................ iv

Introduction ........................................................................................................................................................ v

1 Scope ..................................................................................................................................................... 1

2 Terms and definitions........................................................................................................................... 1

3 Field test conditions............................................................................................................................. 2

3.1 Field test site ......................................................................................................................................... 2

3.2 Respective location of screens ........................................................................................................... 2

3.3 Screens .................................................................................................................................................. 3

3.4 Thermometers ....................................................................................................................................... 3

3.5 Additional meteorological variables................................................................................................... 3

3.6 Data sampling ....................................................................................................................................... 4

3.7 Reference values .................................................................................................................................. 4

3.8 Quality control....................................................................................................................................... 4

3.9 Long-term intercomparison................................................................................................................. 5

3.10 Typical conditions ................................................................................................................................ 5

3.11 Documentation...................................................................................................................................... 6

4 Field test methods ................................................................................................................................ 6

4.1 Comparability analysis......................................................................................................................... 6

4.2 Global analysis of air temperature...................................................................................................... 6

4.3 Analysis of extreme values.................................................................................................................. 6

4.4 Statistical analysis of radiation error.................................................................................................. 7

4.5 Influence of surface albedo ................................................................................................................. 7

4.6 Selection of typical conditions............................................................................................................ 7

5 Measurement of screen characteristics ............................................................................................. 8

5.1 Aspiration rate....................................................................................................................................... 8

5.2 Internal ventilation factor..................................................................................................................... 8

5.3 Representative height and screen reference point ........................................................................... 8

5.4 System response time.......................................................................................................................... 8

Annex A (informative) Influence factors ........................................................................................................ 10

Annex B (informative) Examples of useful test-report graphs .................................................................... 13

Bibliography ..................................................................................................................................................... 18

© ISO 2007 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 17714:2007(E)

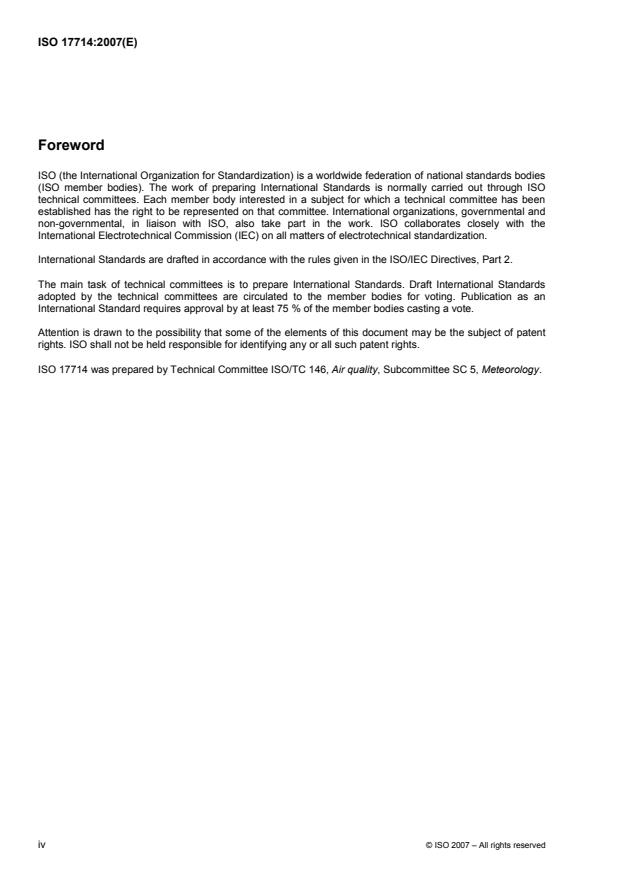

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 17714 was prepared by Technical Committee ISO/TC 146, Air quality, Subcommittee SC 5, Meteorology.

iv © ISO 2007 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 17714:2007(E)
Introduction

Commonly used air temperature sensors require protection from influences such as solar and terrestrial

radiation, rain and snow. Screens (also known as shields) protect the thermometers from these influences.

At present, there is no commonly accepted reference screen design, nor are there generally accepted test

methods to determine performance characteristics of screens. Screens that protect the temperature sensors

from daytime heating and nighttime cooling due to radiation transfer are necessary for proper air temperature

measurements. In very general terms, a poor design of the screen will tend to give higher daytime and lower

nighttime temperatures.

This International Standard was developed to define the most relevant screen characteristics and to provide

the methods to determine or compare screen performances.

Air temperature is a basic meteorological variable. Temperature sensors are widely used in all human

activities and are well known and controlled. For the measurement of the outside air temperature, the sensor

must be protected against external influence, mainly radiation and hydrometeors (e.g. precipitation, fog). The

sensor is usually protected by a screen, but even then, measurement errors of up to 5 K may be encountered.

The general function of a screen for operational temperature measurements used in meteorological

[3]

applications is given in WMO No. 8 . The following text is an extract from this document.

“Radiation from the sun, clouds, the ground and other surrounding objects passes through the air without

appreciably changing its temperature, but a thermometer exposed freely in the open can absorb considerable

radiation. As a consequence, its temperature may differ from the true air temperature, the difference

depending on the radiation intensity and on the ratio of absorbed radiation to dissipated heat. For some

thermometer elements such as the very fine wire used in an open-wire resistance thermometer, the difference

may be very small or even negligible, but with the more usual operational thermometers the temperature

difference may reach 25 K under extremely unfavourable conditions. Therefore, in order to ensure that the

thermometer is at true air temperature it is necessary to protect the thermometer from radiation by a screen or

shield which also serves to support the thermometer. This screen also shelters it from precipitation while

allowing the free circulation of air around it, and prevents accidental damage. Maintaining a free circulation

may, however, be difficult to achieve under conditions of rime ice accretion. Practices for reducing observation

errors under such conditions will vary and may involve the use of special designs of screens or temperature-

measuring instruments.”
© ISO 2007 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 17714:2007(E)
Meteorology — Air temperature measurements — Test methods
for comparing the performance of thermometer shields/screens
and defining important characteristics
1 Scope

This International Standard defines characteristics of a thermometer shield/screen. It also defines test

methods to inter-compare the behaviour of different screen designs.

Although screens are usually used for both air temperature and humidity measurements, this International

Standard is applicable only to temperature measurements.
Both naturally and artificially ventilated screens are considered.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
aspiration rate
rate of air flow passing the thermometer.

NOTE This term is only used for an artificially aspirated screen, and is expressed in metres per second.

2.2
internal ventilation factor

ratio between the internal air speed and the external wind speed, at the thermometer height

NOTE This term is only used for a naturally ventilated screen.
2.3
representative height
height above ground at which the air temperature is supposed to be measured

NOTE 1 For naturally ventilated screens, the representative measurement height is usually the height of the

temperature sensor.

NOTE 2 For aspirated screens, the representative height can be different from the height of the temperature sensor. It

is design dependent, however it is usually the height of the air intake.
2.4
screen

shield or shelter used to protect the thermometer from radiation, precipitation and accidental damage

2.5
screen reference point
location of the thermometer within the screen
© ISO 2007 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 17714:2007(E)
2.6
solar radiation errors
overheating error of the measured air temperature, generated by solar radiation
2.7
system response time

time needed for the temperature recorded by the thermometer within the screen to reach 63 % of a step

change in the external temperature, with a given external wind speed of 1 m·s

NOTE 1 The system response time is a combination of the response times of the screen and the thermometer, and

depends on the thermometer time constant.

NOTE 2 The response time of the system is also dependent on wind speed. For this reason, a given air speed of

1 m·s is used.
2.8
thermometer
device used to measure the air temperature inside a screen
[1]

NOTE Examples are platinum resistance thermometer sensors (IEC 60751 ) and thermistor sensors

[2]
(ASTM E 644-04 ).
3 Field test conditions
3.1 Field test site

The test site should experience the range of meteorological conditions that are expected at the sites where

the screens will be installed. Important influence factors are: radiation, low wind speed, periods with snow

cover, falling and blowing snow, blowing dust or sand, wet fog, strong winds and wind-driven precipitation.

It may be necessary to perform testing at more than one site, to address the full range of meteorological

conditions.

The meteorological conditions occurring at the site during the intercomparison shall be described, with at least

the temperature, wind and daily insolation distribution.
3.2 Respective location of screens

For the field test, all the screens shall be installed above a level area covered by homogeneous natural

ground cover. The vegetation at the test site should completely cover the surface and the type of vegetation

shall be defined. It should be kept at a height below 10 cm. All screens should be freely exposed to sunshine

and wind and should not be shielded by, or close to, trees, buildings and other obstructions (see A.8). The

screens should be installed at a minimum distance of 30 m from any heat source or other construction that

could artificially influence the air temperature, such as concrete, asphalt, buildings, standing water, etc.

The separation between screens is a compromise, and should be large enough to ensure that interaction

between screens is insignificant, while being small enough to minimise temperature variations across the site.

The distance between each screen should be at least 3 m. A representative height between 1,25 m and 2 m

should be chosen for the test to meet the WMO recommendations. The representative height shall be the

same for each screen, with a maximum tolerance of ± 5 % of the height.

When testing artificially ventilated screens, the probe orientation and the inlet/outlet orientations shall be

documented, as wind direction may influence the aspiration rate.
2 © ISO 2007 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 17714:2007(E)
3.3 Screens

Two or more screens of each design should be included in the test. This allows assessment of measurement

repeatability of a given screen design and also for measurement of homogeneity of the test site.

At least two reference screens with identical thermometers shall be used.

During an intercomparison, observations of the screens are required to determine if they are wet, covered with

ice, clogged with snow, dirty, if the aspirator (if any) is working, etc.
3.4 Thermometers

The thermometers and associated data acquisition system(s) should be matched to ensure equivalent

[3]

response characteristics, such as the time constant. WMO recommends the use of thermometers with a

time constant of about 30 s. The sensors and measuring system shall be calibrated and used in such

conditions that there is no significant self heating of the thermometer due to an excessive measuring current.

The uncertainty of the temperature measurements shall be 0,2 K or better.
3.5 Additional meteorological variables

In addition to the air temperature measurements, the following parameters should be measured and recorded

during an intercomparison.
⎯ Solar global radiation on a horizontal plane.
⎯ Sunshine (yes/no).

⎯ Scalar average 1 min or 2 min wind speed and direction. This should be measured at a position that is as

close as possible to the representative height of the temperature measurement. Where the test array of

screens can shelter the anemometer in certain wind directions, then it is preferred that the anemometer is

raised slightly above the level of the top of the screens and this measurement height recorded. The

anemometer used should be capable of calibrated measurements of wind speeds at 0,5 m·s and above.

Sonic anemometers may be good candidates for these measurements.

⎯ Scalar average 1 min or 2 min wind speed and direction at 10 m height (standardized meteorological

height). Wind measurements at 10 m allow a comparison between meteorological conditions during the

test and climatological conditions (as 10 m measurements are currently used in climatological records).

⎯ Relative humidity of air.
⎯ Cloud cover.

⎯ Precipitation occurrence, type and intensity. Manual observations may be required to determine

precipitation occurrence and type.
⎯ Sun azimuth and elevation angle.
⎯ Surface albedo (ground conditions, snow cover, etc.)
It is also desirable to measure
⎯ direct solar radiation, and
⎯ long-wave net radiation or cloud cover at night.

The type of instruments used and their siting shall be documented. The instruments used shall be calibrated

[3]

and regularly maintained, and should be installed and used following the recommendations of WMO .

© ISO 2007 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 17714:2007(E)
3.6 Data sampling

When making the screen intercomparison, a data base of all measurements should be constructed to

represent averages from samples taken during 1 min periods. The data sampling rate should be at least 6

samples per minute.
For wind measurements, the data sampling rate should be at least 1 Hz.
3.7 Reference values

There is no recognised reference system for measuring the true air temperature. Statistically, radiative errors

of any screen lead to warmer (than the true air temperature) temperature measurement during the day, and

cooler temperature measurement during the night. So when different screen designs are compared, those that

are cooler during the day and warmer during the night are likely to be giving measurements that are closest to

the truth. By design, it is generally the case that there will be a fast response thermometer inside an artificially

ventilated screen. However, not all designs of artificially ventilated screens that are available on the market

are satisfactory for use as a reference.

If an artificially ventilated screen is to be used as a reference, then its performance shall be fully tested.

⎯ Check for potential psychrometric cooling effects after high humidity events or dew deposition.

⎯ Check the effect of the ambient wind on the airflow in an artificially ventilated screen, as designs have

been found where airflow across the thermometer is reduced or reversed in some wind conditions.

⎯ Check if a large aspiration rate may cause heating of the air.

⎯ Check if the air exhausted by the fan may re-circulate and influence the incoming air.

⎯ Check the sensor and screen for dirt and contamination that could obstruct the airflow or influence the

temperature.

A potential candidate for measuring the reference air temperature is the use of a very thin resistive wire

[4, 5]

(thickness < 15 µm, in the Bibliography), acting as a thermometer. If it is very thin, the wire may be

exposed freely to the air, with no radiation screen. The problem with this technique is how to design a wire

that has stable characteristics and will survive for long enough periods outside in all weather conditions; a

suitable sensor has yet to be designed.

If the purpose of the intercomparison is to check the behaviour of new designs against a specific screen

model widely used (in a country and/or in the past), this screen may be used as a ‘relative’ reference. In this

case, the new screen may exhibit better characteristics than the reference, and the performance may be

explained by considering the influence factors detailed in Annex A.

In any case, the reference screen used should be fully described: geometry, sensors and their time constants,

materials used in the construction of both the screen and its supporting structure, any attached boxes, airflow

tests and other relevant matters.
3.8 Quality control

Data quality control shall be carried out before and during the analysis, to avoid erroneous data from being

used. Times and details of any interventions during the test that could cause erroneous measurements to be

recorded shall be noted, so that such data are not used.

Automatic checking of the data usually allows the detection of gross errors, such as out-of-range values.

The use of two identical screens of each type under test (including the reference), enables checks of

differences between similar pairs, to reveal any data that are significantly different.

4 © ISO 2007 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 17714:2007(E)

Another effective quality-control check is to visualise the different parameters to detect strange or abnormal

behaviour using time graphs of all data on a daily basis. It is also possible to detect potential anomalies by

looking for extreme values during the data analysis; the time of occurrence of these extreme values should be

noted and the data should be graphically displayed during these occurrences. This method is also a good way

to detect the specific behaviour of screens during the typical conditions listed in 3.10.

3.9 Long-term intercomparison

It is very difficult to generate and control all the factors that influence the performance of a screen in the

laboratory. By making measurements of performance at a field test site, most important meteorological

conditions will be experienced, if sufficient time is allocated for the test. A long-term intercomparison is

therefore recommended, extending over the summer and winter periods and typically of one year duration for

a comprehensive test. If the test is conducted in an area with less seasonal change, the duration of the test

can be reduced.

During this long-term intercomparison, the effects of the following combinations of influence factors should be

analysed:
⎯ solar radiation;
⎯ wind;

⎯ solar radiation and low wind speed (< 1 m·s ); a sensitive anemometer is required;

⎯ insolation relating to the sun's elevation and wind speed (as direct radiation is a major influence factor,

this analysis may be more representative than the previous one);

⎯ cloud cover at night, combined with wind speed, to assess long-wave radiation cooling;

⎯ precipitation, fog and rime events, their onset, duration and termination;
⎯ cleanliness and aging of the screen.

These effects should be analysed using the whole database and specific filters on the influence parameters.

3.10 Typical conditions

The advantage of long-term comparisons is that they enable data collection during a wide range of

meteorological conditions representative of the test site.

A disadvantage may be that the conditions leading to extreme measurement errors of the air temperature are

not readily apparent. This can be overcome by identifying extreme differences between the tested screen and

the reference, and then investigating the current meteorological conditions during these differences. If the

screens have different time constants and the air temperature variation with time is high, this may be the

cause of such differences. Therefore, such a comparison is more representative when conducted on daily

extreme values.

Another solution is to identify typical meteorological conditions and to analyse the behaviour of the tested

screens to get a detailed knowledge of the screen behaviour in known conditions. This may allow an

extrapolation of the screen behaviour in climatic regions other than the test site.

Typical conditions could be periods of at least 6 h with the following conditions.

⎯ Day with a clear sky and periods with wind speed below 1 m·s (for solar radiation effects).

⎯ Day with a clear sky and periods with wind speed above 5 m·s (for solar radiation effects).

© ISO 2007 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 17714:2007(E)

⎯ Day with intermittent opaque cloud cover and wind speed below 2 m·s (for analysis of solar radiation

effects).

⎯ Summer night (or night with high diurnal temperature variation) with a clear sky and wind speed below

1 m⋅s (for analysis of screen thermal inertia).

⎯ Winter night (or night with a 12 h duration or more) with a clear sky and wind speed below 1 m·s (for

analysis of IR radiation cooling).

⎯ Night with overcast conditions and wind speed above 2 m·s (where only small differences might be

expected). These conditions can also be used to regularly verify the data from each of the sensors.

⎯ Period with fog.
⎯ Period with precipitation.
3.11 Documentation

A test report shall include documentation of the field test site(s). It should at least contain details of the height

and position of screens, screens tested, thermometers used, additional meteorological sensors, data sampling,

screens used as a reference, quality control conducted, and meteorological conditions experienced during the

intercomparison.
4 Field test methods
4.1 Comparability analysis

The reference screens shall be compared to detect any differences between their measurements which could

disturb the data analysis. Periods with differences between the reference screens larger than 0,2 K should be

excluded from the data analysis, and periods with rapidly changing temperature more than 0,2 K per minute

may be excluded. For remaining periods, the reference air temperature may be one of the reference screens

or the mean value.

The analysis should also be conducted to evaluate the comparability of the measurements from other identical

screens. Periods with excessive differences should be investigated to determine the causes, documented in

the report and possibly excluded for further analysis.
4.2 Global analysis of air temperature

The 1 min difference values (tested screen value minus reference value) of the air temperature should be

analysed. A histogram of these differences should be displayed for the whole period, to give a first indication

of the observed temperature differences (see an example in Figure B.1). A more detailed statistical analysis

should also be made to enable differences to be quantified.
4.3 Analysis of extreme values

Daily extreme values (minimum and maximum of the air temperature) and time of occurrence should be

computed for each screen using the data from the 1 min database. The histograms of the differences of these

daily extreme values and of the time of occurrence should be displayed for the whole period and a statistical

analysis should be made to quantify differences between screen designs (see an example in Figure B.2). The

dates of occurrence of the extreme differences should be identified and example graphs should be plotted

alongside those for radiation, wind and temperature (see an example of temporal variation curves in

Figure B.4).
6 © ISO 2007 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 17714:2007(E)
4.4 Statistical analysis of radiation error

A statistical analysis of the temperature differences (tested screen value minus reference value) for different

classes of meteorological conditions should be conducted. The range of meteorological conditions to be

addressed during testing is shown as a flow chart in Figure 1. The solar radiation should be the global

radiation measured by a pyranometer on a horizontal plane. This analysis should be conducted with different

filters (see example in Figure B.3).
Figure 1 — Diagram for analysis of radiation error
The range of wind speeds at the screen level to be considered are typically:
⎯ wind speed u 1 m·s ;
–1 –1
⎯ wind speed in the [2 m·s - 4 m·s ] interval;
⎯ wind speed W 5 m·s .
4.5 Influence of surface albedo

An analysis with a high ground albedo value should be conducted. This analysis may be conducted if periods

with snow on the ground and insolation occurrence are available. In this case, it is recommended that the

differences obtained are compared with the differences in identical conditions (radiation, wind) but without

snow on the g
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
