ISO/IEC FDIS 22237-5

• Abstract:

  ISO/IEC TS 22237-5:2018 addresses the wide range of telecommunications cabling infrastructures within data centres based upon the criteria and classifications for "availability" within ISO/IEC TS 22237‑1. ISO/IEC TS 22237-5:2018 specifies requirements and recommendations for the following: a) information technology and network telecommunications cabling (e.g. SAN and LAN); b) general information technology cabling to support the operation of the data centre; c) telecommunications cabling to monitor and control, as appropriate, power distribution, environmental control and physical security of the data centre; d) other building automation cabling; e) pathways, spaces and enclosures for the telecommunications cabling infrastructures. Safety and electromagnetic compatibility (EMC) requirements are outside the scope of this document and are covered by other standards and regulations. However, information given in this document may be of assistance in meeting these standards and regulations.

• Status: Not Published
• ICS: 35.020 - Information technology (IT) in general
• ICS: 35.200 - Interface and interconnection equipment
• Technical Committee: ISO/IEC JTC 1/SC 39 - Sustainability, IT and data centres
• Drafting Committee: ISO/IEC JTC 1/SC 39/WG 3 - Sustainable facilities and infrastructures
• Current Stage: 5000 - FDIS registered for formal approval
• Start Date: 12-May-2026
• Completion Date: 19-Mar-2026

• Revises: ISO/IEC TS 22237-5:2018 - Information technology — Data centre facilities and infrastructures — Part 5: Telecommunications cabling infrastructure
• Effective Date: 23-Dec-2023

Overview

ISO/IEC FDIS 22237-5 sets out the requirements and recommendations for the design, implementation, and management of telecommunications cabling infrastructure in data centres. As part of the ISO/IEC 22237 series on data centre facilities and infrastructures, this standard provides a framework to ensure robust, flexible, and scalable network connectivity within data centre environments by addressing key areas such as structured cabling for IT services, distributed building services, pathways, spaces, and enclosures.

The standard prioritizes the availability and resilience of telecommunications cabling, defining classifications and criteria that align with overall data centre availability goals. It supports various data centre operational requirements, including physical security and clear provisions for colocation and enterprise environments. While ISO/IEC FDIS 22237-5 does not cover safety and electromagnetic compatibility (EMC) directly, it offers guidance that can assist compliance with other applicable regulations.

Key Topics

• Structured Cabling for IT and Network Services

  • Establishes requirements for storage area network (SAN), local area network (LAN), and general IT operations within all data centre spaces.
  • Supports both fixed and point-to-point cabling topologies for critical connectivity.

• Cabling for Building Services and Automation

  • Defines telecommunications cabling to support building management, including power distribution monitoring, environmental controls, and physical security systems.
  • Considers integration of other building service cables.

• Pathways, Spaces, and Enclosures

  • Specifies requirements for pathways, spaces, and enclosures to ensure proper accommodation and protection for telecommunications cabling.
  • Addresses cabinet, rack, and frame considerations for computer room spaces.

• Availability Classes

  • Introduces a graduated classification of cabling infrastructure availability aligned with ISO/IEC 22237-1, helping stakeholders match cabling design to operational resilience goals.

• Physical Security

  • Recommends best practices for protecting cabling infrastructure from unauthorized access and internal threats.

• Management and Operational Guidelines

  • Provides guidance for ongoing management, maintenance, and use of automated infrastructure management (AIM) systems.

Applications

ISO/IEC FDIS 22237-5 is relevant to a wide range of stakeholders involved in data centre design, construction, operation, and management:

• Architects and Engineers: Use the standard to ensure new data centres or upgrades provide sufficient and compliant telecommunications cabling, supporting both current and future needs.
• Data Centre Operators: Achieve operational availability targets by aligning cabling layouts with the standard’s availability classes and management recommendations.
• Facility Managers & ICT Managers: Benefit from integrated cabling infrastructure that supports IT operations, building automation, and security requirements.
• Consultants and Designers: Reference criteria and design concepts outlined for various types of data centres, from enterprise environments to colocation and network operator facilities.
• Installers and Maintenance Teams: Apply best practices for pathways, rack selection, physical security, and documentation to deliver reliable, manageable cabling infrastructure.

The standard is applicable to all data centre types, including permanent, temporary, mobile, and multi-building or multi-floor installations. It supports both new builds and major retrofit projects.

Related Standards

ISO/IEC FDIS 22237-5 is closely linked with several other international standards and technical documents:

• ISO/IEC 22237-1: General concepts for data centre availability, physical security, and energy efficiency.
• ISO/IEC 11801-5: Generic cabling for customer premises - data centres, referenced for cabling implementation details.
• ISO/IEC 22237 series (Parts 2-7): Covers other aspects of data centre infrastructure, including building construction, power distribution, security, and management.
• ISO/IEC TS 22237-31: Addresses resilience, dependability, and fault tolerance.

Data centre owners and designers should consult these related standards to ensure a comprehensive and fully compliant approach to infrastructure development and operation.

---

Keywords: ISO/IEC FDIS 22237-5, data centre cabling, telecommunications infrastructure, structured cabling, data centre standards, network cabling, data centre availability, colocation, ISO data centre, IT infrastructure standards, cabling management.

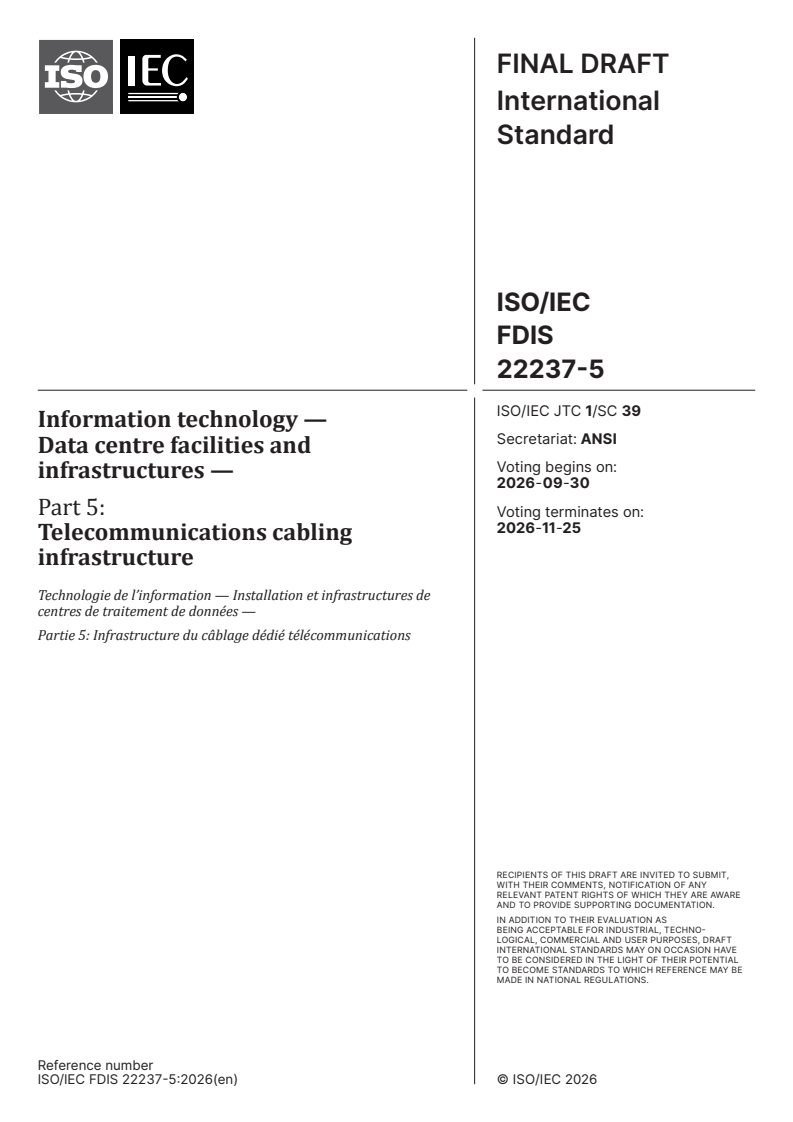

FINAL DRAFT
International
Standard
ISO/IEC
FDIS
22237-5
ISO/IEC JTC 1/SC 39
Information technology —
Secretariat: ANSI
Data centre facilities and
Voting begins on:
infrastructures —
2026-09-30
Part 5:
Voting terminates on:
2026-11-25
Telecommunications cabling
infrastructure
Technologie de l’information — Installation et infrastructures de
centres de traitement de données —
Partie 5: Infrastructure du câblage dédié télécommunications
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/IEC FDIS 22237­5:2026(en) © ISO/IEC 2026

FINAL DRAFT
International
Standard
ISO/IEC
FDIS
22237-5
ISO/IEC JTC 1/SC 39
Information technology —
Secretariat: ANSI
Data centre facilities and
Voting begins on:
infrastructures —
Part 5:
Voting terminates on:
Telecommunications cabling
infrastructure
Technologie de l’information — Installation et infrastructures de
centres de traitement de données —
Partie 5: Infrastructure du câblage dédié télécommunications
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO/IEC 2026
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ISO/IEC FDIS 22237­5:2026(en) © ISO/IEC 2026

© ISO/IEC 2026 – All rights reserved
ii

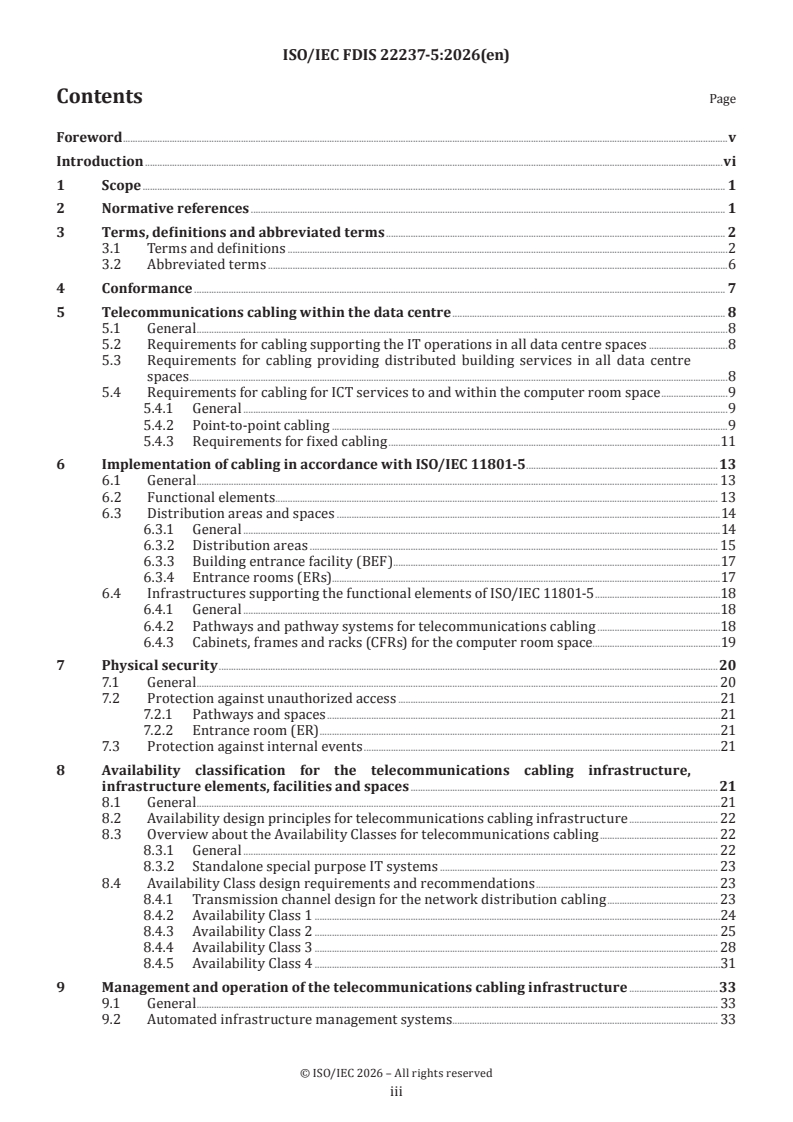

Contents Page
