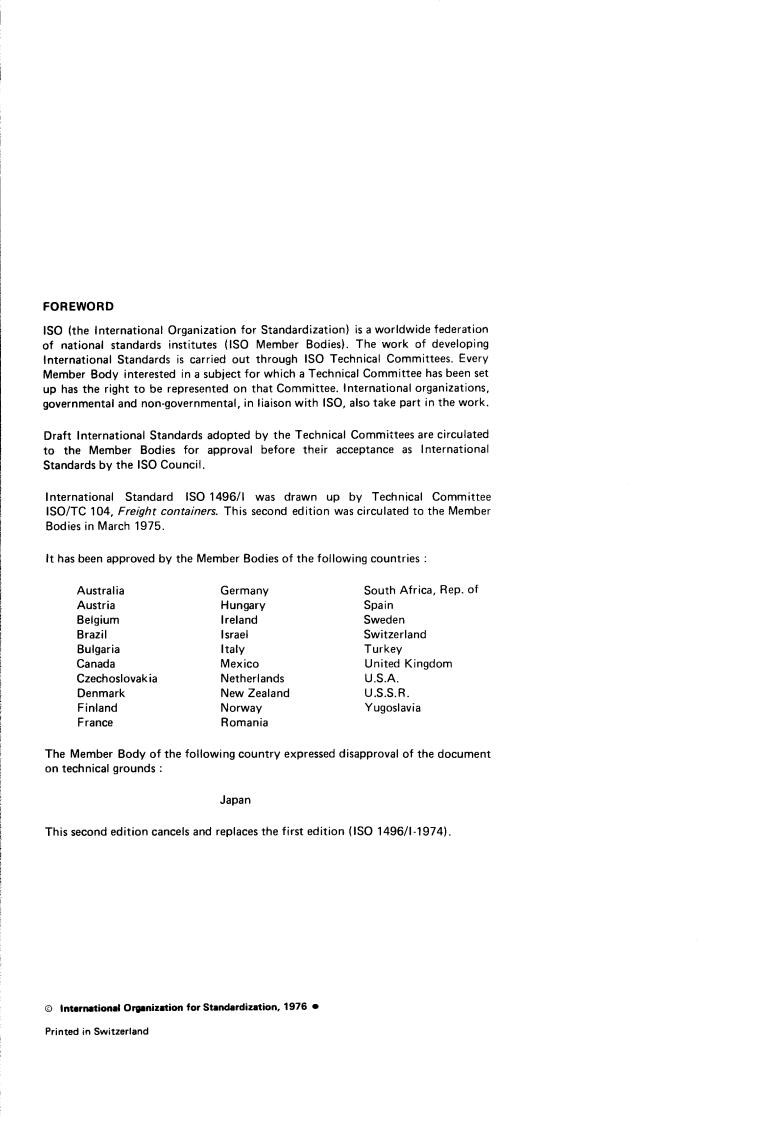

FOREWORD
IS0 (the International Organization for Standardization) is a worldwide federation
of national standards institutes (IS0 Member Bodies). The work of developing
International Standards is carried out through IS0 Technical Committees. Every
Member Body interested in a subject for which a Technical Committee has been set
up has the right to be represented on that Committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work.
Draft International Standards adopted by the Technical Committees are circulated
to the Member Bodies for approval before their acceptance as International
Standards by the IS0 Council.
International Standard IS0 1496/1 was drawn up by Technical Committee
ISO/TC 104, Freight containers. This second edition was circulated to the Member
Bodies in March 1975.
It has been approved by the Member Bodies of the following countries :
Australia South Africa, Rep. of
Germany
Austria Hungary Spain
Be I g i u m Ireland
Sweden
Brazil Israel Sw i tze r I a nd
Bulgaria Italy Turkey
Canada Mexico
United Kingdom
Czechoslovakia Netherlands
U.S.A.
Denmark New Zealand .S.S. R.
U
Finland Norway Yugoslavia
France Romania
The Member Body of the following country expressed disapproval of the document
on technical grounds :
Japan
This second edition cancels and replaces the first edition (IS0 1496/1-1974).
O International Organization for Standardization, 1976
Printed in Switzerland
---------------------- Page: 2 ----------------------
I NTE RNATl ON AL STAN DARD IS0 1496/1-1976 (E)
Series 1 freight containers - Specification and testing -
Part I : General cargo containers
1.3 The marking requirements for these containers are to
O INTRODUCTION
be in accordance with the principles embodied in IS0 790
Grouping of container types for specification purposes
and IS0 2716 for the marking and identification of series 1
containers.
Part I
O0 to 09,50 to 53,56 to 59
General cargo
2 REFERENCES
Part II
IS0 668, Freight containers - External dimensions and
Thermal 20 to 49
ratings.
Part I I I
IS0 790, Marking of series 7 freight containers.
Tank 70 to 79
IS0 1161, Series 1 freight containers - Corner fittings -
Part IV Specifications.
Bulk 80 to 84
IS0 1894, General purpose series 7 freight containers -
Minimum internal dimensions.
Part V
IS0 271 6, Identification marking code for freight
Platform (container) 60
containers.
Part VI
Platform based 54 and 55,61 to 69
3 DIMENSIONS AND RATINGS
Part VI1
3.1 External dimensions
Air mode 90 to 99
The overall external dimensions and tolerances of the
NOTE - Container groupings for Parts II to VI1 will be set forth in
freight containers covered by this International Standard
detail in the relevant documents.
IS0 668. No part of the container
are those established in
shall project beyond these overall external dimensions.
Open-topped containers may be of a reduced height.
1 SCOPE AND FIELD OF APPLICATION
3.2 Internal dimensions
1.1 This International Standard sets out the basic
Internal dimensions of containers shall be as large as
requirements for the specification and testing of IS0
possible, but, in any case,
series 1 freight containers for general cargo which are
- closed containers type O0 shall comply with the
suitable for international exchange and for conveyance by
minimum internal length, width and height given in
road, rail and sea, including interchange between these
IS0 1894;
forms of transport.
- containers type 02, having partial opening(s) in the
side(s), shall comply with the minimum internal length
1.2 The container types covered by this International
and height given in IS0 1894;
Standard are as follows :
- containers type 03, having an opening roof, shall
comply with the minimum internal length and width
given in IS0 1894;
1 Type code designation* 1 Type I
O0 to O4 Closed, including opening roof
- containers types O1 and 04, having openings in the
50 to 53 Open top
I I side(s) and/or roof, shall comply with the minimum
internal length given in IS0 1894.
In accordance with IS0 2716
1
---------------------- Page: 3 ----------------------
IS0 1496/l-1976 (E)

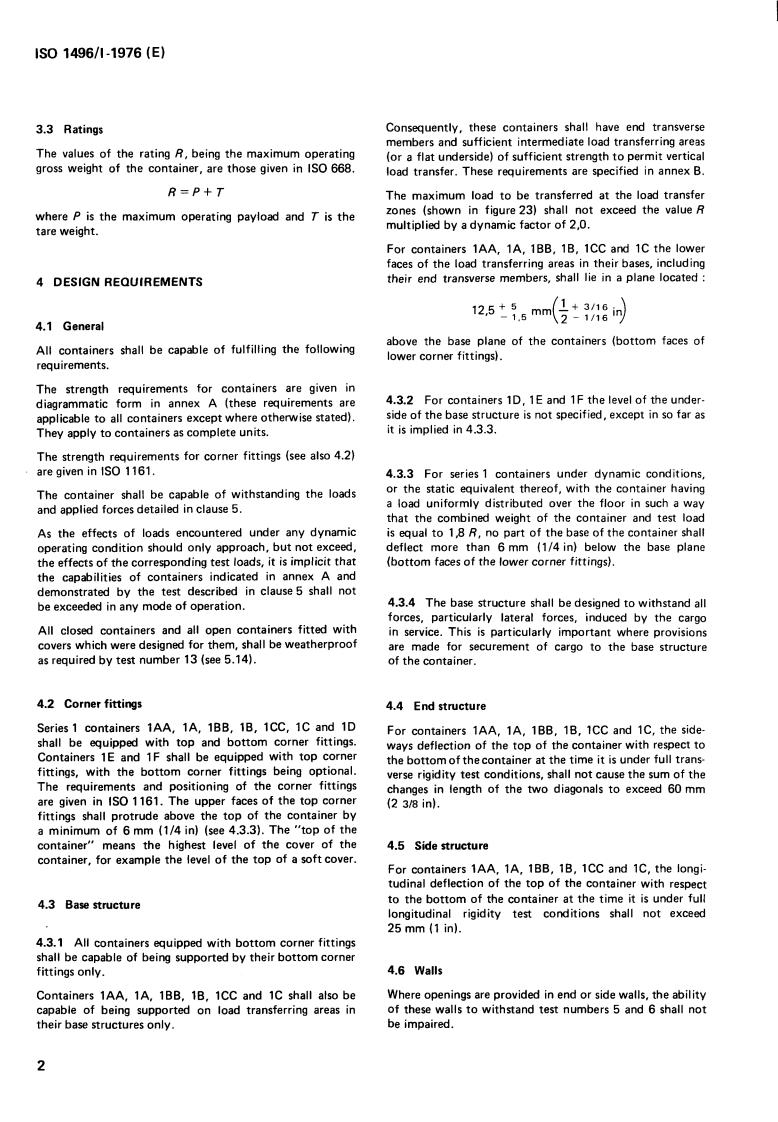

3.3 Ratings Consequently, these containers shall have end transverse
members and sufficient intermediate load transferring areas
The values of the rating R, being the maximum operating (or a flat underside) of sufficient strength to permit vertical
gross weight of the container, are those given in Is0 668. load transfer. These requirements are specified in annex B.
R=P+T
The maximum load to be transferred at the load transfer
zones (shown in figure 23) shall not exceed the value R
where P is the maximum operating payload and T is the
multiplied by a dynamic factor of 2.0.
tare weight.
For containers lAA, lA, IBB, 1B. 1CC and IC the lower
faces of the load transferring areas in their bases, including
transverse members, shall lie in a plane located :
their end
4 DESIGN REQUiREMENTS
4.1 General
above the base plane of the containers (bottom faces of
All containers shall be capable of fulfilling the following
lower corner fittings).
requirements.
The strength requirements for containers are given in
4.3.2 For containers lD, 1 E and 1 F the level of the under-
diagrammatic form in annex A (these requirements are
side of the base structure is not specified, except in SO far as
applicable to all containers except where othewise stated).
it is implied in 4.3.3.
They apply to containers as complete units.
The strength requirements for corner fittings (see also 4.2)
are given in IS0 1161.
4.3.3 For series 1 containers under dynamic conditions,
or the static equivalent thereof, with the container having
The container shall be capable of withstanding the loads
a load uniformly distributed over the floor in such a way
and applied forces detailed in clause 5.
that the combined weight of the container and test load
As the effects of loads encountered under any dynamic is equal to 1,8 R, no part of the base of the container shall
operating condition should only approach, but not exceed, deflect more than 6 mm (1/4 in) below the base plane
the effects of the corresponding test loads, it is implicit that (bottom faces of the lower corner fittings).
the capabilities of containers indicated in annex A and
demonstrated by the test described in clause 5 shall not
4.3.4 The base structure shall be designed to withstand all
be exceeded in any mode of operation.
forces, particularly lateral forces, induced by the cargo
All closed containers and all open containers fitted with
is particularly important where provisions
in service. This
covers which were designed for them, shall be weatherproof
are made for securement of cargo to the base structure
as required by test number 13 (see 5.14).
of the container.
4.2 Corner fittings 4.4 End structure
Series 1 containers lAA, 1A, 1BB, 1B, 1cc, IC and 1D
For containers IAA, 1A, lBB, lB, 1CC and IC, the side-
shall be quipped with top and bottom corner fittings.
ways deflection of the top of the container with respect to
Containers 1E and 1 F shall be equipped with top corner
the bottomofthecontainer at the time it is under full trans-
fittings, with the bottom corner fittings being optional.
verse rigidity test conditions, shall not cause the sum of the
The requirements and positioning Of the corner fittings
changes in length of the two diagonals to exceed 60 mm
are given in Is0 1161. The upper faces of the top corner
(2 3/8 in).
fittings shall protrude above the top of the container by
a minimum of 6 mm (1/4 in) (see 4.3.3). The "top of the
container" means the highest level of the cover of the 4.5 Sidestructure
container, for example the level of the top of a soft cover.
For containers IAA, IA, lBB, lB, 1CC and IC, the longi-
tudinal deflection of the top of the container with respect
to the bottom of the container at the time it is under full
4.3 Base structure
longitudinal rigidity test conditions shall not exceed
25 mm (1 in).
4.3.1 All containers equipped with bottom corner fittings
shall be capable of being supported by their bottom corner
fittings only. 4.6 Walls
Where openings are provided in end or side walls, the ability
Containers lAA, lA, lBB, lB, 1CC and 1C shall also be
capable of being supported on load transferring areas in test numbers 5 and 6 shall not
of these walls to withstand
their base structures only. be impaired.
I 2
---------------------- Page: 4 ----------------------
IS0 1496/l-1976 (E)
inclusive, as applicable. It is recommended that the test for
4.7 Door opening
weatherproofness (Test No. 13) be made last.
Each container shall be provided with a door opening at
least at one end, except in the case of 1E and 1F con-
5.1.1 The symbol R denotes the maximum operating gross
tainers, where the opening may be provided in a side wall.
P denotes the
weight of the container and the symbol
All door openings and end openings shall be as large as
maximum operating payload of the container to be tested,
possible.
that is, the tare weight T subtracted from the maximum
operating gross weight R.
Closed-typecontainersdesignated lA, 16, 1Cand 1D (types
O0 and 02) shall have a door opening, preferably having
P=R-T
dimensions equal to those of the internal cross-section of
the containers and, in any case, not less than 2 134 mm
(7 ft O in) high and 2 286 mm (7 ft 6 in) wide.
5.1.2 The test load within the container shall be uniformly
Closed-type containers designated 1 AA, IBB and 1CC
distributed.
(types O0 and 02) shall have a door opening, preferably
having dimensions equal to those of the internal cross-
section of the containers, and, in any case, not less than
5.1.3 The test loads specified in all of the following tests
2 261 mm (7 ft 5 in) high, and 2 286 mm (7 ft 6 in) wide.
are the minimum requirements.
OPTIONAL REQUIREMENTS
5.1.4 The dimensional requirements to which reference is
made in the requirements subclause after each test are
4.8 Fork lift pockets
those specified in :
Fork lift pockets may be provided as optional features for
a) the dimensional and design requirement clauses of
handling lCC, lC, lD, 1E and 1F containers in theloaded
this International Standard;
or unloaded condition. The dimensional requirements for
b) ISO668;
such pockets are specified in annex C.
c) IS0 1161.
Fork pockets, when provided, shall pass completely
through the base structure of the container, so that lifting
devices may be inserted from either side.
5.2 Test No. 1 - Stacking
It is not necessary for the base of the fork lift pockets to be
the full width of the container, but it should be provided in
5.2.1 General
the vicinity of each end.
This test shall be carried out to prove the ability of a
container to support five other fully loaded containers of
4.9 Provision for handling at the base by means of
the same length and rating under the acceleration con-
grappler arms or similar devices
ditions encountered in ships' cell structures, taking into
Provision for handling lAA, lA, 166, 1B. 1CC. 1C and ID
account relative eccentricities between containers due to
containers by means of grappler arms or similar devices may
clearance.
be provided as optional features. The dimensional
requirements for such provisions are specified in annex D.
5.2.2 Procedure
4.10 Gooseneck tunnels
The container under test shall be placed on four level pads,
one under each bottom corner fitting or equivalent corner
Gooseneck tunnels may be provided as optional features
structure. The pads shall be centralized under the fittings,
in containers 1AA and 1A. The dimensional requirements
and be substantially
of the same plan dimensions as the
are specified in annex E and, in addition, all other parts of
fittings. The container shall have a load uniformly
the base structure shall be as specified in 4.3.
distributed over the floor in such a way that the combined
NOTE - The requirements of 4.2, 4.8 and 4.9 do not preclude the
test load is equal to 1,8 R.
weight of the container and the
provision of additional facilities for lifting, either from the top or at
the bottom of the containers.
The container under test shall be subjected to a vertical
a load of 2.25 R on each of the top
force equivalent to
corner fittings simultaneously or 4.5 R on each pair of end
fittings in such a manner that the planes of application of
5 TESTING
the forces and the supports of the container remain
test. The forces shall
horizontal and unchanged during the
5.1 General
a corner fitting or a pad of the same
be applied through
as a corner fitting. Each pad shall be offset in
plan area
Unless otherwise stated containers complying with the
the same direction by 25.4 mm (1 in) laterally and 38 mm
design requirements specified in clause 4 shall, in addition,
be capable of withstanding the tests specified in 5.2 to 5.14 (1 1/2 in) longitudinally.
3
---------------------- Page: 5 ----------------------
5.2.3 Requirements 5.4.2 Procedure
Upon completion of the test the container shall show The container under test shall have a load uniformly dis-
neither permanent deformation which will render it un- tributed over the floor in such a way that the combined
suitable for use nor abnormality which will render it un- test load is equal to 2 R, and it
weight of container and
suitable for use; and the dimensional requirements affecting shall be carefully lifted from the side apertures of all four
handling, securing and interchange shall be satisfied. a way that no significant
bottom corner fittings in such
acceleration or deceleration forces are applied.
5.3 Test No. 2 - Lifting from the top corner fittings
Lifting forces shall be applied at :
5.3.1 General
30" to the horizontal for 1AA and 1A containers;
This test shall be carried out to prove the ability of lAA,
37" to the horizontal for IBB and 1B containers;
IA, IBB, IB, 1CC and 1C containers to withstand being
lifted from the top corner fittings with the lifting forces
45" to the horizontal for 1CC and 1C containers;
applied vertically, and the ability of lD, 1E and IF
60" to the horizontal for ID, 1E and 1F containers.
containers to withstand being lifted from the top corner
fittings with the lifting forces applied at any angle between
In each case the line of action of the lifting force and the
the vertical and 30" to the vertical, these being the only
outer face of the corner fitting shall be no farther apart
recognized methods of lifting these containers by the top
than 38mm (1 1/2 in). The lifting shall be carried out in
corner fittings.
such a manner that the lifting devices bear on the bottom
corner fittings only.
This test shall also be regarded as proving the ability of the
floor and base structure to withstand the forces arising
5 min and then
The container shall be suspended for
from acceleration of the payload in lifting operations.
lowered to the ground.
5.3.2 Procedure
5.4.3 Requirements
The container under test shall have a load uniformly dis-
tributed over the floor in such a way that the combined
Upon completion of the test, the container shall show
weight of the container and test load is equal to 2 R, and
neither permanent deformation which will render it un-
it shall be carefully lifted from all four top corners in such a
suitable for use nor abnormality which will render it
way that no significant acceleration or deceleration forces
unsuitable for use, and the dimensional requirements affect-
are applied.
ing handling, securing and interchange shall be satisfied.
For lAA, IA, 1BB. IB, 1CC and 1C containers the lifting
forces shall be applied vertically.
For lD, 1E and 1F containers, lifting shall be by means
5.5 Test No. 4 - Restraint (longitudinal)
of slings, the angle of each leg being at 30" from the
vertical.
5.5.1 General
After lifting, the container shall be suspended for 5 min
This test shall be carried out to prove the ability of con-
and then lowered to the ground.
tainers to withstand longitudinal external restraint under
dynamic conditions of railway operations, which implies
5.3.3 Requirements
accelerations of 2 g.
Upon completion of the test the container shall show
neither permanent deformation which will render it un-
suitable for use nor abnormality which will render it un- 5.5.2 Procedure
suitable for use, and the dimensional requirements affecting
The container under test shali have a load uniformly
handling, securing and interchange shall be satisfied.
distributed over the floor in such a way that the combined
weight of container and test load is equal to R, and it shall
5.4 Test No. 3 - Lifting from the bottom corner fittings
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
