SIST-TS CEN/TS 17286:2019
(Main)Stationary source emissions - Mercury monitoring using sorbent traps
Stationary source emissions - Mercury monitoring using sorbent traps
The purpose of this Technical Specification is to establish performance benchmarks for, and to evaluate the acceptability of, sorbent trap monitoring systems used to monitor total vapour-phase mercury (Hg) emissions in stationary source flue gas streams. These monitoring systems involve continuous repetitive in-flue sampling using paired sorbent traps with subsequent analysis of the time-integrated samples.
This Technical Specification is suitable for both short-term (periodic) measurements and long-term (continuous) monitoring using sorbent traps.
the substance measured according to this Specification is the total vapour phase mercury in the flue gas, which represents the sum of the elemental mercury and gaseous forms of oxidised mercury such as mercury (II) chloride, the mass concentration units of micrograms per dry meter cubed. The analysis range is typically 0,1 to greater than 50 µg/m3.
The sorbent tube approach is intended for use under relatively low particulate conditions (typically less than 100 mg/m3) when monitoring downstream of all pollution control devices, e.g., at coal fired power plants and cement plants. In this case, the contribution of mercury in the particulate fraction is considered to be negligible (typically less than 5 % of total mercury). However, it shall be noted that the sorbent trap does take account of the finest particle fraction that is sampled with the flue gas, in addition to capturing the vapour phase mercury.
This Specification also contains routine procedures and specifications that are designed to evaluate the ongoing performance of an installed sorbent trap monitoring system. The operator of the industrial installation is responsible for the correct calibration, maintenance and operation of this long-term sampling system. Additional requirements for calibration and quality assurance of the long-term sampling system are then defined in EN 14884 and EN 14181.
Emissionen aus stationären Quellen - Quecksilbermonitoring mit Sorptionsfallen
Diese Technische Spezifikation dient dazu, Leistungskenngrößen für die Beurteilung der Eignung von Messsystemen mit Sorptionsfallen (Sorbent Traps) zur Überwachung der gesamten gasförmigen Quecksilber (Hg) Emissionen in Abgasströmen aus ortsfesten Quellen festzulegen. Diese Überwachungssysteme nutzen wiederholte, kontinuierliche Probenahmen aus dem Abgasstrom mit Anreicherung auf paarweise angeordneten Sorptionsfallen und anschließender Analyse der zeitintegrierten Proben.
Diese technische Spezifikation eignet sich gleichermaßen für Kurzzeitmessungen (periodisch) und für Langzeitmessungen (kontinuierlich) unter Verwendung von Sorptionsfallen.
ANMERKUNG Nach der Validierung dieser Technischen Spezifikation wird das Sorptionsfallenverfahren ein alternatives Verfahren sein, das den nachfolgend festgelegten Anwendungsbeschränkungen unterliegt. Bis dahin ist EN 13211 das einzige akzeptierte Referenzverfahren für periodische Kurzzeitmessungen und für Vergleichsmessungen bei der Kalibrierung von kontinuierlich arbeitenden Messeinrichtungen einschließlich Systemen mit Langzeit-Probenahmeeinrichtungen. EN 13211 ist ein nasschemisches Verfahren auf der Grundlage der Absorption von Quecksilber in Absorptionslösungen.
Die nach dieser Spezifikation gemessene Substanz ist das gesamte gasförmige Quecksilber in dem Abgas und repräsentiert die Summe aus elementarem Quecksilbers (Hg0) und gasförmigem oxidierten Quecksilber (Hg2+) wie etwa Quecksilber-(II)-Chlorid, in Massenkonzentrationseinheiten von Mikrogramm (μg) pro Kubikmeter/trocken (m3). Der Messbereich liegt üblicherweise zwischen 0,1 und mehr als 50 μg/m3.
Das Messverfahren ist für Anwendungen mit relativ geringen Partikelkonzentrationen (üblicherweise weniger als 100 mg/m3) bei Messungen hinter allen Abgasreinigungseinrichtungen beispielsweise in Kohlekraftwerken oder Zementwerken vorgesehen. Unter diesen Bedingungen gilt der Anteil an partikelgebundenem Quecksilber als vernachlässigbar (üblicherweise weniger als 5 % des Gesamtquecksilbers). Es ist zu beachten, dass neben den gasförmigen Quecksilberverbindungen auch die feinste Staubfraktion, die bei der Probenahme mit dem Messgut aus dem Abgas entnommen wird, berücksichtigt wird.
Diese Spezifikation enthält darüber hinaus Routineverfahren und Anforderungen für die Beurteilung der Funktionsfähigkeit einer installierten Sorptionsfallen-Probenahmeeinrichtung. Der Betreiber der Industrieanlage ist für die korrekte Kalibrierung, Instandhaltung und den korrekten Betrieb dieser Langzeit-Probenahmeeinrichtung zuständig. Zusätzliche Anforderungen an die Kalibrierung und Qualitätssicherung der Langzeit-Probenahmeeinrichtung sind in EN 14884 und EN 14181 festgelegt.
Émissions de sources fixes - Surveillance du mercure à l'aide de pièges adsorbants
L’objectif du présent document est d’établir des références de performance et d’évaluer l’acceptabilité des systèmes de surveillance à piège adsorbant employés pour surveiller les émissions de mercure (Hg) dans la phase vapeur totale dans les courants d’effluents gazeux de sources fixes. Ces systèmes de surveillance impliquent des échantillonnages répétitifs continus dans le conduit à l’aide de pièges adsorbants appariés, suivis d’une analyse des échantillons intégrés dans le temps.
Le présent document est adapté à la fois aux mesurages à court terme (périodiques) et à la surveillance à long terme (continue) à l’aide de pièges adsorbants.
NOTE Lors de la validation de la présente Spécification technique, la méthode du piège adsorbant constituera une Méthode alternative soumise aux restrictions d’applicabilité définies ci-dessous. Jusqu’à l’heure actuelle, l’EN 13211 est la seule Méthode de référence acceptée à la fois pour les mesurages à court terme (périodiques) et pour l’étalonnage des systèmes de surveillance continue, y compris ceux avec systèmes d’échantillonnage en continu. L’EN 13211 est une approche chimique par voie humide qui repose sur l’absorption du mercure dans des solutions pour impingers.
La substance mesurée conformément à la présente spécification est le mercure total de la phase vapeur dans les effluents gazeux ; il représente la somme du mercure élément (Hg0) et des formes gazeuses de mercure oxydé (Hg2+), comme le chlorure de mercure (II), exprimée en concentration massique sous la forme de microgrammes (μg) par mètre cube sec (m3). La plage analytique est typiquement comprise entre 0,1 µg/m3 et plus de 50 µg/m3.
L’approche par tube adsorbant est destinée à être utilisée dans des conditions de relativement faible teneur en particules (typiquement moins de 100 mg/m3) lors de la surveillance en aval de tous les dispositifs de contrôle de la pollution, par exemple dans les centrales à charbon et les cimenteries. Dans ce cas, la contribution du mercure à la fraction particulaire est considérée comme négligeable (typiquement moins de 5 % du mercure total). Toutefois, il doit être noté que le piège adsorbant tient compte de la fraction particulaire la plus fine qui est échantillonnée avec l’effluent gazeux, en plus de capturer le mercure de la phase vapeur.
La présente spécification contient également des modes opératoires de routine et des spécifications conçus pour évaluer les performances continues d’un système de surveillance à piège adsorbant installé. L’opérateur de l’installation industrielle est responsable de l’étalonnage, de la maintenance et de l’exploitation corrects de ce système d’échantillonnage en continu. Des exigences supplémentaires concernant l’étalonnage et l’assurance qualité du système d’échantillonnage en continu sont définies dans l’EN 14884 et dans l’EN 14181.
Emisije nepremičnih virov - Monitoring živega srebra z adsorpcijsko cevko
Namen te tehnične specifikacije je vzpostaviti merila uspešnosti in oceniti sprejemljivost nadzornih sistemov adsorpcijskih cevk, ki se uporabljajo za monitoring skupnih emisij živega srebra (Hg) v parni fazi pri tokih odpadnih plinov iz nepremičnih virov. Ti nadzorni sistemi vključujejo neprekinjeno ponavljajoče se dimno vzorčenje z uporabo parov adsorpcijskih cevk z naknadno analizo časovno integriranih vzorcev.
Ta tehnična specifikacija je primerna za kratkotrajne (občasne) meritve in za dolgoročen (neprekinjen) monitoring z uporabo adsorpcijskih cevk.
Snov, ki je merjena skladno s to specifikacijo, je skupna emisija živega srebra v odpadnem plinu, ki predstavlja vsoto elementarnega živega srebra in plinastih oblik oksidiranega živega srebra, kot je živosrebrov (II) klorid, ter kubične enote masne koncentracije mikrogramov na suh meter. Obseg analize je običajno od 0,1 do več kot 50 µg/m3.
Pristop cevi s sorbentom je predviden za uporabo pri razmeroma nizkem stanju delcev (običajno manj kot 100 mg/m3) pri monitoringu vseh naprav za uravnavanje onesnaževanja v smeri toka, npr. v elektrarnah na premog in cementarnah. V tem primeru se prispevek živega srebra v frakciji trdnih delcev šteje kot zanemarljiv (običajno manj kot 5 % vsega živega srebra). Opozoriti pa je treba, da je pri adsorpcijski cevki poleg zajetja emisij živega srebra upoštevana tudi najmanjša frakcija delcev, vzorčena z odpadnim plinom.
Ta specifikacija vsebuje tudi rutinske postopke in specifikacije, ki so zasnovani za redno vrednotenje učinkovitosti nameščenega nadzornega sistema adsorpcijskih cevk. Upravljavec industrijske inštalacije je odgovoren za pravilno umerjanje, vzdrževanje in delovanje tega sistema dolgoročnega vzorčenja. Dodatne zahteve za umerjanje in zagotavljanje kakovosti sistema dolgoročnega vzorčenja so nato opredeljene v standardih EN 14884 in EN 14181.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
SIST-TS CEN/TS 17286:2019
01-september-2019
Emisije nepremičnih virov - Monitoring živega srebra z adsorpcijsko cevko
Stationary source emissions - Mercury monitoring using sorbent traps
Emissionen aus stationären Quellen - Quecksilbermonitoring mit Sorptionsfallen
Émissions de sources fixes - Surveillance du mercure à l'aide de pièges adsorbants
Ta slovenski standard je istoveten z: CEN/TS 17286:2019
ICS:
13.040.40 Emisije nepremičnih virov Stationary source emissions
SIST-TS CEN/TS 17286:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST-TS CEN/TS 17286:2019
---------------------- Page: 2 ----------------------
SIST-TS CEN/TS 17286:2019
CEN/TS 17286
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
March 2019
TECHNISCHE SPEZIFIKATION
ICS 13.040.40
English Version
Stationary source emissions - Mercury monitoring using
sorbent traps
Émissions de sources fixes - Surveillance du mercure à Emissionen aus stationären Quellen -
l'aide de pièges adsorbants Quecksilbermonitoring mit Sorptionsfallen
This Technical Specification (CEN/TS) was approved by CEN on 9 December 2018 for provisional application.
This Technical Specification (CEN/TS) was corrected and reissued by the CEN-CENELEC Management Centre on 27 March 2019.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N
EUROPÄISCHES KOMITEE FÜR NORMUN G
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 17286:2019 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST-TS CEN/TS 17286:2019
CEN/TS 17286:2019 (E)

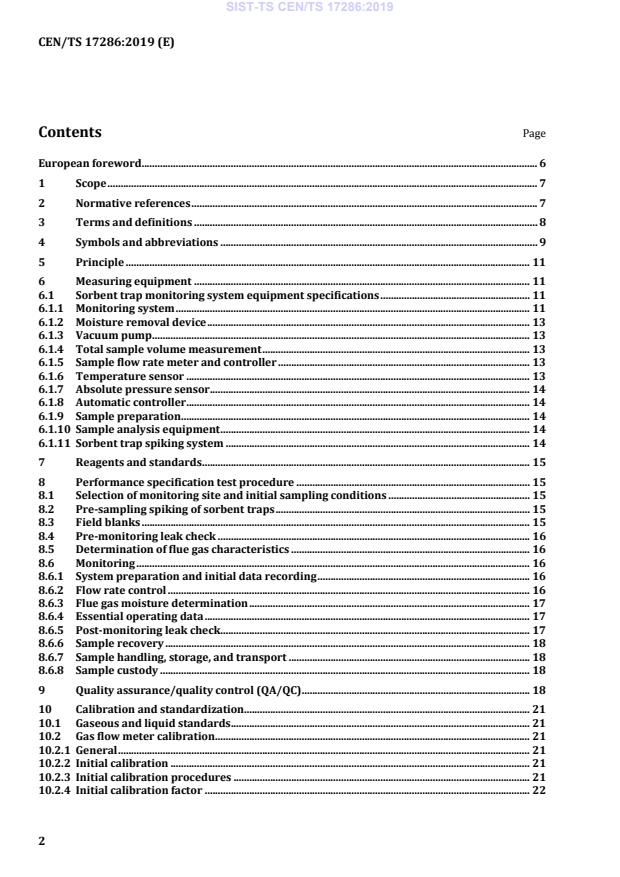

Contents Page
European foreword . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Symbols and abbreviations . 9
5 Principle . 11
6 Measuring equipment . 11
6.1 Sorbent trap monitoring system equipment specifications . 11
6.1.1 Monitoring system . 11
6.1.2 Moisture removal device . 13
6.1.3 Vacuum pump . 13
6.1.4 Total sample volume measurement . 13
6.1.5 Sample flow rate meter and controller . 13
6.1.6 Temperature sensor . 13
6.1.7 Absolute pressure sensor . 14
6.1.8 Automatic controller . 14
6.1.9 Sample preparation . 14
6.1.10 Sample analysis equipment . 14
6.1.11 Sorbent trap spiking system . 14
7 Reagents and standards . 15
8 Performance specification test procedure . 15
8.1 Selection of monitoring site and initial sampling conditions . 15
8.2 Pre-sampling spiking of sorbent traps . 15
8.3 Field blanks . 15
8.4 Pre-monitoring leak check . 16
8.5 Determination of flue gas characteristics . 16
8.6 Monitoring . 16
8.6.1 System preparation and initial data recording . 16
8.6.2 Flow rate control . 16
8.6.3 Flue gas moisture determination . 17
8.6.4 Essential operating data . 17
8.6.5 Post-monitoring leak check. 17
8.6.6 Sample recovery . 18
8.6.7 Sample handling, storage, and transport . 18
8.6.8 Sample custody . 18
9 Quality assurance/quality control (QA/QC) . 18
10 Calibration and standardization. 21
10.1 Gaseous and liquid standards . 21
10.2 Gas flow meter calibration . 21
10.2.1 General . 21
10.2.2 Initial calibration . 21
10.2.3 Initial calibration procedures . 21
10.2.4 Initial calibration factor . 22
2
---------------------- Page: 4 ----------------------
SIST-TS CEN/TS 17286:2019
CEN/TS 17286:2019 (E)
10.2.5 Optional on-site calibration audit for mass flow meters . 22
10.2.6 Ongoing quality control . 22
11 Analytical performance criteria . 22
11.1 General . 22
11.2 Analytical matrix interference test . 23
11.2.1 General . 23
11.2.2 Analytical matrix interference test procedures . 23
11.2.3 Analytical matrix interference test acceptance criteria . 23
11.3 Determination of minimum sample mass . 24
11.3.1 General . 24
11.3.2 Determination of minimum calibration concentration or mass . 24
11.3.3 Determination of minimum sample mass . 24
11.3.4 Example determination of minimum sample mass for thermal desorption analysis . 24
11.3.5 Example determination of Minimum Sample Mass for Acid Leachate/Digest Analysis . 24
0
11.4 Hg and HgCl analytical bias test (ABT) . 25
2
11.4.1 General . 25
0
11.4.2 Hg and HgCl ABT procedures . 25
2
0
11.4.3 Hg ABT . 25
11.4.4 HgCl ABT . 25
2
11.5 Field recovery test . 25
11.6 Accuracy test using certified reference material . 26
11.6.1 General . 26
0
11.6.2 Gaseous Hg sorbent trap spiking system . 26
12 Calculations, data reduction, data analysis and reporting . 26
12.1 Calculation of pre-sampling spiking level . 26
12.2 Calculations of the flow reference ratio for flow-proportional sampling . 27
12.3 Calculation of spike recovery . 27
12.4 Calculation of breakthrough . 28
12.5 Calculation of mercury concentration . 28
12.6 Calculation of paired trap agreement . 29
12.7 Calculation of FRT parameters . 29
12.8 Data reduction and method uncertainty . 30
Annex A (informative) Gaseous Hg0 sorbent trap spiking system . 31
Annex B (informative) Calculation of flue gas moisture content . 35
B.1 Plants with wet abatement systems. 35
B.2 Plants without wet abatement systems . 35
B.2.1 General . 35
B.2.2 Calculating moisture content from a stoichiometric fuel factor. 35
B.2.3 Calculating moisture content from flue gas properties . 36
Annex C (normative) Performance criteria and test procedures for certification of long-
term sampling systems . 38
C.1 General requirements . 38
C.2 Validation of the installation/functioning on each plant . 39
C.2.1 Preparation . 39
C.2.1.1 General . 39
C.2.1.2 Minimum requirements for set-up . 39
3
---------------------- Page: 5 ----------------------
SIST-TS CEN/TS 17286:2019
CEN/TS 17286:2019 (E)
C.2.1.3 Minimum requirements for selecting the sampling point . 39
C.3 Performance criteria and test procedure for certification . 39
C.3.1 General relation to other standards . 39
C.3.2 General requirements . 39
C.3.2.1 Application of the minimum requirements . 39
C.3.2.2 Certification ranges . 39
C.3.3 Performance criteria common to all long-term sampling systems for laboratory
testing . 40
C.3.3.1 Performance criteria for the automatic volume proportional flow control . 40
C.3.3.2 Requirements of EN 15267-3 . 40
C.3.4 Performance criteria common to all long-term sampling systems for field testing . 40
C.3.4.1 For the automatic volume proportional flow control . 40
C.3.4.2 Status information . 40
C.3.4.3 Availability . 40
C.3.4.4 Reproducibility . 41
C.3.4.5 Automatic post-adjustment unit . 42
C.3.4.6 Breakthrough criteria of used traps . 42
C.3.4.7 Paired trap agreement . 42
C.3.4.8 Number of values to be determined . 42
C.3.4.9 Labelling . 42
C.3.4.10 Relation to the plant conditions . 42
C.3.4.11 Volume proportional control . 42
C.3.4.12 Essential characteristic data . 42
Annex D (informative) Sorbent traps configurations . 43
D.1 Sorbent trap dimensions . 43
D.2 Sorbent trap configurations . 43
Annex E (normative) Reporting of sampling information . 45
E.1 Reporting . 45
E.1.1 Short-term sampling . 45
E.1.1.1 General . 45
E.1.1.2 Basic information . 45
E.1.1.3 Sampling data for each trap . 45
E.1.2 Long-term sampling . 46
E.1.3 Interruption of data recording . 46
E.1.4 Reporting the validation of a long-term sampling system (from the manufacturer
and the test laboratory) . 47
4
---------------------- Page: 6 ----------------------
SIST-TS CEN/TS 17286:2019
CEN/TS 17286:2019 (E)
Annex F (informative) Example uncertainty budget for mercury measurement using
sorbent traps . 48
F.1 Introduction. 48
F.2 Elements required for the uncertainty determinations . 48
F.2.1 Model equation . 48
F.3 Example of an uncertainty calculation. 48
F.3.1 Specific conditions in the field . 48
F.3.2 Performance characteristics . 50
F.4 Model equation and application of rule of uncertainty propagation . 51
F.4.1 Concentration of Hg . 51
F.4.1.1 General . 51
F.4.1.2 Calculation of the combined uncertainty of V and C . 52
m m
F.4.1.3 Based on Formula (F.1) the combined uncertainty of C can be expressed by
m
Formula (F.6): . 52
F.4.1.4 Calculation of sensitivity coefficients . 53
F.4.1.5 Results of the standard uncertainties calculations . 53
F.4.1.6 Estimation of the combined uncertainty . 55
Annex G (informative) Calculation of the uncertainty associated with correcting to dry gas
conditions at an oxygen reference concentration . 58
G.1 Uncertainty associated with a concentration expressed on dry gas . 58
G.2 Uncertainty associated with a concentration expressed at an oxygen reference
concentration . 60
Bibliography . 62
5
---------------------- Page: 7 ----------------------
SIST-TS CEN/TS 17286:2019
CEN/TS 17286:2019 (E)
European foreword
This document (CEN/TS 17286:2019) has been prepared by Technical Committee CEN/TC 264 “Air
quality”, the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
6
---------------------- Page: 8 ----------------------
SIST-TS CEN/TS 17286:2019
CEN/TS 17286:2019 (E)
1 Scope
The purpose of this document is to establish performance benchmarks for, and to evaluate the
acceptability of, sorbent trap monitoring systems used to monitor total vapour- phase mercury (Hg)
emissions in stationary source flue gas streams. These monitoring systems involve continuous
repetitive in-flue sampling using paired sorbent traps with subsequent analysis of the time-integrated
samples.
This document is suitable for both short-term (periodic) measurements and long-term (continuous)
monitoring using sorbent traps.
NOTE When this Technical Specification has been validated, the sorbent trap method will be an Alternative
Method subject to the restrictions on applicability defined below. Until that time, EN 13211 is the only accepted
Reference Method for both short-term (periodic) measurements and for calibrating continuous monitoring
systems, including those with long-term sampling systems. EN 13211 is a wet chemistry approach that relies on
absorption of mercury into impinger solutions.
The substance measured according to this specification is the total vapour phase mercury in the flue
0
gas, which represents the sum of the elemental mercury (Hg ) and gaseous forms of oxidized mercury
2+
(Hg ), such as mercury (II) chloride, in mass concentration units of micrograms (μg) per dry meter
3 3
cubed (m ). The analytical range is typically 0,1 to greater than 50 µg/m .
The sorbent tube approach is intended for use under relatively low particulate conditions (typically less
3
than 100 mg/m ) when monitoring downstream of all pollution control devices, e.g. at coal fired power
plants and cement plants. In this case, the contribution of mercury in the particulate fraction is
considered to be negligible (typically less than 5 % of total mercury). However, it shall be noted that the
sorbent trap does take account of the finest particle fraction that is sampled with the flue gas, in
addition to capturing the vapour phase mercury.
This specification also contains routine procedures and specifications that are designed to evaluate the
ongoing performance of an installed sorbent trap monitoring system. The operator of the industrial
installation is responsible for the correct calibration, maintenance and operation of this long-term
sampling system. Additional requirements for calibration and quality assurance of the long-term
sampling system are then defined in EN 14884 and EN 14181.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 14181, Stationary source emissions — Quality assurance of automated measuring systems
EN 14790 (series), Stationary source emissions — Determination of the water vapour in ducts — Standard
reference method
EN 15259:2007, Air quality — Measurement of stationary source emissions — Requirements for
measurement sections and sites and for the measurement objective, plan and report
EN 15267 (series), Air quality — Certification of automated measuring systems
EN 15853, Ambient air quality — Standard method for the determination of mercury deposition
EN ISO 16911-1:2013, Stationary source emissions — Manual and automatic determination of velocity
and volume flow rate in ducts — Part 1: Manual reference method (ISO 16911-1:2013)
7
---------------------- Page: 9 ----------------------
SIST-TS CEN/TS 17286:2019
...
SLOVENSKI STANDARD
kSIST-TS FprCEN/TS 17286:2018
01-oktober-2018
[Not translated]
Stationary source emissions - Mercury monitoring using sorbent traps
Emissionen aus stationären Quellen - Quecksilbermonitoring mit Sorptionsfallen
Émissions de sources fixes - Surveillance du mercure à l'aide de pièges adsorbants
Ta slovenski standard je istoveten z: FprCEN/TS 17286
ICS:
13.040.40 (PLVLMHQHSUHPLþQLKYLURY Stationary source emissions
kSIST-TS FprCEN/TS 17286:2018 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
kSIST-TS FprCEN/TS 17286:2018
---------------------- Page: 2 ----------------------
kSIST-TS FprCEN/TS 17286:2018
FINAL DRAFT
TECHNICAL SPECIFICATION
FprCEN/TS 17286
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
August 2018
ICS
English Version
Stationary source emissions - Mercury monitoring using
sorbent traps
Émissions de sources fixes - Surveillance du mercure à Emissionen aus stationären Quellen -
l'aide de pièges adsorbants Quecksilbermonitoring mit Sorptionsfallen
This draft Technical Specification is submitted to CEN members for Vote. It has been drawn up by the Technical Committee
CEN/TC 264.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a Technical Specification. It is distributed for review and comments. It is subject to change
without notice and shall not be referred to as a Technical Specification.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprCEN/TS 17286:2018 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
kSIST-TS FprCEN/TS 17286:2018
FprCEN/TS 17286:2018 (E)
Contents Page
European foreword . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Symbols and abbreviations . 9
5 Principle . 11
6 Measuring equipment . 11
6.1 Sorbent trap monitoring system equipment specifications . 11
6.1.1 Monitoring system . 11
6.1.2 Moisture removal device . 13
6.1.3 Vacuum pump . 13
6.1.4 Total sample volume measurement . 13
6.1.5 Sample flow rate meter and controller . 13
6.1.6 Temperature sensor . 13
6.1.7 Absolute pressure sensor . 14
6.1.8 Automatic controller . 14
6.1.9 Sample preparation . 14
6.1.10 Sample analysis equipment . 14
6.1.11 Sorbent trap spiking system . 14
7 Reagents and standards . 15
8 Performance specification test procedure . 15
8.1 Selection of monitoring site and initial sampling conditions . 15
8.2 Pre-sampling spiking of sorbent traps . 15
8.3 Field blanks . 15
8.4 Pre-monitoring leak check . 16
8.5 Determination of flue gas characteristics . 16
8.6 Monitoring . 16
8.6.1 System preparation and initial data recording . 16
8.6.2 Flow rate control . 16
8.6.3 Flue gas moisture determination . 17
8.6.4 Essential operating data . 17
8.6.5 Post-monitoring leak check. 17
8.6.6 Sample recovery . 18
8.6.7 Sample handling, storage, and transport . 18
8.6.8 Sample custody . 18
9 Quality assurance/quality control (QA/QC) . 18
10 Calibration and standardization. 21
10.1 Gaseous and liquid standards . 21
10.2 Gas flow meter calibration . 21
10.2.1 Initial calibration . 21
10.2.2 Initial calibration procedures . 21
10.2.3 Initial calibration factor . 22
10.2.4 Optional on-site calibration audit for mass flow meters . 22
2
---------------------- Page: 4 ----------------------
kSIST-TS FprCEN/TS 17286:2018
FprCEN/TS 17286:2018 (E)
10.2.5 Ongoing quality control . 22
11 Analytical performance criteria . 22
11.1 General . 22
11.2 Analytical matrix interference test . 23
11.2.1 General . 23
11.2.2 Analytical matrix interference test procedures . 23
11.2.3 Analytical matrix interference test acceptance criteria . 23
11.3 Determination of minimum sample mass . 24
11.3.1 General . 24
11.3.2 Determination of minimum calibration concentration or mass . 24
11.3.3 Determination of minimum sample mass . 24
11.3.4 Example determination of minimum sample mass for thermal desorption analysis . 24
11.3.5 Example determination of Minimum Sample Mass for Acid Leachate/Digest Analysis . 24
0
11.4 Hg and HgCl analytical bias test . 25
2
11.4.1 General . 25
0
11.4.2 Hg and HgCl ABT procedures . 25
2
0
11.4.3 Hg ABT . 25
11.4.4 HgCl ABT . 25
2
11.5 Field recovery test . 25
11.6 Accuracy test using certified reference material . 26
11.6.1 General . 26
0
11.6.2 Gaseous Hg sorbent trap spiking system . 26
12 Calculations, data reduction, data analysis and reporting . 26
12.1 Calculation of pre-sampling spiking level . 26
12.2 Calculations of the flow reference ratio for flow-proportional sampling . 27
12.3 Calculation of spike recovery . 27
12.4 Calculation of breakthrough . 28
12.5 Calculation of mercury concentration . 28
12.6 Calculation of paired trap agreement . 29
12.7 Calculation of FRT parameters . 29
12.8 Data reduction and method uncertainty . 30
Annex A (informative) Gaseous Hg0 sorbent trap spiking system . 31
Annex B (informative) Calculation of flue gas moisture content . 35
B.1 Plants with wet abatement systems. 35
B.2 Plants without wet abatement systems . 35
B.2.1 General . 35
B.2.2 Calculating moisture content from a stoichiometric fuel factor. 35
B.2.3 Calculating moisture content from flue gas properties . 36
Annex C (normative) Performance criteria and test procedures for certification of long-
term sampling systems . 38
C.1 General requirements . 38
C.2 Validation of the installation/functioning on each plant . 39
C.2.1 Preparation . 39
C.2.1.1 General . 39
C.2.1.2 Minimum requirements for set-up . 39
3
---------------------- Page: 5 ----------------------
kSIST-TS FprCEN/TS 17286:2018
FprCEN/TS 17286:2018 (E)
C.2.1.3 Minimum requirements for selecting the sampling point . 39
C.3 Performance criteria and test procedure for certification . 39
C.3.1 General relation to other standards . 39
C.3.2 General requirements . 39
C.3.2.1 Application of the minimum requirements . 39
C.3.2.2 Certification ranges . 39
C.3.3 Performance criteria common to all long-term sampling systems for laboratory
testing . 40
C.3.3.1 Performance criteria for the automatic volume proportional flow control . 40
C.3.3.2 Requirements of EN 15267-3 . 40
C.3.4 Performance criteria common to all long-term sampling systems for field testing . 40
C.3.4.1 For the automatic volume proportional flow control . 40
C.3.4.2 Status information . 40
C.3.4.3 Availability . 40
C.3.4.4 Reproducibility . 41
C.3.4.5 Automatic post-adjustment unit . 42
C.3.4.6 Breakthrough criteria of used traps . 42
C.3.4.7 Paired trap agreement . 42
C.3.4.8 Number of values to be determined . 42
C.3.4.9 Labelling . 42
C.3.4.10 . Relation to the plant conditions 42
C.3.4.11 . Volume proportional control 42
C.3.4.12 . Essential characteristic data 42
Annex D (informative) Sorbent traps configurations . 43
D.1 Sorbent trap dimensions . 43
D.2 Sorbent trap configurations . 43
Annex E (normative) Reporting of sampling information . 45
E.1 Reporting . 45
E.1.1 Short-term sampling . 45
E.1.1.1 General . 45
E.1.1.2 Basic information . 45
E.1.1.3 Sampling data for each trap . 45
E.1.2 Long-term sampling . 46
E.1.3 Interruption of data recording . 46
E.1.4 Reporting the validation of a long-term sampling system (from the manufacturer
and the test laboratory) . 47
4
---------------------- Page: 6 ----------------------
kSIST-TS FprCEN/TS 17286:2018
FprCEN/TS 17286:2018 (E)
Annex F (informative) Example uncertainty budget for mercury measurement using
sorbent traps . 48
F.1 Introduction. 48
F.2 Elements required for the uncertainty determinations . 48
F.2.1 Model equation . 48
F.3 Example of an uncertainty calculation. 48
F.3.1 Specific conditions in the field . 48
F.3.2 Performance characteristics . 50
F.4 Model equation and application of rule of uncertainty propagation . 51
F.4.1 Concentration of Hg . 51
F.4.1.1 General . 51
F.4.1.2 Calculation of the combined uncertainty of V and C . 52
m m
F.4.1.3 Based on Formula (F.1) the combined uncertainty of C can be expressed by
m
Formula (F.6): . 52
F.4.1.4 Calculation of sensitivity coefficients . 53
F.4.1.5 Results of the standard uncertainties calculations . 53
F.4.1.6 Estimation of the combined uncertainty . 55
Annex G (informative) Calculation of the uncertainty associated with correcting to dry gas
conditions at an oxygen reference concentration . 57
G.1 Uncertainty associated with a concentration expressed on dry gas . 57
G.2 Uncertainty associated with a concentration expressed at an oxygen reference
concentration . 59
Bibliography . 61
5
---------------------- Page: 7 ----------------------
kSIST-TS FprCEN/TS 17286:2018
FprCEN/TS 17286:2018 (E)
European foreword
This document (FprCEN/TS 17286:2018) has been prepared by Technical Committee CEN/TC 264 “Air
quality”, the secretariat of which is held by DIN.
This document is currently submitted to the Formal Vote.
6
---------------------- Page: 8 ----------------------
kSIST-TS FprCEN/TS 17286:2018
FprCEN/TS 17286:2018 (E)
1 Scope
The purpose of this document is to establish performance benchmarks for, and to evaluate the
acceptability of, sorbent trap monitoring systems used to monitor total vapour- phase mercury (Hg)
emissions in stationary source flue gas streams. These monitoring systems involve continuous
repetitive in-flue sampling using paired sorbent traps with subsequent analysis of the time-integrated
samples.
This document is suitable for both short-term (periodic) measurements and long-term (continuous)
monitoring using sorbent traps.
NOTE When this Technical Specification has been validated, the sorbent trap method will be an Alternative
Method subject to the restrictions on applicability defined below. Until that time, EN 13211 is the only accepted
Reference Method for both short-term (periodic) measurements and for calibrating continuous monitoring
systems, including those with long-term sampling systems. EN 13211 is a wet chemistry approach that relies on
absorption of mercury into impinger solutions.
The substance measured according to this specification is the total vapour phase mercury in the flue
0
gas, which represents the sum of the elemental mercury (Hg ) and gaseous forms of oxidized mercury
2+
(Hg ), such as mercury (II) chloride, in mass concentration units of micrograms (μg) per dry meter
3 3
cubed (m ). The analytical range is typically 0,1 to greater than 50 µg/m .
The sorbent tube approach is intended for use under relatively low particulate conditions (typically less
3
than 100 mg/m ) when monitoring downstream of all pollution control devices, e.g. at coal fired power
plants and cement plants. In this case, the contribution of mercury in the particulate fraction is
considered to be negligible (typically less than 5 % of total mercury). However, it shall be noted that the
sorbent trap does take account of the finest particle fraction that is sampled with the flue gas, in
addition to capturing the vapour phase mercury.
This specification also contains routine procedures and specifications that are designed to evaluate the
ongoing performance of an installed sorbent trap monitoring system. The operator of the industrial
installation is responsible for the correct calibration, maintenance and operation of this long-term
sampling system. Additional requirements for calibration and quality assurance of the long-term
sampling system are then defined in EN 14884 and EN 14181.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 14181, Stationary source emissions - Quality assurance of automated measuring systems
EN 14790 (series), Stationary source emissions - Determination of the water vapour in ducts - Standard
reference method
EN 15259, Air quality - Measurement of stationary source emissions - Requirements for measurement
sections and sites and for the measurement objective, plan and report
EN 15267, Air quality — Certification of automated measuring systems
EN 15853, Ambient air quality - Standard method for the determination of mercury deposition
EN ISO 16911-1:2013, Stationary source emissions - Manual and automatic determination of velocity and
volume flow rate in ducts - Part 1: Manual reference method (ISO 16911-1:2013)
7
---------------------- Page: 9 ----------------------
kSIST-TS FprCEN/TS 17286:2018
FprCEN/TS 17286:2018 (E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp.
3.1
mercury
mercury and mercury compounds
3.2
total mercury
sum of the mercury in the exhaust gas independent from the state (gaseous, dissolved in droplets, solid,
adsorbed or absorbed on and within particles)
3.3
sorbent trap
tube filled with a collection material on which gaseous mercury is collected
3.4
sorbent trap spiking
technique(s) used to spike mercury onto sorbent traps prior to sampling
3.5
sample probe
part of the apparatus that is placed in the flue for the purpose of sampling the gas and measuring the
temperature
3.6
moisture removal device
part of the apparatus that is placed before the sample flow measuring device for the purpose of
removing water vapour from the sampled gas stream
3.7
gas flow meter
device of any type that allows the total dry sample gas volume to
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
