SIST EN 62351-9:2017

Power systems management and associated information exchange - Data and communications security - Part 9: Cyber security key management for power system equipment

This part of IEC 62351 specifies cryptographic key management, namely how to generate,
distribute, revoke, and handle public-key certificates and cryptographic keys to protect digital
data and its communication. Included in the scope is the handling of asymmetric keys (e.g.
private keys and public-key certificates), as well as symmetric keys for groups (GDOI).
This part of IEC 62351 assumes that other standards have already chosen the type of keys
and cryptography that will be utilized, since the cryptography algorithms and key materials
chosen will be typically mandated by an organization’s own local security policies and by the
need to be compliant with other international standards. This document therefore specifies
only the management techniques for these selected key and cryptography infrastructures. The
objective is to define requirements and technologies to achieve interoperability of key
management.
The purpose of this part of IEC 62351 is to guarantee interoperability among different vendors
by specifying or limiting key management options to be used. This document assumes that
the reader understands cryptography and PKI principles.

Energiemanagementsysteme und zugehöriger Datenaustausch - IT-Sicherheit für Daten und Kommunikation - Teil 9: Cyber security Schlüssel-Management für Stromversorgungsanlagen

Gestion des systèmes de puissance et échanges d’informations associés - Sécurité des communications et des données - Partie 9: Gestion de clé de cybersécurité des équipements de système de puissance

IEC 62351-9:2017 porte sur la gestion de clé cryptographique, c'est-à-dire sur la manière de générer, distribuer, révoquer et manipuler les certificats de clé publique et les clés cryptographiques pour protéger les données numériques et leurs communications. La manipulation des clés asymétriques (les clés privées et les certificats de clé publique, par exemple) et les clés symétriques pour les groupes (GDOI) font également partie du domaine d'application de la présente norme.
La présente partie de l'IEC 62351 part du principe que d'autres normes ont déjà choisi le type de clés et la cryptographie qui seront utilisés, dans la mesure où les algorithmes de cryptographie et les supports de clé choisis sont en principe liés aux politiques de sécurité locales propres à une organisation et à la nécessité de satisfaire aux autres normes internationales. Le présent document spécifie donc uniquement les techniques de gestion de ces infrastructures de clé et de cryptographie sélectionnées. Il s'agit de définir les exigences et les technologies permettant d'assurer l'interopérabilité de la gestion de clé.
La présente partie de l'IEC 62351 a pour objet de garantir l'interopérabilité entre les différents fournisseurs en spécifiant ou limitant les options de gestion de clé à utiliser. Le présent document part du principe que le lecteur comprend les principes de cryptographie et d'infrastructure à clés publiques.

Upravljanje elektroenergetskega sistema in pripadajoča izmenjava informacij - Varnost podatkov in komunikacij - 9. del: Upravljanje računalniške varnosti opreme napajalnih sistemov

Ta del standarda IEC 62351 določa upravljanje kriptografskih ključev, tj. načine ustvarjanja, porazdelitve, preklica in upravljanja potrdil za javne ključe ter kriptografskih ključev za varstvo digitalnih podatkov in povezanih komunikacij. Področje uporabe zajema ravnanje z asimetričnimi ključi (npr. zasebnimi ključi ali potrdili za javne ključe) in s simetričnimi ključi za skupine (GDOI).
Ta del standarda IEC 62351 predvideva, da so bile vrste ključev in kriptografija, ki bodo uporabljeni, v okviru drugih standardov že izbrani, kajti ti izbrani kriptografski algoritmi in gradiva ključev so običajno določeni v lokalnih varnostnih pravilnikih organizacije in na podlagi zahtev za zagotavljanje skladnosti z drugimi mednarodnimi standardi. Ta dokument tako določa zgolj načine upravljanja za te izbrane infrastrukture ključev in kriptografije. Cilj je določitev zahtev in tehnologij za doseganje interoperabilnosti upravljanja ključev.
Namen tega dela standarda IEC 62351 je zagotavljanje interoperabilnosti med različnimi ponudniki z določitvijo ali omejitvijo možnosti upravljanja ključev, ki bodo uporabljene. Ta dokument predvideva, da je bralec razume načela kriptografije in postopke PKI.

General Information

• Status: Published
• Publication Date: 17-Aug-2017
• ICS: 29.240.30 - Control equipment for electric power systems
• ICS: 35.030 - IT Security
• ICS: 35.240.50 - IT applications in industry
• Technical Committee: PSE - Power systems management
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 19-Jul-2017
• Due Date: 23-Sep-2017
• Completion Date: 18-Aug-2017
• Mandate: M/490 - Standardisation mandate to the European Standardisation Organisations (ESOs) to support European Smart Grid deployment
• Ref Project: EN 62351-9:2017 - Power systems management and associated information exchange - Data and communications security - Part 9: Cyber security key management for power system equipment

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 62351-9:2017
01-september-2017
8SUDYOMDQMHHOHNWURHQHUJHWVNHJDVLVWHPDLQSULSDGDMRþDL]PHQMDYDLQIRUPDFLM
9DUQRVWSRGDWNRYLQNRPXQLNDFLMGHO8SUDYOMDQMHUDþXQDOQLãNHYDUQRVWL
RSUHPHQDSDMDOQLKVLVWHPRY
Power systems management and associated information exchange - Data and
communications security - Part 9: Cyber security key management for power system
equipment
Ta slovenski standard je istoveten z: EN 62351-9:2017
ICS:
29.240.30 Krmilna oprema za Control equipment for electric
elektroenergetske sisteme power systems
35.030 Informacijska varnost IT Security
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
SIST EN 62351-9:2017 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 62351-9:2017

---------------------- Page: 2 ----------------------

SIST EN 62351-9:2017


EUROPEAN STANDARD EN 62351-9

NORME EUROPÉENNE

EUROPÄISCHE NORM
July 2017
ICS 33.200

English Version
Power systems management and associated information
exchange - Data and communications security -
Part 9: Cyber security key management for power system
equipment
(IEC 62351-9 :2017)
Gestion des systèmes de puissance et échanges Energiemanagementsysteme und zugehöriger
d'informations associés - Sécurité des communications et Datenaustausch - IT-Sicherheit für Daten und
des données - Partie 9: Gestion de clé de cybersécurité des Kommunikation - Teil 9: Cyber security Schlüssel-
équipements de système de puissance Management für Stromversorgungsanlagen
(IEC 62351-9 :2017) (IEC 62351-9 :2017)
This European Standard was approved by CENELEC on 2017-06-22. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 62351-9:2017 E

---------------------- Page: 3 ----------------------

SIST EN 62351-9:2017
EN 62351-9:2017

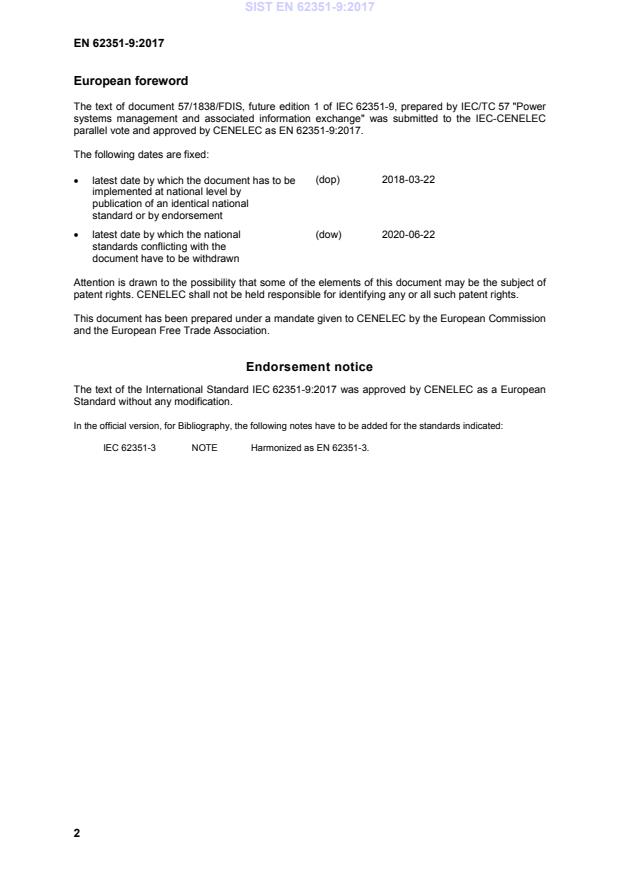

European foreword
