SIST EN 14605:2005+A1:2009

Protective clothing against liquid chemicals - performance requirements for clothing with liquid-tight (Type 3) or spray-tight (Type 4) connections, including items providing protection to parts of the body only (Types PB [3] and PB [4])

Varovalna obleka pred učinki tekočih kemikalij - Zahtevane lastnosti za obleko, neprepustno za tekočine (tip 3) ali za razpršila (tip 4), vključno z dodatki, ki zagotavljajo zaščito za posamezne dele telesa (tipa PB [3] in PB [4])

General Information

• Status: Published
• Technical Committee: COVID 19 - COVID 19 - ISO
• Directive: standardi COVID-19 - UPDATE ON THE AVAILABILITY OF CEN, CENELEC, ISO, IEC STANDARDS AND THEIR NATIONAL ADOPTIONS IN RESPONSE TO THE COVID-19 OUTBREAK

Standards Content (Sample)

Posebna objava SIST z dovoljenjem CEN, CENELEC, ISO in IEC: Za potrebe zagotavljanja brezplačnega dostopa do vsebin standardov v času epidemije COVID-19.
Samo za branje. Kopiranje in posredovanje prepovedano. © SIST 2020-04-10
SLOVENSKI STANDARD
SIST EN 14605:2005+A1:2009
01-julij-2009
9DURYDOQDREOHNDSUHGXþLQNLWHNRþLKNHPLNDOLM=DKWHYDQHODVWQRVWL]DREOHNR
QHSUHSXVWQR]DWHNRþLQHWLSDOL]DUD]SUãLODWLSYNOMXþQR]GRGDWNLNL
]DJRWDYOMDMR]DãþLWR]DSRVDPH]QHGHOHWHOHVDWLSD3%>@LQ3%>@
Protective clothing against liquid chemicals - performance requirements for clothing with
liquid-tight (Type 3) or spray-tight (Type 4) connections, including items providing
protection to parts of the body only (Types PB [3] and PB [4])
Schutzkleidung gegen flüssige Chemikalien - Leistungsanforderungen an
Chemikalienschutzanzüge mit flüssigkeitsdichten (Typ 3) oder spraydichten (Typ 4)
Verbindungen zwischen den Teilen der Kleidung, einschließlich der Kleidungsstücke, die
nur einen Schutz für Teile des Körpers gewähren (Typen PB [3] und PB [4])
Vêtements de protection contre les produits chimiques liquides - Exigences relatives aux
vêtements dont les éléments de liaison sont étanches au liquide (Type 3) ou aux
pulvérisations (Type 4), y compris les articles d'habillement protégeant seulement
certaines parties du corps (Types PB (3) et PB (4))
Ta slovenski standard je istoveten z: EN 14605:2005+A1:2009
ICS:
13.340.10 Varovalna obleka Protective clothing
SIST EN 14605:2005+A1:2009 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 14605:2005+A1:2009
Posebna objava SIST z dovoljenjem CEN, CENELEC, ISO in IEC: Za potrebe zagotavljanja brezplačnega dostopa do vsebin standardov v času epidemije COVID-19.
Samo za branje. Kopiranje in posredovanje prepovedano. © SIST 2020-04-10

---------------------- Page: 2 ----------------------
SIST EN 14605:2005+A1:2009
Posebna objava SIST z dovoljenjem CEN, CENELEC, ISO in IEC: Za potrebe zagotavljanja brezplačnega dostopa do vsebin standardov v času epidemije COVID-19.
Samo za branje. Kopiranje in posredovanje prepovedano. © SIST 2020-04-10


EUROPEAN STANDARD
EN 14605:2005+A1

NORME EUROPÉENNE

EUROPÄISCHE NORM
May 2009
ICS 13.340.10 Supersedes EN 14605:2005
English Version
Protective clothing against liquid chemicals - performance
requirements for clothing with liquid-tight (Type 3) or spray-tight
(Type 4) connections, including items providing protection to
parts of the body only (Types PB [3] and PB [4])
Vêtements de protection contre les produits chimiques Schutzkleidung gegen flüssige Chemikalien -
liquides - Exigences relatives aux vêtements dont les Leistungsanforderungen an Chemikalienschutzanzüge mit
éléments de liaison sont étanches au liquide (Type 3) ou flüssigkeitsdichten (Typ 3) oder spraydichten (Typ 4)
aux pulvérisations (Type 4), y compris les articles Verbindungen zwischen den Teilen der Kleidung,
d'habillement protégeant seulement certaines parties du einschließlich der Kleidungsstücke, die nur einen Schutz für
corps (Types PB (3) et PB (4)) Teile des Körpers gewähren (Typen PB [3] und PB [4])
This European Standard was approved by CEN on 14 February 2005 and includes Amendment 1 approved by CEN on 5 April 2009.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.






EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14605:2005+A1:2009: E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST EN 14605:2005+A1:2009
Posebna objava SIST z dovoljenjem CEN, CENELEC, ISO in IEC: Za potrebe zagotavljanja brezplačnega dostopa do vsebin standardov v času epidemije COVID-19.
Samo za branje. Kopiranje in posredovanje prepovedano. © SIST 2020-04-10
EN 14605:2005+A1:2009 (E)

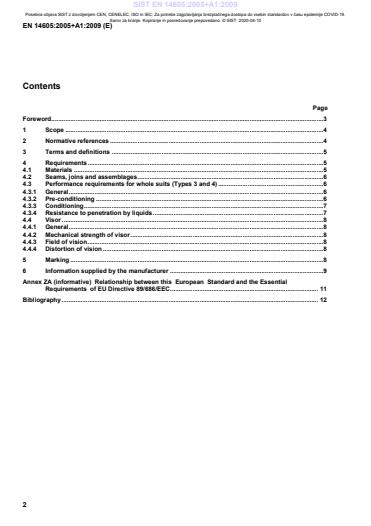

Contents
Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .5
4 Requirements .5
4.1 Materials .5
4.2 Seams, joins and assemblages .6
4.3 Performance requirements for whole suits (Types 3 and 4) .6
4.3.1 General .6
4.3.2 Pre-conditioning .6
4.3.3 Conditioning .7
4.3.4 Resistance to penetration by liquids .7
4.4 Visor .8
4.4.1 General .8
4.4.2 Mechanical strength of visor .8
4.4.3 Field of vision .8
4.4.4 Distortion of vision .8
5 Marking .8
6 Information supplied by the manufacturer .9
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 89/686/EEC . 11
Bibliography . 12

2

---------------------- Page: 4 ----------------------
SIST EN 14605:2005+A1:2009
Posebna objava SIST z dovoljenjem CEN, CENELEC, ISO in IEC: Za potrebe zagotavljanja brezplačnega dostopa do vsebin standardov v času epidemije COVID-19.
Samo za branje. Kopiranje in posredovanje prepovedano. © SIST 2020-04-10
EN 14605:2005+A1:2009 (E)
Foreword
This document (EN 14605:2005+A1:2009) has been prepared by Technical Committee CEN/TC 162
“Protective clothing including hand and arm protection and lifejackets”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by November 2009, and conflicting national standards shall be withdrawn
at the latest by November 2009.
This document includes Amendment 1, approved by CEN on 2009-04-05.
This document supersedes !EN 14605:2005".
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive 89/686/EEC.
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
This document includes a Bibliography.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and United Kingdom.
3

---------------------- Page: 5 ----------------------
SIST EN 14605:2005+A1:2009
Posebna objava SIST z dovoljenjem CEN, CENELEC, ISO in IEC: Za potrebe zagotavljanja brezplačnega dostopa do vsebin standardov v času epidemije COVID-19.
Samo za branje. Kopiranje in posredovanje prepovedano. © SIST 2020-04-10
EN 14605:2005+A1:2009 (E)
1 Scope
This document specifies the minimum requirements for the following types of limited use and reusable
chemical protective clothing:
 Full-body protective clothing with liquid-tight connections between different parts of the clothing (Type 3:
liquid-tight clothing) and, if applicable, with liquid-tight connections to component parts, such as hoods,
gloves, boots, visors or respiratory protective equipment, which may be specified in other European
Standards.
Examples of such clothing are one-piece coveralls or two-piece suits, with or without hood or visors, with
or without boot-socks or over-boots, with or without gloves;
 Full-body protective clothing with spray-tight connections between different parts of the clothing (Type 4:
spray-tight clothing) and, if applicable, spray-tight connections to component parts, such as hoods, gloves,
boots, visors or respiratory protective equipment, which may be specified in other European Standards.
Examples of such clothing are one-piece coveralls or two-piece suits, with or without hood or visors, with
or without boot-socks or over-boots, with or without gloves;
 Partial body protection garments offering protection to specific parts of the body against permeation of
chemical liquids.
Examples of such garments are e.g. laboratory coats, jackets, trousers, aprons, sleeves, hoods (not air-
supplied) etc. As partial body protection leaves some parts of the body unprotected this document
specifies only the performance requirements for the clothing material and the seams.
NOTE Partial body chemical protective garments which offer only protection against penetration of chemical liquids
are within the scope of EN 13034 (Type PB [6] clothing).
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 340:2003, Protective clothing — General requirements
!deleted text"
EN 12941:1998, Respiratory protective devices - Powered filtering devices incorporating a helmet or a hood -
Requirements, testing, marking
!EN 14325:2004", Protective clothing against chemicals — Test methods and performance classification
of chemical protective clothing materials, seams, joins and assemblages
!deleted text"
EN 31092, Textiles — Determination of physiological properties — Measurement of thermal and water-vapour
resistance under steady-state conditions (sweating guarded - hotplate test) (ISO 11092:1993)
!EN ISO 3758, Textiles – Care labelling code using symbols (ISO 3758:2005)"
CEN ISO/TR 11610:2004, Protective clothing - Vocabulary (ISO/TR 11610:2004)
!EN ISO 17491-3, Protective clothing – Test methods for clothing providing protection against chemicals –
Part 3: Determination of resistance to penetration by a jet of liquid (jet test) (ISO 17491-3:2008)"
!EN ISO 17491-4, Protective clothing – Test methods for clothing providing protection against chemicals –
Part 4: Determination of resistance to penetration by a spray of liquid (spray test) (ISO 17491-4:2008)"
4

---------------------- Page: 6 ----------------------
SIST EN 14605:2005+A1:2009
Posebna objava SIST z dovoljenjem CEN, CENELEC, ISO in IEC: Za potrebe zagotavljanja brezplačnega dostopa do vsebin standardov v času epidemije COVID-19.
Samo za branje. Kopiranje in posredovanje prepovedano. © SIST 2020-04-10
EN 14605:2005+A1:2009 (E)
ISO 7000, Graphical symbols for use on equipment — Index and synopsis
3 Terms and definitions
For the purposes of this document, the terms and definitions given in CEN ISO/TR 11610:2004 apply.
4 Requirements
4.1 Materials
Chemical protective clothing materials shall be tested according to the requirements of Table 1 and in
accordance with the test methods specified in EN 14325. A performance level of at least 1 shall be obtained
for all requirements.
Chemical protective clothing materials shall not be known to cause skin irritation or have any adverse effect to
health (see also EN 340:2003, 4.2).
Prior to testing, all chemical protective clothing materials shall be cleaned, if the manufacturer's instructions
indicate that cleaning is allowed. Manufacturer’s instructions with regard to number of cleaning cycles,
cleaning procedures and possible reapplication of treatments shall be observed. If no maximum number of
cleaning cycles is indicated, materials shall undergo five cycles.
All test specimens shall be conditioned at (20 ± 2) °C and (65 ± 5) % relative humidity for at least 24 h and
testing shall start within 5 min after removing the specimen from the conditioning atmosphere.
Table 1 — Test requirements for Type 3, Type 4, Type PB [3] and Type PB [4] clothing
Clause in Performance requirement
!!!!EN 14325:2004""""
4.4 abrasion resistance
4.5 flex cracking resistance
a
4.6 flex cracking resistance at –30 °C
4.7 tear resistance (trapezoidal)
4.9 tensile strength
4.10 puncture resistance
4.11 resistance to permeation of liquids
!deleted text"
a
Only applicable to clothing intended for use at very low
temperatures.


NOTE 1 Chemical protective clothing material, for which a test method in Table 1 does not provide a clear
measurement end-point, should be marked "not applicable" in the test report and in the instructions for use. The reason
why the test could not be completed should be indicated, e.g. where the elasticity of the specimen prevents to determine
an end-point in the puncture resistance test.
NOTE 2 Materials should be as light and as flexible as possible in order to ensure wearer comfort as well as providing
effective protection. Material properties are only one element for the determination of wearer comfort of protective clothing.
Design features of the clothing may even have a more important influence on wearer comfort than material properties.
5

---------------------- Page: 7 ----------------------
SIST EN 14605:2005+A1:2009
Posebna objava SIST z dovoljenjem CEN, CENELEC, ISO in IEC: Za potrebe zagotavljanja brezplačnega dostopa do vsebin standardov v času epidemije COVID-19.
Samo za branje. Kopiranje in posredovanje prepovedano. © SIST 2020-04-10
EN 14605:2005+A1:2009 (E)
!NOTE 3 If resistance to heat and flame is required, the chemical protective clothing should be tested and marked
according to the appropriate standard."
4.2 Seams, joins and assemblages
Seams, joins and assemblages shall be tested and classified according to the requirements of Table 2 and the
corresponding clauses of EN 14325.
a
Table 2 — Requirements for seams, joins and assemblages of Type 3, Type 4, Type PB [3] and
Type PB [4] clothing
Performance requirement Reference
b
resistance to permeation of liquids !EN 14325:2004", 4.11
c
resistance to penetration by liquids !EN ISO 17491-3" or
!EN ISO 17491-4"
seam strengt
...
