General Information

• Status: Published
• Public Enquiry End Date: 30-May-2024
• Publication Date: 13-May-2025
• ICS: 33.040.20 - Transmission systems
• ICS: 33.120.30 - RF connectors
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-May-2025
• Due Date: 12-Jul-2025
• Completion Date: 14-May-2025
• Ref Project: EN IEC 62037-3:2025 - Passive RF and microwave devices, intermodulation level measurement - Part 3: Measurement of passive intermodulation in coaxial connectors

Relations

• Replaces: SIST EN IEC 62037-3:2022 - Passive RF and microwave devices, intermodulation level measurement - Part 3: Measurement of passive intermodulation in coaxial connectors (IEC 62037-3:2021)
• Effective Date: 01-Jul-2025

Overview

EN IEC 62037-3:2025 (adopted by CLC/CENELEC) is the international/European standard that defines impact tests and measurement methods for passive intermodulation (PIM) in coaxial connectors. Part 3 of the IEC 62037 series focuses on evaluating connector robustness against weak connections and foreign particles by applying mechanical impacts while measuring PIM, independently of cable effects where possible. This third edition (2025) updates and replaces the 2021 edition with several technical revisions.

Key topics and technical requirements

• Test scope: Impact testing on coaxial connectors to assess PIM performance under mechanical stress; applicable to other connector forms (e.g., panel-mounted) using suitable transmission lines (airline, stripline).
• Test set-ups:
  • Set-up 1 (multi-port DUT): Short assembly with identical connectors at each end to minimize transmission-line effects.
  • Set-up 2 (one-port DUT): Single connector on a transmission line that provides at least 10 dB attenuation in one direction at the lowest receive-band frequency.
• Reverse (reflected) vs forward (transmitted) testing: Guidance on achieving maximum PIM in reverse mode, including frequency sweeping or length-variation techniques (measure three assemblies with lengths of λ/6 and λ/3 offsets to identify the assembly producing maximum in‑band PIM).
• Impact procedure: A series of controlled impacts are applied while monitoring PIM to evaluate connector sensitivity to weak connections and particles.
• Reporting: Test reports must include the maximum PIM value measured.
• Annexes:
  • Annex A - calculating equivalent impact energy.
  • Annex B - impact energy calculations for different connector shapes (including non-round shapes) and tables for common connector impact data.

Practical applications and who uses it

• Connector manufacturers: Design validation, quality control, and robustness testing for coaxial connectors and multi-channel connector designs.
• RF/microwave test laboratories: Standardized procedures for PIM measurement under mechanical stress.
• Telecom operators and infrastructure vendors: Acceptance testing of connectors used in base stations, antenna systems, and passive network elements to reduce PIM-related interference.
• Compliance and certification bodies: Consistent criteria for reporting and demonstrating connector PIM performance.
• Product engineers: Risk assessment for field reliability where weak mechanical contacts or contamination may increase PIM.

Related standards

• IEC/EN 62037-1:2021 - General requirements and measuring methods for passive intermodulation.
• IEC 62037-4 - Measurement of passive intermodulation in coaxial cables.

Keywords: passive RF, microwave devices, passive intermodulation, PIM measurement, coaxial connectors, IEC 62037-3, EN IEC 62037-3:2025, impact test, reverse/reflected PIM, connector robustness.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2025
Nadomešča:
SIST EN IEC 62037-3:2022
Pasivne radiofrekvenčne (RF) in mikrovalovne naprave, meritve
intermodulacijskega nivoja - 3. del: Meritve pasivne intermodulacije v koaksialnih
konektorjih (IEC 62037-3:2025)
Passive RF and microwave devices, intermodulation level measurement - Part 3:
Measurement of passive intermodulation in coaxial connectors (IEC 62037-3:2025)
Passive HF- und Mikrowellenbauteile, Messung des Intermodulationspegels - Teil 3:
Messung der passiven Intermodulation in koaxialen Steckverbindern (IEC 62037-3:2025)
Dispositifs RF et à micro-ondes passifs, mesure du niveau d'intermodulation - Partie 3:
Mesure de l'intermodulation passive dans les connecteurs coaxiaux (IEC 62037-3:2025)
Ta slovenski standard je istoveten z: EN IEC 62037-3:2025
ICS:
33.040.20 Prenosni sistem Transmission systems
33.120.30 Radiofrekvenčni konektorji RF connectors
(RF)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62037-3

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2025
ICS 33.040.20 Supersedes EN IEC 62037-3:2021
English Version
Passive RF and microwave devices, intermodulation level
measurement - Part 3: Measurement of passive intermodulation
in coaxial connectors
(IEC 62037-3:2025)
Dispositifs RF et à micro-ondes passifs, mesure du niveau Passive HF- und Mikrowellenbauteile, Messung des
d'intermodulation - Partie 3: Mesure de l'intermodulation Intermodulationspegels - Teil 3: Messung der passiven
passive dans les connecteurs coaxiaux Intermodulation in koaxialen Steckverbindern
(IEC 62037-3:2025) (IEC 62037-3:2025)
This European Standard was approved by CENELEC on 2025-04-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62037-3:2025 E

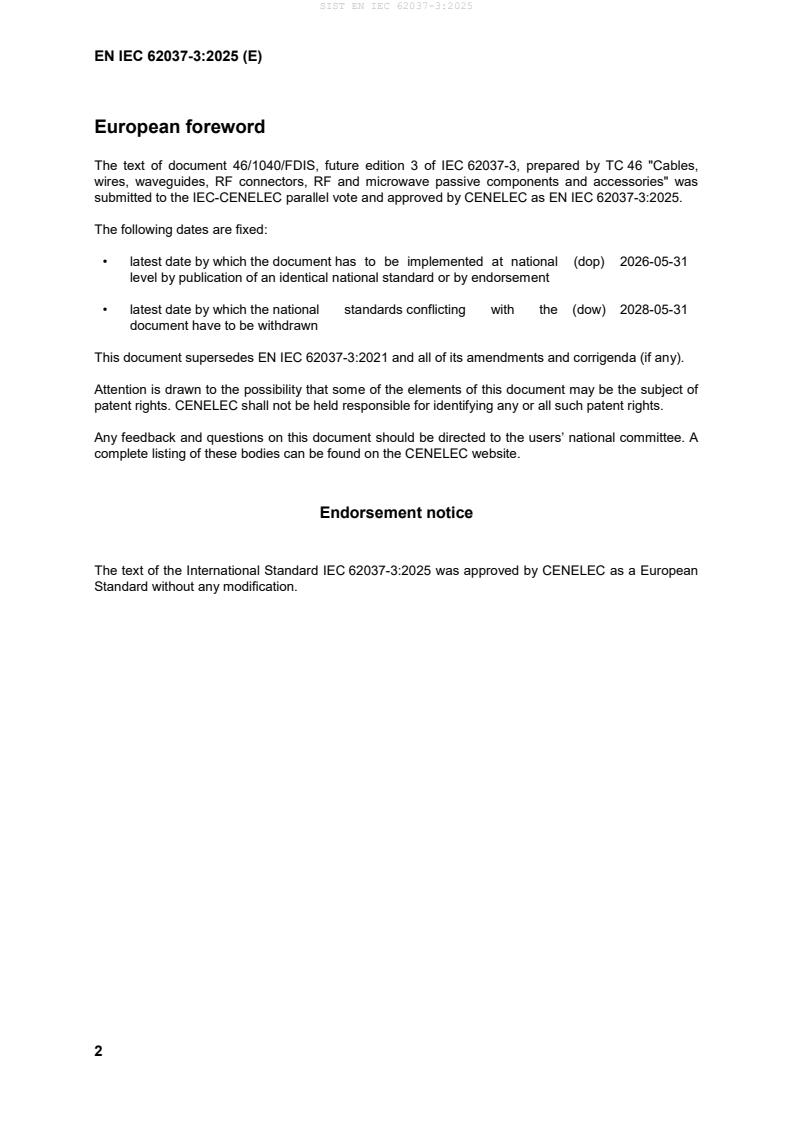

European foreword
The text of document 46/1040/FDIS, future edition 3 of IEC 62037-3, prepared by TC 46 "Cables,
wires, waveguides, RF connectors, RF and microwave passive components and accessories" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 62037-3:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-05-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-05-31
document have to be withdrawn
This document supersedes EN IEC 62037-3:2021 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62037-3:2025 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 62037-1 2021 Passive RF and microwave devices, EN IEC 62037-1 2021
intermodulation level measurement - Part
1: General requirements and measuring
methods
IEC 62037-4 - Passive RF and microwave devices, EN 62037-4 -
intermodulation level measurement - Part
4: Measurement of passive intermodulation
in coaxial cables
IEC 62037-3 ®
Edition 3.0 2025-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Passive RF and microwave devices, intermodulation level measurement –

Part 3: Measurement of passive intermodulation in coaxial connectors

Dispositifs RF et à micro-ondes passifs, mesure du niveau d'intermodulation –

Partie 3: Mesure de l'intermodulation passive dans les connecteurs coaxiaux

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.040.20  ISBN 978-2-8327-0312-0

– 2 – IEC 62037-3:2025 © IEC 2025
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviated terms . 5
3.1 Terms and definitions . 5
3.2 Abbreviated terms . 5
4 Test method . 6
4.1 Samples for testing . 6
4.2 Connection of unit . 6
4.3 Set-up 1 – reverse (reflected) mode test considerations . 6
4.4 Set-up 2 – forward (transmitted) mode test considerations . 6
4.5 Impacts . 7
5 Report . 8
Annex A (normative) Calculating equivalent impact energy . 9
Annex B (normative) Calculating impact energy for different connector types . 10

Figure 1 – Impact test illustration . 7

Table 1 – Impact information for some popular connectors. 7
Table A.1 – Estimated mass of various diameter steel balls . 9
Table B.1 – Impact energy calculation for RF connector type . 10

IEC 62037-3:2025 © IEC 2025 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PASSIVE RF AND MICROWAVE DEVICES,
INTERMODULATION LEVEL MEASUREMENT –

Part 3: Measurement of passive intermodulation in coaxial connectors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
