SIST EN 62841-2-17:2018

Electric Motor-Operated Hand-Held Tools, Transportable Tools and Lawn and Garden Machinery - Safety - Part 2-17: Particular requirements for hand-held routers (IEC 62841-2-17:2017)

SIST EN 62841-2-17 applies to hand-held routers intended for cutting slots into or shaping the edge of wood and analogous materials, plastics and non-ferrous metals except magnesium.

Elektrische motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und Rasen- und Gartenmaschinen - Sicherheit - Teil 2-17: Besondere Anforderungen für handgeführte Oberfräsen

Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses - Sécurité - Partie 2-17: Exigences particulières pour les défonceuses portatives

62841-2-17:2017 s'applique aux défonceuses destinées à réaliser un rainurage ou un moulurage des bords de différents matériaux. La tension assignée est inférieure à 3 700 W. Les limites d'application de la présente Norme aux outils fonctionnant sur batterie sont indiquées en K.1 et L.1. La présente Norme traite des dangers présentés par les outils, encourus par tous les individus dans l'utilisation normale et dans l'utilisation impropre raisonnablement prévisible de ces outils. Les outils électroportatifs, qui peuvent être montés sur un support de travail pour être utilisés comme outils installés à poste fixe sans aucune modification de l'outil lui-même, sont compris dans le domaine d'application de la présente Norme et la combinaison d'un outil portatif et d'un support est considérée comme un outil portable, donc couvert par la Partie 3 applicable.
La présente partie de l'IEC 62841 ne s'applique pas aux mortaiseuses.
Les défonceuses utilisées principalement pour l'affleurage des bords des matériaux sont également appelées affleureuses.
Les défonceuses utilisées pour couper différents matériaux par rotation sont également appelées fraises rotatives.
La présente partie 2-17 doit être utilisée conjointement avec la première édition de l'IEC 62841-1 (2014).
L'attention des Comités Nationaux est attirée sur le fait que les fabricants d'appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire après la publication d'une nouvelle publication IEC, ou d'une publication amendée ou révisée, pour fabriquer des produits conformes aux nouvelles exigences et pour adapter leurs équipements aux nouveaux essais ou aux essais révisés.
Le comité recommande que le contenu de cette publication soit entériné au niveau national au plus tôt 36 mois après la date de publication.
Mots clés: défonceuse, affleureuse, outil portable, sécurité

Elektromotorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 2-17. del: Posebne zahteve za ročne skobeljnike (IEC 62841-2-17:2017)

Ta standard se uporablja za ročne skobeljnike, ki so namenjeni vrezovanju utorov ali oblikovanju robov lesa in podobnih materialov, plastike ter barvnih kovin, razen magnezija.

General Information

• Status: Published
• Publication Date: 03-Jan-2018
• ICS: 25.080.20 - Boring and milling machines
• ICS: 25.140.20 - Electric tools
• Technical Committee: VGA - Safety of household and similar electrical appliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 20-Dec-2017
• Due Date: 24-Feb-2018
• Completion Date: 04-Jan-2018
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: EN 62841-2-17:2017 - Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-17: Particular requirements for hand-held routers

Relations

• Replaces: SIST EN 60745-2-17:2010 - Hand-held motor-operated electric tools - Safety - Part 2-17: Particular requirements for routers and trimmers (IEC 60745-2-17:2010, modified)
• Effective Date: 19-Dec-2017

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 62841-2-17:2018
01-februar-2018
1DGRPHãþD
SIST EN 60745-2-17:2010
(OHNWURPRWRUQDURþQDRURGMDSUHQRVQDRURGMDWHUVWURML]DWUDWRLQYUW9DUQRVW
GHO3RVHEQH]DKWHYH]DURþQHVNREHOMQLNH,(&
Electric Motor-Operated Hand-Held Tools, Transportable Tools and Lawn and Garden
Machinery - Safety - Part 2-17: Particular requirements for hand-held routers (IEC 62841
-2-17:2017)
Ta slovenski standard je istoveten z: EN 62841-2-17:2017
ICS:
25.080.20 Frezalniki Boring and milling machines
25.140.20 (OHNWULþQDRURGMD Electric tools
SIST EN 62841-2-17:2018 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 62841-2-17:2018

---------------------- Page: 2 ----------------------

SIST EN 62841-2-17:2018


EUROPEAN STANDARD EN 62841-2-17

NORME EUROPÉENNE

EUROPÄISCHE NORM
December 2017
ICS 25.140.20 Supersedes EN 60745-2-17:2010
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 2-17: Particular
requirements for hand-held routers
(IEC 62841-2-17:2017 , modified)
Outils électroportatifs à moteur, outils portables et machines Elektrische motorbetriebene handgeführte Werkzeuge,
pour jardins et pelouses - Sécurité - Partie 2-17: Exigences transportable Werkzeuge und Rasen- und
particulières pour les défonceuses portatives Gartenmaschinen - Sicherheit - Teil 2-17: Besondere
(IEC 62841-2-17:2017 , modifiée) Anforderungen für handgeführte Oberfräsen
(IEC 62841-2-17:2017 , modifiziert)
This European Standard was approved by CENELEC on 2017-08-28. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 62841-2-17:2017 E

---------------------- Page: 3 ----------------------

SIST EN 62841-2-17:2018
EN 62841-2-17:2017 (E)

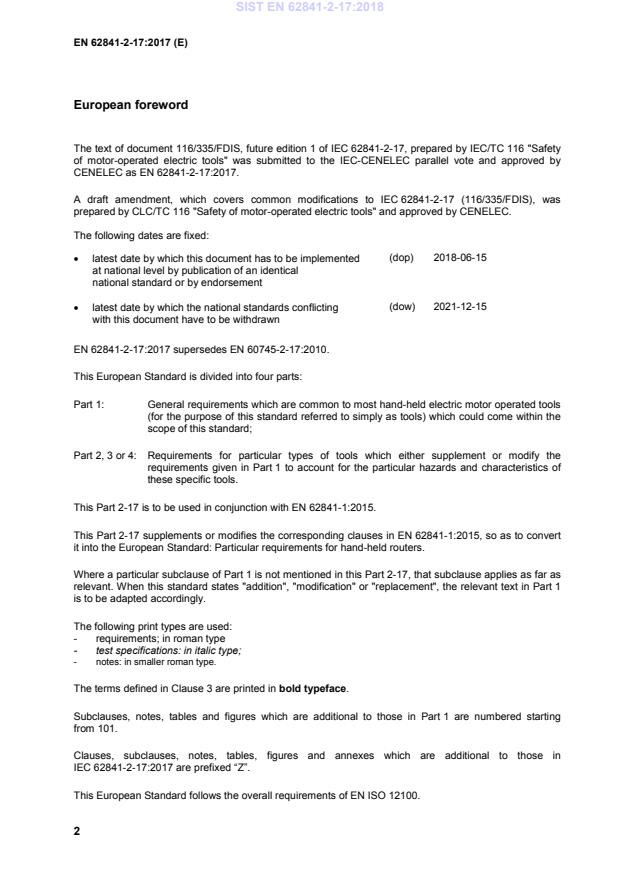

European foreword
The text of document 116/335/FDIS, future edition 1 of IEC 62841-2-17, prepared by IEC/TC 116 "Safety
of motor-operated electric tools" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 62841-2-17:2017.
A draft amendment, which covers common modifications to IEC 62841-2-17 (116/335/FDIS), was
prepared by CLC/TC 116 "Safety of motor-operated electric tools" and approved by CENELEC.
The following dates are fixed:
(dop) 2018-06-15
• latest date by which this document has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dow) 2021-12-15
• latest date by which the national standards conflicting
with this document have to be withdrawn
EN 62841-2-17:2017 supersedes EN 60745-2-17:2010.
This European Standard is divided into four parts:
Part 1: General requirements which are common to most hand-held electric motor operated tools
(for the purpose of this standard referred to simply as tools) which could come within the
scope of this standard;
Part 2, 3 or 4: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics of
these specific tools.
This Part 2-17 is to be used in conjunction with EN 62841-1:2015.
This Part 2-17 supplements or modifies the corresponding clauses in EN 62841-1:2015, so as to convert
it into the European Standard: Particular requirements for hand-held routers.
Where a particular subclause of Part 1 is not mentioned in this Part 2-17, that subclause applies as far as
relevant. When this standard states "addition", "modification" or "replacement", the relevant text in Part 1
is to be adapted accordingly.
The following print types are used:
- requirements; in roman type
- test specifications: in italic type;
- notes: in smaller roman type.
The terms defined in Clause 3 are printed in bold typeface.
Subclauses, notes, tables and figures which are additional to those in Part 1 are numbered starting
from 101.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 62841-2-17:2017 are prefixed “Z”.
This European Standard follows the overall requirements of EN ISO 12100.
2

---------------------- Page: 4 ----------------------

SIST EN 62841-2-17:2018
EN 62841-2-17:2017 (E)

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association and supports essential requirements of EU Directive.
For the relationship with EU Directive, see informative Annex ZZ, which is an integral part of this
document.
Compliance with the clauses of Part 1 together with this Part 2-17 provides one means of conforming with
the essential health and safety requirements of the Directive concerned.
3

---------------------- Page: 5 ----------------------

SIST EN 62841-2-17:2018
EN 62841-2-17:2017 (E)
Endorsement notice
The text of the International Standard IEC 62841-2-17:2017 was approved by CENELEC as a European
Standard with agreed common modifications.

COMMON MODIFICATIONS
18 Abnormal operation
Replace the existing subclause 18.8 with the following:
18.8 Replacement of Table 4:
Table 4 – Required performance levels
Type and purpose of SCF Minimum Performance
Level (PL)
Power switch - prevent unwanted switch-on for type 1 routers
b
Power switch - prevent unwanted switch-on for type 2 routers c
Power switch - provide desired switch-off b
Any electronic control to pass the test of 18.3 a
Overspeed prevention to prevent output speed above 130 % of rated no- b
load speed
Provide desired direction of rotation a
Prevent exceeding thermal limits as in Clause 18 a
Prevent self-resetting as required in 23.3 for type 1 routers a
Prevent self-resetting as required in 23.3 for type 2 routers b
Prevent unwanted lock-on of the power switch function b
Lock-off function as required by 21.18.1.2 for type 1 routers a
Lock-off function as required by 21.18.1.2 for type 2 routers
b
Restart prevention as required by 21.18.1.1 b

21 Construction
Replace the existing Subclause 21.18.1.1 with the following:
21.18.1.1 Addition:
For routers, either
– the power switch shall be a momentary power switch without having a locking arrangement in the
“on” position;
or
4

---------------------- Page: 6 ----------------------

SIST EN 62841-2-17:2018
EN 62841-2-17:2017 (E)

– the tool shall not restart after an interruption of the mains supply without releasing and re-actuating
the power switch.
Replace the title of Annex I by the following:
Annex I
(normative)

Measurement of noise and vibration emissions

and delete the note.
Annex K
(normative)

Battery tools and battery packs

Add the following new subclause:
K.21.18.Z101 Isolation and disabling device
Tools with an integral battery shall either be equipped
– with an isolation device to prevent the risk of injury from mechanical hazards during servicing or user
maintenance; or
– with a disabling device that prevents unintentional starting of the tool.
An isolation device shall
– provide disconnection of all poles of the battery from the serviceable region of the tool;
– be equipped with an unambiguous indication of the state of the disconnection device which
corresponds to each position of its manual control (actuator);
– be provided with protection against accidental reconnection.
NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries that can be
disconnected for servicing or user maintenance, or an electromechanical power switch with a direct mechanical link between the
actuator and the contact.
NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.1.2. The other
examples in NOTE 1 achieve this by the necessary actions for reconnection.
A disabling device may be achieved by any of the following:
– a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are
necessary before the motor is switched on (e.g. a power switch which has to be pushed in before it
can be moved laterally to close the contacts to start the motor). It shall not be possible to achieve
these two actions with a single grasping motion or a straight-line motion;
– a removable disabling device provided with the tool where it shall not be possible for the tool to be
operated when either applied or removed.
Compliance is checked by inspection and by manual test.

5

---------------------- Page: 7 ----------------------

SIST EN 62841-2-17:2018
EN 62841-2-17:2017 (E)
Annex L
(normative)

Battery tools and battery packs provided with mains connection or non-
isolated sources

Add the following new subclause:
L.21.18.Z101 Isolation and disabling device
Tools with an integral battery shall either be equipped
– with an isolation device to prevent the risk of injury from mechanical hazards during servicing or user
maintenance; or
– with a disabling device that prevents unintentional starting of the tool.
An isolation device shall
– provide disconnection of all poles of the battery from the serviceable region of the tool;
– be equipped with an unambiguous indication of the state of the disconnection device which
corresponds to each position of its manual control (actuator);
– be provided with protection against accidental reconnection.
NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries that can be
disconnected for servicing or user maintenance, or an electromechanical power switch with a direct mechanical link between the
actuator and the contact.
NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.1.2. The other
examples in NOTE 1 achieve this by the necessary actions for reconnection.
A disabling device may be achieved by any of the following:
– a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are
necessary before the motor is switched on (e.g. a power switch which has to be pushed in before it
can be moved laterally to close the contacts to start the motor). It shall not be possible to achieve
these two actions with a single grasping motion or a straight-line motion;
– a removable disabling device provided with the tool where it shall not be possible for the tool to be
operated when either applied or removed.
Compliance is checked by inspection and by manual test.

6

---------------------- Page: 8 ----------------------

SIST EN 62841-2-17:2018
EN 62841-2-17:2017 (E)

Add the following annex:
Annex ZZ
(informative)

Relationship between this European Standard and the essential requirements of
Directive 2006/42/EC [2006 OJ L157] aimed to be covered
This European Standard has been prepared under a Commission’s standardisation request M/396 to
provide one voluntary means of conforming to essential requirements of Directive 2006/42/EC of the
European Parliament and of the Council of 17 May 2006 on machinery, and amending
Directive 95/16/EC.
Once this standard is cited in the Official Journal of the European Union under that Directive, compliance
with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of the scope of
this standard, a presumption of conformity with the corresponding essential requirements of that
Directive, and associated EFTA regulations.
Table ZZ.1 – Correspondence between this European Standard
and Annex I of Directive 2006/42/EC
Essential Requirements of Clause(s) / sub-clause(s)
Remarks / Notes
Directive 2006/42/EC of this EN
Annex I All clauses All corresponding requirements
are covered by complying with all
clauses.
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of this
standard.
7

---------------------- Page: 9 ----------------------

SIST EN 62841-2-17:2018

---------------------- Page: 10 ----------------------

SIST EN 62841-2-17:2018



IEC 62841-2-17

®


Edition 1.0 2017-08




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE











Electric motor-operated hand-held tools, transportable tools and lawn and

garden machinery – safety –

Part 2-17: Particular requirements for hand-held routers




Outils électroportatifs à moteur, outils portables et machines pour jardins et

pelouses – sécurité –


Partie 2-17: Exigences particulières pour les défonceuses portatives













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 25.140.20 ISBN 9978-2-8322-4704-4



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 11 ----------------------

SIST EN 62841-2-17:2018
– 2 – IEC 62841-2-17:2017 © IEC 2017
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 7
5 General conditions for the tests . 7
6 Radiation, toxicity and similar hazards . 7
7 Classification . 7
8 Marking and instructions . 7
9 Protection against access to live parts . 8
10 Starting . 8
11 Input and current . 8
12 Heating . 8
13 Resistance to heat and fire . 8
14 Moisture resistance . 8
15 Resistance to rusting . 8
16 Overload protection of transformers and associated circuits . 9
17 Endurance . 9
18 Abnormal operation . 9
19 Mechanical hazards . 9
20 Mechanical strength . 11
21 Construction . 11
22 Internal wiring . 12
23 Components . 12
24 Supply connection and external flexible cords . 12
25 Terminals for external conductors . 12
26 Provision for earthing . 12
27 Screws and connections . 12
28 Creepage distances, clearances and distances through insulation . 12
Annexes . 16
Annex I (informative) Measurement of noise and vibration emissions . 16
Annex K (normative) Battery tools and battery packs . 19
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources . 20
Bibliography . 21

Figure 101 – Measurement of distance between handle and rotary cutting bit . 13
Figure 102 – Various designs with barrier . 14
Figure 103 – Design with minimum distance from grasping surface . 15
Figure I.101 – Positions of transducers for type 2 routers . 17
Figure I.102 – Positions of transducers for type 1 routers . 18

---------------------- Page: 12 ----------------------

SIST EN 62841-2-17:2018
IEC 62841-2-17:2017 © IEC 2017 – 3 –
Table 4 – Required performance levels . 9
Table I.101 – Test conditions for type 2 routers . 16

---------------------- Page: 13 ----------------------

SIST EN 62841-2-17:2018
– 4 – IEC 62841-2-17:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY – SAFETY –

Part 2-17: Particular requirements for hand-held routers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62841-2-17 has been prepared by IEC technical committee 116:
Safety of motor-operated electric tools.
The text of this standard is based on the following documents:
FDIS Report on voting
116/335/FDIS 116/342/RVD

Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-17 is to be used in conjunction with the first edition of IEC 62841-1 (2014).

---------------------- Page: 14 ----------------------

SIST EN 62841-2-17:2018
IEC 62841-2-17:2017 © IEC 2017 – 5 –
This Part 2-17 supplements or modifies the corresponding clauses in IEC 62841-1, so as to
convert it into the IEC standard: Particular requirements for hand-held routers.
Where a particular subclause of Part 1 is not mentioned in this Part 2-17, that subclause
applies as far as relevant. Where this standard states “addition”, “modification” or
“replacement”, the relevant text in Part 1 is to be adapted accordingly.
The following print types are used:
• requirements: in roman type;
• test specifications: in italic type;
• notes: in small roman type.
The terms defined in Clause 3 are printed in bold typeface.
Subclauses, notes and figures which are additional to those in Part 1 are numbered starting
from 101.
A list of all parts of the IEC 62841 series, under the general title: Electric motor-operated
hand-held tools, transportable tools and lawn and garden machinery – Safety, can be found
on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

The National Committees are requested to note that for this document the stability date
is 2019.
THIS TEXT IS INCLUDED FOR THE INFORMATION OF THE NATIONAL COMMITTEES AND WILL BE
DELETED AT THE PUBLICATION STAGE.

NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 36 months from the date of publication.

---------------------- Page: 15 ----------------------

SIST EN 62841-2-17:2018
– 6 – IEC 62841-2-17:2017 © IEC 2017
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY – SAFETY –

Part 2-17: Particular requirements for hand-held routers



1 Scope
This clause of Part 1 is applicable, except as follows:
Addition:
This part of IEC 62841 applies to hand-held routers intended for cutting slots into or shaping
the edge of wood and analogous materials, plastics and non-ferrous metals except
magnesium.
NOTE 101 Routers that are primarily used for trimming the edge of materials are also known as trimmers.
NOTE 102 Routers that are used to cut various materials through the rotary action are also known as rotary
cutters.
This part of IEC 62841 does not apply to jointers.
NOTE 103 Jointers are covered by IEC 62841-2-19.
This part of IEC 62841 does not apply to small rotary tools.
NOTE 104 Small rotary tools are covered by IEC 62841-2-23.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
Additional definitions:
3.101
base
part supporting the router on the workpiece
3.102
rotary cutting bit
rotating cutting accessory with a shank for mounting it into a collet having its main feed
direction perpendicular to its axis of rotation
Note 1 to entry: There are rotary cutting bits that allow an additional plunging operation parallel to its axis of
rotation.
3.103
router
tool with a base and a collet, designed to be fitted with a rotary cutting bit

---------------------- Page: 16 ----------------------

SIST EN 62841-2-17:2018
IEC 62841-2-17:2017 © IEC 2017 – 7 –
3.104
trimmer
type 1 router designed to be fitted with a rotary cutter and a base that allows for control of
trimming the edge of laminate sheet or similar materials
3.105
type 1 router
router that has the following criteria:
a) a mass, excluding a detachable base, a separable battery pack or a detachable battery
pack, not exceeding 2 kg; and
b) a collet capacity not exceeding 8 mm
3.106
type 2 router
router that has the following criteria:
a) a mass, excluding a detachable base, a separable battery pack or a detachable battery
pack, exceeding 2 kg; or
b) a collet capacity exceeding 8 mm
4 General requirements
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable, except as follows:
5.17 Addition:
The mass of the tool includes all handles and the dust extraction adapter, if any.
6 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.
7 Classification
This clause of Part 1 is applicable.
8 Marking and instructions
This clause of Part 1 is applicable, except as follows:
8.1 Addition:
– rated no-load speed.
8.14.1 Addition:
The additional safety instructions as specified in 8.14.1.101 shall be given. This part may be
printed separately from the “General Power Tool Safety Warnings”.

---------------------- Page: 17 ---
...
