SIST EN 60317-15:2005/A1:2010

Specifications for particular types of winding wires - Part 15: Polyesterimide enamelled round aluminium wire, class 180 (IEC 60317-15:2004/A1:2010)

Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 15: Runddrähte aus Aluminium, lackisoliert mit Polyesterimid, Klasse 180 (IEC 60317-15:2004/A1:2010)

Spécifications pour types particuliers de fils de bobinage - Partie 15: Fil de section circulaire en aluminium émaillé avec polyesterimide, classe 180 (CEI 60317-15:2004/A1:2010)

Specifikacije za posebne tipe navitij - 15. del: S poliesterimidom emajliran aluminijev okrogel vodnik, razred 180 (IEC 60317-15:2004/A1:2010)

Določa zahteve za emajliran aluminijev okrogel vodnik razreda 180 z enojnim premazom na osnovi poliesterimidne smole, ki se lahko spremeni, pod pogojem, da ohrani kemično identiteto originalne smole in izpolnjuje vse zahteve za vodnik. Razred 180 je toplotni razred, ki zahteva minimalni temperaturni indeks 180 in temperaturo toplotnega šoka vsaj 200 °C.   Temperatura v stopinjah Celzija, ki ustreza temperaturnemu indeksu, ni nujno temperatura, priporočena za obratovanje vodnika, saj je to odvisno od številnih dejavnikov, vključno z vrsto vključene opreme.  Razpon nominalnih premerov prevodnikov, ki jih zajema ta standard, je naslednji: - stopnja 1: 0,400 mm do vključno 1,600 mm; - stopnja 2: 0,400 mm do vključno 5,000 mm. Nominalne premere prevodnikov določa Klavzula 4 IEC 60317-0-3. Glavne spremembe v primerjavi s predhodno izdajo so navedene v nadaljevanju:  -  nove zahteve za videz,  Podklavzula 3.2, dodano; - preskus prožnosti, Klavzula 7, velja za neprimerno; - preskus prerezovanja, Klavzula 10, velja za neprimerno;- preskus neuspešnosti pri visoki temperaturi, Klavzula 22, izbrisano; - nov preskus poroznosti, Klavzula 23, dodano.

General Information

• Status: Published
• Publication Date: 18-Jul-2010
• ICS: 29.060.10 - Wires
• ICS: 77.150.10 - Aluminium products
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-Jul-2010
• Due Date: 11-Sep-2010
• Completion Date: 19-Jul-2010
• Ref Project: EN 60317-15:2004/A1:2010 - Specifications for particular types of winding wires - Part 15: Polyesterimide enamelled round aluminium wire, class 180

Relations

• Amends: SIST EN 60317-15:2005 - Specifications for particular types of winding wires -- Part 15: Polyesterimide enamelled round aluminium wire, class 180
• Effective Date: 01-Sep-2010

Overview

SIST EN 60317-15:2005/A1:2010 is a European standard issued by CLC that specifies the technical requirements for polyesterimide enamelled round aluminium winding wires, classified as class 180. This standard aligns with the international IEC 60317-15:2004/A1:2010, ensuring harmonized specifications across European and international markets. The document includes detailed criteria for materials, dimensions, electrical properties, and testing methods to govern the quality and performance of polyesterimide enamelled aluminium wires used in electrical winding applications.

Key Topics

• Material Specification
  The standard defines the use of aluminium as the base conductor material coated with a polyesterimide enamel insulation. This ensures a robust balance of electrical conductivity and mechanical strength with high thermal endurance rated at class 180.

• Winding Wire Characteristics
  The wire is specified to have a round cross-section, making it suitable for various winding configurations in electrical machinery. The enamel coating provides excellent insulation, chemical resistance, and pulse endurance essential for optimal operation.

• Performance Requirements
  SIST EN 60317-15:2005/A1:2010 includes parameters such as electrical resistance, insulation integrity, and thermal stability tests that the polyesterimide enamelled wires must satisfy to qualify under class 180.

• Testing Protocols
  The standard references test methods consistent with IEC 60851-4 for chemical properties and resistance tests, including resistance to transformer oil. Updates introduced by the amendment reflect ongoing refinements to testing requirements to enhance reliability assurance.

• Normative References
  The related references include IEC 60317-0-3:2008 for general requirements of enamelled round aluminium wire and IEC 60851-4:1996 for chemical property testing. These documents provide foundational guidelines complementing this specific polyesterimide wire standard.

Practical Applications

• Electric Motors and Generators
  The polyesterimide enamelled aluminium wire is extensively used for winding coils in motors and generators requiring high thermal resistance and reliable insulation to maintain performance in heavy-duty and continuous operation environments.

• Transformers and Inductors
  This winding wire is ideal for transformers and inductors where class 180 temperature ratings are necessary to prolong equipment lifespan and avoid insulation degradation at elevated operating temperatures.

• Automotive and Aerospace Electrical Equipment
  Given its high-class rating and mechanical durability, these wires are suitable for demanding automotive and aerospace applications involving electromagnetic devices exposed to thermal and chemical stress.

• Industrial Electrical Components
  Polyesterimide enamelled aluminium wires support various industrial electrical components such as relays, solenoids, and chokes, where insulation quality directly impacts the safety and efficiency of electromagnetic function.

Related Standards

• IEC 60317-0-3:2008 - Provides general requirements and specifications for enamelled round aluminium wires, the foundational standard for aluminium winding wire products.

• IEC 60851-4:1996 - Describes test methods for assessing chemical properties of winding wires, essential for compliance with insulation and chemical resistance criteria.

• IEC 60317 Series - A comprehensive series covering specifications for different types of winding wires tailored for particular applications and conductor materials.

• CENELEC Internal Regulations - Governs the adoption and implementation of amendments like SIST EN 60317-15:2005/A1:2010 across European member states to ensure uniformity and legal compliance.

---

Keywords: EN 60317-15, polyesterimide enamelled aluminium wire, class 180 winding wire, electrical winding wires, insulation specifications, aluminium winding wire standard, IEC 60317-15, winding wire tests, thermal class 180 wire, electrical wire standards, CENELEC winding wire standard.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2010
Specifikacije za posebne tipe navitij - 15. del: S poliesterimidom emajliran
aluminijev okrogel vodnik, razred 180 (IEC 60317-15:2004/A1:2010)
Specifications for particular types of winding wires - Part 15: Polyesterimide enamelled
round aluminium wire, class 180 (IEC 60317-15:2004/A1:2010)
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 15:
Runddrähte aus Aluminium, lackisoliert mit Polyesterimid, Klasse 180 (IEC 60317-
15:2004/A1:2010)
Spécifications pour types particuliers de fils de bobinage - Partie 15: Fil de section
circulaire en aluminium émaillé avec polyesterimide, classe 180 (CEI 60317-
15:2004/A1:2010)
Ta slovenski standard je istoveten z: EN 60317-15:2004/A1:2010
ICS:
29.060.10 Žice Wires
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60317-15/A1
NORME EUROPÉENNE
March 2010
EUROPÄISCHE NORM
ICS 29.060.10
English version
Specifications for particular types of winding wires -
Part 15: Polyesterimide enamelled round aluminium wire, class 180
(IEC 60317-15:2004/A1:2010)
Spécifications pour types particuliers  Technische Lieferbedingungen
de fils de bobinage - für bestimmte Typen von Wickeldrähten -
Partie 15: Fil de section circulaire Teil 15: Runddrähte aus Aluminium,
en aluminium émaillé lackisoliert mit Polyesterimid, Klasse 180
avec polyesterimide, classe 180 (IEC 60317-15:2004/A1:2010)
(CEI 60317-15:2004/A1:2010)
This amendment A1 modifies the European Standard EN 60317-15:2004; it was approved by CENELEC on
2010-03-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-15:2004/A1:2010 E

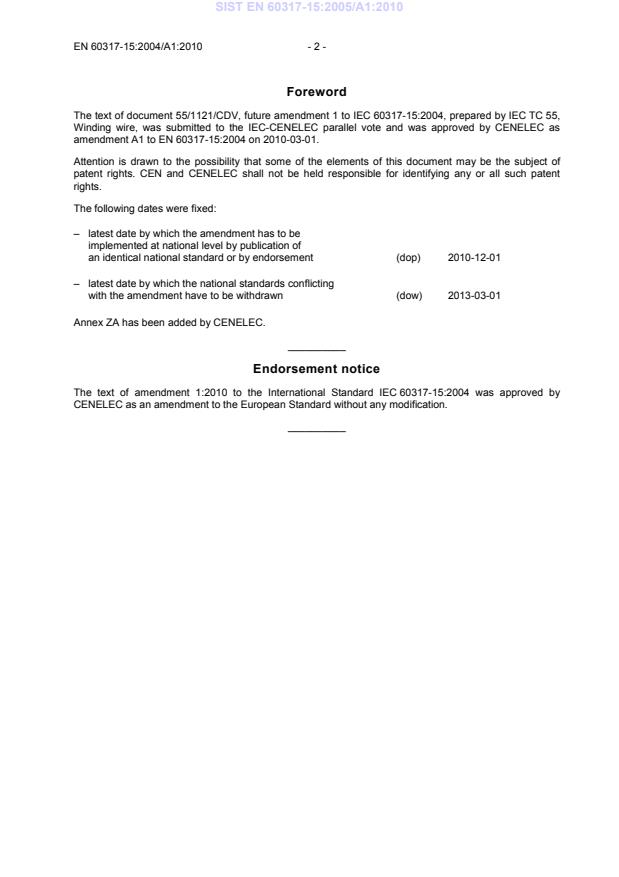

Foreword
The text of document 55/1121/CDV, future amendment 1 to IEC 60317-15:2004, prepared by IEC TC 55,
Winding wire, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
amendment A1 to EN 60317-15:2004 on 2010-03-01.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all su
...
