SIST EN 60317-15:2005
(Main)Specifications for particular types of winding wires -- Part 15: Polyesterimide enamelled round aluminium wire, class 180
- Abstract
Specifies the requirements of enamelled round aluminium winding wire of class 180 with a sole coating based on polyesterimide resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. Class 180 is a thermal class that requires a minimum temperature index of 180 and a heat shock temperature of at least 200 °C. The temperature in degrees Celsius corresponding to the temperature index is not necessarily that at which it is recommended that the wire be operated and this will depend on many factors, including the type of equipment involved. The range of nominal conductor diameters covered by this standard is as follows: - grade 1: 0,400 mm up to and including 1,600 mm; - grade 2: 0,400 mm up to and including 5,000 mm. The nominal conductor diameters are specified in Clause 4 of EN 60317-0-3. The main changes with respect to the previous edition are listed below: - new requirements for appearance, Subclause 3.2, added; - springiness test, Clause 7, determined to be inappropriate; - cut-through test, Clause 10, determined to be inappropriate; - high temperature failure test, Clause 22, deleted; - new pin hole test, Clause 23, added.
- Status
- Published
- Publication Date
- 31-Mar-2005
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Apr-2005
- Due Date
- 01-Apr-2005
- Completion Date
- 01-Apr-2005
SIST EN 60317-15:2005 is a Slovene standard from SIST, adopted from EN 60317-15:2004, for polyesterimide enamelled round aluminium winding wire, class 180. It specifies the material, size and performance requirements for wire used in windings in electrical equipment, so manufacturers, test labs, quality teams and buyers can check whether a wire type matches this class.
What does SIST EN 60317-15:2005 specify?
SIST EN 60317-15:2005 specifies enamelled round aluminium winding wire of class 180 with a sole coating based on polyesterimide resin. The coating may be modified, but it must keep the chemical identity of the original resin and still meet all wire requirements.
The standard covers nominal conductor diameters for two grades:
| Annex | What it covers |
|---|---|
| Annex ZA | Normative references to international publications and their corresponding European publications |
Class 180 means a minimum temperature index of 180 and a heat shock temperature of at least 200 °C. The temperature index is a material rating, not a direct instruction for operating temperature, so the actual application limit still depends on the equipment and its use.
The document is organized into clauses for scope, normative references, definitions and test notes, dimensions, electrical and mechanical properties, thermal performance, chemical resistance, solderability, bonding, dielectric dissipation factor, loss of mass, pin hole testing and packaging. It is intended to be read with International Electrotechnical Commission (IEC) 60317-0-3.
What are the key requirements of SIST EN 60317-15:2005?
SIST EN 60317-15:2005 relies on IEC 60317-0-3 for the general requirements and test methods, and it says that where there is a conflict, this part prevails. In practice, that means users apply the base rules from the general aluminium-wire part, then apply the specific class 180 requirements here.
Size, appearance and basic properties
SIST EN 60317-15:2005 covers appearance, dimensions, electrical resistance and elongation through references to IEC 60317-0-3, with the specific appearance requirements in Clause 3.2. For users, this is the first filter for acceptance: the wire has to look right, measure right and behave like the specified conductor before deeper testing is worthwhile.
Thermal performance
SIST EN 60317-15:2005 sets the heat shock temperature at 200 °C in Clause 9 and requires a minimum temperature index of 180 in Clause 15. It also uses an elevated temperature of 180 °C for the breakdown voltage test in Clause 13. In practice, these points show how the insulation is checked for heat endurance, both as a material rating and under test conditions.
Mechanical integrity
SIST EN 60317-15:2005 keeps flexibility and adherence in Clause 8 and resistance to abrasion in Clause 11. Table 1 gives the required abrasion force levels by nominal conductor diameter and by grade, and for intermediate diameters the next larger value is used. That matters because the wire must survive handling and winding without losing insulation performance.
Electrical and environmental resistance
SIST EN 60317-15:2005 includes tests for resistance to solvents, continuity of insulation, resistance to refrigerants, solderability, heat or solvent bonding, dielectric dissipation factor, resistance to transformer oil and loss of mass. These tests show whether the insulation still performs after exposure to the materials and processes common in electrical equipment manufacture and service.
Final verification and handling
SIST EN 60317-15:2005 adds a pin hole test in Clause 23 and packaging requirements in Clause 30. For a buyer or quality manager, these are the checks that support incoming inspection, reel acceptance and storage control after the wire is made.
What terms does SIST EN 60317-15:2005 define?
- Class 180 - A thermal class for winding wire that requires a minimum temperature index of 180 and a heat shock temperature of at least 200 °C.
- Temperature index - A material rating used to express thermal endurance, not a direct recommendation for operating temperature.
- Heat shock temperature - The temperature used to judge whether the insulated wire withstands sudden thermal stress.
- Polyesterimide resin - The resin family used for the sole enamel coating on this wire.
- Modified resin - A resin that has been chemically changed or supplemented with additives, while keeping the original resin identity and meeting all wire requirements.
- Nominal conductor diameter - The stated conductor size used to select the applicable requirements and tests.
- Grade 1 / Grade 2 - The two conductor-size ranges covered by the standard, with Grade 2 extending to larger diameters.
Who uses SIST EN 60317-15:2005?
SIST EN 60317-15:2005 is used by winding wire manufacturers, electrical equipment makers, test laboratories and purchasing teams. It is relevant for motors, transformers and other equipment that use enamelled round aluminium wire in windings, because it gives a common basis for specification, testing and acceptance.
What changed in SIST EN 60317-15:2005 from the previous edition?
SIST EN 60317-15:2005 supersedes EN 60317-15:1994 + A1:1998. The stated changes are:
- new appearance requirements were added in Subclause 3.2
- the springiness test in Clause 7 was judged inappropriate
- the cut-through test in Clause 10 was judged inappropriate
- the high temperature failure test in Clause 22 was deleted
- a new pin hole test was added in Clause 23
Which standards are used with SIST EN 60317-15:2005?
SIST EN 60317-15:2005 is read with IEC 60317-0-3, which provides the general requirements for enamelled round aluminium wire, including definitions, dimensions and several shared test methods. Annex ZA maps that IEC reference to the corresponding European publication for use in the CENELEC system.
What does the SIST EN 60317-15:2005 document contain?
SIST EN 60317-15:2005 contains clause-by-clause requirements for appearance, dimensions, electrical resistance, elongation, flexibility, heat shock, abrasion, solvent resistance, breakdown voltage, insulation continuity, temperature index, refrigerant resistance, solderability, bonding, dielectric dissipation factor, transformer oil resistance, loss of mass, pin hole testing and packaging. It also includes Table 1 for abrasion resistance and Annex ZA for the normative reference mapping.
The document is therefore mainly a specification and test standard. It tells users what properties to check, which related general standard to apply, and where the acceptance-related methods are defined for this type of enamelled aluminium winding wire.
Relations
- Effective Date
- 01-Apr-2005
- Effective Date
- 01-Apr-2005
- Effective Date
- 03-Feb-2026
- Effective Date
- 03-Feb-2026
- Effective Date
- 03-Feb-2026
- Effective Date
- 03-Feb-2026
- Effective Date
- 01-Sep-2024
- Effective Date
- 01-Sep-2010
Get Certified
Connect with accredited certification bodies for this standard
Element Materials Technology
Materials testing and product certification.
IMQ S.p.A. (Certification)
Italian electrical product certification.
SLG Prüf- und Zertifizierungs GmbH
German testing and certification body.
Sponsored listings
Frequently Asked Questions
SIST EN 60317-15:2005 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Specifications for particular types of winding wires -- Part 15: Polyesterimide enamelled round aluminium wire, class 180". This standard covers: Specifies the requirements of enamelled round aluminium winding wire of class 180 with a sole coating based on polyesterimide resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. Class 180 is a thermal class that requires a minimum temperature index of 180 and a heat shock temperature of at least 200 °C. The temperature in degrees Celsius corresponding to the temperature index is not necessarily that at which it is recommended that the wire be operated and this will depend on many factors, including the type of equipment involved. The range of nominal conductor diameters covered by this standard is as follows: - grade 1: 0,400 mm up to and including 1,600 mm; - grade 2: 0,400 mm up to and including 5,000 mm. The nominal conductor diameters are specified in Clause 4 of EN 60317-0-3. The main changes with respect to the previous edition are listed below: - new requirements for appearance, Subclause 3.2, added; - springiness test, Clause 7, determined to be inappropriate; - cut-through test, Clause 10, determined to be inappropriate; - high temperature failure test, Clause 22, deleted; - new pin hole test, Clause 23, added.
Specifies the requirements of enamelled round aluminium winding wire of class 180 with a sole coating based on polyesterimide resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. Class 180 is a thermal class that requires a minimum temperature index of 180 and a heat shock temperature of at least 200 °C. The temperature in degrees Celsius corresponding to the temperature index is not necessarily that at which it is recommended that the wire be operated and this will depend on many factors, including the type of equipment involved. The range of nominal conductor diameters covered by this standard is as follows: - grade 1: 0,400 mm up to and including 1,600 mm; - grade 2: 0,400 mm up to and including 5,000 mm. The nominal conductor diameters are specified in Clause 4 of EN 60317-0-3. The main changes with respect to the previous edition are listed below: - new requirements for appearance, Subclause 3.2, added; - springiness test, Clause 7, determined to be inappropriate; - cut-through test, Clause 10, determined to be inappropriate; - high temperature failure test, Clause 22, deleted; - new pin hole test, Clause 23, added.
SIST EN 60317-15:2005 is classified under the following ICS (International Classification for Standards) categories: 29.060.10 - Wires; 77.150.10 - Aluminium products. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 60317-15:2005 has the following relationships with other standards: It is inter standard links to SIST EN 60317-15:2001, SIST EN 60317-15:2001/A1:2002, SIST EN 60317-0-3:2001/A1:2001, SIST EN 60317-0-3:2001/A2:2005, SIST EN 60317-0-3:2001, SIST EN 61858:2008, SIST EN 60317-15:2005/A2:2024, SIST EN 60317-15:2005/A1:2010. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 60317-15:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-2005
Specifikacije za posebne tipe navitij – 15. del: S poliesterimidom emajliran
aluminijev okrogel vodnik, razred 180 (IEC 60317-15:2004)
Specifications for particular types of winding wires -- Part 15: Polyesterimide enamelled
round aluminium wire, class 180
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten -- Teil 15:
Runddrähte aus Aluminium, lackisoliert mit Polyesterimid, Klasse 180
Spécifications pour types particuliers de fils de bobinage -- Partie 15: Fil de section
circulaire en aluminium émaillé avec polyesterimide, classe 180
Ta slovenski standard je istoveten z: EN 60317-15:2004
ICS:
29.060.10 Žice Wires
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 60317-15
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2004
ICS 29.060.10 Supersedes EN 60317-15:1994 + A1:1998
English version
Specifications for particular types of winding wires
Part 15: Polyesterimide enamelled round aluminium wire, class 180
(IEC 60317-15:2004)
Spécifications pour types particuliers Technische Lieferbedingungen für
de fils de bobinage bestimmte Typen von Wickeldrähten
Partie 15: Fil de section circulaire Teil 15: Runddrähte aus Aluminium,
en aluminium émaillé avec polyesterimide, lackisoliert mit Polyesterimid, Klasse 180
classe 180 (IEC 60317-15:2004)
(CEI 60317-15:2004)
This European Standard was approved by CENELEC on 2004-09-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60317-15:2004 E

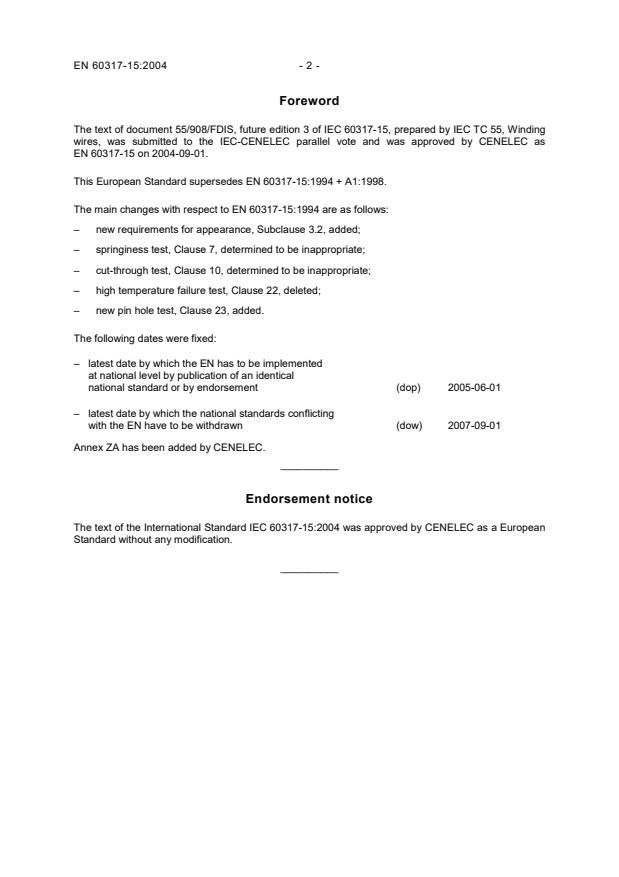

Foreword
The text of document 55/908/FDIS, future edition 3 of IEC 60317-15, prepared by IEC TC 55, Winding
wires, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 60317-15 on 2004-09-01.
This European Standard supersedes EN 60317-15:1994 + A1:1998.
The main changes with respect to EN 60317-15:1994 are as follows:
– new requirements for appearance, Subclause 3.2, added;
– springiness test, Clause 7, determined to be inappropriate;
– cut-through test, Clause 10, determined to be inappropriate;
– high temperature failure test, Clause 22, deleted;
– new pin hole test, Clause 23, added.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2005-06-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2007-09-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60317-15:2004 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60317-15:2004
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60317-0-3 1997 Specifications for particular types of EN 60317-0-3 1998
winding wires
Part 0-3: General requirements -
Enamelled round aluminium wire
A1 1999 A1 2000
1)
A2 2004 A2 -
1)
To be published.
NORME CEI
INTERNATIONALE IEC
60317-15
INTERNATIONAL
Troisième édition
STANDARD
Third edition
2004-08
Spécifications pour types particuliers
de fils de bobinage –
Partie 15:
Fil de section circulaire en aluminium émaillé
avec polyesterimide, classe 180
Specifications for particular types
of winding wires –
Part 15:
Polyesterimide enamelled round
aluminium wire, class 180
” IEC 2004 Droits de reproduction réservés Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale PRICE CODE J
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
Pour prix, voir catalogue en vigueur
For price, see current catalogue
60317-15 © IEC:2004 – 3 –
CONTENTS
FOREWORD.5
INTRODUCTION.9
1 Scope .11
2 Normative references .11
3 Definitions and general notes on methods of test and appearance .11
3.1 Definitions and general notes on methods of test.11
3.2 Appearance.13
4 Dimensions .13
5 Electrical resistance .13
6 Elongation.13
7 Springiness .13
8 Flexibility and adherence .13
9 Heat shock .13
10 Cut-through .13
11 Resistance to abrasion (nominal conductor diameters up to and including 2,500 mm) .13
12 Resistance to solvents.15
13 Breakdown voltage .15
14 Continuity of insulation .15
15 Temperature index .15
16 Resistance to refrigerants .15
17 Solderability .17
18 Heat or solvent bonding .17
19 Dielectric dissipation factor .17
20 Resistance to transformer oil .17
21 Loss of mass .17
23 Pin hole test .17
30 Packaging .
...
