Household and similar electrical appliances - Safety - Part 2-84: Particular requirements for toilet appliances

This European Standard deals with the safety of electric toilet appliances having a rated voltage being not more than 250 V, in which excrement is stored, dried or destructed or which wash or dry parts of the human body.

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-84: Besondere Anforderungen an Geräte für Toiletten

Appareils électrodomestiques et analogues - Sécurité - Partie 2-84: Exigences particulières pour les appareils de toilettes (IEC 60335-2-84:2019)

IEC 60335-2-84:2019 est disponible sous forme de IEC 60335-2-84:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.

L'IEC 60335-2-84:2019 traite de la sécurité des appareils de toilettes électriques dont la tension assignée n'est pas supérieure à 250 V, dans lesquels les excréments sont stockés, séchés ou détruits ou qui lavent ou sèchent des parties du corps humain. Les dispositifs suivants sont des exemples de toilettes électriques. Ces dispositifs peuvent être utilisés pour traiter les déchets tels que le papier et les déchets alimentaires.
- toilettes à désagrégation;
- toilettes à empaquetage;
- toilettes cryogéniques;
- toilettes à vide.
La présente norme s'applique également aux équipements électriques destinés aux toilettes conventionnelles.
Exemples de tels équipements électriques:
- les dispositifs pour couvrir automatiquement le siège;
- les unités pour broyer;
- les sièges chauffants;
- les unités pour pomper;
- les chauffe-eau pour les sièges à pulvérisation d’eau;
- les sièges à pulvérisation d’eau.
Dans la mesure du possible, la présente norme traite des dangers ordinaires présentés par les appareils et encourus par tous les individus à l'intérieur et autour de l'habitation. Cependant, elle ne tient généralement pas compte de l’utilisation de l’appareil comme jouet par des jeunes enfants.
L’attention est attirée sur le fait que
- pour les appareils destinés à être utilisés dans des véhicules ou à bord de navires ou d’avions, des exigences supplémentaires peuvent être nécessaires;
- dans de nombreux pays, des exigences supplémentaires sont spécifiées par les organismes nationaux de la santé, par les organismes nationaux responsables de la protection des travailleurs, par les organismes nationaux responsables de l'alimentation en eau et par des organismes similaires.
La présente norme ne s’applique pas
- aux appareils destinés à être utilisés dans des locaux présentant des conditions particulières, telles que la présence d'une atmosphère corrosive ou explosive (poussière, vapeur ou gaz);
- aux toilettes chimiques;
- aux toilettes dans lesquelles les excréments sont détruits par combustion.
Cette troisième édition annule et remplace la deuxième édition parue en 2002, l'Amendement 1:2008 et l'Amendement 2:2013. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- les définitions ont été renumérotées (Article 3);
- les exigences relatives aux instructions d’installation ont été actualisées pour prendre en compte la possibilité de 7.101 que l’étiquette soit située sur l’appareil (7.12.1);
- certaines notes ont été converties en texte normatif (7.101, 22.103, 27.1, 31);
- des exigences ont été ajoutées pour les appareils dont les circuits électroniques programmables limitent le nombre d’éléments chauffants et de moteurs alimentés en même temps (22.105, Annexe R). La présente partie 2 doit être utilisée conjointement avec la dernière édition de l’IEC 60335-1 et ses amendements. Elle a été établie sur la base de la cinquième édition (2010) de cette norme.

Gospodinjski in podobni električni aparati - Varnost - 2-84. del: Posebne zahteve za stranišča

Ta evropski standard obravnava varnost električnih stranišč z nazivno napetostjo največ 250 V, v katerih se iztrebki hranijo, posušijo ali uničijo ter ki umijejo oziroma posušijo dele človeškega telesa.

General Information

Status
Published
Public Enquiry End Date
31-Jan-2021
Publication Date
11-Jan-2022
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
13-Dec-2021
Due Date
17-Feb-2022
Completion Date
12-Jan-2022

RELATIONS

Buy Standard

Standard
SIST EN IEC 60335-2-84:2022
English language
21 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
oSIST prEN 60335-2-84:2021
English language
21 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN IEC 60335-2-84:2022
01-februar-2022
Nadomešča:
SIST EN 60335-2-84:2003
SIST EN 60335-2-84:2003/A1:2008
SIST EN 60335-2-84:2003/A2:2019

Gospodinjski in podobni električni aparati - Varnost - 2-84. del: Posebne zahteve

za stranišča

Household and similar electrical appliances - Safety - Part 2-84: Particular requirements

for toilet appliances
Appareils électrodomestiques et analogues - Sécurité - Partie 2-84: Exigences
particulières pour les appareils de toilettes (IEC 60335-2-84:2019)
Ta slovenski standard je istoveten z: EN IEC 60335-2-84:2021
ICS:
13.120 Varnost na domu Domestic safety
91.140.70 Sanitarne naprave Sanitary installations
SIST EN IEC 60335-2-84:2022 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 60335-2-84:2022
---------------------- Page: 2 ----------------------
SIST EN IEC 60335-2-84:2022
EUROPEAN STANDARD EN IEC 60335-2-84
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2021
ICS 91.140.70 Supersedes EN 60335-2-84:2003 and all of its
amendments and corrigenda (if any)
English Version
Household and similar electrical appliances - Safety - Part 2-84:
Particular requirements for toilet appliances
(IEC 60335-2-84:2019)

Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und

Partie 2-84: Exigences particulières pour les appareils de ähnliche Zwecke - Teil 2-84: Besondere Anforderungen an

toilettes (IEC 60335-2-84:2019) Geräte für Toiletten
(IEC 60335-2-84:2019) (IEC 60335-2-84:2019)

This European Standard was approved by CENELEC on 2021-10-11. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 60335-2-84:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60335-2-84:2022
EN IEC 60335-2-84:2021 (E)

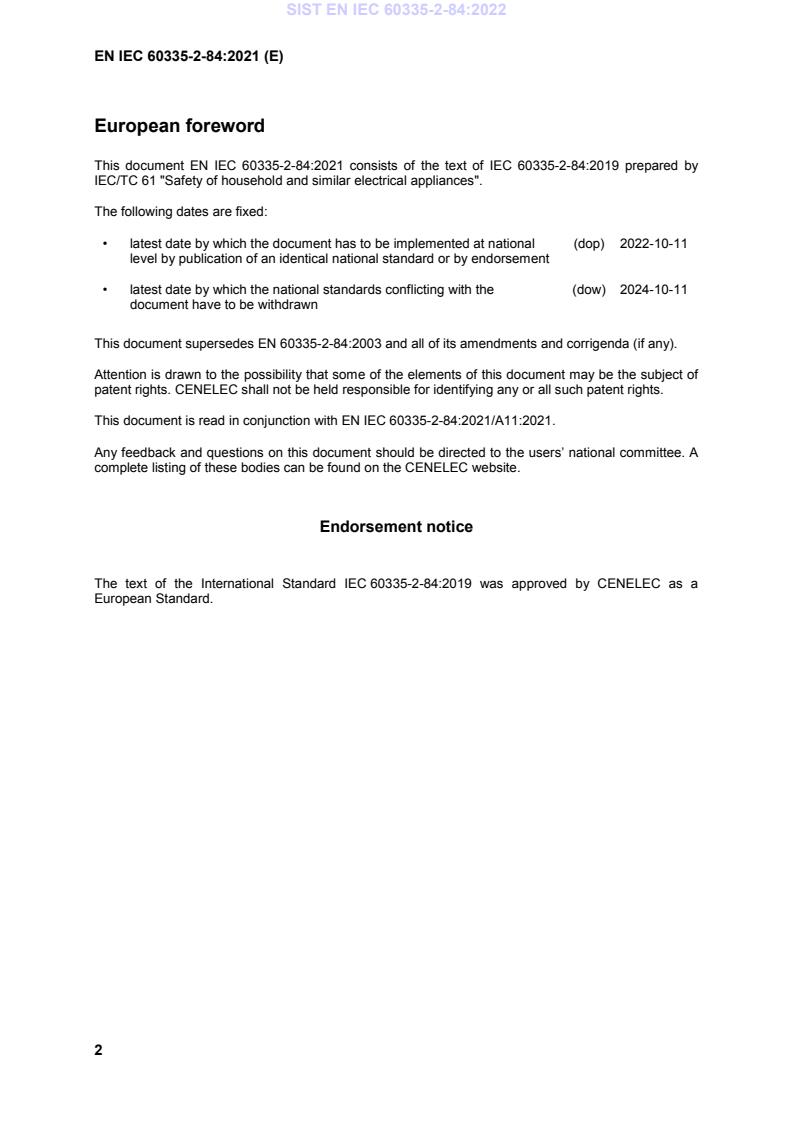

European foreword

This document EN IEC 60335-2-84:2021 consists of the text of IEC 60335-2-84:2019 prepared by

IEC/TC 61 "Safety of household and similar electrical appliances".
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2022-10-11

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2024-10-11

document have to be withdrawn

This document supersedes EN 60335-2-84:2003 and all of its amendments and corrigenda (if any).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document is read in conjunction with EN IEC 60335-2-84:2021/A11:2021.

Any feedback and questions on this document should be directed to the users’ national committee. A

complete listing of these bodies can be found on the CENELEC website.
Endorsement notice

The text of the International Standard IEC 60335-2-84:2019 was approved by CENELEC as a

European Standard.
---------------------- Page: 4 ----------------------
SIST EN IEC 60335-2-84:2022
IEC 60335-2-84
Edition 3.0 2019-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-84: Particular requirements for toilet appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-84: Exigences particulières pour les appareils de toilettes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 91.140.70 ISBN 978-2-8322-7533-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 5 ----------------------
SIST EN IEC 60335-2-84:2022
– 2 – IEC 60335-2-84:2019  IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 8

4 General requirement ........................................................................................................ 9

5 General conditions for the tests ....................................................................................... 9

6 Classification ................................................................................................................... 9

7 Marking and instructions ................................................................................................ 10

8 Protection against access to live parts ........................................................................... 10

9 Starting of motor-operated appliances ........................................................................... 10

10 Power input and current ................................................................................................. 11

11 Heating .......................................................................................................................... 11

12 Void ............................................................................................................................... 11

13 Leakage current and electric strength at operating temperature ..................................... 11

14 Transient overvoltages .................................................................................................. 12

15 Moisture resistance ....................................................................................................... 12

16 Leakage current and electric strength ............................................................................ 12

17 Overload protection of transformers and associated circuits .......................................... 12

18 Endurance ..................................................................................................................... 12

19 Abnormal operation ....................................................................................................... 12

20 Stability and mechanical hazards ................................................................................... 13

21 Mechanical strength ...................................................................................................... 13

22 Construction .................................................................................................................. 14

23 Internal wiring ................................................................................................................ 15

24 Components .................................................................................................................. 16

25 Supply connection and external flexible cords ............................................................... 16

26 Terminals for external conductors .................................................................................. 16

27 Provision for earthing .................................................................................................... 16

28 Screws and connections ................................................................................................ 16

29 Clearances, creepage distances and solid insulation ..................................................... 16

30 Resistance to heat and fire ............................................................................................ 17

31 Resistance to rusting ..................................................................................................... 17

32 Radiation, toxicity and similar hazards ........................................................................... 18

Annexes ............................................................................................................................... 19

Annex R (normative) Software evaluation ............................................................................ 19

Bibliography .......................................................................................................................... 19

Figure 101 – Diagram for leakage current measurement for water heaters having bare

heating elements .................................................................................................................. 18

---------------------- Page: 6 ----------------------
SIST EN IEC 60335-2-84:2022
IEC 60335-2-84:2019  IEC 2019 – 3 –

Table 101 – Maximum normal temperature rises ................................................................... 11

Table 102 – Maximum abnormal temperature rises ............................................................... 13

---------------------- Page: 7 ----------------------
SIST EN IEC 60335-2-84:2022
– 4 – IEC 60335-2-84:2019  IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-84: Particular requirements for toilet appliances
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment

declared to be in conformity with an IEC Publication.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard

IEC 60335-2-84 has been prepared by IEC technical committee 61: Safety of household and similar electrical

appliances.
This third edition cancels and replaces the second edition published in 2002,

Amendment 1:2008 and Amendment 2:2013. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
– definitions have been renumbered (Clause 3);

– requirements for installation instructions have been updated to reflect the option in 7.101 of

the label being placed on the appliance (7.12.1);
– some notes have been converted to normative text (7.101, 22.103, 27.1, 31);

– requirements have been added for appliances that have programmable electronic circuits

that limit the number of heating elements and motors from being energized at the same time

(22.105, Annex R).
---------------------- Page: 8 ----------------------
SIST EN IEC 60335-2-84:2022
IEC 60335-2-84:2019  IEC 2019 – 5 –
The text of this International Standard is based on the following documents:
CDV Report on voting
61/5749/CDV 61/5846B/RVC

Full information on the voting for the approval of this International Standard can be found in the

report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments. It was established on the basis of the fifth edition (2010) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to convert

that publication into the IEC standard: Safety requirements for toilet appliances.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as

far as is reasonable. When this standard states “addition”, “modification” or “replacement”, the

relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including

those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the

associated noun are also in bold.

The committee has decided that the contents of this publication will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or

revised tests.

It is the recommendation of the committee that the content of this publication be adopted for implementation nationally

not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 3.1.9: Normal operation is different (USA);
– 6.2: Toilets, spray seats and heated seats are allowed to be IPX3(Japan);
– 22.103: The test is different (USA).
---------------------- Page: 9 ----------------------
SIST EN IEC 60335-2-84:2022
– 6 – IEC 60335-2-84:2019  IEC 2019
INTRODUCTION

It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in normal

use taking into account the manufacturer's instructions. It also covers abnormal situations that

can be expected in practice and takes into account the way in which electromagnetic

phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that there

is compatibility with the wiring rules when the appliance is connected to the supply mains.

However, national wiring rules may differ.

If an appliance within the scope of this standard also incorporates functions that are covered

by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as

far as is reasonable. If applicable, the influence of one function on the other is taken into

account.

When a part 2 standard does not include additional requirements to cover hazards dealt with in

Part 1, Part 1 applies.

NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is

not necessary to specify particular requirements for the appliance in question over and above the general

requirements.

This standard is a product family standard dealing with the safety of appliances and takes

precedence over horizontal and generic standards covering the same subject.

NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into

consideration when developing the general and particular requirements for the IEC 60335 series of standards. For

example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as

ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.

An appliance that complies with the text of this standard will not necessarily be considered to

comply with the safety principles of the standard if, when examined and tested, it is found to

have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed

in the requirements of this standard may be examined and tested according to the intent of the

requirements and, if found to be substantially equivalent, may be considered to comply with the

standard.
---------------------- Page: 10 ----------------------
SIST EN IEC 60335-2-84:2022
IEC 60335-2-84:2019  IEC 2019 – 7 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-84: Particular requirements for toilet appliances
1 Scope
This clause of Part 1 is replaced by the following.

This part of IEC 60335 deals with the safety of electric toilet appliances having a rated voltage

being not more than 250 V, in which excrement is stored, dried or destructed or which wash or

dry parts of the human body.

NOTE 101 Examples of such electric toilets are the following and they can be used to process garbage such as

paper and food waste.
– mouldering toilets;
– package toilets;
– freezing toilets;
– vacuum toilets.

This standard also applies to electric equipment for use with conventional toilets.

NOTE 102 Examples of such electric equipment are
– automatic seat covering devices;
– chopping units;
– heated seats;
– pumping units;
– water heaters for spray seats;
– spray seats.

As far as is practicable, this standard deals with the common hazards presented by app

...

SLOVENSKI STANDARD
oSIST prEN 60335-2-84:2021
01-januar-2021
Nadomešča:
SIST EN 60335-2-84:2003
SIST EN 60335-2-84:2003/A1:2008
SIST EN 60335-2-84:2003/A2:2019

Gospodinjski in podobni električni aparati - Varnost - 2-84. del: Posebne zahteve

za stranišča

Household and similar electrical appliances - Safety - Part 2-84: Particular requirements

for toilet appliances
Appareils électrodomestiques et analogues - Sécurité - Partie 2-84: Exigences
particulières pour les appareils de toilettes (IEC 60335-2-84:2019)
Ta slovenski standard je istoveten z: prEN 60335-2-84:2020
ICS:
13.120 Varnost na domu Domestic safety
91.140.70 Sanitarne naprave Sanitary installations
oSIST prEN 60335-2-84:2021 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 60335-2-84:2021
---------------------- Page: 2 ----------------------
oSIST prEN 60335-2-84:2021
EUROPEAN STANDARD DRAFT
prEN 60335-2-84
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2020
ICS Will supersede EN 60335-2-84:2003 and all of its
amendments and corrigenda (if any)
English Version
Household and similar electrical appliances - Safety - Part 2-84:
Particular requirements for toilet appliances
(IEC 60335-2-84:2019)
Appareils électrodomestiques et analogues - Sécurité - To be completed
Partie 2-84: Exigences particulières pour les appareils de (IEC 60335-2-84:2019)
toilettes (IEC 60335-2-84:2019)
(IEC 60335-2-84:2019)
This draft European Standard is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2021-02-05.
The text of this draft consists of the text of IEC 60335-2-84:2019.

If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which

stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CENELEC in three official versions (English, French, German).

A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to

the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to

provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and

shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Project: 71389 Ref. No. prEN 60335-2-84:2020 E
---------------------- Page: 3 ----------------------
oSIST prEN 60335-2-84:2021
prEN IEC 60335-2-84:2020 (E)
European foreword

This document (prEN IEC 60335-2-84:2020) consists of the text of document IEC 60335-2-84:2019,

prepared by IEC/TC 61 "Safety of household and similar electrical appliances"
This document is currently submitted to the CENELEC Enquiry.
The following dates are proposed:
• latest date by which the existence of this document (doa) dor + 6 months
has to be announced at national level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be withdrawn (to be confirmed or
modified when voting)

This document will supersede EN 60335-2-84:2003 and all of its amendments and corrigenda (if any).

Secretary Note: EN IEC 60335-2-84:2020 shall be read in conjunction with common
modifications in EN IEC 60335-2-84/A11:2020 (PR=71390)
---------------------- Page: 4 ----------------------
oSIST prEN 60335-2-84:2021
IEC 60335-2-84
Edition 3.0 2019-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-84: Particular requirements for toilet appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-84: Exigences particulières pour les appareils de toilettes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 91.140.70 ISBN 978-2-8322-7533-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 5 ----------------------
oSIST prEN 60335-2-84:2021
– 2 – IEC 60335-2-84:2019  IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 8

4 General requirement ........................................................................................................ 9

5 General conditions for the tests ....................................................................................... 9

6 Classification ................................................................................................................... 9

7 Marking and instructions ................................................................................................ 10

8 Protection against access to live parts ........................................................................... 10

9 Starting of motor-operated appliances ........................................................................... 10

10 Power input and current ................................................................................................. 11

11 Heating .......................................................................................................................... 11

12 Void ............................................................................................................................... 11

13 Leakage current and electric strength at operating temperature ..................................... 11

14 Transient overvoltages .................................................................................................. 12

15 Moisture resistance ....................................................................................................... 12

16 Leakage current and electric strength ............................................................................ 12

17 Overload protection of transformers and associated circuits .......................................... 12

18 Endurance ..................................................................................................................... 12

19 Abnormal operation ....................................................................................................... 12

20 Stability and mechanical hazards ................................................................................... 13

21 Mechanical strength ...................................................................................................... 13

22 Construction .................................................................................................................. 14

23 Internal wiring ................................................................................................................ 15

24 Components .................................................................................................................. 16

25 Supply connection and external flexible cords ............................................................... 16

26 Terminals for external conductors .................................................................................. 16

27 Provision for earthing .................................................................................................... 16

28 Screws and connections ................................................................................................ 16

29 Clearances, creepage distances and solid insulation ..................................................... 16

30 Resistance to heat and fire ............................................................................................ 17

31 Resistance to rusting ..................................................................................................... 17

32 Radiation, toxicity and similar hazards ........................................................................... 18

Annexes ............................................................................................................................... 19

Annex R (normative) Software evaluation ............................................................................ 19

Bibliography .......................................................................................................................... 19

Figure 101 – Diagram for leakage current measurement for water heaters having bare

heating elements .................................................................................................................. 18

---------------------- Page: 6 ----------------------
oSIST prEN 60335-2-84:2021
IEC 60335-2-84:2019  IEC 2019 – 3 –

Table 101 – Maximum normal temperature rises ................................................................... 11

Table 102 – Maximum abnormal temperature rises ............................................................... 13

---------------------- Page: 7 ----------------------
oSIST prEN 60335-2-84:2021
– 4 – IEC 60335-2-84:2019  IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-84: Particular requirements for toilet appliances
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment

declared to be in conformity with an IEC Publication.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard

IEC 60335-2-84 has been prepared by IEC technical committee 61: Safety of household and similar electrical

appliances.
This third edition cancels and replaces the second edition published in 2002,

Amendment 1:2008 and Amendment 2:2013. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
– definitions have been renumbered (Clause 3);

– requirements for installation instructions have been updated to reflect the option in 7.101 of

the label being placed on the appliance (7.12.1);
– some notes have been converted to normative text (7.101, 22.103, 27.1, 31);

– requirements have been added for appliances that have programmable electronic circuits

that limit the number of heating elements and motors from being energized at the same time

(22.105, Annex R).
---------------------- Page: 8 ----------------------
oSIST prEN 60335-2-84:2021
IEC 60335-2-84:2019  IEC 2019 – 5 –
The text of this International Standard is based on the following documents:
CDV Report on voting
61/5749/CDV 61/5846B/RVC

Full information on the voting for the approval of this International Standard can be found in the

report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments. It was established on the basis of the fifth edition (2010) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to convert

that publication into the IEC standard: Safety requirements for toilet appliances.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as

far as is reasonable. When this standard states “addition”, “modification” or “replacement”, the

relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including

those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the

associated noun are also in bold.

The committee has decided that the contents of this publication will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or

revised tests.

It is the recommendation of the committee that the content of this publication be adopted for implementation nationally

not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 3.1.9: Normal operation is different (USA);
– 6.2: Toilets, spray seats and heated seats are allowed to be IPX3(Japan);
– 22.103: The test is different (USA).
---------------------- Page: 9 ----------------------
oSIST prEN 60335-2-84:2021
– 6 – IEC 60335-2-84:2019  IEC 2019
INTRODUCTION

It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in normal

use taking into account the manufacturer's instructions. It also covers abnormal situations that

can be expected in practice and takes into account the way in which electromagnetic

phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that there

is compatibility with the wiring rules when the appliance is connected to the supply mains.

However, national wiring rules may differ.

If an appliance within the scope of this standard also incorporates functions that are covered

by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as

far as is reasonable. If applicable, the influence of one function on the other is taken into

account.

When a part 2 standard does not include additional requirements to cover hazards dealt with in

Part 1, Part 1 applies.

NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is

not necessary to specify particular requirements for the appliance in question over and above the general

requirements.

This standard is a product family standard dealing with the safety of appliances and takes

precedence over horizontal and generic standards covering the same subject.

NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into

consideration when developing the general and particular requirements for the IEC 60335 series of standards. For

example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as

ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.

An appliance that complies with the text of this standard will not necessarily be considered to

comply with the safety principles of the standard if, when examined and tested, it is found to

have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed

in the requirements of this standard may be examined and tested according to the intent of the

requirements and, if found to be substantially equivalent, may be considered to comply with the

standard.
---------------------- Page: 10 ----------------------
oSIST prEN 60335-2-84:2021
IEC 60335-2-84:2019  IEC 2019 – 7 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-84: Particular requirements for toilet appliances
1 Scope
This clause of Part 1 is replaced by the following.

This part of IEC 60335 deals with the safety of electric toilet appliances having a rated voltage

being not more than 250 V, in which excrement is stored, dried or destructed or which wash or

dry parts of the human body.

NOTE 101 Examples of such electric toilets are the following and they can be used to process garbage such as

paper and food waste.
– mouldering toilets;
– package toilets;
– freezing toilets;
– vacuum toilets.

This standard also applies to electric equipment for use with conventional toilets.

NOTE 102 Examples of such electric equipment are
– automatic seat covering devices;
– chopping units;
– heated seats;
– pumping units;
– water heaters for spray seats;
– spray seats.
As far as is practicable, this standard deals wi
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
