SIST EN 12418:2022
(Main)Masonry and stone cutting-off machines for job site - Safety
Masonry and stone cutting-off machines for job site - Safety
This document applies to transportable masonry and stone cutting-off machines stationary during work, principally used on job site building construction for cutting-off stones, other mineral construction materials and composite materials having at least one supporting surface. The power for the tool rotation is supplied by electrical or internal combustion prime motor. This document deals with all significant hazards pertinent to masonry and stone cutting-off machines for job site (see Clause 4), when they are used as intended and under the conditions foreseen by the manufacturer. This document specifies the appropriate technical measures to eliminate or reduce risks arising from the significant hazards.
These machines are designed for use with rotating diamond cutting-off wheels with a continuous rim and/or segmented rim according to prEN 13236:2017.
This document does not apply to:
- metal cutting-off machines;
- wood and timber sawing machines;
- machines with a feed or descent mechanism other than manual, or with a pedal;
- mobile machines on a trolley travelling on the ground;
- hand-held portable grinding and cutting-off machines;
- hand-held portable grinding and cutting-off machines mounted on a support to be used in a fixed position.
This document does not cover the operation of transportable masonry and stone cutting-off machines in potential explosive atmospheres.
This document covers electrical hazards making reference to relevant European Standards (see 4.3).
Those hazards that are relevant for all mechanical, electrical, hydraulic, pneumatic and other equipment of machinery and that are dealt with in standards for common use are not covered by this document. Reference to pertinent standards of this kind is made where such standards are applicable and so far necessary.
In this document, the masonry and stone cutting-off machines for job site construction are called: "cutting-off machines" or "machines", and cutting-off wheels are also called: "tools".
This document applies primarily to machines which are manufactured after the date of approval of the standard by CEN.
Steintrennmaschinen für den Baustelleneinsatz - Sicherheit
Dieses Dokument gilt für transportable Steintrennmaschinen, die während des Einsatzes stationär sind, und die hauptsächlich auf Baustellen zum Trennen von Steinen und anderen mineralischen Baumaterialien sowie Verbundmaterialien verwendet werden, die mindestens eine Auflagefläche besitzen. Die Antriebsenergie für die Drehbewegung des Werkzeugs wird durch einen Elektro- oder eingebauten Verbrennungsmotor zur Verfügung gestellt.
Dieses Dokument behandelt alle signifikanten Gefährdungen, Gefährdungssituationen oder Gefährdungsereignisse, die auf Steintrennmaschinen für den Baustelleneinsatz (siehe Anhang A) zutreffen, wenn sie bestimmungsgemäß und unter Bedingungen, die vom Hersteller als Fehlanwendung vernünftigerweise vorhersehbar sind, verwendet werden. Dieses Dokument legt die geeigneten technischen Maßnahmen zur Beseitigung oder Minderung der Risiken fest, die sich aus den signifikanten Gefährdungen während der Lebensdauer der Maschine ergeben, wie in EN ISO 12100:2010, 5.4, beschrieben.
Diese Maschinen sind zum Einsatz mit drehenden Diamanttrennscheiben mit geschlossenem und/oder segmentierten Rand konstruiert.
Dieses Dokument ist nicht anzuwenden für:
— Metalltrennmaschinen;
— Holzsägemaschinen;
— Maschinen mit einem nicht manuellen Vorschub- oder Absenkmechanismus oder mit einem Pedal;
— mobile Maschinen mit einem Fahrwerk, das auf dem Boden fährt;
— handgeführte, tragbare Schleif- und Trennmaschinen;
— auf einer Tragvorrichtung montierte handgeführte, tragbare Schleif- und Trennmaschinen zur Anwendung in einer feststehenden Position.
Dieses Dokument behandelt nicht den Einsatz von transportablen Steintrennmaschinen in explosionsgefährdeten Bereichen.
In diesem Dokument werden die Steintrennmaschinen für den Baustelleneinsatz als „Trennmaschinen“ oder „Maschinen“ bezeichnet, und Trennscheiben werden auch als „Werkzeuge“ bezeichnet.
Dieses Dokument gilt für Maschinen, die nach dem Datum der Annahme der Norm durch CEN hergestellt wurden.
Scies de chantier à tronçonner les matériaux - Sécurité
Le présent document s’applique aux scies de chantier transportables à tronçonner les matériaux, utilisées en position fixe principalement sur des chantiers de construction pour tronçonner les pierres, les morceaux de bétons, et autres matériaux de construction minéraux et composites ayant au moins une surface portante. Un moteur thermique ou électrique fournit l’énergie pour la rotation de l’outil. Ce document traite de tous les phénomènes dangereux significatifs spécifiques aux scies de chantier à tronçonner les matériaux lorsqu’elles sont utilisées normalement et dans les conditions prévues par le fabricant (voir Article 4). Il spécifie les mesures techniques appropriées pour éliminer ou réduire les risques dus aux phénomènes dangereux significatifs.
Ces machines sont conçues pour être utilisées avec des disques diamant à tronçonner segmentés et/ou non segmentés conformément au prEN 13236:2017.
Le présent document ne s’applique pas :
- aux machines à scier le métal ;
- aux machines à scier le bois ;
- aux machines pour lesquelles l’avance du matériau ou la descente du mécanisme de tronçonnage se fait autrement que manuellement ou par pédale ;
- aux machines mobiles sur un rail se déplaçant sur le sol ;
- aux machines portatives à meuler et à tronçonner ;
- aux machines portatives à meuler et à tronçonner les matériaux montés sur un support pour être utilisées en position fixe.
Le présent document ne couvre pas l’utilisation des scies de chantier à tronçonner les matériaux transportables dans les atmosphères explosives.
Il couvre les risques d’origine électrique par référence aux Normes européennes applicables (voir 4.3).
Les phénomènes dangereux qui sont spécifiques aux équipements de machine, mécaniques, électriques, hydrauliques, pneumatiques et autres, et qui sont traités dans les normes générales ne sont pas couverts dans ce document. La référence à de telles normes pertinentes est faite quand ces normes sont applicables et donc nécessaires.
Dans le présent document, les scies de chantier à tronçonner les matériaux sont appelées : « scies de chantier » ou « machines » et les disques à tronçonner sont aussi appelés « outils ».
Le présent document s’applique en premier lieu aux machines fabriquées après la date d’approbation de la norme par le CEN.
Rezalniki kamenja na gradbiščih - Varnost
Ta dokument se uporablja za premične rezalnike kamenja na gradbiščih, ki med delom mirujejo in se večinoma uporabljajo na gradbišču za rezanje kamna, drugih mineralnih gradbenih materialov in kompozitnih materialov ter imajo vsaj eno podporno površino. Moč za vrtenje orodja zagotavlja električni ali pogonski motor z notranjim zgorevanjem. Ta dokument obravnava vse velike nevarnosti, ki se navezujejo na rezalnike kamenja na gradbiščih (glej točko 4), kadar se uporabljajo v skladu s predvidenim namenom in pod pogoji, ki jih predvidi proizvajalec. Ta standard določa ustrezne tehnične ukrepe za odpravljanje ali zmanjšanje tveganj, ki izhajajo iz večjih nevarnosti.
Ti stroji so zasnovani za uporabo z vrtljivimi diamantnimi rezalnimi ploščami z neprekinjenim in/ali segmentiranim rezalnim robom v skladu s standardom prEN 13236:2017.
Ta dokument se ne uporablja za:
– rezalnike kovin;
– stroje za žaganje dreves in lesa;
– stroje z mehanizmom za podajanje ali spuščanje, ki ne deluje ročno, ali s pedalom;
– premične stroje na vozičku, ki vozi po tleh;
– ročne prenosne stroje za brušenje in rezanje;
– ročne prenosne stroje za brušenje in rezanje, nameščene na nosilcu, ki se uporabljajo v fiksnem položaju.
Ta dokument ne zajema delovanja premičnih rezalnikov kamenja v potencialno eksplozivnih atmosferah.
Ta dokument zajema električne nevarnosti s sklicevanjem na ustrezne evropske standarde (glej točko 4.3).
Dokument ne zajema nevarnosti, povezanih z vsemi mehanskimi, električnimi, hidravličnimi, pnevmatskimi in drugimi stroji ter opremo, ki jih obravnavajo standardi za splošno uporabo. Kjer so ti standardi uporabni in potrebni, je navedeno sklicevanje nanje.
V tem dokumentu se rezalniki kamenja na gradbiščih imenujejo: »rezalniki« ali »stroji«, rezalne plošče pa se imenujejo tudi: »orodje«.
Ta dokument se uporablja predvsem za stroje, ki so bili izdelani po tem, ko je CEN odobril ta standard.
General Information
Relations
Standards Content (Sample)

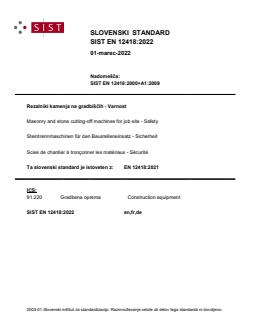

SLOVENSKI STANDARD
SIST EN 12418:2022
01-marec-2022
Nadomešča:
SIST EN 12418:2000+A1:2009
Rezalniki kamenja na gradbiščih - Varnost
Masonry and stone cutting-off machines for job site - Safety
Steintrennmaschinen für den Baustelleneinsatz - Sicherheit
Scies de chantier à tronçonner les matériaux - Sécurité
Ta slovenski standard je istoveten z: EN 12418:2021
ICS:
91.220 Gradbena oprema Construction equipment
SIST EN 12418:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 12418:2022
---------------------- Page: 2 ----------------------
SIST EN 12418:2022
EN 12418
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2021
EUROPÄISCHE NORM
ICS 91.220 Supersedes EN 12418:2000+A1:2009
English Version
Masonry and stone cutting-off machines for job site -
Safety
Scies de chantier à tronçonner les matériaux - Sécurité Steintrennmaschinen für den Baustelleneinsatz -
Sicherheit
This European Standard was approved by CEN on 15 November 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12418:2021 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 12418:2022
EN 12418:2021 (E)

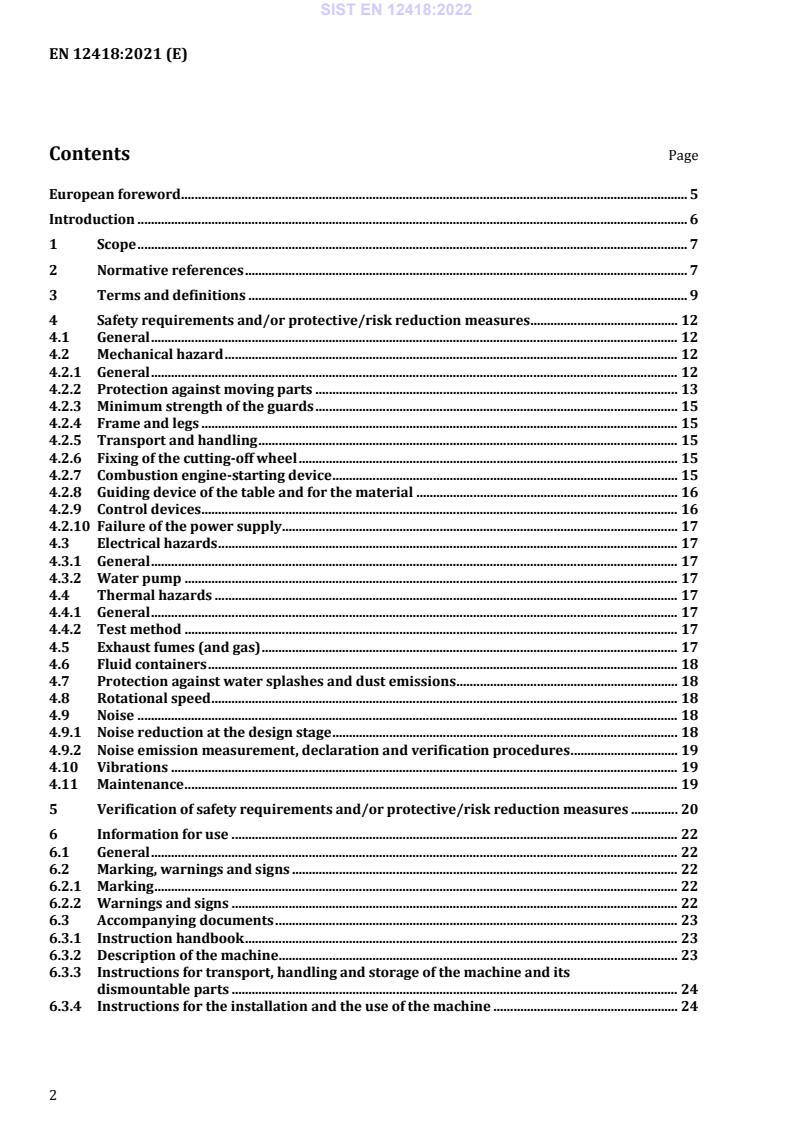

Contents Page
