SIST EN IEC 63044-5-1:2019

General requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) - Part 5-1: EMC requirements, conditions and test set-up

IEC 63044-5-1:2017 is a product family standard that sets the minimum level of EMC performance for the HBES/BACS network in addition to the product EMC standards for HBES/BACS devices. It also applies to devices used within an HBES/BACS network for which no specific HBES/BACS product EMC standard exists. In addition, it defines EMC requirements for the interface of equipment intended to be connected to an HBES/BACS network. It does not apply to interfaces to other networks.
NOTE An example of other networks is a dedicated ICT network covered by CISPR 22 and 23.
This document provides general performance requirements and test set-ups. This document is applicable (but not limited) to


•
        operator stations and other human–system interface devices,


•
        devices for management functions,


•
        control devices, automation stations and application-specific controllers,


•
        field devices and their interfaces,


•
        cabling and interconnection of devices,

used within a dedicated HBES/BACS network.

Allgemeine Anforderungen an die Elektrische Systemtechnik für Heim und Gebäude (ESHG) und an Systeme der Gebäudeautomation (GA) - Teil 5-1: EMV-Anforderungen, Bedingungen und Prüfungen

Systèmes Electroniques pour les Foyers Domestiques et les Bâtiments (HBES) et Systèmes de Gestion Technique du Bâtiment (SGTB) - Partie 5-1: CEM Exigences générales, condition et montage d’essais

L'IEC 63044-5-1:2017 est une norme de famille de produits qui établit le niveau minimal de performance CEM pour le réseau HBES/SGTB outre les normes CEM de produits applicables aux dispositifs HBES/SGTB. Elle s'applique également aux dispositifs utilisés dans un réseau HBES/SGTB pour lequel il n'existe aucune norme CEM de produit HBES/SGTB spécifique. De plus, elle spécifie des exigences CEM relatives à l'interface des équipements destinés à être connectés à un réseau HBES/SGTB. Elle ne s'applique pas aux interfaces avec d'autres réseaux.
NOTE Un réseau TIC dédié traité par le CISPR 22 et 23 constitue un exemple d'autres réseaux.
Le présent document fournit les exigences de performances générales et les montages d'essai. Le présent document est applicable (sans toutefois s'y limiter) aux


•
        postes d’opérateur et autres dispositifs d’interface homme–système,


•
        dispositifs pour des fonctions de gestion,


•
        dispositifs de commande, postes d’automatisation et contrôleurs spécifiques à une application,


•
        dispositifs de terrain et leurs interfaces,


•
        câblage et à l’interconnexion des dispositifs,

utilisés dans un réseau HBES/SGTB dédié.

Splošne zahteve za stanovanjske in stavbne elektronske sisteme (HBES) in sisteme za avtomatizacijo in krmiljenje stavb (BACS) - 5-1. del: Zahteve, pogoji in priprava preskusov EMC

Ta dokument je standard za družino izdelkov, ki določa minimalno raven delovanja elektromagnetne združljivosti (EMC) za omrežje za stanovanjske in stavbne elektronske sisteme/sisteme za avtomatizacijo in krmiljenje stavb (HBES/BACS) ter standarde za izdelek v zvezi z elektromagnetno združljivostjo za naprave za stanovanjske in stavbne elektronske sisteme/sisteme za avtomatizacijo in krmiljenje stavb. Uporablja se tudi za naprave, ki se uporabljajo v omrežju za stanovanjske in stavbne elektronske sisteme/sisteme za avtomatizacijo in krmiljenje stavb, za katere ne obstajajo posebni standardi za izdelek v zvezi z elektromagnetno združljivostjo. Poleg tega opredeljuje zahteve glede elektromagnetne združljivosti za vmesnik opreme, ki se povezuje z omrežjem za stanovanjske in stavbne elektronske sisteme/sisteme za avtomatizacijo in krmiljenje stavb. Ne uporablja se za vmesnike do drugih omrežij. OPOMBA: Primer drugih omrežij je namensko omrežje IKT, ki je zajeto v standardih CISPR 22 in 23. Ta dokument podaja splošne zahteve glede zmogljivosti in priprave preskusov. Ta dokument se (med drugim) uporablja za: – postaje za upravljavce in druge naprave z vmesnikom človek–sistem, – naprave za upravljalne funkcije, – krmilne naprave, avtomatizacijske postaje in namenske krmilnike, – terenske naprave in njihove vmesnike, – kablovje in povezave med napravami, ki se uporabljajo z namenskim omrežjem za stanovanjske in stavbne elektronske sisteme/sisteme za avtomatizacijo in krmiljenje stavb.

General Information

• Status: Published
• Publication Date: 19-Nov-2019
• ICS: 35.240.67 - IT applications in building and construction industry
• ICS: 97.120 - Automatic controls for household use
• Technical Committee: ELI - Electrical and communication installations
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 12-Nov-2019
• Due Date: 17-Jan-2020
• Completion Date: 20-Nov-2019
• Directive: 2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
• Directive: TP103 - Pravilnik o železniškem telekomunikacijskem omrežju
• Ref Project: EN IEC 63044-5-1:2019 - Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) - Part 5-1: EMC requirements, conditions and test set-up

Relations

• Replaces: SIST EN 50491-5-1:2011 - General requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) - Part 5-1: EMC requirements, conditions and test set-up
• Effective Date: 01-Dec-2019

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 63044-5-1:2019
01-december-2019
Nadomešča:
SIST EN 50491-5-1:2011
Splošne zahteve za stanovanjske in stavbne elektronske sisteme (HBES) in
sisteme za avtomatizacijo in krmiljenje stavb (BACS) - 5-1. del: Zahteve, pogoji in
priprava preskusov EMC
General requirements for Home and Building Electronic Systems (HBES) and Building
Automation and Control Systems (BACS) - Part 5-1: EMC requirements, conditions and
test set-up
Ta slovenski standard je istoveten z: EN IEC 63044-5-1:2019
ICS:
35.240.67 Uporabniške rešitve IT v IT applications in building
gradbeništvu and construction industry
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
SIST EN IEC 63044-5-1:2019 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 63044-5-1:2019

---------------------- Page: 2 ----------------------
SIST EN IEC 63044-5-1:2019


EUROPEAN STANDARD EN IEC 63044-5-1

NORME EUROPÉENNE

EUROPÄISCHE NORM
November 2019
ICS 29.120.01; 29.120.99 Supersedes EN 50491-5-1:2010 and all of its
amendments and corrigenda (if any)
English Version
Home and Building Electronic Systems (HBES) and Building
Automation and Control Systems (BACS) - Part 5-1: EMC
requirements, conditions and test set-up
(IEC 63044-5-1:2017)
Systèmes Electroniques pour les Foyers Domestiques et Allgemeine Anforderungen an die Elektrische
les Bâtiments (HBES) et Systèmes de Gestion Technique Systemtechnik für Heim und Gebäude (ESHG) und an
du Bâtiment (SGTB) - Partie 5-1: CEM Exigences Systeme der Gebäudeautomation (GA) - Teil 5-1: EMV-
générales, condition et montage d'essais Anforderungen, Bedingungen und Prüfungen
(IEC 63044-5-1:2017) (IEC 63044-5-1:2017)
This European Standard was approved by CENELEC on 2017-03-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 63044-5-1:2019 E

---------------------- Page: 3 ----------------------
SIST EN IEC 63044-5-1:2019
EN IEC 63044-5-1:2019 (E)

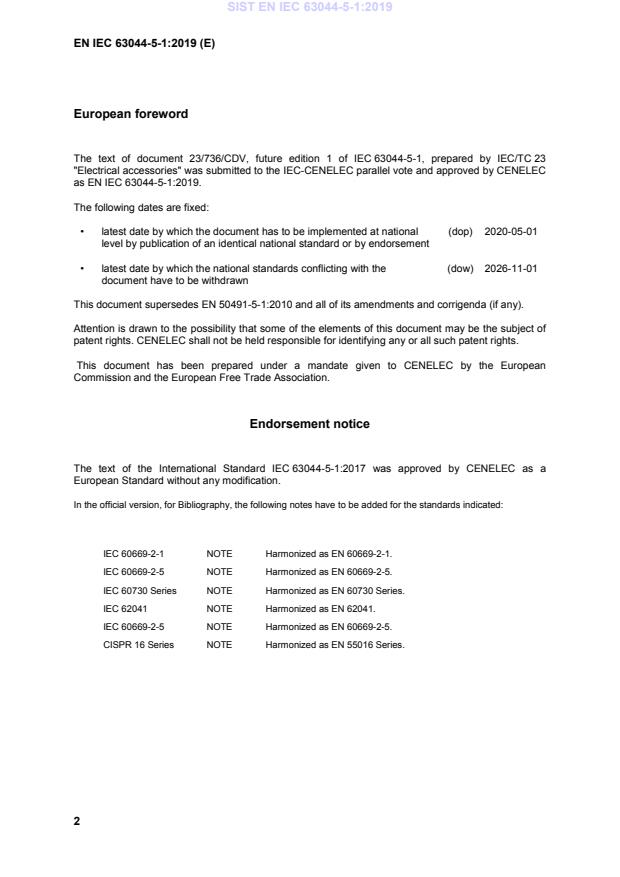

European foreword
The text of document 23/736/CDV, future edition 1 of IEC 63044-5-1, prepared by IEC/TC 23
"Electrical accessories" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC
as EN IEC 63044-5-1:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-05-01
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-11-01
document have to be withdrawn
This document supersedes EN 50491-5-1:2010 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association.
Endorsement notice
The text of the International Standard IEC 63044-5-1:2017 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60669-2-1 NOTE Harmonized as EN 60669-2-1.
IEC 60669-2-5 NOTE Harmonized as EN 60669-2-5.
IEC 60730 Series NOTE Harmonized as EN 60730 Series.
IEC 62041 NOTE Harmonized as EN 62041.
IEC 60669-2-5 NOTE Harmonized as EN 60669-2-5.
CISPR 16 Series NOTE Harmonized as EN 55016 Series.

2

---------------------- Page: 4 ----------------------
SIST EN IEC 63044-5-1:2019
EN IEC 63044-5-1:2019 (E)
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61000-3-2 -  Electromagnetic compatibility (EMC) - Part EN 61000-3-2 -
3-2: Limits - Limits for harmonic current
emissions (equipment input current ≤ 16 A
per phase)
IEC 61000-3-3 -  Electromagnetic compatibility (EMC) - Part EN 61000-3-3 -
3-3: Limits - Limitation of voltage changes,
voltage fluctuations and flicker in public
low-voltage supply systems, for equipment
with rated current ≤16 A per phase and
not subject to conditional connection
IEC 61000-4-2 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-2 -
4-2: Testing and measurement techniques
- Electrostatic discharge immunity test
IEC 61000-4-3 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-3 -
4-3 : Testing and measurement techniques
- Radiated, radio-frequency,
electromagnetic field immunity test
IEC 61000-4-4 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-4 -
4-4: Testing and measurement techniques
- Electrical fast transient/burst immunity
test
IEC 61000-4-5 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-5 -
4-5: Testing and measurement techniques
- Surge immunity test
IEC 61000-4-6 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-6 -
4-6: Testing and measurement techniques
- Immunity to conducted disturbances,
induced by radio-frequency fields
IEC 61000-4-8 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-8 -
4-8: Testing and measurement techniques
- Power frequency magnetic field immunity
test
3

---------------------- Page: 5 ----------------------
SIST EN IEC 63044-5-1:2019
EN IEC 63044-5-1:2019 (E)
Publication Year Title EN/HD Year
IEC 61000-4-11 -  Electromagnetic compatibility (EMC) - Part EN 61000-4-11 -
4-11: Testing and measurement
techniques - Voltage dips, short
interruptions and voltage variations
immunity tests
IEC 63044-1 -  Home and Building Electronic Systems EN 63044-1 -
(HBES) and Building Automation and
Control Systems (BACS) - Part 1: General
requirements
IEC 63044-3 -  Home and Building Electronic Systems EN IEC 63044-3 -
(HBES) and Building Automation and
Control Systems (BACS) - Part 3: Electrical
safety requirements
CISPR 22 -  Information technology equipment - Radio - -
disturbance characteristics - Limits and
methods of measurement
CISPR 32 -  Electromagnetic compatibility of multimedia EN 55032 -
equipment - Emission requirements

4

---------------------- Page: 6 ----------------------
SIST EN IEC 63044-5-1:2019




IEC 63044-5-1

®


Edition 1.0 2017-01




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE
colour

inside










Home and Building Electronic Systems (HBES) and Building Automation and

Control Systems (BACS) –

Part 5-1: EMC requirements, conditions and test set-up




Systèmes Electroniques pour les Foyers Domestiques et les Bâtiments (HBES)

et Systèmes de Gestion Technique du Bâtiment (SGTB) –


Partie 5-1: CEM Exigences générales, condition et montage d’essais













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 29.120.01; 29.120.99 ISBN 978-2-8322-3900-1



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------
SIST EN IEC 63044-5-1:2019
– 2 – IEC 63044-5-1:2017 © IEC 2017
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 8
3.1 Terms and definitions . 8
3.2 Abbreviated terms . 10
4 General requirements . 10
5 Performance criteria . 10
5.1 General performance criteria. 10
5.2 Performance criterion A . 10
5.3 Performance criterion B . 11
5.4 Performance criterion C . 11
6 Standard test conditions . 11
6.1 General . 11
6.2 Immunity . 12
6.2.1 Electrostatic discharge (ESD) . 12
6.2.2 RF fields . 12
6.2.3 Fast transients (bursts) . 13
6.2.4 Surge . 13
6.2.5 RF voltage . 13
6.2.6 Power frequency magnetic fields . 13
6.2.7 Voltage dips and interruptions . 13
6.3 Emission . 13
6.3.1 General . 13
6.3.2 Conducted emission . 14
6.3.3 Radiated emission . 14
6.3.4 Low frequency emission . 14
Annex A (informative) Additional information for fast transients (burst) test set-up . 15
Annex B (informative) Test set-ups . 16
B.1 General . 16
B.2 Test set-up for conducted immunity tests . 16
B.3 Test set-up for ESD . 17
B.4 Test set-up for conducted emission tests . 17
B.5 Test set-up for radiated (immunity and emission) tests . 17
Annex C (informative) . 19
Bibliography . 20


Figure 1 – EUT ports. 9
Figure B.1 – Test set-up for conducted immunity tests . 17
Figure B.2 – Set-up for radiated tests . 18

---------------------- Page: 8 ----------------------
SIST EN IEC 63044-5-1:2019
IEC 63044-5-1:2017 © IEC 2017 – 3 –
Table C.1 – Examples of product standards with an EMC part . 19
Table C.2 – Examples of stand alone EMC product standards . 19

---------------------- Page: 9 ----------------------
SIST EN IEC 63044-5-1:2019
– 4 – IEC 63044-5-1:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

HOME AND BUILDING ELECTRONIC SYSTEMS (HBES) AND
BUILDING AUTOMATION AND CONTROL SYSTEMS (BACS) –

Part 5-1: EMC requirements, conditions and test set-up

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63044-5-1 has been prepared by IEC technical committee 23:
Electrical accessories.
The text of this standard is based on the following documents:
CDV Report on voting
23/736/CDV 23/748/RVC

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 10 ----------------------
SIST EN IEC 63044-5-1:2019
IEC 63044-5-1:2017 © IEC 2017 – 5 –
A list of all parts in the IEC 63044 series, published under the general title Home and Building
Electronic Systems (HBES) and Building Automation and Control Systems (BACS), can be
found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.

---------------------- Page: 11 ----------------------
SIST EN IEC 63044-5-1:2019
– 6 – IEC 63044-5-1:2017 © IEC 2017
INTRODUCTION
The IEC 63044 series deals with developing and testing Home and Building Electronic
Systems (HBES) and Building Automation and Control Systems (BACS).
The IEC 63044-5 series ensures a common level of EMC requirements for HBES/BACS
devices.

---------------------- Page: 12 ----------------------
SIST EN IEC 63044-5-1:2019
IEC 63044-5-1:2017 © IEC 2017 – 7 –
HOME AND BUILDING ELECTRONIC SYSTEMS (HBES) AND
BUILDING AUTOMATION AND CONTROL SYSTEMS (BACS) –

Part 5-1: EMC requirements, conditions and test set-up



1 Scope
This part of IEC 63044 is a product family standard that sets the minimum level of EMC
performance for the HBES/BACS network in addition to the product EMC standards for
HBES/BACS devices.
It also applies to devices used within an HBES/BACS network for which no specific
HBES/BACS product EMC standard exists.
In addition, it defines EMC requirements for the interface of equipment intended to be
connected to an HBES/BACS network. It does not apply to interfaces to other networks.
NOTE An example of other networks is a dedicated ICT network covered by CISPR 22 and 23.
This document provides general performance requirements and test set-ups.
This document is applicable (but not limited) to
– operator stations and other human–system interface devices,
– devices for management functions,
– control devices, automation stations and application-specific controllers,
– field devices and their interfaces,
– cabling and interconnection of devices,
used within a dedicated HBES/BACS network.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (inc
...
