Railway applications - Track - Road-rail machines and associated equipment - Part 1: Technical requirements for travelling and working

1.1   General
This document deals with the technical requirements to minimize the specific railway hazards of self-propelled road-rail machines -henceforward referred to as machines - and associated equipment, which can arise during the commissioning, operation and maintenance of the machines when carried out in accordance with the specification given by the manufacturer or his authorized representative.
These risks are normally common regardless of the track gauge.  However, additional requirements can apply for travelling and working on infrastructures with narrow gauge or broad gauge lines, railways utilizing other than adhesion between the rail and rail wheels and underground infrastructures.
This document is also applicable for machines and associated equipment that in working configuration are partly supported on the ballast or the formation. Such machines are capable of independent self-propelled movement on the ground.
This document does not apply to the following:
-   the requirements for quality of the work or performance of the machine;
-   the specific requirements established by the machine operator for the use of machines, which will be the subject of negotiation between the manufacturer and the Infrastructure Manager;
-   moving and working while not on rails;
-   separate machines temporarily mounted on machines and associated equipment;
-   demountable machines as defined in 3.2;
-   trailers as defined in 3.3, including road-rail trailers.
Vehicles which are not track-guided themselves but have attachments that are track-guided are not road-rail machines.
The requirements within this document are amended and added to by the requirements in FprEN 15746-4 for machines designed and intended to use urban rail.
This document does not establish the additional requirements for the following:
-   operation subject to special rules, e.g. potentially explosive atmospheres;
-   hazards due to natural causes, e.g. earthquake, lightning, flooding;
-   working methods;
-   operation in severe working conditions requiring special measures, e.g. work in tunnels or in cuttings, extreme environmental conditions such as: freezing temperatures, high temperatures, corrosive environments, tropical environments, contaminating environments, strong magnetic fields;
-   hazards due to errors in software;
-   hazards occurring when used to handle suspended loads which may swing freely.
For a road-rail machine it is assumed that an EU road permissible host vehicle will offer an accepted safety level for its designed basic functions before conversion. Unless explicitly stated otherwise in a particular clause this specific aspect is not dealt with in this European Standard.
Other track construction and maintenance machines used on railway tracks are dealt with in other European Standards, see Annex F.
1.2   Validity of this document
This document applies to all machines which are ordered one year after the publication date by CEN of this document.

Bahnanwendungen - Oberbau - Zweiwege-Maschinen und zugehörige Ausrüstungen - Teil 1: Technische Anforderungen an die Versetzfahrt und den Arbeitseinsatz

1.1   Allgemeines
Dieses Dokument behandelt die technischen Anforderungen zur Minimierung eisenbahnspezifischer Gefährdungen von selbst angetriebenen Zweiwege Maschinen - im Folgenden als Maschinen bezeichnet - und ihrer zugehörigen Ausrüstungen, die bei der Inbetriebnahme, im Betrieb und bei der Instandhaltung auftreten können, wenn sie den Anweisungen des Herstellers oder seines autorisierten Vertreters entsprechend erfolgen.
Diese Risiken sind in der Regel unabhängig von der Spurweite. Allerdings können zusätzliche Anforderungen für Versetzfahrten und den Arbeitseinsatz auf Schmalspur- oder Breitspurstrecken, auf Bahnen, die andere Kräfte als die Adhäsion zwischen Rad und Schiene nutzen und U-Bahn-Infrastrukturen verwenden, gelten.
Dieses Dokument ist auch für Maschinen und ihrer zugehörigen Ausrüstungen gültig, die sich bei ihrem Arbeitseinsatz zum Teil auf dem Schotter oder dem Planum abstützen. Solche Maschinen müssen in der Lage sein, selbständige selbstfahrende Bewegungen auf dem Planum/Erdreich durchzuführen.
Dieses Dokument gilt nicht für:
-   Anforderungen an die Qualität von Arbeiten oder an die Leistung der Maschine;
-   spezielle Anforderungen für die Nutzung der Maschinen, festgelegt von dem Maschinenbetreiber, die der Absprache zwischen Hersteller und Infrastrukturbetreiber unterliegen;
-   Fahren und Arbeiten auf anderen Untergründen als auf Schienen;
-   gesonderte Maschinen/Geräte/Anlagen, die vorübergehend an Maschinen und zugehörige Ausrüstungen angebaut sind;
-   Anbaumodule nach 3.2;
-   Anhänger nach 3.3, einschließlich Zweiwege Anhänger.
Fahrzeuge, die nicht selbst über eine Schienenführung, aber über schienengeführte Zusatzteile verfügen, sind keine Zweiwege Maschinen.
Die Anforderungen in diesem Dokument werden durch die Anforderungen an Maschinen, die für den Einsatz auf Schienennahverkehrssystemen bestimmt sind, in FprEN 15746-4 geändert und ergänzt.
Dieses Dokument legt nicht die zusätzlichen Anforderungen für Folgendes fest:
-   Einsätze, die besonderen Regeln unterliegen, z. B. explosionsgefährdete Umgebungen;
-   Gefährdungen aufgrund natürlicher Ursachen, z. B. Erdbeben, Blitzschlag, Überschwemmung;
-   Arbeitsverfahren;
-   Einsätze unter schwierigen Arbeitsbedingungen, die besondere Maßnahmen erfordern, z. B. bei Arbeiten in Tunneln oder in Streckenabschnitten mit außergewöhnlichen Bedingungen wie Einsatz bei Frost, hohen Temperaturen, korrosiver Umgebung, tropischer Umgebung, kontaminierter Umgebung, starkem Magnetfeld;
-   Gefährdungen aufgrund von Fehlern in der Software;
-   Gefährdungen durch frei schwingende Lasten.
Für die Umrüstung in eine Zweiwege Maschine wird davon ausgegangen, dass ein EU Straßen zugelassenes Basisfahrzeug ein akzeptiertes Sicherheitsniveau für seine vorgesehenen Grundfunktionen bietet. Sofern in einem bestimmten Abschnitt nicht ausdrücklich etwas anderes festgelegt ist, wird dieser spezielle Aspekt in dieser Europäischen Norm nicht behandelt.
Andere Bau  und Instandhaltungsmaschinen für den Einsatz auf Eisenbahngleisen werden in anderen Europäischen Normen behandelt, siehe Anhang F.
1.2   Gültigkeit dieses Dokuments
Dieses Dokument ist für alle Maschinen gültig, die ein Jahr nach dem Veröffentlichungsdatum beim CEN dieses Dokuments bestellt werden.

Applications ferroviaires - Voie - Machines rail-route et équipements associés - Partie 1 : Exigences techniques pour le déplacement et le travail

1.1   Généralités
Le présent document traite des exigences techniques visant à réduire le plus possible les dangers ferroviaires spécifiques aux machines rail-route automotrices (désignées ci-après les « machines ») et aux équipements associés. Ces risques peuvent se manifester lors des opérations de mise en service, d'exploitation et de maintenance des machines, ces opérations étant réalisées conformément aux spécifications données par le fabricant ou son mandataire.
Ces risques sont normalement les mêmes, quel que soit l'écartement de la voie. Toutefois, des exigences supplémentaires peuvent s'appliquer pour le déplacement et le travail sur les infrastructures ferroviaires à voies larges ou étroites, sur les chemins de fer autres que ceux à adhérence rail/roue et sur les infrastructures souterraines.
Le présent document s'applique aussi aux machines et aux équipements associés qui, en configuration de travail, prennent partiellement appui sur le ballast ou sur la plate-forme. Ces machines sont capables d'accomplir des mouvements automoteurs indépendants sur la plate-forme.
Le présent document ne s'applique pas :
-   aux exigences relatives à la qualité du travail et aux performances de la machine ;
-   aux exigences spécifiques établies par l'opérateur de la machine en ce qui concerne l'emploi des machines et qui font l'objet de négociations entre le fabricant et le gestionnaire d'infrastructure ;
-   aux modes travail et déplacement lorsque la machine ne circule pas sur les rails ;
-   aux machines distinctes montées provisoirement sur les machines ou équipements associés ;
-   aux machines déraillables définies en 3.2 ;
-   aux remorques définies en 3.3, y compris les remorques rail-route.
Les véhicules qui ne sont pas eux-mêmes guidés par la voie, mais qui ont des accessoires guidés par la voie ne sont pas considérés comme des machines rail-route.
Les prescriptions du présent document sont amendées et complétées par les prescriptions du FprEN 15746-4 pour les machines conçues et destinées à emprunter les réseaux ferroviaires urbains.
Le présent document n'entend pas non plus définir les exigences supplémentaires suivantes :
-   mise en œuvre de la machine dans des conditions soumises à des règles particulières (par exemple, atmosphères potentiellement explosives) ;
-   dangers dus à des causes naturelles (tremblement de terre, foudre, inondation, etc.) ;
-   méthodes de travail ;
-   exploitation de la machine dans des conditions de travail rigoureuses nécessitant des mesures particulières (en tunnels ou en tranchées, par exemple) ou dans des conditions d'environnement extrêmes (températures très froides ou très élevées, environnements corrosifs, tropicaux ou contaminants, forts champs magnétiques) ;
-   dangers dus aux erreurs de logiciels ;
-   dangers dus aux mouvements de charges librement suspendues susceptibles de se balancer.
Pour une machine rail-route, il est supposé qu'un véhicule-hôte autorisé à circuler sur le réseau routier au sein de l'Union européenne offrira un niveau de sécurité acceptable pour ses fonctions de base avant conversion. Sauf spécification contraire explicite dans un article particulier, cet aspect spécifique n'est pas traité dans la présente Norme européenne.
Les autres machines de construction et de maintenance de la voie empruntant également les voies ferrées sont couvertes par d'autres Normes européennes (voir Annexe F).
1.2   Validité du présent document
Le présent document s'applique à toutes les machines commandées un an ou plus après la date de publication CEN du présent document.

Železniške naprave - Zgornji ustroj proge - Dvopotna železniška vozila in oprema - 1. del: Tehnične zahteve za vožnjo in delovanje

General Information

Status
Published
Public Enquiry End Date
31-Mar-2019
Publication Date
10-Jan-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
04-Jan-2021
Due Date
11-Mar-2021
Completion Date
11-Jan-2021

RELATIONS

Buy Standard

Standard
SIST EN 15746-1:2021
English language
87 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Draft
kSIST FprEN 15746-1:2019
English language
84 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 15746-1:2021
01-marec-2021
Nadomešča:
SIST EN 15746-1:2011+A1:2012

Železniške naprave - Zgornji ustroj proge - Dvopotna železniška vozila in oprema -

1. del: Tehnične zahteve za vožnjo in delovanje

Railway applications - Track - Road-rail machines and associated equipment - Part 1:

Technical requirements for travelling and working
Bahnanwendungen - Oberbau - Zweiwege-Maschinen und zugehörige Ausrüstungen -
Teil 1: Technische Anforderungen an die Versetzfahrt und den Arbeitseinsatz

Applications ferroviaires - Voie - Machines rail-route et équipements associés - Partie 1 :

Exigences techniques pour le déplacement et le travail
Ta slovenski standard je istoveten z: EN 15746-1:2020
ICS:
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
SIST EN 15746-1:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 15746-1:2021
---------------------- Page: 2 ----------------------
SIST EN 15746-1:2021
EN 15746-1
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2020
EUROPÄISCHE NORM
ICS 93.100 Supersedes EN 15746-1:2010+A1:2011
English Version
Railway applications - Track - Road-rail machines and
associated equipment - Part 1: Technical requirements for
travelling and working

Applications ferroviaires - Voie - Machines rail-route et Bahnanwendungen - Oberbau - Zweiwege-Maschinen

équipements associés - Partie 1 : Prescriptions und zugehörige Ausrüstungen - Teil 1: Technische

techniques pour le déplacement et le travail Anforderungen an die Versetzfahrt und den

Arbeitseinsatz
This European Standard was approved by CEN on 5 May 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15746-1:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 15746-1:2021
EN 15746-1:2020 (E)

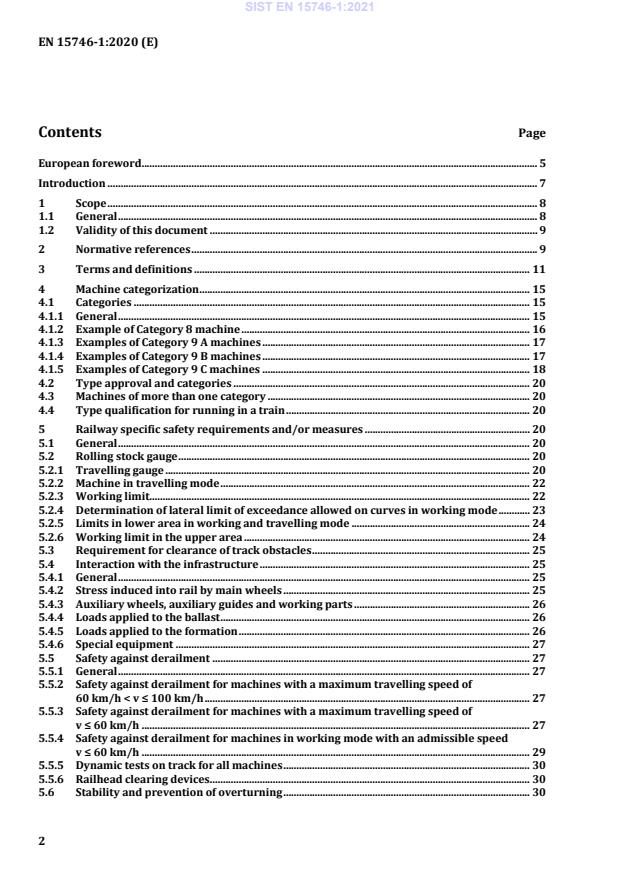

Contents Page

European foreword ....................................................................................................................................................... 5

Introduction .................................................................................................................................................................... 7

1 Scope .................................................................................................................................................................... 8

1.1 General ................................................................................................................................................................ 8

1.2 Validity of this document ............................................................................................................................. 9

2 Normative references .................................................................................................................................... 9

3 Terms and definitions ................................................................................................................................ 11

4 Machine categorization .............................................................................................................................. 15

4.1 Categories ....................................................................................................................................................... 15

4.1.1 General ............................................................................................................................................................. 15

4.1.2 Example of Category 8 machine .............................................................................................................. 16

4.1.3 Examples of Category 9 A machines ...................................................................................................... 17

4.1.4 Examples of Category 9 B machines ...................................................................................................... 17

4.1.5 Examples of Category 9 C machines ...................................................................................................... 18

4.2 Type approval and categories ................................................................................................................. 20

4.3 Machines of more than one category .................................................................................................... 20

4.4 Type qualification for running in a train ............................................................................................. 20

5 Railway specific safety requirements and/or measures ............................................................... 20

5.1 General ............................................................................................................................................................. 20

5.2 Rolling stock gauge ...................................................................................................................................... 20

5.2.1 Travelling gauge ........................................................................................................................................... 20

5.2.2 Machine in travelling mode ...................................................................................................................... 22

5.2.3 Working limit................................................................................................................................................. 22

5.2.4 Determination of lateral limit of exceedance allowed on curves in working mode ............ 23

5.2.5 Limits in lower area in working and travelling mode .................................................................... 24

5.2.6 Working limit in the upper area ............................................................................................................. 24

5.3 Requirement for clearance of track obstacles ................................................................................... 25

5.4 Interaction with the infrastructure ....................................................................................................... 25

5.4.1 General ............................................................................................................................................................. 25

5.4.2 Stress induced into rail by main wheels .............................................................................................. 25

5.4.3 Auxiliary wheels, auxiliary guides and working parts ................................................................... 26

5.4.4 Loads applied to the ballast ...................................................................................................................... 26

5.4.5 Loads applied to the formation ............................................................................................................... 26

5.4.6 Special equipment ....................................................................................................................................... 27

5.5 Safety against derailment ......................................................................................................................... 27

5.5.1 General ............................................................................................................................................................. 27

5.5.2 Safety against derailment for machines with a maximum travelling speed of

60 km/h < v ≤ 100 km/h ............................................................................................................................ 27

5.5.3 Safety against derailment for machines with a maximum travelling speed of

v ≤ 60 km/h .................................................................................................................................................... 27

5.5.4 Safety against derailment for machines in working mode with an admissible speed

v ≤ 60 km/h .................................................................................................................................................... 29

5.5.5 Dynamic tests on track for all machines .............................................................................................. 30

5.5.6 Railhead clearing devices .......................................................................................................................... 30

5.6 Stability and prevention of overturning .............................................................................................. 30

---------------------- Page: 4 ----------------------
SIST EN 15746-1:2021
EN 15746-1:2020 (E)

5.6.1 Proof of stability against overturning, machine stationary in rail configuration ................. 30

5.6.2 Proof of stability when moving along the track in working mode .............................................. 33

5.6.3 Load moment control and display device ............................................................................................ 34

5.7 Machine frame structure ........................................................................................................................... 36

5.7.1 Design of the machine frame .................................................................................................................... 36

5.7.2 Demountable modules ................................................................................................................................ 36

5.7.3 Lifting and jacking points .......................................................................................................................... 37

5.8 Inter-machine couplings ............................................................................................................................ 37

5.8.1 General ............................................................................................................................................................. 37

5.8.2 Towing adaptor ............................................................................................................................................. 38

5.9 Running gear .................................................................................................................................................. 38

5.9.1 General ............................................................................................................................................................. 38

5.9.2 Distribution of the wheelset forces in travelling mode .................................................................. 39

5.9.3 Machine rail wheel base ............................................................................................................................. 39

5.9.4 Rail wheel and wheel profile in travelling mode .............................................................................. 39

5.9.5 Rail wheel arrangements ........................................................................................................................... 41

5.9.6 Load on rail wheels ...................................................................................................................................... 41

5.9.7 Load on rail wheels in working configuration ................................................................................... 43

5.9.8 Operation of spring loaded points .......................................................................................................... 44

5.9.9 Ratio of wheel load on guiding wheels to road axle load ............................................................... 44

5.10 Rail wheel suspension................................................................................................................................. 45

5.10.1 Rail wheel suspension systems ............................................................................................................... 45

5.10.2 Positively locked suspension ................................................................................................................... 46

5.10.3 Active suspension ......................................................................................................................................... 46

5.10.4 All suspension systems ............................................................................................................................... 46

5.11 Braking ............................................................................................................................................................. 46

5.11.1 General braking requirements ................................................................................................................ 46

5.11.2 Requirements for Category 9 machines in travelling and working modes ............................. 46

5.12 Driving and working cabs and places .................................................................................................... 48

5.13 Controls ............................................................................................................................................................ 48

5.14 Visibility and audibility of the machine ................................................................................................ 48

5.14.1 General ............................................................................................................................................................. 48

5.14.2 Marker lights in travelling mode ............................................................................................................ 48

5.14.3 Lighting with failed engine ........................................................................................................................ 49

5.14.4 Lamp brackets ............................................................................................................................................... 49

5.14.5 Light switching arrangements ................................................................................................................. 51

5.14.6 Head lights ....................................................................................................................................................... 51

5.14.7 Lighting in working mode .......................................................................................................................... 51

5.14.8 Warning horns ............................................................................................................................................... 51

5.14.9 Colour of the machine ................................................................................................................................. 51

5.15 Warning systems for personnel of traffic on adjacent track ......................................................... 52

5.15.1 General ............................................................................................................................................................. 52

5.15.2 Permanently mounted acoustic warning systems ............................................................................ 52

5.15.3 Permanently mounted optical warning systems ............................................................................ 52

5.15.4 Designated space for mobile warning devices ................................................................................... 52

5.16 Electrical equipment and equipotential bonding ............................................................................. 53

5.16.1 Equipotential bonding ................................................................................................................................ 53

5.16.2 Antennae .......................................................................................................................................................... 53

5.16.3 Pantograph ...................................................................................................................................................... 53

5.17 Electromagnetic compatibility ................................................................................................................ 53

5.17.1 Emissions from machines .......................................................................................................................... 53

5.17.2 Immunity of machines from railway environment .......................................................................... 53

5.18 Power supply .................................................................................................................................................. 54

---------------------- Page: 5 ----------------------
SIST EN 15746-1:2021
EN 15746-1:2020 (E)

5.19 Failure recovery conditions ..................................................................................................................... 54

5.19.1 Towing devices .............................................................................................................................................. 54

5.19.2 Emergency device ........................................................................................................................................ 54

5.20 On and off tracking ...................................................................................................................................... 54

5.20.1 General ............................................................................................................................................................. 54

5.20.2 Use of turntables .......................................................................................................................................... 55

5.21 Setting up and packing away .................................................................................................................... 55

5.21.1 General ............................................................................................................................................................. 55

5.21.2 Emergency recovery of equipment ........................................................................................................ 55

5.22 Mobile elevating work platform (MEWP) and excavators/loaders used as MEWPs ........... 55

5.23 Attachments ................................................................................................................................................... 55

5.23.1 General ............................................................................................................................................................. 55

5.23.2 General attachments for raising and lowering personnel ............................................................ 56

5.23.3 Attachments with rail guidance wheels ............................................................................................... 56

5.24 Environmental protection ........................................................................................................................ 56

5.24.1 General ............................................................................................................................................................. 56

5.24.2 Carriage and storage of fuel and oil ....................................................................................................... 56

5.24.3 Tanks and equipment ................................................................................................................................. 56

6 Marking and numbering of the machines ........................................................................................... 56

6.1 Warning signs and pictograms ................................................................................................................ 56

6.2 Machine identification number .............................................................................................................. 57

7 User information .......................................................................................................................................... 57

8 Verification of the conformity to the requirements and/or particular safety

measures ......................................................................................................................................................... 60

Annex A (normative) Special national conditions ........................................................................................... 61

Annex B (normative) Check list for conformity ............................................................................................... 73

Annex C (informative) Certificates ........................................................................................................................ 78

C.1 Certificate of type approval to EN 15746-1:2020 ............................................................................. 78

C.2 Conformance control document for the technical requirements of EN 15746-1:2020 ...... 79

C.2.1 Machine identification ............................................................................................................................... 79

C.2.2 General characteristics .............................................................................................................................. 79

Annex D (informative) Machine numbering structure for Category 9 machines not designed

to operate track signalling and control systems ............................................................................... 81

Annex E (informative) Machine identification plate for Category 9 machines not designed to

operate track signalling and control systems .................................................................................... 84

Annex F (informative) Structure of European Standards for track construction and

maintenance machines .............................................................................................................................. 85

Bibliography ................................................................................................................................................................. 87

---------------------- Page: 6 ----------------------
SIST EN 15746-1:2021
EN 15746-1:2020 (E)
European foreword

This document (EN 15746-1:2020) has been prepared by Technical Committee CEN/TC 256 “Railway

applications”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by June 2021, and conflicting national standards shall be

withdrawn at the latest by June 2021.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 15746-1:2010+A1:2011.
Principal amended clauses compared to EN 15746-1:2010+A1:2011:
— general All references updated to latest issue;
— running, travelling and working modes adopted;
— requirements solely for running mode moved to new EN 15746-3:2020;
— 4.3 New clause;

— 5.5 Clause on safety against derailment enhanced to provide greater clarity and increased options

for testing;

— 5.6 Specific requirements for prevention of overturning moved from EN 15746-2:2010+A1:2011,

5.11 with enhanced requirements for RCI/RCL and data recording;
— 5.7 Requirements for frame structure simplified;
— requirements for demountable modules added;
— 5.8 Requirements for couplings made more specific for road-rail machines;
— 5.14 Requirements for lighting amended;
— 5.16 Requirements for pantographs enhanced;
— 5.24 New clause for environmental protection;
— Annexes All annexes reviewed and updated;
— Annex C Now informative;

— Annex D Now informative and the identification number changed to commence ZZ;

— Annex E Now informative.

EN 15746, Railway applications — Track — Road-rail machines and associated equipment, is currently

composed with the following parts:
---------------------- Page: 7 ----------------------
SIST EN 15746-1:2021
EN 15746-1:2020 (E)
— Part 1: Technical requirements for travelling and working;
— Part 2: General safety requirements;
— Part 3: Technical requirements for running;

— Part 4: Technical requirements for running, travelling and working on urban rail.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 8 ----------------------
SIST EN 15746-1:2021
EN 15746-1:2020 (E)
Introduction

This European Standard was prepared to meet the essential requirements of EU Directives to facilitate

an open market for goods and services.

This document is the first of a series of four parts of the European Standard: Railway applications —

Track — Road-rail machines and associated equipment, dealing with railway specific risks of the road-

rail machines when running, travelling and working on railway infrastructures:

— Part 1 covers the technical requirements for the machines in travelling and working modes, and is

applicable for all machines.

— Part 2 covers the safety requirements for the machines in travelling and working modes; this is a

document harmonized with the European Machinery Directive 2006/42/EC.

— Part 3 covers the essential requirements for the machines that have a running mode and run on

tracks within the scope of the Railway Directive 2007/58/EC; this is a document harmonized with

the Railway Interoperability Directive 2008/57/EC and its associated Technical Specifications for

Interoperability (TSI).

— Part 4 covers the technical requirements for the machines that have a running mode on urban rail

and/or for machines intended to have running, travelling and/or working mode on urban rail.

Part 1 defines requirements for approval of the machine for use on the railway. Depending on the

decision of the Infrastructure Manager or National rules the assessment of conformance could be by the

Infrastructure Manager concerned, by a third party assessor or declaration of conformity by the

manufacturer.

Part 2 defines requirements for the machine to be declared conformant by the manufacturer, except in

the case of machines classified under Annex 4 of the Machinery Directive, which require a conformity

check in conjunction with a notified body.

Part 3 defines requirements for running on the European railway network. Assessment of conformity is

by a notified body as prescribed in the Railway Interoperability Directive.

Part 4 defines requirements for approval of the machine for use on urban rail. Depending on the

decision of the manager of the network or National rules the assessment of conformance could be by

the Urban Rail Manager concerned, by a third party assessor or declaration of conformity by the

manufacturer.

The risks which exist in all mechanical, electrical, hydraulic, pneumatic and other components of

machines and which are dealt with in the relevant European Standards are not within the scope of this

European Standard. Where necessary, references are made to appropriate standards of this type.

---------------------- Page: 9 ----------------------
SIST EN 15746-1:2021
EN 15746-1:2020 (E)
1 Scope
1.1 General

This document deals with the technical requirements to minimize the specific railway hazards of self-

propelled road-rail machines – henceforward referred to as machines – and associated equipment,

which can arise during the commissioning, operation and maintenance of the machines when carried

out in accordance with the specification given by the manufacturer or his authorize

...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bahnanwendungen - Oberbau - Zweiwege-Maschinen und zugehörige Ausrüstungen - Teil 1: Technische Anforderungen an die Versetzfahrt und den ArbeitseinsatzApplications ferroviaires - Voie - Machines rail-route et équipements associés - Partie 1 : Exigences techniques pour le déplacement et le travailRailway applications - Track - Road-rail machines and associated equipment - Part 1: Technical requirements for travelling and working45.060.01Železniška vozila na splošnoRailway rolling stock in generalICS:Ta slovenski standard je istoveten z:FprEN 15746-1kSIST FprEN 15746-1:2019en,fr,de01-marec-2019kSIST FprEN 15746-1:2019SLOVENSKI

STANDARD
kSIST FprEN 15746-1:2019
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
FINAL DRAFT
FprEN 15746-1
January
t r s { ICS
{ uä s r r Will supersede EN
s w y v xæ sã t r s r ªA sã t r s sEnglish Version

Railway applications æ Track æ Roadærail machines and associated equipment æ Part

sã Technical requirements for travelling and working Applications ferroviaires æ Voie æ Machines railæroute et équipements associés æ Partie

s ã Exigences techniques pour le déplacement et le travail

Bahnanwendungen æ Oberbau æ ZweiwegeæMaschinen und zugehörige Ausrüstungen æ Teil

sã Technische Anforderungen an die Versetzfahrt und den Arbeitseinsatz This draft European Standard is submitted to CEN members for unique acceptance procedureä It has been drawn up by the

If this draft becomes a European Standardá CEN members are bounwhich stipulate the conditions for giving this European Standard the status of a national standard without any alterationä

This draft European Standard was established by CEN in three ofer language made by translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

Recipients of this draft are invited to submitá with their commentsá notification of any relevant patent rights of which they are aware and to provide supporting documentationä

Warning ã This document is not a European Standardä It is distributed for review and commentsä It is subject to change without notice and shall not be referred to as a European Standardä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels

t r s { CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä FprEN

s w y v xæ sã t r s { EkSIST FprEN 15746-1:2019
FprEN 15746-1:2019 (E) 2 Contents

Page European foreword ....................................................................................................................................................... 5 Introduction .................................................................................................................................................................... 6 1 Scope .................................................................................................................................................................... 7 1.1 General ................................................................................................................................................................ 7 1.2 Validity of this document ............................................................................................................................. 8 2 Normative references .................................................................................................................................... 8 3 Terms and definitions ................................................................................................................................ 10 4 Machine categorization .............................................................................................................................. 14 4.1 Categories ....................................................................................................................................................... 14 4.1.1 General ............................................................................................................................................................. 14 4.1.2 Example of Category 8 machine .............................................................................................................. 15 4.1.3 Examples of Category 9 A machines ...................................................................................................... 16 4.1.4 Examples of Category 9 B machines ...................................................................................................... 16 4.1.5 Examples of Category 9 C machines ...................................................................................................... 17 4.2 Type approval and categories ................................................................................................................. 19 4.3 Machines of more than one category .................................................................................................... 19 4.4 Type qualification for running in a train ............................................................................................. 19 5 Railway specific safety requirements and/or measures ............................................................... 19 5.1 General ............................................................................................................................................................. 19 5.2 Rolling stock gauge ...................................................................................................................................... 19 5.2.1 Travelling gauge ........................................................................................................................................... 19 5.2.2 Machine in travelling mode ...................................................................................................................... 20 5.2.3 Working limit................................................................................................................................................. 21 5.2.4 Determination of lateral limit of exceedance allowed on curves in working mode ............ 22 5.2.5 Limits in lower area in working and travelling mode .................................................................... 22 5.2.6 Working limit in the upper area ............................................................................................................. 23 5.3 Requirement for clearance of track obstacles ................................................................................... 24 5.4 Interaction with the infrastructure ....................................................................................................... 24 5.4.1 General ............................................................................................................................................................. 24 5.4.2 Stress induced into rail by main wheels .............................................................................................. 24 5.4.3 Auxiliary wheels, auxiliary guides and working parts ................................................................... 25 5.4.4 Loads applied to the ballast ...................................................................................................................... 25 5.4.5 Loads applied to the formation ............................................................................................................... 25 5.4.6 Special equipment ....................................................................................................................................... 26 5.5 Safety against derailment ......................................................................................................................... 26 5.5.1 General ............................................................................................................................................................. 26 5.5.2 Safety against derailment for machines with a maximum travelling speed of 60 km/h < v

100 km/h ............................................................................................................................ 26 5.5.3 Safety against derailment for machines with a maximum travelling speed of

60 km/h .................................................................................................................................................... 26 5.5.4 Safety against derailment for machines in working mode with an admissible speed v

60 km/h .................................................................................................................................................... 28 5.5.5 Dynamic tests on track for all machines .............................................................................................. 29 5.5.6 Railhead clearing devices .......................................................................................................................... 29 5.6 Stability and prevention of overturning .............................................................................................. 29 kSIST FprEN 15746-1:2019

FprEN 15746-1:2019 (E) 3 5.6.1 Proof of stability against overturning, machine stationary in rail configuration ................. 29 5.6.2 Proof of stability when moving along the track in working mode .............................................. 32 5.6.3 Load moment control and display device ............................................................................................ 33 5.7 Machine frame structure ........................................................................................................................... 35 5.7.1 Design of the machine frame .................................................................................................................... 35 5.7.2 Demountable modules ................................................................................................................................ 35 5.7.3 Lifting and jacking points .......................................................................................................................... 36 5.8 Inter-machine couplings ............................................................................................................................ 36 5.8.1 General ............................................................................................................................................................. 36 5.8.2 Towing adaptor ............................................................................................................................................. 37 5.9 Running gear .................................................................................................................................................. 37 5.9.1 General ............................................................................................................................................................. 37 5.9.2 Distribution of the wheelset forces in travelling mode .................................................................. 38 5.9.3 Machine rail wheel base ............................................................................................................................. 38 5.9.4 Rail wheel and wheel profile in travelling mode .............................................................................. 38 5.9.5 Rail wheel arrangements ........................................................................................................................... 39 5.9.6 Load on rail wheels ...................................................................................................................................... 39 5.9.7 Load on rail wheels in working configuration ................................................................................... 40 5.9.8 Operation of spring loaded points .......................................................................................................... 42 5.9.9 Ratio of wheel load on guiding wheels to road axle load ............................................................... 42 5.10 Rail wheel suspension................................................................................................................................. 43 5.10.1 Rail wheel suspension systems ............................................................................................................... 43 5.10.2 Positively locked suspension ................................................................................................................... 43 5.10.3 Active suspension ......................................................................................................................................... 44 5.10.4 All suspension systems ............................................................................................................................... 44 5.11 Braking ............................................................................................................................................................. 44 5.11.1 General braking requirements ................................................................................................................ 44 5.11.2 Requirements for Category 9 machines in travelling and working modes ............................. 44 5.12 Driving and working cabs and places .................................................................................................... 46 5.13 Controls ............................................................................................................................................................ 46 5.14 Visibility and audibility of the machine ................................................................................................ 46 5.14.1 General ............................................................................................................................................................. 46 5.14.2 Marker lights in travelling mode ............................................................................................................ 46 5.14.3 Lighting with failed engine ........................................................................................................................ 47 5.14.4 Lamp brackets ............................................................................................................................................... 47 5.14.5 Light switching arrangements ................................................................................................................. 49 5.14.6 Head lights ....................................................................................................................................................... 49 5.14.7 Lighting in working mode .......................................................................................................................... 49 5.14.8 Warning horns ............................................................................................................................................... 50 5.14.9 Colour of the machine ................................................................................................................................. 50 5.15 Warning systems for personnel of traffic on adjacent track ......................................................... 50 5.15.1 General ............................................................................................................................................................. 50 5.15.2 Permanently mounted acoustic warning systems ............................................................................ 51 5.15.3 Permanently

mounted

optical warning systems ............................................................................ 51 5.15.4 Designated space for mobile warning devices ................................................................................... 51 5.16 Electrical equipment and equipotential bonding ............................................................................. 51 5.16.1 Equipotential bonding ................................................................................................................................ 51 5.16.2 Antennae .......................................................................................................................................................... 51 5.16.3 Pantograph ...................................................................................................................................................... 51 5.17 Electromagnetic compatibility ................................................................................................................ 52 5.17.1 Emissions from machines .......................................................................................................................... 52 5.17.2 Immunity of machines from railway environment .......................................................................... 52 5.18 Power supply .................................................................................................................................................. 52 kSIST FprEN 15746-1:2019

FprEN 15746-1:2019 (E) 4 5.19 Failure recovery conditions ..................................................................................................................... 52 5.19.1 Towing devices .............................................................................................................................................. 52 5.19.2 Emergency device ........................................................................................................................................ 53 5.20 On and off tracking ...................................................................................................................................... 53 5.20.1 General ............................................................................................................................................................. 53 5.20.2 Use of turntables .......................................................................................................................................... 53 5.21 Setting up and packing away .................................................................................................................... 53 5.21.1 General ............................................................................................................................................................. 53 5.21.2 Emergency recovery of equipment ........................................................................................................ 54 5.22 Mobile elevating work platform (MEWP) and excavators/loaders used as MEWPs ........... 54 5.23 Attachments ................................................................................................................................................... 54 5.23.1 General ............................................................................................................................................................. 54 5.23.2 General attachments for raising and lowering personnel ............................................................ 54 5.23.3 Attachments with rail guidance wheels ............................................................................................... 54 5.24 Environmental protection ........................................................................................................................ 54 5.24.1 General ............................................................................................................................................................. 54 5.24.2 Carriage and storage of fuel and oil ....................................................................................................... 54 5.24.3 Tanks and equipment ................................................................................................................................. 55 6 Marking and numbering of the machines ........................................................................................... 55 6.1 Warning signs and pictograms ................................................................................................................ 55 6.2 Machine identification number .............................................................................................................. 55 7 User information .......................................................................................................................................... 55 8 Verification of the conformity to the requirements and/or particular safety measures ......................................................................................................................................................... 58 Annex A (normative)

Special national conditions ........................................................................................... 59 Annex B (normative)

Check list for conformity ............................................................................................... 71 Annex C (informative)

Certificates ........................................................................................................................ 75 C.1 Certificate of type approval to FprEN 15746-1:2019 ...................................................................... 75 C.2 Conformance control document for the technical requirements of FprEN 15746-1:2019 ................................................................................................................................... 76 C.2.1 Machine identification ............................................................................................................................... 76 C.2.2 General characteristics .............................................................................................................................. 76 Annex D (informative)

Machine numbering structure for Category 9 machines not designed to operate track signalling and control systems ............................................................................... 78 Annex E (informative)

Machine identification plate for Category 9 machines not designed to operate track signalling and control systems .................................................................................... 81 Annex F (informative)

Structure of European Standards for track construction and maintenance machines .............................................................................................................................. 82 Bibliography ................................................................................................................................................................. 84

kSIST FprEN 15746-1:2019

FprEN 15746-1:2019 (E) 5 European foreword This document (FprEN 15746-1:2019) has been prepared by Technical Committee CEN/TC 256 “Railway applications”, the secretariat of which is held by DIN. This document is currently submitted to the Unique Acceptance Procedure. This document will supersede EN 15746-1:2010+A1:2011. EN 15746, Railway applications — Track — Road-rail machines and associated equipment, is currently composed with the following parts: — Part 1: Technical requirements for travelling and working; — Part 2: General safety requirements; — Part 3: Technical requirements for running; — Part 4: Technical requirements for running, travelling and working on urban rail. kSIST FprEN 15746-1:2019

FprEN 15746-1:2019 (E) 6 Introduction This European Standard was prepared to meet the essential requirements of EU Directives to facilitate an open market for goods and services. This document is the first of a series of four parts of the European Standard: Railway applications — Track — Road-rail machines and associated equipment, dealing with railway specific risks of the road-rail machines when running, travelling and working on railway infrastructures: — Part 1 covers the technical requirements for the machines in working and travelling modes, and is applicable for all machines. — Part 2 covers the safety requirements for the machines in working and travelling modes; this is a document harmonized with the European Machinery Directive 2006/42/EC. — Part 3 covers the essential requirements for the machines that have a running mode and run on tracks within the scope of the Railway Directive 2007/58/EC; this is a document harmonized with the Railway Interoperability Directive 2008/57/EC and its associated Technical Specifications for Interoperability (TSI). — Part 4 covers the technical requirements for the machines intended to have working, travelling and/or running mode on urban rail. Part 1 defines requirements for approval of the machine for use on the railway. Depending on the decision of the Infrastructure Manager or National rules the assessment of conformance could be by the Infrastructure Manager concerned, by a third party assessor or declaration of conformity by the manufacturer. Part 2 defines requirements for the machine to be declared conformant by the manufacturer, except in the case of machines classified under Annex 4 of the Machinery Directive, which require a conformity check in conjunction with a notified body. Part 3 defines requirements for running on the European railway network. Assessment of conformity is by a notified body as prescribed in the Railway Interoperability Directive. Part 4 defines requirements for approval of the machine for use on urban rail. Depending on the decision of the manager of the network or National rules the assessment of conformance could be by the Urban Rail Manager concerned, by a third party assessor or declaration of conformity by the manufacturer. The risks which exist in all mechanical, electrical, hydraulic, pneumatic and other components of machines and which are dealt with in the relevant European Standards are not within the scope of this European Standard. Where necessary, references are made to appropriate standards of this type. kSIST FprEN 15746-1:2019

FprEN 15746-1:2019 (E) 7 1 Scope 1.1 General This document deals with the technical requirements to minimize the specific railway hazards of self-propelled road-rail machines – henceforward referred to as machines – and associated equipment, which can arise during the commissioning, operation and maintenance of the machines when carried out in accordance with the specification given by the manufacturer or his authorized representative. These risks are normally common regardless of the track gauge.

However, additional requirements can apply for travelling and working on infrastructures with narrow gauge or broad gauge lines, railways utilizing other than adhesion between the rail and rail wheels and underground infrastructures. This document is also applicable for machines and associated equipment that in working configuration are partly supported on the ballast or the formation. Such machines are capable of independent self-propelled movement on the ground. This document does not apply to the following: — the requirements for quality of the work or performance of the machine; — the specific requirements established by the machine operator for the use of machines, which will be the subject of negotiation between the manufacturer and the Infrastructure Manager; — moving and working while not on rails; — separate machines temporarily mounted on machines and associated equipment; — demountable machines as defined in 3.2; — trailers as defined in 3.3, including road-rail trailers. Vehicles which are not track-guided themselves but have attachments that are track-guided are not road-rail machines. The requirements within this document are amended and added to by the requirements in FprEN 15746-4 for machines designed and intended to use urban rail. This document does not establish the additional requirements for the following: — operation subject to special rules, e.g. potentially explosive atmospheres; — hazards due to natural causes, e.g. earthquake, lightning, flooding; — working methods; — operation in severe working conditions requiring special measures, e.g. work in tunnels or in cuttings, extreme environmental conditions such as: freezing temperatures, high temperatures, corrosive environments, tropical environments, contaminating environments, strong magnetic fields; — hazards due to errors in software; — hazards occurring when used to handle suspended loads which may swing freely. kSIST FprEN 15746-1:2019

FprEN 15746-1:2019 (E) 8 For a road-rail machine it is assumed that an EU road permissible host vehicle will offer an accepted safety level for its designed basic functions before conversion. Unless explicitly stated otherwise in a particular clause this specific aspect is not dealt with in this European Standard. Other track construction and maintenance machines used on railway tracks are dealt with in other European Standards, see Annex F. 1.2 Validity of this document This document applies to all machines which are ordered one year after the publicatio

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
