EN 15878:2010
(Main)Steel static storage systems - Terms and definitions
Steel static storage systems - Terms and definitions
This European Standard specifies terms and definitions for steel storage systems, as listed in Table 1, and their basic components and accessories.
NOTE Terms and definitions for mechanical handling equipment and load make-up accessories are included in informative annexes.
Ortsfeste Regale aus Stahl - Begriffe
Diese Europäische Norm legt Begriffe für ortsfeste Regale aus Stahl, wie in Tabelle 1 angeführt, und deren
Grundelemente und Zubehörteile fest.
ANMERKUNG Die Begriffe für die Fördermittel und Ladehilfsmittel sind in den informativen Anhängen aufgeführt.
Système de stockage statiques en acier - Termes et définitions
La présente Norme européenne spécifie les termes et définitions des systèmes de stockage en acier et en donne la liste dans le Tableau 1 ainsi que de leurs composants et accessoires de base.
NOTE Les termes et définitions des appareils de manutention mécanique et des accessoires de composition de la charge sont inclus dans des annexes informatives.
Stabilni jekleni sistemi za skladiščenje - Izrazi in definicije
Ta evropski standard določa izraze in definicije za jeklene sisteme za skladiščenje, kot so navedeni v preglednici 1, ter njihove osnovne sestavne dele in dodatke.
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ortsfeste Regale aus Stahl - BegriffeSystèmes de stockage statiques en acier - Termes et définitionsSteel static storage systems - Terms and definitions53.080Storage equipment01.040.53Oprema za transport materiala (Slovarji)Materials handling equipment (Vocabularies)ICS:Ta slovenski standard je istoveten z:EN 15878:2010SIST EN 15878:2010en,fr01-september-2010SIST EN 15878:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15878
July 2010 ICS 01.040.53; 53.080 English Version
Steel static storage systems - Terms and definitions
Système de stockage statiques en acier - Termes et définitions
Ortsfeste Regale aus Stahl - Begriffe This European Standard was approved by CEN on 19 June 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15878:2010: ESIST EN 15878:2010

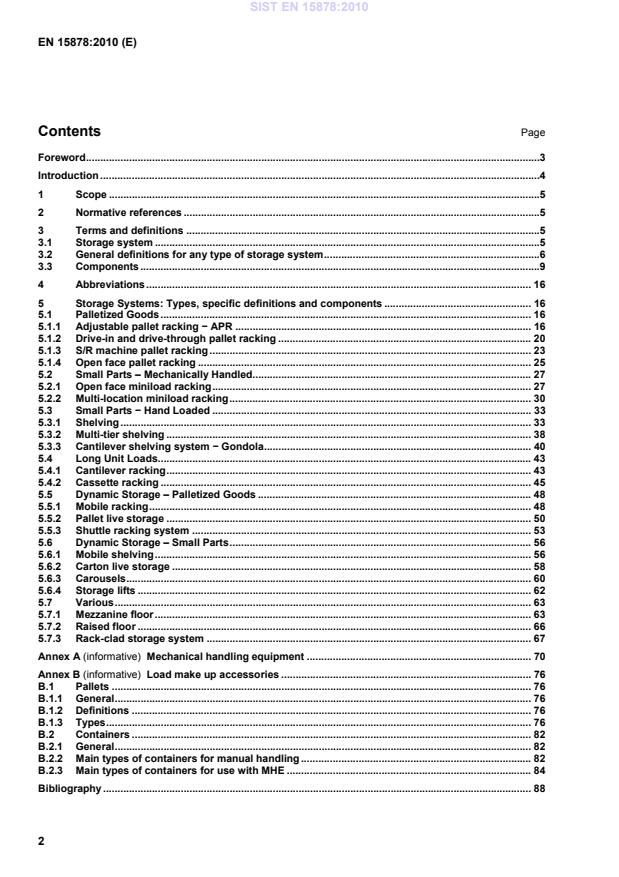

Mechanical handling equipment . 70Annex B (informative)
Load make up accessories . 76B.1 Pallets . 76B.1.1 General . 76B.1.2 Definitions . 76B.1.3 Types . 76B.2 Containers . 82B.2.1 General . 82B.2.2 Main types of containers for manual handling . 82B.2.3 Main types of containers for use with MHE . 84Bibliography . 88SIST EN 15878:2010
This standard will clarify this position and result in a positive identification of the various items of storage equipment. SIST EN 15878:2010
NOTE Terms and definitions for mechanical handling equipment and load make-up accessories are included in informative annexes. 2 Normative references Not applicable. 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 Storage system 3.1.1 storage system steel racking or shelving structure designed to store unit loads in a safe and organized way
NOTE
Table 1 shows the types of storage systems.
5.1 Palletized Goods 5.1.1 Adjustable pallet racking
5.1.2 Drive-in and drive-through pallet racking
5.1.3 S/R machine pallet racking 5.1.4 Open face pallet racking
5.2 Small Parts Mechanically Handled 5.2.1 Open face miniload racking
5.2.2 Multi-location miniload racking
5.3 Small Parts Hand Loaded 5.3.1 Shelving 5.3.2 Multi-tier shelving 5.3.3 Cantilever shelving - Gondola 5.4 Long Unit Loads
5.4.1 Cantilever racking 5.4.2 Cassette racking 5.5 Dynamic Storage Palletized Goods 5.5.1 Mobile racking 5.5.2 Pallet live storage 5.5.3 Shuttle racking 5.6 Dynamic Storage Small Parts 5.6.1 Mobile shelving 5.6.2 Carton live storage 5.6.3 Carousels 5.6.4 Storage lifts 5.7 Various 5.7.1 Mezzanine floor 5.7.2 Raised floor 5.7.3 Rack-clad
3.2 General definitions for any type of storage system 3.2.1 general arrangement plan view and elevation of the installation
NOTE
See Figure 1. SIST EN 15878:2010
Key a gangway b pedestrian passageway c bay d passageway e compartment f storage level g marshalling area h single entry run i double entry run j operating aisle Figure 1 — Example of racking general arrangement 3.2.2 unit load individual item which can be placed or retrieved in one operation, e.g. a pallet or a container with goods in a racking system or an individual box or a package in a shelving system
NOTE 1
See Figure 2. NOTE 2 More than one unit load may be handled in one operation. SIST EN 15878:2010
a) Loaded pallet
b) Loaded container
c) Individual boxes Figure 2 — Examples of unit loads 3.2.3 bay module between uprights or upright frames
3.2.4 run series of connected bays
3.2.5 warehouse building for storing and handling unit loads 3.2.6 compartment volume limited by adjacent frames down-aisle and adjacent storage levels in height 3.2.7 storage level area or set of components intended to support the stored unit loads at a particular height
3.2.8 compartment load load which can be stored in one compartment 3.2.9 bay load total allowable weight of all the unit loads in a bay not including unit loads which might be stored on the floor of the bay 3.2.10 single entry rack run of racking or shelving accessible from one operating aisle only 3.2.11 double entry rack run of racking or shelving accessible from two operating aisles SIST EN 15878:2010
racking in which unit loads can be stored two deep from one operating aisle 3.2.14 down-aisle direction
direction parallel to a run 3.2.15 cross-aisle direction
direction perpendicular to a run 3.2.16 clearance nominal dimension between items to ensure safe operation related to a tolerance-free, undeformed system 3.2.17 operating aisle space giving direct access to picking and loading faces 3.2.18 operating aisle width minimum dimension across the aisle at any level between either unit loads located in their nominal position or between the rack structure components 3.2.19
gangway space for movem
...
