EN 16304:2022

Automatic vent valves for gas burners and gas burning appliances

EN 13611:2019, Clause 1 applies with the following modification and addition:
Modification:
The 1st paragraph of EN 13611:2019, Clause 1 is replaced by:
This document specifies the safety, design, construction, and performance requirements and testing for automatic vent valves for burners and appliances burning one or more gaseous fuels, hereafter referred to as “valves”.
This document is applicable to valves with declared maximum inlet pressures up to and including 500 kPa and of nominal connection sizes up to and including DN 100.
Addition:
This document is applicable to:
-   electrically actuated valves;
-   valves actuated by fluids where the control valves for these fluids are actuated electrically, but not to any external electrical devices for switching the control signal or actuating energy;
-   valves fitted with open position indicator switches.
The 4th paragraph of EN 13611:2019, Clause 1 is removed.

Automatische Abblaseventile für Gasbrenner und Gasgeräte

EN 13611:2019, Abschnitt 1, gilt mit folgender Änderung und Ergänzung:
Änderung:
Der erste Absatz von EN 13611:2019, Abschnitt 1, wird ersetzt durch:
Dieses Dokument legt die Sicherheits , Auslegungs , Konstruktions- und Leistungsanforderungen sowie die Prüfung von automatischen Abblaseventilen für Brenner und Brennstoffgeräte für einen oder mehrere gasförmige Brennstoffe, nachstehend als „Ventile“ bezeichnet, fest.
Dieses Dokument gilt für Ventile mit einem angegebenen höchsten Eingangsdruck bis einschließlich 500 kPa und mit Anschlussnennweiten bis einschließlich DN 100.
Ergänzung:
Dieses Dokument gilt für:
—   elektrisch betätigte Ventile;
—   Ventile, die durch Steuermedien betätigt werden, wenn die Steuerventile für diese Medien elektrisch betätigt werden; aber nicht für externe elektrische Elemente, die das Steuersignal oder die Antriebsenergie schalten;
—   Ventile mit Meldeschaltern für die offene Stellung.
Der vierte Absatz von EN 13611:2019, Abschnitt 1, entfällt.

Robinets d'évent automatiques pour brûleurs à gaz et appareils à gaz

L’article 1 de la norme EN13611 :2019 s’applique avec la modification et l’addition suivantes :
Modification :
Le 1er paragraphe de l’article 1 de la norme EN13611 :2019 est remplacé par ce qui suit :
Le présent document spécifie les exigences de sécurité, de construction et de fonctionnement ainsi que les essais applicables aux robinets d'évent automatiques pour brûleurs à gaz, appareils à gaz et similaires, dénommés ci-après « robinets ».
Ce document est applicable aux robinets dont la pression amont maximale déclarée est inférieure ou égale à 500 kPa, de diamètres nominaux de raccordement inférieurs ou égaux à DN 100.
Addition :
Le présent document s'applique :
-   aux robinets de sectionnement commandés électriquement ;
-   aux robinets de sectionnement actionnés par des fluides où les vannes de commande de ces fluides sont commandées électriquement, mais en aucun cas aux dispositifs électriques externes commutant le signal de commande ou l'énergie motrice de commande ;
-   aux robinets équipés de contacts indicateurs de position d'ouverture.
Le 4ième paragraphe de l’article 1 de la EN 13611 :2019 est supprimé.

Avtomatski varnostno izpustni ventili za plinske gorilnike in plinske aparate

General Information

• Status: Withdrawn
• Publication Date: 11-Oct-2022
• Withdrawal Date: 05-Nov-2024
• ICS: 23.060.40 - Pressure regulators
• Technical Committee: CEN/TC 58 - Safety and control devices for burners and appliances burning gaseous or liquid fuels
• Drafting Committee: CEN/TC 58/WG 13 - Mechanics
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 12-Oct-2022
• Due Date: 02-Feb-2022
• Completion Date: 12-Oct-2022
• Directive: 2014/68/EU - Directive 2014/68/EU of the European Parliament and of the Council of 15 May 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of pressure equipment
• Directive: 2016/426 - REGULATION (EU) 2016/426 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 9 March 2016 on appliances burning gaseous fuels and repealing Directive 2009/142/EC
• Mandate: M/BC/CEN/89/6 - Standardization request to CEN concerning appliances burning gaseous fuels
• Ref Project: SIST EN 16304:2022 - Automatic vent valves for gas burners and gas burning appliances

Relations

• Replaces: EN 16304:2013 - Automatic vent valves for gas burners and gas burning appliances
• Effective Date: 19-Oct-2022

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2022
Nadomešča:
SIST EN 16304:2014
Avtomatski varnostno izpustni ventili za plinske gorilnike in plinske aparate
Automatic vent valves for gas burners and gas burning appliances
Automatische Abblaseventile für Gasbrenner und Gasgerät
Robinets d'évent automatiques pour brûleurs à gaz et appareils à gaz
Ta slovenski standard je istoveten z: EN 16304:2022
ICS:
23.060.40 Tlačni regulatorji Pressure regulators
27.060.20 Plinski gorilniki Gas fuel burners
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 16304
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2022
EUROPÄISCHE NORM
ICS 23.060.40 Supersedes EN 16304:2013
English Version
Automatic vent valves for gas burners and gas burning
appliances
Robinets d'évent automatiques pour brûleurs à gaz et Automatische Abblaseventile für Gasbrenner und
appareils à gaz Gasgerät
This European Standard was approved by CEN on 1 August 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16304:2022 E
worldwide for CEN national Members.

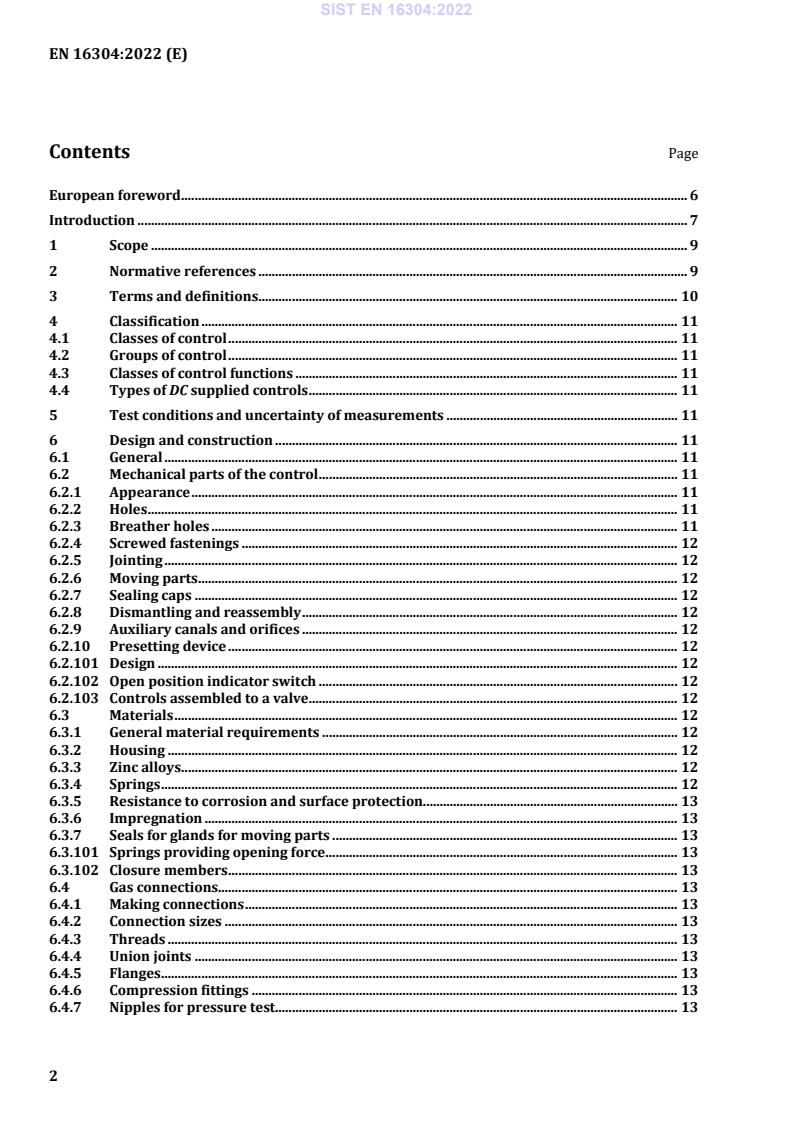

Contents Page
