EN 60598-2-12:2013
(Main)Luminaires - Part 2-12: Particular requirements - Mains socket-outlet mounted nightlights
Luminaires - Part 2-12: Particular requirements - Mains socket-outlet mounted nightlights
IEC 60598-2-12:2013 specifies requirements for mains socket-outlet mounted nightlights for use with electric light sources, on supply voltages not exceeding 250 V a.c. 50/60 Hz. It is to be read in conjunction with those sections of Part 1 to which reference is made. This second edition cancels and replaces the first edition published in 2006. It constitutes a technical revision for harmonization of thermal tests in 12.13 to relevant parts of 10.12.1 of IEC 60598-2-10.
Leuchten – Teil 2-12: Besondere Anforderungen – Netzsteckdosen-Nachtlichter
Luminaires - Partie 2-12: Exigences particulières - Veilleuses montées sur des socles de prise de courant réseau
La CEI 60598-2-12:2013 spécifie les exigences relatives aux veilleuses montées sur des socles de prise de courant réseau destinées à être utilisées avec des sources lumineuses électriques dont les tensions d'alimentation ne dépassent pas 250 V en courant alternatif 50/60 Hz. Elle doit être lue conjointement avec les sections de la Partie 1 auxquelles il est fait référence. Cette deuxième édition annule et remplace la première édition parue en 2006. Elle constitue une révision technique pour l'harmonisation des essais d'échauffement en 12.13 avec les parties applicables de 10.12.1 de la CEI 60598-2-10.
Svetilke - 2-12. del: Posebne zahteve - Nočne svetilke, priključene na izvode omrežnih vtičnic
Ta del standarda IEC 60598 določa zahteve za nočne svetilke, priključene na izvode omrežnih vtičnic za uporabo z električnimi svetlobnimi viri z napajanjem z omrežnimi napetostmi do 250 V izmenične napetosti 50/60 Hz. Uporablja se skupaj s tistimi razdelki 1. dela, na katere se sklicuje.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2013
1DGRPHãþD
SIST EN 60598-2-12:2006
6YHWLONHGHO 3RVHEQH]DKWHYH1RþQHVYHWLONHSULNOMXþHQHQDL]YRGH
RPUHåQLKYWLþQLF
Luminaires - Part 2-12: Particular requirements - Mains socket-outlet mounted nightlights
Leuchten - Teil 2-12: Besondere Anforderungen - Netzsteckdosen-Nachtlichter
Luminaires - Partie 2-12: Exigences particulières - Veilleuses montées sur des prises de
courant réseau
Ta slovenski standard je istoveten z: EN 60598-2-12:2013
ICS:
29.140.40 Svetila Luminaires
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 60598-2-12
NORME EUROPÉENNE
June 2013
EUROPÄISCHE NORM
ICS 29.140.40 Supersedes EN 60598-2-12:2006 + corr. Dec.2006
English version
Luminaires -
Part 2-12: Particular requirements -
Mains socket-outlet mounted nightlights
(IEC 60598-2-12:2013)
Luminaires - Leuchten – Teil 2-12: Besondere
Partie 2-12: Exigences particulières - Anforderungen – Netzsteckdosen-
Veilleuses montées sur des socles de Nachtlichter
prise de courant réseau (IEC 60598-2-12:2013)
(CEI 60598-2-12:2013)
This European Standard was approved by CENELEC on 2013-06-03. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60598-2-12:2013 E

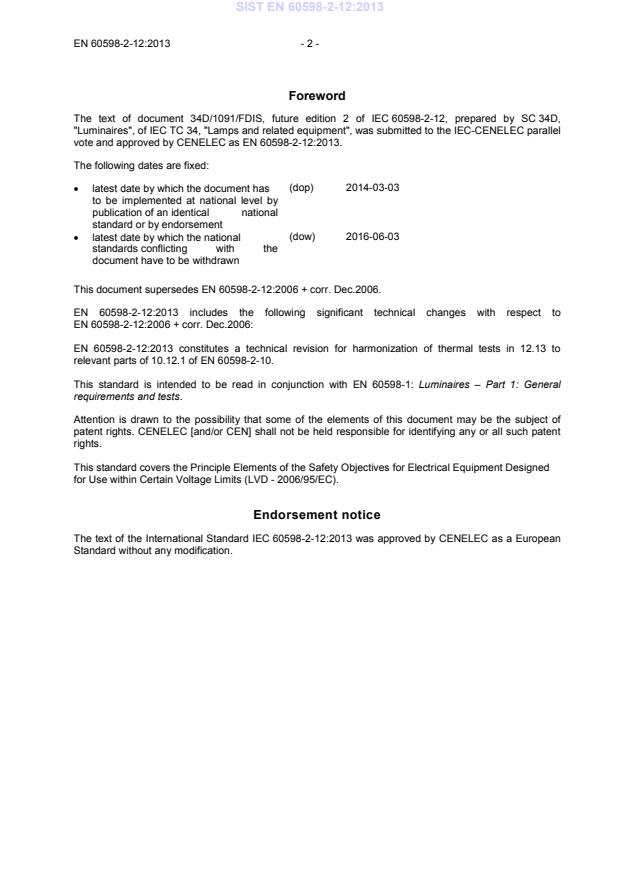

Foreword
The text of document 34D/1091/FDIS, future edition 2 of IEC 60598-2-12, prepared by SC 34D,
"Luminaires", of IEC TC 34, "Lamps and related equipment", was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN 60598-2-12:2013.
The following dates are fixed:
(dop) 2014-03-03
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-06-03
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60598-2-12:2006 + corr. Dec.2006.
EN 60598-2-12:2006 + corr. Dec.2006:
relevant parts of 10.12.1 of EN 60598-2-10.
This standard is intended to be read in conjunction with EN 60598-1: Luminaires – Part 1: General
requirements and tests.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed
for Use within Certain Voltage Limits (LVD - 2006/95/EC).
Endorsement notice
The text of the International Standard IEC 60598-2-12:2013 was approved by CENELEC as a European
Standard without any modification.
- 3 - EN 60598-2-12:2013
Annex ZA
(normative)
Normative references to i nternational publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC/TR 60083 - Plugs and socket-outlets for domestic and - -
similar general use standardized in member
countries of IEC
IEC 60227 Series Polyvinyl chloride insulated cables of rated - -
voltages up to and including 450/750 V
IEC 60598-1 - Luminaires - - -
Part 1: General requirements and tests
IEC 60884-1 - Plugs and socket-outlets for household and - -
similar purposes -
Part 1: General requirements
IEC 60950-1 - Information technology equipment - Safety - EN 60950-1 -
Part 1: General requirements
IEC 61000-4-5 - Electromagnetic compatibility (EMC) - EN 61000-4-5 -
Part 4-5: Testing and measurement
techniques - Surge immunity test
IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
+ corr. January 2003 enclosures - Probes for verification
IEC 60598-2-12 ®
Edition 2.0 2013-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-12: Particular requirements – Mains socket-outlet mounted nightlights
Luminaires –
Partie 2-12: Exigences particulières – Veilleuses montées sur des socles de
prise de courant réseau
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX L
ICS 29.140.40 ISBN 978-2-83220-785-7
– 2 – 60598-2-12 © IEC:2013
CONTENTS
FOREWORD . 3
12.1 Scope . 5
12.2 Normative references . 5
12.3 General test requirements . 5
12.4 Definitions . 5
12.5 Classification of mains socket-outlet mounted nightlights . 6
12.6 Marking . 6
12.7 Construction . 6
12.8 External and internal wiring . 8
12.9 Provision for earthing . 9
12.10 Protection against electric shock . 9
12.11 Resistance to dust, solid objects and moisture . 9
12.12 Insulation resistance and electric strength . 9
12.13 Creepage distances and clearance . 9
12.14 Endurance test and thermal test . 9
12.15 Resistance to heat, fire and tracking . 10
12.16 Screw terminals . 10
12.17 Screwless terminals and electrical connections . 10
60598-2-12 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-12: Particular requirements –
Mains socket-outlet mounted nightlights
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60598-2-12 has been prepared by subcommittee 34D: Luminaires,
of IEC technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2006. It constitutes a
technical revision for harmonization of thermal tests in 12.13 to relevant parts of 10.12.1 of
IEC 60598-2-10.
The text of this standard is based on the following documents:
FDIS Report on voting
34D/1091A/FDIS 34D/1098/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
– 4 – 60598-2-12 © IEC:2013
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This publication is intended to be read in conjunction with IEC 60598-1: Luminaires – Part 1:
General requirements and tests. It was established on the basis of the seventh edition (2008)
of that standard.
A list of all the parts of IEC 60598, under the general title Luminaires, can be found on the
IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60598-2-12 © IEC:2013 – 5 –
LUMINAIRES –
Part 2-12: Particular requirements –
Mains socket-outlet mounted nightlights
12.1 Scope
This part of IEC 60598 specifies requirements for mains socket-outlet mounted nightlights for
use with electric light sources, on supply voltages not exceeding 250 V a.c. 50/60 Hz. It is to
be read
...
