SLOVENSKI STANDARD
SIST EN 50643:2019
01-januar-2019
(OHNWULþQDLQHOHNWURQVNDJRVSRGLQMVNDLQSLVDUQLãNDRSUHPD0HUMHQMHSRUDEH
HOHNWULþQHHQHUJLMHYVWDQMXRPUHåQHSULSUDYOMHQRVWLQDUREXRPUHåMD

Electrical and electronic household and office equipment - Measurement of networked

standby power consumption of edge equipment
Elektrische und elektronische Haushalts- und Bürogeräte - Messung der
Leistungsaufnahme im vernetzten Bereitschaftsbetrieb von Geräten am Netzwerkrand

Appareils électriques et électroniques pour application domestique et équipement de

bureau - Mesure de la consommation d'énergie en veille avec maintien de la connexion

au réseau des équipements de périphérie
Ta slovenski standard je istoveten z: EN 50643:2018
ICS:
35.260 Pisarniški stroji Office machines
97.030 (OHNWULþQLDSDUDWL]DGRPQD Domestic electrical
VSORãQR appliances in general
SIST EN 50643:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 50643:2019
---------------------- Page: 2 ----------------------
SIST EN 50643:2019
EUROPEAN STANDARD EN 50643
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2018
ICS 35.260; 97.030
English Version
Electrical and electronic household and office equipment -
Measurement of networked standby power consumption of edge
equipment

Appareils électriques et électroniques pour application Elektrische und elektronische Haushalts- und Bürogeräte -

domestique et équipement de bureau - Mesure de la Messung der Leistungsaufnahme im vernetzten

consommation d'énergie en veille avec maintien de la Bereitschaftsbetrieb von Geräten am Netzwerkrand

connexion au réseau des équipements de périphérie

This European Standard was approved by CENELEC on 2017-12-11. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 50643:2018 E
---------------------- Page: 3 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)

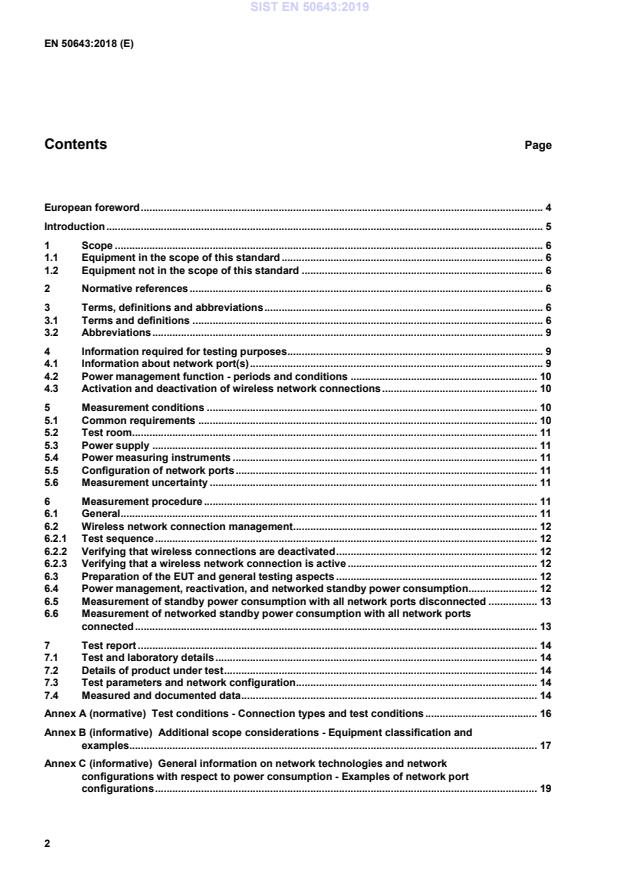

Contents Page

European foreword ............................................................................................................................................ 4

Introduction ........................................................................................................................................................ 5

1 Scope ..................................................................................................................................................... 6

1.1 Equipment in the scope of this standard ........................................................................................... 6

1.2 Equipment not in the scope of this standard .................................................................................... 6

2 Normative references ........................................................................................................................... 6

3 Terms, definitions and abbreviations ................................................................................................. 6

3.1 Terms and definitions .......................................................................................................................... 6

3.2 Abbreviations ........................................................................................................................................ 9

4 Information required for testing purposes ......................................................................................... 9

4.1 Information about network port(s) ...................................................................................................... 9

4.2 Power management function - periods and conditions ................................................................. 10

4.3 Activation and deactivation of wireless network connections ...................................................... 10

5 Measurement conditions ................................................................................................................... 10

5.1 Common requirements ...................................................................................................................... 10

5.2 Test room............................................................................................................................................. 11

5.3 Power supply ...................................................................................................................................... 11

5.4 Power measuring instruments .......................................................................................................... 11

5.5 Configuration of network ports ......................................................................................................... 11

5.6 Measurement uncertainty .................................................................................................................. 11

6 Measurement procedure .................................................................................................................... 11

6.1 General ................................................................................................................................................. 11

6.2 Wireless network connection management ..................................................................................... 12

6.2.1 Test sequence ..................................................................................................................................... 12

6.2.2 Verifying that wireless connections are deactivated ...................................................................... 12

6.2.3 Verifying that a wireless network connection is active .................................................................. 12

6.3 Preparation of the EUT and general testing aspects ...................................................................... 12

6.4 Power management, reactivation, and networked standby power consumption ........................ 12

6.5 Measurement of standby power consumption with all network ports disconnected ................. 13

6.6 Measurement of networked standby power consumption with all network ports

connected ............................................................................................................................................ 13

7 Test report ........................................................................................................................................... 14

7.1 Test and laboratory details ................................................................................................................ 14

7.2 Details of product under test ............................................................................................................. 14

7.3 Test parameters and network configuration .................................................................................... 14

7.4 Measured and documented data ....................................................................................................... 14

Annex A (normative) Test conditions - Connection types and test conditions ....................................... 16

Annex B (informative) Additional scope considerations - Equipment classification and

examples.............................................................................................................................................. 17

Annex C (informative) General information on network technologies and network
configurations with respect to power consumption - Examples of network port

configurations ..................................................................................................................................... 19

---------------------- Page: 4 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)

Annex D (informative) Information to be provided to the user and other interested parties .................. 20

D.1 Information available online ............................................................................................................... 20

D.2 Information available in the user manual.......................................................................................... 20

Annex E (informative) Example of a test report template ........................................................................... 21

Annex ZA (informative) Relationship between this European Standard and the ecodesign

requirements of Commission Regulation (EU) No 801/2013 aimed to be covered ...................... 24

Bibliography ...................................................................................................................................................... 27

---------------------- Page: 5 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
European foreword

This document (EN 50643:2018) was prepared by Technical Committee CENELEC TC 100X, “Audio, video

and multimedia systems and equipment and related sub-systems” in collaboration with CENELEC TC 59X,

“Performance of household and similar electrical appliances".
The following dates are fixed:
• latest date by which this document has to be (dop) 2018-12-11
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2021-12-11
conflicting with this document have to be
withdrawn

This document has been prepared under a mandate (M/544) given to CENELEC by the European

Commission and the European Free Trade Association, and supports essential requirements of EU

Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this

document.
Words in bold in the text are defined in Clause 3 Terms and definitions.
---------------------- Page: 6 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
Introduction

The methods defined in this European Standard are intended to define requirements for the measurement

of the power consumed by the equipment having one or more wired or wireless network port(s) able to

resume a function by way of a remotely initiated trigger or reactivation trigger from a network connection.

For the measurement of low power, reference is made to EN 50564:2011. This standard also provides a

method to test power management and whether it is possible to deactivate wireless network

connection(s).
---------------------- Page: 7 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
1 Scope
1.1 Equipment in the scope of this standard

This European Standard specifies methods of measurement of electrical power consumption in networked

standby and the reporting of the results for edge equipment.

Power consumption in standby (other than networked standby) is covered by EN 50564, including the

input voltage range.

This European Standard also provides a method to test power management and whether it is possible to

deactivate wireless network connection(s).

NOTE 1 This standard has been written in particular to support Commission Regulation (EU) No 801/2013 for the

measurement of energy consumption in networked standby. This standard applies to electrical products with a rated

input voltage of 230 V a.c. for single phase products and 400 V a.c. for three phase products.

NOTE 2 The measurement of energy consumption and performance of products during intended use are generally

specified in product standards and are not covered by this standard.

NOTE 3 The term “products” in this standard includes household appliances or information technology products,

consumer electronics, audio, video and multimedia systems; however the measurement methodology could be applied

to other products.

Where this standard is referenced by more specific standards or procedures, these should define and name

the relevant conditions to which this test procedure is applied.
1.2 Equipment not in the scope of this standard

This European Standard does not apply to the measurement of electrical power consumption in networked

standby for interconnecting equipment.

NOTE Measurement of electrical power consumption in networked standby for interconnecting equipment is the

subject of ETSI standard EN 303 423 “Environmental Engineering (EE) - Electrical and electronic household and office

equipment; Measurement of networked standby power consumption for interconnecting equipment”.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

EN 50564:2011, Electrical and electronic household and office equipment - Measurement of low power

consumption
3 Terms, definitions and abbreviations
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 50564:2011 and the following

apply.

NOTE 1 Further terms and definitions from standards and regulations related to the topic of this standard can be

found in the compendium of definitions compiled by Task Force 1 of the CEN/CENELEC Ecodesign Coordination Group

(see Bibliography).

NOTE 2 When this standard is used to provide presumption of conformity to a European Directive or Regulation,

definitions given in the Directive or Regulation prevail.
---------------------- Page: 8 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
3.1.1
edge equipment

networked equipment that can be connected to a network and interact with that network or other

equipment and that does not have, as its primary function, the passing of network traffic to provide a

network
Note 1 to entry: Examples of edge equipment are given in Annex B.
3.1.2
interconnecting equipment

networked equipment that has, as its primary function, the passing of network traffic to provide a network

Note 1 to entry: Examples of interconnecting equipment are given in Annex B.
3.1.3
network

communication infrastructure with a topology of links, an architecture, including the physical components,

organisational principles, communication procedures and formats (protocols)
[SOURCE: Commission Regulation (EU) No 801/2013]
3.1.4
network availability

capability of the equipment to resume functions after a remotely initiated trigger has been detected by a

network port
[SOURCE: Commission Regulation (EU) No 801/2013]
3.1.5
network port

wired or wireless physical interface of the network connection located on the equipment through which the

equipment can be remotely activated
[SOURCE: Commission Regulation (EU) No 801/2013]

Note 2 to entry: International Electrotechnical Vocabulary (IEC 60050) defines “port (of a network)” as: “a termination

through which signals can enter or leave a network”.
3.1.6
networked equipment
equipment that can connect to a network and has one or more network ports
[SOURCE: Commission Regulation (EU) No 801/2013]
3.1.7
networked standby

condition in which the equipment is able to resume a function by way of a remotely initiated trigger from a

network connection
[SOURCE: Commission Regulation (EU) No 801/2013]
---------------------- Page: 9 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
3.1.8
networked television
television that can connect to a network and has one or more network ports
Note 1 to entry: Commission Regulation (EC) No 642/2009 states:
1. ‘television’ means a television set or a television monitor;

2. ‘television set’ means a product designed primarily for the display and reception of audio-visual signals which is

placed on the market under one model or system designation, and which consists of:

(a) a display;

(b) one or more tuner(s)/receiver(s) and optional additional functions for data storage and/or display such as digital

versatile disc (DVD), hard disk drive (HDD) or videocassette recorder (VCR), either in a single unit combined with the

display, or in one or more separate units;

3. ‘television monitor’ means a product designed to display on an integrated screen a video signal from a variety of

sources, including television broadcast signals, which optionally controls and reproduces audio signals from an external

source device, which is linked through standardised video signal paths including cinch (component, composite), SCART,

HDMI, and future wireless standards (but excluding non-standardised video signal paths like DVI and SDI), but cannot

receive and process broadcast signals.”

[SOURCE: Commission Regulation (EU) No 801/2013, modified, Note 1 to entry added]

3.1.9
reactivation trigger
signal that brings the EUT back to an active mode
Note 1 to entry: The reactivation may be remotely initiated

Note 2 to entry: Commission Regulation (EU) No 801/2013 states: “remotely initiated trigger means a signal that comes

from outside the equipment via a network”
3.1.10
logical network port
network technology running over a physical network port
[SOURCE: Commission Regulation (EU) No 801/2013]
3.1.11
physical network port

physical (hardware) medium of a network port that can host two or more network technologies

[SOURCE: Commission Regulation (EU) No 801/2013]

Note 1 to entry: A “physical network port” can consist of multiple “logical network ports”.

3.1.12
power management

automatic control mechanism that achieves the smallest input power consistent with a pre-determined level

of functionality
[source: IEV 904-03-01, modified by omission of the Note to entry]
---------------------- Page: 10 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
3.2 Abbreviations
For the purposes of this document, the following abbreviations apply.
CPU Central Processing Unit
DOCSIS Data Over Cable Service Interface Specification
EUT Equipment Under Test
HiNA High Network Availability
LAN Local Area Network
MoCA Multimedia over Coax Alliance
PLC Power Line Communication
USB Universal Serial Bus (IEC 62280 series)
Wide Area Network
WAN
4 Information required for testing purposes
4.1 Information about network port(s)

For each type of physical and associated logical network port, the following information shall be provided

by the manufacturer:

a) The default time after which the power management function, or a similar function, automatically

switches the equipment into networked standby, and if available, the procedure for:

i. setting a time other than the default time; and/or
ii. manually switching the equipment into networked standby;

NOTE 1 The word ‘manually’ in the above context refers to any user operation intervention such as pushing a button

on the EuT itself, sending a message from another machine.

b) the characteristics of the reactivation trigger (message, signal…) that is used to reactivate the

equipment when in networked standby and how to remotely initiate it;

c) the maximum performance specifications, e.g. the maximum speed or data rate supported by that

network port;

d) the (maximum) power consumption of the equipment in a condition providing networked standby into

which power management function, or a similar function, will switch the equipment, if only this port is

used for remote activation, e.g. the declared power consumption of the equipment under defined

conditions for a type of port;

e) the communication protocol used by equipment, except for networked televisions;

f) the radio frequency range at which each radio wireless logical network port operates;

g) the characteristics of wireless logical network ports other than radio wireless logical network ports.

NOTE 2 Annex D describes examples of product information for networked equipment.

---------------------- Page: 11 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
4.2 Power management function - periods and conditions
The manufacturer shall provide information on:

a) whether the equipment under test provides a power management or a similar function. If the EUT

does not provide power management or a similar function, the manufacturer shall explain why such a

function would be inappropriate for the intended use;

b) the default period of time after which the power management function, or a similar function, switches

the equipment automatically into a condition providing networked standby.

NOTE 1 In European Regulation (EC) No 1275/2008 (as amended by Regulation (EU) No 801/2013), the maximum

default period is given as 20 min during which the equipment has not been providing its main function.

NOTE 2 In European Regulation (EC) No 642/2009 (as amended by Regulation (EU) No 801/2013), the maximum

default period is given as 4 h following the last user interaction and/or channel change.

4.3 Activation and deactivation of wireless network connections

The manufacturer shall provide information on the procedure the user needs to follow in order to activate

and deactivate each wireless network connection, if any.

The above requirement does not apply to equipment which relies on a single wireless network connection

for intended use and does not have a wired network connection.
5 Measurement conditions
5.1 Common requirements

The general conditions for measurements specified in EN 50564:2011, 4.1 shall apply.

The tests described in Clause 6 shall be repeated, if applicable, for each type of network port.

Each type of logical network port (as declared by the manufacturer) using the same physical network

port shall be tested.

Where the manufacturer declares that multiple physical network ports have the same technical and logical

specification(s), tests shall be executed with any one of these physical network ports being connected

(the other ones being deactivated for wireless network ports and disconnected for wired network ports).

When a logical network port, as declared by the manufacturer, supports multiple editions of a

communication technology standard (e.g. for backward compatibility), the logical network port is tested

only according to the specifications of the latest standard edition used by the EUT for retrieving a

reactivation message. Examples are shown in Annex C (informative).

NOTE Some devices can be designed to switch to a lower data rate during networked standby in order to further

reduce energy consumption.

In order to restrict influence of external factors, the reactivation trigger shall be initiated within a local test

network without external network connections. In the case that a network connection external to the local

test network is necessary for remote activation, this external network connection shall be established and

maintained during testing so that the reactivation trigger can be received; where identified in the

information provided by the manufacturer (see Clause 4), the stability of this external network connection

may be checked or monitored.

EXAMPLE 1 External factors can be maintenance, information/software update or a denial of service attack.

EXAMPLE 2 External network connections can be WAN, cable network, satellite link, etc.

---------------------- Page: 12 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
5.2 Test room
The requirements specified in EN 50564:2011, 4.2 shall apply.
5.3 Power supply
The requirements specified in EN 50564:2011, 4.3 shall apply.
5.4 Power measuring instruments
The requirements specified in EN 50564:2011, 4.4 shall apply.
5.5 Configuration of network ports

When testing only one type of network port, the procedure given in 6.4 shall be followed. The network

ports of the EUT, other than the network port under test shall be deactivated for wireless network ports

and disconnected for wired network ports, if possible. Logical network ports which can only be activated

and deactivated together shall be tested together following the same procedures used for individual

network ports.

The network port under test shall have networked standby functionality enabled and shall be connected

to appropriate test equipment which will form the network configuration for the test. In case more than one

type of reactivation trigger is available per type of network port to reactivate the EUT when in networked

standby, the configuration resulting in the highest power consumption in networked standby shall be

determined, as given below:

a) At least once, all configurations shall be set-up with the information provided according the 4.1 and

tested following the procedure given in Clause 6 to determine the related power consumption to

determine the configuration with the highest power consumption.

b) When the configuration with the reactivation trigger resulting in the highest power consumption in

networked standby is known, this configuration shall be selected to conduct the measurement. The

source of this information shall be additionally given in the test report.

c) When the power consumption does not depend on the configuration and its reactivation trigger used,

the configuration with the default reactivation trigger setting shall be selected.

The test equipment shall be able to test the EUT at the maximum performance level of the network port’s

protocol supported by hardware and software of the EUT.

When testing the maximum configuration of network ports (see 6.6), the maximum number of wired

network ports allowed for be the EUT shall be connected and the maximum number of wireless network

ports allowed by the EUT shall be activated.
5.6 Measurement uncertainty

Uncertainty introduced by the instrument that measures the input power shall be determined according to

EN 50564:2011, 4.4.1. EN 50564:2011, Annex D also describes the determination of measurement

uncertainty, taking other parameters into account.

In order to avoid additional sources of uncertainty for networked equipment, cable lengths and

measurement distances specified in Annex A shall be applied. The test network should be restricted to the

necessary test and ancillary equipment, directly related connected devices and the EUT.

6 Measurement procedure
6.1 General
The requirements specified in EN 50564:2011, 5.1 shall apply.
---------------------- Page: 13 ----------------------
SIST EN 50643:2019
EN 50643:2018 (E)
6.2 Wireless network connection management
6.2.1 Test sequence

Wireless network connection management shall be tested using the following steps, using (where

applicable) information supplied by the manufacturer:

a) identify all wireless network connections supported by the EUT and make sure the EUT is connected

to a suitable transceiving device (e.g. antenna), utilising information provided in accordance with 4.3;

b) deactivate all wireless network connections supported by the EUT;

c) verify that all wireless transmitters corresponding to the wireless network connections identified in

step 1 are deactivated, according to 6.2.2.

NOTE On some edge devices, a wireless network technology running on different frequencies (e.g. RF networks

operating at 2,4 GHz and 5,0 GHz) is seen as a single wireless network connection, if carrier frequencies cannot be

switched on or off separately.
6.2.2 Verifying that wireless connections are deactivated

To verify that wireless transmitters are off, a suitable detection device shall be used to determine that

wireless signals are not transmitted by the EUT in the operating frequencies or wavelengths identified by the

manufacturer for each wireless network connection.

NOTE For determining whether an RF transmitter has been deactivated, an antenna connected to a suitable

measurement instrument (including an RF Spectrum Analyser, RF Fast Fourier Transform analyser, or an RF Receiver)

is used.
6.2.3 Verifying that a wireless network connection is active

A wireless network connection is deemed to be active when it allows the EUT to identify other devices or to

be identified by them by transmitting wireless signals.
6.3 Preparation of the EUT and general testing aspects
The requirements specified in EN 50564:2011, 5.2 shall apply.
6.4 Power management, reactivation, and networked standby power consumption

This clause describes the procedure to test the power management function, measure the network

standby power consumption, and test the reactivation function. This procedure shall

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
