EN 60436:2020/A12:2022
(Amendment)Electric dishwashers for household use - Methods for measuring the performance
Electric dishwashers for household use - Methods for measuring the performance
Scope is unchanged (see EN 60436:2020)
Elektrische Geschirrspüler für den Hausgebrauch - Messverfahren für Gebrauchseigenschaften
Lave-vaisselle électriques à usage domestique - Méthodes de mesure de l'aptitude à la fonction
Električni pomivalni stroji za gospodinjstva - Preskusne metode za merjenje lastnosti - Dopolnilo A12
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2023
Električni pomivalni stroji za gospodinjstva - Preskusne metode za merjenje
lastnosti - Dopolnilo A12
Electric dishwashers for household use - Methods for measuring the performance
Elektrische Geschirrspüler für den Hausgebrauch - Messverfahren für
Gebrauchseigenschaften
Lave-vaisselle électriques à usage domestique - Méthodes de mesure de l'aptitude à la
fonction
Ta slovenski standard je istoveten z: EN 60436:2020/A12:2022
ICS:
97.040.40 Pomivalni stroji Dishwashers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 60436:2020/A12
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2022
ICS 97.040.40
English Version
Electric dishwashers for household use - Methods for measuring
the performance
Lave-vaisselle électriques à usage domestique - Méthodes Elektrische Geschirrspüler für den Hausgebrauch -
de mesure de l'aptitude à la fonction Messverfahren für Gebrauchseigenschaften
This amendment A12 modifies the European Standard EN 60436:2020; it was approved by CENELEC on 2022-06-06. CENELEC members
are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the status of a
national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60436:2020/A12:2022 E

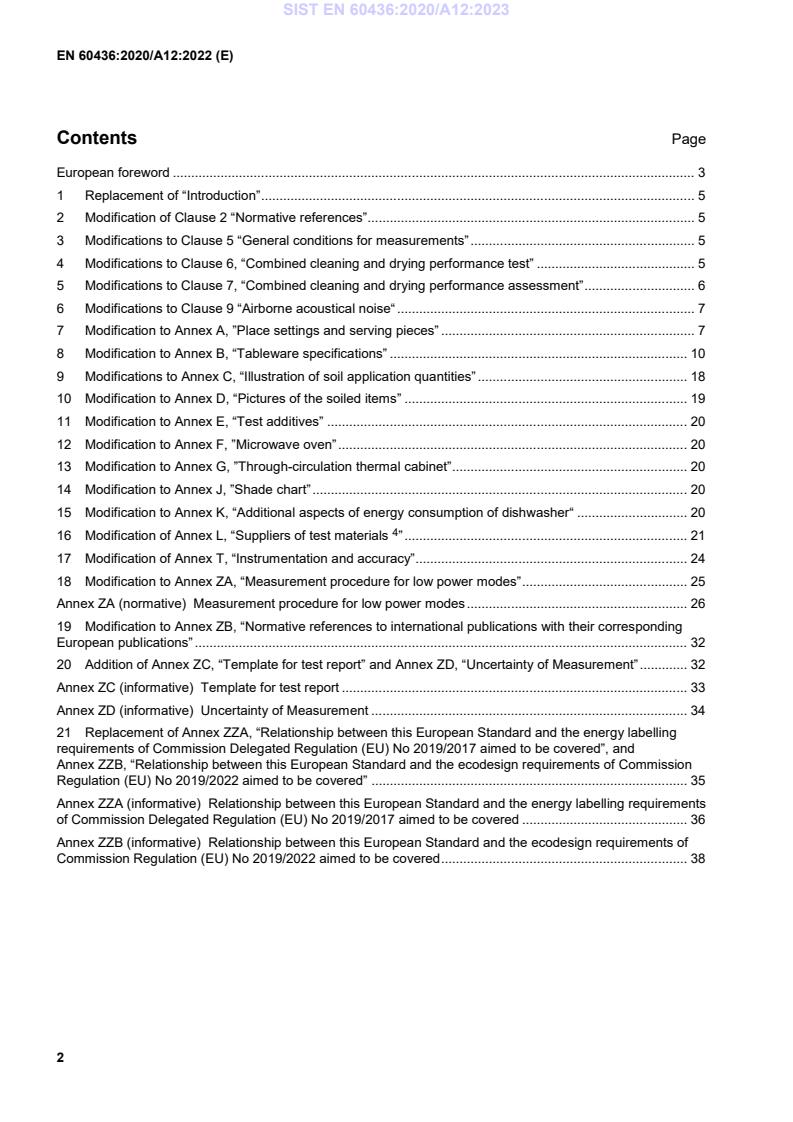

Contents Page
European foreword . 3
1 Replacement of “Introduction” . 5
2 Modification of Clause 2 “Normative references” . 5
3 Modifications to Clause 5 “General conditions for measurements” . 5
4 Modifications to Clause 6, “Combined cleaning and drying performance test” . 5
5 Modifications to Clause 7, “Combined cleaning and drying performance assessment” . 6
6 Modifications to Clause 9 “Airborne acoustical noise“ . 7
7 Modification to Annex A, ”Place settings and serving pieces” . 7
8 Modification to Annex B, “Tableware specifications” . 10
9 Modifications to Annex C, “Illustration of soil application quantities” . 18
10 Modification to Annex D, “Pictures of the soiled items” . 19
11 Modification to Annex E, “Test additives” . 20
12 Modification to Annex F, ”Microwave oven” . 20
13 Modification to Annex G, ”Through-circulation thermal cabinet” . 20
14 Modification to Annex J, ”Shade chart” . 20
15 Modification to Annex K, “Additional aspects of energy consumption of dishwasher“ . 20
16 Modification of Annex L, “Suppliers of test materials ” . 21
17 Modification of Annex T, “Instrumentation and accuracy” . 24
18 Modification to Annex ZA, “Measurement procedure for low power modes” . 25
Annex ZA (normative) Measurement procedure for low power modes . 26
19 Modification to Annex ZB, “Normative references to international publications with their corresponding
European publications” . 32
20 Addition of Annex ZC, “Template for test report” and Annex ZD, “Uncertainty of Measurement” . 32
Annex ZC (informative) Template for test report . 33
Annex ZD (informative) Uncertainty of Measurement . 34
21 Replacement of Annex ZZA, “Relationship between this European Standard and the energy labelling
requirements of Commission Delegated Regulation (EU) No 2019/2017 aimed to be covered”, and
Annex ZZB, “Relationship between this European Standard and the ecodesign requirements of Commission
Regulation (EU) No 2019/2022 aimed to be covered” . 35
Annex ZZA (informative) Relationship between this European Standard and the energy labelling requirements
of Commission Delegated Regulation (EU) No 2019/2017 aimed to be covered . 36
Annex ZZB (informative) Relationship between this European Standard and the ecodesign requirements of
Commission Regulation (EU) No 2019/2022 aimed to be covered . 38
European foreword
This document (EN 60436:2020/A12:2022) has been prepared by CLC/TC 59X “Performance of household and
similar electrical appliances”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-04-14
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2025-10-14
conflicting with this document have to be
withdrawn
This document amends EN 60436:2020.
It includes the following significant changes:
— editorial improvement regarding consistent use of terms;
— realignment of headings (IEC vs EN);
— more precise description of applicable ambient conditions;
— update of milk preparation procedure;
— guidance on use of plastic fork as soiling tool;
— rounding of reported numbers in alignment with amendment of EU energy labelling and ecodesign
regulation;
— necessary change of specified ranges for test load weight;
— update of supplier information annex;
— addition of Annex ZC Test report template;
— withdrawal of corrigendum (change of detergent annex);
— amendment of Annex ZA Measurement procedure for low power modes reflecting learnings of round robin
test;
— introduction of dated normative references;
— updated Annexes ZZA and ZZB.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN 60436:2020/A11:2020 and EN 60436:2020/AC:2020-06.
This document has been prepared under a Standardization Request given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of Directive(s) /
Regulation(s).
For the relationship with Directive(s) / Regulation(s), see informative Annexes ZZA and ZZB, which are an
integral part of this document.
Any feedback and questions on this document should be directed to the users’ national committee. A complete
listing of these bodies can be found on the CENELEC website.
1 Replacement of “Introduction”
Replace the Introduction by the following:
“This edition of the standard EN 60436, Electric dishwashers for household use - Methods for measuring the
performance, was developed for the EU energy labelling and ecodesign scheme and therefore based on the
principle described in the standardization request M/566 to the European Committee for Standardisation, the
European Committee for Electrotechnical Standardisation and the European Telecommunications Standards
Institute as regards ecodesign and energy labelling requirements for household dishwashers, household
washing machines and household washer-dryers in support of Commission Regulations (EU) 2019/2022 and
(EU) 2019/2023 and Commission Delegated Regulations (EU) 2019/2017 and (EU) 2019/2014.
Standardization request M/566, issued by the European Commission, includes the standardization task to
develop measures in testing household dishwashers, which ensure that the prospective harmonized standard
takes into account improved test conditions and test materials to better reflect the user behaviour and the state
of the art at European and international level.”
2 Modification of Clause 2 “Normative references”
Replace undated references by dated references:
EN 60704-2-3:2019, Household and similar electrical appliances - Test code for the determination of airborne
acoustical noise - Part 2-3: Particular requirements for dishwashers
EN 60705:2015 , Household microwave ovens – Methods for measuring performance
EN 60734:2012, Household electrical appliances - Performance - Water for testing
EN 50564:2011, Electrical and electronic household and office equipment - Measurement of low power
consumption
EN 50643:2018, Electrical and electronic household and office equipment - Measurement of networked standby
power consumption of edge equipment
ISO 607:1980, Surface active agents and detergents — Methods of sample division
3 Modifications to Clause 5 “General conditions for measurements”
Modify the first sentence of the first paragraph in 5.5 “Ambient conditions” as follows:
“The following ambient conditions shall be maintained throughout the whole process described in Clause 6 and
Clause 7.“
Replace undated reference by dated reference in 5.6.3 “Water hardness” as follows:
EN 60734:2012
Replace undated reference by dated reference in 5.7 “Detergent” as follows:
ISO 607:1980
4 Modifications to Clause 6, “Combined cleaning and drying performance test”
Modify the title of Clause 6 as follows:
“Combined cleaning and drying performance tests”
As amended by EN 60705:2015/A2:2018.
In 6.4.2.4 “Application”, modify the text of the last bullet point as follows:
“Upon removal from the refrigerator, gently shake the milk for approximately 5 s before each application.
Immediately after shaking add 10 ml of milk to each glass using a pipette and immediately carry out the cooking
process.”
In 6.4.4.3, “Application”, add a note at the end of the paragraph:
“
NOTE Alternatives to single-use plastic forks are available. It is expected to use an alternative with soft and flexible
prongs to minimize the risk of scratching of dish load items.”
In 6.4.7.3, “Application”, add a note at the end of the paragraph:
“
NOTE Alternatives to single-use plastic forks are available. It is expected to use an alternative with soft and flexible
prongs to minimize the risk of scratching of dish load items.”
Replace Figure 4, “The thermal cabinet with soiled load items (30 place settings)” with the following:
“
Figure 4 — The thermal cabinet with soiled load items (30 place settings)”
In 6.6.2 “Operating”, add a new paragraph following the seventh paragraph:
“For energy labelling and ecodesign purposes filter cleaning during a test series is not permitted.”
5 Modifications to Clause 7, “Combined cleaning and drying performance
assessment”
Modify 7.4.1, “Expressing drying results” as follows:
“The final drying result of the test machine shall be reported in relation to the reference machine. Record the
drying performance index for the test series P [P = exp (In P )] of the test machine rounded to 3 decimal
D D D
places.”
Modify 7.4.2, “Expressing cleaning results” as follows:
“The final cleaning result of the test machine is the average of the initial series of test runs without filter
cleaning, in relation to the reference machine. Record the cleaning performance index for the test series P
C
[P = exp (In P )] of the test machine, rounded to 3 decimal places. The filter system is to be declared as
C C
automatic or self-cleaning.
If the dishwasher is tested with filter cleaning (see 7.3.4), the score is the average of the 5 test cycles, in
relation to the reference machine. Record the cleaning performance index for the test series P [P = exp (In
C C
P )] of the test machine, rounded to 3 decimal places. The filte
...
