IEC 60598-2-18:2022

Luminaires - Part 2-18: Particular requirements - Luminaires for swimming pools and similar applications

IEC 60598-2-18:2022 specifies requirements for fixed luminaires intended for use in water, or in contact with water, in, for example, the basins of swimming pools, fountains, paddling pools, and garden pools, and for use with electric light sources.
This third edition cancels and replaces the second edition published in 1993 and Amendment 1:2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
references to Part 1 have been updated;
some subclauses have been renumbered;
the standard has been redrafted such that it is applicable to both filament lamps and LED light sources;
marking requirements have been updated and 18.5.3 of the previoius edition has been deleted;
18.10.3 of the previous edition has been deleted, as it is no longer relevant, following the update of requirements for cross-sectional areas of external and internal cables in Section 5 of Part 1;
18.10.4 and 18.10.5 of the previous edition renumbered as 18.11.4 and 18.11.5 in this edition have been adapted to allow the use of an alternative waterproof multi-core cable that conforms to the waterproof test of Annex D and Annex E of EN 50525‑2‑21:2011 or to an equivalent regional standard;
in 18.11 (18.10 in the previous edition), the cross-sectional area of wiring has been aligned with Part 1;
in 18.11 (18.10 in the previous edition), the types of cables have been updated with alternative regional cables.

Luminaires - Partie 2-18: Exigences particulières - Luminaires pour piscines et usages analogues

L'IEC 60598-2-18:2022 spécifie les exigences applicables aux luminaires fixes destinés à être utilisés dans l'eau ou en contact avec l'eau, par exemple dans les bassins des piscines, les fontaines, les pataugeoires et les bassins de jardin, et destinés à être utilisés avec des sources lumineuses électriques.
Cette troisième édition annule et remplace la deuxième édition parue en 1993 et l'Amendement 1:2011. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
les références à la Partie 1 ont été mises à jour;
certains paragraphes ont été renumérotés;
la norme a été remaniée afin qu'elle s'applique aux lampes à filament et aux sources lumineuses à LED;
les exigences de marquage ont été mises à jour et le 18.5.3 de l’édition précédente a été supprimé;
le 18.10.3 de l’édition précédente a été supprimé, car il n'est plus pertinent depuis la mise à jour des exigences applicables aux sections des câbles internes et externes dans la Section 5 de la Partie 1;
les 18.10.4 et 18.10.5 de l’édition précédente qui ont été renumérotés 18.11.4 et 18.11.5 dans la présente édition ont été adaptés pour permettre l'utilisation d'une variante de câble multiconducteur étanche conforme à l'essai d'étanchéité de l'Annexe D et de l'Annexe E de l'EN 50525-2-21:2011, ou à une norme régionale équivalente;
en 18.11, (18.10 de l’édition précédente), la section du câblage a été alignée sur la Partie 1;
en 18.11, (18.10 de l’édition précédente), les types de câbles ont été mis à jour avec d'autres variantes régionales de câbles.

General Information

• Status: Published
• Publication Date: 16-Aug-2022
• ICS: 29.140.40 - Luminaires
• ICS: 97.220.10 - Sports facilities
• Technical Committee: SC 34D - Luminaires
• Drafting Committee: WG 1 - TC 34/SC 34D/WG 1
• Current Stage: PPUB - Publication issued
• Start Date: 17-Aug-2022
• Completion Date: 16-Sep-2022

Relations

• Revises: IEC 60598-2-18:1993/COR1:2013 - Corrigendum 1 - Luminaires - Part 2: Particular requirements - Section 18: Luminaires for swimming pools and similar applications
• Effective Date: 05-Sep-2023
• Revises: IEC 60598-2-18:1993/AMD1:2011 - Amendment 1 - Luminaires - Part 2-18: Particular requirements - Luminaires for swimming pools and similar applications
• Effective Date: 05-Sep-2023

Standards Content (Sample)

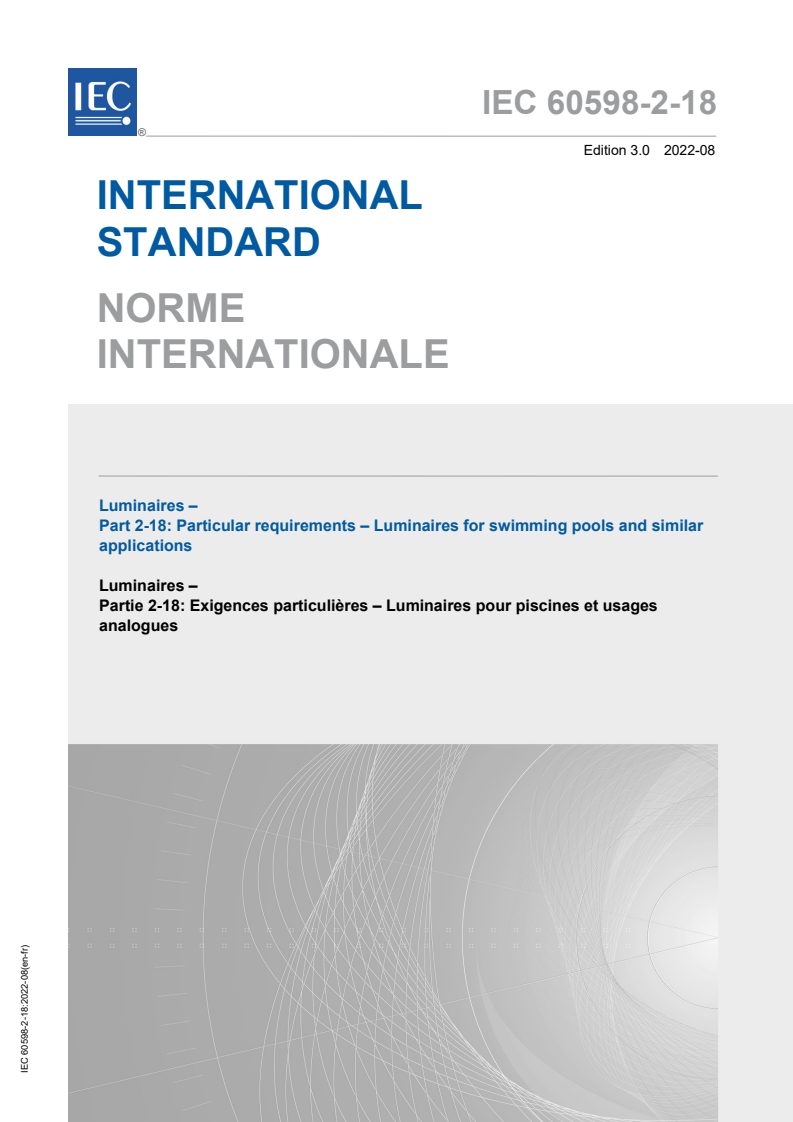

IEC 60598-2-18 ®
Edition 3.0 2022-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-18: Particular requirements – Luminaires for swimming pools and similar
applications
Luminaires –
Partie 2-18: Exigences particulières – Luminaires pour piscines et usages
analogues
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].

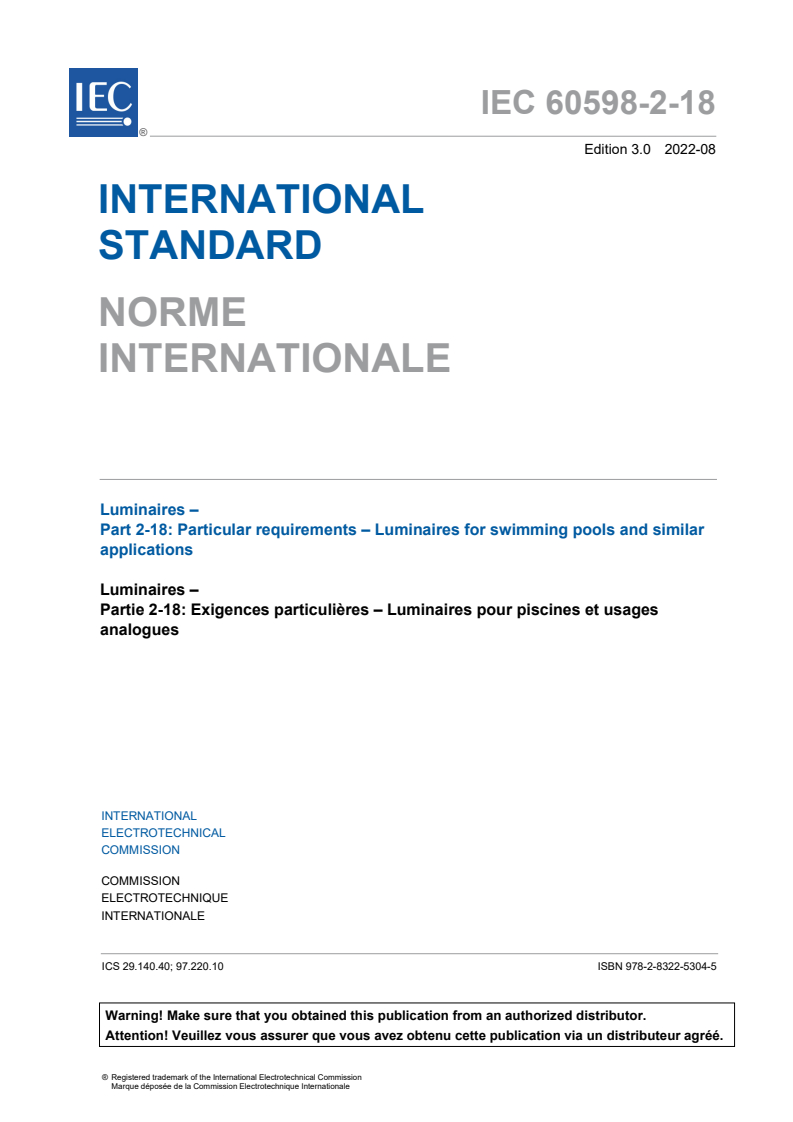

IEC 60598-2-18 ®
Edition 3.0 2022-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-18: Particular requirements – Luminaires for swimming pools and similar

applications
Luminaires –
Partie 2-18: Exigences particulières – Luminaires pour piscines et usages

analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.40; 97.220.10 ISBN 978-2-8322-5304-5

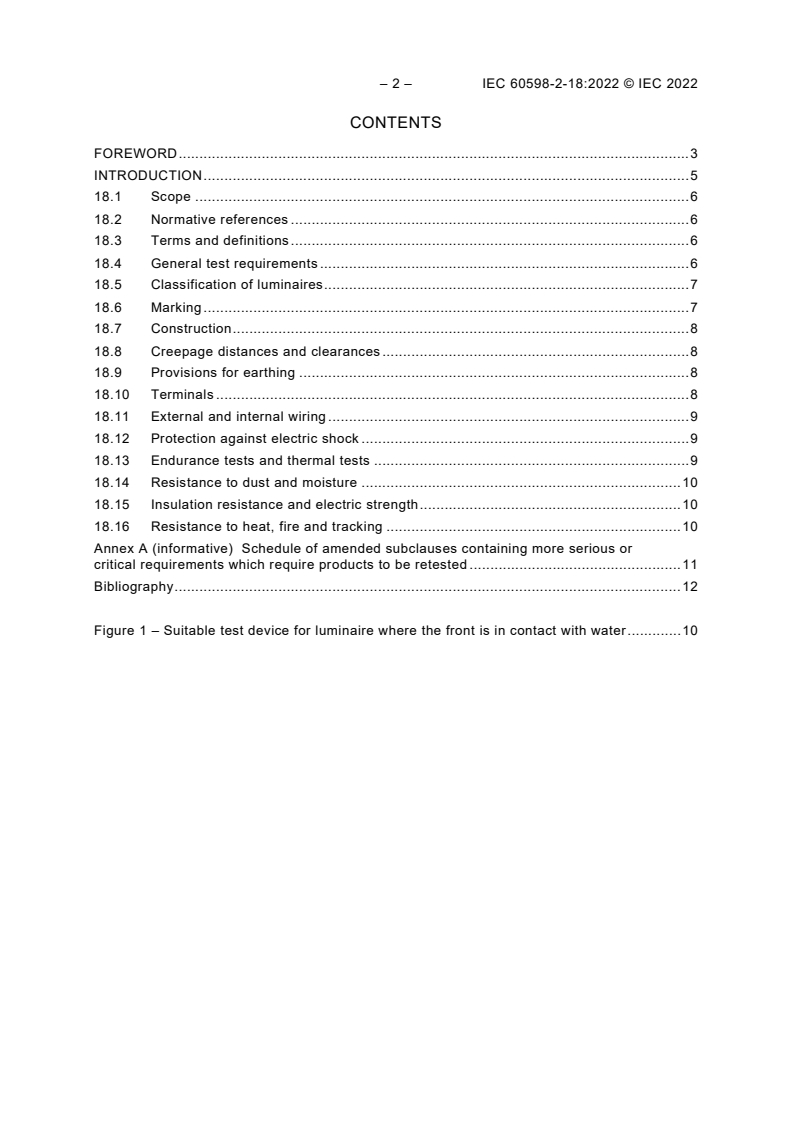

– 2 – IEC 60598-2-18:2022 © IEC 2022
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
18.1 Scope . 6
18.2 Normative references . 6
18.3 Terms and definitions . 6
18.4 General test requirements . 6
18.5 Classification of luminaires . 7
18.6 Marking . 7
18.7 Construction . 8
18.8 Creepage distances and clearances . 8
18.9 Provisions for earthing . 8
18.10 Terminals . 8
18.11 External and internal wiring . 9
18.12 Protection against electric shock . 9
18.13 Endurance tests and thermal tests . 9
18.14 Resistance to dust and moisture . 10
18.15 Insulation resistance and electric strength . 10
18.16 Resistance to heat, fire and tracking . 10
Annex A (informative) Schedule of amended subclauses containing more serious or
critical requirements which require products to be retested . 11
Bibliography . 12

Figure 1 – Suitable test device for luminaire where the front is in contact with water . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-18: Particular requirements –
Luminaires for swimming pools and similar applications

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60598-2-18 has been prepared by subcommittee 34D: Luminaires, of IEC technical
committee 34: Lighting. It is an International Standard.
This third edition cancels and replaces the second edition published in 1993 and
Amendment 1:2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) references to Part 1 have been updated;
b) some subclauses have been renumbered;
c) the standard has been redrafted such that it is applicable to both filament lamps and LED
light sources;
d) marking requirements have been updated and 18.5.3 of the previous edition has been
deleted;
– 4 – IEC 60598-2-18:2022 © IEC 2022
e) 18.10.3 of the previous edition has been deleted, as it is no longer relevant, following the
update of requirements for cross-sectional areas of external and internal cables in Section
5 of Part 1;
f) 18.10.4 and 18.10.5 of the previous edition renumbered as 18.11.4 and 18.11.5 in this
edition have been adapted to allow the use of an alternative waterproof multi-core cable
that conforms to the waterproof test of Annex D and Annex E of EN 50525-2-21:2011 or to
an equivalent regional standard;
g) in 18.11 (18.10 in the previous edition), the cross-sectional area of wiring has been aligned
with Part 1;
h) in 18.11 (18.10 in the previous edition), the types of cables have been updated with
alternative regional cables.
The text of this International Standard is based on the following documents:
Draft Report on voting
34D/1663/FDIS 34D/1667/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
This Part 2-18 is to be used in conjunction with the latest edition of IEC 60598-1 and its
amendment(s). It was established on the basis of the ninth edition (2020) of that standard.
NOTE 1 When "Part 1" is mentioned in this document, it refers to IEC 60598-1.
NOTE 2 In this document, the following print type is used:
– compliance statements: in italic type.
A list of all parts in the IEC 60598 series, published under the general title Luminaires can be
found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
For this third edition of IEC 60598-2-18 the main technical changes comprise the following.
For LED luminaires with bus control, multi-core cables which are suitable for the transmission
of data streams are often used. These cables are not standardized. Subclauses 18.10.4 and
18.10.5 of the previous edition allowed the use of H05 RN-F cables but this type of cable is not
suitable for the transmission of data streams.
Table 5.1 of Part 1 does not specify a special cable type for luminaires of protection class III.
Therefore 18.10.4 and 18.10.5 of the previous edition renumbered as 18.11.4 and 18.11.5 in
this edition have been adapted to allow an alternative waterproof multi-core cable that conforms
to the waterproof test of Annex D and Annex E of EN 50525-2-21:2011 or to an equivalent
regional standard.
Due to the update of Section 5 of IEC 60598-1 regarding cross-sectional areas of external and
internal cables, 18.10.3 of the previous edition is no longer relevant. Subclause 18.10.3 was
given as a less stringent requirement but in the meantime the requirements of IEC 60598-1
have become less stringent. Therefore 18.10.3 has been deleted.

– 6 – IEC 60598-2-18:2022 © IEC 2022
LUMINAIRES –
Part 2-18: Particular requirements –
Luminaires for swimming pools and similar applications

18.1 Scope
This part of IEC 60598 specifies requirements for fixed luminaires intended for use in water, or
in contact with water, in, for example, the basins of swimming pools, fountains, paddling pools,
and garden pools, and for use with electric light sources.
NOTE Electrical installation rules for swimming pools are given in IEC 60364-7-702.
This document does not cover luminaires not in contact with water (e.g. mounted behind a glass
panel which is separate from the luminaire) or hand-held or portable luminaires.
18.2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60598-1, Luminaires – Part 1: General requirements and tests
IEC 60364-7-702, Low-voltage electrical installations – Part 7-702: Requirements for special
installations or locations – Swimming pools and fountains
EN 50525-2-21:2011, Electric cables – Low voltage energy cables of rated voltages up to and
including 450/750 V (U /U) – Part 2-21: Cables for general applications – Flexible cables with
crosslinked elastomeric insulation
18.3 Terms and definitions
For the purposes of this document, the terms and definitions given in Part 1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
18.4 General test requirements
The provisions of Section 0 of Part 1 apply. The tests described in each appropriate section of
Part 1 shall be carried out in the order listed in this document.
Full type testing need not generally be necessary and the product and the previous test results
shall be reviewed only against the more onerous requirements. See Annex A.

18.5 Classification of luminaires
18.5.1 Luminaires shall be classified in accordance with the provisions of Section 2 of Part 1
together with the requirements of 18.5.2 to 18.5.4.
18.5.2 Luminaires shall be Class III for protection against electric shock and shall have
external and internal circuits which operate on voltages not exceeding 12 V AC or 30 V DC
ripple free.
18.5.3 Luminaires shall be classified according to the degree of protection against the ingress
of moisture and dust as follows:
a) For those parts of luminaires which are in contact with the water of a pool, fountain, etc.,
the classification shall be pressure watertight (IPX8).
b) For those parts of luminaires which are not in contact with the water of a pool, fountain, etc.,
the classification shall be at least dustproof and splashproof (IP54).
18.5.4 Luminaires shall be classified according to the manner of mounting, light source
changing and connection to the supply as follows:
a) Category A. Luminaires mounted partly in contact with water, for which connection to the
supply and replacement of light sources takes place from the side of the luminaire which is
not in contact with water.
b) Category B. Luminaires for which replacement of light sources takes place from the side of
the luminaires in contact with water but after the water of the pool has been partially or
completely drained.
c) Category C. Luminaires which are completely removed from the water for replacement of
light sources, when light source replacement is possible.
18.6 Marking
18.6.1 The provisions of Section 3 of Part 1 apply together with the requirements of 18.6.2 to
18.6.4.
18.6.2 Luminaires intended only for use in water shall be marked:
"For use only when immersed in water"
18.6.3 The output of the transformer (in volt amperes) shall be given on the luminaire or in the
installation leaflet supplied with the luminaire.
NOTE Safety isolating transformers according to the IEC 61558 series are marked with the following symbol:
IEC 60417-5222:2002-10
18.6.4 In the instruction leaflet supplied with the luminaire, the manufacturer shall provide
information on the mounting of the luminaire with particular regard to corrosion, for example
aluminium and its alloys in contact with concrete or similar materials and the electro-chemical
action of dissimilar metals.
In providing information for the correct installation of luminaires, the manufacturer shall take
the requirements of IEC 60364-7-702 into consideration.

– 8 – IEC 60598-2-18:2022 © IEC 2022
18.7 Construction
18.7.1 The provisions of Section 4 of Part 1 apply together with the requirements of 18.7.2
and 18.7.3.
18.7.2 Luminaires shall be subjected to a test for mechanical strength as follows.
Those parts of the luminaire, including protective glasses, which are in contact with water in
normal use shall be subjected to an impact test with an impact energy of 0,7 Nm in the direction
of the water pressure. The test shall be carried out in free air.
18.7.3 Luminaires shall be subjected to a corrosion test as follows:
Those parts of the luminaire which are in contact with water in normal use shall be immersed
in artificial sea water at a temperature of (25 ± 2) °C for a period of 14 days. After this treatment
the parts shall show no signs of corrosion or roughening of their surfaces. Traces of corrosion
removable by rubbing shall be ignored.
Artificial sea water is made as follows:
Solution A
28,0 g NaCl
5,0 g MgCl ·6H O
2 2
2,4 g CaCl ·H O
2 2
dissolved in 885 ml of distilled water.
Solution B
7,0 g MgSO ·7H O
4 2
0,2 g NaHCO
dissolved in 100 ml of distilled water.
Solution B is added to solution A slowly and well mixed. The mixture is allowed to stand for 24 h
and is then filtered. Finally, the pH value of the mixture is adjusted to between 7 and 8 by adding
additional sodium bicarbonate (NaHCO ). It is convenient to pass air bubbles through the
mixture during the stabilization of the pH value.
The materials of the test device shall be such that they have no influence on the results of the
test.
18.8 Creepage distances and clearances
The provisions of Section 11 of Part 1 apply.
18.9 Provisions for earthing
The provisions of Section 7 of Part 1 do not apply.
18.10 Terminals
The provisions of Sections 14 and 15 of Part 1 apply.

18.11 External and internal wiring
18.11.1 The provisions of Section 5 of Part 1 apply together with the requirements of 18.11.2
to 18.11.5.
18.11.2 Connecting leads (tails) are not permitted.
18.11.3 Switches in flexible cables or cords are not permitted.
18.11.4 Category B luminaires shall be provided with a non-detachable flexible cable or cord
at least equivalent in mechanical and electrical properties to cords of the type 245 IEC 57 in
IEC 245 or alternative cable, that comply with Annex D and Annex E of EN 50525-2-21:2011 or
an equivalent regional standard.
18.11.5 For Category C luminaires, any non-detachable flexible cable or cord provided shall
have mechanical and electrical properties at least equivalent to cords of the type 245 IEC 57 in
IEC 245 or alternative cable, that comply with Annex D and Annex E of EN 50525-2-21:2011 or
an equivalent regional standard.
18.12 Protection against electric shock
The provisions of Section 8 of Part 1 apply.
18.13 Endurance tests and thermal tests
18.13.1 The provisions of Section 12 of Part 1 apply together with the requirements of 18.13.2
to 18.13.3.
18.13.2 Luminaires shall be subjected to the relevant tests of Clauses 12.4, 12.5, 12.6 and
12.7 of Part 1 after the test(s) of Clause 9.2 of Part 1 but before the test(s) of Clause 9.3 of
Part 1 specified in Clause 18.14 of this document.
18.13.3 For the endurance tests and thermal tests of Section 12 of Part 1 the luminaire shall
be mounted (as far as possible) as for normal use in accordance with the instructions provided
by the manufacturer. If the orientation of the luminaire can be varied, that orientation which
gives the most unfavourable temperatures shall be chosen. The temperature of the water in
front of the luminaire is maintained at t ± 10 K. A suitable test device for luminaires where the
a
front is in contact with water is shown in Figure 1.

– 10 – IEC 60598-2-18:2022 © IEC 2022

Figure 1 – Suitable test device for luminaire where the front is in contact with water
18.14 Resistance to dust and moisture
18.14.1 The provisions of
...
