IEC 60684-3-214:2013

Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 214: Heat-shrinkable, polyolefin sleeving, not flame retarded, thick and medium wall

IEC 60684-3-214:2013 gives the requirements for two types of heat-shrinkable, polyolefin sleeving, not flame retarded, thick and medium wall with a nominal shrink ratio of 3:1. This sleeving has been found suitable for use at temperatures of up to 100 °C.
Type A: Medium wall - internal diameter up to 200 mm typically;
Type B: Thick wall - internal diameter up to 200 mm typically. These sleevings are normally supplied in colour black. Since these types of sleevings cover a significantly large range of sizes and wall thicknesses, Tables A.1 and A.2 of this document provides a guide to the range of sizes available. The actual size will be agreed between the user and supplier. Materials which conform to this specification meet established levels of performance. However, the selection of a material by a user for a specific application should be based on the actual requirements necessary for adequate performance in that application and not based on this specification alone. This third edition cancels and replaces the second edition published in 2005. This edition constitutes a technical revision. This edition includes the following significant technical change with respect to the previous edition: Alignment with IEC 60684-3-247 (dual wall) since this Part 3 specification represents a single wall option using identical material. Keywords: heat-shrinkable, polyolefin sleeving

Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines - Feuille 214: Gaines thermorétractables en polyoléfine, non ignifugées, à paroi épaisse et moyenne

La IEC 60684-3-214:2013 fournit les exigences relatives à deux types de gaines thermorétractables, en polyoléfine, non ignifugées, à paroi épaisse et moyenne, dont le rapport de rétreint nominal est 3:1. Ces gaines se sont avérées appropriées pour des températures allant jusqu'à 100 °C.
Type A: Paroi moyenne - diamètre intérieur jusqu'à 200 mm typiquement;
Type B: Paroi épaisse - diamètre intérieur jusqu'à 200 mm typiquement. Ces gaines sont normalement fournies en couleur noire. Comme ces types de gaines couvrent une gamme très étendue de tailles et d'épaisseurs de paroi, les Tableaux A.1 et A.2 du présent document fournissent un guide des tailles disponibles dans cette gamme. La taille réelle fera l'objet d'un accord entre l'utilisateur et le fournisseur. Les matériaux qui sont conformes à cette spécification satisfont à des niveaux de performances établis. Cependant, il convient que le choix d'un matériau par un utilisateur, pour une application spécifique, soit fondé sur les exigences réelles nécessaires pour obtenir une performance adéquate pour l'application concernée, et ne soit pas fondé sur cette seule spécification. Cette troisième édition annule et remplace la deuxième édition parue en 2005. Cette édition constitue une révision technique. Cette édition inclut la modification technique majeure suivante par rapport à l'édition précédente: Alignement avec la CEI 60684-3-247 (double paroi) étant donné que cette spécification de la Partie 3 représente une option à simple paroi utilisant un matériau identique. Mots clés : gaines thermorétractables, en polyoléfine gaines

General Information

• Status: Published
• Publication Date: 18-Nov-2013
• ICS: 29.035.20 - Plastics and rubber insulating materials
• ICS: 29.140.40 - Luminaires
• ICS: 97.220.10 - Sports facilities
• Technical Committee: TC 15 - Solid electrical insulating materials
• Drafting Committee: WG 5 - TC 15/WG 5
• Current Stage: DELPUB - Deleted Publication
• Start Date: 12-Oct-2018
• Completion Date: 08-Aug-2019

Relations

• Revises: IEC 60684-3-214:2005 - Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 214: Heat-shrinkable, polyolefin sleeving, not flame retarded, shrink ratio 3:1 - Thick and medium wall
• Effective Date: 05-Sep-2023
• Revised: IEC 60684-3-214:2019 - Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 214: Heat-shrinkable, polyolefin sleeving, not flame retarded, thick and medium wall
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 60684-3-214 ®
Edition 3.0 2013-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 214: Heat-shrinkable, polyolefin sleeving, not flame retarded,
thick and medium wall
Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –
Feuille 214: Gaines thermorétractables en polyoléfine, non ignifugées,
à paroi épaisse et moyenne
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].
IEC 60684-3-214 ®
Edition 3.0 2013-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –

Part 3: Specifications for individual types of sleeving –

Sheet 214: Heat-shrinkable, polyolefin sleeving, not flame retarded,

thick and medium wall
Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –

Feuille 214: Gaines thermorétractables en polyoléfine, non ignifugées,

à paroi épaisse et moyenne
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.035.20 ISBN 978-2-8322-1196-0

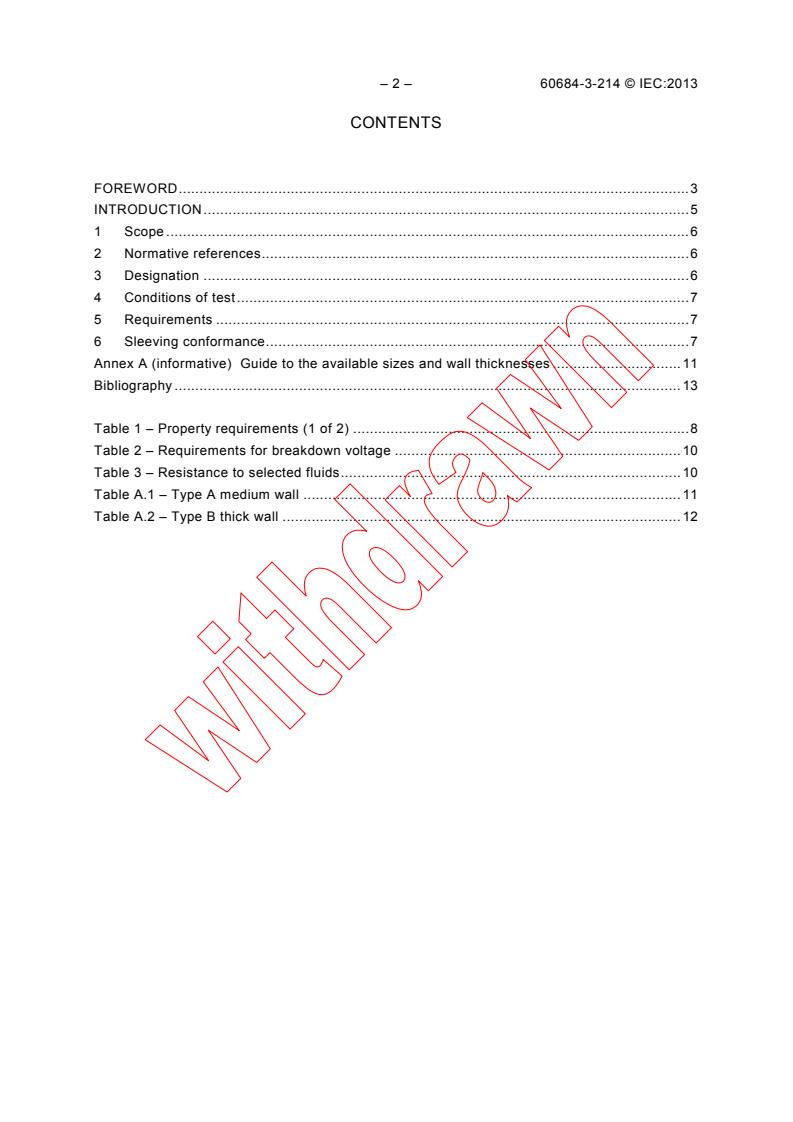

– 2 – 60684-3-214 © IEC:2013
CONTENTS
FOREWORD . 3

INTRODUCTION . 5

1 Scope . 6

2 Normative references . 6

3 Designation . 6

4 Conditions of test . 7
5 Requirements . 7
6 Sleeving conformance . 7
Annex A (informative) Guide to the available sizes and wall thicknesses . 11
Bibliography . 13

Table 1 – Property requirements (1 of 2) . 8
Table 2 – Requirements for breakdown voltage . 10
Table 3 – Resistance to selected fluids . 10
Table A.1 – Type A medium wall . 11
Table A.2 – Type B thick wall . 12

60684-3-214 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

_____________
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –

Sheet 214: Heat-shrinkable, polyolefin sleeving,

not flame retarded, thick and medium wall

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60684-3-214 has been prepared by IEC technical committee 15:
Solid electrical insulating materials.
This third edition cancels and replaces the second edition published in 2005. This edition
constitutes a technical revision.
This edition includes the following significant technical change with respect to the previous
edition:
Alignment with IEC 60684-3-247 (dual wall) since this Part 3 specification represents a single
wall option using identical material.

– 4 – 60684-3-214 © IEC:2013
The text of this standard is based on the following documents:

FDIS Report on voting
15/718/FDIS 15/721/RVD
Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60684 series, published under the general title Flexible insulating
sleeving, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60684-3-214 © IEC:2013 – 5 –
INTRODUCTION
This International Standard is one of a series which deals with flexible insulating sleeving for

electrical purposes.
The series consists of three parts:

Part 1: Definitions and general requirements (IEC 60684-1)

Part 2: Methods of test (IEC 60684-2)

Part 3: Specifications for individual types of sleeving (IEC 60684-3)

This standard gives one of the sheets comprising Part 3 as follows:
Sheet 214: Heat-shrinkable, polyolefin sleeving, not flame retarded, thick and medium wall.

– 6 – 60684-3-214 © IEC:2013
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –

Sheet 214: Heat-shrinkable, polyolefin sleeving,

not flame retarded, thick and medium wall

1 Scope
This standard gives the requirements for two types of heat-shrinkable, polyolefin sleeving, not
flame retarded, thick and medium wall with a nominal shrink ratio of 3:1.
This sleeving has been found suitable for use at temperatures of up to 100 °C.
Type A: Medium wall – internal diameter up to 200 mm typically.
Type B: Thick wall – internal diameter up to 200 mm typically.
These sleevings are normally supplied in colour black.
Since these types of sleevings cover a significantly large range of sizes and wall thicknesses,
Tables A.1 and A.2 of this document provides a guide to the range of sizes available. The
actual size will be agreed between the user and supplier.
Materials which conform to this specification meet established levels of performance. However,
the selection of a material by a user for a specific application should be based on the actual
requirements necessary for adequate
...
