IEC 60745-2-8:2003+AMD1:2008 CSV

Hand-held motor-operated electric tools - Safety - Part 2-8: Particular requirements for shears and nibblers

Deals with the safety of tools which the rated voltage is not more than 250 V for single-phase a.c. or d.c. tools and 440 V for three-phase a.c. tools. Supplements or modifies the corresponding clauses of IEC 60745-1 This consolidated version consists of the second edition (2003) and its amendment 1 (2008). Therefore, no need to order amendment in addition to this publication.

Outils électroportatifs à moteur - Sécurité - Partie 2-8: Règles particulières pour les cisailles à métaux et les grignoteuses

Traite de la sécurité des outils dont la tension assignée n'est pas supérieure à 250 V en courant monophasé alternatif ou courant continu et 440 V en courant alternatif triphasé. Complète ou modifie les articles correspondants de la CEI 60745-1.  Cette version consolidée comprend la deuxième édition (2003) et son amendement 1 (2008). Il n'est donc pas nécessaire de commander l'amendement avec cette publication.

General Information

• Status: Published
• Publication Date: 12-Aug-2008
• ICS: 25.120.10 - Forging equipment. Presses. Shears
• ICS: 25.140.20 - Electric tools
• ICS: 25.140.30 - Hand-operated tools
• Technical Committee: TC 116 - Safety of motor-operated electric tools
• Current Stage: PPUB - Publication issued
• Start Date: 13-Aug-2008
• Completion Date: 13-Aug-2008

Overview

IEC 60745-2-8:2003+AMD1:2008 CSV is an international standard developed by the International Electrotechnical Commission (IEC) focused on the safety requirements for hand-held motor-operated electric tools, specifically for shears and nibblers. It builds upon the general safety provisions set out in IEC 60745-1, detailing particular requirements applicable to these metal cutting and punching tools.

This standard applies to tools with rated voltage limits of up to 250 V for single-phase AC or DC, and up to 440 V for three-phase AC tools. It integrates the second edition from 2003 with Amendment 1 from 2008, providing a consolidated version that facilitates compliance without the need to order amendments separately.

Key Topics

• Scope and Application: The standard is specific to shears and nibblers designed for cutting or punching metal sheets, plates, and strips. It supplements the general safety requirements of IEC 60745-1 with tailored provisions to address the unique risks associated with these tools.

• Definitions:

  • Shear: A tool intended for shearing metal sheets, plates, and strips.
  • Nibbler: A tool designed for punching metal sheets, plates, and strips.

• Marking and Instructions: Tools must be clearly marked with the maximum thickness of metal, measured in millimeters, that can be safely cut. This marking refers to steel with a tensile strength of 390 N/mm² unless otherwise specified.

• Construction and Mechanical Safety: Special attention is given to the tool construction ensuring mechanical strength and protection against mechanical hazards. Certain clauses from the general Part 1 standard are modified or not applicable to better suit shears and nibblers.

• Electrical Safety: Includes requirements for protection against access to live parts, limits on heating, leakage currents, electric strength, and overload protections consistent with the general requirements but adapted for these specific tools.

• Testing Conditions: Specifies test conditions like operating the tool at rated input for 30 minutes to measure temperature rises.

• Supply Connection: Requires the use of supply cords of a specific durable type-no lighter than heavy polychloroprene sheathed flexible cable-to ensure durability and user safety.

Applications

IEC 60745-2-8 is essential for manufacturers, designers, and safety engineers involved with:

• Manufacturing Safety Compliance: Ensuring that hand-held electric shears and nibblers meet international safety standards before entering the market.

• Product Development: Developing new metal cutting and punching tools that conform to recognized safety benchmarks.

• Quality Assurance and Testing: Conducting standardized safety and endurance tests in manufacturing and repair processes.

• Regulatory Compliance: Assisting regulatory bodies and certification organizations in evaluating conformity for self-certified or third-party tested products.

• User Safety: Providing clear, enforceable guidelines that reduce risks such as electrical hazards, mechanical failures, and misuse of electric shears and nibblers.

Related Standards

• IEC 60745-1: The foundational standard covering general safety requirements for hand-held motor-operated electric tools, which IEC 60745-2-8 supplements with particular provisions for shears and nibblers.

• ISO/IEC Directives Part 2: Governs the structure and drafting of IEC standards including this one.

• Specific Material Standards: Requirements related to conductors and cables such as IEC 60245 IEC 66, specifying heavy polychloroprene sheathed flexible cables.

• Electropedia: The IEC’s comprehensive online dictionary of electrotechnical terms, supporting a clear and consistent understanding of terminology used in standards.

---

Key Benefits of IEC 60745-2-8 Compliance:

• Enhances worker safety by addressing specific risks related to shearing and nibbling of metals.
• Facilitates international trade through harmonized product safety requirements.
• Supports manufacturers in meeting regulatory and market demands for safe hand-held electric tools.
• Reduces liability by providing clear guidelines on safe design, construction, and marking.

For more information and to obtain the latest edition, visit the IEC Webstore or contact the IEC Customer Service Centre.

---

Keywords: IEC 60745-2-8, hand-held motor-operated electric tools, shears, nibblers, tool safety, electrical safety standards, metal cutting tools, international electrotechnical standards, IEC 60745-1, flexible cords, machine safety compliance.

Standards Content (Sample)

IEC 60745-2-8
Edition 2.1 2008-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-8: Particular requirements for shears and nibblers

Outils électroportatifs à moteur – Sécurité –
Partie 2-8: Règles particulières pour les cisailles à métaux et les grignoteuses
IEC 60745-2-8:2003+A1:2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60745-2-8
Edition 2.1 2008-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-8: Particular requirements for shears and nibblers

Outils électroportatifs à moteur – Sécurité –
Partie 2-8: Règles particulières pour les cisailles à métaux et les grignoteuses

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CC
CODE PRIX
ICS 25.140.20; 25.140.30; 25.140.10 ISBN 2-8318-9910-9
– 2 – 60745-2-8 © IEC:2003+A1:2008

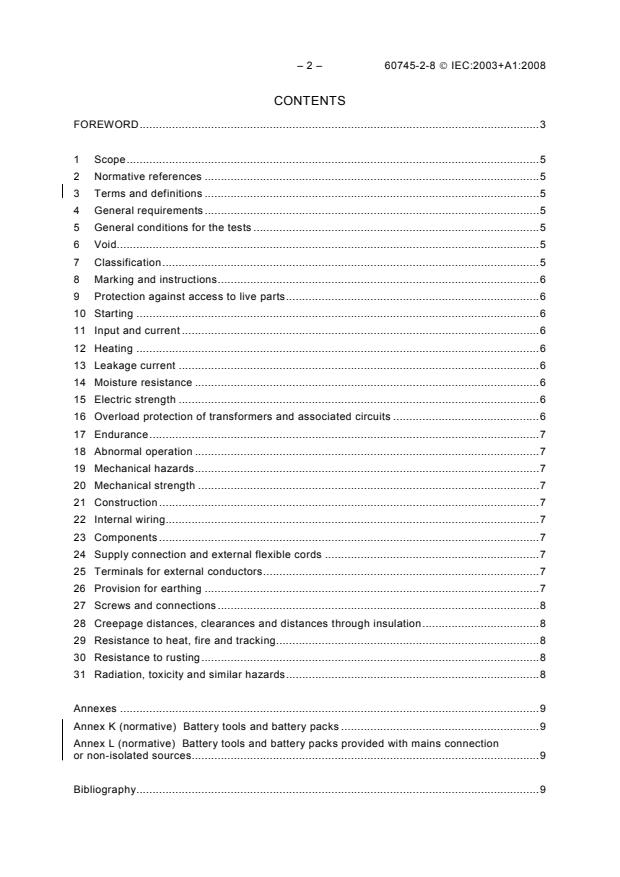

CONTENTS
FOREWORD.3

1 Scope.5
2 Normative references.5
3 Terms and definitions .5
4 General requirements .5
5 General conditions for the tests .5
6 Void.5
7 Classification.5
8 Marking and instructions.6
9 Protection against access to live parts.6
10 Starting.6
11 Input and current .6
12 Heating.6
13 Leakage current.6
14 Moisture resistance.6
15 Electric strength.6
16 Overload protection of transformers and associated circuits .6
17 Endurance.7
18 Abnormal operation.7
19 Mechanical hazards.7
20 Mechanical strength.7
21 Construction.7
22 Internal wiring.7
23 Components.7
24 Supply connection and external flexible cords .7
25 Terminals for external conductors.7
26 Provision for earthing .7
27 Screws and connections .8
28 Creepage distances, clearances and distances through insulation.8
29 Resistance to heat, fire and tracking.8
30 Resistance to rusting.8
31 Radiation, toxicity and similar hazards.8

Annexes .
Annex K (normative) Battery tools and battery packs .9
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources.9

Bibliography.9

60745-2-8 © IEC:2003+A1:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-8: Particular requirements for shears and nibblers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60745 has been prepared by subcommittee 61F:
Safety of hand-held motor-operated electric tools, of IEC technical committee 61: Safety of
household and similar electrical appliances
This consolidated version of IEC 60745-2-8 consists of the second edition (2003) [documents
61F/465/FDIS and 61F/489/RVD] and its amendment 1 (2008) [documents 61F/735/FDIS and
61F/755/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.
It bears the edition number 2.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
The French version of this standard has not been voted upon.

– 4 – 60745-2-8 © IEC:2003+A1:2008
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60745-1, Hand-held
motor-operated electric tools – Safety – Part 1: General requirements, and its amendments. It
was established on the basis of the third edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60745-1.
This part 2 supplements or modifies the corresponding clauses of IEC 60745-1, so as to
convert that publication into the IEC standard: Safety requirements for electric shears and
nibblers.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– additional annexes are lettered AA, BB, etc.

NOTE 3 In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
With amendment 1, this Part 2 is established on the basis of the fourth edition (2006) of
IEC 60745-1, Hand-held motor-operated electric tools – Safety – Part 1: General
requirements.
Main changes include editorial modifications to match with the fourth edition of IEC 60745-1
and clarifications in Annex K.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60745-2-8 © IEC:2003+A1:2008 – 5 –
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-8: Particular requirements for shears and nibblers

1 Scope
This clause of Part 1 is applicable except as follows:
Addition:
This standard applies to shears and nibblers.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable except as follows:
3.101
shear
tool intended for shearing of metal sheets, plates and strips
3.102
nibbler
tool intended for punching of metal sheets, plates and strips
4 General requirements
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable.
6 Void
7 Classification
This clause of Part 1 is applicable.

– 6 – 60745-2-8 © IEC:2003+A1:2008
8 Marking and instructions
This clause of Part 1 is applicable, except as follows:
8.1 Addition:
In addition the tool shall have the following marking:
− maximum thickness, in millimetres, of sheet metal which can be cut.
The marking for the maximum thickness shall be related to steel having a tensile strength of
390 N/mm², unless otherwise indicated on the tool.
9 Protection against access to live parts
This clause of Part 1 is applicable.
10 Starting
This clause of Part 1 is applicable.
11 Input and current
This clause of Part 1 is applicable.
12 Heating
This clause of Part 1 is applicable, except as follows:
12.4 Replacement:
The tool is operated at rated input or rated current for 30 min. The temperature rises are
measured at the end of the 30 min.
13 Leakage current
This clause of Part 1 is applicable.
14 Moisture resistance
This clause of Part 1 is applicable.
15 Electric strength
This clause of Part 1 is applicable.
16 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.

60745-2-8 © IEC:2003+A1:2008 – 7 –
17 Endurance
This clause of Part 1 is applicable.
18 Abnormal operation
This clause of Part 1 is applicable.
19 Mechanical hazards
This clause of Part 1 is applicable.
20 Mechanica
...
