IEC 61937-17:2025
(Main)Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 17: Non-linear PCM bitstreams according to the AVS3-P3 format
Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC 60958 - Part 17: Non-linear PCM bitstreams according to the AVS3-P3 format
IEC 61937-17:2025 specifies the method to convey non-linear PCM bitstreams encoded according to the AVS3-P3 format.
General Information
Standards Content (Sample)

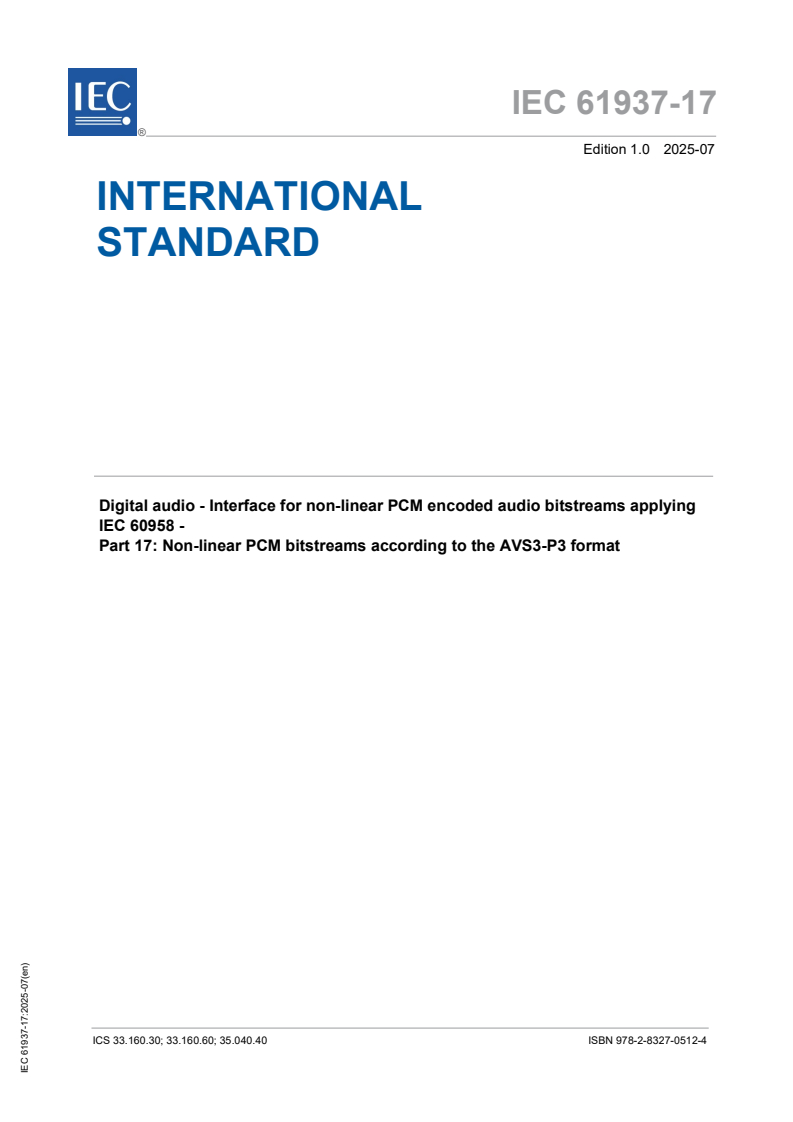

IEC 61937-17 ®
Edition 1.0 2025-07
INTERNATIONAL
STANDARD
Digital audio - Interface for non-linear PCM encoded audio bitstreams applying
IEC 60958 -
Part 17: Non-linear PCM bitstreams according to the AVS3-P3 format
ICS 33.160.30; 33.160.60; 35.040.40 ISBN 978-2-8327-0512-4

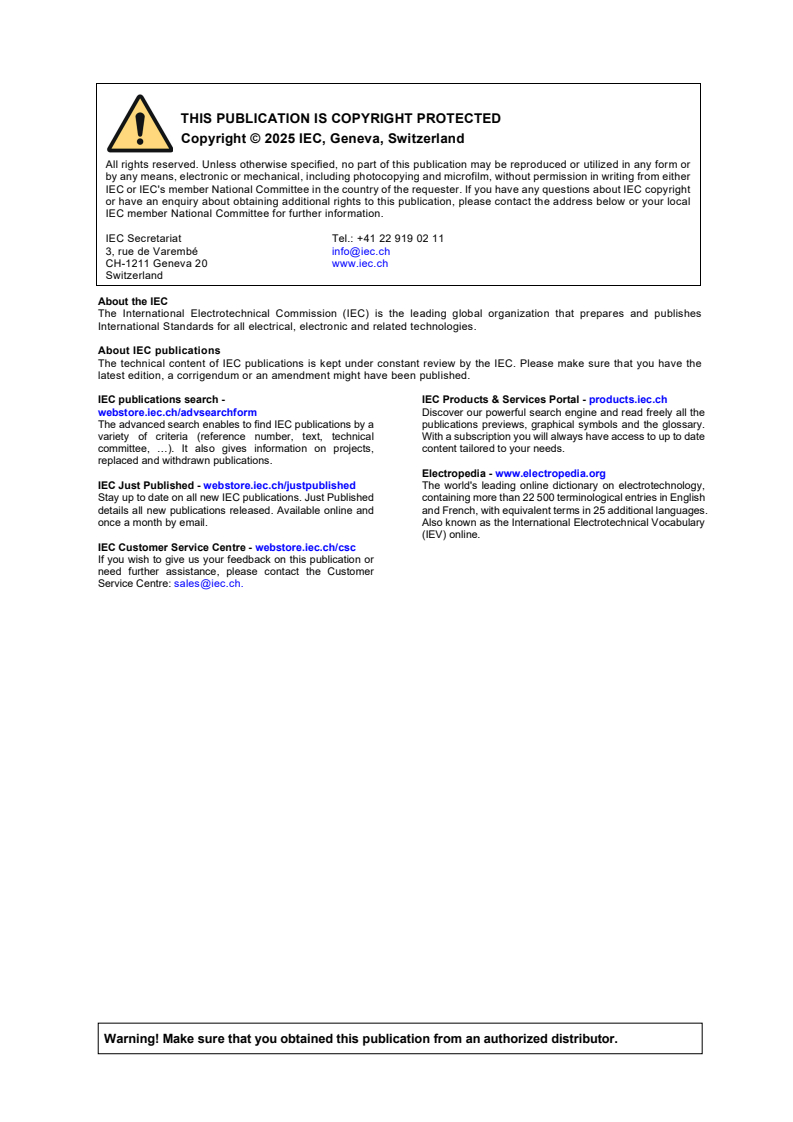

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a
publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
CONTENTS
FOREWORD . 2
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Mapping of the audio bitstream on to IEC 61937-1 . 4
4.1 General . 4
4.2 AVS3-P3 burst-info . 4
5 Format of AVS3-P3 data-bursts . 6
5.1 General . 6
5.2 Pause data-burst . 6
5.3 Audio data-bursts . 6
5.3.1 AVS3-P3 data . 6
5.3.2 Latency of AVS3-P3 decoding . 8
Bibliography . 10
Figure 1 – AVS3-P3 data-burst . 6
Figure 2 – Latency of AVS3-P3 decoding . 8
Table 1 – Fields of burst-info . 5
Table 2 – Repetition period of the pause data-bursts . 6
Table 3 – Frame repetition period and maximum data rate for AVS3-P3 bitstream . 7
Table 4 – Latency of AVS3-P3 decoding . 9
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Digital audio - Interface for non-linear PCM encoded
audio bitstreams applying IEC 60958 -
Part 17: Non-linear PCM bitstreams according to the AVS3-P3 format
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61937-17 has been prepared by technical area 20: Analogue and digital audio, of IEC
technical committee 100: Audio, video and multimedia systems and equipment. It is an
International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
100/4187/CDV 100/4264/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all the parts in the IEC 61937 series, published under the general title Digital audio –
Interface for non-linear PCM encoded audio bitstreams applying IEC 60958, can be found on
the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
1 Scope
This part of IEC 61937 specifies the method to convey non-linear PCM bitstreams encoded
according to the AVS3-P3 format.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61937-1:2021, Digital audio – Interface for non-linear PCM encoded audio bitstreams
applying IEC 60958 – Part 1: General
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61937-1 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
AVS3-P3 frame
bitstream generated by an AVS3-P3 encoder per block of PCM audio samples based on
T/AI 109.3, treated as a basic audio block for further use such as decoding, transmission, or
storage
3.2
AVS3-P3 frame length
number of PCM audio samples per audio frame
3.3
decoding latency
delay time of an external audio decoder to decode an AVS3-P3 data burst, defined as the sum
of two values of the receiving delay time and the decoding delay time
4 Mapping of the audio bitstream on to IEC 61937-1
4.1 General
The coding of the bitstream and data-burst is in accordance with IEC 61937-1:2021 and
AVS3-P3.
4.2 AVS3-P3 burst-info
Pc bits 0 to 7 shall indicate extended data-type according to IEC 61937-1:2021, 6.1.8.3. As all
bits are used in the preamble word of Pc, the value of data-type bits 0 to 7 in Pc is set to be
1 Fh. The extended data-type burst preamble Pe is used and the value is set to be 0x0002 h.
The 16-bit burst-info of Pe is used to convey the information on AVS3-P3 audio frames and the
repetition period as described in Table 1.
Table 1 – Fields of burst-info
Extended Sub- Data-type-
Data-
Data- data- dependent-
type
type type info
Reference Repetition period of data-burst
Contents
point R measured in IEC 60958 frames
Value of Value of V a lue of
Value of Pc
Pe bits Pc bits Pc bits
bits 10 to 11
0 to 15 0 to7 8 to 9
1 024, i.e., IEC 60958 frame rate is
0 Bit 0 of Pa
1x of the audio sample rate.
AVS3-P3 4 096, i.e., IEC 60958 frame rate is
1 Bit 0 of Pa
4x of the audio sample rate.
(with a frame
length of 8 192, i.e., IEC 60958 frame rate is
2 Bit 0 of Pa
1024) 8x of the audio sample rate,
16 384, i.e., IEC 60958 frame rate is
3 Bit 0 of Pa
16x of the audio sample rate.
0x0002 0x1 F 512, i.e., IEC 60958 frame rate is 1x
0 Bit 0 of Pa
of the audio sample rate.
2 048, i.e., IEC 60958 frame rate is
1 Bit 0 of Pa
AVS3-P3
4x of the audio sample rate.
(with a frame
4 096, i.e., IEC 60958 frame rate is
2 length of 512) Bit 0 of Pa
8x of the audio sample rate.
8 192, i.e., IEC 60958 frame rate is
3 Bit 0 of Pa
16x of the audio sample rate.
2 to 3 Reserved for future use
Bits 0 to 6 of the burst-info (Pc) and bits 0 to 15 of the burst-info (Pe) signal the data-type used
for transmission. For AVS3-P3, the signalled extended data-type is 0x0002 h.
In this document, the sub-data-type 0 is used for AVS3-P3 with a frame length of 1 024, and
the sub-data-type 1 is used for AVS3-P3 with a frame length of 512. In order to provide more
flexibility for different versions of transmission media of different bandwidths, four different
repetition periods can be selected for each AVS3-P3 frame length via the data-type-dependent-
info of bits 10 to 11 in Pc. For the frame length of 1 024 (sub-data-type is 0), they are 1 024
(the repetition period of the data-burst measured in IEC 60958 frames), 4 096, 8 192, and
16 384 corresponding to the data-type-dependent-info values of 0, 1, 2, and 3, respectively,
using the bits 10 to 11 in Pc of the 5-bit data-type-dependent-inf
...
