IEC TR 63038:2016

Conceptual model of standardization for multimedia car systems and equipment

IEC TR 63038:2016(E) specifies the conceptual model of multimedia systems and equipment utilized for cars and describes possible standardization items.

General Information

• Status: Published
• Publication Date: 17-Jul-2016
• ICS: 33.160.60 - Multimedia systems and teleconferencing equipment
• ICS: 43.040.10 - Electrical and electronic equipment
• Technical Committee: TA 17 - Multimedia systems and equipment for vehicles
• Current Stage: PPUB - Publication issued
• Start Date: 18-Jul-2016
• Completion Date: 30-Sep-2016

Overview

IEC TR 63038:2016 - "Conceptual model of standardization for multimedia car systems and equipment" - is a Technical Report from the IEC that defines a high‑level conceptual model for multimedia car systems and describes possible standardization items. Rather than prescribing detailed technical specifications, it organizes the ecosystem of in‑vehicle multimedia (infotainment, audio‑visual, navigation, sensors, and networked services) and identifies use cases, system elements, interfaces, content types, measurement approaches, security considerations and regulatory aspects.

Key topics and technical coverage

The report structures the multimedia car domain into clear elements and topics, including:

• Use cases: infotainment, navigation, audio‑visual entertainment, parking concierge, car monitoring, emergency call and user‑experience systems (e.g., UX mirroring, smart start, data synchronization).
• Network models: in‑car networks, inter‑vehicle (V2V) links, car-to‑cloud and car‑to‑home connections, and device networks (see network diagrams).
• System elements and devices: source/sink devices, sensors (cameras, other sensors), output devices, car black box, mobile and wearable devices.
• Content types: maps, traffic/road info, vehicle drive and maintenance data, network service information and AV content.
• Measurement and test approaches: audio/video device testing, camera and sensor measurement considerations.
• Security and regulations: high‑level security considerations for networked and non‑networked systems, and references to related IEC security work (informative annex).

Note: IEC TR 63038 provides a conceptual framework and catalogues potential standardization items rather than mandatory technical requirements.

Practical applications and who should use it

IEC TR 63038 is useful for organizations involved in the design, integration and assessment of automotive multimedia systems:

• Automotive OEMs and Tier‑1 suppliers designing infotainment and AV architectures.
• Consumer electronics and software vendors developing head‑units, mobile integration, streaming or UX mirroring solutions.
• System integrators and test labs planning measurements and interoperability testing for in‑vehicle multimedia.
• Standards developers and regulators seeking a snapshot of possible standardization needs across use cases, interfaces and security concerns.
• Cloud and service providers integrating navigation, traffic, and remote services with vehicles.

By adopting the conceptual model, stakeholders can improve interoperability, clarify interface boundaries, plan test strategies, and align security and regulatory requirements across the automotive multimedia ecosystem.

Related standards

IEC TR 63038 aligns with IEC TC 100 (audio, video and multimedia systems) work and references IEC security standards and other TC100 deliverables (see Annex B). For implementation and conformity assessment, consult the latest IEC standards and the IEC webstore for updates and normative documents.

Standards Content (Sample)

IEC TR 63038 ®
Edition 1.0 2016-07
TECHNICAL
REPORT
Conceptual model of standardization for multimedia car systems and equipment
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC TR 63038 ®
Edition 1.0 2016-07
TECHNICAL
REPORT
Conceptual model of standardization for multimedia car systems and equipment

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.160.60; 43.040.10 ISBN 978-2-8322-3521-8

– 2 – IEC TR 63038:2016 © IEC 2016

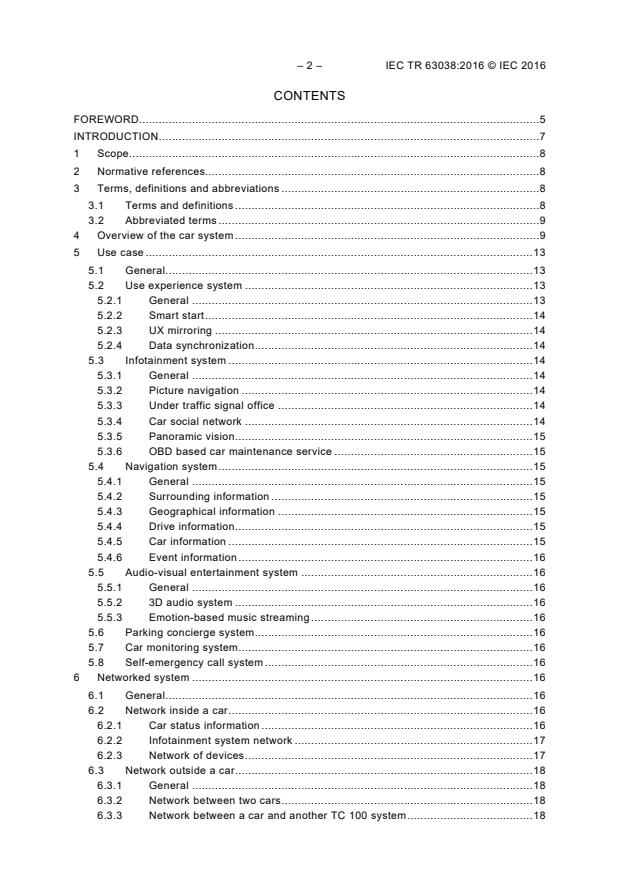

CONTENTS
