Electrical energy storage (EES) systems - Part 5-2: Safety requirements for grid-integrated EES systems - Electrochemical-based systems

IEC 62933-5-2:2020 primarily describes safety aspects for people and, where appropriate, safety matters related to the surroundings and living beings for grid-connected energy storage systems where an electrochemical storage subsystem is used.

Systèmes de stockage de l'énergie électrique (EES) - Partie 5-2: Exigences de sécurité pour les systèmes EES intégrés dans un réseau - Systèmes électrochimiques

L’IEC 62933-5-2:2020 décrit principalement les aspects liés à la sécurité des personnes et, le cas échéant, les questions de sécurité associées à l’environnement et aux êtres vivants pour les systèmes de stockage de l’énergie raccordés à un réseau qui utilisent un sous-système électrochimique de stockage.

General Information

Status
Published
Publication Date
15-Apr-2020
Current Stage
PPUB - Publication issued
Completion Date
16-Apr-2020
Ref Project

Buy Standard

Standard
IEC 62933-5-2:2020 - Electrical energy storage (EES) systems - Part 5-2: Safety requirements for grid-integrated EES systems - Electrochemical-based systems
English and French language
155 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62933-5-2
Edition 1.0 2020-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electrical energy storage (EES) systems –
Part 5-2: Safety requirements for grid-integrated EES systems –
Electrochemical-based systems
Systèmes de stockage de l'énergie électrique (EES) –
Partie 5-2: Exigences de sécurité pour les systèmes EES intégrés dans un
réseau – Systèmes électrochimiques
IEC 62933-5-2:2020-04(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62933-5-2
Edition 1.0 2020-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electrical energy storage (EES) systems –
Part 5-2: Safety requirements for grid-integrated EES systems –
Electrochemical-based systems
Systèmes de stockage de l'énergie électrique (EES) –
Partie 5-2: Exigences de sécurité pour les systèmes EES intégrés dans un
réseau – Systèmes électrochimiques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.020.30 ISBN 978-2-8322-8146-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

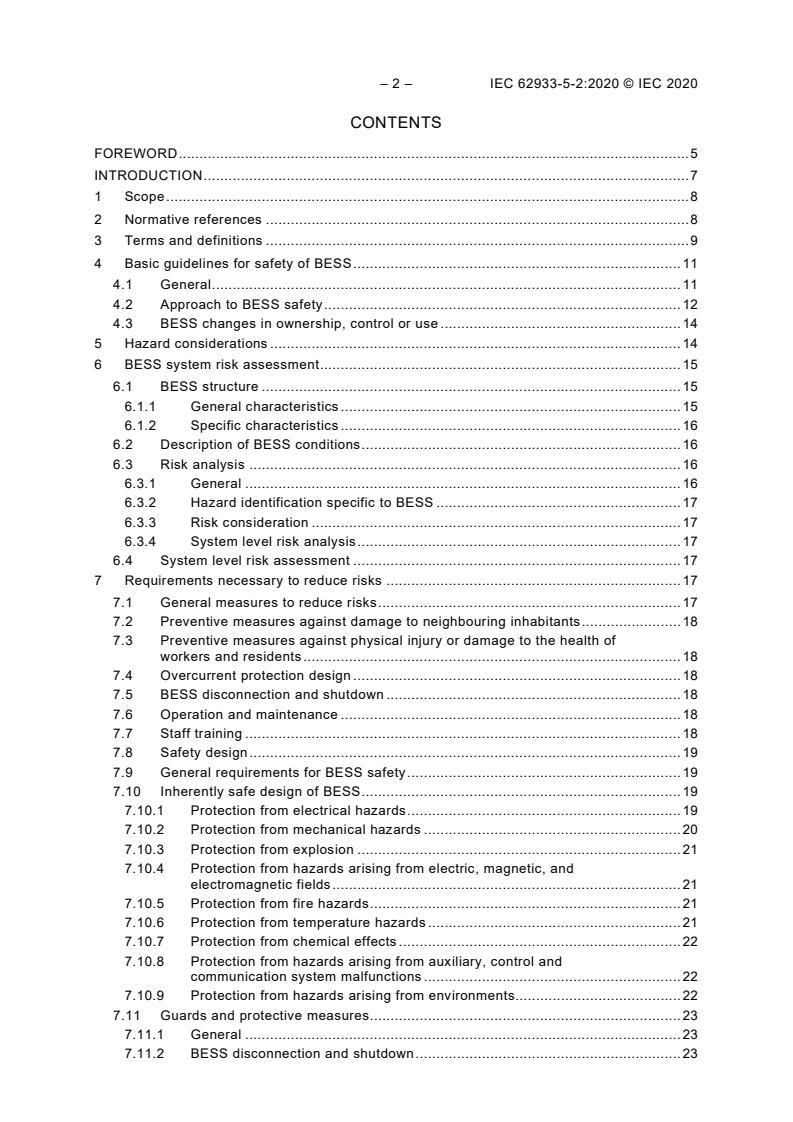

– 2 – IEC 62933-5-2:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms and definitions ...................................................................................................... 9

4 Basic guidelines for safety of BESS ............................................................................... 11

4.1 General ................................................................................................................. 11

4.2 Approach to BESS safety ...................................................................................... 12

4.3 BESS changes in ownership, control or use .......................................................... 14

5 Hazard considerations ................................................................................................... 14

6 BESS system risk assessment ....................................................................................... 15

6.1 BESS structure ..................................................................................................... 15

6.1.1 General characteristics .................................................................................. 15

6.1.2 Specific characteristics .................................................................................. 16

6.2 Description of BESS conditions ............................................................................. 16

6.3 Risk analysis ........................................................................................................ 16

6.3.1 General ......................................................................................................... 16

6.3.2 Hazard identification specific to BESS ........................................................... 17

6.3.3 Risk consideration ......................................................................................... 17

6.3.4 System level risk analysis .............................................................................. 17

6.4 System level risk assessment ............................................................................... 17

7 Requirements necessary to reduce risks ....................................................................... 17

7.1 General measures to reduce risks ......................................................................... 17

7.2 Preventive measures against damage to neighbouring inhabitants ........................ 18

7.3 Preventive measures against physical injury or damage to the health of

workers and residents ........................................................................................... 18

7.4 Overcurrent protection design ............................................................................... 18

7.5 BESS disconnection and shutdown ....................................................................... 18

7.6 Operation and maintenance .................................................................................. 18

7.7 Staff training ......................................................................................................... 18

7.8 Safety design ........................................................................................................ 19

7.9 General requirements for BESS safety .................................................................. 19

7.10 Inherently safe design of BESS ............................................................................. 19

7.10.1 Protection from electrical hazards .................................................................. 19

7.10.2 Protection from mechanical hazards .............................................................. 20

7.10.3 Protection from explosion .............................................................................. 21

7.10.4 Protection from hazards arising from electric, magnetic, and

electromagnetic fields .................................................................................... 21

7.10.5 Protection from fire hazards ........................................................................... 21

7.10.6 Protection from temperature hazards ............................................................. 21

7.10.7 Protection from chemical effects .................................................................... 22

7.10.8 Protection from hazards arising from auxiliary, control and

communication system malfunctions .............................................................. 22

7.10.9 Protection from hazards arising from environments........................................ 22

7.11 Guards and protective measures........................................................................... 23

7.11.1 General ......................................................................................................... 23

7.11.2 BESS disconnection and shutdown ................................................................ 23

---------------------- Page: 4 ----------------------
IEC 62933-5-2:2020 © IEC 2020 – 3 –

7.11.3 Other guards and protective functions of BESS ............................................. 24

7.12 Information for end users ...................................................................................... 28

7.13 Life cycle safety management ............................................................................... 28

7.13.1 Operation and maintenance ........................................................................... 28

7.13.2 Partial system change ................................................................................... 31

7.13.3 Design revision .............................................................................................. 32

7.13.4 End of service life management ..................................................................... 33

7.13.5 Measures for validating life cycle safety management .................................... 33

8 System validation and testing ........................................................................................ 33

8.1 General ................................................................................................................. 33

8.2 Validation and testing of BESS ............................................................................. 36

8.2.1 Electrical hazards .......................................................................................... 36

8.2.2 Mechanical hazards ....................................................................................... 38

8.2.3 Explosion ....................................................................................................... 38

8.2.4 Hazards arising from electric, magnetic, and electromagnetic fields ............... 39

8.2.5 Fire hazards (propagation) ............................................................................ 39

8.2.6 Temperature hazards..................................................................................... 40

8.2.7 Chemical effects ............................................................................................ 41

8.2.8 Hazards arising from auxiliary, control and communication system

malfunctions .................................................................................................. 42

8.2.9 Hazards arising from environments ................................................................ 42

8.2.10 IP rating of BESS enclosure and protective guards ........................................ 43

9 Guidelines and manuals ................................................................................................ 43

Annex A (informative) Ownership models of BESS ............................................................... 44

Annex B (informative) BESS hazards and risks .................................................................... 45

B.1 General introduction ............................................................................................. 45

B.2 Hazard concerns ................................................................................................... 51

B.2.1 General ......................................................................................................... 51

B.2.2 Fire hazards .................................................................................................. 51

B.2.3 Chemical hazards .......................................................................................... 51

B.2.4 Electrical hazards .......................................................................................... 51

B.2.5 Energy hazards ............................................................................................. 52

B.2.6 Physical hazards ........................................................................................... 52

B.2.7 High-pressure hazards .................................................................................. 52

B.3 Hazard considerations under normal operating conditions ..................................... 52

B.3.1 Fire and explosive hazards ............................................................................ 52

B.3.2 Chemical hazards .......................................................................................... 52

B.3.3 Electrical hazards .......................................................................................... 53

B.3.4 Physical hazards ........................................................................................... 53

B.4 Hazard considerations under emergency/abnormal conditions .............................. 54

B.4.1 Fire hazards .................................................................................................. 54

B.4.2 Chemical hazards .......................................................................................... 54

B.4.3 Electrical hazards .......................................................................................... 55

B.4.4 Physical hazards ........................................................................................... 56

B.5 Commercially available battery technologies ......................................................... 56

B.5.1 Lithium ion (Li-ion) batteries (C-A) ................................................................. 56

B.5.2 Lead-acid batteries (C-B) ............................................................................... 57

B.5.3 Nickel batteries (C-B) .................................................................................... 58

B.5.4 High-temperature sodium batteries (C-C)....................................................... 60

---------------------- Page: 5 ----------------------
– 4 – IEC 62933-5-2:2020 © IEC 2020

B.5.5 Flow batteries (C-D) ...................................................................................... 61

B.5.6 Lithium metal solid state batteries (C-Z) ........................................................ 63

B.6 Other technologies ................................................................................................ 63

Annex C (informative) Large-scale fire testing on BESS ....................................................... 64

Annex D (informative) Test methods for protection from hazards arising from

environments ........................................................................................................................ 65

D.1 General ................................................................................................................. 65

D.2 Outdoor installations subject to moisture exposure ............................................... 65

D.3 Outdoor installation near marine environments ..................................................... 65

Annex E (informative) Information for validation of BESS life cycle safety

management ......................................................................................................................... 66

E.1 Overview .............................................................................................................. 66

E.2 General introduction ............................................................................................. 66

E.3 Operation and maintenance process ..................................................................... 66

E.4 Preventive maintenance ........................................................................................ 66

E.5 Measuring and monitoring of system soundness ................................................... 67

E.6 Staff training ......................................................................................................... 67

E.7 Partial system change ........................................................................................... 67

E.8 Design revision ..................................................................................................... 67

Annex F (informative) BESS safety signage ......................................................................... 68

Annex G (informative) Example of testing for verification of thermal control operation .......... 69

Bibliography .......................................................................................................................... 70

Figure 1 – General description for risk assessment and reduction of BESS ........................... 11

Figure 2 – An example of BESS architecture......................................................................... 15

Figure 3 – Example of isolated condition (whole isolation of BESS) ...................................... 24

Figure 4 – Incompatibility of capacity and/or usage in a BESS .............................................. 32

Table 1 – BESS categories ................................................................................................... 13

Table 2 – Examples of BESS use.......................................................................................... 14

Table 3 – Examples of components within subsystems of a BESS ........................................ 16

Table 4 – Examples of incompatibilities that can arise from system changes ........................ 32

Table 5 – Overview of validation and testing for BESS .......................................................... 35

Table B.1 – Hazards of BESS in common ............................................................................. 47

Table B.2 – Hazards of BESS using non-aqueous electrolyte battery (category "C-A") ......... 48

Table B.3 – Hazards of BESS using aqueous electrolyte battery (category "C-B") ................ 49

Table B.4 – Hazards of BESS using high temperature battery (category "C-C") ................... 50

Table B.5 – Hazards of BESS using flow battery (category "C-D") ........................................ 51

---------------------- Page: 6 ----------------------
IEC 62933-5-2:2020 © IEC 2020 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICAL ENERGY STORAGE (EES) SYSTEMS –
Part 5-2: Safety requirements for grid-integrated EES systems –
Electrochemical-based systems
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62933-5-2 has been prepared by IEC technical committee 120:

Electrical Energy Storage (EES) Systems.

This International Standard is to be used in conjunction with IEC TS 62933-5-1:2017.

The text of this International Standard is based on the following documents:
FDIS Report on voting
120/173/FDIS 120/182/RVD

Full information on the voting for the approval of this International Standard can be found in the

report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 7 ----------------------
– 6 – IEC 62933-5-2:2020 © IEC 2020

A list of all parts in the IEC 62933 series, published under the general title Electrical energy

storage (EES) systems, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct understanding

of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 8 ----------------------
IEC 62933-5-2:2020 © IEC 2020 – 7 –
INTRODUCTION

All the electrical energy storage systems (EESS) follow the general safety requirements as

described in IEC TS 62933-5-1, which is based on a systems approach. IEC 62933-5-2 follows

the same structure as IEC TS 62933-5-1 and provides additional requirements for battery

energy storage systems (BESS). The additional requirements are provided for the following

reasons:
a) BESS can be integrated into a significant range of electrical grids.

b) The level of safety requirements awareness can vary between utilities, system integrators,

operators and end-users.

c) Although the safety of individual subsystems is generally covered by international standards

at ISO and IEC levels, the safety matters that arise due to the combination of

electrochemical accumulation subsystems and any electrical subsystems are not always

considered. BESS are complex at the systems level due to the variety of potential battery

options and configurations, including the combination of subsystems (e.g. control systems

for electrochemical accumulation subsystems, electrochemical accumulation subsystems,

power conversion subsystems and auxiliary subsystems). Compliance with standards and

related material produced specifically for the safety of subsystems cannot be sufficient to

reach an acceptable level of safety for the overall system.

d) BESS can have additional safety hazards, due, for example, to the presence of chemicals,

the emission of toxic gases, chemicals spilt around the electrochemical accumulation

subsystems and to events critical for safety from electrochemical accumulation subsystems

that cause safety issues for the entire BESS. They can cause loss of power at any part of

the systems and buildings that can result in additional threats to safety. From a systems

perspective, these individual hazards can have a system wide impact.
---------------------- Page: 9 ----------------------
– 8 – IEC 62933-5-2:2020 © IEC 2020
ELECTRICAL ENERGY STORAGE (EES) SYSTEMS –
Part 5-2: Safety requirements for grid-integrated EES systems –
Electrochemical-based systems
1 Scope

This part of IEC 62933 primarily describes safety aspects for people and, where appropriate,

safety matters related to the surroundings and living beings for grid-connected energy storage

systems where an electrochemical storage subsystem is used.

This safety standard is applicable to the entire life cycle of BESS (from design to end of service

life management).

This document provides further safety provisions that arise due to the use of an electrochemical

storage subsystem (e.g. battery system) in energy storage systems that are beyond the general

safety considerations described in IEC TS 62933-5-1.

This document specifies the safety requirements of an “electrochemical” energy storage system

as a "system" to reduce the risk of harm or damage caused by the hazards of an electrochemical

energy storage system due to interactions between the subsystems as presently understood.

2 Normative references

The following documents are referred to in the text in such a way that some or all of the

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
