IEC 61966-12-2:2024
(Main)Multimedia systems and equipment - Colour measurement and management - Part 12-2: Simple metadata format for identification of colour gamut
Multimedia systems and equipment - Colour measurement and management - Part 12-2: Simple metadata format for identification of colour gamut
IEC 61966-12-2:2024 is available as IEC 61966-12-2:2024 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 61966-12-2:2024 specifies the colour gamut metadata format for video systems intended for use in CE (consumer electronics) devices. The metadata specified in this part of IEC 61966-12 is limited to the gamut description for display types comprising the three primary additive colours, whose white and black points have the same chromaticity. It is fundamentally based on the conventional VESA-EDID format.
When associated with content, the simple metadata format defines the gamut for which the content was created. It can be used by the display for controlled colour reproduction even if the display’s colour gamut is different from that of the content. When associated with a display, the simple metadata format defines the display colour gamut. It can be used during content creation to enable improved colour reproduction.
This document provides the simplest, but unambiguous solution for typical CE devices that are based on colour gamut information communication.
IEC 61966-12-2:2024 cancels and replaces the first edition published in 2014. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) the number of bits of metadata format has been extended in Clause 4;
b) Annex C has been added for handling HDR content.
General Information
Relations
Standards Content (Sample)
IEC 61966-12-2 ®
Edition 2.0 2024-10
INTERNATIONAL
STANDARD
Multimedia systems and equipment – Colour measurement and management –
Part 12-2: Simple metadata format for identification of colour gamut
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 61966-12-2 ®
Edition 2.0 2024-10
INTERNATIONAL
STANDARD
Multimedia systems and equipment – Colour measurement and management –
Part 12-2: Simple metadata format for identification of colour gamut
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 17.180.20; 33.160.40 ISBN 978-2-8322-9821-3

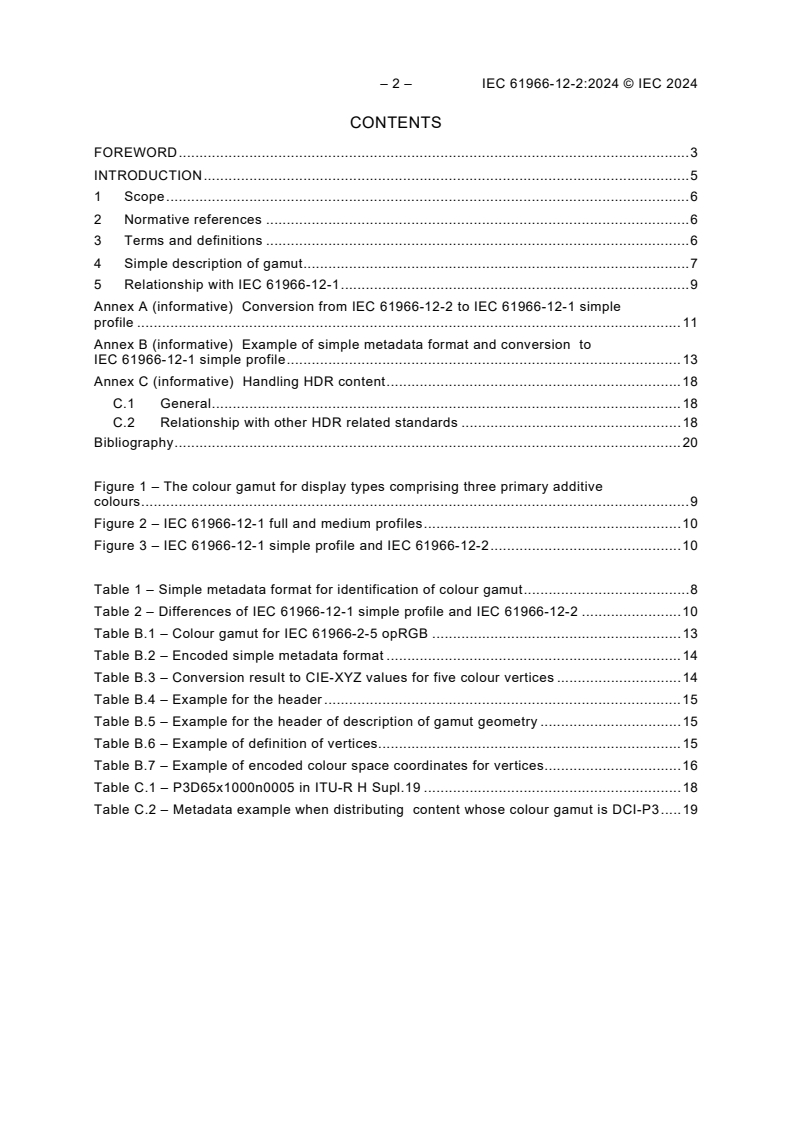

– 2 – IEC 61966-12-2:2024 © IEC 2024
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Simple description of gamut . 7
5 Relationship with IEC 61966-12-1 . 9
Annex A (informative) Conversion from IEC 61966-12-2 to IEC 61966-12-1 simple
profile . 11
Annex B (informative) Example of simple metadata format and conversion to
IEC 61966-12-1 simple profile . 13
Annex C (informative) Handling HDR content . 18
C.1 General . 18
C.2 Relationship with other HDR related standards . 18
Bibliography . 20
Figure 1 – The colour gamut for display types comprising three primary additive
colours . 9
Figure 2 – IEC 61966-12-1 full and medium profiles . 10
Figure 3 – IEC 61966-12-1 simple profile and IEC 61966-12-2 . 10
Table 1 – Simple metadata format for identification of colour gamut . 8
Table 2 – Differences of IEC 61966-12-1 simple profile and IEC 61966-12-2 . 10
Table B.1 – Colour gamut for IEC 61966-2-5 opRGB . 13
Table B.2 – Encoded simple metadata format . 14
Table B.3 – Conversion result to CIE-XYZ values for five colour vertices . 14
Table B.4 – Example for the header . 15
Table B.5 – Example for the header of description of gamut geometry . 15
Table B.6 – Example of definition of vertices. 15
Table B.7 – Example of encoded colour space coordinates for vertices. 16
Table C.1 – P3D65x1000n0005 in ITU-R H Supl.19 . 18
Table C.2 – Metadata example when distributing content whose colour gamut is DCI-P3 . 19
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MULTIMEDIA SYSTEMS AND EQUIPMENT –
COLOUR MEASUREMENT AND MANAGEMENT –
Part 12-2: Simple metadata format for identification of colour gamut
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61966-12-2 has been prepared by technical area 2: Colour measurement and management,
of IEC technical committee 100: Audio, video and multimedia systems and equipment. It is an
International Standard.
This second edition cancels and replaces the first edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the number of bits of metadata format has been extended in Clause 4;
b) Annex C has been added for handling HDR content.
– 4 – IEC 61966-12-2:2024 © IEC 2024
The text of this International Standard is based on the following documents:
Draft Report on voting
100/3847/CDV 100/4109/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 61966 series, published under the general title Multimedia systems
and equipment – Colour measurement and management, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
INTRODUCTION
New technologies in capturing and displaying wide-gamut colour images enable a new market
of wide-gamut video colour content creation. Recent video standards for wide gamut colour
space encoding such as ITU-R BT.2100 (HDR), ITU-R BT.2020 (UHDTV) and IEC 61966-2-4
(xvYCC) were developed in order to be able to distribute content with a colour gamut that is
extended with respect to classical colour gamuts such as those defined by standards ITU-R
BT.601 (standard-definition television) and ITU-R BT.709 (high-definition television). With the
increasing popularity of wide gamut and high dynamic range content and displays, the variety
of colour gamuts of displays is expected to increase. This issue can be an obstacle to adoption
of wide-gamut video colour content in professional content creation since the compatibility of
the content to the employed displays, as well as the compatibility among different displays, is
not ensured. The term "display" includes here any video colour reproduction equipment, such
as direct view displays and projectors. Thanks to improvements in technology, the variety of
colour gamuts and colour reproduction capacities of displays are increasing while the colour
gamut and the colour encoding rules of existing colour space encoding standards are fixed.
To address this issue, IEC 61966-12-1 (Metadata for identification of colour gamut (Gamut ID))
specifies a colour gamut metadata scheme for video systems including information for colour
reproduction. This metadata can apply to video content or displays. More specifically,
improvements can be achieved if the wide-gamut colour content is created with the knowledge
of the display colour gamut and if the colour reproduction in the display is done with the
knowledge of the colour gamut of the pictorial content.
IEC 61966-12-1 has the capability to describe arbitrary 3D colour gamuts in a given colour
space and include the full/medium profile for professional use and the simple profile for
consumer use with easier product implementation. This approach is effective, but some
ambiguities can occur in practical
...
