IEC 62893-3:2017

Charging cables for electric vehicles for rated voltages up to and including 0,6/1 kV - Part 3: Cables for AC charging according to modes 1, 2 and 3 of IEC 61851-1 of rated voltages up to and including 450/750 V

IEC 62893-3:2017(E) applies to cables for AC charging according to modes 1, 2 and 3 of IEC 61851-1. The cables are of rated voltages U0/U up to and including 450/750 V. Ordinary duty cables with rated voltage 300/500 V are only permitted for charging mode 1 of IEC 61851-1.
Maximum conductor operating temperature for the cables in this document is 90 ºC.

General Information

• Status: Published
• Publication Date: 21-Nov-2017
• ICS: 29.060.20 - Cables
• ICS: 43.120 - Electric road vehicles
• Technical Committee: TC 20 - Electric cables
• Drafting Committee: WG 17 - TC 20/WG 17
• Current Stage: PPUB - Publication issued
• Start Date: 22-Nov-2017
• Completion Date: 22-Dec-2017

Overview

IEC 62893-3:2017 is an international standard that specifies requirements for charging cables used for AC charging of electric vehicles (EVs) according to modes 1, 2 and 3 of IEC 61851-1. It covers cables of the IEC 0,6/1 kV family with rated voltages up to and including 450/750 V and sets a maximum conductor operating temperature of 90 °C. Ordinary-duty flexible cables rated 300/500 V are permitted only for charging mode 1.

Key topics and technical requirements

• Scope and cable types: Defines ordinary duty (types 62893 IEC 121, 122) and heavy duty (types 62893 IEC 123, 124, 125) flexible cables for EV AC charging.
• Rated voltages: Cables rated 300/500 V (ordinary duty) and 450/750 V (heavy duty).
• Conductor sizes and construction: Power core sizes include 1.5 mm2 and 2.5 mm2 for ordinary duty; heavy duty covers 1.5 mm2 up to 35 mm2 and 3–5 core constructions; cores are class 5 flexible conductors and are twisted/assembled with non-adhering sheaths.
• Insulation and sheath materials: Insulation compounds (EVI-1, EVI-2) and halogen-free sheath compounds (EVM-1, EVM-2, EVM-3) are specified by cable type; sheath must not adhere to cores.
• Marking and dimensioning: Marking requirements refer to IEC 62893-1; dimensional and insulation thickness data are provided in Annex B tables.
• Testing and verification: Test methods and performance requirements reference IEC 62893-2, IEC 60245-2, IEC 60332-1-2, IEC 62821-1 and relevant IEC 60811 parts. Annex A lists tests for completed cables (compatibility, cold impact, crush resistance, fire performance, etc.).
• Use guidance: Clause 5 refers to IEC 62440 for safe use and includes tables for intended environmental and duty conditions.

Applications and who uses this standard

• Cable manufacturers designing and producing EV charging cables for AC charging (modes 1–3).
• EVSE (Electric Vehicle Supply Equipment) OEMs specifying compatible charging leads and assemblies.
• Test laboratories and conformity assessors performing required tests per Annex A and referenced documents.
• Specifiers, procurement teams and safety engineers ensuring product selection meets rated voltage, temperature and mechanical requirements.
• Regulators and certification bodies referencing IEC 62893-3:2017 for compliance with EV charging safety and performance.

Related standards

• IEC 61851-1 (EV conductive charging system - general requirements)
• IEC 62893-1 (General requirements for EV charging cables)
• IEC 62893-2 (Test methods)
• IEC 62440 (Guide to safe use of cables)
• IEC 60245-2, IEC 60332-1-2, IEC 60811 (referenced test and material standards)

Keywords: IEC 62893-3:2017, charging cables, electric vehicles, AC charging, 450/750 V, modes 1 2 3, IEC 61851-1, EVM, EVI, cable testing.

Standards Content (Sample)

IEC 62893-3 ®
Edition 1.0 2017-11
INTERNATIONAL
STANDARD
Charging cables for electric vehicles of rated voltages up to and including
0,6/1 kV –
Part 3: Cables for AC charging according to modes 1, 2 and 3 of IEC 61851-1
of rated voltages up to and including 450/750 V
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 62893-3 ®
Edition 1.0 2017-11
INTERNATIONAL
STANDARD
Charging cables for electric vehicles of rated voltages up to and including

0,6/1 kV –
Part 3: Cables for AC charging according to modes 1, 2 and 3 of IEC 61851-1

of rated voltages up to and including 450/750 V

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 43.120; 29.060.20 ISBN 978-2-8322-5069-3

– 2 – IEC 62893-3:2017 © IEC 2017

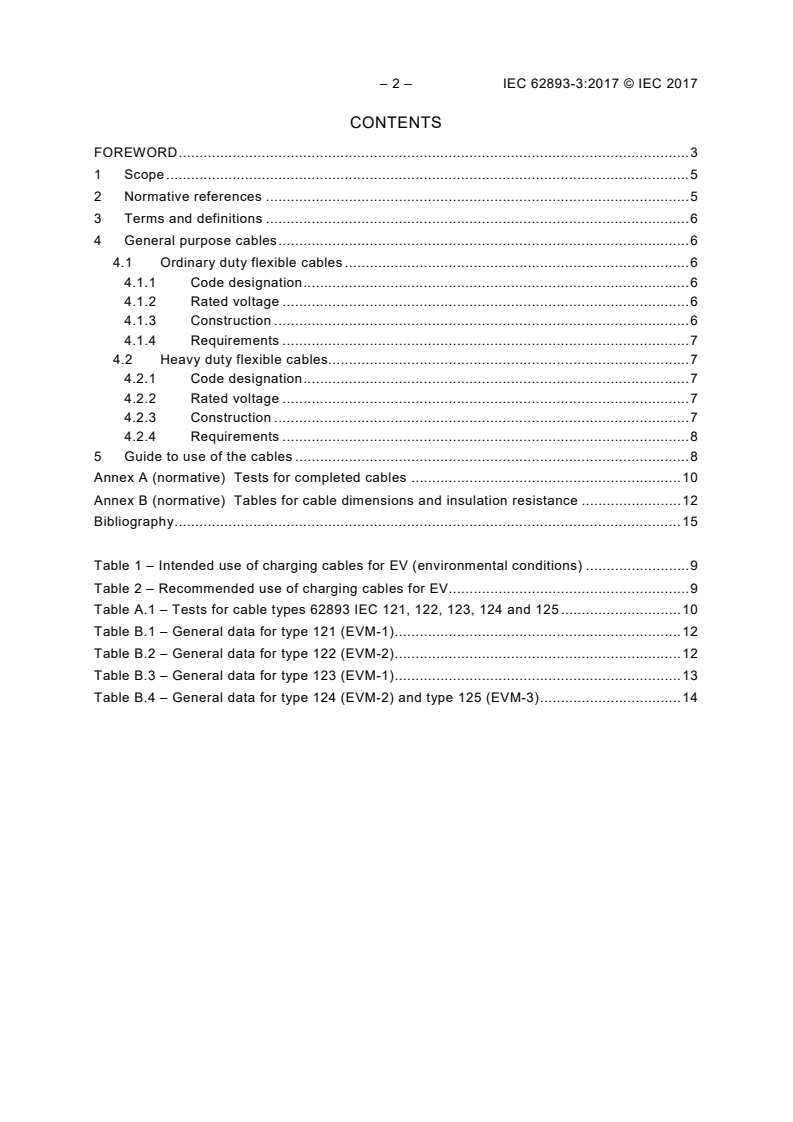

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 General purpose cables . 6
4.1 Ordinary duty flexible cables . 6
4.1.1 Code designation . 6
4.1.2 Rated voltage . 6
4.1.3 Construction . 6
4.1.4 Requirements . 7
4.2 Heavy duty flexible cables. 7
4.2.1 Code designation . 7
4.2.2 Rated voltage . 7
4.2.3 Construction . 7
4.2.4 Requirements . 8
5 Guide to use of the cables . 8
Annex A (normative) Tests for completed cables . 10
Annex B (normative) Tables for cable dimensions and insulation resistance . 12
Bibliography . 15

Table 1 – Intended use of charging cables for EV (environmental conditions) . 9
Table 2 – Recommended use of charging cables for EV. 9
Table A.1 – Tests for cable types 62893 IEC 121, 122, 123, 124 and 125 . 10
Table B.1 – General data for type 121 (EVM-1) . 12
Table B.2 – General data for type 122 (EVM-2) . 12
Table B.3 – General data for type 123 (EVM-1) . 13
Table B.4 – General data for type 124 (EVM-2) and type 125 (EVM-3) . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CHARGING CABLES FOR ELECTRIC VEHICLES
OF RATED VOLTAGES UP TO AND
INCLUDING 0,6/1 kV –
Part 3: Cables for AC charging according to modes 1, 2 and 3 of
IEC 61851-1 of rated voltages up to and including 450/750 V

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62893-3 has been prepared by IEC technical committee 20:
Electric cables.
The text of this International Standard is based on the following documents:
FDIS Report on voting
20/1762/FDIS 20/1775/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 62893-3:2017 © IEC 2017
This document is to be read in conjunction with IEC 62893-1:2017.
A list of all parts in the IEC 62893 series, published under the general title Charging cables
for electric vehicles of rated voltages up to and including 0,6/1 kV, can be found on the IEC
website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

CHARGING CABLES FOR ELECTRIC VEHICLES
OF RATED VOLTAGES UP TO AND
INCLUDING 0,6/1 kV –
Part 3: Cables for AC charging according to modes 1, 2 and 3 of
IEC 61851-1 of rated voltages up to and including 450/750 V

1 Scope
This part of IEC 62893 applies to cables for AC charging according to modes 1, 2 and 3 of
IEC 61851-1. The cables are of rated voltages U /U up to and including 450/750 V. Ordinary
duty cables with rated voltage 300/500 V are only permitted for charging mode 1 of
IEC 61851-1.
Maximum conductor operating temperature for the cables in this document is 90 ºC.
The test methods specified are given in IEC 62893-2, IEC 60245-2, IEC 60332-1-2,
IEC 62821-1:2015, Annex B and in the relevant parts of IEC 60811.
IEC 62440 is intended to be used as guidance on the safe use of cables in this document
together with specific guidance in Clause 5 of this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60245-2:1994, Rubber insulated cables – Rated voltages up to and including 450/750 V –
Part 2: Test methods
IEC 60332-1-2, Tests on electric and optical fibre cables under fire conditions – Part 1-2: Test
for vertical flame propagation for a single insulated wire or cable – Procedure for 1 kW pre-
mixed flame
IEC 60811-401:2012, Electric and optical fibre cables – Test methods for non-metallic
materials – Part 401: Miscellaneous tests – Thermal ageing methods – Ageing in an air oven
IEC 60811-505, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 505: Mechanical tests – Elongation at low temperature for insulations and sheaths
IEC 61851-1, Electric vehicle conductive charging system – Part 1: General requirements
IEC 62440:2008, Electric cables with a rated voltage not exceeding 450/750 V – Guide to use
IEC 62821-1:2015, Electric cables – Halogen-free, low smoke, thermoplastic insulated and
sheathed cables of rated voltages up to and including 450/750 V – Part 1: General
requirements
IEC 62893-1:2017, Charging cables for electric vehicles of
...
