IEC 60704-2-1:2014

Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for vacuum cleaners

IEC 60704-2-1:2014 applies to electrical vacuum cleaners (including their accessories and their component parts) for household use in or under conditions similar to those in households. This part of IEC 60704 applies as it is to electrical vacuum cleaners operating in dry conditions. Some additions and modifications for vacuum cleaners operating in wet conditions are under consideration. How to test robotic vacuum cleaners is under consideration for a future edition. This part of IEC 60704 does not apply to vacuum cleaners for industrial or professional purposes. This third edition cancels and replaces the second edition published in 2000. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) introduction of a measuring method on hard floors;
b) inclusion of values for measurement uncertainty;
c) inclusion of values for standard deviation for declaration and verification;
d) update of the definition of the standard test carpet.
This publication is to be read in conjunction with IEC 60704-1:2010.

Appareils électrodomestiques et analogues - Code d'essai pour la détermination du bruit aérien - Partie 2-1: Exigences particulières pour les aspirateurs

L'IEC 60704-2-1:2014 s'applique aux aspirateurs électriques (y compris leurs accessoires et éléments composants) destinés à un usage domestique ou dans des conditions analogues à celles des foyers domestiques. Cette partie de l'IEC 60704 s'applique telle quelle aux aspirateurs électriques fonctionnant sur sol sec. Des additions et modifications sont à l'étude pour les appareils fonctionnant sur sol humide. Des méthodes d'essai applicables aux aspirateurs robots sont à l'étude pour une future édition. Cette partie de l'IEC 60704 ne s'applique pas aux aspirateurs destinés à des usages industriels ou professionnels. Cette troisième édition annule et remplace la deuxième édition publiée en 2000. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) introduction d'une méthode de mesure sur les sols durs;
b) intégration de valeurs pour l'incertitude de mesure;
c) intégration de valeurs pour l'écart-type pour la déclaration et la vérification;
d) mise à jour de la définition du tapis d'essai normalisé.
Cette publication doit être lue conjointement avec la CEI 60704-1:2010.

General Information

• Status: Published
• Publication Date: 21-May-2014
• ICS: 17.140.20 - Noise emitted by machines and equipment
• ICS: 97.080 - Cleaning appliances
• Technical Committee: SC 59F - Surface cleaning appliances
• Drafting Committee: PT 2.8 - TC 56/PT 2.8
• Current Stage: DELPUB - Deleted Publication
• Start Date: 30-Oct-2020
• Completion Date: 31-Oct-2017

Relations

• Revises: IEC 60704-2-1:2000 - Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for vacuum cleaners
• Effective Date: 05-Sep-2023
• Revised: IEC 60704-2-1:2020 - Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for dry vacuum cleaners
• Effective Date: 05-Sep-2023

Standards Content (Sample)

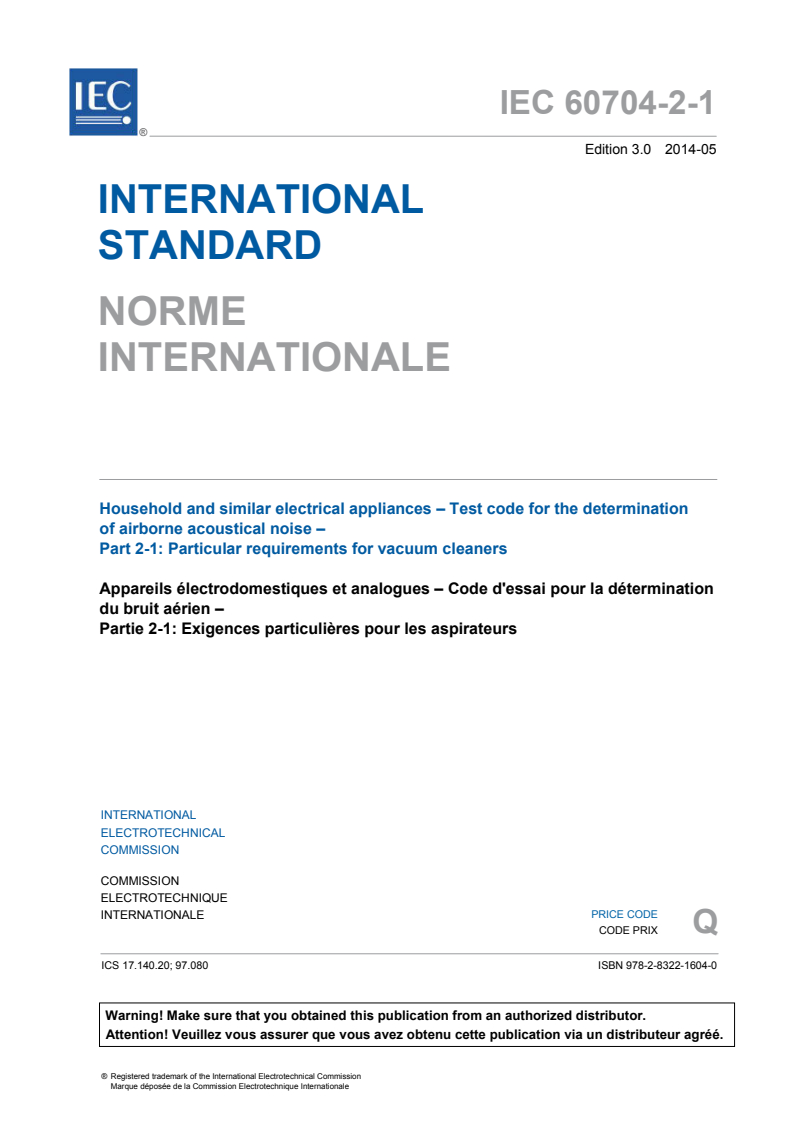

IEC 60704-2-1 ®
Edition 3.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Test code for the determination
of airborne acoustical noise –
Part 2-1: Particular requirements for vacuum cleaners

Appareils électrodomestiques et analogues – Code d'essai pour la détermination
du bruit aérien –
Partie 2-1: Exigences particulières pour les aspirateurs

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60704-2-1 ®
Edition 3.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Test code for the determination

of airborne acoustical noise –

Part 2-1: Particular requirements for vacuum cleaners

Appareils électrodomestiques et analogues – Code d'essai pour la détermination

du bruit aérien –
Partie 2-1: Exigences particulières pour les aspirateurs

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX Q
ICS 17.140.20; 97.080 ISBN 978-2-8322-1604-0

– 2 – IEC 60704-2-1:2014  IEC 2014

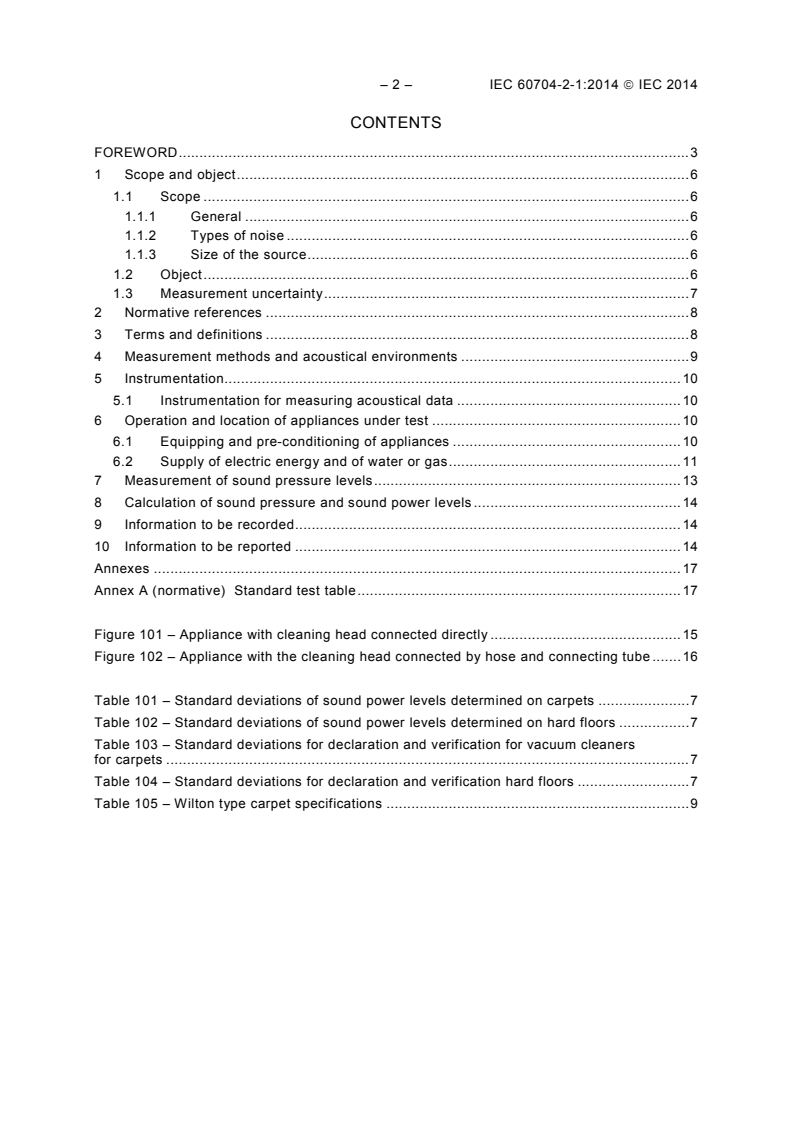

CONTENTS
FOREWORD . 3
1 Scope and object . 6
1.1 Scope . 6
1.1.1 General . 6
1.1.2 Types of noise . 6
1.1.3 Size of the source . 6
1.2 Object . 6
1.3 Measurement uncertainty . 7
2 Normative references . 8
3 Terms and definitions . 8
4 Measurement methods and acoustical environments . 9
5 Instrumentation. 10
5.1 Instrumentation for measuring acoustical data . 10
6 Operation and location of appliances under test . 10
6.1 Equipping and pre-conditioning of appliances . 10
6.2 Supply of electric energy and of water or gas . 11
7 Measurement of sound pressure levels . 13
8 Calculation of sound pressure and sound power levels . 14
9 Information to be recorded . 14
10 Information to be reported . 14
Annexes . 17
Annex A (normative) Standard test table . 17

Figure 101 – Appliance with cleaning head connected directly . 15
Figure 102 – Appliance with the cleaning head connected by hose and connecting tube . 16

Table 101 – Standard deviations of sound power levels determined on carpets . 7
Table 102 – Standard deviations of sound power levels determined on hard floors . 7
Table 103 – Standard deviations for declaration and verification for vacuum cleaners
for carpets . 7
Table 104 – Standard deviations for declaration and verification hard floors . 7
Table 105 – Wilton type carpet specifications . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
TEST CODE FOR THE DETERMINATION
OF AIRBORNE ACOUSTICAL NOISE –

Part 2-1: Particular requirements for vacuum cleaners

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60704-2-1 has been prepared by subcommittee 59F: Floor
treatment appliances, of IEC technical committee 59: Performance of household and similar
electrical appliances.
This third edition cancels and replaces the second edition published in 2000. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) introduction of a measuring method on hard floors;
b) inclusion of values for measurement uncertainty;
c) inclusion of values for standard deviation for declaration and verification;

– 4 – IEC 60704-2-1:2014  IEC 2014
d) update of the definition of the standard test carpet.
The text of this standard is based on the following documents:
FDIS Report on voting
59F/255/FDIS 59F/259/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This Part 2-1 is intended to be used in conjunction with IEC 60704-1:2010, Household and
similar electrical appliances – Test code for the determination of airborne acoustical noise –
Part 1: General requirements.
NOTE When “Part 1” is mentioned in this standard, it refers to IEC 60704-1.
The relevant text of Part 1 as amended by this standard establishes the test code for vacuum
cleaners.
This Part 2-1 supplements or modifies the corresponding clauses in IEC 60704-1. When a
particular subclause of Part 1 is not mentioned in this Part 2-1, that subclause is applicable as
far as reasonable. Where this standard states "addition", "modification" or "replacement", the
relevant requirements, test specifications or explanatory matter in Part 1 should be adapted
accordingly.
Subclauses, tables and figures that are additional to those in Part 1 are numbered starting
from 101. Additional annexes are lettered AA, BB, etc.
Unless notes are in a new subclause or involve notes in Part 1, they are numbered starting
from 101, including those in a replaced clause or subclause.
A list of all the parts in the IEC 60704 series, published under the general title Household and
similar electrical appliances – Test code for the determination of airborne acoustical noise,
can be found on the IEC website.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
The measuring conditions specified in this part of IEC 60704 provide for sufficient accuracy in
determining the noise emitted and comparing the results of measurements taken by different
laboratories, whilst simulating as far as possible the practical use of vacuum cleaners.
It is recommended to consider the determination of noise levels as part of a comprehensive
testing procedure covering many aspects of properties and performance of household vacuum
cleaners.
NOTE As stated in the introduction to IEC 60704-1, this test code is concerned with airborne noise only.

– 6 – IEC 60704-2-1:2014  IEC 2014
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
TEST CODE FOR THE DETERMINATION
OF AIRBORNE ACOUSTICAL NOISE –

Part 2-1: Particular requirements for vacuum cleaners

1 Scope and object
This clause of Part 1 is applicable except as follows:
1.1 Scope
1.1.1 General
Replacement:
These particular requirements apply to electrical vacuum cleaners (including their accessories
and their component parts) for household use in or under conditions similar to those in
households.
This part of IEC 60704 applies as it is to electrical vacuum cleaners operating in dry
conditions. Some additions and modifications for vacuum cleaners operating in wet conditions
are under consideration. How to test robotic vacuum cleaners is under consideration for a
future edition.
This part of IEC 60704 does not apply to vacuum cleaners for industrial or professional
purposes.
1.1.2 Types of noise
Replacement:
The methods specified in ISO 3743-1, ISO 3743-2 and ISO 3744 can be used for measuring
noise emitted by electric vacuum cleaners.
1.1.3 Size of the source
Replacement:
The method specified in ISO 3744 is applicable to noise sources of any size. When applying
ISO 3743-1 and ISO 3743-2, care should be taken that the maximum size of the appliance
under test fulfils the requirements specified in ISO 3743-1 and ISO 3743-2.
1.2 Object
Addition:
This part of IEC 60704 describes the determination of the noise emission of vacuum cleaners
under normal operating conditions on carpet and hard floor according to 4.6 of
IEC 60312-1:2010.
NOTE 101 For determining and verifying noise emission values declared in product specifications, see
IEC 60704-3.
NOTE 102 If a boost position is incorporated, this is not taken into account.
NOTE 103 A boost position is a setting of a control for occasional use which results in a higher temporary fan
speed.
1.3 Measurement uncertainty
Replacement:
For vacuum cleaners designed for cleaning carpets the estimated values of standard
deviations of sound power levels determined according to this part of IEC 60704 are provided
in Table 101:
Table 101 – Standard deviations of sound power levels determined on carpets
Standard deviation (dB)
σ (repeatability) σ (reproducibility)
r R
0,3 0,8
For vacuum cleaners designed for cleaning hard floors the estimated values of standard
deviations of sound power levels determined according to this part of IEC 60704 are provided
in Table 102:
Table 102 – Standard deviations of sound power levels determined on hard floors
Standard deviation (dB)
σ (repeatability) σ (reproducibility)
r R
0,2 0,6
Addition:
1.101 Standard deviation for declaration and verification
For the purpose of determining and verifying declared noise emission values for vacuum
cleaners designed for cleaning carpets according to IEC 60704-3, the following values
provided in Table 103 apply:
Table 103 – Standard deviations for declaration and verification
for vacuum cleaners for carpets
Standard deviation (dB)
σ (production) σ (total) σ (reference)
P t M
0,5 to 1,0 0,9 to 1,3 1,5
For the purpose of determining and verifying declared noise emission values for vacuum
cleaners designed for cleaning hard floors according to IEC 60704-3, the following values
provided in Table 104 apply:
Table 104 – Standard deviations for declaration and verification hard floors
Standard deviation (dB)
σ (production) σ (total) σ (reference)
P t M
0,5 to 1,0 0,8 to 1,2 1,5
– 8 – IEC 60704-2-1:2014  IEC 2014
2 Normative references
This clause of Part 1 is applicable except as follows:
Addition:
IEC 60312-1:2010, Vacuum cleaners for household use – Part 1: Dry vacuum cleaners –
Methods for measuring the performance
3 Terms and definitions
This clause of Part 1 is applicable except as follows:
Addition:
3.101
cleaning head
plain nozzle or a brush attached to a connecting tube, or a power nozzle, separate or part of
the cleaner housing, and the part of a vacuum cleaner which is applied to the surface to be
cleaned
[SOURCE: IEC 60312-1:2010, 3.3]
3.102
nozzle
active nozzle
cleaning head provided with a driven agitation device to assist dirt removal
Note 1 to entry: The agitation device may be driven by an incorporated electric motor (motorized nozzle), an
incorporated turbine powered by the air flow (air turbine nozzle) or an incorporated friction or gear mechanism
actuated by moving the cleaning head over the surface to be cleaned (mechanical nozzle).
[SOURCE: IEC 60312-1:2010, 3.4]
3.103
standard Wilton test carpet
Wilton type carpet according to the typical specification provided in Table 105 used for testing

Table 105 – Wilton type carpet specifications
Type Wilton
Pile composition wool 8,6/2 x 2
Method of manufacturing Wilton fabric
Colour dark, one colour
Backing jute and cotton with latex
Type cut-pile
Total height 7,5 mm, see also tolerances
Pile height 6,4 mm, see also tolerances
2 2
Total weight/m 2 100 g/m , see also tolerances
2 2
Pile weight/m 1 500 g/m , see also tolerances
2 2
Number of knots/m 96 000 knots/m , see also tolerances
Reed 320 reed /m
Shots 300 shots/m
Standard width 400 cm
Tolerances ±5 %
Note 1 to entry: For acoustical reasons, the size of the carpet used is 1 m × 1 m.
Note 2 to entry: Carpets conforming to previous editions of this standard do not conform with this definition.
3.104
standard hard floor
part of the floor of at least 1 m by 1 m on which the vacuum cleaner and its nozzle is placed
for the measurement, with a sound absorption coefficient lower than 0,1 and an areal density
of at least 50 kg/m
Note 1 to entry: Scratches and other irregularities of the surface roughness shall be below 0,5 mm to prevent
turbulence noise generated by these irregularities.
4 Measurement methods and acoustical environments
This clause of Part 1 is applicable except as follows:
4.2 Direct method
Addition:
If pure tone components are present in the noise emitted by the source, the estimated
standard deviation of the measured sound pressure levels in the special reverberation room
may increase. In such cases additional microphone positions or source positions may be
necessary as specified in ISO 3743-2.
4.3 Comparison method
Addition:
If pure tone components are present in the noise emitted by the source, the estimated
standard deviation of the measured sound pressure levels in the hard-walled test room or in
the special reverberation room may increase. In such cases additional microphone positions
or source positions may be necessary as specified in ISO 3743-1 or ISO 3743-2.

– 10 – IEC 60704-2-1:2014  IEC 2014
5 Instrumentation
This clause of Part 1 is applicable except as follows:
5.1 Instrumentation for measuring acoustical data
Addition:
The use of a windscreen is recommended. If necessary, the observed sound pressure level
shall be corrected for changes in the microphone sensitivity, in accordance with the
instructions accompanying the instrumentation.
6 Operation and location of appliances under test
This clause of Part 1 is applicable except as follows:
6.1 Equipping and pre-conditioning of appliances
6.1.1
Replacement:
The appliance is equipped with the ordinary cleaning head intended for dust removal from
carpets or hard floors respectively and the necessary attachments, for example hoses and
connecting tubes.
The vacuum cleaner and its attachments shall be used and adjusted in accordance with the
manufacturer's instructions for normal operation for the test to be carried out. Height
adjustment controls for the cleaning head shall be set as appropriate for the surface to be
cleaned and the position noted.
NOTE 101 Additional measurements can be made for other settings (for instance: "boost" position, minimum
speed). A boost position is a setting of a control for occasional use, which results in a higher temporary motor
speed.
The tube grip of cleaners with suction hose or the handle of other cleaners shall be held as or
normal operation at a height of (800 ± 50) mm above the test floor.
If the vacuum cleaner is designed to be used with disposable dust receptacles, it shall, prior
to each measurement, be equipped with a new dust receptacle of the type recommended or
supplied by the manufacturer of the vacuum cleaner.
If the vacuum cleaner is provided with a reusable dust receptacle (as the sole original dust
receptacle or as an enclosure for disposable dust receptacles), the dust receptacle and any
additional filters removable without the aid of tools shall, prior to each measurement, be
cleaned according to manufacturer’s instructions until its weight is within 1 % or 2 g of its
original weight whichever is lower.
6.1.3
Replacement:
Prior to the first test on a new vacuum cleaner it shall be kept running with unrestricted air
flow for at least 2 h to ensure adequate running-in. For active nozzles, the agitation device
shall be running but not be in contact with the floor.

Prior to the first test on a new battery operated vacuum cleaner it shall be kept running with
unrestricted air flow for at least 3 full charge and discharge cycles to ensure adequate
running-in. For active nozzles, the agitation device shall be running but not in contact with the
floor.
Prior to conducting any series of tests, the age, condition, and history of the product shall be
recorded.
6.1.4
Addition:
If the vacuum cleaner is unused and de-energized for more than 1 h, then the vacuum cleaner
and attachments to be used shall be kept running for at least 10 min to allow them to
stabilise.
For appliances supplied from batteries, this duration for stabilising is reduced to 2 min.
6.2 Supply of electric energy and of water or gas
6.2.2
Addition:
Rechargeable vacuum cleaners are measured with fully charged batteries and disconnected
from the external power source.
6.4 Loading and operating of appliances during tests
6.4.2
Replacement:
Vacuum cleaners shall be operated either on standard Wilton test carpet or on standard hard
floor depending on the function specified by the manufacturer. Vacuum cleaners designed for
cleaning both carpets and hard floor shall be operated on standard Wilton carpet and on
standard hard floor.
Any controls shall be set to the maximum position for normal operating. Unless the
manufacturer’s instructions state otherwise, any bypass air openings for reducing the suction
power shall be closed. If such openings are not controlled manually this shall be reported.
Before starting the measurement procedure, ensure that the cleaning head is adjusted
correctly in accordance with the manufacturer's instructions for cleaning carpets and/or hard
floors.
For operation of the appliance on carpets:
If the cleaning head is equipped with a device to put out brushes or other retractable parts for
cleaning carpets, the cleaning head is adjusted so that the bristles of rotating brushes or other
retractable parts go beyond the theoretical supporting plane of the cleaning head on a hard
+ 0,2
) mm or, if not possible, from at least 2 mm.
floor from (2
All parts intended for hard floor treatment only shall be removed or retracted.
With the appliance switched off, lift the cleaning head off the carpet, replace the cleaning
head on the edge of the carpet and push along the pile direction into the measurement

– 12 – IEC 60704-2-1:2014  IEC 2014
position, taking care that no vertical force is exerted. To avoid any vertical force it is
recommended to push the cleaning head directly by hand. Switch on the appliance.
Other conditions are specified in 6.1.1, 6.2 and 6.3.
If the appliance is delivered with an ordinary carpet nozzle and in addition with a power
nozzle, measurements shall be carried out for both cleaning heads.
For operation of the appliance on hard floors:
All parts intended for carpet treatment only shall be removed or retracted.
With the appliance switched off, lift the cleaning head off the floor, replace the cleaning head
approximately 30 cm before the measurement position and push along in a forward direction
into the measurement position, taking care that no vertical force is exerted. Switch on the
appliance.
Other conditions are specified in 6.1.1, 6.2 and 6.3.
If the appliance is delivered with an ordinary hard floor nozzle and in addition with a power
nozzle for hard floors, measurements shall be carried out for both cleaning heads.
6.5 Location and mounting of appliances
6.5.1 Replacement:
For measurement on carpet:
The vacuum cleaner is located on the standard test carpet Wilton (defined in 3.103) placed
directly without any resilient means:
– either on the floor of the hard-walled test room or the special reverberation test room with
a minimum distance of 1 m between any surface (including protruding parts) of the
appliance and the nearest wall;,
– or on the reflecting plane of the free-field environment, taking into account the shape and
the size of the specified measurement surface.
The vertical projection of the shape of the appliance under test and its cleaning head shall be
at the centre of the carpet area (see Figures 101 and 102).
The axis of longitudinal travelling of the cleaning head shall be parallel with the direction of
the pile of the carpet (x-axis). The angle α between the transverse axis of the cleaning head
(parallel with y-axis) and the longitudinal axis of the appliance (or the tube, if any) shall be
α = (90 ± 5)° (see Figures 101 and 102).
For measurements on standard hard floor:
The vacuum cleaner is located on the standard hard floor (defined in 3.104) placed directly
without any resilient means:
– either on the floor of the hard-walled test room or the special reverberation test room with
a minimum distance of 1 m between any surface (including protruding parts) of the
appliance and the nearest wall,
– or on the reflecting plane of the free-field environment, taking into account the shape and
the size of the specified measurement surface.

Generally the floor in a hard-walled test room, a special reverberation test room or in a hemi-
anechoic test room fulfils the requirements for a standard hard floor (3.104).
If the requirements for a standard hard floor are not met two plates made of marble or similar
natural stone with a polished surface shall be used. The size of the plates shall be at least
0,5 m × 1,0 m; thickness shall be at least 0,02 m. Care is to be taken to prevent additional
noise production between the plates and between plates and floor.
NOTE 101 To avoid additional noise production a resilient underlay with a thickness of 25 mm, mechanical loss
factor 0,25 and a dynamic E-modulus less than 0,2 N/mm shall be used. The foam Getzner Sylomer® SR11
fulfils these requirements (www.getzner.com).
The vertical projection of the shape of the appliance under test and its cleaning head, shall be
at the centre of the test area (see Figures 101 and 102).
If the cleaning head is connected by a hose and connecting tube(s) to the appliance, the
cleaning head is placed close to the appliance on the carpet so that the projection of the axis
of longitudinal travelling of the cleaning head and that of the longitudinal axis of the appliance
are parallel, the projections of the appropriate transverse axis coincide and the clearance
between the projection of the appliance and the projection of the cleaning head is (2 ± 1) cm.
In the case of a hard floor measurement, the placement of cleaning head, connecting hose,
tubes and appliance is done as if it were placed on a 1 m × 1 m carpet, to ensure a
sufficiently compact placement of the various elements. The hose and connecting tube(s) or
the handles of hand-supported and upright vacuum cleaners are resiliently suspended or
supported in normal position of use (middle of the handles at (80 ± 5) cm above the floor, if
possible), the cleaning head being in full contact with the floor.
Telescopic connecting tubes should be adjusted in accordance with the owner’s manual. If no
instructions are given, then the length of the telescopic connecting tubes shall be adjusted so
+5
that the angle β between the telescopic connecting tubes and the floor shall be β = (45 )°
or, if not possible, as near as possible to 45°.
If necessary the cleaning head is resiliently fastened to prevent self-propulsion.
Sound radiation due to possible vibrations of the test floor should be prevented.
The test floor is considered to be a part of the appliance to be tested and its possible
influence on the acoustical characteristics of the test environment, for example of the hard
reflecting plane, or on the absorption (reverberation time) of the reverberant test room or
hard-walled room should not be taken into account.
6.5.2 to 6.5.5 Not applicable.
7 Measurement of sound pressure levels
This clause of Part 1 is applicable except as follows:
___________
Getzner Sylomer® is an example of a suitable product available commercially. This information is given for the
convenience of users of this document and does not constitute an endorsement by IEC of this product.

– 14 – IEC 60704-2-1:2014  IEC 2014
7.1.1 to 7.1.3 Not applicable.
7.1.5 and 7.1.6 Not applicable.
7.4 Measurements
7.4.1 Addition:
The A-weighted sound pressure level shall be time-averaged during at least 30 s.
8 Calculation of sound pressure and sound power levels
This clause of Part 1 is applicable.
9 Information to be recorded
This clause of Part 1 is applicable except as follows:
9.12.5 Not applicable.
10 Information to be reported
This clause of Part 1 is applicable except as follows:
10.3.1 Addition:
The state of openings for reduction of suction power shall be reported.
10.4.10 Not applicable.
10.4.12 Addition:
– L values for both hard floor and carpet shall be reported for appliances designed for
WA
both floor types
– L value for a single floor type shall be reported if the appliance is specifically designed
WA
for that floor type, meaning that the manufacturer discourages the use of the device on the
alternative floor type.
– In all cases type of floor and measured value shall be clearly coupled.

Additional figures:
pile direction
carpet
marble plates (if necessary)
90°±5°
l/2 l/2
appliance
cleaning head
+5°
45°
0°
l
IEC  1694/14
Dimensions in millimetres
Key
l length of the horizontal projection of the appliance
Figure 101 – Appliance with cleaning head connected directly

800±50
– 16 – IEC 60704-2-1:2014  IEC 2014
pile direction
carpet
marble plates (if necessary)
hose
90°±5°
w/2 w/2
l/2 l/2
500 500
connection tube
cleaning head
appliance
+5°
45°
0°
w
l
IEC  1695/14
Dimensions in millimetres
Key
l length of the appliance
w depth of the cleaning head
Figure 102 – Appliance with the cleaning head connected by hose and connecting tube

500 500
20 ±10
800 ±50
Annexes
The annexes of Part 1 apply with the following exception:

Annex A
(normative)
Standard test table
This annex of Part 1 is not applicable.

_____________
– 18 – IEC 60704-2-1:2014  IEC 2014
SOMMAIRE
AVANT-PROPOS . 19
1 Domaine d’application et objet . 22
1.1 Domaine d'application . 22
1.1.1 Généralités . 22
1.1.2 Types de bruit . 22
1.1.3 Dimensions de la source . 22
1.2 Objet . 22
1.3 Incertitude de mesure . 23
2 Références normatives . 24
3 Termes et définitions . 24
4 Méthodes de mesure et environnements acoustiques . 25
5 Appareillage . 26
5.1 Appareillage pour la mesure des données acoustiques . 26
6 Fonctionnement et emplacement des appareils soumis à l’essai . 26
6.1 Equipement et conditionnement préalable des appareils . 26
6.2 Alimentation en énergie électrique et en eau ou gaz . 27
7 Mesure des niveaux de pression acoustique . 30
8 Calcul des niveaux de pression acoustique et de puissance acoustique . 30
9 Informations à consigner . 30
10 Informations à mentionner dans un rapport . 30
Annexes . 33
Annexe A (normative) Table d’essai normalisée . 33

Figure 101 – Appareil avec tête de nettoyage reliée directement . 31
Figure 102 – Appareil avec tête de nettoyage reliée par l’intermédiaire d’un tuyau et
d’un tube de raccordement . 32

Tableau 101 – Ecarts-types des niveaux de puissance acoustique déterminés sur les
tapis . 23
Tableau 102 – Ecarts-types des niveaux de puissance acoustique déterminés sur les
sols durs . 23
Tableau 103 – Ecarts-types pour la déclaration et la vérification dans le cas des
aspirateurs pour les tapis . 23
Tableau 104 – Ecarts-types pour la déclaration et la vérification - Sols durs . 23
Tableau 105 – Spécifications du tapis de type Wilton . 25

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –
CODE D'ESSAI POUR LA DÉTERMINATION DU BRUIT AÉRIEN –

Partie 2-1: Exigences particulières pour les aspirateurs

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (IEC) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L’IEC a pour
objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines
