ISO/IEC 29341-4-12:2008(E) enables the homeowner to browse the objects stored on the Media Server, select one and cause it to be played on a suitable rendering device. The series of ISO/IEC 29341 publications defines an architecture for pervasive peer-to-peer network connectivity of intelligent appliances, wireless devices and PCs. It is designed to bring easy to use, flexible, standards-based connectivity to ad-hoc or unmanaged networks whether in the home, in a small business, public spaces or attached to the Internet.

General Information

• Status: Published
• Publication Date: 27-Nov-2008
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 29.160.10 - Components for rotating machines
• ICS: 35.200 - Interface and interconnection equipment
• Technical Committee: ISO/IEC JTC 1 - Information technology
• Current Stage: PPUB - Publication issued
• Start Date: 18-Nov-2008
• Completion Date: 30-Nov-2008

Overview

ISO/IEC 29341-4-12:2008 defines the UPnP Audio/Video Device Control Protocol (AV DCP) - Content Directory Service (CDS) Level 2. It standardizes how devices on a local network present, browse, search, update and transfer multimedia content. The specification enables a homeowner to browse objects stored on a Media Server, select content and cause it to be played on a compatible Media Renderer. Part of the ISO/IEC 29341 series, this standard targets pervasive peer-to-peer connectivity for intelligent appliances, wireless devices and PCs in ad-hoc or unmanaged networks.

Key topics and technical requirements

• Service modeling and data types: Defines object, item, container concepts; CSV lists; EBNF notation and XML namespace handling for CDS messages.
• State variables and capabilities: Includes variables such as SearchCapabilities, SortCapabilities, SystemUpdateID and ContainerUpdateID to support synchronization, discovery and feature negotiation.
• Core actions (APIs): Standardized actions include Browse(), Search(), GetSearchCapabilities(), GetSortCapabilities(), and management operations like CreateObject(), DestroyObject(), UpdateObject(), MoveObject().
• Resource management: ImportResource(), ExportResource() and DeleteResource() describe controlled transfer and lifecycle of media assets.
• Search and sort semantics: Specifies SearchCriteria syntax and semantics plus sort and extension capabilities to enable advanced queries over media libraries.
• Eventing and moderation: Mechanisms for event notifications when directories change, enabling renderers and control points to stay synchronized.
• Interoperability focus: XML-based definitions and namespace/version guidelines to ensure consistent implementation across vendors.

Practical applications and who uses it

• Device manufacturers building networked media servers, smart TVs, AV receivers, set-top boxes and NAS devices implement CDS Level 2 to expose media libraries reliably.
• Software developers and middleware integrators use the standard to build control point applications (mobile apps, home gateways) that browse, search and control playback on renderers.
• Home automation and systems integrators leverage CDS to integrate multimedia services into smart-home systems, multi-room audio, and public-space media deployments.
• IT teams in small businesses and hospitality environments implement CDS-enabled devices to provide interoperable media distribution over unmanaged networks.

Related standards

• ISO/IEC 29341 series - UPnP Device Architecture (other AV DCP parts) for broader device and service definitions.
• UPnP AV Device Control Protocol family - complements CDS by defining connection and rendering control.

This standard is essential for developers and manufacturers who need reliable, standards-based UPnP Content Directory Service functionality for networked multimedia interoperability.

Standards Content (Sample)

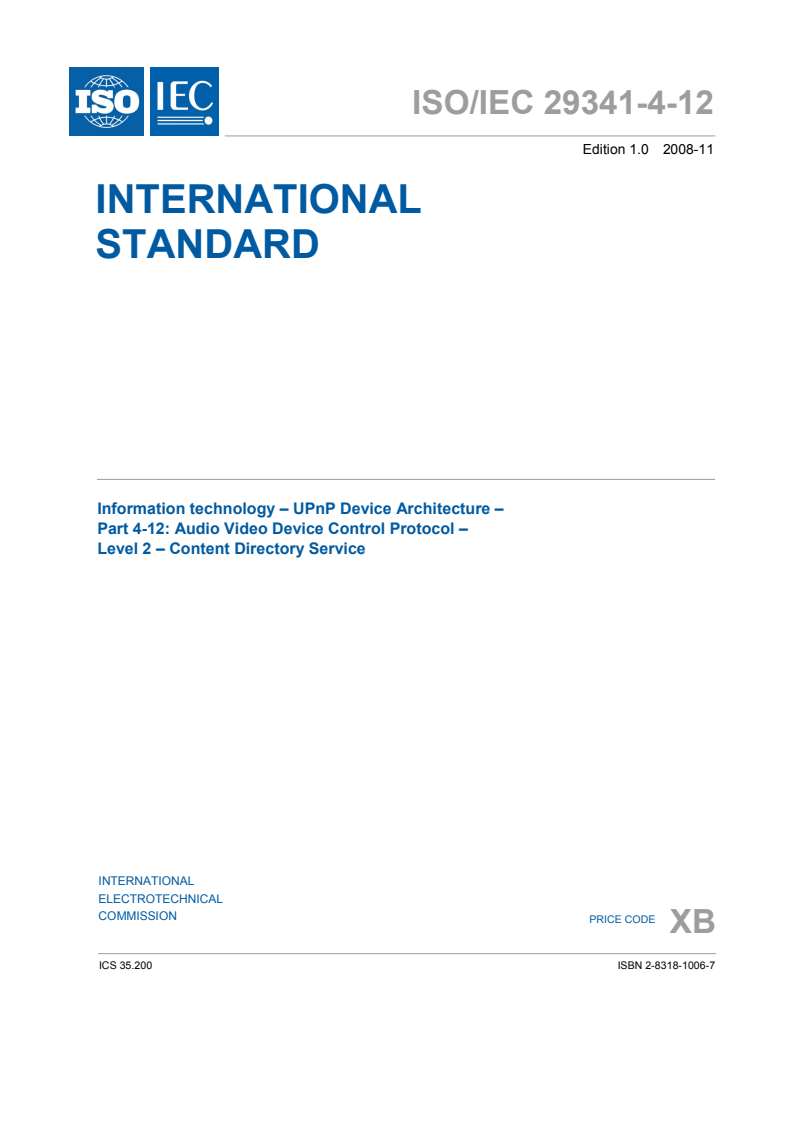

ISO/IEC 29341-4-12
Edition 1.0 2008-11
INTERNATIONAL
STANDARD
Information technology – UPnP Device Architecture –
Part 4-12: Audio Video Device Control Protocol –
Level 2 – Content Directory Service

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about ISO/IEC copyright or have an enquiry about obtaining additional rights to this
publication, please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
ISO/IEC 29341-4-12
Edition 1.0 2008-11
INTERNATIONAL
STANDARD
Information technology – UPnP Device Architecture –
Part 4-12: Audio Video Device Control Protocol –
Level 2 – Content Directory Service
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XB
ICS 35.200 ISBN 978-2-88910-854-1

– 2 – 29341-4-12 © ISO/IEC:2008(E)

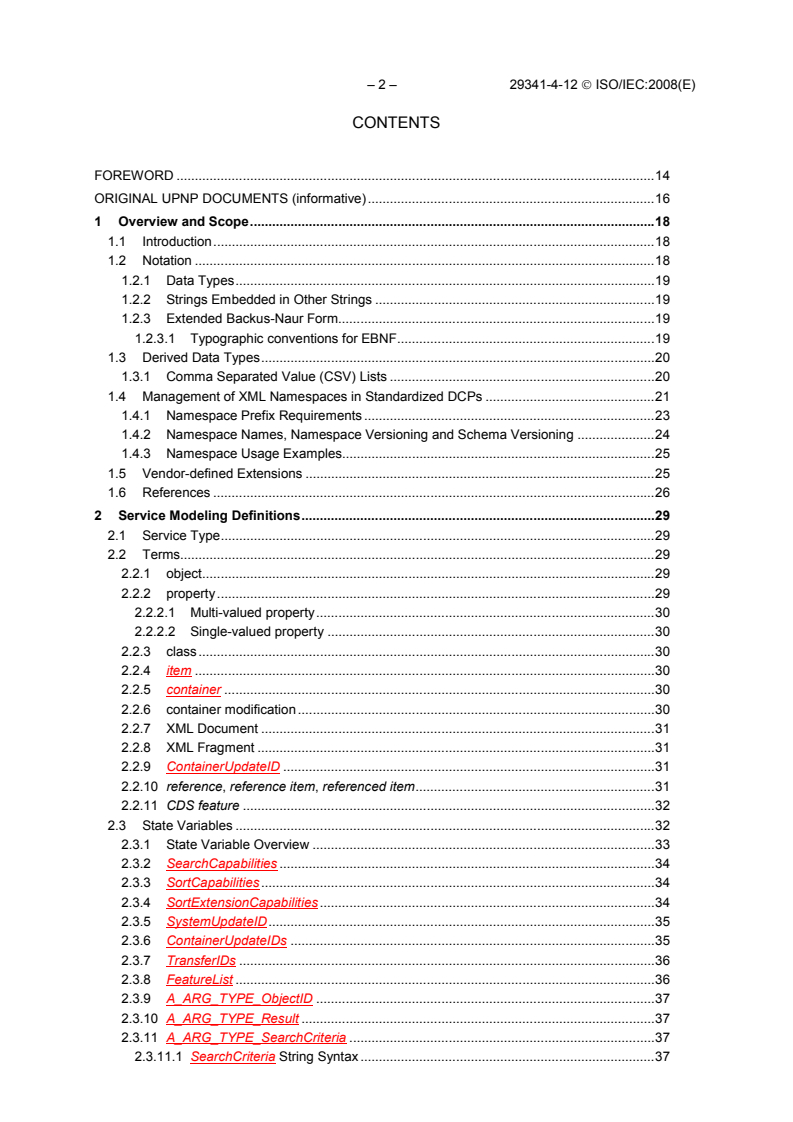

CONTENTS
