Low-voltage switchgear and controlgear assemblies - Part 7: Assemblies for specific applications such as marinas, camping sites, market squares, electric vehicle charging stations

IEC 61439-7:2018 defines the specific requirements of assemblies as follows:
- assemblies for which the rated voltage does not exceed 1 000 V in the case of AC or 1 500 V in the case of DC;
– assemblies intended for use in connection with the generation, transmission, distribution and conversion of electric energy, and for the control of electric energy consuming equipment;
– assemblies operated by ordinary persons (e.g. plug and unplug of electrical equipment);
– assemblies intended to be installed and used in market squares, marinas, campsites and other similar outdoor public sites;
– assemblies intended for charging stations for electric vehicles (AEVCS) for Mode 3 and Mode 4. They are designed to integrate the functionality and additional requirements for electric vehicle conductive charging systems according to IEC 61851-1:2017.
This first edition cancels and replaces the relevant technical specification published in 2014. It constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous technical specification:
a new classification of the stationary ASSEMBLIES in accordance with their mechanical resistance (5.702);
a new Table 702 with the list of tests and relevant severities to which the ASSEMBLIES have to be subjected according to the classification mentioned at point a);
a new Annex (CC) with a new endurance test for the individual switching devices intended to be used in AEVSC, if they have not already been tested against this requirement;
a general editorial review and a technical revision.  The contents of the corrigendum of August 2019 have been included in this copy.

Ensembles d'appareillage à basse tension – Partie 7: Ensembles pour installations publiques particulières telles que les marinas, les terrains de camping, les marchés et les emplacements analogues et pour bornes de charge de véhicules électriques

L'IEC 61439-7:2018 définit les exigences spécifiques applicables aux ensembles comme suit:
– ensembles dont la tension assignée ne dépasse pas 1 000 V en courant alternatif ou 1 500 V en courant continu;
– ensembles destinés à être utilisés avec des équipements conçus pour la production, le transport, la distribution et la conversion de l'énergie électrique et la commande des matériels consommant de l'énergie électrique;
– ensembles actionnés par des personnes ordinaires (par exemple, brancher ou débrancher du matériel électrique);
– ensembles destinés à être installés et utilisés dans les marchés, marinas, terrains de camping et autres lieux publics extérieurs analogues;
– ensembles destinés aux bornes de charge de véhicules électriques (AEVCS) de Mode 3 et de Mode 4. Ils sont conçus pour intégrer la fonctionnalité et les exigences supplémentaires des systèmes de charge conductive pour véhicules électriques conformément à l’IEC 61851-1:2017.
Cette première édition annule et remplace la spécification technique particulière parue en 2014. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à la spécification technique précédente:
une nouvelle classification des fixes en fonction de leur résistance mécanique (5.702);
un nouveau Tableau 702 avec la liste des essais et des sévérités correspondantes auxquels les doivent être soumis selon la classification indiquée en a);
une nouvelle Annexe (CC) avec un nouvel essai d’endurance pour les appareils de connexion individuels destinés à être utilisés dans un AEVSC, s’ils n’ont pas déjà été soumis à l’essai conformément à cette exigence;
une revue rédactionnelle générale et une révision technique.  Le contendu du corrigendum d'août 2019 a été pris en considération dans cet exemplaire.

General Information

Status
Published
Publication Date
05-Dec-2018
Current Stage
PPUB - Publication issued
Completion Date
06-Dec-2018
Ref Project

Buy Standard

Standard
IEC 61439-7:2018 - Low-voltage switchgear and controlgear assemblies - Part 7: Assemblies for specific applications such as marinas, camping sites, market squares, electric vehicle charging stations
English and French language
76 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

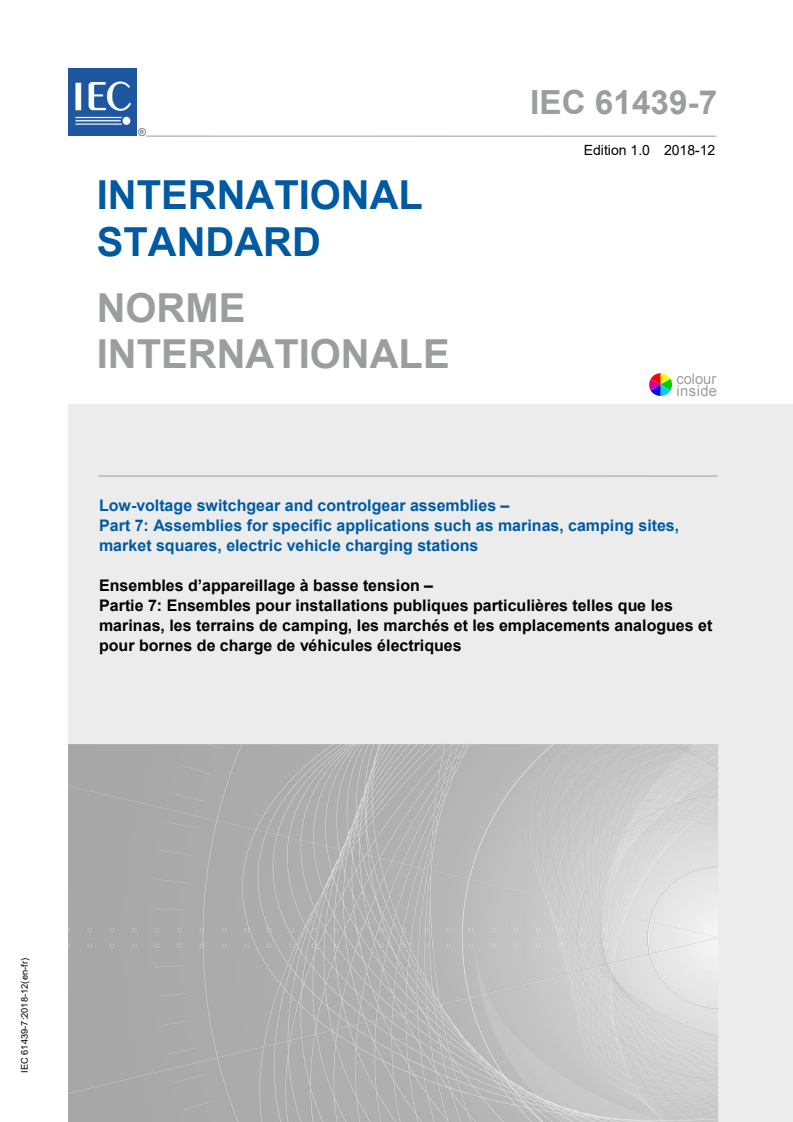

IEC 61439-7
Edition 1.0 2018-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Low-voltage switchgear and controlgear assemblies –
Part 7: Assemblies for specific applications such as marinas, camping sites,
market squares, electric vehicle charging stations
Ensembles d’appareillage à basse tension –
Partie 7: Ensembles pour installations publiques particulières telles que les
marinas, les terrains de camping, les marchés et les emplacements analogues et
pour bornes de charge de véhicules électriques
IEC 61439-7:2018-12(en-fr)
---------------------- Page: 1 ----------------------

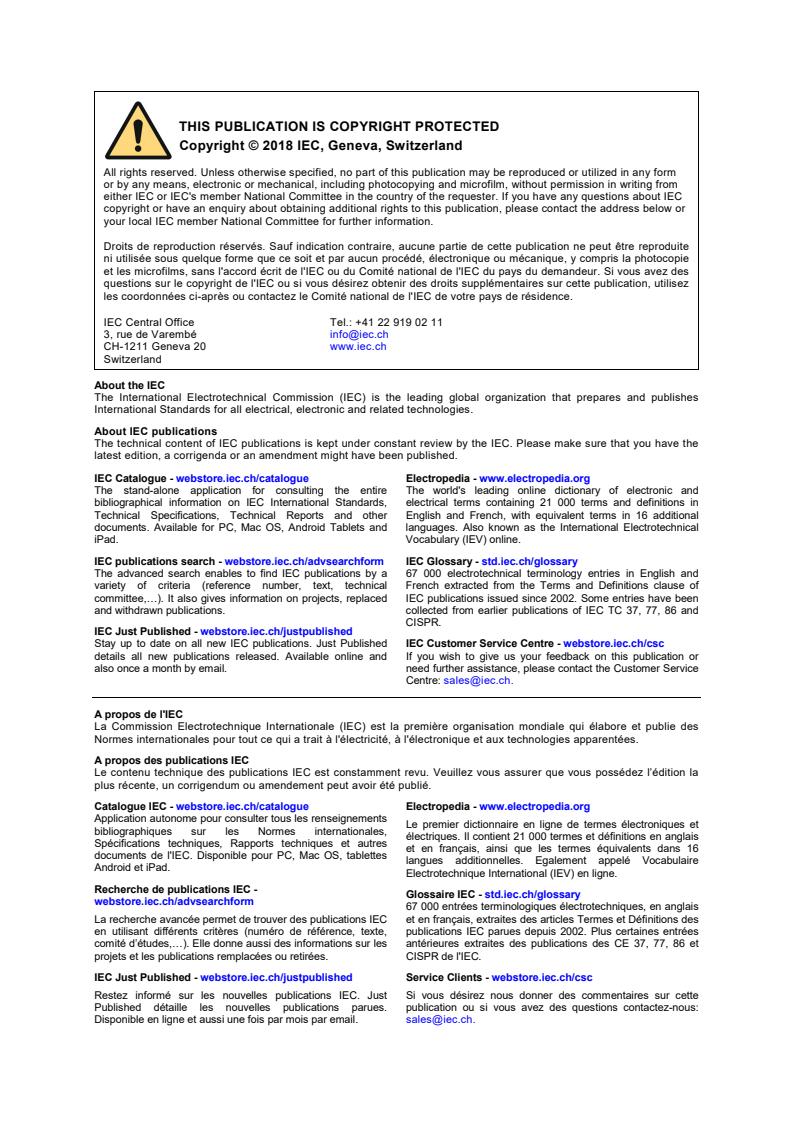

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------

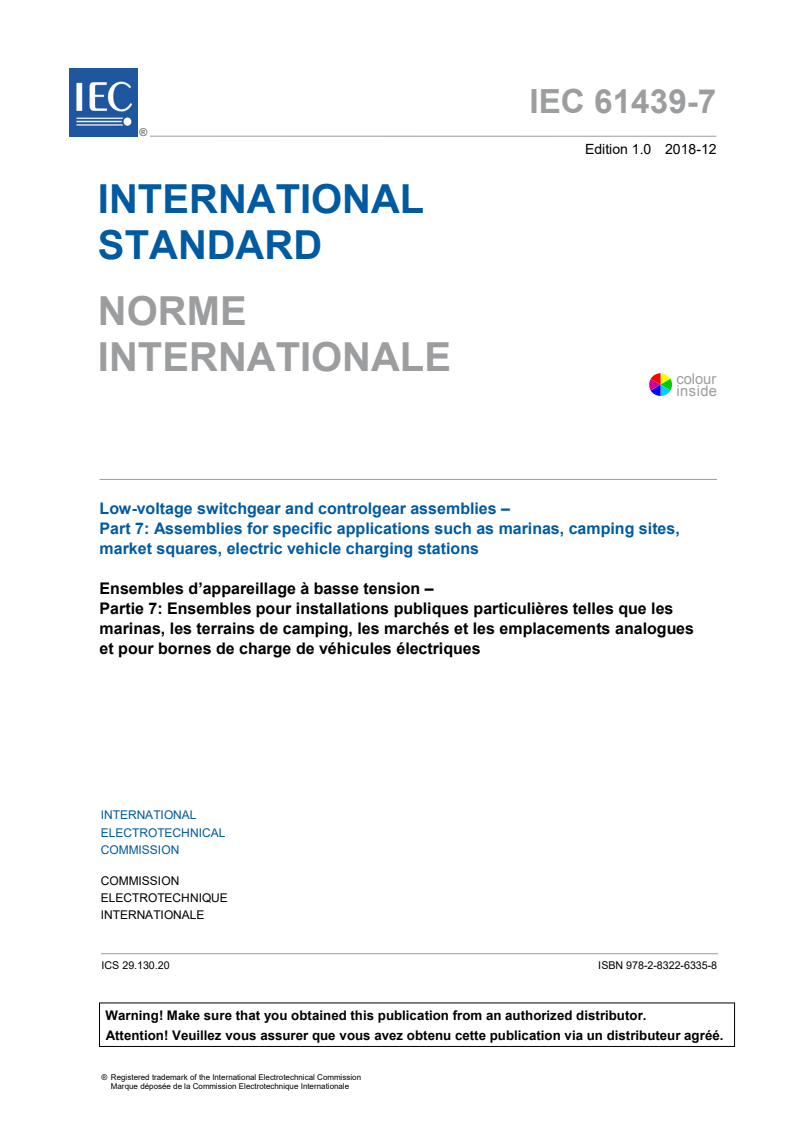

IEC 61439-7
Edition 1.0 2018-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Low-voltage switchgear and controlgear assemblies –
Part 7: Assemblies for specific applications such as marinas, camping sites,
market squares, electric vehicle charging stations
Ensembles d’appareillage à basse tension –
Partie 7: Ensembles pour installations publiques particulières telles que les
marinas, les terrains de camping, les marchés et les emplacements analogues
et pour bornes de charge de véhicules électriques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.130.20 ISBN 978-2-8322-6335-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

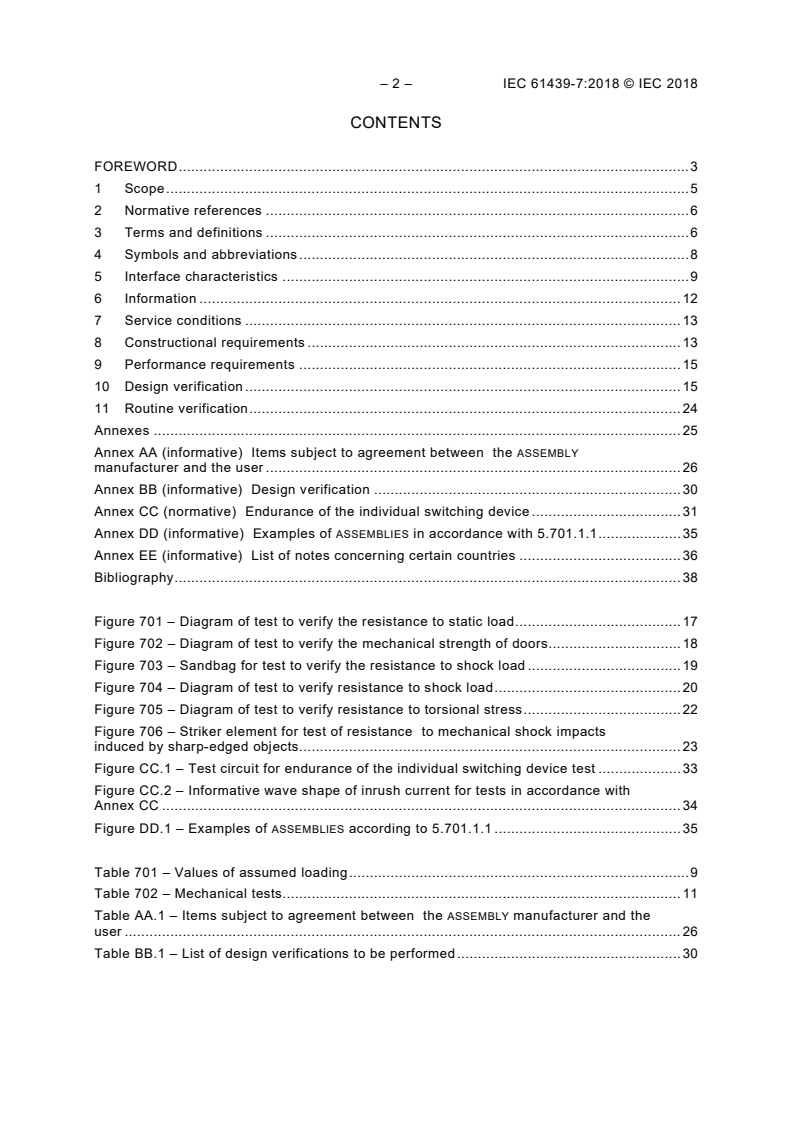

– 2 – IEC 61439-7:2018 © IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Symbols and abbreviations .............................................................................................. 8

5 Interface characteristics .................................................................................................. 9

6 Information .................................................................................................................... 12

7 Service conditions ......................................................................................................... 13

8 Constructional requirements .......................................................................................... 13

9 Performance requirements ............................................................................................ 15

10 Design verification ......................................................................................................... 15

11 Routine verification ........................................................................................................ 24

Annexes ............................................................................................................................... 25

Annex AA (informative) Items subject to agreement between the ASSEMBLY

manufacturer and the user .................................................................................................... 26

Annex BB (informative) Design verification .......................................................................... 30

Annex CC (normative) Endurance of the individual switching device .................................... 31

Annex DD (informative) Examples of ASSEMBLIES in accordance with 5.701.1.1 .................... 35

Annex EE (informative) List of notes concerning certain countries ....................................... 36

Bibliography .......................................................................................................................... 38

Figure 701 – Diagram of test to verify the resistance to static load ........................................ 17

Figure 702 – Diagram of test to verify the mechanical strength of doors ................................ 18

Figure 703 – Sandbag for test to verify the resistance to shock load ..................................... 19

Figure 704 – Diagram of test to verify resistance to shock load ............................................. 20

Figure 705 – Diagram of test to verify resistance to torsional stress ...................................... 22

Figure 706 – Striker element for test of resistance to mechanical shock impacts

induced by sharp-edged objects............................................................................................ 23

Figure CC.1 – Test circuit for endurance of the individual switching device test .................... 33

Figure CC.2 – Informative wave shape of inrush current for tests in accordance with

Annex CC ............................................................................................................................. 34

Figure DD.1 – Examples of ASSEMBLIES according to 5.701.1.1 ............................................. 35

Table 701 – Values of assumed loading .................................................................................. 9

Table 702 – Mechanical tests................................................................................................ 11

Table AA.1 – Items subject to agreement between the ASSEMBLY manufacturer and the

user ...................................................................................................................................... 26

Table BB.1 – List of design verifications to be performed ...................................................... 30

---------------------- Page: 4 ----------------------
IEC 61439-7:2018 © IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES –
Part 7: Assemblies for specific applications such as marinas, camping
sites, market squares, electric vehicle charging stations
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61439-7 has been prepared by subcommittee 121B: Low-voltage

switchgear and controlgear assemblies, of IEC technical committee 121: Switchgear and

controlgear and their assemblies for low voltage.

This first edition cancels and replaces the relevant technical specification published in 2014. It

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

technical specification:

a) a new classification of the stationary ASSEMBLIES in accordance with their mechanical

resistance (5.702);

b) a new Table 702 with the list of tests and relevant severities to which the ASSEMBLIES have

to be subjected according to the classification mentioned at point a);
---------------------- Page: 5 ----------------------
– 4 – IEC 61439-7:2018 © IEC 2018

c) a new Annex (CC) with a new endurance test for the individual switching devices intended

to be used in AEVSC, if they have not already been tested against this requirement;

d) a general editorial review and a technical revision.
The text of this standard is based on the following documents:
FDIS Report on voting
121B/74/FDIS 121B/77/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This standard is to be read in conjunction with IEC 61439-1:2011. The provisions of the

general rules dealt with in IEC 61439-1:2011 are applicable to this standard where they are

specifically cited. When this document states "addition", "modification" or "replacement", the

relevant text in IEC 61439-1:2011 is to be adapted accordingly.

Subclauses that are numbered with a 701 (702, 703, etc.) suffix are additional to the same

subclause in IEC 61439-1:2011.
Tables and figures in this document that are new are numbered starting with 701.
New annexes in this document are lettered AA, BB, etc.

In this standard, the term ASSEMBLY written in small capitals is defined in 3.1.1 of IEC 61439-

1:2011.

The reader’s attention is drawn to the fact that Annex EE lists all of the "in-some-country"

clauses on differing practices of a less permanent nature relating to the subject of this

standard

A list of all parts of the IEC 61439 series, under the general title Low-voltage switchgear and

controlgear assemblies, can be found on the IEC website.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of August 2019 have been included in this copy.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC 61439-7:2018 © IEC 2018 – 5 –
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES –
Part 7: Assemblies for specific applications such as marinas, camping
sites, market squares, electric vehicle charging stations
1 Scope
Clause 1 of IEC 61439-1:2011 is applicable except as follows.
Replacement:

NOTE 1 Throughout this document, the terms AMHS (see 3.1.701), ACCS (see 3.1.702), AMPS (see 3.1.703),

AEVCS (see 3.1.704) are used for low-voltage switchgear and controlgear assemblies intended for use respectively

in marinas and similar locations (AMHS), campsites and similar locations (ACCS), market squares and other similar

external public sites (AMPS) and charging stations (AEVCS). The term ASSEMBLIES is used for indicating all

these boards.

This Part of IEC 61439 defines the specific requirements of ASSEMBLIES as follows:

– ASSEMBLIES for which the rated voltage does not exceed 1 000 V in the case of AC or

1 500 V in the case of DC;

– ASSEMBLIES intended for use in connection with the generation, transmission, distribution

and conversion of electric energy, and for the control of electric energy consuming

equipment;

– ASSEMBLIES operated by ordinary persons (e.g. plug and unplug of electrical equipment);

– ASSEMBLIES intended to be installed and used in market squares, marinas, campsites and

other similar outdoor public sites;

– ASSEMBLIES intended for charging stations for electric vehicles (AEVCS) for Mode 3 and

Mode 4. They are designed to integrate the functionality and additional requirements for

electric vehicle conductive charging systems according to IEC 61851-1:2017.

For the correct SELECTION of the switching devices and components, the following standards

apply:
– IEC 60364-7-709 (AMHS) OR
– IEC 60364-7-708 (ACCS) OR
– IEC 60364-7-740 (AMPS) OR
– IEC 60364-7-722 (AEVCS).

This document applies to all ASSEMBLIES whether they are designed, manufactured and

verified on a one-off basis or fully standardised and manufactured in quantity.

The manufacture and/or assembly may be carried out other than by the original manufacturer

(see 3.10.1 of IEC 61439-1:2011).

This document does not apply to individual devices and self-contained components such as

circuit breakers, fuse switches, electronic equipment, which comply with their relevant product

standards.

NOTE 2 Where electrical equipment is directly connected to public low voltage supply system and equipped with

a meter for billing of the legal provider of the low voltage supply, additional particular requirements based on

national regulations apply, if any.

This document does not apply to boxes and enclosures for electrical accessories for

household and similar fixed electrical installations as defined in IEC 60670-24.
---------------------- Page: 7 ----------------------
– 6 – IEC 61439-7:2018 © IEC 2018
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
Clause 2 of IEC 61439-1:2011 is applicable except as follows.
Addition:

IEC 60068-2-27, Environmental testing – Part 2-27: Tests – Test Ea and guidance: Shock

IEC 60068-2-75, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests

IEC 61439-1:2011, Low-voltage switchgear and controlgear assemblies – Part 1: General

rules
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 61439-1:2011 and

the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
Clause 3 of IEC 61439-1:2011 is applicable except as follows.
3.1 General terms
Additional terms:
3.1.701
low voltage switchgear and controlgear ASSEMBLY for marinas and harbors sites
AMHS

combination of one or more transforming or switching devices together with associated

control, measuring, signaling, protective and regulating equipment, with all their internal

electrical and mechanical interconnections and structural parts, designed and built for use in

all marinas, harbors and similar sites
Note 1 to entry: This note applies to the French language only.
3.1.702
low voltage switchgear and controlgear ASSEMBLY for camping and caravan sites
ACCS

combination of one or more transforming or switching devices together with associated

control, measuring, signaling, protective and regulating equipment, with all their internal

electrical and mechanical interconnections and structural parts, designed and built for use in

all camping, caravan and similar sites
Note 1 to entry: This note applies to the French language only.
---------------------- Page: 8 ----------------------
IEC 61439-7:2018 © IEC 2018 – 7 –
3.1.703

low voltage switchgear and controlgear ASSEMBLY for markets and other outdoor public

sites
AMPS

combination of one or more transforming or switching devices together with associated

control, measuring, signaling, protective and regulating equipment, with all their internal

electrical and mechanical interconnections and structural parts, designed and built for use in

all market squares and other similar outdoor public sites
Note 1 to entry: This note applies to the French language only.
3.1.704

low voltage switchgear and controlgear ASSEMBLY for electric vehicles charging stations

AEVCS

combination of one or more transforming or switching devices together with associated

control, measuring, signaling, protective and regulating equipment, with all their internal

electrical and mechanical interconnections and structural parts, designed and built for electric

vehicle charging stations
Note 1 to entry: This note applies to the French language only.
3.3 External design of ASSEMBLIES
Modification:
3.3.1
open-type ASSEMBLY
This term of IEC 61439-1:2011 does not apply.
3.3.2
dead-front ASSEMBLY
This term of IEC 61439-1:2011 does not apply.
3.5 Conditions of installation of ASSEMBLIES
3.5.3
stationary ASSEMBLY
Additional terms:
3.5.3.701
ground and floor mounted ASSEMBLY

stationary ASSEMBLY permanently connected to the supply with a part embedded in the ground

or intended to be fixed directly on the floor or a base
Note 1 to entry: This type of ASSEMBLY includes poles and columns.
3.5.3.702
wall mounted ASSEMBLY

stationary ASSEMBLY intended to be fixed directly on the wall while being permanently fixed to

the supply
3.5.4
movable ASSEMBLY
This term of IEC 61439-1:2011 does not apply.
---------------------- Page: 9 ----------------------
– 8 – IEC 61439-7:2018 © IEC 2018
Additional terms:
3.5.701
permanently connected ASSEMBLY

ASSEMBLY that can only be connected to, or disconnected from, the AC or DC supply network

by the use of a tool

Note 1 to entry: This ASSEMBLY corresponds to the definition of permanently connected EV supply equipment

provided in IEC 61851-1:2017.
3.5.702
transportable ASSEMBLY

ASSEMBLY intended for use in a place where it is not permanently fixed. When the equipment

is to be moved to another place, it is first disconnected from the supply network

3.5.703
mobile ASSEMBLY

ASSEMBLY which is capable to be moved while in operation or which can easily be moved from

one place to another while connected to the supply network
3.5.704
ASSEMBLY for locations with restricted access

ASSEMBLY accessible to all persons who are authorized to have access to the location (e.g.

equipment located in private housing, private parking areas or similar places)

Note 1 to entry: This ASSEMBLY corresponds to the definition of "equipment" for locations with restricted access

provided in IEC 61851-1:2017.
3.5.705
ASSEMBLY for locations with non-restricted access
ASSEMBLY accessible for all persons, e.g. the access is given in a public area

Note 1 to entry: This ASSEMBLY corresponds to the definition of "equipment" for locations with non-restricted

access provided in IEC 61851-1:2017.
3.5.706
water and other fluids system

part of the ASSEMBLY which contains water tubes, valves, joins and taps as service to

connected user

EXAMPLE 1 Possible other fluids are compressed air, natural gasses, drinkable water and wastewater.

3.5.707
base

additional part of the arrangement used to support the ASSEMBLY in any case of mounting

intended to accommodate only cables
3.5.708
fixing means

accessories intended to fix the base or the ASSEMBLY to the ground, to the floor or to the wall

etc.
4 Symbols and abbreviations
Clause 4 of IEC 61439-1:2011 is applicable except as follows.
Addition:
---------------------- Page: 10 ----------------------
IEC 61439-7:2018 © IEC 2018 – 9 –
Symbol/Abbreviation Term Subclause

AMHS low voltage switchgear and controlgear assembly for marinas and harbors sites 3.1.701

ACCS low voltage switchgear and controlgear assembly for camping and caravan sites 3.1.702

low voltage switchgear and controlgear assembly for markets and other outdoor
AMPS 3.1.703
public sites

AEVCS low voltage switchgear and controlgear assembly for electric vehicles charging station 3.1.704

5 Interface characteristics

Clause 5 of IEC 61439-1:2011 is applicable except as follows. Items subject to agreement

between the ASSEMBLY manufacturer and the user: see Annex AA.
5.1 General
Replacement:

The characteristics of the ASSEMBLY shall ensure compatibility with the ratings of the circuits

to which it is connected and the installation conditions and shall be declared by the ASSEMBLY

manufacturer using the criteria identified in 5.2 to 5.6, 5.701 and 5.702.
5.4 Rated diversity factor (RDF)
Addition:

In the absence of information concerning the actual load currents, the assumed loading of the

ASSEMBLY or group of outgoing circuits, the factor in Table 701 below,
outgoing circuits of the
may be used.

Table 701 does not apply for AEVCS. For AEVCS the rated diversity factor of the outgoing

circuit supplying directly the connecting point shall be taken as equal to 1. The rated diversity

factor of the distribution circuit supplying multiple connecting points may be reduced if a load

control is available.
Table 701 – Values of assumed loading
Number of main circuits Assumed loading factor
2 and 3 0,8
4 and 5 0,7
6 to 9 inclusive 0,6
10 (and above) 0,5
5.6 Other characteristics
Replacement of the item g):
g) intended for use by ordinary persons (see 3.7.14 of IEC 61439-1:2011);
---------------------- Page: 11 ----------------------
– 10 – IEC 61439-7:2018 © IEC 2018
Additional item:

q) locations with restricted access or non-restricted access (see 3.5.704 and 3.5.705).

Additional subclauses:
5.701 According to the method of mounting
5.701.1 Stationary ASSEMBLY
5.701.1.1 Ground and floor mounted ASSEMBLY (see Annex DD)
5.701.1.2 Wall mounted ASSEMBLY
5.701.2 Transportable ASSEMBLY
5.701.3 Mobile ASSEMBLY
ASSEMBLY (see Table 702)
5.702 According to the mechanical resistance for stationary
5.702.1 Basic resistance
5.702.2 Medium resistance
5.702.3 High resistance
---------------------- Page: 12 ----------------------
IEC 61439-7:2018 © IEC 2018 – 11 –
Table 702 – Mechanical tests
Basic
Medium resistance High resistance
resistance
Name of the test Subclause Sub test Test of ASSEMBLIES
(5.702.2) (5.70
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
