Consumer audio/video equipment - Digital interface - Part 5: SDL-DVCR data transmission

IEC 61883-5:2004 specifies the packet format and the transmission timing for SDL-DVCR data. It describes the specifications for the IEEE 1394 packet, the CIP header for SDL525-60 and SDL625-50 systems, and the transmission timing.

Matériel audio/vidéo grand public - Interface numérique - Partie 5: Transmission de données SDL-DVCR

L'IEC 61883-5:2004 spécifie la structure en paquets et la durée de transmission pour les données SDL-DVCR. Elle décrit les spécifications pour le paquet IEEE 1394, l'en-tête CIP pour les systèmes SDL525-60 et SDL625-50 et la durée de transmission. Cette deuxième édition de la CEI 61883-5 annule et remplace la première édition parue en 1998. Elle inclut les modifications suivantes: Ajout de spécifications pour le paquet IEEE 1394, l'en-tête CIP et la durée de transmission dans la transmission à grande vitesse. La présente version bilingue (2014-04) correspond à la version anglaise monolingue publiée en 2004-08.

General Information

Status
Published
Publication Date
26-Aug-2004
Current Stage
PPUB - Publication issued
Completion Date
27-Aug-2004
Ref Project

Buy Standard

Standard
IEC 61883-5:2004 - Consumer audio/video equipment - Digital interface - Part 5: SDL-DVCR data transmission
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 61883-5
Edition 2.0 2004-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Consumer audio/video equipment – Digital interface –
Part 5: SDL-DVCR data transmission
Matériel audio/vidéo grand public – Interface numérique –
Partie 5: Transmission de données SDL-DVCR
IEC 61883-5:2004-08(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2004 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et

comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus

projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 61883-5
Edition 2.0 2004-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Consumer audio/video equipment – Digital interface –
Part 5: SDL-DVCR data transmission
Matériel audio/vidéo grand public – Interface numérique –
Partie 5: Transmission de données SDL-DVCR
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX K
ICS 33.160.01; 35.200 ISBN 978-2-8322-1360-5

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

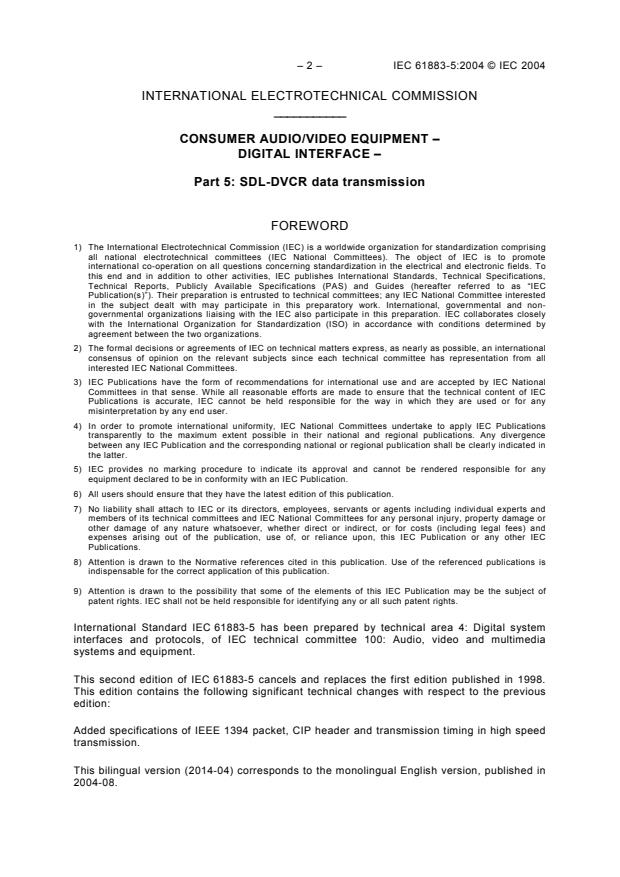

– 2 – IEC 61883-5:2004 © IEC 2004
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
CONSUMER AUDIO/VIDEO EQUIPMENT –
DIGITAL INTERFACE –
Part 5: SDL-DVCR data transmission
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any

equipment declared to be in conformity with an IEC Publication.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61883-5 has been prepared by technical area 4: Digital system

interfaces and protocols, of IEC technical committee 100: Audio, video and multimedia

systems and equipment.

This second edition of IEC 61883-5 cancels and replaces the first edition published in 1998.

This edition contains the following significant technical changes with respect to the previous

edition:

Added specifications of IEEE 1394 packet, CIP header and transmission timing in high speed

transmission.

This bilingual version (2014-04) corresponds to the monolingual English version, published in

2004-08.
---------------------- Page: 4 ----------------------
IEC 61883-5:2004 © IEC 2004 – 3 –
The text of this standard is based on the following documents:
CDV Report on voting
100/730/CDV 100/819/RVC

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.
The French version of this standard has not been voted upon.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IEC 61883 consists of the following parts under the general title Consumer audio/video

equipment – Digital interface:
Part 1: General
Part 2: SD-DVCR data transmission
Part 3: HD-DVCR data transmission
Part 4: MPEG2-TS data transmission
Part 5: SDL-DVCR data transmission
Part 6: Audio and music data transmission protocol
Part 7: Transmission of ITU-R BO.1294 System B

The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
---------------------- Page: 5 ----------------------
– 4 – IEC 61883-5:2004 © IEC 2004
CONSUMER AUDIO/VIDEO EQUIPMENT –
DIGITAL INTERFACE –
Part 5: SDL-DVCR data transmission
1 Scope

This part of IEC 61883 specifies the packet format and the transmission timing for SDL-DVCR

data. It describes the specifications for the IEEE 1394 packet, the CIP header for SDL525-60

and SDL625-50 systems, and the transmission timing.
2 Normative references

The following referenced documents are indispensable for the application of this document.

For dated references, only the edition cited applies. For undated references, the latest edition

of the referenced document (including any amendments) applies.

IEC 61834-6, Recording – Helical-scan digital video cassette recording system using 6,35 mm

magnetic tape for consumer use (525-60, 625-50, 1125-60 and 1250-50 systems) – Part 6:

SDL format

IEC 61883-1, Consumer audio/video equipment – Digital interface – Part 1: General

IEC 61883-2, Consumer audio/video equipment – Digital interface – Part 2: SD-DVCR data

transmission
3 Abbreviations
For the purposes of this document, the following abbreviations apply:
IEEE 1394 packet: IEEE 1394 isochronous packet defined in IEC 61883-1

SDL525-60 system: the standard definition for high-compression mode 525-line system

with a frame frequency of 29,97 Hz

SDL625-50 system: the standard definition for high-compression mode 625-line system

with a frame frequency of 25,00 Hz
SDL-DVCR: the standard definition for high-compression mode digital video
cassette recorder
4 Construction of IEEE 1394 packet
4.1 Source packet structure of the SDL-DVCR data stream

For the SDL-DVCR data stream, the data structure for the digital interface defined in

IEC 61834-6, Clause 10 is used. The source packet size for the SDL-DVCR data stream is

240 bytes, divided into 3 DIF blocks.

The correspondence between DIF blocks and source packets for the SDL525-60 system and

the SDL625-50 system are shown in Figure 1 and Figure 2 respectively.
---------------------- Page: 6 ----------------------
IEC 61883-5:2004 © IEC 2004 – 5 –
4.2 Packetization of source packet of the SDL-DVCR data stream
A source packet shall not be divided and shall be equal to a data block.

Data blocks transmitted in an IEEE 1394 isochronous cycle shall be determined according to

the TR value in the CIP header (see 5.2). An empty packet is placed in any cycle with no data

block.
Where the TR value is
00 (1x), one or no data block is transmitted;
01 (2x), two or no data block are transmitted;
10 (4x), four or no data block are transmitted.

The SYT field of the CIP header (see 5.1) is used to synchronize transmitter and receiver.

4.3 Transmission order of video frames for high-speed transmission

The transmission order of data within one video frame is defined in Figure 1 and Figure 2.

For high-speed transmission, transmission order of each video frame data shall follow the

time sequence.
5 CIP header
5.1 CIP header for SDL-DVCR data stream

The structure of the CIP header for the SDL-DVCR data stream is the same as the structure

of the CIP header for the SD-DVCR data stream (see IEC 61883-2, 5.1).

The DBS for SDL takes different values from that for SD through the difference of data block size

as given in 4.1.
5.2 FDF area
The STYPE takes different values as shown in Table 1 of IEC 61883-2.
Where the STYPE is 00001 , TR is defined as follows.
= 2x
TR: 01
10 = 4x
= Reserved for future definition
11
5.3 DBC values
Increments of DBC value shall be determined according to the TR value.
Where the TR value is
(1x), the DBC value increments with 1;
01 (2x), the DBC value is a multiple of 2;
(4x), the DBC value is a multiple of 4.
---------------------- Page: 7 ----------------------
– 6 – IEC 61883-5:2004 © IEC 2004
5.4 CIP header for the SDL525-60 system

For the SDL525-60 system, the values of the CIP header components are as follows.

DBS: 00111100
FN: 00
QPC: 000
SPH: 0
DBC (see 5.3)
FMT: 000000
50/60: 0
STYPE: 00001
TR: 00 = 1x, 01 = 2x, 10 = 4x
2 2 2
5.5 CIP header for the SDL625-50 system

For the SDL625-50 system, the values of the CIP header components are as follows.

DBS: 00111100
FN: 00
QPC: 000
SPH: 0
DBC (see 5.3)
FMT: 000000
50/60: 1
STYPE: 00001
TR: 00 = 1x, 01 = 2x, 10 = 4x
2 2 2
5.6 Transmission timing

The transmitter shall transmit a time stamp value in the SYT field once every video frame

period. The time stamp should be transmitted in a packet that meets the following conditions:

− packet_arrival_time_L ≤ time stamp value
− time stamp value – transmission_delay_limit ≤ packet_arrival_time_F
where

packet_arrival_time_F is the cycle time when the first bit of the packet which has the time

stamp has arrived at the receiver;

packet_arrival_time_L is the cycle time when the last bit of the packet which has the time

stamp has arrived at the receiver;
transmission_delay_limit = 450 µs.

In case of Hx (H = 1,2,4) transmission, KH data blocks are transmitted in a video frame period

M using K isochronous packets. Isochronous packet n contains H data blocks of nH, nH+1, ...

and (n+1) H–1.
---------------------- Page: 8 ----------------------
IEC 61883-5:2004 © IEC 2004 – 7 –

The isochronous packet n of a video frame period M should be transmitted on the following

conditions (n = 0, ... , K–1):
− packet_arrival_time_L ≤ nominal timing for isochronous packet n
− nominal timing for isochronous packet n – transmission_delay_limit ≤
packet_arrival_time_F
where

packet_arrival_time_F is the cycle time when the first bit of the isochronous packet n has

arrived at the receiver;

packet_arrival_time_L is the cycle time when the last bit of the isochronous packet n has

arrived at the receiver;

K is the number of isochronous packets without empty packets in a video frame period.

K = 250 (SDL525-60 system)
K = 300 (SDL625-50 system)
Nominal timing for isochronous packet n = T + (T – T ) × n/K.
M M+1 M
T is the time stamp for video frame period
...
