Standards Content (sample)

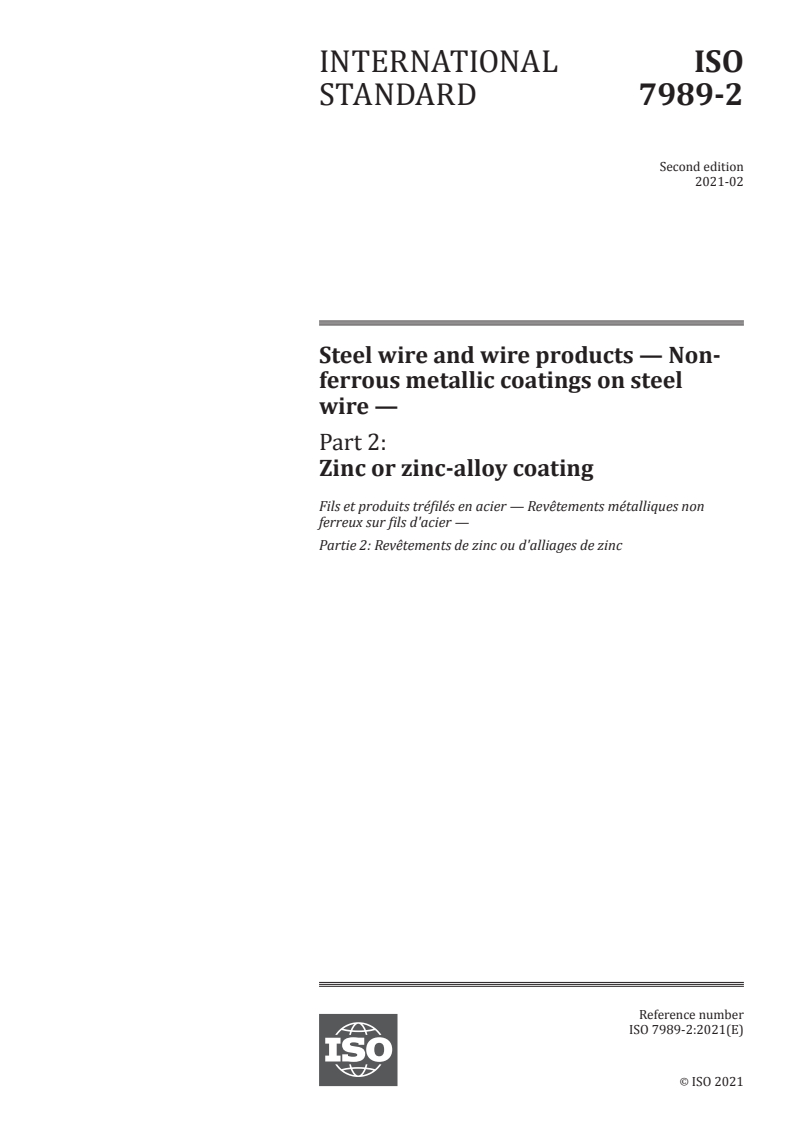

INTERNATIONAL ISO
STANDARD 7989-2
Second edition
2021-02
Steel wire and wire products — Non-
ferrous metallic coatings on steel
wire —
Part 2:
Zinc or zinc-alloy coating
Fils et produits tréfilés en acier — Revêtements métalliques non
ferreux sur fils d'acier —
Partie 2: Revêtements de zinc ou d'alliages de zinc
Reference number
ISO 7989-2:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 7989-2:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 7989-2:2021(E)

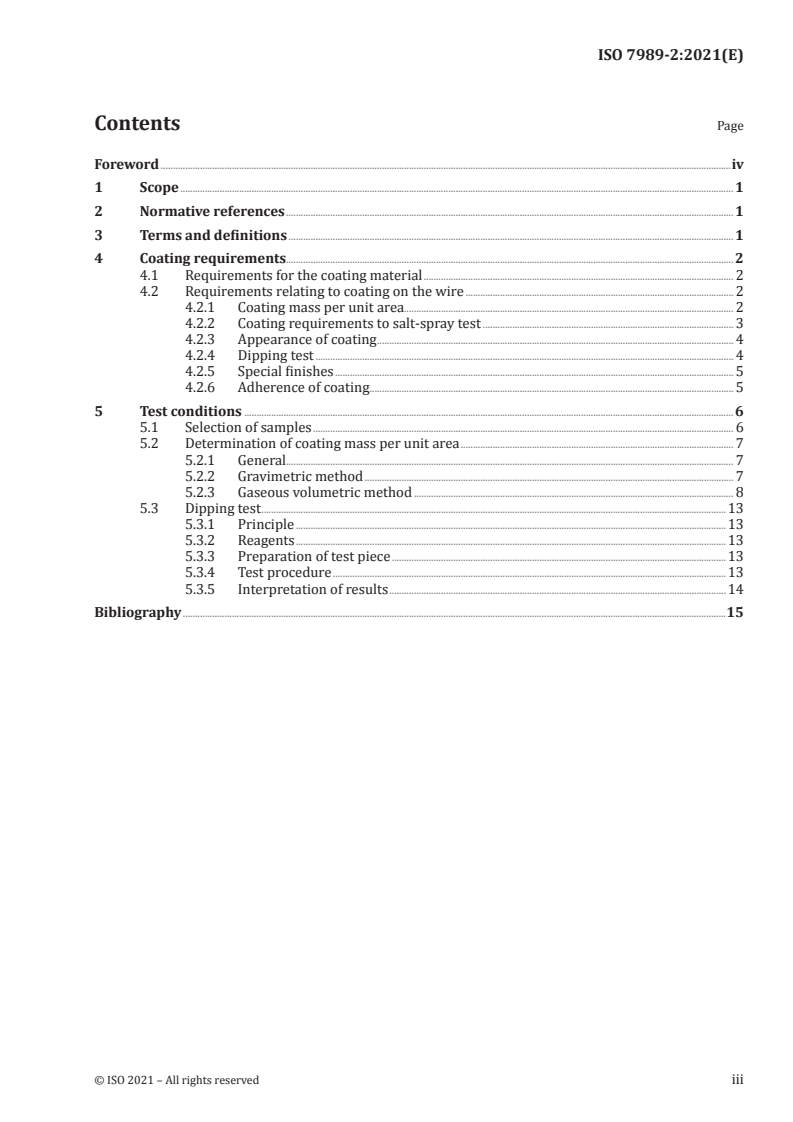

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Coating requirements...................................................................................................................................................................................... 2

4.1 Requirements for the coating material .............................................................................................................................. 2

4.2 Requirements relating to coating on the wire ............................................................................................................. 2

4.2.1 Coating mass per unit area...................................................................................................................................... 2

4.2.2 Coating requirements to salt-spray test ...................................................................................................... 3

4.2.3 Appearance of coating ................................................................................................................................................. 4

4.2.4 Dipping test .......................................................................................................................................................................... 4

4.2.5 Special finishes .................................................................................................................................................................. 5

4.2.6 Adherence of coating ........................................................................................................................................... ......... 5

5 Test conditions ....................................................................................................................................................................................................... 6

5.1 Selection of samples ........................................................................................................................................................................... 6

5.2 Determination of coating mass per unit area ............................................................................................................... 7

5.2.1 General...................................................................................................................................................................................... 7

5.2.2 Gravimetric method ...................................................................................................................................................... 7

5.2.3 Gaseous volumetric method .................................................................................................................................. 8

5.3 Dipping test .............................................................................................................................................................................................13

5.3.1 Principle ...............................................................................................................................................................................13

5.3.2 Reagents ...............................................................................................................................................................................13

5.3.3 Preparation of test piece ........................................................................................................................................13

5.3.4 Test procedure ................................................................................................................................................................13

5.3.5 Interpretation of results .........................................................................................................................................14

Bibliography .............................................................................................................................................................................................................................15

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 7989-2:2021(E)

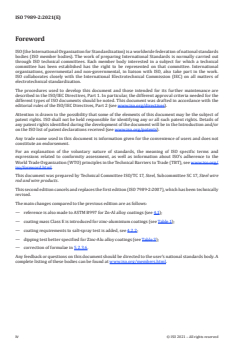

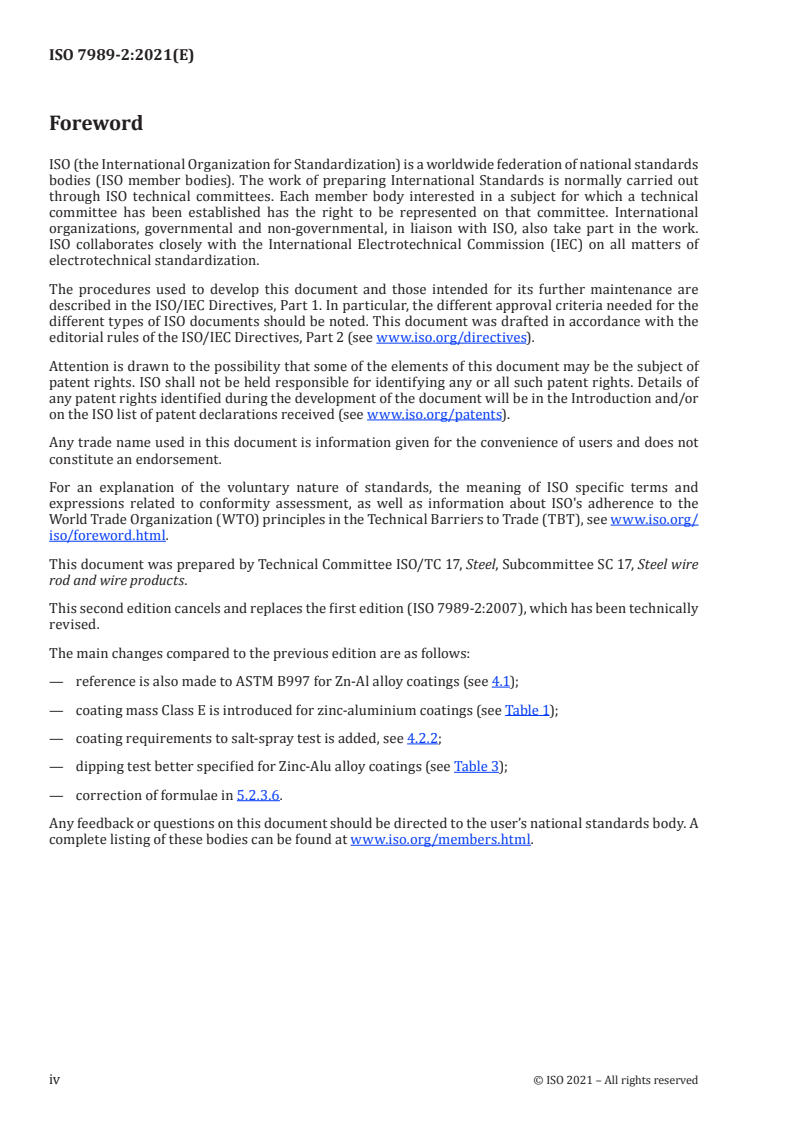

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 17, Steel wire

rod and wire products.

This second edition cancels and replaces the first edition (ISO 7989-2:2007), which has been technically

revised.
The main changes compared to the previous edition are as follows:
— reference is also made to ASTM B997 for Zn-Al alloy coatings (see 4.1);
— coating mass Class E is introduced for zinc-aluminium coatings (see Table 1);
— coating requirements to salt-spray test is added, see 4.2.2;
— dipping test better specified for Zinc-Alu alloy coatings (see Table 3);
— correction of formulae in 5.2.3.6.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 7989-2:2021(E)
Steel wire and wire products — Non-ferrous metallic
coatings on steel wire —
Part 2:
Zinc or zinc-alloy coating
1 Scope

This document specifies the requirements for the coating mass per unit area, for other properties and

also for testing of zinc or zinc-alloy coatings on steel wire and steel wire products of circular or other

section.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 7802, Metallic materials — Wire — Wrapping test

ISO 7989-1:2006, Steel wire and wire products — Non-ferrous metallic coatings on steel wire — Part 1:

General principles
ISO 9227, Corrosion tests in artificial atmospheres — Salt spray tests
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
wire with zinc or zinc-alloy coating
wire where the coating has first been applied to protect it against corrosion

Note 1 to entry: Steel wire and steel wire products of circular or other sections are produced in a continuously

hot dip coated/galvanized or continuously electro galvanized process. The coating method may be hot dipping

in a bath of molten zinc, or by means of an aqueous solution of suitable electrolyte. In the hot dipping process,

wiping media may be used to modify the coating mass per unit area.
3.2
zinc or zinc alloy coating

coating composed of zinc or zinc alloy, where the zinc alloy is zinc to which other elements have been

deliberately added in order to obtain particular characteristics, and in which the quantity of zinc is at

least 50 %

Note 1 to entry: The most common alloy elements are aluminium, tin and nickel, but other elements may also be

considered.
© ISO 2021 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 7989-2:2021(E)
3.3
coating mass per unit area
mass of zinc or zinc alloy per unit of surface area of bare wire.
Note 1 to entry: This is expressed in grams per square metre of surface.
3.4
zinc-alu alloy coating
Zn95Al5 or an advanced metallic coating
3.5
advanced metallic coating
metallic coating which reaches specific requirements

Note 1 to entry: Examples of advanced metallic coatings are Zn90 % + 10 % aluminium and Zn95 % + 5 %

aluminium with 0,2 % to 0,5 % magnesium.
4 Coating requirements
4.1 Requirements for the coating material

The zinc or zinc alloy used for the coating shall be specified at the time of the enquiry and order. For

zinc alloys not mentioned in this document, the alloy shall be specified at the enquiry and order.

NOTE For Zn-AI alloy coatings, reference is made to ASTM B997 or ASTM B750.

The ingot of the material used for the zinc coating shall be of minimum 99,9 % purity unless otherwise

stated in the relevant product standard or other specification in the order. Coatings applied by

electrolysis shall contain a minimum of 99 % zinc.
4.2 Requirements relating to coating on the wire
4.2.1 Coating mass per unit area

The minimum mass of zinc or zinc-aluminium alloy coatings, per unit of surface area of the wire, shall

comply with the requirements of Table 1.

If no class of zinc coating or no coating mass per unit area is specified, the coating shall be called

“regular coating”.

Zinc-coated wire produced as “regular coating” shall have the full surface covered with zinc, but there

is no specified minimum weight of coating.

Coating mass different to Table 1 is possible in agreement between the manufacturer and the supplier.

2 © ISO 2021 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 7989-2:2021(E)
Table 1 — Coating mass per unit area
Diameter Class
A AB B C D E
2 2 2 2 2
g/m g/m g/m g/m g/m
0,15 ≤ d< 0,20 — — 15 — 10
0,20 ≤ d< 0,25 30 20 20 20 15
0,25 ≤ d< 0,32 45 30 30 25 15
0,32 ≤ d< 0,40 60 30 30 25 15
0,40 ≤ d< 0,50 85 55 40 30 15
0,50 ≤ d< 0,60 100 70 50 35 20 40
0,60 ≤ d< 0,70 115 80 60 40 20
0,70 ≤ d< 0,80 130 90 60 45 20
0,80 ≤ d< 0,90 145 100 70 50 20
0,90 ≤ d< 1,00 155 110 70 55 25
1,00 ≤ d< 1,20 165 115 80 60 25
1,20 ≤ d< 1,40 180 125 90 65 25
1,40 ≤ d< 1,65 195 135 100 70 30
1,65 ≤ d< 1,85 205 145 100 75 30
1,85 ≤ d< 2,15 215 155 115 80 40
2,15 ≤ d< 2,50 230 170 125 85 45
2,50 ≤ d< 2,80 245 185 125 95 45
2,80 ≤ d< 3,20 255 195 135 100 50
3,20 ≤ d< 3,80 265 210 135 105 60
3,80 ≤ d< 4,40 275 220 135 110 60
4,40 ≤ d< 5,20 280 220 150 110 70
5,20 ≤ d< 8,20 290 110 80
8,20 ≤ d ≤ 10,00 300 110 80

The corrosion resistance in salt spray according ISO 9227 of this Class E shall be at least equivalent of these from a zinc

coating according Class B.
only for zinc-aluminium coatings.
4.2.2 Coating requirements to salt-spray test

The surface of the samples of the wires, when tested according ISO 9227, shall not show more than 5 %

dark brown rust after the minimum hours defined below.

The minimum number of hours of salt spray resistance depends on type of coating, wire diameter and

specified minimum coating explained in Table 1.

Table 2 is applicable to wires with minimum 1,6 mm diameter and minimum 100 g/m coating weight.

The minimum number of hours will be calculated by multiplying minimum coating in g/m and the

normalised coefficient (h/g/m ) reported in Table 2.
© ISO 2021 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 7989-2:2021(E)
Table 2 — Coating requirements
Normalised coefficient
Coating type
2 a
(h/g/m )
Zinc 2
Standard zinc alu alloy coatings (Zn95Al5) 6
Advanced zinc alu alloy coatings 12
a 2

h/g/m : Multiplied by coating weight = Hours Salt spray before 5 % steel rust according to ISO 9227.

For example: Zinc Class A wire:
— dia 1,65 with 205 g/m will stand 410 h;
— dia 10,00 with 300 g/m will stand 600 h.

The salt spray test result (e.g. 1 500h ) is the average value of 6 wire samples of each minimum 20 cm length.

4.2.3 Appearance of coating

The coating applied to the wire shall be reasonably smooth and as evenly distributed as industrial

technology allows and not show discontinuities such as bare patches, dross contamination, etc.

NOTE The zinc-aluminium alloy might show difference in colour and become darker with time. This does not

affect the corrosion protection performance.
4.2.4 Dipping test

If agreed at the time of the enquiry and order, the dipping (immersion) test shall be carried out according

to the procedure detailed in 5.3. However, it should be pointed out that there is no direct link between

the number of dips and the coating mass per unit area and that the result is determined as much by the

conditions of manufacture of the coating as by the uniformity of the coating.

Table 3 gives the minimum number of immersions for coatings of Classes A and AB. The dipping test

does not apply to Classes B, C, D and E.
Table 3 — Minimum number of dips
Nominal diameter Class A Class AB
Number of dips Number of dips
a b a b
of 1 min of 1/2 min of 1 min of 1/2 min
0,40 ≤ d< 0,60 — 1 — —
0,60 ≤ d< 0,90 1 — — 1
0,90 ≤ d< 1,00 1 1 — 1
1,00 ≤ d< 1,40 1 1 1 —
1,40 ≤ d< 1,65 2 — 1 —
1,65 ≤ d< 1,85 2 — 1 —
1,85 ≤ d< 2,15 2 — 1 1
2,15 ≤ d< 2,80 2 1 1 1
2,80 ≤ d< 4,40 3 — 2 —
4,40 ≤ d< 5,20 3 1 2 —
5,20 ≤ d< 8,20 3 1 — —
8,20 ≤ d ≤ 10,00 4 — — —
For Zinc-Alu alloy coatings one dip equals 45 s instead of 1 min.
For Zinc-Alu alloy coatings one dip equals 22 s instead of 1/2 min.
4 © ISO 2021 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 7989-2:2021(E)
4.2.5 Special finishes

If drawing after galvanizing is required, it shall be stipulated at the time of enquiry and order or in the

appropriate product standard. The same also applies for other special finishes such as wax coating, a

polished surfac
...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 7989-2
ISO/TC 17/SC 17
Steel wire and wire products — Non-
Secretariat: SAC
ferrous metallic coatings on steel
Voting begins on:
2020-11-30 wire —
Voting terminates on:
Part 2:
2021-01-25
Zinc or zinc-alloy coating
Fils et produits tréfilés en acier — Revêtements métalliques non
ferreux sur fils d'acier —
Partie 2: Revêtements de zinc ou d'alliages de zinc
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 7989-2:2020(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ISO 2020
---------------------- Page: 1 ----------------------
ISO/FDIS 7989-2:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/FDIS 7989-2:2020(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Coating requirements...................................................................................................................................................................................... 2

4.1 Requirements for the coating material .............................................................................................................................. 2

4.2 Requirements relating to coating on the wire ............................................................................................................. 2

4.2.1 Coating mass per unit area...................................................................................................................................... 2

4.2.2 Coating requirements to salt-spray test ...................................................................................................... 3

4.2.3 Appearance of coating ................................................................................................................................................. 4

4.2.4 Dipping test .......................................................................................................................................................................... 4

4.2.5 Special finishes .................................................................................................................................................................. 5

4.2.6 Adherence of coating ........................................................................................................................................... ......... 5

5 Test conditions ....................................................................................................................................................................................................... 6

5.1 Selection of samples ........................................................................................................................................................................... 6

5.2 Determination of coating mass per unit area ............................................................................................................... 7

5.2.1 General...................................................................................................................................................................................... 7

5.2.2 Gravimetric method ...................................................................................................................................................... 7

5.2.3 Gaseous volumetric method .................................................................................................................................. 8

5.3 Dipping test .............................................................................................................................................................................................13

5.3.1 Principle ...............................................................................................................................................................................13

5.3.2 Reagents ...............................................................................................................................................................................13

5.3.3 Preparation of test piece ........................................................................................................................................13

5.3.4 Test procedure ................................................................................................................................................................13

5.3.5 Interpretation of results .........................................................................................................................................14

Bibliography .............................................................................................................................................................................................................................15

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/FDIS 7989-2:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 17, Steel wire

rod and wire products.

This second edition cancels and replaces the first edition (ISO 7989-2:2007), which has been technically

revised.
The main changes compared to the previous edition are as follows:
— reference is also made towards ASTM B997 for Zn-Al alloy coatings (4.1);
— coating mass Class E is introduced for zinc-aluminium coatings (Table 1);
— coating requirements to salt-spray test is added, see 4.2.2;
— dipping test better specified for Zinc-Alu alloy coatings (Table 3);
— correction of formulae in 5.2.3.6.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 7989-2:2020(E)
Steel wire and wire products — Non-ferrous metallic
coatings on steel wire —
Part 2:
Zinc or zinc-alloy coating
1 Scope

This document specifies the requirements for the coating mass per unit area, for other properties and

also for testing of zinc or zinc-alloy coatings on steel wire and steel wire products of circular or other

section.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 7802, Metallic materials — Wire — Wrapping test

ISO 7989-1:2006, Steel wire and wire products — Non-ferrous metallic coatings on steel wire — Part 1:

General principles
ISO 9227, Corrosion tests in artificial atmospheres — Salt spray tests
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
wire with zinc or zinc-alloy coating
wire where the coating has first been applied to protect it against corrosion

Note 1 to entry: Steel wire and steel wire products of circular or other sections are produced in a continuously

hot dip coated/galvanized or continuously electro galvanized process. The coating method may be hot dipping

in a bath of molten zinc, or by means of an aqueous solution of suitable electrolyte. In the hot dipping process,

wiping media may be used to modify the coating mass per unit area.
3.2
zinc or zinc alloy coating

coating composed of zinc or zinc alloy, where the zinc alloy is zinc to which other elements have been

deliberately added in order to obtain particular characteristics, and in which the quantity of zinc is at

least 50 %

Note 1 to entry: The most common alloy elements are aluminium, tin and nickel, but other elements may also be

considered.
© ISO 2020 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO/FDIS 7989-2:2020(E)
3.3
coating mass per unit area
mass of zinc or zinc alloy per unit of surface area of bare wire.
Note 1 to entry: This is expressed in grams per square metre of surface.
3.4
zinc-alu alloy coating
Zn95Al5 or an advanced metallic coating
3.5
advanced metallic coating
metallic coating which reaches specific requirements

Note 1 to entry: Examples of advanced metallic coatings are Zn90 % + 10 % aluminium and Zn95 % + 5 %

aluminium with 0,2 % to 0,5 % magnesium.
4 Coating requirements
4.1 Requirements for the coating material

The zinc or zinc alloy used for the coating shall be specified at the time of the enquiry and order. For

zinc alloys not mentioned in this document, the alloy shall be specified at the enquiry and order.

NOTE For Zn-AI alloy coatings, reference is made to ASTM B997 or ASTM B750.

The ingot of the material used for the zinc coating shall be of minimum 99,9 % purity unless otherwise

stated in the relevant product standard or other specification in the order. Coatings applied by

electrolysis shall contain a minimum of 99 % zinc.
4.2 Requirements relating to coating on the wire
4.2.1 Coating mass per unit area

The minimum mass of zinc or zinc-aluminium alloy coatings, per unit of surface area of the wire, shall

comply with the requirements of Table 1.

If no class of zinc coating or no coating mass per unit area is specified, the coating shall be called

“regular coating”.

Zinc-coated wire produced as “regular coating” shall have the full surface covered with zinc, but there

is no specified minimum weight of coating.

Coating mass different to Table 1 is possible in agreement between the manufacturer and the supplier.

2 © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/FDIS 7989-2:2020(E)
Table 1 — Coating mass per unit area
Diameter Class
A AB B C D E
2 2 2 2 2
g/m g/m g/m g/m g/m
0,15 ≤ d< 0,20 — — 15 — 10
0,20 ≤ d< 0,25 30 20 20 20 15
0,25 ≤ d< 0,32 45 30 30 25 15
0,32 ≤ d< 0,40 60 30 30 25 15
0,40 ≤ d< 0,50 85 55 40 30 15
0,50 ≤ d< 0,60 100 70 50 35 20 40
0,60 ≤ d< 0,70 115 80 60 40 20
0,70 ≤ d< 0,80 130 90 60 45 20
0,80 ≤ d< 0,90 145 100 70 50 20
0,90 ≤ d< 1,00 155 110 70 55 25
1,00 ≤ d< 1,20 165 115 80 60 25
1,20 ≤ d< 1,40 180 125 90 65 25
1,40 ≤ d< 1,65 195 135 100 70 30
1,65 ≤ d< 1,85 205 145 100 75 30
1,85 ≤ d< 2,15 215 155 115 80 40
2,15 ≤ d< 2,50 230 170 125 85 45
2,50 ≤ d< 2,80 245 185 125 95 45
2,80 ≤ d< 3,20 255 195 135 100 50
3,20 ≤ d< 3,80 265 210 135 105 60
3,80 ≤ d< 4,40 275 220 135 110 60
4,40 ≤ d< 5,20 280 220 150 110 70
5,20 ≤ d< 8,20 290 110 80
8,20 ≤ d ≤ 10,00 300 110 80

The corrosion resistance in salt spray according ISO 9227 of this Class E shall be at least equivalent of these from a zinc

coating according Class B.
only for zinc-aluminium coatings.
4.2.2 Coating requirements to salt-spray test

The surface of the samples of the wires, when tested according ISO 9227, shall not show more than 5 %

dark brown rust after the minimum hours defined below.

The minimum number of hours of salt spray resistance depends on type of coating, wire diameter and

specified minimum coating explained in Table 1.

Table 2 is applicable to wires with minimum 1,6 mm diameter and minimum 100 g/m coating weight.

The minimum number of hours will be calculated by multiplying minimum coating in g/m and the

normalised coefficient (h/g/m ) reported in Table 2.
© ISO 2020 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO/FDIS 7989-2:2020(E)
Table 2 — Coating requirements
Normalised coefficient
Coating type
2 a
(h/g/m )
Zinc 2
Standard zinc alu alloy coatings (Zn95Al5) 6
Advanced zinc alu alloy coatings 12
a 2

h/g/m : Multiplied by coating weight = Hours Salt spray before 5 % steel rust according to ISO 9227.

For example: Zinc Class A wire:
— dia 1,65 with 205 g/m will stand 410 h;
— dia 10,00 with 300 g/m will stand 600 h.

The salt spray test result (e.g. 1 500h ) is the average value of 6 wire samples of each minimum 20 cm length.

4.2.3 Appearance of coating

The coating applied to the wire shall be reasonably smooth and as evenly distributed as industrial

technology allows and not show discontinuities such as bare patches, dross contamination, etc.

NOTE The zinc-aluminium alloy might show difference in colour and become darker with time. This does not

affect the corrosion protection performance.
4.2.4 Dipping test

If agreed at the time of the enquiry and order, the dipping (immersion) test shall be carried out according

to the procedure detailed in 5.3. However, it should be pointed out that there is no direct link between

the number of dips and the coating mass per unit area and that the result is determined as much by the

conditions of manufacture of the coating as by the uniformity of the coating.

Table 3 gives the minimum number of immersions for coatings of Classes A and AB. The dipping test

does not apply to Classes B, C, D and E.
Table 3 — Minimum number of dips
Nominal diameter Class A Class AB
Number of dips Number of dips
a b a b
of 1 min of 1/2 min of 1 min of 1/2 min
0,40 ≤ d< 0,60 — 1 — —
0,60 ≤ d< 0,90 1 — — 1
0,90 ≤ d< 1,00 1 1 — 1
1,00 ≤ d< 1,40 1 1 1 —
1,40 ≤ d< 1,65 2 — 1 —
1,65 ≤ d< 1,85 2 — 1 —
1,85 ≤ d< 2,15 2 — 1 1
2,15 ≤ d< 2,80 2 1 1 1
2,80 ≤ d< 4,40 3 — 2 —
4,40 ≤ d< 5,20 3 1 2 —
5,20 ≤ d< 8,20 3 1 — —
8,20 ≤ d ≤ 10,00 4 — — —
For Zinc-Alu alloy coatings one dip equals 45 s instead of 1 min.
For Zinc-Alu alloy coatings one dip equals 22 s instead of 1/2 min.
4 © ISO 2020 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/FDIS 7989-2:2020(E)
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
