ISO 7186:2011

Ductile iron products for sewerage applications

ISO 7186:2011 specifies the requirements and test methods applicable to ductile iron pipes, fittings, accessories and their joints for the construction of drains and sewers outside buildings: - to convey surface water (e.g. rainwater), domestic waste water and/or certain types of industrial effluents, either in separate systems or in combined systems; - operating without pressure (gravity sewers) or with positive or negative pressure; - for installation below or above ground. ISO 7186:2011 contains specifications for materials, dimensions and tolerances, mechanical properties and standard coatings of pipes, fittings and accessories. It also gives performance requirements for all components including joints. ISO 7186:2011 is applicable to pipes, fittings and accessories cast by any type of foundry process or manufactured by fabrication of cast components, as well as corresponding joints, in the size range DN 80 to DN 2600 inclusive. It is applicable to pipes, fittings and accessories which are manufactured with socketed, flanged or spigot ends (joint design and gasket shape are outside the scope of ISO 7186:2011) and normally delivered internally and externally coated.

Produits en fonte ductile pour l'assainissement

General Information

• Status: Published
• Publication Date: 07-Jul-2011
• ICS: 77.140.80 - Iron and steel castings
• ICS: 93.030 - External sewage systems
• Technical Committee: ISO/TC 5/SC 2 - Cast iron pipes, fittings and their joints
• Drafting Committee: ISO/TC 5/SC 2 - Cast iron pipes, fittings and their joints
• Current Stage: 9092 - International Standard to be revised
• Completion Date: 18-Mar-2024

Relations

• Revises: ISO 7186:1996 - Ductile iron products for sewage applications
• Effective Date: 15-Apr-2008

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 7186
Third edition
2011-07-15

Ductile iron products for sewerage
applications
Produits en fonte ductile pour l'assainissement




Reference number
ISO 7186:2011(E)
©
ISO 2011

---------------------- Page: 1 ----------------------
ISO 7186:2011(E)

COPYRIGHT PROTECTED DOCUMENT


©  ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland

ii © ISO 2011 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 7186:2011(E)
Contents Page

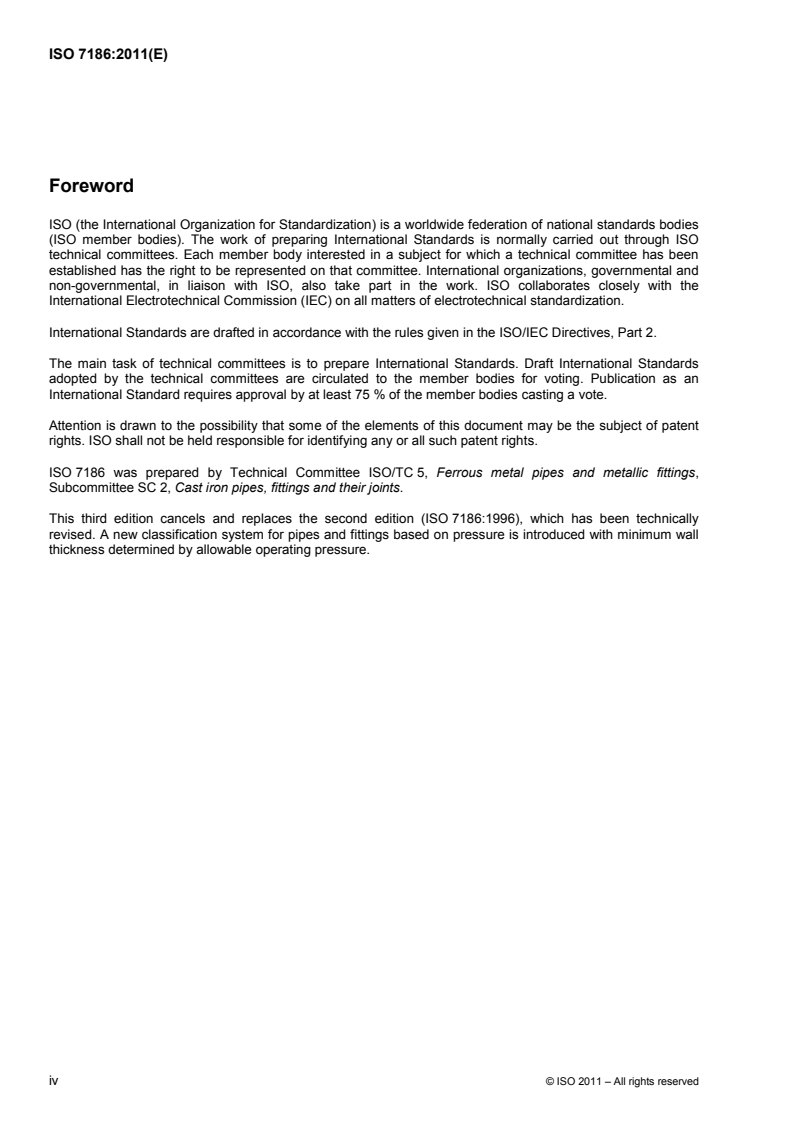

Foreword .iv
1 Scope.1
2 Normative references.1
3 Terms and definitions .2
4 Technical requirements .7
4.1 General .7
4.2 Pressure classification .9
4.3 Dimensional requirements .9
4.4 Material characteristics.13
4.5 Coatings and linings for pipes.14
4.6 Coatings for fittings and accessories .14
4.7 Systems design requirements .15
4.8 Leaktightness of pipeline components.15
4.9 Marking.15
5 Performance requirements.16
5.1 Leaktightness of joints .16
5.2 Diametral stiffness .17
5.3 Chemical resistance.18
5.4 Abrasion resistance .18
6 Test methods and test frequencies .18
6.1 Dimensions .18
6.2 Straightness of pipes .19
6.3 Tensile test.19
6.4 Brinell hardness .21
6.5 Works leaktightness test of pipes and fittings for pressure applications .21
6.6 Works leaktightness test of pipes and fittings for vacuum applications .22
7 Type tests.22
7.1 Leaktig
...
