SIST EN IEC 60598-2-23:2021

Luminaires - Part 2-23: Particular requirements - Extra-low-voltage lighting systems for ELV light sources (IEC 60598-2-23:2020)

IEC 60598-2-23:2020 specifies requirements for extra-low-voltage lighting systems for ELV light sources, intended for ordinary interior use on supply voltages not exceeding 1 000 V. The luminaires, being connected in parallel, are supplied via freely suspended continuous supporting conductors or profiles, the current in the ELV part of the system not exceeding 25 A.
This second edition cancels and replaces the first edition published in 1996 and Amendment 1:2000. This edition constitutes a technical revision.
This edition includes the following technical changes with respect to the previous edition (there are no major technical changes, see Annex A):
a) The title has been modified to allow the inclusion of other light sources;
b) The scope has been updated to be aligned with the other parts of the IEC 60598-2 series and to include other light sources;
c) Normative references and the reference to transformer and controlgear standards have been updated;
d) The short circuit test (23.7.6.1 and 23.7.6.2) was removed and reference is now made to the same test in Part 1.

Leuchten - Teil 2-23: Besondere Anforderungen - Kleinspannungsbeleuchtungssysteme für Glühlampen (IEC 60598-2-23:2020)

Luminaires - Partie 2-23: Règles particulières - Systèmes d'éclairage à très basse tension pour lampes à filament (IEC 60598-2-23:2020)

L’IEC 60598-2-23:2020 spécifie les exigences pour les systèmes d’éclairage à très basse tension pour des sources de lumière TBT, prévues pour une utilisation ordinaire en intérieur, avec des tensions d’alimentation ne dépassant pas 1 000 V. Les luminaires, branchés en parallèle, sont alimentés par l’intermédiaire de conducteurs ou profils supports continus, librement suspendus. Le courant dans la partie TBT du système ne dépasse pas 25 A.
Cette deuxième édition annule et remplace la première édition parue en 1996 et son Amendement 1:2000. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques suivantes par rapport à l’édition précédente (il n’y a pas de modification technique majeure, voir Annexe A):
a) Le titre a été modifié pour permettre l'ajout d’autres sources de lumière;
b) Le domaine d’application a été mis à jour pour l'aligner sur celui des autres parties de la série IEC 60598-2 et pour inclure d’autres sources de lumière;
c) Les références normatives et la référence aux normes relatives aux transformateurs et aux appareillages de commande ont été mises à jour;
d) L’essai de court-circuit (23.7.6.1 et 23.7.6.2) a été supprimé et il est à présent fait référence au même essai dans la partie 1.

Svetilke - 2-23. del: Posebne zahteve - Malonapetostni svetlobni sistemi za svetlobne vire ELV (IEC 60598-2-23:2020)

General Information

• Status: Published
• Publication Date: 27-Jan-2021
• ICS: 29.140.40 - Luminaires
• Technical Committee: IESV - Lamps and related equipment
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 22-Jan-2021
• Due Date: 29-Mar-2021
• Completion Date: 28-Jan-2021
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: EN IEC 60598-2-23:2021 - Luminaires - Part 2-23: Particular requirements - Extra-low-voltage lighting systems for ELV light sources

Relations

• Replaces: SIST EN 60598-2-23:1999 - Luminaires - Part 2-23: Particular requirements - Extra low-voltage lighting systems for filament lamps (IEC 60598-2-23:1996)
• Effective Date: 19-Jan-2021
• Replaces: SIST EN 60598-2-23:1999/A1:2002 - Luminaires - Part 2-23: Particular requirements - Extra low-voltage lighting systems for filament lamps (IEC 60598-2-23:1996/A1:2000)
• Effective Date: 19-Jan-2021
• Revised: oSIST prEN 60598-2-23:2025 - Luminaires - Part 2-23: Particular requirements - Extra-low-voltage lighting systems for ELV light sources
• Effective Date: 01-Oct-2025

Overview

EN IEC 60598-2-23:2021 (CLC adoption of IEC 60598-2-23:2020) defines particular requirements for extra‑low‑voltage (ELV) lighting systems for ELV light sources used for ordinary interior applications. It applies to luminaires connected in parallel and supplied via freely suspended continuous supporting conductors or profiles, with the current in the ELV part of the system not exceeding 25 A. This edition updates and replaces the 1996 version (and its amendment) and is intended to be used together with IEC 60598-1 (Luminaires - Part 1: General requirements).

Key topics and technical requirements

The standard focuses on safety, construction and test requirements specific to ELV lighting systems. Major topics include:

• Scope and classification for ELV luminaires and systems, including permitted supply arrangements and current limits (ELV part ≤ 25 A).
• Marking and documentation requirements to ensure safe and correct use and installation.
• Constructional requirements for suspended supporting conductors, profiles and parallel-connected luminaires.
• Electrical safety: creepage distances and clearances, insulation resistance, electric strength, terminals and wiring, and provisions for earthing where applicable.
• Protection against electric shock and mechanical hazards in ordinary interior environments.
• Endurance and thermal tests, including thermal behaviour under normal conditions and ageing/endurance testing.
• Ingress and environmental resistance: resistance to dust, solid objects and moisture.
• Fire and tracking resistance: materials and tests addressing heat, fire and tracking behaviour.
• Note: the short-circuit test clauses (23.7.6.1 and 23.7.6.2) were removed from this Part and reference is made to the equivalent test in Part 1. The standard does not cover electromagnetic fields (EMF) effects.

Applications and who uses it

EN IEC 60598-2-23:2021 is used by:

• Luminaire manufacturers designing ELV pendant, suspended or track-style systems and ELV luminaires for interior use.
• Design engineers and specifiers selecting supporting conductors, profiles, transformers and controlgear for ELV installations.
• Test laboratories and certification bodies performing conformity assessments against luminaire safety requirements.
• Installers, compliance and safety engineers ensuring products meet EU Low Voltage Directive requirements when the standard is cited. Practical applications include suspended ELV lighting systems for commercial interiors, retail displays, architectural lighting where luminaires are supported on continuous conductors or profiles.

Related standards

• IEC/EN 60598-1 (Luminaires - General requirements) - to be used in conjunction with this Part 2-23.
• Relevant controlgear and transformer standards cited: IEC 61347-2-2, IEC 61347-2-13, IEC 61558-2-6, IEC 61558-2-16.
• The standard supports conformity with the EU Low Voltage Directive (see Annex ZZ for alignment with Directive 2014/35/EU).

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2021
Nadomešča:
SIST EN 60598-2-23:1999
SIST EN 60598-2-23:1999/A1:2002
Svetilke - 2-23. del: Posebne zahteve - Malonapetostni svetlobni sistemi za
svetlobne vire ELV (IEC 60598-2-23:2020)
Luminaires - Part 2-23: Particular requirements - Extra-low-voltage lighting systems for
ELV light sources (IEC 60598-2-23:2020)
Leuchten - Teil 2-23: Besondere Anforderungen - Kleinspannungsbeleuchtungssysteme
für Glühlampen (IEC 60598-2-23:2020)
Luminaires - Partie 2-23: Règles particulières - Systèmes d'éclairage à très basse
tension pour lampes à filament (IEC 60598-2-23:2020)
Ta slovenski standard je istoveten z: EN IEC 60598-2-23:2021
ICS:
29.140.40 Svetila Luminaires
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60598-2-23

NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2021
ICS 29.140.40 Supersedes EN 60598-2-23:1996 and all of its
amendments and corrigenda (if any)
English Version
Luminaires - Part 2-23: Particular requirements - Extra-low-
voltage lighting systems for ELV light sources
(IEC 60598-2-23:2020)
Luminaires - Partie 2-23: Exigences particulières - Leuchten - Teil 2-23: Besondere Anforderungen -
Systèmes d'éclairage à très basse tension pour sources de Kleinspannungsbeleuchtungssysteme für Glühlampen
lumière TBT (IEC 60598-2-23:2020)
(IEC 60598-2-23:2020)
This European Standard was approved by CENELEC on 2020-08-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60598-2-23:2021 E

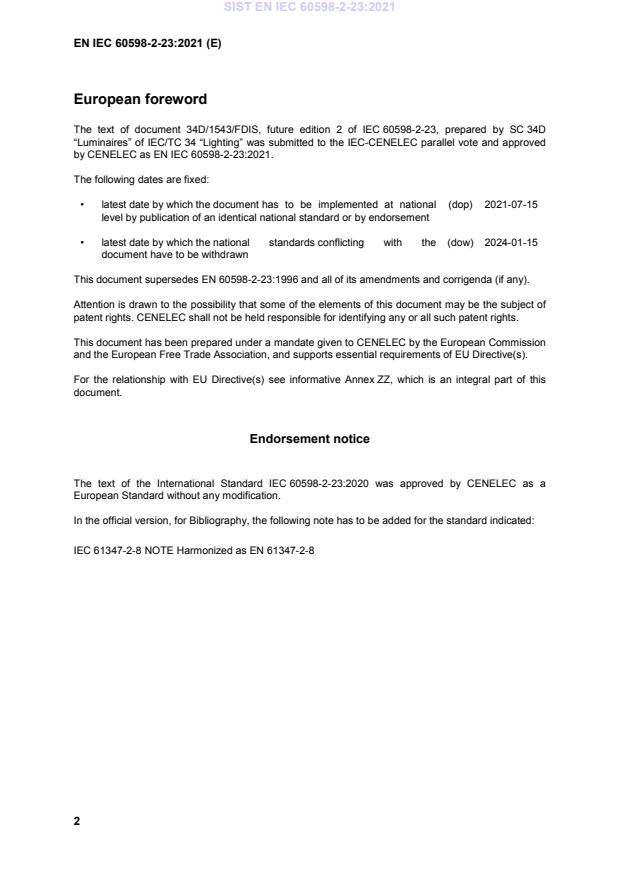

European foreword
