SIST EN IEC 62722-2-1:2023
(Main)Luminaire performance - Part 2-1: Particular requirements - LED luminaires (IEC 62722-2-1:2023)
Luminaire performance - Part 2-1: Particular requirements - LED luminaires (IEC 62722-2-1:2023)
IEC 62722-2-1:2023 specifies the performance requirements for LED luminaires, together with the test methods and conditions. It applies to LED luminaires for general lighting purposes. Semi-luminaires are not covered under the scope of this document. This second edition cancels and replaces the first edition published in 2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
alignment with IEC 62717:2014, IEC 62717:2014/AMD1:2015 and IEC 62717:2014/AMD2:2019;clarification of temperature requirements for the maintenance test, in 10.2 and Annex A; introduction of a new Annex C on methods for calculation and measurements of parameters for extension of electric and photometric data.
Arbeitsweise von Leuchten - Teil 2-1: Besondere Anforderungen an LED-Leuchten (IEC 62722-2-1:2023)
Performance des luminaires - Partie 2-1: Exigences particulières relatives aux luminaires à LED (IEC 62722-2-1:2023)
L'IEC 62722-2-1:2023 spécifie les exigences de performance relatives aux luminaires à LED, ainsi que les méthodes et conditions d'essai. Elle s'applique aux luminaires à LED destinés à l'éclairage général. Les semi-luminaires ne relèvent pas du domaine d'application du présent document. Cette deuxième édition annule et remplace la première édition parue en 2014. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- alignement sur l'IEC 62717:2014, l'IEC 62717:2014/AMD1:2015 et l'IEC 62717:2014/AMD2:2019;
- clarification des exigences de température pour l'essai de conservation en 10.2 et à l'Annexe A;
- introduction d'une nouvelle Annexe C sur les méthodes de calcul et les mesurages des paramètres pour la transposition des données électriques et photométriques.
Tehnične lastnosti svetilk - 2-1. del: Posebne zahteve - LED-svetilke (IEC 62722-2-1:2023)
Standard IEC 62722-2-1:2023 določa zahteve glede zmogljivosti za svetilke LED skupaj s preskusnimi metodami in pogoji. Uporablja se za svetilke LED za namene splošnega osvetljevanja. Polsvetilke ne spadajo na področje uporabe tega dokumenta. Druga izdaja razveljavlja in nadomešča prvo izdajo, objavljeno leta 2014. Ta izdaja je tehnično popravljena izdaja. Ta izdaja v primerjavi s prejšnjo vključuje naslednje pomembne tehnične spremembe:
uskladitev s standardi IEC 62717:2014, IEC 62717:2014/AMD1:2015 in IEC 62717:2014/AMD2:2019; pojasnitev zahtev glede temperature za preskus vzdrževanja v točki 10.2 in dodatku A; uvedba novega dodatka C o metodah za izračunavanje in merjenje parametrov za razširitev električnih in fotometričnih podatkov.
General Information
Relations
Standards Content (Sample)

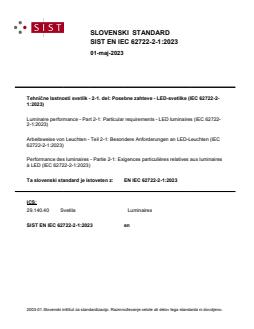

SLOVENSKI STANDARD
SIST EN IEC 62722-2-1:2023
01-maj-2023
Tehnične lastnosti svetilk - 2-1. del: Posebne zahteve - LED-svetilke (IEC 62722-2-
1:2023)
Luminaire performance - Part 2-1: Particular requirements - LED luminaires (IEC 62722-
2-1:2023)
Arbeitsweise von Leuchten - Teil 2-1: Besondere Anforderungen an LED-Leuchten (IEC
62722-2-1:2023)
Performance des luminaires - Partie 2-1: Exigences particulières relatives aux luminaires
à LED (IEC 62722-2-1:2023)
Ta slovenski standard je istoveten z: EN IEC 62722-2-1:2023
ICS:
29.140.40 Svetila Luminaires
SIST EN IEC 62722-2-1:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 62722-2-1:2023
---------------------- Page: 2 ----------------------
SIST EN IEC 62722-2-1:2023

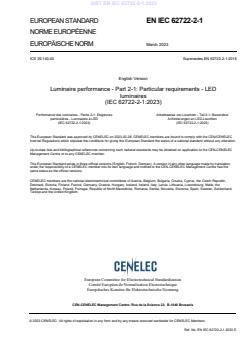

EUROPEAN STANDARD EN IEC 62722-2-1
NORME EUROPÉENNE
EUROPÄISCHE NORM March 2023
ICS 29.140.40 Supersedes EN 62722-2-1:2016
English Version
Luminaire performance - Part 2-1: Particular requirements - LED
luminaires
(IEC 62722-2-1:2023)
Performance des luminaires - Partie 2-1: Exigences Arbeitsweise von Leuchten - Teil 2-1: Besondere
particulières - Luminaires à LED Anforderungen an LED-Leuchten
(IEC 62722-2-1:2023) (IEC 62722-2-1:2023)
This European Standard was approved by CENELEC on 2023-02-28. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62722-2-1:2023 E
---------------------- Page: 3 ----------------------
SIST EN IEC 62722-2-1:2023
EN IEC 62722-2-1:2023 (E)

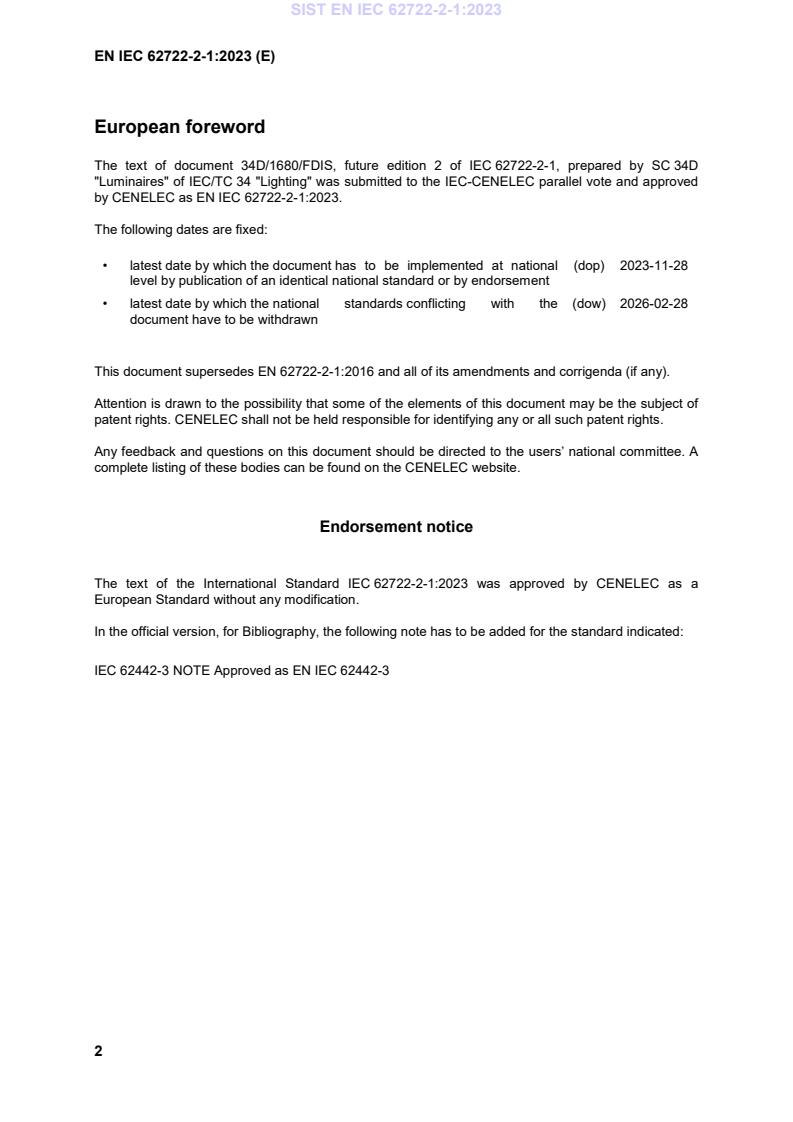

European foreword
The text of document 34D/1680/FDIS, future edition 2 of IEC 62722-2-1, prepared by SC 34D
"Luminaires" of IEC/TC 34 "Lighting" was submitted to the IEC-CENELEC parallel vote and approved
by CENELEC as EN IEC 62722-2-1:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-11-28
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-02-28
document have to be withdrawn
This document supersedes EN 62722-2-1:2016 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62722-2-1:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 62442-3 NOTE Approved as EN IEC 62442-3
2
---------------------- Page: 4 ----------------------
SIST EN IEC 62722-2-1:2023
EN IEC 62722-2-1:2023 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60598-1 2020 Luminaires - Part 1: General requirements EN IEC 60598-1 2021
and tests
IEC 60598-2-3 2002 Luminaires - Part 2-3: Particular EN 60598-2-3 2003
requirements - Luminaires for road and
street lighting
- - + corrigendum Aug. 2005
IEC 60598-2-5 2015 Luminaires - Part 2-5: Particular EN 60598-2-5 2015
requirements - Floodlights
IEC 62031 2018 LED modules for general lighting - Safety EN IEC 62031 2020
specifications
- - + A11 2021
IEC 62717 2014 LED modules for general lighting - EN 62717 2017
Performance requirements
+ A1 2015 - -
+ A2 2019 + A2 2019
IEC 62722-1 - Luminaire performance - Part 1: General EN IEC 62722-1 -
requirements
3
---------------------- Page: 5 ----------------------
SIST EN IEC 62722-2-1:2023
---------------------- Page: 6 ----------------------
SIST EN IEC 62722-2-1:2023
IEC 62722-2-1
®
Edition 2.0 2023-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Luminaire performance –
Part 2-1: Particular requirements – LED luminaires
Performance des luminaires –
Partie 2-1: Exigences particulières – Luminaires à LED
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.40 ISBN 978-2-8322-6343-3
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN IEC 62722-2-1:2023
– 2 – IEC 62722-2-1:2023 © IEC 2023
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Product information . 9
5 General requirements . 10
6 Test conditions . 10
6.1 General test conditions . 10
6.2 Luminaires using LED modules where compliance with IEC 62717 is given
(Type A) . 11
6.3 Luminaires using LED modules where compliance with IEC 62717 is not
given (Type B) . 11
6.3.1 General . 11
6.3.2 Creation of module families to reduce test effort . 11
6.4 Performance requirements . 12
7 Input power . 13
8 Photometric performance . 14
8.1 Luminous flux . 14
8.2 Luminous intensity distribution, peak intensity and beam angle . 14
8.2.1 General . 14
8.2.2 Measurement . 14
8.2.3 Luminous intensity distribution . 14
8.2.4 Peak intensity . 14
8.2.5 Beam angle . 14
8.3 Luminaire luminous efficacy . 14
9 Chromaticity coordinates, correlated colour temperature (CCT) and colour
rendering . 14
9.1 Chromaticity coordinates . 14
9.2 Correlated colour temperature (CCT) . 14
9.3 Colour rendering index (CRI) . 14
10 LED luminaire life . 14
10.1 General . 14
10.2 Lumen maintenance . 15
10.3 Endurance tests . 15
11 Verification . 15
Annex A (normative) Measurement method of LED luminaire characteristics . 18
A.1 General . 18
A.2 Electrical characteristics . 18
A.3 Photometric characteristics . 18
Annex B (informative) Explanation of recommended lifetime metrics . 19
B.1 General . 19
B.2 Lifetime specification . 19
Annex C (normative) Methods for calculation and measurements of parameters for
extension of electric and photometric data . 20
C.1 Introductory remarks . 20
---------------------- Page: 8 ----------------------
SIST EN IEC 62722-2-1:2023
IEC 62722-2-1:2023 © IEC 2023 – 3 –
C.2 General . 20
C.3 Method 1 – Different current setting . 21
C.3.1 General . 21
C.3.2 Procedure . 21
C.3.3 Example of applicability of Method 1 using a goniophotometer . 23
C.4 Method 2 – Different binning (flux, CCT, CRI) of LED packages or LED
modules . 24
C.4.1 General . 24
C.4.2 Procedure I for method 2 (KФ for LED modules) . 24
C.4.3 Procedure II for method 2 (KФ for LED luminaires) . 25
C.4.4 Procedure III for method 2 (KФ for LED packages) . 25
C.5 Method 3 – Use of a different LED controlgear or additional electrical
components . 26
C.5.1 General . 26
C.5.2 Use of a different LED controlgear . 26
C.5.3 Additional electrical components installed in the luminaire (e.g.
controlling device) . 26
C.6 Application of methods 1, 2 and 3 to luminaires of the same family . 27
C.7 Overview of the methods in Annex C . 27
Bibliography . 29
Figure 1 – Terminals to be used for input power measurement . 17
Figure C.1 – Example of flux vs current (in blue) and power vs current (in orange)
curves, showing which are LUM or LUM measurements . 22
O D
Figure C.2 – Example of flux vs current (in blue) and power vs current (in orange)
curves . 23
Table 1 – Product information . 10
Table 2 – Performance criteria for which testing is required . 13
Table 3 – Sample sizes . 16
Table C.1 – Overview of the methods in Annex C and parameters that can be derived
from LUM . 28
O
---------------------- Page: 9 ----------------------
SIST EN IEC 62722-2-1:2023
– 4 – IEC 62722-2-1:2023 © IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRE PERFORMANCE –
Part 2-1: Particular requirements – LED luminaires
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62722-2-1 has been prepared by subcommittee 34D: Luminaires, of IEC technical
committee 34: Lighting. It is an International Standard.
This second edition cancels and replaces the first edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) alignment with IEC 62717:2014, IEC 62717:2014/AMD1:2015 and
IEC 62717:2014/AMD2:2019;
b) clarification of temperature requirements for the maintenance test, in 10.2 and Annex A;
c) introduction of a new Annex C on methods for calculation and measurements of parameters
for extension of electric and photometric data.
---------------------- Page: 10 ----------------------
SIST EN IEC 62722-2-1:2023
IEC 62722-2-1:2023 © IEC 2023 – 5 –
The text of this International Standard is based on the following documents:
Draft Report on voting
34D/1680/FDIS 34D/1687/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 62722 series, published under the general title Luminaire
performance can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.
---------------------- Page: 11 ----------------------
SIST EN IEC 62722-2-1:2023
– 6 – IEC 62722-2-1:2023 © IEC 2023
INTRODUCTION
This document acknowledges the need for relevant tests for luminaires using LED as an
electrical light source. This document is seen in close context with the publication of
simultaneously developed performance standards for luminaires in general and for LED
modules. This document does not consider luminaires designed for LED lamps, which are
covered in IEC 62722-1. Changes in LED luminaires standards have an impact on LED module
standards and vice versa, due to the behaviour of LED. Therefore, for the development of this
document, the mutual consultancy of experts of both products has taken place.
The provisions in this document represent the technical knowledge of experts from the fields of
the semiconductor (LED chip) industry and of the traditional electrical light sources and
luminaires.
As this document has been simultaneously developed and edited with the standard for LED
modules (IEC 62717), where appropriate, the compliance of the LED modules with the
provisions of IEC 62717 can be transferred to the whole luminaire.
---------------------- Page: 12 ----------------------
SIST EN IEC 62722-2-1:2023
IEC 62722-2-1:2023 © IEC 2023 – 7 –
LUMINAIRE PERFORMANCE –
Part 2-1: Particular requirements – LED luminaires
1 Scope
This part of IEC 62722 specifies the performance requirements for LED luminaires, together
with the test methods and conditions. It applies to LED luminaires for general lighting purposes.
Semi-luminaires are not covered under the scope of this document.
For some types of luminaires (e.g. decorative or household) the provision of performance data
under the scope of this document is not appropriate.
In this document, the following types of LED luminaires are distinguished.
– Type A – Luminaires using LED modules where compliance with IEC 62717 is given.
– Type B – Luminaires using LED modules where compliance with IEC 62717 is not given.
Luminaires using an LED lamp are covered in IEC 62722-1 and are not within the scope of this
document.
The requirements of this document relate to type testing.
This document covers LED luminaires using LED modules, based on inorganic LED technology
that produces white light. It does not cover luminaires using light sources based on OLED
technology (organic LED technology).
The lifetime of LED luminaires is in most cases much longer than the practical test times.
Consequently, the verification of manufacturer’s lifetime claims is out of the scope of this
document.
Instead of lifetime validation, this document has opted for lumen maintenance categories at a
defined finite test time. Therefore, the category number does not imply a prediction of
achievable lifetime. The categories are lumen-depreciation character categories showing
behaviour in agreement with the manufacturer’s information which is provided before the test
is started.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60598-1:2020, Luminaires – Part 1: General requirements and tests
IEC 60598-2-3:2002, Luminaires – Part 2-3: Particular requirements – Luminaires for road and
street lighting
IEC 60598-2-5:2015, Luminaires – Part 2-5: Particular requirements – Floodlights
---------------------- Page: 13 ----------------------
SIST EN IEC 62722-2-1:2023
– 8 – IEC 62722-2-1:2023 © IEC 2023
IEC 62031:2018, LED modules for general lighting – Safety specifications
IEC 62717:2014, LED modules for general lighting – Performance requirements
IEC 62717:2014/AMD1:2015
IEC 62717:2014/AMD2:2019
IEC 62722-1, Luminaire performance – Part 1: General requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62717 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
LED luminaire
luminaire designed to incorporate at least one LED light source
Note 1 to entry: The LED light source(s) can be an integral part of an LED luminaire.
[SOURCE: IEC 60050-845:2020, 845-30-056]
3.2
rated ambient performance temperature value
t
q
highest ambient temperature around the luminaire related to a rated performance of the
luminaire under normal operating conditions, as declared by the manufacturer or responsible
vendor
Note 1 to entry: Rated ambient performance temperature value is expressed in °C.
Note 2 to entry: There can be more than one t temperature, depending on the lifetime claim, see 3.3.
q
3.3
useful life
L B
x y
length of time until at maximum a percentage y of a population of operating
LED luminaires of the same type have degraded to the initial luminous flux emitted multiplied
by the luminous flux maintenance factor x
Note 1 to entry: The useful life includes operating LED luminaires only.
Note 2 to entry: The term "useful life" does not account for the replaceability of the LED luminaire.
Note 3 to entry: The useful life has unit h.
---------------------- Page: 14 ----------------------
SIST EN IEC 62722-2-1:2023
IEC 62722-2-1:2023 © IEC 2023 – 9 –
3.4
median useful life
L
x
length of operating time during which a total of 50 % ( B ) of a population
50
of operating LED luminaires of the same type have flux degraded to the initial luminous flux
emitted multiplied by the luminous flux maintenance factor x
Note 1 to entry: The median useful life includes operating LED luminaires only.
Note 2 to entry: By convention, the expression "life of LED luminaires" without any modifiers is understood to mean
the median useful life.
Note 3 to entry: The median useful life has unit h.
3.5
LED luminaire luminous efficacy
quotient of the luminous flux emitted by the power consumed by the LED luminaire
3.6
abrupt failure value
AFV
percentile of LED luminaires having failed to operate at median useful life,
L
x
Note 1 to entry: The abrupt failure value has unit one and is expressed in %.
4 Product information
Information on the parameters shown in Table 1 shall be provided by the manufacturer or
responsible vendor on the product datasheets, leaflets or website.
Compliance is checked by inspection.
---------------------- Page: 15 ----------------------
SIST EN IEC 62722-2-1:2023
– 10 – IEC 62722-2-1:2023 © IEC 2023
Table 1 – Product information
Reference Parameter
a Rated input power (in W)
a
b
Photometric code
c Rated luminous flux (in lm)
e
d
Rated median useful life L (h) and the related luminous flux maintenance x
x
e Rated abrupt failure value (rated AFV) (%)
b
f
Luminous flux maintenance code
c
g
Rated chromaticity coordinate values both initial and maintained
h Rated correlated colour temperature (CCT in K)
i Rated colour rendering index (CRI)
d
j
Rated ambient performance temperature value (t ) related to performance for a luminaire (°C)
q
k Rated LED luminaire luminous efficacy (in lm/W)
l Ageing time, if different from 0 h
NOTE Regional legal requirements can apply.
a
See IEC 62717:2014, Annex D and IEC 62717:2014/AMD2:2019, Annex D.
b
See IEC 62717:2014, Table 6 and IEC 62717:2014/AMD2:2019, Table 6.
c
See IEC 62717:2014, Table 5.
d
See 6.2.
e
The rated useful life L B (in hours) and the associated luminous flux maintenance factor x and percentage y
x y
can optionally be on the product datasheets, leaflets or website.
5 General requirements
Performance requirements given in this document are additional to the requirements in
IEC 62722-1, except where, in this document, alternative methods of measurement or limits are
specified.
Luminaires are considered within the same family if they have:
– LED modules with the same method of control and operation (semi-integrated, int
...
SLOVENSKI STANDARD
oSIST prEN IEC 62722-2-1:2022
01-marec-2022
Tehnične lastnosti svetilk - 2-1. del: Posebne zahteve za LED-svetilke
Luminaire performance - Part 2-1: Particular requirements for LED luminaires
Arbeitsweise von Leuchten - Teil 2-1: Besondere Anforderungen an LED-Leuchten
Performance des luminaires - Partie 2-1: Exigences particulières relatives aux luminaires
à LED
Ta slovenski standard je istoveten z: prEN IEC 62722-2-1:2022
ICS:
29.140.40 Svetila Luminaires
oSIST prEN IEC 62722-2-1:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN IEC 62722-2-1:2022
---------------------- Page: 2 ----------------------
oSIST prEN IEC 62722-2-1:2022
34D/1648/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 62722-2-1 ED2
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2022-01-21 2022-04-15
SUPERSEDES DOCUMENTS:
34D/1614/CD, 34D/1623A/CC
IEC SC 34D : LUMINAIRES
SECRETARIAT: SECRETARY:
United Kingdom Ms Shanti Conn
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:
Other TC/SCs are requested to indicate their interest, if any,
in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft for
Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which they
are aware and to provide supporting documentation.
TITLE:
Luminaire performance - Part 2-1: Particular requirements for LED luminaires
PROPOSED STABILITY DATE: 2025
NOTE FROM TC/SC OFFICERS:
Project leader: Franco Rusnati
Copyright © 2021 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download this
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.
---------------------- Page: 3 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 2 34D/1648/CDV
1 CONTENTS
2 FOREWORD . 4
3 INTRODUCTION . 6
4 1 Scope . 7
5 2 Normative references . 7
6 3 Terms and definitions . 7
7 4 Product information . 8
8 5 General requirements . 9
9 6 Test conditions . 9
10 6.1 General test conditions. 9
11 6.2 Luminaires using LED modules where evidence of compliance with IEC 62717 is
12 given (Type A) . 10
13 6.3 Luminaires using LED modules where no evidence of compliance with IEC 62717 is
14 given (Type B) . 10
15 6.3.1 General . 10
16 6.3.2 Creation of module families to reduce test effort . 10
17 6.4 Performance requirements . 10
18 7 Input power . 11
19 8 Photometric performance . 11
20 8.1 Luminous flux . 11
21 8.2 Luminous intensity distribution, peak intensity and beam angle . 11
22 8.2.1 General . 11
23 8.2.2 Measurement . 12
24 8.2.3 Luminous intensity distribution . 12
25 8.2.4 Peak intensity . 12
26 8.2.5 Beam angle . 12
27 8.3 Luminaire luminous efficacy . 12
28 9 Chromaticity co-ordinates, correlated colour temperature (CCT) and colour rendering . 12
29 9.1 Chromaticity co-ordinates . 12
30 9.2 Correlated colour temperature (CCT) . 12
31 9.3 Colour rendering index (CRI) . 12
32 10 LED luminaire life . 12
33 10.1 General . 12
34 10.2 Lumen maintenance . 12
35 10.3 Endurance tests . 12
36 11 Verification. 13
37 Annex A (normative) Method of measuring LED luminaire characteristics . 15
38 A.1 General . 15
39 A.2 Electrical characteristics . 15
40 A.3 Photometric characteristics . 15
41 Annex B (informative) Explanation of recommended life time metrics . 16
42 B.1 General . 16
43 B.2 Life time specification . 16
44 Annex C (normative) Methods for calculation and measurements of parameters for extension
45 of electric and photometric data . 17
46 C.1 Abbreviation terms and symbols . 17
47 C.2 General . 17
48 C.3 Method 1 – Different current setting . 17
49 C.3.1 General . 17
---------------------- Page: 4 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 3 34D/1648/CDV
50 C.3.2 Procedure . 18
51 C.3.3 Example of applicability of Method 1 using a goniophotometer . 20
52 C.4 Method 2 – Different binning (flux, CCT, CRI) of a LED package / LED module . 21
53 C.4.1 General . 21
54 C.4.2 Procedure I for method 2 (KФ for LED modules) . 21
55 C.4.3 Procedure II for method 2 (KФ for LED luminaire) . 22
56 C.4.4 Procedure III for method 2 (KФ for LED package) . 22
57 C.5 Method 3 – Use of a different LED controlgear or additional electrical components22
58 C.5.1 General . 22
59 C.5.2 Use of a different LED controlgear . 22
60 C.5.3 Additional electrical component installed in the luminaire (e.g. controlling
61 device) . 23
62 C.6 Application of the methods 1, 2 and 3 to luminaires of the same family . 23
63 C.7 Overview of the methods in this annex . 24
64 Bibliography . 25
65
66 Figure 1 – Terminals to be used for input power measurement . 14
67
68 Table 1 – Product information . 9
69 Table 2 – Performance criteria for which testing is required . 11
70 Table 3 – Sample sizes . 13
71
72
---------------------- Page: 5 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 4 34D/1648/CDV
73 INTERNATIONAL ELECTROTECHNICAL COMMISSION
74 ____________
75 LUMINAIRE PERFORMANCE –
76
77 Part 2-1: Particular requirements for LED luminaires
78
79 FOREWORD
80 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national
81 electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all
82 questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities,
83 IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS)
84 and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC
85 National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental
86 and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with
87 the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between
88 the two organizations.
89 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus
90 of opinion on the relevant subjects since each technical committee has representation from all interested IEC National
91 Committees.
92 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in
93 that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC
94 cannot be held responsible for the way in which they are used or for any misinterpretation by any end user.
95 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to
96 the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and
97 the corresponding national or regional publication shall be clearly indicated in the latter.
98 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment
99 services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by
100 independent certification bodies.
101 6) All users should ensure that they have the latest edition of this publication.
102 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of
103 its technical committees and IEC National Committees for any personal injury, property damage or other damage of any
104 nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication,
105 use of, or reliance upon, this IEC Publication or any other IEC Publications.
106 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable
107 for the correct application of this publication.
108 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights.
109 IEC shall not be held responsible for identifying any or all such patent rights.
110 International Standard IEC 62722-2-1 has been prepared by subcommittee 34D: Luminaires, of IEC
111 technical committee 34: Lamps and related equipment.
112 This second edition of IEC 62722-2-1 cancels and replaces IEC 62722-2-1 first edition published in
113 2014. This edition constitutes a technical revision.
114 This edition includes the following significant technical changes with respect to the previous edition.
115 1) Alignment with IEC 62717:2014 + A1:2015 + A2:2019
116 2) Clarification of temperature requirement for the maintenance test, Clause 10.2 and Annex A
117 3) New annex C on methods for calculation and measurements of parameters for extension of
118 electric and photometric data.
119 The text of this international standard is based on the following documents:
FDIS Report on voting
34D/XXXX/FDIS 34D/XXXX/RVD
120
121 Full information on the voting for the approval of this standard can be found in the report on voting
122 indicated in the above table.
123 This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
---------------------- Page: 6 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 5 34D/1648/CDV
124 A list of all the parts in the IEC 62722 series, published under the general title Luminaire performance
125 can be found on the IEC website.
126 The committee has decided that the contents of this publication will remain unchanged until the stability
127 date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific
128 publication. At this date, the publication will be
129 reconfirmed,
130 withdrawn,
131 replaced by a revised edition, or
132 amended.
133
134
---------------------- Page: 7 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 6 34D/1648/CDV
135 INTRODUCTION
136 This document acknowledges the need for relevant tests for luminaires using LED as an electrical light
137 source. The publication is seen in close context with simultaneously developed and edited publication
138 of performance standards for luminaires in general and for LED modules. This document does not
139 consider luminaires designed for LED lamps, which are covered in IEC 62722-1. Changes in the LED
140 luminaires standard will have impact on the LED module standards and vice versa, due to the behaviour
141 of LED. Therefore, in the development of the present document, mutual consultancy of experts of both
142 products has taken place.
143 The provisions in this document represent the technical knowledge of experts from the fields of the
144 semiconductor (LED chip) industry and of those of the traditional electrical light sources and luminaires.
145 As this document has been simultaneously developed and edited with the standard for LED modules
146 (IEC 62717), where appropriate the compliance of the LED modules to the provisions of IEC 62717 can
147 be transferred to the whole luminaire.
148
---------------------- Page: 8 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 7 34D/1648/CDV
149 LUMINAIRE PERFORMANCE –
150
151 Part 2-1: Particular requirements for LED luminaires
152
153 1 Scope
154 This part of IEC 62722 specifies the performance requirements for LED luminaires, together with the
155 test methods and conditions. It applies to LED luminaires for general lighting purposes.
156 Semi-luminaires are not covered under the scope of this document.
157 For some types of luminaires (e.g. decorative/household) the provision of performance data under the
158 scope of this document is not appropriate
159 The following types of LED luminaires are distinguished.
160 Type A – Luminaires using LED modules where evidence of compliance with IEC 62717 is given.
161 Type B – Luminaires using LED modules where no evidence of compliance with IEC 62717 is given.
162 Luminaires using a LED lamp are covered in IEC 62722-1 and not by this document.
163 The requirements of this document only relate to type testing.
164 This document covers LED luminaires using LED modules, based on inorganic LED technology that
165 produces white light. It does not cover luminaires using light sources based on OLED technology
166 (organic LED technology).
167 Life time of LED luminaires is in most cases much longer than the practical test times. Consequently,
168 verification of manufacturer’s life time claims is out of the scope of this document.
169 Instead of life time validation, this document has opted for lumen maintenance categories at a defined
170 finite test time. Therefore, the category number does not imply a prediction of achievable life time. The
171 categories are lumen-depreciation character categories showing behaviour in agreement with
172 manufacturer’s information which is provided before the test is started.
173 2 Normative references
174 The following documents, in whole or in part, are normatively referenced in this document and are
175 indispensable for its application. For dated references, only the edition cited applies. For undated
176 references, the latest edition of the referenced document (including any amendments) applies.
177 IEC 60598-1, Luminaires – Part 1: General requirements and tests
178 IEC 60598-2-3, Luminaires – Part 2-3: Particular requirements – Luminaires for road and street lighting
179 IEC 60598-2-5, Luminaires – Part 2-5: Particular requirements – Floodlights
180 IEC 62031:2018, LED modules for general lighting – Safety specifications
1
181 IEC 62442-3:202X , Energy performance of lamp controlgear - Part 3: Controlgear for tungsten-halogen
182 lamps and LED light sources - Method of measurement to determine the efficiency of controlgear
183 IEC 62717:2014, LED modules for general lighting – Performance requirements
184 IEC 62717:2014/AMD1:2015
185 IEC 62717:2014/AMD2:2019
186 IEC 62722-1, Luminaire performance – Part 1: General requirements
187 3 Terms and definitions
188 For the purposes of this document, the terms and definitions given in IEC 62717:2014 + A1:2015 +
189 A2:2019 and the following apply.
1
Under preparation
---------------------- Page: 9 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 8 34D/1648/CDV
190 ISO and IEC maintain terminological databases for use in standardization at the following addresses:
191 IEC Electropedia: available at http://www.electropedia.org/
192 ISO Online browsing platform: available at http://www.iso.org/obp
193 3.1
194 LED luminaire
195 luminaire designed to incorporate at least one LED light source
196 Note 1 to entry: The LED light source(s) can be an integral part of an LED luminaire.
197 SOURCE (60050-845-30-056)
198 3.2
199 rated ambient performance temperature value
200 t
q
201 highest ambient temperature around the luminaire related to a rated performance of the luminaire under
202 normal operating conditions, both as declared by the manufacturer or responsible vendor
203 Note 1 to entry: Rated ambient performance temperature value is expressed in °C.
204 Note 2 to entry: There can be more than one t temperature, depending on the lifetime claim,3.3.
q
205 3.3
206 median useful life
207 Lx
208 length of operating time during which a total of 50 % (B ) of a population of operating LED luminaire of
50
209 the same type have flux degraded to the luminous flux maintenance factor x
210 Note 1 to entry: The median useful life includes operating LED luminaires only.
211 Note 2 to entry: By convention, the expression “life of LED luminaires” without any modifiers is understood to mean the median
212 useful life.
213 3.4
214 LED luminaire luminous efficacy
215 quotient of the luminous flux emitted by the power consumed by the LED luminaire
216 3.5
217 useful life
218 LxBy
219 length of time until at maximum a percentage y of a population of operating LED luminaires of the same
220 type have degraded to the luminous flux maintenance factor x
221 Note 1 to entry: The useful life includes operating LED luminaire only.
222 Note 2 to entry: This term does not account for the replaceability of the LED luminaire.
223 3.6
224 abrupt failure value
225 AFV
226 percentile of LED luminaire having failed at median useful life, L
x
227 4 Product information
228 Information on the parameters shown in Table 1 shall be provided by the manufacturer or responsible
229 vendor on the product datasheets, leaflets or website.
230 Compliance is checked by inspection.
---------------------- Page: 10 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 9 34D/1648/CDV
231 Table 1 – Product information
Ref Parameter
a Rated input power (in W)
1)
b Photometric code
c Rated luminous flux (in lm)
5)
d Rated median useful life L (h) and the related luminous flux maintenance x
x
e Rated abrupt failure value (rated AFV) (%)
2)
f Luminous flux maintenance code
3)
g Rated chromaticity co-ordinate values both initial and maintained
h Rated correlated colour temperature (CCT in K)
i Rated colour rendering index (CRI)
j Rated ambient performance temperature value (t ) related to performance for a
q
4)
luminaire (°C)
k Rated LED luminaire luminous efficacy (in lm/W)
l Ageing time, if different from 0 h
NOTE Regional legal requirements may apply and overrule.
1)
See Annex D of IEC 62717:2014 + A1:2015 + A2:2019.
2)
See Table 6 of IEC 62717:2014 + A1:2015 + A2:2019.
3)
See Table 5 of IEC 62717:2014 + A1:2015 + A2:2019.
4)
See 6.2.
5)
The rated useful life LxBy (in hours) and the associated luminous flux maintenance factor x
and percentage y can optionally be on the product datasheets, leaflets or website.
232 5 General requirements
233 Performance requirements given in this document are additional to the requirements in IEC 62722-1,
234 except where in this document alternative methods of measurement or limits are specified.
235 Luminaires are considered within the same family if they have:
236 – LED modules with the same method of control and operation (semi-integrated, integrated);
237 – LED modules with the same classification according to the method of installation (reference is made
238 to IEC 62031:2018, Clause 4) and using LED module of same family as specified in 6.2 of
239 IEC 62717:2014 + A1:2015 + A2:2019 and the same class of protection against electrical shock;
240 – the same design characteristics distinguished by common features of materials, components, and/or
241 method of processing and heat management.
242 6 Test conditions
243 6.1 General test conditions
244 Test conditions for testing electrical and photometric characteristics, lumen maintenance and life are
245 given in Annex A. For a luminaire in a family of luminaires as described in clause 5, the electrical and
246 photometric data may be calculated. When calculations are used or when alternative colorimetric data
247 is derived, the methods and conditions given in annex C shall be used. Annex C is only valid in case of
248 luminaires where a single LED module is used or where all the LED modules are identical. The
249 applicability of Annex C to light source where the light colour is obtained by mixing different spectra
250 emitted by different light sources needs more considerations than those provided by this annex.
251 All tests are measured on “n” LED luminaires of the same type. The number “n” shall be a minimum of
252 products as given in Table 3. LED luminaires used in the endurance tests shall not be used in other
253 tests.
254 Each sample luminaire shall comply with all the relevant tests except for the tests of 10.3 where one
255 sample is required for each of the three separate tests mentioned in Table 2 and Table 3. In order to
256 reduce the time of testing, the manufacturer or responsible vendor may submit additional luminaires or
257 parts of luminaires provided that these are of the same materials and design as the original luminaire
258 and that the results of the test are the same as if carried out on an identical luminaire.
---------------------- Page: 11 ----------------------
oSIST prEN IEC 62722-2-1:2022
IEC CDV 62722-2-1 © IEC 2021 10 34D/1648/CDV
259 LED luminaires with dimming control shall be adjusted to maximum output for all tests.
260 LED luminaires with adjustable CCT shall be adjusted/set to one fixed value as indicated by the
261 manufacturer or responsible vendor.
262 LED luminaires of linear geometry and variable length shall be tested at a length at which the parameters
263 are given (e.g. performance per x cm).
264 6.2 Luminaires using LED modules where evidence of compliance with IEC 62717 is given
265 (Type A)
266 Only the tests for measurement of initial performance as detailed in 6.4 are to be conducted, when the
267 LED module is operated within its temperature limit tp.
268 The information for luminaire design given in IEC 62717:2014 + A1:2015 + A2:2019, Clause B.1,
269 requires LED modules to be operated within their t temperature limit. The t temperature shall be
p p
270 measured according to the thermal test procedure defined in 12.4 of IEC 60598-1, (normal operation).
271 When the luminaire is operating at its own maximum rated ambient performance temperature value (t ),
q
272 the t limit (for the declared performance – Table 2, IEC 62717:2014 + A1:2015 + A2:2019) of LED
p
273 modules operating inside the luminaire shall not be exceeded. The test voltage for the luminaire shall
274 be 1,00 times the rated voltage of the luminaire. In luminaires intended to be supplied with constant
275 current, the test current shall be 1,00 times the rated current of the luminaire.
276 For luminaires for road and street lighting and floodlights intended for outdoor use only, the reduction
277 of the measured temperature according to 3.12.1 of IEC 60598-2-3, and 5.12.1 of IEC 60598-2-5,
278 respectively shall not be applied for the t temperature of the LED module.
p
279 The ambient performance temperature t is measured in a draught-proof enclosure, as the air
q
280 temperature, at a position near one of the perforated walls on a level with the centre of the luminaire,
281 see item e), Clause K.1 of IEC 60598-1.
282 6.3 Luminaires using LED modules where no evidence of compliance with IEC 62717 is given
283 (Type B)
284 6.3.1 General
285 In principle all tests required for the LED light source has to be carried out on the luminaire as detailed
286 in clause 6.4
287 6.3.2 Creation of module families to reduce test effort
288 6.3.2.1 General
289 The provisions of 6.2.1 of IEC 62717:2014 + A1:2015 + A2:2019 apply to the LED luminaire.
290 6.3.2.2 Variations within family
291 The provisions of 6.2.2 of IEC 62717:2014 + A1:2015 + A2:2019 apply to the LED luminaire.
292 6.3.2.3 Compliance testing of family members
293 The provisions of 6.2.3 of IEC 62717:2014 + A1:2015 + A2:2019 apply to the LED luminaire.
294 6.4 Performance requirements
295 The performance criteria given in Table 2 applies for LED luminaires of Types A and B. All of the tested
296 n LED luminaires shall have passed the performance requirements. The parameter given in this table
297 represent a replacement of the corresponding parameter given in part 1. Additional pa
...
