SIST EN IEC 63356-1:2026

LED light source characteristics - Part 1: Data sheets (IEC 63356-1:2026)

IEC 63356-1:2026 specifies data sheets of LED lamps and LED modules with a series of parameters per data sheet for a specific LED light source that enables interchangeability between products from different LED light source manufacturers.
NOTE Compliance criteria relating to data sheet parameters in this document are covered by IEC 63554 or IEC 62031 for safety, and IEC 63555 for performance.
This third edition cancels and replaces the second edition published in 2023. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) addition of datasheets for GJ6.6d-2-x capped LED lamps.

Eigenschaften von LED-Lichtquellen - Teil 1: Datenblätter (IEC 63356-1:2026)

Caractéristiques des sources lumineuses à LED - Partie 1: Feuilles de caractéristiques (IEC 63356-1:2026)

L'IEC 63356-1:2026 spécifie les feuilles de caractéristiques des lampes à LED et des modules de LED à l'aide d'une série de paramètres par feuille de caractéristiques pour une source lumineuse à LED spécifique qui permet l'interchangeabilité entre les produits de différents fabricants de source lumineuse à LED.
NOTE Les critères de conformité relatifs aux paramètres des feuilles de caractéristiques du présent document sont couverts par l'IEC 63554 ou l'IEC 62031 pour la sécurité et par l'IEC 63555 pour les performances.
Cette troisième édition annule et remplace la deuxième édition parue en 2023. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) ajout des feuilles de caractéristiques pour les lampes à LED à culots GJ6.6d-2-x.

Značilnosti LED svetlobnih virov - 1. del: Podatkovni listi (IEC 63356-1:2026)

IEC 63356-1:2026 določa podatkovne liste LED svetilk in LED modulov s serijo parametrov na podatkovni list za določen LED svetlobni vir, ki omogoča zamenljivost med izdelki različnih proizvajalcev LED svetlobnih virov.
OPOMBA Merila skladnosti, povezana s parametri podatkovnega lista v tem dokumentu, so zajeta v IEC 63554 ali IEC 62031 za varnost in IEC 63555 za zmogljivost.
To tretje izdajo preklicuje in nadomešča drugo izdajo, objavljeno leta 2023. Ta izdaja predstavlja tehnično revizijo.
Ta izdaja vključuje naslednje pomembne tehnične spremembe v primerjavi s prejšnjo izdajo:
a) dodatek podatkovnih listov za LED svetilke z zaključkom GJ6.6d-2-x.

General Information

• Status: Published
• Public Enquiry End Date: 31-Jul-2025
• Publication Date: 17-Jun-2026
• ICS: 29.140.99 - Other standards related to lamps
• Technical Committee: STV - Steklo, svetloba in razsvetljava v gradbeništvu
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-Apr-2026
• Due Date: 12-Jun-2026
• Completion Date: 18-Jun-2026
• Ref Project: EN IEC 63356-1:2026 - LED light source characteristics - Part 1: Data sheets

Relations

• Revises: SIST EN IEC 63356-1:2024 - LED light source characteristics - Part 1: Data sheets (IEC 63356-1:2023)
• Effective Date: 14-Jan-2025

Overview

SIST EN IEC 63356-1:2026 – LED Light Source Characteristics – Part 1: Data Sheets is a CENELEC (CLC) European adoption of the IEC standard for the specification of data sheets for LED lamps and LED modules. This third edition standardizes the essential parameters that must be included in LED light source data sheets, facilitating product interchangeability between manufacturers and supporting harmonization in the lighting industry. SIST EN IEC 63356-1:2026 replaces the previous 2023 edition, introducing notable technical updates, such as the addition of data sheets for GJ6.6d-2-x capped LED lamps.

By defining a structured format with specified parameters for each sheet, the standard delivers clarity and consistency within product information. It is designed to complement related safety and performance requirements by referencing IEC 62031, IEC 63554, and IEC 63555 for compliance criteria.

Key Topics

• Standardized LED Data Sheets:
  SIST EN IEC 63356-1:2026 details which product parameters must be provided on the data sheet for each type of LED lamp or LED module. Parameters cover mechanical, electrical, and optical characteristics.

• Data Sheet Numbering System:
  The standard defines a clear numbering convention. Data sheets are grouped by lamp/module type (e.g. single-capped, double-capped; non-integrated, semi-integrated, integrated), ensuring easy identification and traceability.

• Product Interchangeability:
  By harmonizing key data sheet parameters, the standard enables LED light sources from various manufacturers to be used interchangeably in luminaires and systems, supporting market flexibility.

• Updates with New Cap Types:
  This edition includes significant updates, including new data sheets for GJ6.6d-2-x capped LED lamps, broadening product coverage in transport and general lighting.

Applications

SIST EN IEC 63356-1:2026 offers direct practical value by:

• Supporting Manufacturers: Provides a clear template for manufacturers to present technical data for LED lamps and modules, ensuring product information meets harmonized industry expectations.
• Facilitating Procurement: Simplifies the process for specifiers, buyers, and lighting professionals to compare products from different providers, as all products list the same required parameters.
• Enabling System Design: Ensures controlgear and luminaire designers have the standardized data needed for safe and effective system integration.
• Enhancing Quality Assurance: Helps ensure that products meet minimum interoperability requirements, supporting reliability in installations ranging from residential to commercial and transport environments.
• Promoting Interchangeability: Reduces risk of supply chain issues by making it practical to substitute equivalent LED light sources without technical barriers.

Common settings where this standard is applied include:

• General lighting for commercial, residential, and street applications
• Transport lighting, including specification of double-capped lamp data for rail, automotive, and aviation
• Product catalogs and technical datasheet management

Related Standards

SIST EN IEC 63356-1:2026 works in coordination with several other international standards tailored to LED lighting safety and performance:

• IEC 63554 – Compliance criteria for safety related to data sheet parameters
• IEC 62031 – Safety requirements for LED modules
• IEC 63555 – Compliance criteria for performance requirements
• EN IEC 63356-2 – Design parameters and values for LED light sources (complements Part 1 by specifying design aspects)
• IEC 62931 – Previous technical references for specific LED lamp types

Adhering to SIST EN IEC 63356-1:2026 enhances transparency, safety, and market access in the rapidly evolving field of LED lighting technology by providing a common reference for technical product specification. This standard forms a foundation for further digitalization and quality management in the lighting industry.

Standards Content (Sample)

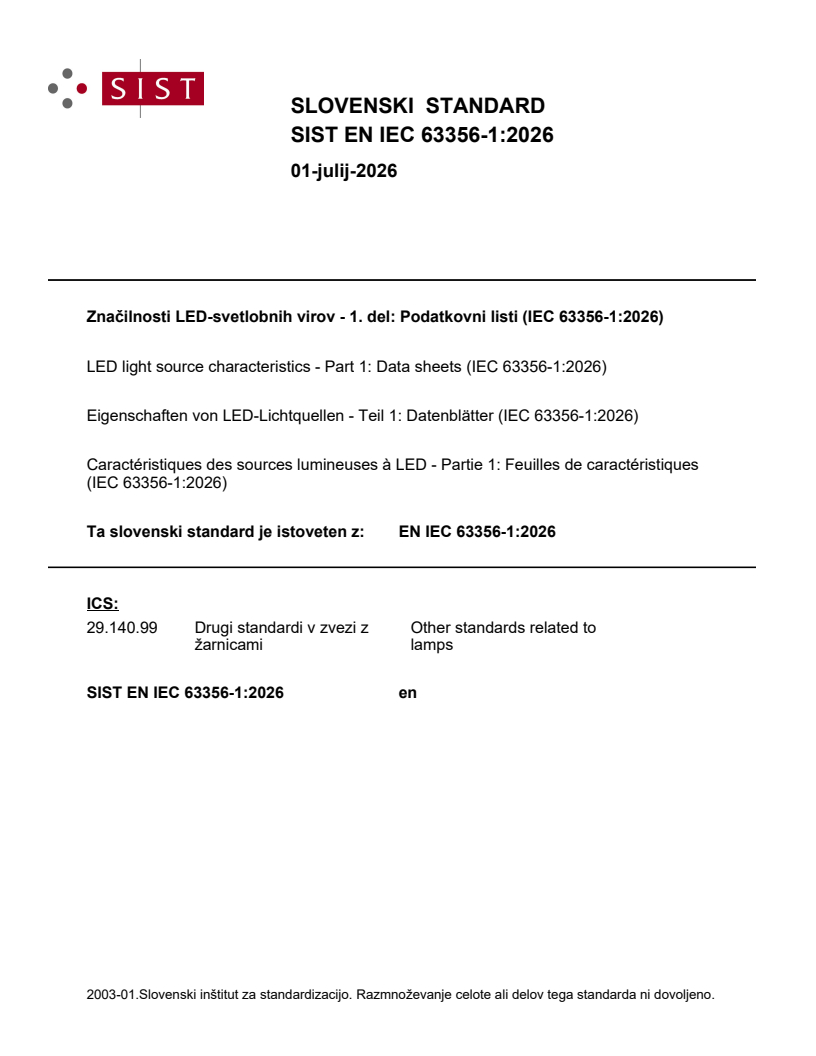

SLOVENSKI STANDARD
01-julij-2026
Značilnosti LED-svetlobnih virov - 1. del: Podatkovni listi (IEC 63356-1:2026)
LED light source characteristics - Part 1: Data sheets (IEC 63356-1:2026)
Eigenschaften von LED-Lichtquellen - Teil 1: Datenblätter (IEC 63356-1:2026)
Caractéristiques des sources lumineuses à LED - Partie 1: Feuilles de caractéristiques
(IEC 63356-1:2026)
Ta slovenski standard je istoveten z: EN IEC 63356-1:2026
ICS:
29.140.99 Drugi standardi v zvezi z Other standards related to
žarnicami lamps
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

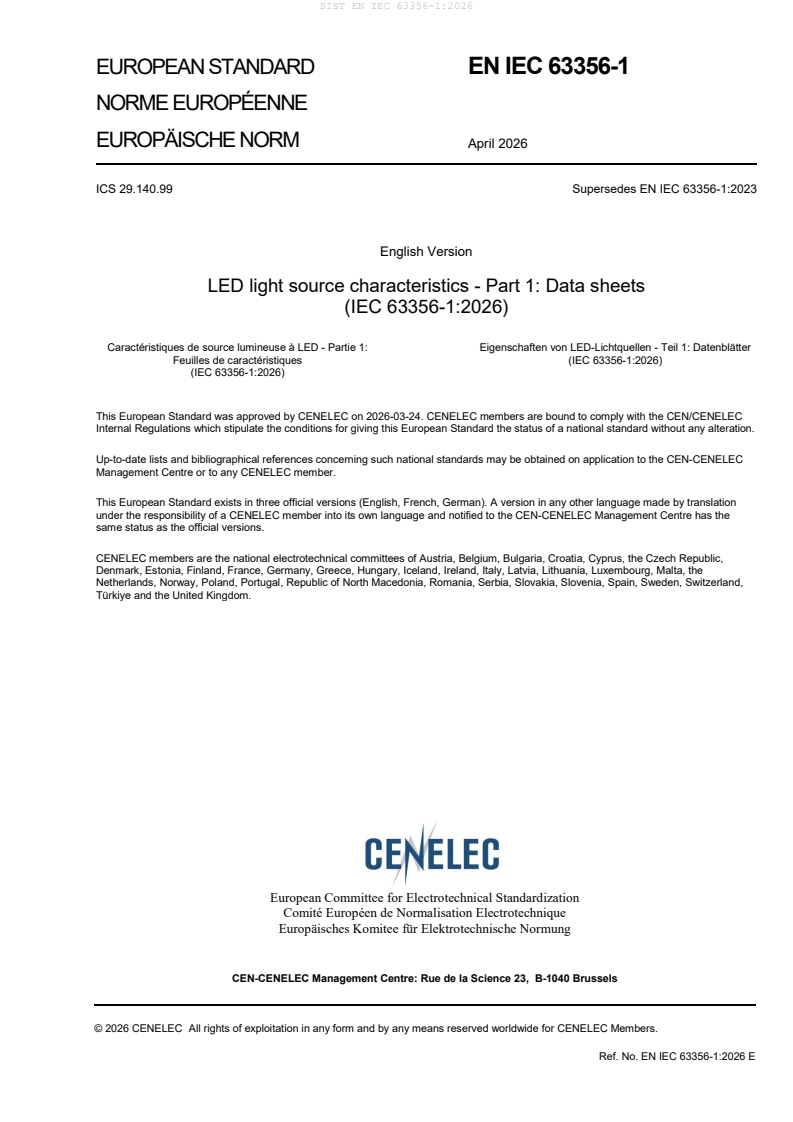

EUROPEAN STANDARD EN IEC 63356-1

NORME EUROPÉENNE
EUROPÄISCHE NORM April 2026
ICS 29.140.99 Supersedes EN IEC 63356-1:2023
English Version
LED light source characteristics - Part 1: Data sheets
(IEC 63356-1:2026)
Caractéristiques de source lumineuse à LED - Partie 1: Eigenschaften von LED-Lichtquellen - Teil 1: Datenblätter
Feuilles de caractéristiques (IEC 63356-1:2026)
(IEC 63356-1:2026)
This European Standard was approved by CENELEC on 2026-03-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63356-1:2026 E

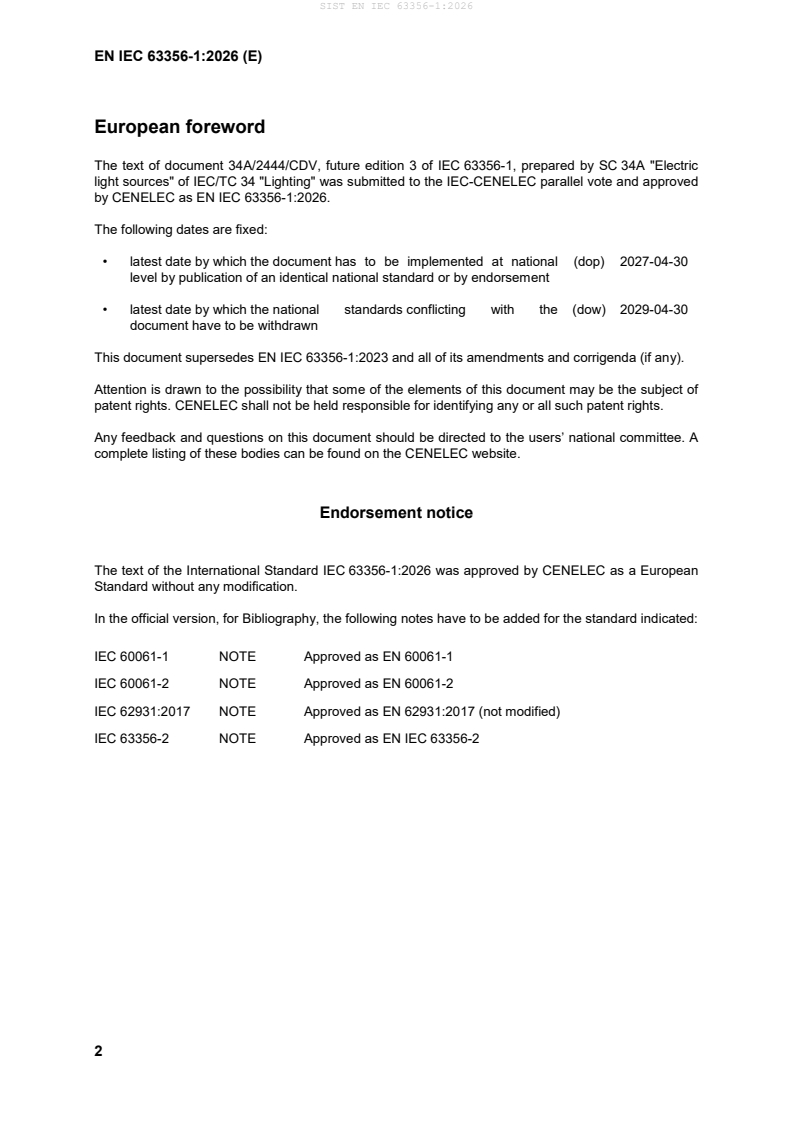

European foreword
The text of document 34A/2444/CDV, future edition 3 of IEC 63356-1, prepared by SC 34A "Electric
light sources" of IEC/TC 34 "Lighting" was submitted to the IEC-CENELEC parallel vote and approved
by CENELEC as EN IEC 63356-1:2026.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2027-04-30
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2029-04-30
document have to be withdrawn
This document supersedes EN IEC 63356-1:2023 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63356-1:2026 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60061-1 NOTE Approved as EN 60061-1
IEC 60061-2 NOTE Approved as EN 60061-2
IEC 62931:2017 NOTE Approved as EN 62931:2017 (not modified)
IEC 63356-2 NOTE Approved as EN IEC 63356-2

IEC 63356-1 ®
Edition 3.0 2026-02
INTERNATIONAL
STANDARD
LED light source characteristics -
Part 1: Data sheets
ICS 29.140.99  ISBN 978-2-8327-1056-2

IEC 63356-1:2026-02(en)
IEC 63356-1:2026 © IEC 2026
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Overview and common information . 6
4.1 General . 6
4.2 Numbering system . 6
4.3 List of data sheets . 7
4.3.1 List of single-capped LED lamp data sheets . 7
4.3.2 List of double-capped LED lamp data sheets . 7
4.3.3 List of LED module data sheets . 10
5 Single-capped LED lamp data sheets . 11
5.1 Single-capped LED lamps with GH36d caps. 11
5.1.1 Diagrammatic information for location of lamp dimensions . 11
5.1.2 Data sheets . 12
5.2 Other single-capped LED lamps . 17
6 Double-capped LED lamp data sheets . 18
6.1 Linear double-capped LED lamps with GX16t-5 caps . 18
6.1.1 Diagrammatic information for location of lamp dimensions . 18
6.1.2 Data sheets . 19
6.2 Linear double-capped LED lamps with GJ6.6 caps . 29
6.2.1 Diagrammatic information for location of lamp dimensions . 29
6.2.2 GJ6.6 lamp data sheets . 30
6.3 Linear double-capped LED lamps with GR6d caps . 83
6.3.1 Diagrammatic information for location of lamp dimensions . 83
6.3.2 Information for luminaire design . 83
6.3.3 Data sheets . 85
7 LED module data sheets . 90
Bibliography . 91

Figure 1 – Location of dimensions of single-capped lamps with a GH36d cap . 11
Figure 2 – Location of dimensions of linear double-capped lamps with GX16t-5 caps . 18
Figure 3 – Location of dimensions of linear double-capped lamps with GJ6.6 caps . 29
Figure 4 – Dimensions of linear double-capped lamps with GR6d caps . 83
Figure 5 – Mechanical dimensions for luminaire design . 84

Table 1 – List of data sheets for non-integrated single-capped LED lamps . 7
Table 2 – List of data sheets for semi-integrated single-capped LED lamps . 7
Table 3 – List of data sheets for integrated single-capped LED lamps . 7
Table 4 – List of data sheets for non-integrated double-capped LED lamps . 8
Table 5 – List of data sheets for semi-integrated double-capped LED lamps . 9
Table 6 – List of data sheets for integrated double-capped LED lamps . 10
Table 7 – List of data sheets for non-integrated LED modules . 10
IEC 63356-1:2026 © IEC 2026
Table 8 – List of data sheets for semi-integrated LED modules . 10
Table 9 – List of data sheets for integrated LED modules . 10

IEC 63356-1:2026 © IEC 2026
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LED light source characteristics -
Part 1: Data sheets
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63356-1 has been prepared by subcommittee 34A: Electric light sources, of IEC technical
committee 34: Lighting. It is an International Standard.
This third edition cancels and replaces the second edition published in 2023. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) addition of datasheets for GJ6.6d-2-x capped LED lamps.
IEC 63356-1:2026 © IEC 2026
The text of this International Standard is based on the following documents:
Draft Report on voting
34A/2444/CDV 34A/2461/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 63356 series, published under the general title LED light source
characteristics, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
IEC 63356-1:2026 © IEC 2026
INTRODUCTION
The IEC 63356 series (LED light source characteristics) is split into two parts:
– IEC 63356-1: Data sheets
The scope of IEC 63356-1 covers data sheets that are comprehensive specifications for
unique LED light sources (LED lamp or LED module). These are full specifications for
products including, where necessary, information on interchangeability aspects, for example
mechanical, electrical, optical.
Each data sheet in IEC 63356-1 relates to an individual type of LED lamp or LED module.
– IEC 63356-2: Design parameters and values
The scope of IEC 63356-2 covers design parameters and values that are used in the design
of an LED light source (LED lamp or LED module) or a related component. IEC 63356-2
does not provide full product specifications but includes important interface aspects (e.g.
mechanical, electrical, optical) that should be considered in the design of LED light sources
and related components.
IEC 63356-1:2026 © IEC 2026
1 Scope
This part of IEC 63356 specifies data sheets of LED lamps and LED modules with a series of
parameters per data sheet for a specific LED light source that enables interchangeability
between products from different LED light source manufacturers.
NOTE Compliance criteria relating to data sheet parameters in this document are covered by IEC 63554 or
IEC 62031 for safety, and IEC 63555 for performance.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org
– ISO Online browsing platform: available at https://www.iso.org/obp
4 Overview and common information
4.1 General
Dimensions are specified at a temperature of (25 ± 5) °C, unless otherwise specified in the data
sheet.
4.2 Numbering system
Data sheets are numbered so that:
– the first part represents the number of the publication "63356-1", followed by the letters
"IEC";
– the second three-digit number represents the data sheet group;
– the third four-digit number represents the data sheet number;
– the fourth single-digit number represents the data sheet version.
NOTE In cases where a data sheet comprises more than one page, all pages of the specific data sheet are issued
with the same updated version number.
Data sheet numbers are grouped as follows:
– single-capped LED lamp data sheets:
• non-integrated 100-xxxx;
• semi-integrated 110-xxxx;
• integrated 120-xxxx;
___________
Under preparation. Stage at the time of publication IEC CDV 63554:2025.
Under preparation. Stage at the time of publication IEC CDV 63555:2024.
IEC 63356-1:2026 © IEC 2026
– double-capped LED lamp data sheets:
• non-integrated 200-xxxx;
• semi-integrated 210-xxxx;
• integrated 220-xxxx;
– LED module data sheets:
• non-integrated 300-xxxx;
• semi-integrated 310-xxxx;
• integrated 320-xxxx.
EXAMPLE 63356-1-IEC-110-0001-1: Single-capped LED lamp, semi-integrated, number 0001, version 1.
4.3 List of data sheets
4.3.1 List of single-capped LED lamp data sheets
Table 1, Table 2 and Table 3 provide a summary of data sheets for non-integrated, semi-
integrated and integrated single-capped LED lamps respectively.
Table 1 – List of data sheets for non-integrated single-capped LED lamps
Sheet no. Shape Rated diameter Rated current Power range Cap
63356-1-IEC-1xx-xxxx
mm A DC W
100-0001-1 round 50 0,25 5,0 to 12,5 GH36d-1
100-0002-1 round 50 0,35 7,0 to 17,5 GH36d-2
100-0003-1 round 50 0,5 10,0 to 25,0 GH36d-3
100-0004-1 round 50 0,7 14,0 to 35,0 GH36d-4
100-0005-1 round 50 0,9 18,0 to 45,0 GH36d-5
100-0006-1 round 50 1,1 22,0 to 55,0 GH36d-6

Table 2 – List of data sheets for semi-integrated single-capped LED lamps
Void
Table 3 – List of data sheets for integrated single-capped LED lamps
Void
4.3.2 List of double-capped LED lamp data sheets
Table 4, Table 5 and Table 6 provide a summary of data sheets for non-integrated, semi-
integrated and integrated double-capped LED lamps, respectively.
IEC 63356-1:2026 © IEC 2026
Table 4 – List of data sheets for non-integrated double-capped LED lamps
Sheet no. Nominal Rated Rated Power
Shape Cap
63356-1-IEC-2xx-xxxx length diameter current range
mm mm A DC W
200-0001-1 linear 600 25,5 0,35 7,9 to 16,6 GX16t-5
200-0002-1 linear 600 32,5 0,35 7,9 to 16,6 GX16t-5
200-0003-1 linear 900 25,5 0,35 11,0 to 24,8 GX16t-5
200-0004-1 linear 900 32,5 0,35 11,0 to 24,8 GX16t-5
200-0005-1 linear 1 200 25,5 0,35 14,3 to 33,3 GX16t-5
200-0006-1 linear 1 200 32,5 0,35 14,3 to 33,3 GX16t-5
200-0007-1 linear 1 500 25,5 0,35 14,3 to 42,0 GX16t-5
200-0008-1 linear 1 500 32,5 0,35 14,3 to 42,0 GX16t-5
200-0009-1 linear 2 400 25,5 0,35 28,7 to 66,5 GX16t-5
200-0010-1 linear 2 400 32,5 0,35 28,7 to 66,5 GX16t-5
200-0011-1 linear 600 0,35 7,0 to 17,5 GR6d-1
200-0012-1 linear 900 0,50 10,0 to 25,0 GR6d-2
200-0013-1 linear 1200 0,70 14,0 to 35,0 GR6d-3
200-0014-1 linear 1 200 1,05 21,0 to 52,5 GR6d-4
200-0015-1 linear 1 500 1,05 21,0 to 52,5 GR6d-4
200-0016-1 linear 1 500 1,40 28,0 to 70,0 GR6d-5
a
Reserved GR6d-6
200-0017
a
Reserved GR6d-7
200-0018
a
Reserved GR6d-8
200-0019
a
Reserved GR6d-9
200-0020
200-0021-1 linear 550 17,0 0,21 8,0 to 12,6 GJ6.6d-2-1
200-0022-1 linear 550 17,0 0,27 8,0 to 16,2 GJ6.6d-2-2
200-0023-1 linear 550 17,0 0,35 8,0 to 18,0 GJ6.6d-2-3
200-0024-1 linear 550 17,0 0,45 8,0 to 18,0 GJ6.6d-2-4
200-0025-1 linear 550 17,0 0,53 8,0 to 18,0 GJ6.6d-2-5
200-0026-1 linear 600 26,7 0,21 7,0 to 12,0 GJ6.6d-2-1
200-0027-1 linear 600 26,7 0,27 7,0 to 12,0 GJ6.6d-2-2
200-0028-1 linear 600 26,7 0,35 9,0 to 18,0 GJ6.6d-2-3
200-0029-1 linear 600 26,7 0,45 7,0 to 12,0 GJ6.6d-2-4
200-0030-1 linear 850 17,0 0,21 8,0 to 12,6 GJ6.6d-2-1
200-0031-1 linear 850 17,0 0,27 8,0 to 16,2 GJ6.6d-2-2
200-0032-1 linear 850 17,0 0,35 8,0 to 21,0 GJ6.6d-2-3
200-0033-1 linear 850 17,0 0,45 8,0 to 25,0 GJ6.6d-2-4
200-0034-1 linear 850 17,0 0,53 8,0 to 25,0 GJ6.6d-2-5
200-0035-1 linear 850 17,0 0,62 8,0 to 25,0 GJ6.6d-2-6
200-0036-1 linear 850 17,0 0,70 8,0 to 25,0 GJ6.6d-2-7
200-0037-1 linear 900 26,7 0,21 8,0 to 12,6 GJ6.6d-2-1
200-0038-1 linear 900 26,7 0,27 8,0 to 16,2 GJ6.6d-2-2
200-0039-1 linear 900 26,7 0,35 8,0 to 16,5 GJ6.6d-2-3
200-0040-1 linear 900 26,7 0,45 8,0 to 16,5 GJ6.6d-2-4
IEC 63356-1:2026 © IEC 2026
Sheet no. Nominal Rated Rated Power
Shape Cap
63356-1-IEC-2xx-xxxx length diameter current range
mm mm A DC W
200-0041-1 linear 900 26,7 0,53 8,0 to 16,5 GJ6.6d-2-5
200-0042-1 linear 1 150 17,0 0,21 12,0 to 12,6 GJ6.6d-2-1
200-0043-1 linear 1 150 17,0 0,27 12,0 to 16,2 GJ6.6d-2-2
200-0044-1 linear 1 150 17,0 0,35 12,0 to 21,0 GJ6.6d-2-3
200-0045-1 linear 1 150 17,0 0,45 12,0 to 27,0 GJ6.6d-2-4
200-0046-1 linear 1 150 17,0 0,53 12,0 to 31,8 GJ6.6d-2-5
200-0047-1 linear 1 150 17,0 0,62 12,0 to 36,0 GJ6.6d-2-6
200-0048-1 linear 1 150 17,0 0,70 12,0 to 36,0 GJ6.6d-2-7
200-0049-1 linear 1 150 17,0 1,06 12,0 to 36,0 GJ6.6d-2-8
200-0050-1 linear 1 200 26,7 0,21 8,0 to 12,6 GJ6.6d-2-1
200-0051-1 linear 1 200 26,7 0,27 8,0 to 16,2 GJ6.6d-2-2
200-0052-1 linear 1 200 26,7 0,35 8,0 to 21,0 GJ6.6d-2-3
200-0053-1 linear 1 200 26,7 0,45 8,0 to 25,0 GJ6.6d-2-4
200-0054-1 linear 1 200 26,7 0,53 8,0 to 25,0 GJ6.6d-2-5
200-0055-1 linear 1 200 26,7 0,62 8,0 to 25,0 GJ6.6d-2-6
200-0056-1 linear 1 200 26,7 0,70 18,0 to 35,0 GJ6.6d-2-7
200-0057-1 linear 2 400 26,7 1,06 30,0 to 35,0 GJ6.6d-2-8
a
Reserved GJ6.6d-2-9
200-0058
a
Reserved GJ6.6d-2-
200-0059
a
Reserved GJ6.6d-2-
200-0060
a
Reserved GJ6.6d-2-
200-0061
a
Reserved GJ6.6d-2-
200-0062
a
No data sheet available.
Table 5 – List of data sheets for semi-integrated double-capped LED lamps
Void
IEC 63356-1:2026 © IEC 2026
Table 6 – List of data sheets for integrated double-capped LED lamps
Maximum
Sheet no. Nomina Power
Shape outline Rated voltage Cap
63356-1-IEC-2xx-xxxx l length range
diameter
mm mm V AC W
220-0001-1 linear 550 17,0 108 to 382 7,0 to 13,0 GJ6.6t
220-0002-1 linear 600 26,7 108 to 382 8,0 to 17,0 GJ6.6t
220-0003-1 linear 850 17,0 108 to 382 10,0 to 16,0 GJ6.6t
220-0004-1 linear 900 26,7 108 to 382 11,5 to 25,0 GJ6.6t
220-0005-1 linear 1 150 17,0 108 to 382 13,0 to 31,0 GJ6.6t
220-0006-1 linear 1 200 26,7 108 to 382 9,9 to 32,0 GJ6.6t
220-0007-1 linear 1 450 17,0 108 to 382 18,0 to 37,0 GJ6.6t
220-0008-1 linear 2 400 26,7 108 to 382 30,0 to 65,0 GJ6.6t
220-0009-1 linear 550 17,0 108 to 382 7,0 to 13,0 GJ6.6d-1
220-0010-1 linear 600 26,7 108 to 382 8,0 to 17,0 GJ6.6d-1
220-0011-1 linear 850 17,0 108 to 382 10,0 to 16,0 GJ6.6d-1
220-0012-1 linear 900 26,7 108 to 382 11,5 to 25,0 GJ6.6d-1
220-0013-1 linear 1 150 17,0 108 to 382 13,0 to 31,0 GJ6.6d-1
220-0014-1 linear 1 200 26,7 108 to 382 9,9 to 32,0 GJ6.6d-1
220-0015-1 linear 1 450 17,0 108 to 382 18,0 to 37,0 GJ6.6d-1
220-0016-1 linear 2 400 26,7 108 to 382 30,0 to 65,0 GJ6.6d-1
a
linear  100 to 127 GR6d-10
220-0017
a
linear  200 to 254 GR6d-11
220-0018
a
linear  250 to 288 GR6d-12
220-0019
a
reserved GR6d-13
220-0020
a
linear  100 to 288 GR6d-14
220-0021
a
reserved GR6d-15
220-0022
a
No data sheet available.
4.3.3 List of LED module data sheets
Table 7, Table 8 and Table 9 provide a summary of data sheets for non-integrated, semi-
integrated and integrated LED modules, respectively.
Table 7 – List of data sheets for non-integrated LED modules
Void
Table 8 – List of data sheets for semi-integrated LED modules
Void
Table 9 – List of data sheets for integrated LED modules
Void
IEC 63356-1:2026 © IEC 2026
5 Single-capped LED lamp data sheets
5.1 Single-capped LED lamps with GH36d caps
5.1.1 Diagrammatic information for location of lamp dimensions
Figure 1 shows the dimensions used in conjunction with the relevant data sheet for a GH36d
LED lamp.
Key
1 reference plane
2 key positions
NOTE Details about key positions are given in IEC 60061-1, sheet 7004-186.
a
The GH36d capped LED lamp is designed to be applied to a heat sink and in combination with the appropriate
key system to differentiate between input power combinations.
Figure 1 – Location of dimensions of single-capped lamps with a GH36d cap
IEC 63356-1:2026 © IEC 2026
5.1.2 Data sheets
Data sheet 63356-1-IEC-100-0001-1:
Nominal diameter Rated DC lamp current Range of lamp power Cap
mm A W
50 0,25 5,0 to 12,5 GH36d-1
Dimensions
mm
A B D K T
Min. Max. Min. Max. Min. Max. Min. Max.
49,5 50,5 24,9 25,2 36,0 8,5 9,0 5,5 30,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,25
20 50
Information for controlgear design
Constant DC current output
Type of controlgear
SELV or PELV
V
DC output voltage range for the constant DC current Min. Max.
20 50
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-100-0002-1:
Nominal diameter Rated DC lamp current Range of lamp power Cap
mm A W
50 0,35 7,0 to 17,5 GH36d-2
Dimensions
mm
A B D K T
Min. Max. Min. Max. Min. Max. Min. Max.
49,5 50,5 24,9 25,2 36,0 8,5 9,0 5,5 30,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
20 50
Information for controlgear design
Constant DC current output
Type of controlgear
SELV or PELV
V
DC output voltage range for the constant DC current Min. Max.
20 50
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-100-0003-1:
Nominal diameter Rated DC lamp current Range of lamp power Cap
mm A W
50 0,5 10,0 to 25,0 GH36d-3
Dimensions
mm
A B D K T
Min. Max. Min. Max. Min. Max. Min. Max.
49,5 50,5 24,9 25,2 36,0 8,5 9,0 5,5 30,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,5
20 50
Information for controlgear design
Constant DC current output
Type of controlgear
SELV or PELV
V
DC output voltage range for the constant DC current Min. Max.
20 50
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-100-0004-1:
Nominal diameter Rated DC lamp current Range of lamp power Cap
mm A W
50 0,7 14,0 to 35,0 GH36d-4
Dimensions
mm
A B D K T
Min. Max. Min. Max. Min. Max. Min. Max.
49,5 50,5 24,9 25,2 36,0 8,5 9,0 5,5 30,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,7
20 50
Information for controlgear design
Constant DC current output
Type of controlgear
SELV or PELV
V
DC output voltage range for the constant DC current Min. Max.
20 50
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-100-0005-1:
Nominal diameter Rated DC lamp current Range of lamp power Cap
mm A W
50 0,9 18,0 to 45,0 GH36d-5
Dimensions
mm
A B D K T
Min. Max. Min. Max. Min. Max. Min. Max.
49,5 50,5 24,9 25,2 36,0 8,5 9,0 5,5 30,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,9
20 50
Information for controlgear design
Constant DC current output
Type of controlgear
SELV or PELV
V
DC output voltage range for the constant DC current Min. Max.
20 50
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-100-0006-1:
Nominal diameter Rated DC lamp current Range of lamp power Cap
mm A W
50 1,1 22,0 to 55,0 GH36d-6
Dimensions
mm
A B D K T
Min. Max. Min. Max. Min. Max. Min. Max.
49,5 50,5 24,9 25,2 36,0 8,5 9,0 5,5 30,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
1,1
20 50
Information for controlgear design
Constant DC current output
Type of controlgear
SELV or PELV
V
DC output voltage range for the constant DC current Min. Max.
20 50
Tolerance of the constant DC current ±10 %

5.2 Other single-capped LED lamps
Void
IEC 63356-1:2026 © IEC 2026
6 Double-capped LED lamp data sheets
6.1 Linear double-capped LED lamps with GX16t-5 caps
NOTE The data sheets in 6.1.2 are taken from IEC 62931:2017 without technical modifications.
6.1.1 Diagrammatic information for location of lamp dimensions
Figure 2 shows the dimensions used in conjunction with the relevant data sheet for the GX16t-5
LED lamp.
Key
a) For lamps with GX16t-5 caps and nominal length up to or equal to 1 200 mm
The values for dimensions A, B and C are derived from a basic value, designated X.
A = cap face to cap face
A = X
max
B = cap face to end of opposite pins
B = X + 7,1 mm
max
= X + 4,7 mm
B
min
C = overall length of the lamp between pin ends
= X + (2 × 7,1) = X + 14,2 mm
C
max
C = not specified
min
b) For lamps with GX16t-5 caps and nominal length greater than 1 200 mm
The values for dimensions A, B and C are derived from a basic value, designated X.
A = cap face to cap face
B = cap face to end of opposite pins
B = X + 7,4 mm
max
B = X + 4,4 mm
min
C = overall length of the lamp between pin ends
C = X + (2 × 7,4) = X + 14,8 mm
max
= not specified
C
min
Dimension D specifies the maximum dimension of the cross-section of the tube.
Figure 2 – Location of dimensions of linear double-capped lamps with GX16t-5 caps
IEC 63356-1:2026 © IEC 2026
6.1.2 Data sheets
Data sheet 63356-1-IEC-200-0001-1:
NOTE This data sheet is numbered 62931-IEC-600-1 (rated D = 25,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
600 0,35 7,9 to 16,6 GX16t-5
Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
587,4 588,5 589,8 594,5 596,9 604,0 25,5 26,7

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
22,5 47,5
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
22,5 47,5
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0002-1:
NOTE This data sheet is numbered 62931-IEC-600-1 (rated D = 32,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
600 0,35 7,9 to 16,6 GX16t-5
Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
587,4 588,5 589,8 594,5 596,9 604,0 32,5 34,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
22,5 47,5
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
22,5 47,5
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0003-1:
NOTE This data sheet is numbered 62931-IEC-900-1 (rated D = 25,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
900 0,35 11,0 to 24,8 GX16t-5
Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
892,2 893,0 894,6 899,3 901,7 908,8 25,5 26,7

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
31,7 70,8
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
31,7 70,8
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0004-1:
NOTE This data sheet is numbered 62931-IEC-900-1 (rated D = 32,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
900 0,35 11,0 to 24,8 GX16t-5
Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
892,2 893,0 894,6 899,3 901,7 908,8 32,5 34,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
31,7 70,8
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
31,7 70,8
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0005-1:
NOTE This data sheet is numbered 62931-IEC-1200-1 (rated D = 25,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
1 200 0,35 14,3 to 33,3 GX16t-5

Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
1 197,0 1 198,0 1 199,4 1 204,1 1 206,5 1 213,6 25,5 26,7

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
41 95
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
41 95
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0006-1:
NOTE This data sheet is numbered 62931-IEC-1200-1 (rated D = 32,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
1 200 0,35 14,3 to 33,3 GX16t-5

Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
1 197,0 1 198,0 1 199,4 1 204,1 1 206,5 1 213,6 32,5 34,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
41 95
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
41 95
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0007-1:
NOTE This data sheet is numbered 62931-IEC-1500-1 (rated D = 25,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
1 500 0,35 14,3 to 42,0 GX16t-5

Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
1 497,6 1 498,5 1 500,0 1 504,7 1 507,1 1 514,2 25,5 26,7

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
41 120
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
41 120
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0008-1:
NOTE This data sheet is numbered 62931-IEC-1500-1 (rated D = 32,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
1 500 0,35 14,3 to 42,0 GX16t-5

Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
1 497,6 1 498,5 1 500,0 1 504,7 1 507,1 1 514,2 32,5 34,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
41 120
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
41 120
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0009-1:
NOTE This data sheet is numbered 62931-IEC-2400-1 (rated D = 25,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
2 400 0,35 28,7 to 66,5 GX16t-5

Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
2 366,0 2 367,0 2 368,4 2 372,8 2 375,8 2 383,2 25,5 26,7

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
82 190
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
82 190
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0010-1:
NOTE This data sheet is numbered 62931-IEC-2400-1 (rated D = 32,5 mm) in IEC 62931:2017.
Nominal length Rated DC lamp current Range of lamp power Cap
mm A W
2 400 0,35 28,7 to 66,5 GX16t-5

Dimensions
mm
A B C D
Min. Rated Max. Min. Max. Max. Rated Max.
2 366,0 2 367,0 2 368,4 2 372,8 2 375,8 2 383,2 32,5 34,0

Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
82 190
Information for controlgear design
Type of controlgear Constant DC current output
V
DC output voltage range for the constant DC current Min. Max.
82 190
Tolerance of the constant DC current ±10 %

IEC 63356-1:2026 © IEC 2026
6.2 Linear double-capped LED lamps with GJ6.6 caps
6.2.1 Diagrammatic information for location of lamp dimensions
Figure 3 shows the dimensions used in conjunction with the relevant data sheet for a GJ6.6
LED lamp.
Dimension C is the inner distance between windows in GJ6.6 caps.
Dimension D is the maximum dimension of the cross-section of the LED tube.
NOTE 1 The LED tube can be of any shape.
NOTE 2 GJ6.6, GJ6.6t, GJ6.6d-1 and GJ6.6d-2-x cap dimensions are specified in IEC 60061-1.
NOTE 3 Lampholder specifications are found in IEC 60061-2, data sheet 7005-188.
NOTE 4 Lampholder face-to-face spacing is specified in IEC 60061-2, data sheet 7005-188A.
Figure 3 – Location of dimensions of linear double-capped lamps with GJ6.6 caps

IEC 63356-1:2026 © IEC 2026
6.2.2 GJ6.6 lamp data sheets
Data sheet 63356-1-IEC-200-0021-1:
Nominal length Rated DC lamp current Range of lamp power Caps
mm A W
a
550 0,21 8,0 to 12,6
GJ6.6d-2-1 and GJ6.6
Dimensions
mm
C D
Min. Max. Max.
551,0 551,6 17,0
Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,21
38,1 60,0
Information for luminaire design
Lamps with GJ6.6d-2-x caps have no earthing terminal.
Linear double-capped LED lamps with GJ6.6-2-x caps are designed for operation with SELV power supplies
having an output DC current tolerance of ±10 %.
a
The fit system comprises a GJ6.6d-2-x cap on the powered end of the lamp and a GJ6.6 support cap on the
other end.
IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0022-1:
Nominal length Rated DC lamp current Range of lamp power Caps
mm A W
a
550 0,27 8,0 to 16,2
GJ6.6d-2-2 and GJ6.6
Dimensions
mm
C D
Min. Max. Max.
551,0 551,6 17,0
Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,27
29,6 60,0
Information for luminaire design
Lamps with GJ6.6d-2-x caps have no earthing terminal.
Linear double-capped LED lamps with GJ6.6-2-x caps are designed for operation with SELV power supplies
having an output DC current tolerance of ±10 %.
a
The fit system comprises a GJ6.6d-2-x cap on the powered end of the lamp and a GJ6.6 support cap on the
other end.
IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0023-1:
Nominal length Rated DC lamp current Range of lamp power Caps
mm A W
a
550 0,35 8,0 to 18,0
GJ6.6d-2-3 and GJ6.6
Dimensions
mm
C D
Min. Max. Max.
551,0 551,6 17,0
Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,35
22,9 51,4
Information for luminaire design
Lamps with GJ6.6d-2-x caps have no earthing terminal.
Linear double-capped LED lamps with GJ6.6-2-x caps are designed for operation with SELV power supplies
having an output DC current tolerance of ±10 %.
a
The fit system comprises a GJ6.6d-2-x cap on the powered end of the lamp and a GJ6.6 support cap on the
other end.
IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0024-1:
Nominal length Rated DC lamp current Range of lamp power Caps
mm A W
a
550 0,45 8,0 to 18,0
GJ6.6d-2-4 and GJ6.6
Dimensions
mm
C D
Min. Max. Max.
551,0 551,6 17,0
Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,45
17,8 40,0
Information for luminaire design
Lamps with GJ6.6d-2-x caps have no earthing terminal.
Linear double-capped LED lamps with GJ6.6-2-x caps are designed for operation with SELV power supplies
having an output DC current tolerance of ±10 %.
a
The fit system comprises a GJ6.6d-2-x cap on the powered end of the lamp and a GJ6.6 support cap on the
other end.
IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0025-1:
Nominal length Rated DC lamp current Range of lamp power Caps
mm A W
a
550 0,53 8,0 to 18,0
GJ6.6d-2-5 and GJ6.6
Dimensions
mm
C D
Min. Max. Max.
551,0 551,6 17,0
Electrical characteristics
DC test current DC lamp voltage
A V
Min. Max.
0,53
15,1 34,0
Information for luminaire design
Lamps with GJ6.6d-2-x caps have no earthing terminal.
Linear double-capped LED lamps with GJ6.6-2-x caps are designed for operation with SELV power supplies
having an output DC current tolerance of ±10 %.
a
The fit system comprises a GJ6.6d-2-x cap on the powered end of the lamp and a GJ6.6 support cap on the
other end.
IEC 63356-1:2026 © IEC 2026
Data sheet 63356-1-IEC-200-0026-1:
Nominal length Rated DC lamp current Range of lamp power Caps
mm A W
a
600 0,21 7,0 to 12,0
GJ6.6d-2-1 and GJ6.6
Dimensions
mm
C D
Min. Max. Max.
591,8 5
...
