SIST EN IEC 63356-1:2024

LED light source characteristics - Part 1: Data sheets (IEC 63356-1:2023)

IEC 63356-1:2023 specifies data sheets of LED lamps and LED modules with a series of parameters per data sheet for a specific LED light source that enables interchangeability between products from different LED light source manufacturers.
This second edition cancels and replaces the first edition published in 2022. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) addition of datasheets for GH36d capped LED lamps;
b) addition of datasheets for GJ6.6t and GJ6.6d-1 capped LED lamps;
c) addition of datasheets for GR6d capped LED lamps.

Eigenschaften von LED-Lichtquellen - Teil 1: Datenblätter (IEC 63356-1:2023)

Caractéristiques de source lumineuse à LED – Partie 1: Feuilles de caractéristiques (IEC 63356-1:2023)

L'IEC 63356-1:2023 spécifie les feuilles de caractéristiques des lampes à LED et des modules de LED à l'aide d'une série de paramètres par feuille de caractéristiques pour une source lumineuse à LED spécifique qui permet l'interchangeabilité entre les produits de différents fabricants de source lumineuse à LED.
Cette deuxième édition annule et remplace la première édition parue en 2022. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) ajout des feuilles de caractéristiques pour les lampes à LED à culots GH36d;
b) ajout des feuilles de caractéristiques pour les lampes à LED à culots GJ6.6t et GJ6.6d-1;
c) ajout des feuilles de caractéristiques pour les lampes à LED à culots GR6d.

Značilnosti LED-svetlobnega vira - 1. del: Preglednice (IEC 63356-1:2023)

Standard IEC 63356-1:2023 določa preglednice LED-sijalk in LED-modulov z nizom parametrov na posamezno preglednico za določen LED-svetlobni vir, ki omogoča zamenljivost med izdelki različnih proizvajalcev LED-svetlobnih virov.
Druga izdaja razveljavlja in nadomešča prvo izdajo, objavljeno leta 2022. Ta izdaja je tehnično popravljena izdaja.
Ta izdaja v primerjavi s prejšnjo vključuje naslednje pomembne tehnične spremembe:
a) dodatne preglednice za LED-sijalke z vznožki GH36d;
b) dodatne preglednice za LED-sijalke z vznožki GJ6.6t in GJ6.6d-1;
c) dodatne preglednice za LED-sijalke z vznožki GR6d.

General Information

• Status: Published
• Public Enquiry End Date: 31-Mar-2023
• Publication Date: 16-Nov-2023
• ICS: 29.140.01 - Lamps in general
• ICS: 29.140.99 - Other standards related to lamps
• Technical Committee: IESV - Lamps and related equipment
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 15-Nov-2023
• Due Date: 20-Jan-2024
• Completion Date: 17-Nov-2023
• Ref Project: EN IEC 63356-1:2023 - LED light source characteristics - Part 1: Data sheets

Relations

• Amends: SIST EN IEC 63356-1:2023 - LED light source characteristics - Part 1: Data sheets (IEC 63356-1:2022)
• Effective Date: 02-Aug-2022

Standards Content (Sample)

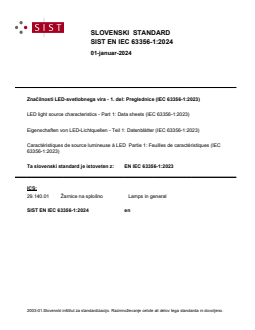

SLOVENSKI STANDARD
SIST EN IEC 63356-1:2024
01-januar-2024
Značilnosti LED-svetlobnega vira - 1. del: Preglednice (IEC 63356-1:2023)
LED light source characteristics - Part 1: Data sheets (IEC 63356-1:2023)
Eigenschaften von LED-Lichtquellen - Teil 1: Datenblätter (IEC 63356-1:2023)
Caractéristiques de source lumineuse à LED Partie 1: Feuilles de caractéristiques (IEC
63356-1:2023)
Ta slovenski standard je istoveten z: EN IEC 63356-1:2023
ICS:
29.140.01 Žarnice na splošno Lamps in general
SIST EN IEC 63356-1:2024 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 63356-1:2024

---------------------- Page: 2 ----------------------
SIST EN IEC 63356-1:2024

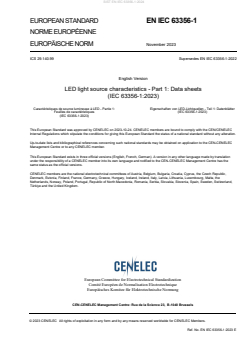

EUROPEAN STANDARD EN IEC 63356-1

NORME EUROPÉENNE

EUROPÄISCHE NORM November 2023
ICS 29.140.99 Supersedes EN IEC 63356-1:2022
English Version
LED light source characteristics - Part 1: Data sheets
(IEC 63356-1:2023)
Caractéristiques de source lumineuse à LED - Partie 1: Eigenschaften von LED-Lichtquellen - Teil 1: Datenblätter
Feuilles de caractéristiques (IEC 63356-1:2023)
(IEC 63356-1:2023)
This European Standard was approved by CENELEC on 2023-10-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 63356-1:2023 E

---------------------- Page: 3 ----------------------
SIST EN IEC 63356-1:2024
EN IEC 63356-1:2023 (E)

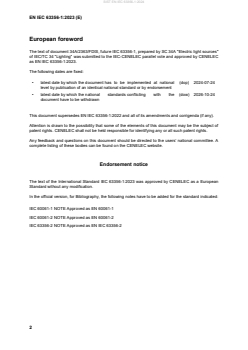

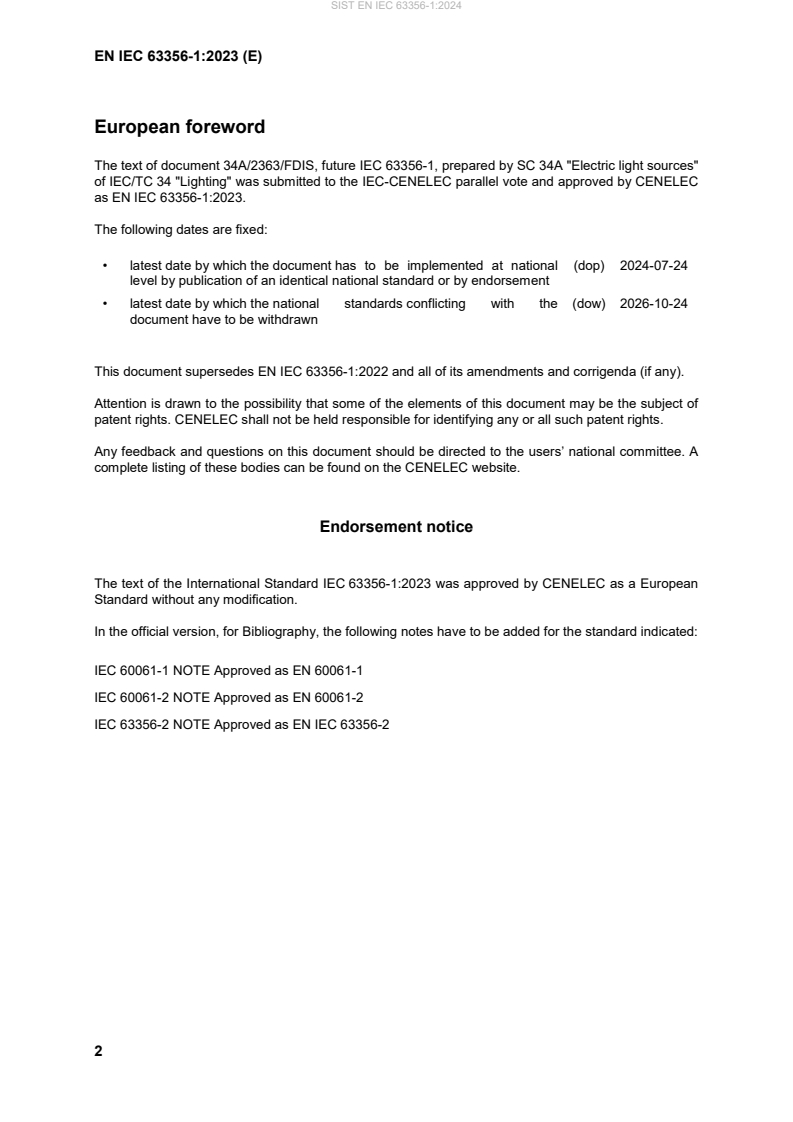

European foreword
