Luminaire performance - Part 2-1: Particular requirements for LED luminaires (IEC 62722-2-1:2014)

This part of IEC 62722 specifies the performance requirements for LED luminaires, together with the test methods and conditions, required to show compliance with this standard. It applies to LED luminaires for general lighting purposes.
The following types of LED luminaires are distinguished.
– Type A – Luminaires using LED modules where compliance with IEC 627171 has been proven.
– Type B – Luminaires using LED modules where compliance with IEC 627171 has not been proven.
– Type C – Luminaires using a LED lamp and covered in IEC 62722-1.
The requirements of this standard only relate to type testing.
This standard does not cover Type C luminaires.
This standard does not cover LED luminaires that intentionally produce coloured light, neither does it cover luminaires using OLEDs (organic LEDs).
These performance requirements are additional to the requirements in IEC 62722-1,
Clauses 1 to 9, except where in this Part 2-1 alternative methods of measurement or limits are specified.
As this standard has been simultaneously developed and edited with the standard for LED modules, where appropriate the compliance of the LED modules to the provisions of IEC 62717 may be transferred to the whole luminaire.
Life time of LED luminaires is in most cases much longer than the practical test times. Consequently, verification of manufacturer’s life time claims cannot be made in a sufficiently confident way. For that reason the acceptance or rejection of a manufacturer’s life time claim, past 25 % of rated life (with a maximum of 6 000 h), is out of the scope of this standard.
Instead of life time validation, this standard has opted for lumen maintenance categories at a defined finite test time. Therefore, the category number does not imply a prediction of achievable life time. The categories are lumen-depreciation character categories showing behaviour in agreement with manufacturer’s information which is provided before the test is started.
In order to validate a life time claim, an extrapolation of test data is needed. A general method of projecting measurement data beyond limited test time is under consideration.
For explanation of recommended life time metrics see IEC 62717, Annex C.
It may be expected that LED luminaires which comply with this standard will start and operate satisfactorily at voltages between 92 % and 106 % of rated supply voltage and at an ambient air temperature within the declared range of the manufacturer.
Evaluation of LOR (light output ratio) for LED luminaire is under consideration.

Arbeitsweise von Leuchten - Teil 2-1: Besondere Anforderungen an LED-Leuchten

Performance des luminaires - Partie 2-1: Exigences particulières relatives aux luminaires à LED

L'IEC 62722-2-1:2014 spécifie les exigences de performance relatives aux luminaires à LED, ainsi que les méthodes et conditions d'essai, requises pour démontrer la conformité à la présente norme. Elle s'applique aux luminaires à LED destinés à l'éclairage général. Cette première édition de l'IEC 62722-2-1 annule et remplace l'IEC PAS 62722-2-1 (disponible en anglais seulement) parue en 2011. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à la Spécification accessible au public. a) La durée de l'essai est alignée avec l'IEC 62717 et l'option de 2 000 h est supprimée. Les produits contenant des modules non conformes à l'IEC 62717 sont maintenant testés à 6000 h. b) La taille des échantillons d'essai a été modifiée pour fournir des données statistiques fiables. c) La réduction de la température de 10 °C pour les lanternes de rue et les projecteurs a été supprimée. d) Les définitions de la vie ont été mises à jour et alignées avec l'IEC 62717.

Tehnične lastnosti svetilk - 2-1. del: Posebne zahteve za LED-svetilke (IEC 62722-2-1:2014)

Ta del standarda IEC 62722 določa zahteve glede zmogljivosti za svetilke LED skupaj s preskusnimi metodami in pogoji, ki so potrebni za preverjanje skladnosti s tem standardom. Uporablja se za svetilke LED za namene splošnega osvetljevanja.
Opredeljene so naslednje vrste svetilk LED.
– Vrsta A: svetilke, ki uporabljajo module LED, če je zagotovljena skladnost s standardom IEC 627171.
– Vrsta B: svetilke, ki uporabljajo module LED, če ni zagotovljena skladnost s standardom IEC 627171.
– Vrsta C: svetilke, ki uporabljajo sijalko LED, in so obravnavane v standardu IEC 62722-1.
Zahteve iz tega standarda se nanašajo samo na tipsko preskušanje.
Ta standard ne obravnava svetilk vrste C.
Ta standard ne obravnava niti svetilk LED, ki namenoma proizvajajo barvno svetlobo, niti svetilk, ki uporabljajo diode OLED (organske diode LED).
Te zahteve glede zmogljivosti so dodane k zahtevam iz standarda IEC 62722-1,
točke od 1 do 9, razen kadar so v tem delu 2-1 določene druge metode merjenja ali omejitve.
Glede na to, da se je ta standard razvijal in urejal hkrati s standardom za module LED, se lahko skladnost modulov LED z določili iz standarda IEC 62717 upošteva za celotno svetilko, kjer je potrebno.
Življenjska doba svetilk LED je v večini primerov precej daljša od preskusnih časov v praksi. Posledično ni mogoče preveriti proizvajalčeve trditve o življenjski dobi z zadostno mero zanesljivosti. Zaradi tega sprejetje ali zavrnitev proizvajalčevih trditev o življenjski dobi nad 25 % nazivne življenjske dobe (z največ 6000 urami) ni zajeto v tem standardu.
Namesto preverjanja veljavnosti življenjske dobe ta standard določa kategorije vzdrževanja lumnov pri opredeljenem končnem preskusnem času. Zato številka kategorije ne predvideva napovedi dosegljive življenjske dobe. Kategorije so kategorije znižanja vrednosti lumnov, ki delujejo v skladu z informacijami proizvajalca, ki so na voljo pred začetkom preskusa.
Za preverjanje trditve o življenjski dobi je potrebna ekstrapolacija podatkov preskusa. Presoja se splošna metoda projiciranja podatkov meritev zunaj omejenega preskusnega časa.
Za razlago meritev priporočene življenjske dobe glej standard IEC 62717, dodatek C.
Pričakuje se lahko, da svetilke LED, ki so skladne s tem standardom, na začetku delujejo zadovoljivo pri napetosti med 92 % in 106 % nazivne napetosti ter pri temperaturi zraka v okolici v obsegu, ki ga je določil proizvajalec.
Presoja se vrednotenje količine oddane svetlobe (LOR) za svetilke LED.

General Information

Status
Published
Publication Date
16-May-2016
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
06-May-2016
Due Date
11-Jul-2016
Completion Date
17-May-2016

Buy Standard

Standard
SIST EN 62722-2-1:2016
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 62722-2-1:2016
01-julij-2016

7HKQLþQHODVWQRVWLVYHWLONGHO3RVHEQH]DKWHYH]D/('VYHWLONH ,(&



Luminaire performance - Part 2-1: Particular requirements for LED luminaires (IEC

62722-2-1:2014)
Ta slovenski standard je istoveten z: EN 62722-2-1:2016
ICS:
29.140.40 Svetila Luminaires
SIST EN 62722-2-1:2016 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 62722-2-1:2016
---------------------- Page: 2 ----------------------
SIST EN 62722-2-1:2016
EUROPEAN STANDARD EN 62722-2-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2016
ICS 29.140.40
English Version
Luminaire performance - Part 2-1: Particular requirements for
LED luminaires
(IEC 62722-2-1:2014 , modified)

Performance des luminaires - Partie 2-1: Exigences Arbeitsweise von Leuchten - Teil 2-1: Besondere

particulières relatives aux luminaires à LED Anforderungen an LED-Leuchten
(IEC 62722-2-1:2014 , modifiée) (IEC 62722-2-1:2014 , modifiziert)

This European Standard was approved by CENELEC on 2015-11-09. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 62722-2-1:2016 E
---------------------- Page: 3 ----------------------
SIST EN 62722-2-1:2016
EN 62722-2-1:2016

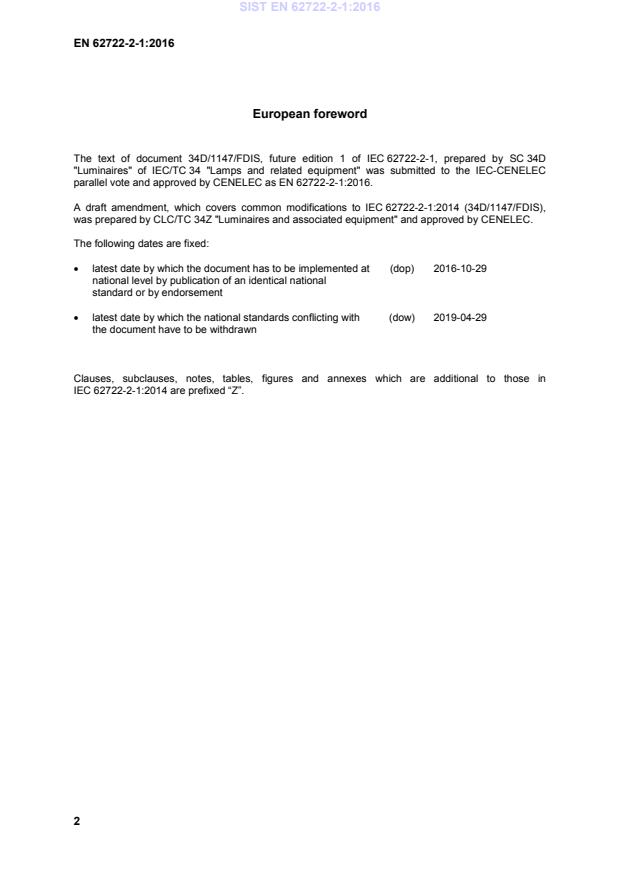

European foreword

The text of document 34D/1147/FDIS, future edition 1 of IEC 62722-2-1, prepared by SC 34D

"Luminaires" of IEC/TC 34 "Lamps and related equipment" was submitted to the IEC-CENELEC

parallel vote and approved by CENELEC as EN 62722-2-1:2016.

A draft amendment, which covers common modifications to IEC 62722-2-1:2014 (34D/1147/FDIS),

was prepared by CLC/TC 34Z "Luminaires and associated equipment" and approved by CENELEC.

The following dates are fixed:
(dop) 2016-10-29
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
(dow) 2019-04-29
• latest date by which the national standards conflicting with
the document have to be withdrawn

Clauses, subclauses, notes, tables, figures and annexes which are additional to those in

IEC 62722-2-1:2014 are prefixed “Z”.
---------------------- Page: 4 ----------------------
SIST EN 62722-2-1:2016
EN 62722-2-1:2016
Endorsement notice

The text of the International Standard IEC 62722-2-1:2014 was approved by CENELEC as a

European Standard with agreed common modifications.
COMMON MODIFICATIONS
Modification to 6.1 General test conditions
Add the following after the last paragraph:

“Where a Commission Regulation specifies limits for parameters, these limits shall be used instead of

the limits specified in this standard.”
Modifications to annexes
Add the following new annexes.
---------------------- Page: 5 ----------------------
SIST EN 62722-2-1:2016
EN 62722-2-1:2016
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),

the relevant EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is

available here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60598-1 - Luminaires - EN 60598-1 -
Part 1: General requirements and tests
IEC 60598-2-3 - Luminaires - EN 60598-2-3 -
Part 2-3: Particular requirements -
Luminaires for road and street lighting
IEC 60598-2-5 - Luminaires - EN 60598-2-5 -
Part 2-5: Particular requirements -
Floodlights
IEC 62031 - LED modules for general lighting - Safety EN 62031 -
specifications
IEC 62504 - General lighting - Light emitting diode EN 62504 -
(LED) products and related equipment -
Terms and definitions
IEC 62717 - LED modules for general lighting - EN 62717 -
Performance requirements
IEC 62722-1 - Luminaire performance - EN 62722-1 -
Part 1: General requirements
1) At draft stage.
---------------------- Page: 6 ----------------------
SIST EN 62722-2-1:2016
EN 62722-2-1:2016
Modifications to Bibliography
Add the following notes for the standards indicated:
IEC 61547 NOTE Harmonized as EN 61547.
IEC 62442-3:2014 NOTE Harmonized as EN 62442-3:2014 (not modified).
IEC 62560 NOTE Harmonized as EN 62560.
CISPR 15:2005 NOTE Harmonized as EN 55015:2006 (not modified).
---------------------- Page: 7 ----------------------
SIST EN 62722-2-1:2016
---------------------- Page: 8 ----------------------
SIST EN 62722-2-1:2016
IEC 62722-2-1
Edition 1.0 2014-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaire performance –
Part 2-1: Particular requirements for LED luminaires
Performance des luminaires –
Partie 2-1: Exigences particulières relatives aux luminaires à LED
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX R
ICS 29.140.40 ISBN 978-2-8322-1942-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 9 ----------------------
SIST EN 62722-2-1:2016
– 2 – IEC 62722-2-1:2014 © IEC 2014
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 8

3 Terms and definitions ...................................................................................................... 8

4 Product information ......................................................................................................... 9

5 Not used ........................................................................................................................ 10

6 Test conditions .............................................................................................................. 10

6.1 General test conditions ......................................................................................... 10

6.2 Luminaires using LED modules where compliance with IEC 62717 has been

proven (Type A) .................................................................................................... 10

6.3 Luminaires using LED modules where compliance with IEC 62717 has not

been proven (Type B) ........................................................................................... 10

6.3.1 General ......................................................................................................... 10

6.3.2 Creation of module families to reduce test effort ............................................ 11

6.4 Performance requirements .................................................................................... 11

7 Input power ................................................................................................................... 12

8 Photometric performance ............................................................................................... 12

8.1 Luminous flux ....................................................................................................... 12

8.2 Luminous intensity distribution, peak intensity and beam angle ............................. 12

8.2.1 General ......................................................................................................... 12

8.2.2 Measurement ................................................................................................. 12

8.2.3 Luminous intensity distribution ....................................................................... 12

8.2.4 Peak intensity ................................................................................................ 12

8.2.5 Beam angle ................................................................................................... 12

8.3 Luminaire luminous efficacy .................................................................................. 12

9 Chromaticity co-ordinates, correlated colour temperature and colour rendering ............. 12

9.1 Chromaticity co-ordinates ..................................................................................... 12

9.2 Correlated colour temperature (CCT) .................................................................... 13

9.3 Colour rendering index (CRI) ................................................................................ 13

10 LED luminaire life .......................................................................................................... 13

10.1 General ................................................................................................................. 13

10.2 Lumen maintenance .............................................................................................. 13

10.3 Endurance tests .................................................................................................... 13

11 Verification .................................................................................................................... 14

Annex A (normative) Method of measuring LED luminaire characteristics ............................ 16

A.1 General ................................................................................................................. 16

A.2 Electrical characteristics ....................................................................................... 16

A.3 Photometric characteristics ................................................................................... 16

Annex B (informative) Explanation of recommended life time metrics ................................... 17

B.1 General ................................................................................................................. 17

B.2 Life time specification ........................................................................................... 17

Bibliography .......................................................................................................................... 18

Figure 1 – Terminals to be used for input power measurement ............................................. 15

---------------------- Page: 10 ----------------------
SIST EN 62722-2-1:2016
IEC 62722-2-1:2014 © IEC 2014 – 3 –

Table 1 – Product information ................................................................................................. 9

Table 2 – Performance criteria for which testing is required .................................................. 11

Table 3 – Sample sizes ......................................................................................................... 14

---------------------- Page: 11 ----------------------
SIST EN 62722-2-1:2016
– 4 – IEC 62722-2-1:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRE PERFORMANCE –
Part 2-1: Particular requirements for LED luminaires
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62722-2-1 has been prepared by subcommittee 34D: Luminaires,

of IEC technical committee 34: Lamps and related equipment.

This first edition of IEC 62722-2-1 cancels and replaces IEC PAS 62722-2-1. published in

2011. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the Publicly

Available Specification.

a) The testing time is aligned with IEC 62717 and the option of 2 000 h is removed. Products

containing modules not in compliance with IEC 62717 are now tested to 6 000 h.
b) Testing sample sizes have been modified to give valid statistical data.

c) The temperature reduction of 10 °C for street lanterns and floodlights has been removed.

d) Life definitions have been updated and aligned with IEC 62717.
---------------------- Page: 12 ----------------------
SIST EN 62722-2-1:2016
IEC 62722-2-1:2014 © IEC 2014 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
34D/1147/FDIS 34D/1155/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all the parts in the IEC 62722 series, published under the general title Luminaire

performance can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 13 ----------------------
SIST EN 62722-2-1:2016
– 6 – IEC 62722-2-1:2014 © IEC 2014
INTRODUCTION

This standard is the conversion of IEC PAS 62722-2-1 into a full IEC performance standard

for LED luminaires for general lighting applications. It acknowledges the need for relevant

tests for luminaires using this new source of electrical light. The publication is seen in close

context with simultaneously developed and edited publication of performance standards for

luminaires in general and for LED modules. This standard does not consider luminaires

designed for LED lamps, which are covered in IEC 62722-1. Changes in the LED luminaires

standard will have impact on the LED module standards and vice versa, due to the behaviour

of LED. Therefore, in the development of the present standard, mutual consultancy of experts

of both products has taken place.

The provisions in the standard represent the technical knowledge of experts from the fields of

the semiconductor (LED chip) industry and of those of the traditional electrical light sources

and luminaires.
---------------------- Page: 14 ----------------------
SIST EN 62722-2-1:2016
IEC 62722-2-1:2014 © IEC 2014 – 7 –
LUMINAIRE PERFORMANCE –
Part 2-1: Particular requirements for LED luminaires
1 Scope

This part of IEC 62722 specifies the performance requirements for LED luminaires, together

with the test methods and conditions, required to show compliance with this standard. It

applies to LED luminaires for general lighting purposes.
The following types of LED luminaires are distinguished.
– Type A – Luminaires using LED modules where compliance with IEC 62717 has been
proven.

– Type B – Luminaires using LED modules where compliance with IEC 62717 has not been

proven.
– Type C – Luminaires using a LED lamp and covered in IEC 62722-1.
The requirements of this standard only relate to type testing.
This standard does not cover Type C luminaires.

This standard does not cover LED luminaires that intentionally produce coloured light, neither

does it cover luminaires using OLEDs (organic LEDs).

These performance requirements are additional to the requirements in IEC 62722-1,

Clauses 1 to 9, except where in this Part 2-1 alternative methods of measurement or limits are

specified.

As this standard has been simultaneously developed and edited with the standard for LED

modules, where appropriate the compliance of the LED modules to the provisions of

IEC 62717 may be transferred to the whole luminaire.

Life time of LED luminaires is in most cases much longer than the practical test times.

Consequently, verification of manufacturer’s life time claims cannot be made in a sufficiently

confident way. For that reason the acceptance or rejection of a manufacturer’s life time claim,

past 25 % of rated life (with a maximum of 6 000 h), is out of the scope of this standard.

Instead of life time validation, this standard has opted for lumen maintenance categories at a

defined finite test time. Therefore, the category number does not imply a prediction of

achievable life time. The categories are lumen-depreciation character categories showing

behaviour in agreement with manufacturer’s information which is provided before the test is

started.

In order to validate a life time claim, an extrapolation of test data is needed. A general method

of projecting measurement data beyond limited test time is unde
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
