SIST EN 50065-2-1:2004/A1:2006

• Abstract:

  2021: CLC legacy converted by DCLab NISOSTS

• Status: Published
• Publication Date: 31-Dec-2005
• ICS: 33.040.30 - Switching and signalling systems
• ICS: 33.100.20 - Immunity
• Technical Committee: KIN - Mains communicating systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jan-2006
• Due Date: 01-Jan-2006
• Completion Date: 01-Jan-2006
• Directive: 2004/108/EC - Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
  OJ Ref: C 53/04 OJ Date: 25-Feb-2014
• Directive:

  ---

  2004/108/EU - DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive:

  ---

  2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
  OJ Ref: C 173 OJ Date: 13-May-2016
• Directive:

  ---

  89/336/EEC - Electromagnetic compatibility (EMC)
• Mandate: M/404 - Standardisation Mandate to CEN, CENELEC and ETSI for harmonized standard according to the Electro Magnetic Compatibility (EMC) Directive 2004/108/EC
• Ref Project: EN 50065-2-1:2003/A1:2005 - Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz - Part 2-1: Immunity requirements for mains communications equipment and systems operating in the range of frequencies 95 kHz to 148,5 kHz and intended for use in residential, commercial and light industrial environments

• Amends: SIST EN 50065-2-1:2004 - Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz -- Part 2-1: Immunity requirements for mains communications equipment and systems operating in the range of frequencies 95 kHz to 148,5 kHz and intended for use in residential, commercial and light industrial environments
• Effective Date: 21-Sep-2010

SIST EN 50065-2-1:2004/A1:2006 is the Slovenian publication of the CENELEC amendment EN 50065-2-1:2003/A1:2005. It covers immunity requirements and test methods for mains communications equipment and systems (MCES) that use signals from 95 kHz to 148.5 kHz on low-voltage electrical installations. Engineers, test laboratories and buyers use it to check how MCES behave on signal, power and earth ports under conducted, radiated and electrostatic disturbances.

What does SIST EN 50065-2-1:2004/A1:2006 specify?

SIST EN 50065-2-1:2004/A1:2006 applies to equipment that transmits or receives information over low-voltage electrical systems in residential, commercial and light industrial environments. The amendment keeps the focus on EMC immunity for MCES and on tests that are done port by port.

The standard is organized into a foreword, Clause 1 on scope, Clause 2 on normative references, Clause 3 on definitions, Clause 7 on immunity specifications, and Annex A as a normative test circuit.

Annex	What it covers
Annex A	Test circuit for the conducted-interference arrangement and the use of Port A

The scope also makes clear what sits outside the document. It does not cover immunity between mains communication systems operating in the same band, immunity to signals from Power Line Carrier systems on high- or medium-voltage networks, or safety matters.

What are the key requirements of SIST EN 50065-2-1:2004/A1:2006?

SIST EN 50065-2-1:2004/A1:2006 sets immunity tests by port and by disturbance type. In practice, this means the test plan must match the actual interface on the equipment, not just the product as a whole.

Port-based immunity testing

Clause 7.2.1 ties the immunity requirements to the ports under test, and the amendment adds a reference to Table 6 of 7.2.2. For manufacturers and test labs, this means the test report has to show which port and which disturbance arrangement were used.

Signal, control and power ports

Table 2 is clarified for low-level signal ports, especially where the signal port and the AC power port are different. That matters when equipment has separate communication and mains interfaces, because the right table depends on how the ports are built.

Table 3 covers d.c. input and output power ports, including surge testing at ± 0.5 kV for common mode and differential mode. Table 4 covers a.c. input and output power ports, with voltage interruptions extended to 5 s and surge values set at ± 2 kV common mode and ± 1 kV differential mode. These settings tell the tester what stress the equipment must tolerate on its power connections.

Earth port requirements

The amendment adds Table 5 for the earth port, described as the functional ground terminal. It includes radio-frequency immunity from 0.15 MHz to 80 MHz with 3 V, 80 % AM at 1 kHz, and fast transients at ± 0.5 kV using the capacitive clamp. The table also assigns performance criteria A and B, so acceptance is not the same for every test.

Narrow-band conducted interference

Clause 7.2.2 is revised so that the coupling network is disconnected from the measurement network and connected to Port A as shown in Annex A. In practice, this defines how the disturbing signal is applied to the EUT and reduces ambiguity in the conducted-interference setup.

Test circuit use

Annex A links Port A to the tests listed in Table 4 and Table 5. That helps laboratories build the correct circuit before running type tests or compliance measurements.

What terms does SIST EN 50065-2-1:2004/A1:2006 define?

• MCES - mains communications equipment and systems that transmit or receive information on low-voltage electrical installations.
• Low-voltage electrical installations - the electrical networks on which the equipment uses the 95 kHz to 148.5 kHz signalling range.
• d.c. - direct-current power ports, covered separately from a.c. ports.
• a.c. - alternating-current power ports, with their own interruption and surge requirements.
• Functional ground terminal - the earth port covered in Table 5.
• EUT - the equipment under test in the specified test circuit.
• Port A - the port used in Annex A to apply the disturbing signal in the conducted-interference arrangement.
• Performance criterion A / B - the acceptance classes assigned to the tests in the immunity tables.

Who uses SIST EN 50065-2-1:2004/A1:2006?

SIST EN 50065-2-1:2004/A1:2006 is used by manufacturers of mains communications equipment, EMC test laboratories, and design teams working on home and building electronic systems. It is also relevant to quality managers, certification bodies and buyers who need to check immunity performance for products intended for residential, commercial and light industrial environments.

What changed in SIST EN 50065-2-1:2004/A1:2006 from the previous edition?

SIST EN 50065-2-1:2004/A1:2006 is an amendment to EN 50065-2-1:2003 and is identical to EN 50065-2-1:2003/A1:2005. The amendment states these changes:

• updates the normative references, including EN 50082-1 to EN 61000-6-1
• replaces EN 50065-1:1991 with EN 50065-1
• removes “1999” from CISPR 16-1
• adds a reference to Table 6 in Clause 7.2.1
• adds a footnote to Table 2 for low-level signal ports and the relation between signal and AC power ports
• changes the surge values in Table 3 for d.c. ports to ± 0.5 kV
• changes Table 4 for a.c. ports, including a 5 s interruption and new surge levels
• adds Table 5 for the earth port
• revises the conducted-interference connection method in Clause 7.2.2
• updates Annex A and the use of Port A in the test circuit

Which standards are used with SIST EN 50065-2-1:2004/A1:2006?

• EN 50065-1 - gives the frequency-band framework used when the standard refers to different MCES bands.
• EN 61000-6-1 - the general immunity standard named in the updated normative references.
• CISPR 16-1 - referenced in the amendment, with the year designation removed.
• EN 61000-4-6 - provides the conducted RF immunity test method used for the earth port test.
• EN 61000-4-4 - provides the fast transient test method used for the earth port test.

What does the SIST EN 50065-2-1:2004/A1:2006 document contain?

This amendment contains revised immunity tables for signal/control ports, d.c. ports, a.c. ports and the earth port, plus a clarified conducted-interference test arrangement. It also includes a normative test circuit in Annex A and a figure showing how the coupling network and Port A are used.

For practical work, the document is used to set up type tests, prepare compliance reports, and compare equipment against the specified immunity levels and performance criteria.

SLOVENSKI SIST EN 50065-2-
1:2004/A1:2006
STANDARD
januar 2006
6LJQDOL]DFLMDSRQL]NRQDSHWRVWQLKHOHNWULþQLKQDSHOMDYDKYIUHNYHQþQHP
REPRþMXRGN+]GRN+]±GHO=DKWHYH]DRGSRUQRVWRPUHåQH
NRPXQLNDFLMVNHRSUHPHLQVLVWHPRYNLREUDWXMHMRYIUHNYHQþQHPREPRþMXRG
95 kHz do 148,5 kHz in so namenjeni za uporabo v stanovanjih, poslovnih
prostorih in lahkoindustrijskih okoljih
(istoveten EN 50065-2-1:2003/A1:2005)
Signalling on low-voltage electrical installations in the frequency range 3 kHz to
148,5 kHz – Part 2-1: Immunity requirements for mains communications equipment
and systems operating in the range of frequencies 95 kHz to 148,5 kHz and
intended for use in residential, commercial and light industrial environments
ICS 5HIHUHQþQDãWHYLOND
33.040.30; 33.100.20
! "#$%!&!%’()*#+’
EUROPEAN STANDARD EN 50065-2-1/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM September 2005

ICS 33.040.30
English version
Signalling on low-voltage electrical installations
in the frequency range 3 kHz to 148,5 kHz
Part 2-1: Immunity requirements for mains communications equipment
and systems operating in the range of frequencies 95 kHz to 148,5 kHz
and intended for use in residential,
commercial and light industrial environments

Transmission de signaux sur les réseaux Signalübertragung auf elektrischen
électriques basse tension dans la bande Niederspannungsnetzen im
de fréquences de 3 kHz à 148,5 kHz Frequenzbereich 3 kHz bis 148,5 kHz
Partie 2-1: Exigences d'immunité pour les Teil 2-1: Störfestigkeitsanforderungen an
appareils et les systèmes de Netz-Datenübertragungsgeräte und -
communication sur le réseau électrique systeme, die im Frequenzbereich 95 kHz
dans la bande de fréquences de 95 kHz bis 148,5 kHz betrieben werden und für
à 148,5 kHz et destinés à être utilisés den Gebrauch in Wohnbereichen,
dans les environnements résidentiel, Geschäfts- und Gewerbebereichen sowie
commercial et de l'industrie légère in Kleinbetrieben bestimmt sind

This amendment A1 modifies the European Standard EN 50065-2-1:2003; it was approved by CENELEC
on 2005-07-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this amendment the status of a national standard without any
alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50065-2-1:2003/A1:2005 E

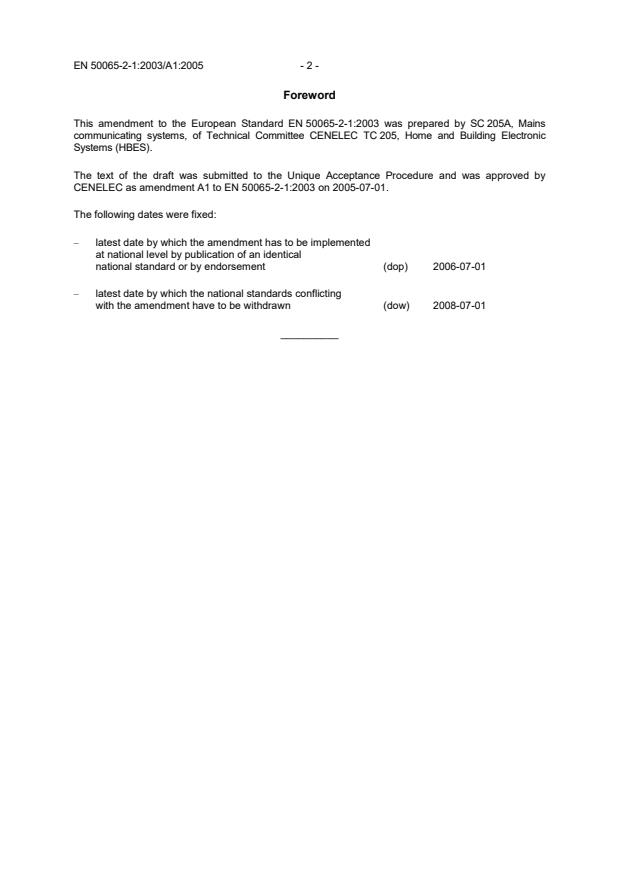

Foreword
This amendment to the European Standard EN 50065-2-1:2003 was prepared by SC 205A, Mains
communicating systems, of Technical Committee CENELEC TC 205, Home and Building Electronic
Systems (HBES).
The text of the draft was submitted to the Unique Acceptance Procedure and was approved by
CENELEC as amendment A1 to EN 50065-2-1:2003 on 2005-07-01.
The following dates were fixed:
– latest date by which the amendment has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-07-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2008-07-01
__________
- 3 - EN 50065-2-1:2003/A1:2005

1 Scope
This standard applies to electrical equipment using signals in the frequency range 95 kHz to
148,5 kHz to transmit or receive information on low voltage electrical systems, residential, commercial
and light industrial environments. In the case of equipment which includes functions other than the
tra
...
