SIST EN 12421:2017

Magnesium and magnesium alloys - Unalloyed magnesium

This European Standard specifies the grades and corresponding requirements for cast unalloyed magnesium.
This European Standard specifies the chemical composition, designation, testing, marking and inspection documentation.

Magnesium und Magnesiumlegierungen - Reinmagnesium

Diese Europäische Norm legt die Sorten und die jeweiligen Anforderungen für Reinmagnesiumguss fest.
Diese Europäische Norm legt die chemische Zusammensetzung, Bezeichnung, Prüfung, Kennzeichnung und Prüfbescheinigungen fest.

Magnésium et alliages de magnésium - Magnésium non allié

La présente Norme européenne spécifie les nuances et les exigences correspondantes du magnésium non allié moulé.
La présente Norme européenne spécifie la composition chimique, la désignation, les essais, le marquage et la documentation de contrôle.

Magnezij in magnezijeve zlitine - Nelegirani magnezij

Ta evropski standard določa razrede in ustrezne zahteve za liti nelegirani magnezij. Ta evropski standard določa kemijsko sestavo, poimenovanje, preskušanje, označevanje in pregled dokumentacije.

General Information

• Status: Published
• Public Enquiry End Date: 29-Sep-2015
• Publication Date: 19-Mar-2017
• ICS: 77.120.20 - Magnesium and magnesium alloys
• Technical Committee: IFEK - Ferrous metals
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 16-Mar-2017
• Due Date: 21-May-2017
• Completion Date: 20-Mar-2017
• Ref Project: EN 12421:2017 - Magnesium and magnesium alloys - Unalloyed magnesium

Relations

• Replaces: SIST EN 12421:2000 - Magnesium and magnesium alloys - Unalloyed magnesium
• Effective Date: 15-Mar-2017
• Revised: SIST EN 12421:2000 - Magnesium and magnesium alloys - Unalloyed magnesium
• Effective Date: 01-Sep-2015

Overview - EN 12421:2017 (Unalloyed magnesium)

EN 12421:2017 is the CEN (European) standard that defines grades and requirements for cast unalloyed magnesium. It specifies the chemical composition, material designation, testing, marking and inspection documentation for cast unalloyed magnesium products. The standard classifies cast unalloyed magnesium into standardized grades (e.g., EN‑MB99,5 … EN‑MB99,99) and introduces a numerical designation system (material numbers 3.5201–3.5209) aligned with EN 1754 and EN 10027‑2.

Key topics and technical requirements

• Definition: Unalloyed magnesium is defined as material with a minimum magnesium content of 99.0% (mass fraction) (Clause 3.1).
• Grades & chemical composition: Table 1 of EN 12421 lists standardized grades (EN‑MB99,5 to EN‑MB99,99) and their maximum limits for trace elements (Al, Mn, Si, Fe, Cu, Ni, Pb, Sn, Na, Ca, Zn, others).
• Designation: Materials may be designated by symbol or material number (new numeric system introduced).
• Order information: Purchasers should specify standard number, material designation, product shape, quantity and any special requirements.
• Manufacture: Production method is at the manufacturer’s discretion unless specified in the order.
• Sampling & testing: Sampling frequency is to follow the manufacturer’s quality assurance or purchaser agreement; chemical analysis methods must be standardized or validated (Clauses 8–9). Rounding rules follow EN ISO 80000‑1.
• Inspection documentation: When requested, inspection documents are issued in accordance with EN 10204.
• Marking: Each product or bundle should be marked with manufacturer ID, material designation, melt identification and unit weight.
• Packaging & surface protection: Requirements are provided and may be agreed at ordering; added in this edition.
• Complaints: Procedures for technical complaints and validation are described.

Practical applications and who uses EN 12421

• Primary users: foundries, magnesium castings manufacturers, metallurgists, quality managers, procurement/specification engineers and testing laboratories.
• Practical value: Ensures repeatable quality and traceability for cast unalloyed magnesium used where high-purity Mg is required. Helps suppliers and purchasers agree clear specification, sampling, marking and inspection requirements to support production, quality control and conformity assessment.

Related standards

• EN 1754 - designation system for magnesium materials
• ISO 8287:2011 - unalloyed magnesium chemical composition (comparison in Annex A)
• EN 10204 - types of inspection documents
• EN 10027‑2 - numerical designation rules
• EN ISO 80000‑1 - rounding and quantities/units

EN 12421:2017 is essential when specifying or supplying cast unalloyed magnesium, providing a harmonized set of grades, test and documentation requirements across CEN member countries.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Magnezij in magnezijeve zlitine - Nelegirani magnezijMagnesium und Magnesiumlegierungen - ReinmagnesiumMagnésium et alliages de magnésium - Magnésium non alliéMagnesium and magnesium alloys - Unalloyed magnesium77.120.20Magnezij in magnezijeve zlitineMagnesium and magnesium alloysICS:Ta slovenski standard je istoveten z:EN 12421:2017SIST EN 12421:2017en,fr,de01-maj-2017SIST EN 12421:2017SLOVENSKI
STANDARDSIST EN 12421:20001DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12421
March
t r s y ICS
y yä s t rä t r Supersedes EN
s t v t sã s { { zEnglish Version
Magnesium and magnesium alloys æ Unalloyed magnesiumMagnésium et alliages de magnésium æ Magnésium non allié
Magnesium und Magnesiumlegierungen æ Reinmagnesium This European Standard was approved by CEN on
x January
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t v t sã t r s y ESIST EN 12421:2017

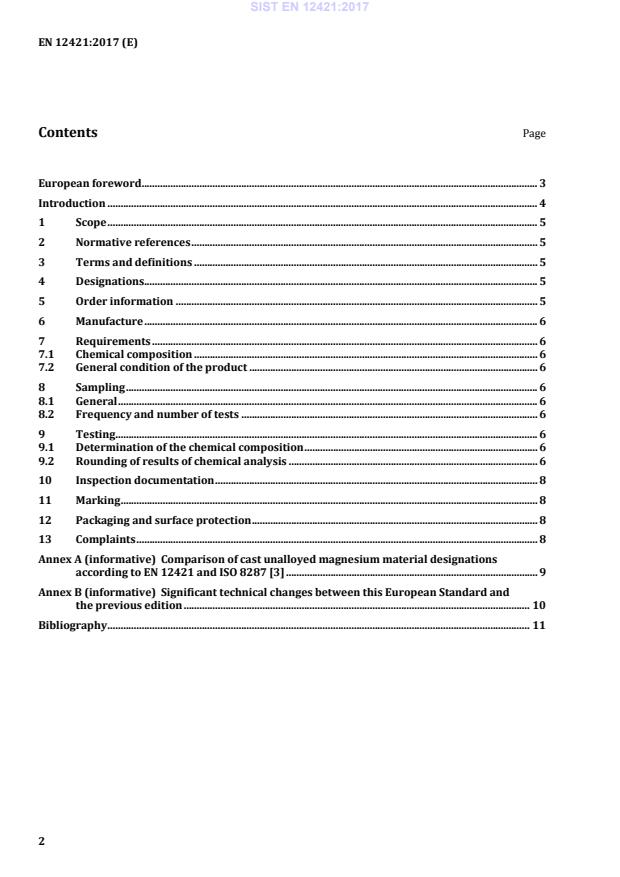

European foreword . 3 Introduction . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions . 5 4 Designations. 5 5 Order information . 5 6 Manufacture . 6 7 Requirements . 6 7.1 Chemical composition . 6 7.2 General condition of the product . 6 8 Sampling . 6 8.1 General . 6 8.2 Frequency and number of tests . 6 9 Testing . 6 9.1 Determination of the chemical composition . 6 9.2 Rounding of results of chemical analysis . 6 10 Inspection documentation . 8 11 Marking . 8 12 Packaging and surface protection . 8 13 Complaints . 8 Annex A (informative)
Comparison of cast unalloyed magnesium material designations according to EN 12421 and ISO 8287 [3] . 9 Annex B (informative)
Significant technical changes between this European Standard and the previous edition . 10 Bibliography . 11
...
