TITLE:
Railway applications – Current collection systems – Validation of simulation of the dynamic interaction
between pantograph and overhead contact line
PROPOSED STABILITY DATE: 2028
NOTE FROM TC/SC OFFICERS:
IEC 63453 ED1 is the conversion of EN 50318:2018 into an IEC Standard
Copyright © 2023 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download this
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.
---------------------- Page: 3 ----------------------
oSIST prEN IEC 63453:2023
9/2962/CDV 2 IEC CDV 63453 © IEC 2023

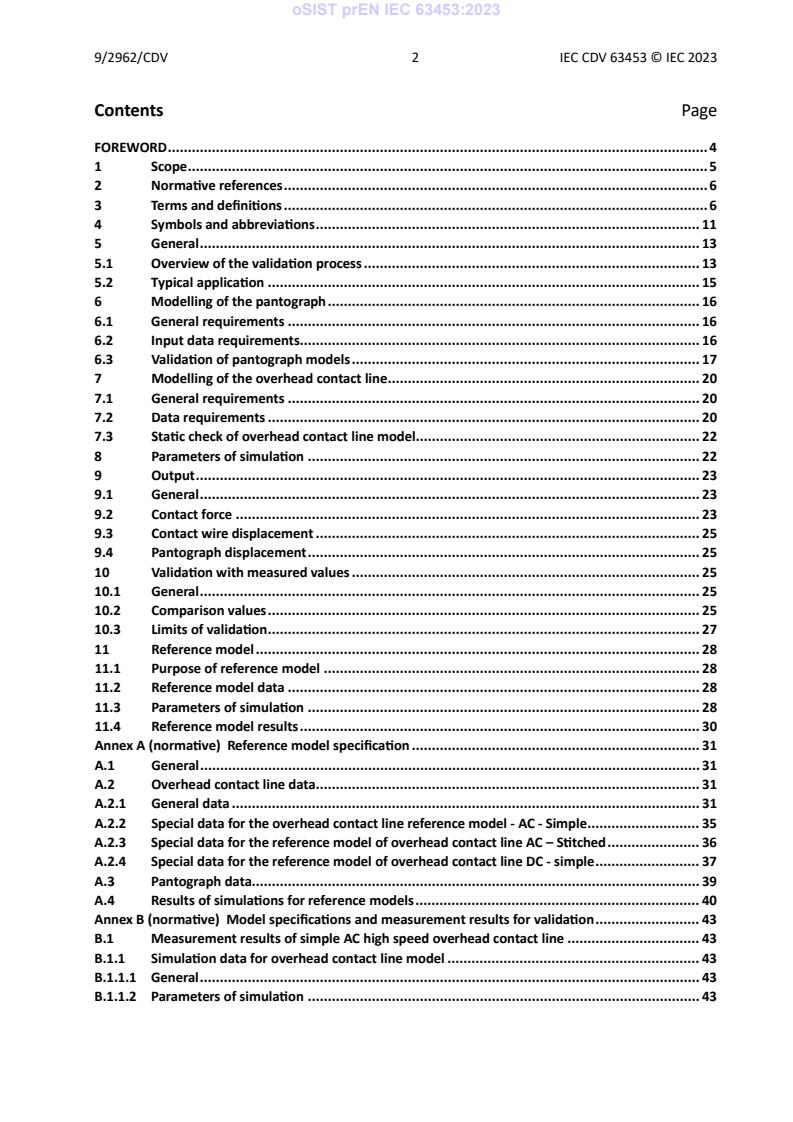

Contents Page
FOREWORD . 4
1 Scope . 5
2 Norma�ve references . 6
3 Terms and defini�ons . 6
4 Symbols and abbrevia�ons . 11
5 General . 13
5.1 Overview of the valida�on process . 13
5.2 Typical applica�on . 15
6 Modelling of the pantograph . 16
6.1 General requirements . 16
6.2 Input data requirements. 16
6.3 Valida�on of pantograph models . 17
7 Modelling of the overhead contact line . 20
7.1 General requirements . 20
7.2 Data requirements . 20
7.3 Sta�c check of overhead contact line model . 22
8 Parameters of simula�on . 22
9 Output . 23
9.1 General . 23
9.2 Contact force . 23
9.3 Contact wire displacement . 25
9.4 Pantograph displacement . 25
10 Valida�on with measured values . 25
10.1 General . 25
10.2 Comparison values . 25
10.3 Limits of valida�on . 27
11 Reference model . 28
11.1 Purpose of reference model . 28
11.2 Reference model data . 28
11.3 Parameters of simula�on . 28
11.4 Reference model results . 30
Annex A (norma�ve) Reference model specifica�on . 31
A.1 General . 31
A.2 Overhead contact line data . 31
A.2.1 General data . 31
A.2.2 Special data for the overhead contact line reference model - AC -
Simple . 35
A.2.3 Special data for the reference model of overhead contact line AC – S�tched . 36
A.2.4 Special data for the reference model of overhead contact line DC - simple . 37
A.3 Pantograph data. 39
A.4 Results of simula�ons for reference models . 40
Annex B (norma�ve) Model specifica�ons and measurement results for valida�on . 43
B.1 Measurement results of simple AC high speed overhead contact line . 43
B.1.1 Simula�on data for overhead contact line model . 43
B.1.1.1 General . 43
B.1.1.2 Parameters of simula�on . 43
---------------------- Page: 4 ----------------------
oSIST prEN IEC 63453:2023
IEC CDV 63453 © IEC 2023 3 9/2962/CDV
B.1.1.3 Model parameter and mechanical data of OCL . 43
B.1.1.4 Geometrical data of overhead contact line . 45
B.1.1.5 Span defini�on . 45
B.1.1.6 Support defini�on . 46
B.1.1.7 Droppers . 50
B.1.2 Pantograph model . 56
B.1.3 Measured data of dynamic interac�on for valida�on . 57
B.2 Measurement results of a s�tched AC high speed overhead contact line . 58
B.2.1 General . 58
B.2.2 Simula�on data for overhead contact line model . 58
B.2.2.1 Parameters of simula�on . 58
B.2.2.2 Model parameter and mechanical data of OCL . 59
B.2.2.3 Geometrical data of overhead contact line . 60
B.2.2.4 Support data . 69
B.2.3 Pantograph data. 73
B.2.4 Calculated and measured data of OCL-rest posi�on for valida�on . 74
B.2.5 Measuring data of dynamic interac�on for valida�on . 75
B.3 Measurement results of simple DC high speed overhead contact line . 76
B.3.1 General . 76
B.3.2 Simula�on data for overhead contact line model . 76
B.3.2.1 Parameters of simula�on . 76
B.3.2.2 Model parameter and mechanical data of OCL . 76
B.3.2.3 Geometrical data of overhead contact line . 77
B.3.2.4 Support data . 96
B.3.3 Pantograph data. 99
B.3.4 Measured data of dynamic interac�on for valida�on . 100
Annex C (informa�ve) Assessment process example for dynamic interac�on between ‘new’ OCL
design or ‘new’ pantograph design for interoperability purpose . 101
Bibliography . 105
---------------------- Page: 5 ----------------------
oSIST prEN IEC 63453:2023
9/2962/CDV 4 IEC CDV 63453 © IEC 2023
Railway applications – Current collection systems –
Validation of simulation of the dynamic interaction
between pantograph and overhead contact line
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national
electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all
questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC
publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and
Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National
Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the
International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of
opinion on the relevant subjects since each technical committee has representation from all interested IEC National
Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that
sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot
be held responsible for the way in which they are used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to
the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the
corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment
services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by
independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its
technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature
whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of,
or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable
for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63453 has been prepared by IEC technical committee 9: Electrical equipment and systems for
railways . It is an International Standard,.
---------------------- Page: 6 ----------------------
oSIST prEN IEC 63453:2023
IEC CDV 63453 © IEC 2023 5 9/2962/CDV
1 1 Scope
2 Simula�on techniques are used to assess the dynamic interac�on between overhead contact lines and
3 pantographs, as part of the predic�on of current collec�on quality. This document specifies func�onal
4 requirements for the valida�on of such simula�on tools to ensure confidence in, and mutual acceptance
5 of the results of the simula�ons.
6 This document deals with:
7 – input and output parameters of the simulation;
8 – comparison with line test measurements, and the characteristics of those line tests;
9 – validation of pantograph models;
10 – comparison between different simulation tools;
11 – limits of application of validated methods to assessments of pantographs and overhead contact lines.
12 This document applies to the current collec�on from an overhead contact line by pantographs mounted
13 on railway vehicles. It does not apply to trolley bus systems.
---------------------- Page: 7 ----------------------
oSIST prEN IEC 63453:2023
9/2962/CDV 6 IEC CDV 63453 © IEC 2023
14 2 Normative references
15 The following documents are referred to in the text in such a way that some or all of their content
16 cons�tutes requirements of this document. For dated references, only the edi�on cited applies. For
17 undated references, the latest edi�on of the referenced document (including any amendments) applies.
18 IEC 60913:2013, Railway applications — Fixed installations — Electric traction overhead contact lines
19 IEC 60494-1:2013, Railway applications — Rolling stock — Pantographs - Characteristics and tests —
20 Part 1: Pantographs for main line vehicles
21 IEC 62846:2016, Railway applications —Current collection systems — Requirements for and validation of
22 measurements of the dynamic interaction between pantograph and overhead contact line
23 IEC 62486:2017, Railway applications — Current collection systems — Technical criteria for the interaction
24 between pantograph and overhead contact line (to achieve free access)
25 3 Terms and definitions
26 For the purpose of this document, the following terms and defini�ons apply.
27 ISO and IEC maintain terminology databases for use in standardiza�on at the following addresses:
28 • IEC Electropedia: available at http://www.electropedia.org/
29 • ISO Online browsing platform: available at http://www.iso.org/obp
30 3.1
31 contact point
32 location of mechanical contact between a pantograph contact strip and a contact wire
---------------------- Page: 8 ----------------------
oSIST prEN IEC 63453:2023
IEC CDV 63453 © IEC 2023 7 9/2962/CDV
33 3.2
34 contact force
35 vertical force applied by a pantograph to the overhead contact line
36 Note 1 to entry: The contact force is the sum of forces of all contact points of one pantograph.
37 3.3
38 static contact force
39 vertical force exerted upward by the collector head on the overhead contact line system at standstill
40 [SOURCE: IEC 60494-1:2013, 3.3.5]
41 3.4
42 aerodynamic force
43 additional vertical force applied by the pantograph as a result of air flow around the pantograph assembly
44 3.5
45 mean contact force
46 statistical mean value of the contact force
47 Note 1 to entry: Fm is formed by the static and aerodynamic components of the pantograph contact force.
48 [SOURCE: IEC 62486:2017, 3.11]
49 3.6
50 standard deviation
51 square root of the sum of the squared sample variance divided by the number of output values minus 1
52 3.7
53 skewness
54 parameter that quantifies the symmetry of the shape of a data distribution
3
FF−
( )
m
∑
n
55 (1)
sk =
3
2
2
FF−
( )
m
∑
n
56 3.8
57 excess of kurtosis
58 parameter that quantifies whether the shape of the data distribution matches the Gaussian distribution
4
FF−
( )
m
∑
n
ek − 3
59 (2)
2
2
FF−
( )
m
∑
n
60 3.9
61 minimum of contact force
62 minimum value of the contact force while the pantograph passes over the analysis section
=
---------------------- Page: 9 ----------------------
oSIST prEN IEC 63453:2023
9/2962/CDV 8 IEC CDV 63453 © IEC 2023
63 3.10
64 maximum of contact force
65 maximum value of the contact force while the pantograph passes over the analysis section
66 3.11
67 contact loss
68 condition where the contact force is zero
69 Note 1 to entry: Contact loss surely induces arcing except in the case of coasting. However, if two or more pantographs
70 are connected electrically each other, arc will immediately disappear and then the condition will shift to ‘current loss’.
71 [SOURCE: IEC 62486:2017, 3.22]
72 3.12
73 simulation method
74 numerical method that uses a fixed set of input parameters describing a system (e.g. pantograph/overhead
75 contact line system) to calculate a set of output values representative of the dynamic behaviour of this
76 system
77 3.13
78 simulation tool
79 software implementing (a) simulation method(s)
80 3.14
81 pantograph model
82 mathematical model in a one- or more-dimensional geometry describing the dynamic characteristics of the
83 pantograph
84 3.15
85 mass – spring – damper – model
86 lumped parameter model
87 method representing a dynamic mechanical system (e.g. pantograph) as a series of discrete concentrated
88 masses connected together by spring and damper elements
89 3.16
90 transfer function
91 ratio of an applied input on pantograph head to the response of the pantograph, depending on frequency
92 3.17
93 apparent mass
94 transfer function describing the relation between applied contact force and resulting acceleration at the
95 contact point for the frequency range of interest
96 3.18
97 hardware in the loop
98 hybrid simulation/test rig measuring method, where a real pantograph responds interacting with a
99 simulation model of the overhead contact line
100 3.19
101 multi-body model
102 method representing a dynamic mechanical system (e.g. pantograph) based on interconnected rigid or
103 flexible bodies
---------------------- Page: 10 ----------------------
oSIST prEN IEC 63453:2023
IEC CDV 63453 © IEC 2023 9 9/2962/CDV
104 3.20
105 collector head
106 pantograph head
107 part of the pantograph supported by the frame which includes contact strips, horns and can include a
108 suspension
109 [SOURCE: IEC 60494-1:2013, 3.2.3, modified – the term "pantograph head" has been added.]
110 3.21
111 overhead contact line model
112 mathematical model in a two- or three-dimensional geometry describing the characteristics of an overhead
113 contact line for interaction with pantographs
114 3.22
115 wave propagation velocity
116 speed of a transversal wave, which runs along the contact wire
117 3.23
118 contact wire height at rest position
119 distance from the top of the rail (or road surface for overhead contact line system for trolleybus applications)
120 to the lower face of the contact wire, measured perpendicular to the track
121 Note 1 to entry: The contact wire height is measured perpendicular to the track or road surface.
---------------------- Page: 11 ----------------------
oSIST prEN IEC 63453:2023
9/2962/CDV 10 IEC CDV 63453 © IEC 2023
122 3.24
123 maximum uplift at the support
124 maximum value of the vertical uplift of the contact wire at a support
125 3.25
126 analysis section
127 subset of the total overhead contact line model length over which the simulation will be evaluated
128 3.26
129 frequency range of interest
130 frequency range within which the dynamic performance of the overhead contact line – pantograph system
131 is considered
132 Note 1 to entry: For validation with measurements this range correlates with the frequency range defined in IEC
133 62846.
134 3.27
135 dynamic interaction
136 behaviour between pantograph(s) and overhead contact line when in contact, described by contact forces
137 and vertical displacements of contact point(s)
138 3.28
139 frequency band analysis
140 analysis inside a frequency range of interest using subranges of frequencies to study special topics
141 3.29
142 elasticity of overhead contact line
143 uplift divided by the force applied to the contact wire in a static state
144 3.30
145 range of vertical position of the point of contact
146 difference between maximum and minimum dynamic height of the contact point, relative to the track, during
147 dynamic interaction between the pantograph and the contact wire
148 3.31
149 operation height
150 vertical distance between actual operating position of the pantograph and pantographs housed height
151 3.32
152 active pantograph
153 pantograph fited with any type of ac�ve control system which enhances or alters its dynamic response
154
---------------------- Page: 12 ----------------------
oSIST prEN IEC 63453:2023
IEC CDV 63453 © IEC 2023 11 9/2962/CDV
155
156 4 Symbols and abbreviations
157 For the purpose of this document, the following symbols and abbrevia�ons apply.
Abbreviations:
CT centre of the track
CW contact wire
CWH contact wire height
FFT fast Fourier transformation
HIL hardware in the loop
MT mast type
MW messenger wire
Mxx support or mast number
OCL overhead contact line
ROCL rigid overhead contact line
SDx number of dropper to stitch wire
STx span type number as reference to Figure Span number
SW stitch wire
---------------------- Page: 13 ----------------------
oSIST prEN IEC 63453:2023
9/2962/CDV 12 IEC CDV 63453 © IEC 2023
Symbols:
a measured vertical acceleration at the contact point
cp,meas
a simulated vertical acceleration at the contact point
cp,model
C structural damping matrix
s
c damping of element n
n
Dx dropper number
E modulus of elasticity
e elasticity of overhead contact line
ek excess of kurtosis of contact force
F contact force
F measured vertical force applied at the contact point
applied,meas
F simulated vertical force applied at the contact point
applied,model
F mean contact force
m
Fsa lateral force at steady arm
f actual frequency
i
f maximum frequency
n
f minimum frequency
1
K stiffness matrix
k stiffness of element n
n
Ldr dropper length
Lx dropper length (for CW no. x)
dr
Lsa length of steady arm
M mass matrix
m measured apparent mass
app,meas
m apparent mass of the model
app,model
mn mass of element n
Q accuracy of the pantograph simulation model
sk skewness of contact force
X distance between left mast and dropper no. x
α, β proportional damping coefficients
σ standard deviation of contact force
158
159
---------------------- Page: 14 ----------------------
oSIST prEN IEC 63453:2023
IEC CDV 63453 © IEC 2023 13 9/2962/CDV
160 5 General
161 5.1 Overview of the validation process
162 The theore�cal study of the dynamic interac�on between pantograph and overhead contact line by
163 computer simula�on makes it possible to obtain much informa�on about the system and to minimize
164 the costs of line tests.
165 To be used with confidence the simula�on tool shall be validated. The valida�on for a simula�on tool
166 shall be done in a process described in Figure 1.
167 A simula�on tool validated according to this standard, shall be considered for applica�on to overhead
168 contact line/pantograph combina�ons and condi�ons only within the limits of validity defined in 10.3.
169 A new valida�on shall be made when the condi�ons to apply simula�on are outside the limita�ons
170 defined in 10.3 for exis�ng valida�ons.
171 The valida�on for a simula�on tool shall be done with the steps which are shown in Figure 1. The steps
172 are:
173 1) A first validation step shall be done by a “desktop assessment” in accordance to Clause 11. The most
174 relevant reference model data shall be chosen from the reference models in Annex A for the conditions
175 for which validation is required.
176 NOTE This desktop assessment will improve the confidence in the simulation tool. As Annex A cannot cover all
177 possible solutions and combinations a choice from this subset is necessary.
178 For validation of simulation tools implemented for new technologies in ways that are totally different
179 from the current state of the art, and which are not able to use models with the data according to
180 Annex A, the “desktop assessment” may be omitted.
181 NOTE Typically, all simulation tools for OCL from type “Flexible overhead contact line” according to IEC 60913 can use
182 models with data according to Annex A.
183 2) The final assessment shall be done by a “Line Test Data Validation” based on test results according
184 to 10.1 to demonstrate the accuracy of simulation according to 10.2.
185 Annex B provides data sets from line test measurements in accordance with IEC62846 to allow for a
186 validation for a given model within the limitations according to 10.3.
187 If the accuracy according to either 10.2 or to 11.4 cannot be achieved, then the simula�on tool shall be
188 improved according to 6.3 for pantograph model adjustments and according to 7.3 for overhead contact
189 line model before revalida�on.
---------------------- Page: 15 ----------------------
oSIST prEN IEC 63453:2023
9/2962/CDV 14 IEC CDV 63453 © IEC 2023
Start validation
process
Has the simulation method been
valida
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
