SIST EN IEC 61133:2022
(Main)Railway applications - Rolling stock - Testing of rolling stock on completion of construction and before entry into service
Railway applications - Rolling stock - Testing of rolling stock on completion of construction and before entry into service
This International Standard specifies general criteria to demonstrate by testing that newly
constructed complete railway vehicles conform with standards or other normative documents.
This International Standard, as a whole or in part, applies to all railway vehicles except
special purpose vehicles such as track-laying machines, ballast cleaners and personnel
carriers. The extent of application of the standard for particular vehicles will be specifically
mentioned in the contract, to take account, where necessary, of any legislative requirements.
NOTE 1 The parts of the standard which are applicable will depend on the type of vehicle (e.g. passenger, freight,
powered trailer, etc.).
NOTE 2 The scope of this standard excludes railbound and road/rail vehicles for construction and maintenance of
railway infrastructure.
NOTE 3 This standard does not deal with tests carried out on components or equipment before fitting to the
vehicle.
In so far as this International Standard is applicable, it may be used for the following:
– generator sets mounted on a vehicle provided for auxiliary purposes;
– electrical transmission used on trolley buses or similar vehicles;
– control and auxiliary equipment of vehicles with non-electrical propulsion systems;
– vehicles guided, supported or electrically propelled by systems which do not use the
adhesion between wheel and rail.
NOTE 4 Specific technical requirements apply to vehicles which operate on the railways in the European Union.
The source of those requirements is given in Annex B. Where a European requirement applies to a given clause, a
note has been inserted at the end of the clause
Bahnanwendungen - Bahnfahrzeuge - Prüfung von Bahnfahrzeugen nach Fertigstellung und vor Indienststellung
Applications ferroviaires - Matériel roulant - Essais sur matériel roulant après achèvement et avant mise en service
L'IEC 61133:2016 spécifie des critères généraux permettant de démontrer par des essais que les véhicules ferroviaires nouvellement construits et achevés satisfont aux normes ou autres documents normatifs. La présente Norme internationale s'applique en tout ou en partie à tous les véhicules ferroviaires, à l'exception des véhicules spéciaux tels les véhicules de pose de voies, les nettoyeurs de ballast et les véhicules de transport de personnel. L'étendue de l'application de la norme à ces véhicules spéciaux sera précisément mentionnée au contrat afin de prendre en compte, si nécessaire, les exigences législatives. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- les références à des normes autres que des normes internationales ont été supprimées du texte principal;
- les notes ne font donc référence qu'à l'Annexe B;
- l'Annexe B a été mise à jour avec les informations européennes les plus récentes;
- les références croisées des STI et des EN avec les articles de l'IEC 61133 ont été ajoutées.
Železniške naprave - Vozna sredstva - Preskušanje voznih sredstev po končani gradnji in pred rednim obratovanjem
Ta mednarodni standard določa splošna merila, s katerimi se s preskušanjem dokaže, da so na novo izdelana železniška vozila skladna s standardi ali drugimi normativnimi dokumenti. Ta mednarodni standard se v celoti ali delno uporablja za vsa železniška vozila, razen za vozila za posebne namene, kot so stroji za polaganje tirnic, odstranjevalci balasta in vozila za prevoz osebja. Obseg uporabe standarda za posamezna vozila bo posebej naveden v pogodbi, da se po potrebi upoštevajo vse zakonodajne zahteve. OPOMBA 1: Deli standarda, ki se uporabljajo, so odvisni od vrste vozila (npr. potniško, tovorno, vlečna prikolica itd.). OPOMBA 2: Področje uporabe tega standarda izključuje železniška in cestno-železniška vozila za gradnjo in vzdrževanje železniške infrastrukture. OPOMBA 3: Ta standard ne obravnava preskusov, opravljenih na komponentah ali opremi pred vgradnjo v vozilo. Če se uporablja ta mednarodni standard, velja za naslednje: – generatorske agregate, nameščene na vozilo za pomožne namene; – električne prenose, ki se uporabljajo na trolejbusih ali podobnih vozilih; – krmilno in pomožno opremo vozil z neelektričnimi pogonskimi sistemi; – vozila, ki jih vodijo, podpirajo ali poganjajo sistemi brez oprijema med kolesom in tirnico. OPOMBA 4: Za vozila, ki vozijo po železnici v Evropski uniji, veljajo posebne tehnične zahteve. Vir teh zahtev je naveden v dodatku B. Kadar za dano točko velja evropska zahteva, je na koncu točke vstavljena opomba.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 61133:2022
01-marec-2022
Nadomešča:
SIST EN 50215:2009
Železniške naprave - Vozna sredstva - Preskušanje voznih sredstev po končani
gradnji in pred rednim obratovanjem
Railway applications - Rolling stock - Testing of rolling stock on completion of
construction and before entry into service
Bahnanwendungen - Bahnfahrzeuge - Prüfung von Bahnfahrzeugen nach Fertigstellung
und vor Indienststellung
Applications ferroviaires - Matériel roulant - Essais sur matériel roulant après
achèvement et avant mise en service
Ta slovenski standard je istoveten z: EN IEC 61133:2021
ICS:
29.280 Električna vlečna oprema Electric traction equipment
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
SIST EN IEC 61133:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 61133:2022
---------------------- Page: 2 ----------------------
SIST EN IEC 61133:2022
EUROPEAN STANDARD EN IEC 61133
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2021
ICS 45.060 Supersedes EN 50215:2009 and all of its amendments
and corrigenda (if any)
English Version
Railway applications - Rolling stock - Testing of rolling stock on
completion of construction and before entry into service
(IEC 61133:2016)
Applications ferroviaires - Matériel roulant - Essais sur Bahnanwendungen - Fahrzeuge - Prüfung von
matériel roulant après achèvement et avant mise en service Bahnfahrzeugen nach Fertigstellung und vor
(IEC 61133:2016) Indienststellung
(IEC 61133:2016)
This European Standard was approved by CENELEC on 2021-11-29. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61133:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 61133:2022
EN IEC 61133:2021 (E)

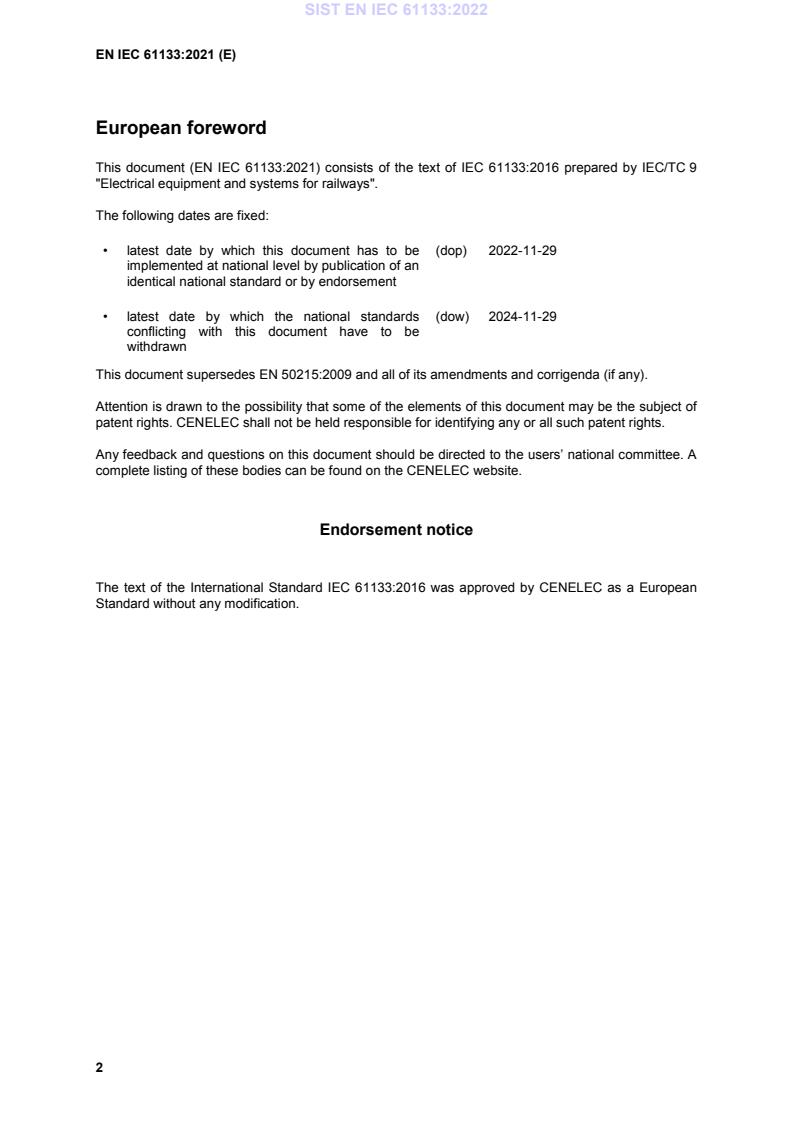

European foreword
This document (EN IEC 61133:2021) consists of the text of IEC 61133:2016 prepared by IEC/TC 9
"Electrical equipment and systems for railways".
The following dates are fixed:
• latest date by which this document has to be (dop) 2022-11-29
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2024-11-29
conflicting with this document have to be
withdrawn
This document supersedes EN 50215:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61133:2016 was approved by CENELEC as a European
Standard without any modification.
2
---------------------- Page: 4 ----------------------
SIST EN IEC 61133:2022
EN IEC 61133:2021 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60077 series Railway applications - Electric EN 60077 series
equipment for rolling stock
IEC 60310 2016 Railway applications - Traction EN 60310 2016
transformers and inductors on board
rolling stock
IEC 60322 2001 Railway applications - Electric EN 60322 2001
equipment for rolling stock - Rules for
power resistors of open construction
IEC 60349 series Electric traction - Rotating electrical EN 60349 series
machines for rail and road vehicles
IEC 60494-1 2013 Railway applications - Rolling stock - EN 50206-1 2010
Pantographs - Characteristics and tests
- Part 1: Pantographs for main line
vehicles
IEC 60494-2 2013 Railway applications - Rolling stock - EN 50206-2 2010
Pantographs - Characteristics and tests
- Part 2: Pantographs for metros and
light rail vehicles
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
+AC 1993
+A1 2000
+A2 2013
+AC 2016
+AC 2019
1
IEC 60571 2012 Railway applications - Electronic EN 50155 2021
equipment used on rolling stock
1
For this standard, the directly equivalent European standard has been withdrawn; the standard listed
is the current version.
3
---------------------- Page: 5 ----------------------
SIST EN IEC 61133:2022
EN IEC 61133:2021 (E)
Publication Year Title EN/HD Year
IEC 60850 2014 Railway applications - Supply voltages EN 50163 2004
of traction systems
+ A1 2007
+ corrigendum May 2010
+ AC 2013
+ A2 2020
IEC 61287 series Railway applications - Power EN 61287 series
converters installed on board rolling
stock
IEC 61377-1 - Electric traction - Rolling stock - EN 61377 -
Combined testing - Part 1: Combined
testing of inverter-fed alternating
current motors and their control
IEC 61377-2 - Railway applications - Rolling stock - EN 61377 -
Combined testing - Part 2: Chopper-fed
direct current traction motors and their
control
IEC 61377-3 - Railway applications - Rolling stock - EN 61377 -
Part 3: Combined testing of alternating
current motors, fed by an indirect
convertor, and their control system
1
IEC 61991 2000 Railway applications - Rolling stock - EN 50153 2014
Protective provisions against electrical 1
+ A1 2017
hazards
1
+ A2 2020
1
IEC 62236-3-1 2008 Railway applications - Electromagnetic EN 50121-3-1 2017
compatibility - Part 3-1: Rolling stock - 1
+ A1 2019
Train and complete vehicle
1
IEC 62236-3-2 2008 Railway applications - Electromagnetic EN 50121-3-2 2016
compatibility - Part 3-2: Rolling stock - 1
+ A1 2019
Apparatus
1
IEC 62278 2002 Railway applications - Specification and EN 50126-1 2017
demonstration of reliability, availability, 1
EN 50126-2 2017
maintainability and safety (RAMS)
1
IEC 62313 2009 Railway applications - Power supply EN 50388 2012
and rolling stock - Technical criteria for 1
+ AC 2013
the coordination between power supply
(substation) and rolling stock
IEC 62425 - Railway applications - Communication, EN 50129 -
signalling and processing systems -
Safety related electronic systems for
signalling
1
IEC 62427 2007 Railway applications - Compatibility EN 50238-1 2019
between rolling stock and train
detection systems
IEC 62845 - Railway applications - Radio remote EN 50239 -
control system of traction vehicles for
shunting application
4
---------------------- Page: 6 ----------------------
SIST EN IEC 61133:2022
EN IEC 61133:2021 (E)
Publication Year Title EN/HD Year
IEC 62846 - Railway applications - Current EN 50317 -
collection systems - Requirements for
and validation of measurements of the
dynamic interaction between
pantograph and overhead contact line
ISO/IEC 17025 - General requirements for the EN ISO/IEC 17025 -
competence of testing and calibration
laboratories
ISO 3095 - Acoustics - Railway applications - EN ISO 3095 -
Measurement of noise emitted by
railbound vehicles
ISO 3381 - Railway applications - Acoustics - EN ISO 3381 -
Measurement of noise inside railbound
vehicles
ISO 9001 2015 Quality management systems - EN ISO 9001 2015
Requirements
5
---------------------- Page: 7 ----------------------
SIST EN IEC 61133:2022
---------------------- Page: 8 ----------------------
SIST EN IEC 61133:2022
IEC 61133
®
Edition 3.0 2016-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Railway applications – Rolling stock – Testing of rolling stock on completion of
construction and before entry into service
Applications ferroviaires – Matériel roulant – Essais de matériel roulant après
achèvement et avant mise en service
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 45.060 ISBN 978-2-8322-3178-4
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 9 ----------------------
SIST EN IEC 61133:2022
– 2 – IEC 61133:2016 © IEC 2016
CONTENTS
FOREWORD . 6
1 Scope . 8
2 Normative references. 8
3 Terms, definitions and abbreviations . 10
4 Requirements . 12
4.1 General . 12
4.2 Third party test facilities . 13
4.3 Test plan . 13
5 Categories of tests . 14
5.1 General . 14
5.2 Preliminary adjustment tests . 14
5.3 Acceptance tests . 14
5.3.1 Type tests . 14
5.3.2 Routine tests. 15
5.3.3 Tests required by Approval Authority . 15
5.4 Investigation tests . 15
6 Test conditions . 16
6.1 General . 16
6.2 Static tests . 16
6.3 Dynamic tests . 16
7 Validation documentation . 17
8 Schedule of static tests . 17
8.1 General . 17
8.2 Dimensional tests . 17
8.2.1 Objective . 17
8.2.2 Type tests . 18
8.2.3 Routine tests. 19
8.3 Gauging test . 19
8.3.1 Objective . 19
8.3.2 General (type and safety-related test) . 19
8.3.3 Coefficient of flexibility test (type test and safety-related test, voluntary
or obligatory) . 19
8.3.4 Routine test or equivalent (safety-related test) . 19
8.4 Lifting ability test (type and safety-related test) . 19
8.4.1 Objective . 19
8.4.2 Type test . 20
8.5 Weighing tests . 20
8.5.1 Objective . 20
8.5.2 Load cases . 20
8.5.3 Type tests (safety-related test) . 21
8.5.4 Routine tests (safety-related test) . 22
8.6 Sealing tests . 22
8.6.1 Objective . 22
8.6.2 Type tests . 22
8.6.3 Routine tests (voluntary test) . 23
8.7 Electrical insulation tests (routine tests) . 23
---------------------- Page: 10 ----------------------
SIST EN IEC 61133:2022
IEC 61133:2016 © IEC 2016 – 3 –
8.7.1 General . 23
8.7.2 Voltage withstand test . 23
8.7.3 Insulation impedance test . 24
8.8 Protective bonding and return circuits tests (routine and safety-related test) . 24
8.9 Air system tests . 24
8.9.1 General . 24
8.9.2 Air tightness of main reservoirs and other air equipment (routine and
safety-related test) . 25
8.9.3 Air tightness of brake cylinders and auxiliary reservoirs (routine and
safety-related test) . 25
8.9.4 Checking operation of compressed air equipment (type and safety-
related test where appropriate) . 25
8.10 Hydraulic system tests (type, routine and safety-related test where
appropriate) . 26
8.11 Friction brake system tests . 26
8.11.1 General . 26
8.11.2 Pneumatically applied brake systems . 27
8.11.3 Other systems (type, routine and safety-related as appropriate) . 27
8.11.4 Sanding systems (type, routine and safety-related test) . 27
8.12 Parking brake type tests (safety-related test) . 28
8.13 Auxiliary power supply system tests . 28
8.13.1 Objective . 28
8.13.2 Type tests (safety-related tests where appropriate) . 28
8.13.3 Routine tests. 29
8.14 Battery charging tests . 29
8.14.1 Objective . 29
8.14.2 Type test . 29
8.14.3 Routine test . 29
8.15 Auxiliary and control system tests . 30
8.15.1 Objective . 30
8.15.2 General tests . 30
8.15.3 Train control (safety-related tests where appropriate) . 31
8.15.4 Door control systems (safety-related test) . 31
8.15.5 Heating, ventilation and air-conditioning system tests (safety-related
test where appropriate) . 32
8.15.6 Lighting system (interior) . 32
8.15.7 Other systems (type, routine and safety-related tests where
appropriate) . 32
8.15.8 Software controlled systems (safety-related test where appropriate) . 33
8.16 Tests on thermal engine and associated generating sets or transmission . 33
8.16.1 General . 33
8.16.2 Operating speed tests of the thermal engine (type tests) . 33
8.16.3 Thermal engine protective devices (type test) . 34
8.16.4 Thermal engine fluid, air and exhaust circuits (routine test, safety-
related test where appropriate) . 34
8.16.5 Engine driven auxiliaries . 34
8.16.6 Cranking of the thermal engine (type test) . 34
8.16.7 Operation of the thermal engine . 34
8.17 Traction system tests (type, routine and safety-related tests where
appropriate) . 35
---------------------- Page: 11 ----------------------
SIST EN IEC 61133:2022
– 4 – IEC 61133:2016 © IEC 2016
8.18 Operability and maintainability (type test) . 36
8.18.1 General . 36
8.18.2 Cabs and traincrew areas (safety-related test) . 36
8.18.3 Passenger areas (safety-related test where appropriate) . 37
8.18.4 Rescue (safety-related test where required) . 37
8.19 Noise and vibration tests (type test, safety-related test where appropriate) . 37
8.20 Safety-related system tests (routine tests) . 37
9 Schedule of dynamic tests . 38
9.1 General . 38
9.2 Traction performance (tractive effort/speed characteristics) . 38
9.2.1 Type test . 38
9.2.2 Routine test . 39
9.3 Traction performance (journey time check) (voluntary type test) . 39
9.4 Braking tests . 40
9.4.1 Type test (safety-related tests) . 40
9.4.2 Routine tests (safety-related tests) . 44
9.5 Traction and braking thermal capacity tests (type test, safety-related test
where appropriate) . 44
9.6 Resistance to motion (voluntary type test). 45
9.7 Speed regulating system tests (type and routine tests, safety-related where
appropriate) . 45
9.8 Automatic train protection systems (type, routine and safety-related tests) . 46
9.9 Vehicle/track interaction . 46
9.9.1 Safety of running . 46
9.9.2 Suspension clearances, inter-vehicle clearances (voluntary type and
safety-related test where appropriate) . 47
9.10 Ride comfort quality (voluntary tests) . 48
9.10.1 Objective . 48
9.10.2 Type test . 48
9.10.3 Routine test (voluntary test) . 48
9.11 Kinematic envelope . 48
9.11.1 Type test (safety-related test) . 48
9.11.2 Routine test (voluntary) . 48
9.12 Operation of wheel flange lubricators (safety-related routine test only) . 48
9.13 Current collector and power supply contact system compatibility tests
(safety-related type test only) . 49
9.14 Aerodynamic effects (type tests only, safety-related where appropriate) . 49
9.15 Electromagnetic compatibility (type tests only) . 50
9.15.1 Internal interference within the vehicle (safety-related where
appropriate) . 50
9.15.2 External interference produced by the vehicle (safety-related where
appropriate) . 50
9.15.3 Radio frequency interference . 51
9.15.4 External interference to the vehicle . 51
9.15.5 Electrostatic discharges (voluntary test) . 51
9.16 Interruption and voltage/jump and short circuit test (voluntary type test only) . 51
9.16.1 General . 51
9.16.2 Voltage jump tests . 52
9.16.3 Interruption tests . 52
9.16.4 Voltage variation testing . 52
---------------------- Page: 12 ----------------------
SIST EN IEC 61133:2022
IEC 61133:2016 © IEC 2016 – 5 –
9.16.5 Short circuit test . 53
9.17 Noise tests . 53
9.17.1 Type test . 53
9.17.2 Routine test (voluntary test) . 53
9.18 Air systems – compressor duty cycle (type test, safety-related where
appropriate) . 53
9.19 Windscreen wipers (type test) . 54
9.20 Train control system (type test, safety-related where appropriate) . 54
Annex A (informative) List of tests . 56
Annex B (informative) Requirements for the European Community – Legal requirement
in accordance with AC/135/2002 . 61
B.1 General . 61
B.2 Legal references . 61
B.2.1 Directives . 61
B.2.2 Technical specifications for interoperability . 61
B.3 European Standards relevant to Clauses in IEC 61133 . 62
Bibliography . 65
Table 1 – Recommended load cases . 20
Table A.1 – List of static tests (1 of 4) . 56
Table A.2 – List of dynamic tests (1 of 2) . 59
---------------------- Page: 13 ----------------------
SIST EN IEC 61133:2022
– 6 – IEC 61133:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RAILWAY APPLICATIONS – ROLLING STOCK –
TESTING OF ROLLING STOCK ON COMPLETION OF
CONSTRUCTION AND BEFORE ENTRY INTO SERVICE
FOREWORD
1) The International Elect
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
