SIST EN IEC 63086-1:2020

Household and similar electrical air cleaning appliances - Methods for measuring the performance - Part 1: General requirements

This part of IEC 63086 applies to electrically powered household and similar air cleaners
intended for use on rated single-phase AC input voltage circuits not exceeding 250 V and DC
input voltage circuits not exceeding 48 V.
NOTE 1 See Clause 4 for examples of different technologies and placements of household and similar air cleaners.
NOTE 2 If the test methods in this document are applied to combination products (air conditioners, humidifiers,
dehumidifiers, heaters, etc.) with air cleaning function, they are only aimed at their air cleaning function when tested.
NOTE 3 Battery-operated appliances are within the scope of this document. Dual-supply appliances, either mainssupplied
or battery-operated, are regarded as battery-operated appliances when operated in the battery mode.
NOTE 4 This document is not applicable to:
• appliances intended exclusively for industrial purposes;
• appliances intended for use in medical treatment locations, such as surgical suites, laboratories, medical
treatments rooms, etc.
• household range hoods or cooking fume extractors – see IEC 61591.

Elektrische Luftreiniger für den Hausgebrauch und ähnliche Zwecke – Messung der Gebrauchseigenschaften - Teil 1: Allgemeine Anforderungen

Appareils d'épuration d'air électriques domestiques et appareils similaires - Méthodes de mesure de l’aptitude à la fonction - Partie 1: exigences générales

L'IEC 63086-1:2020 s'applique aux appareils d'épuration d'air domestiques et appareils similaires électriques destinés à être utilisés sur des circuits à tension d'entrée en courant alternatif monophasé assigné ne dépassant pas 250 V et sur des circuits à tension d'entrée en courant continu ne dépassant pas 48 V.
Si les méthodes d'essai du présent document sont appliquées à des produits mixtes (des climatiseurs, des humidificateurs, des déshumidificateurs, des chauffages, etc.) avec une fonction d'épuration d'air, elles ne visent qu'à assurer leur fonction d'épuration de l'air lors des essais.
Les appareils alimentés par batterie relèvent du domaine d'application du présent document. Les appareils à double alimentation, qu'ils soient alimentés par le réseau ou par batterie, sont considérés comme des appareils alimentés par batterie lorsqu'ils fonctionnement en mode batterie.
Le présent document ne s’applique pas:
- aux appareils destinés exclusivement à un usage industriel;
- aux appareils destinés à être utilisés dans des lieux de soins médicaux (les blocs opératoires, les laboratoires, les salles de soins médicaux, etc.).
- aux hottes domestiques ni aux hottes de cuisine (voir l'IEC 61591).
Cette première édition annule et remplace l'IEC PAS 62587, publiée en 2008.

Gospodinjski in podobni električni aparati za čiščenje zraka - Metode za merjenje zmogljivosti - 1. del: Splošne zahteve

General Information

• Status: Published
• Publication Date: 17-Jun-2020
• ICS: 23.120 - Ventilators. Fans. Air-conditioners
• ICS: 97.030 - Domestic electrical appliances in general
• Technical Committee: FGA - Consumer information related to household electrical appliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 05-Jun-2020
• Due Date: 10-Aug-2020
• Completion Date: 18-Jun-2020
• Ref Project: EN IEC 63086-1:2020 - Household and similar electrical air cleaning appliances - Methods for measuring the performance - Part 1: General requirements

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 63086-1:2020
01-julij-2020
Gospodinjski in podobni električni aparati za čiščenje zraka - Metode za merjenje
zmogljivosti - 1. del: Splošne zahteve
Household and similar electrical air cleaning appliances - Methods for measuring the
performance - Part 1: General requirements
Elektrische Luftreiniger für den Hausgebrauch und ähnliche Zwecke – Messung der
Gebrauchseigenschaften - Teil 1: Allgemeine Anforderungen
Appareils d'épuration d'air électriques domestiques et appareils similaires - Méthodes de
mesure de l’aptitude à la fonction - Partie 1: exigences générales
Ta slovenski standard je istoveten z: EN IEC 63086-1:2020
ICS:
23.120 Zračniki. Vetrniki. Klimatske Ventilators. Fans. Air-
naprave conditioners
97.030 Električni aparati za dom na Domestic electrical
splošno appliances in general
SIST EN IEC 63086-1:2020 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 63086-1:2020

---------------------- Page: 2 ----------------------
SIST EN IEC 63086-1:2020


EUROPEAN STANDARD EN IEC 63086-1

NORME EUROPÉENNE

EUROPÄISCHE NORM
May 2020
ICS 23.120

English Version
Household and similar electrical air cleaning appliances -
Methods for measuring the performance - Part 1: General
requirements
(IEC 63086-1:2020)
Appareils d'épuration d'air électriques domestiques et Elektrische Luftreiniger für den Hausgebrauch und ähnliche
appareils similaires - Méthodes de mesure de l'aptitude à la Zwecke - Messung der Gebrauchseigenschaften - Teil 1:
fonction - Partie 1: exigences générales Allgemeine Anforderungen
(IEC 63086-1:2020) (IEC 63086-1:2020)
This European Standard was approved by CENELEC on 2020-05-14. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 63086-1:2020 E

---------------------- Page: 3 ----------------------
SIST EN IEC 63086-1:2020
EN IEC 63086-1:2020 (E)

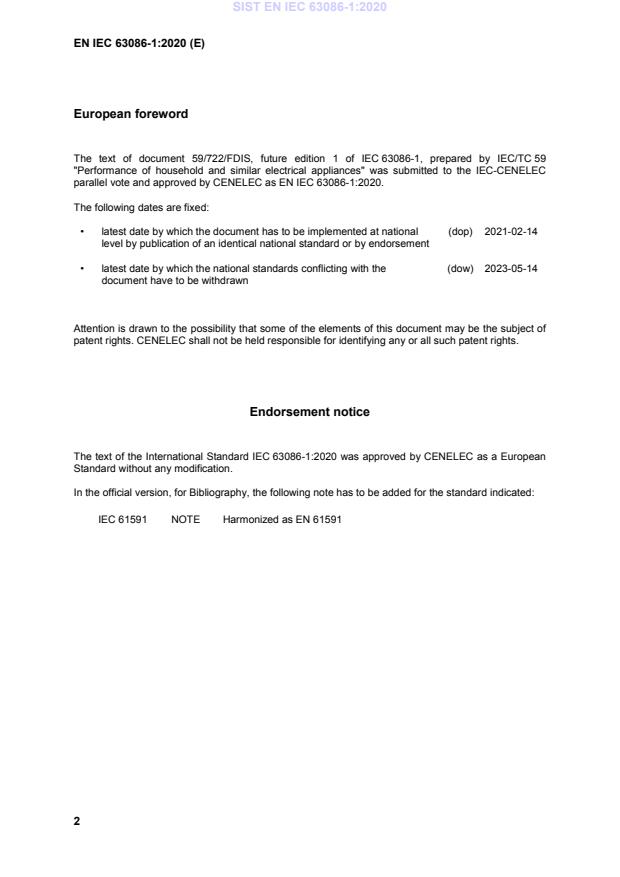

European foreword
The text of document 59/722/FDIS, future edition 1 of IEC 63086-1, prepared by IEC/TC 59
"Performance of household and similar electrical appliances" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN IEC 63086-1:2020.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021-02-14
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2023-05-14
document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 63086-1:2020 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 61591 NOTE Harmonized as EN 61591


2

---------------------- Page: 4 ----------------------
SIST EN IEC 63086-1:2020
EN IEC 63086-1:2020 (E)
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60704 series Household and similar electrical appliances EN 60704 series
- Test code for the determination of airborne
acoustical noise
IEC 62301 (mod) 2011 Household electrical appliances - EN 50564 2011
Measurement of standby power

3

---------------------- Page: 5 ----------------------
SIST EN IEC 63086-1:2020

---------------------- Page: 6 ----------------------
SIST EN IEC 63086-1:2020



IEC 63086-1

®


Edition 1.0 2020-04




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE











Household and similar electrical air cleaning appliances – Methods for

measuring the performance

Part 1: General requirements




Appareils d'épuration d'air électriques domestiques et appareils similaires –

Méthodes de mesure de l'aptitude à la fonction


Partie 1: Exigences générales













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 23.120 ISBN 978-2-8322-8115-4



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------
SIST EN IEC 63086-1:2020
– 2 – IEC 63086-1:2020  IEC 2020
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Classification . 8
4.1 Types of technologies used in air cleaners . 8
4.2 Areas of placement for air cleaners . 8
5 Conditions, instrumentation, and equipment for measurements . 8
5.1 Measurements and calculations . 8
5.2 General conditions . 9
5.2.1 Test chamber conditions . 9
5.2.2 DUT conditions . 9
5.3 Test voltage and frequency . 9
5.3.1 AC-powered DUT . 9
5.3.2 DC-powered DUT . 9
5.4 Sample plan . 9
5.5 Test instrumentation . 9
5.5.1 General . 9
5.5.2 Thermometer . 10
5.5.3 Hygrometer . 10
5.5.4 Timer . 10
5.5.5 Power supply . 10
5.5.6 CO detector . 10
2
5.6 Test chamber . 10
3
5.6.1 Structure of the 30 m test chamber . 10
5.6.2 Schematic of the test chamber . 11
5.7 Placement of the DUT . 13
5.7.1 General placement of the DUT . 13
5.7.2 Placement of a floor type air cleaner . 13
5.7.3 Placement of a table type air cleaner . 13
5.7.4 Placement of a wall type air cleaner . 13
5.7.5 Placement of a robotic air cleaner. 13
5.7.6 Placement of a direct plug-in type air cleaner . 13
5.7.7 Placement of an air cleaner not specified . 13
6 Determination of the air exchange rate of the test chamber . 13
6.1 Tracer gas . 13
6.2 Setting the sampling point . 13
6.3 Test chamber conditioning . 13
6.4 Tracer gas introduction . 14
6.5 Initial concentration . 14
6.6 Data sampling . 14
6.7 Decay of tracer gas . 14
6.8 Decay constant . 14
7 Measurement of noise . 14
8 Energy efficiency . 15
8.1 Energy efficiency in maximum performance operation mode . 15

---------------------- Page: 8 ----------------------
SIST EN IEC 63086-1:2020
IEC 63086-1:2020  IEC 2020 – 3 –
8.2 Standby power . 15
Annex A (informative) Determination of the test chamber mixing level . 16
Annex B (normative) Standardization of calculations . 17
B.1 Pollutant concentration . 17
B.2 Slope of decay line . 17
B.3 Clean air delivery rate (CADR) . 17
B.3.1 Tabulation and calculation . 17
B.3.2 Certification, verification or other formal reporting . 17
Annex C (normative) Test stand for wall and direct plug-in type air cleaners . 18
Bibliography . 19

3
Figure 1 – Schematic of the 30 m test chamber . 12
Figure C.1 – Construction requirements for test stand for wall and direct plug-in type
air cleaners . 18

3
Table 1 – 30 m test chamber . 11

---------------------- Page: 9 ----------------------
SIST EN IEC 63086-1:2020
– 4 – IEC 63086-1:2020  IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

HOUSEHOLD AND SIMILAR ELECTRICAL AIR CLEANING APPLIANCES –
METHODS FOR MEASURING THE PERFORMANCE

Part 1: General requirements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63086 has been prepared by IEC technical committee 59:
Performance of household and similar electrical appliances.
This first edition cancels and replaces IEC PAS 62587 published in 2008.
The text of this International Standard is based on the following documents:
FDIS Report on voting
59/722/FDIS 59/725/RVD

Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 10 ----------------------
SIST EN IEC 63086-1:2020
IEC 63086-1:2020  IEC 2020 – 5 –
In this standard, the following print types are used:
– terms defined in Clause 3: bold type.
A list of all parts in the IEC 63086 series, published under the general title Household and
similar electrical air cleaning appliances – Methods for measuring the performance can be found
on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEaC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 11 ----------------------
SIST EN IEC 63086-1:2020
– 6 – IEC 63086-1:2020  IEC 2020
HOUSEHOLD AND SIMILAR ELECTRICAL AIR CLEANING APPLIANCES –
METHODS FOR MEASURING THE PERFORMANCE

Part 1: General requirements



1 Scope
This part of IEC 63086 applies to electrically powered household and similar air cleaners
intended for use on rated single-phase AC input voltage circuits not exceeding 250 V and DC
input voltage circuits not exceeding 48 V.
NOTE 1 See Clause 4 for examples of different technologies and placements of household and similar air cleaners.
NOTE 2 If the test methods in this document are applied to combination products (air conditioners, humidifiers,
dehumidifiers, heaters, etc.) with air cleaning function, they are only aimed at their air cleaning function when tested.
NOTE 3 Battery-operated appliances are within the scope of this document. Dual-supply appliances, either mains-
supplied or battery-operated, are regarded as battery-operated appliances when operated in the battery mode.
NOTE 4 This document is not applicable to:
• appliances intended exclusively for industrial purposes;
• appliances intended for use in medical treatment locations, such as surgical suites, laboratories, medical
treatments rooms, etc.
• household range hoods or cooking fume extractors – see IEC 61591.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60704 (all parts), Household and similar electrical appliances – Test code for the
determination of airborne acoustical noise
...
